PRODUCT CODE:

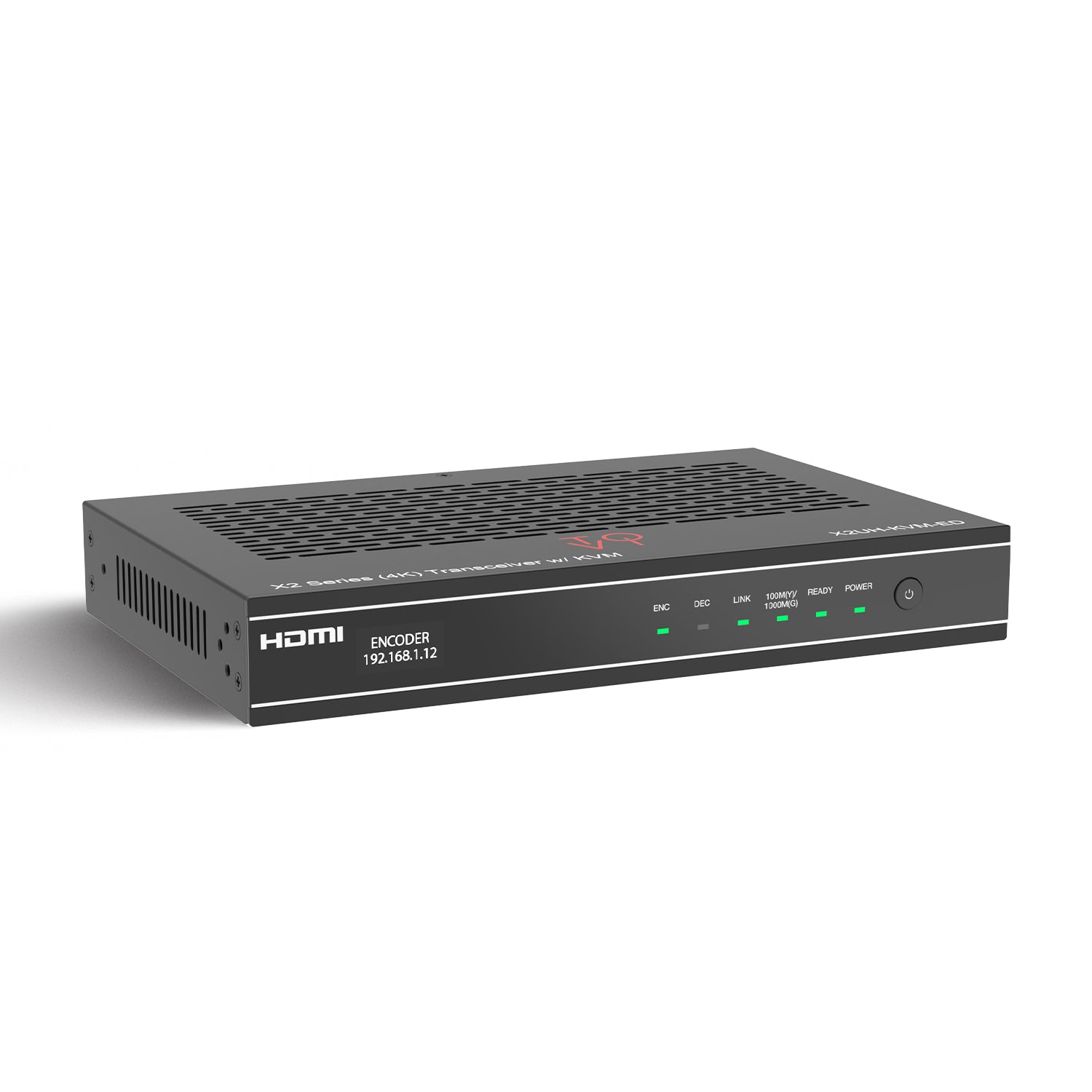

ToVi X2 4K Transceiver (Video Wall, KVM) - X2UH-KVM-ED

PRODUCT CODE:

ToVi X2 4K Transceiver (Video Wall, KVM) - X2UH-KVM-ED

~~$799.00~~ $449.00

In Stock: Usually Ships in 24 Hours

KVM Control Functionality
Video Resolutions up to 4K@60Hz
One-to-Many PC Control
100m Signal Extension

Quantity:

REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

ToVi X2 Series (4K) Transceiver w/ KVM

The X2UH-KVM-ED is a high-performance AV-over-IP solution for advanced video distribution, system control, and flexible display management. It supports HDMI 2.0b & HDCP 2.2 and delivers 4K@60Hz video with 18Gbps bandwidth, ensuring ultra-HD quality. With LPCM 2.0CH 48kHz audio, it also features audio routing with 6-pin phoenix analog input and output. The combined encoder/decoder design allows you to configure it as either a transmitter or receiver. It supports both Fiber optic and RJ45 for signal transmission up to 328ft/100m.

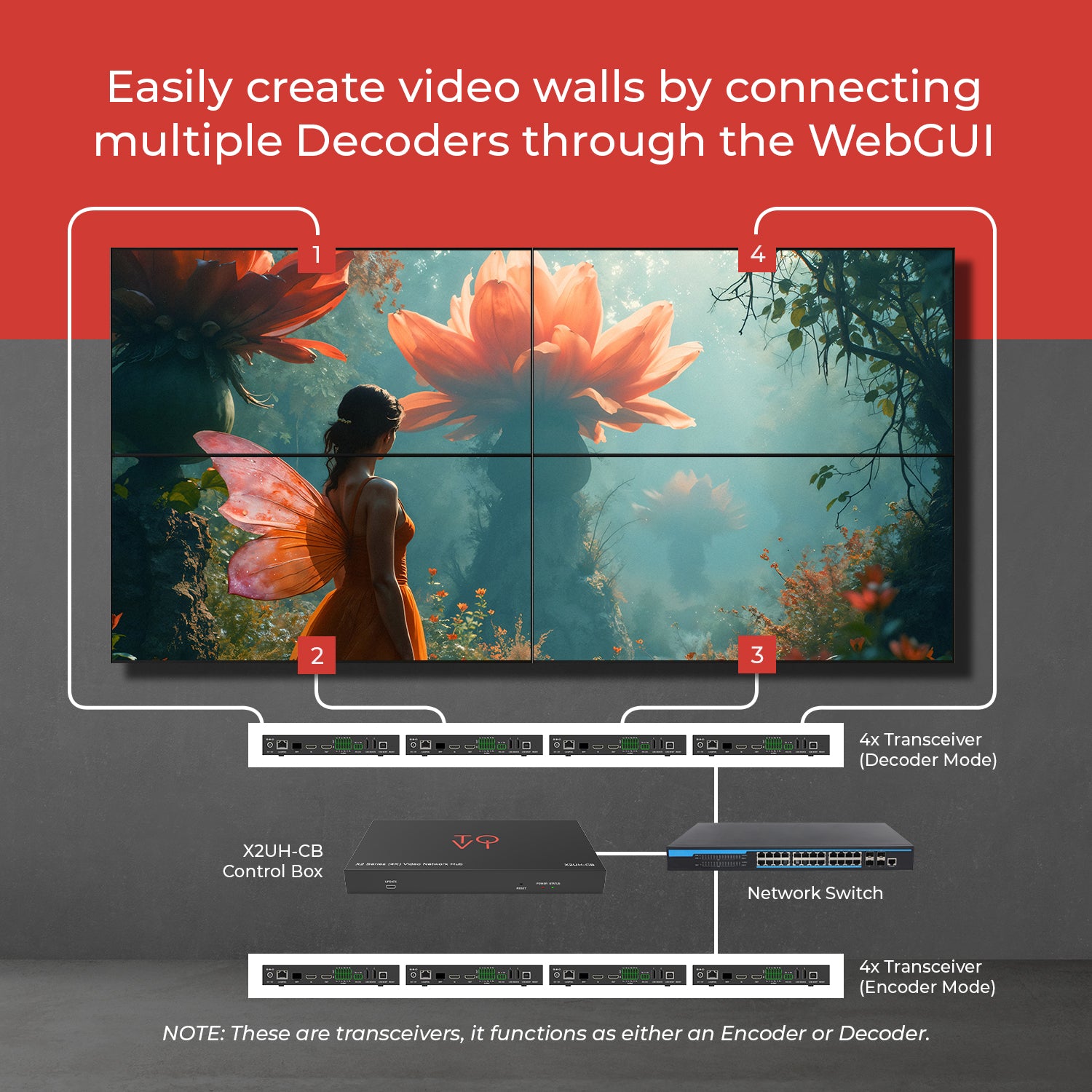

Each decoder handles up to 16 signals, allowing window roaming, splicing, overlay, and multi-window display—ideal for control rooms, command centers, and digital signage. The system features KVM seat management for one-to-one or one-to-many PC control.

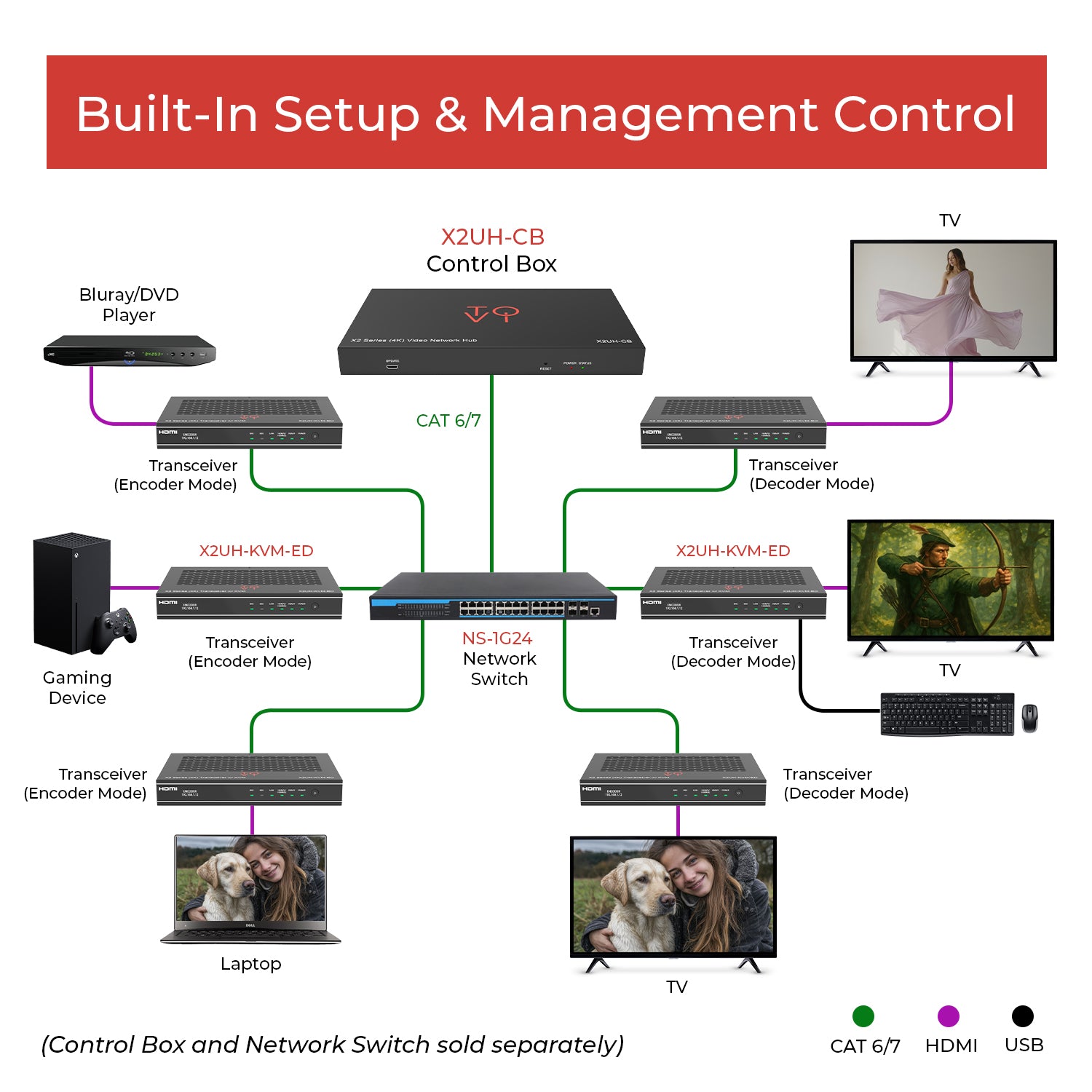

It supports H.264/H.265 protocols for seamless IPC and camera integration, with point-to-point extension, character overlay, scrolling text, and HD video/image backgrounds. Over a 1G network, it enables distribution, multicast, matrix switching, and video wall setups with centralized user rights management.

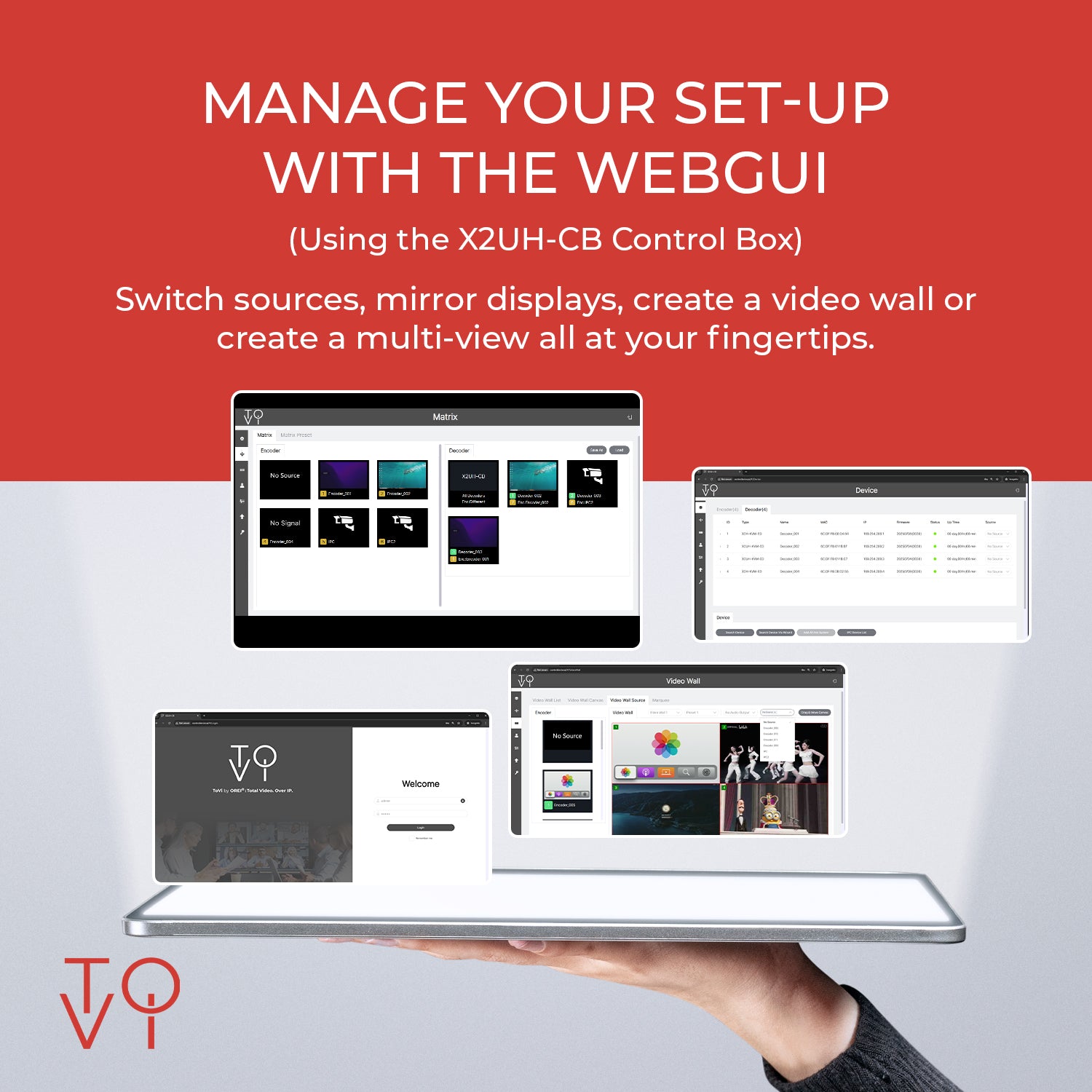

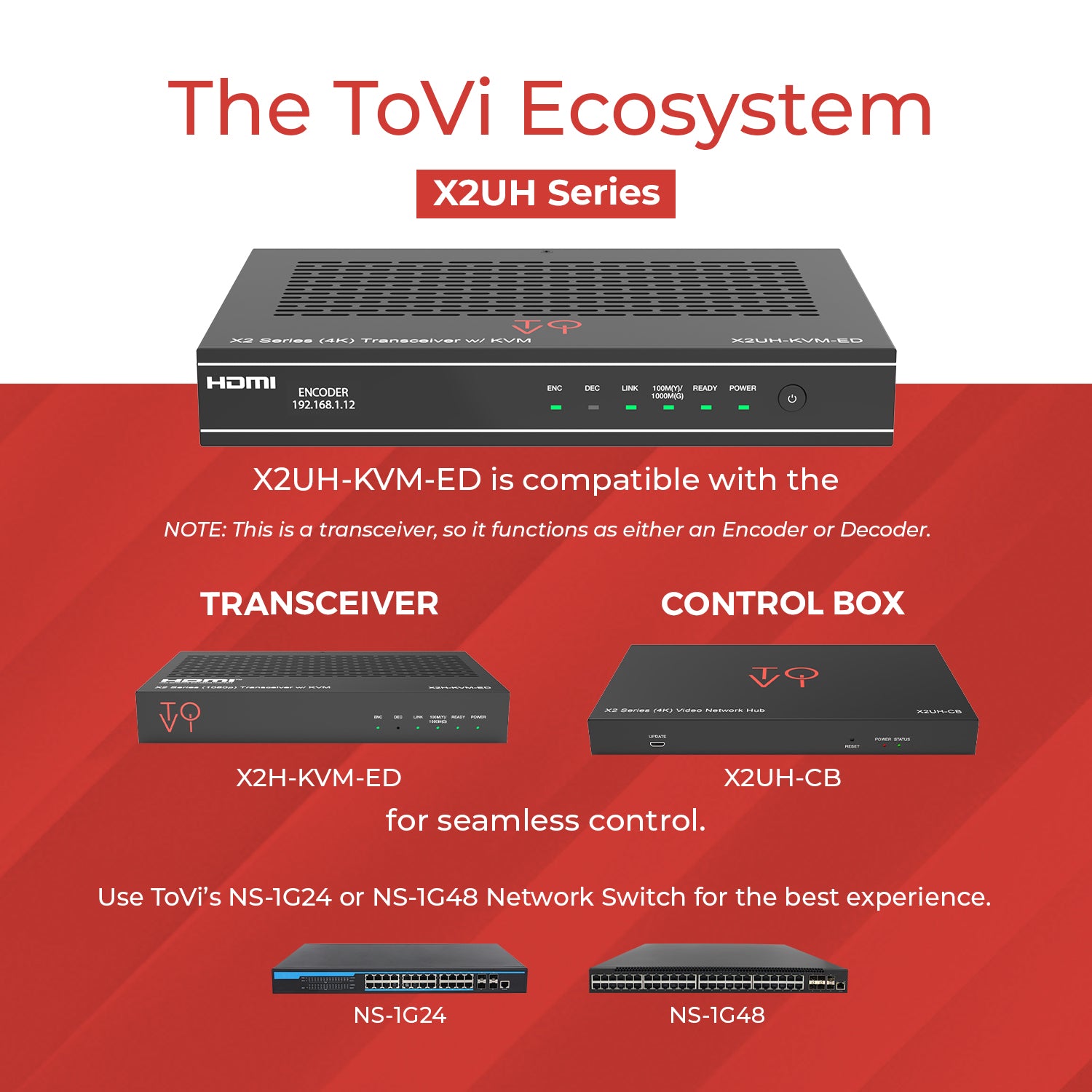

Control is flexible via KVM, mobile app, or control unit (X2UH-CB). Additional features include PoE, HDMI loop-out, and audio extraction, making the X2UH-KVM-ED a complete, scalable AV-over-IP solution.

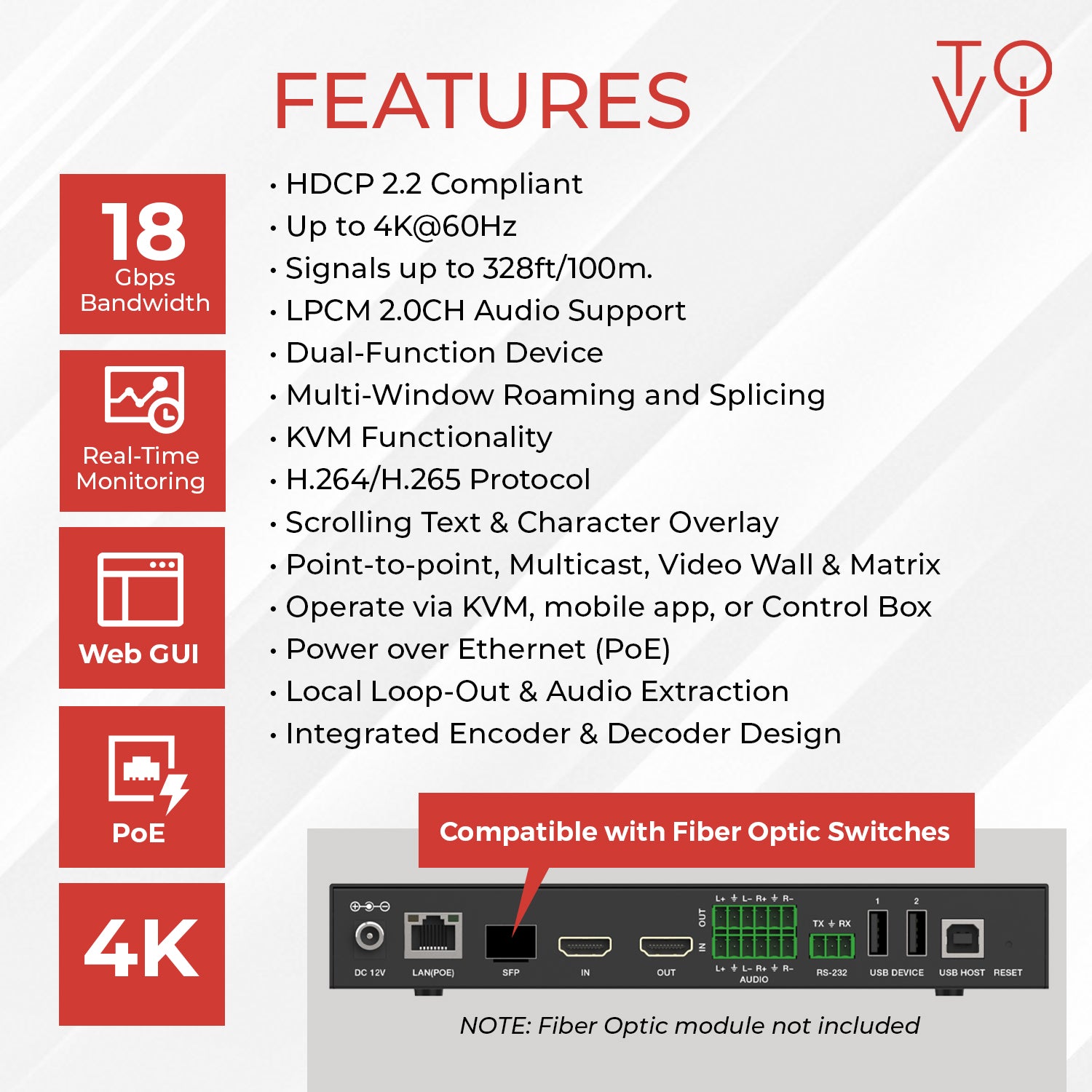

Key Features:

HDMI 2.0b & HDCP 2.2 Compliant – Ensures compatibility with protected UHD content.
Video Resolutions up to 4K@60Hz – Delivers crystal-clear visuals with 18Gbps bandwidth for uncompromised signal quality.
Long distance transmission – Transmit audio/video signals up to 328ft/100m.
LPCM 2.0CH Audio Support – Maintains high-fidelity sound at 48kHz sampling.

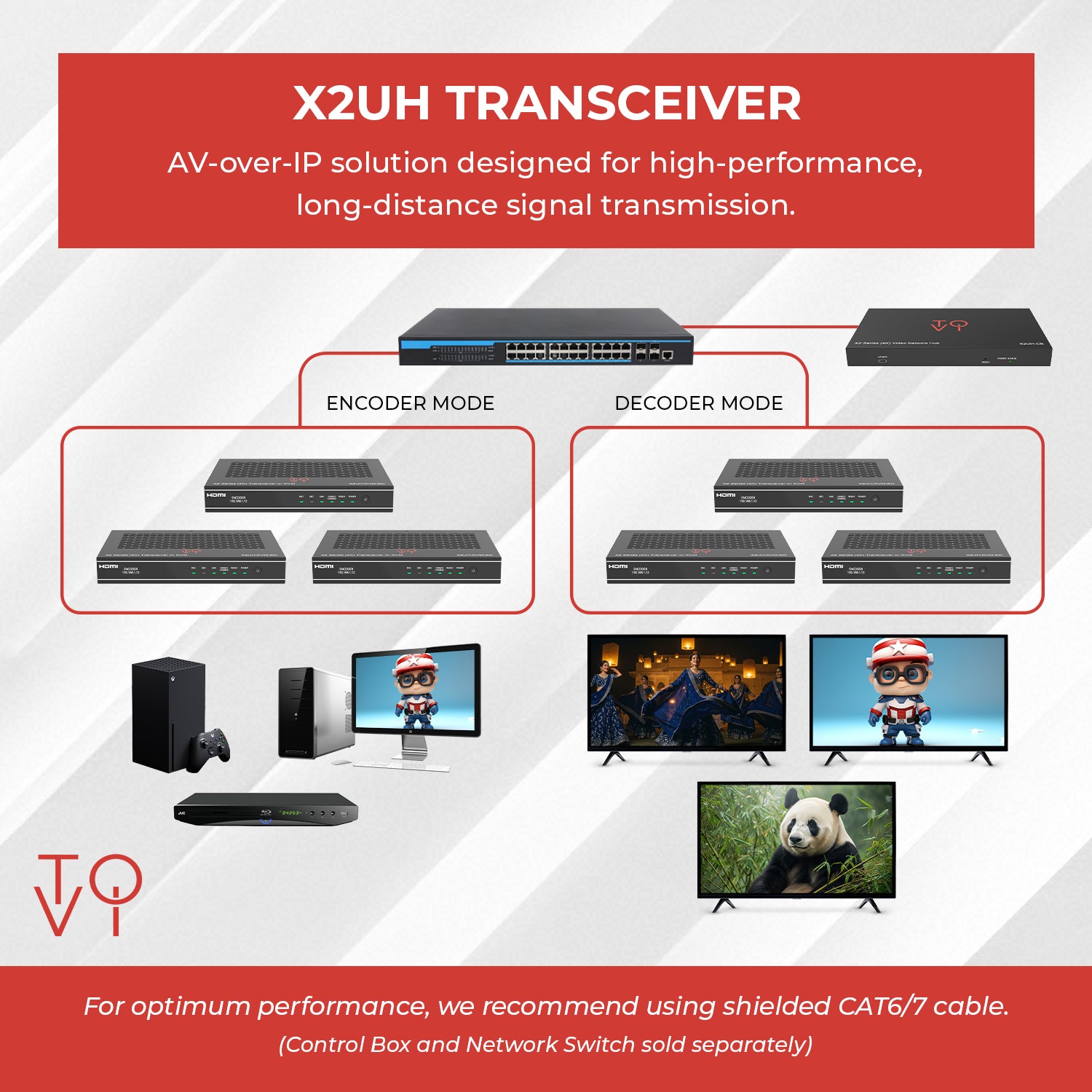

Dual-Function Device – Can be configured as either a transmitter or receiver, switchable based on application needs.
Multi-Window Roaming and Splicing – Each decoder supports up to 16 sources with dynamic window management and overlay.
KVM Functionality – Enables one-to-one or one-to-many PC control from a single user station.
H.264/H.265 Protocol Support – Seamless integration with IP cameras and surveillance systems.
Scrolling Text & Character Overlay – Supports on-screen alerts, labels, and dynamic content overlay.
Video Wall & Signal Routing Over 1G Network – Facilitates point-to-point extension, multicast, and matrix switching.
User Rights Management – Secure access control across all endpoints.
Flexible Control Options – Operate via KVM, mobile app, or supported control servers (X2UH-CB).
Standard PoE (802.3af Class 3) – Simplifies power delivery with no need for external adapters.
HDMI Local Loop-Out & Audio Extraction – Enhances system flexibility for local monitoring and audio routing.
Integrated Encoder & Decoder Design – Compatible with Fiber Optic and RJ45 for flexible transmission.

CONNECTIVITY
Transmitter: INPUT: 1 × HDMI [Type A, 19-pin female]
1 × L/R IN [3.5mm Stereo Mini-jack]
OUTPUT: 1 × HDMI [Type A, 19-pin female]
1 × HDBaseT [RJ45, 8-pin female]
1 × L/R OUT [3.5mm Stereo Mini-jack]
CONTROL: 1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3pin phoenix connector]
1 × USB HOST [USB Type B]
3 × USB Devices [USB Type A]
1 × ETHERNET [RJ45]
Receiver: INPUT: 1 × HDMI [Type A, 19-pin female]
1 × HDBaseT [RJ45, 8-pin female]
1 × L/R IN [3.5mm Stereo Mini-jack]
OUTPUT: 1 × HDMI [Type A, 19-pin female]
1 × L/R OUT [3.5mm Stereo Mini-jack]
CONTROL: 1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3pin phoenix connector]
1 × USB HOST [USB Type B]
3 × USB Devices [USB Type A]
1 × ETHERNET [RJ45]
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60HZ: 400 Feet
8K@30HZ: 295 Feet
VIDEO OUTPUT
Video Bandwidth: 18Gbps
Video Resolutions: Up to 4K@60Hz 4:4:4
(Note: The decoder supports custom resolution output.)
ADDITIONAL FEATURES
CEC: Yes
ARC: Yes
USB KVM: Yes
PoC/PoE: Yes
IR Control: Yes
Downmix: No
Downscale: No
Over IP: No
HDBaseT: Yes
RS-232: Yes
LOOP-OUT/LOCAL PORT
Has loop out port: Yes
Number of Loop out ports: 1
AUDIO SUPPORT
HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-HD Master Audio, DSD 3.5mm Analog Audio Formats: PCM 2CH
COMPLIANCES
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
POWER
Power Consumption: 20.4W (POC)
TX/RX full load: 9.36W/9.84W; TX/RX no-load: 2.46W/3.36W
Power Supply: Input: AC 100-240V 50/60Hz
Output: DC 24V/2.7A
DIMENSIONS & WEIGHT
Transmitter: Length: 200mm / 7.87in
Width: 100mm / 3.94in
Height: 30mm / 1.18in
Weight: 571g / 20.14oz
Receiver: Length: 200mm / 7.87in
Width: 100mm / 3.94in
Height: 30mm / 1.18in
Weight: 571g / 20.14oz
PROPERTIES
Color: Black
Housing: Metal Enclosure
