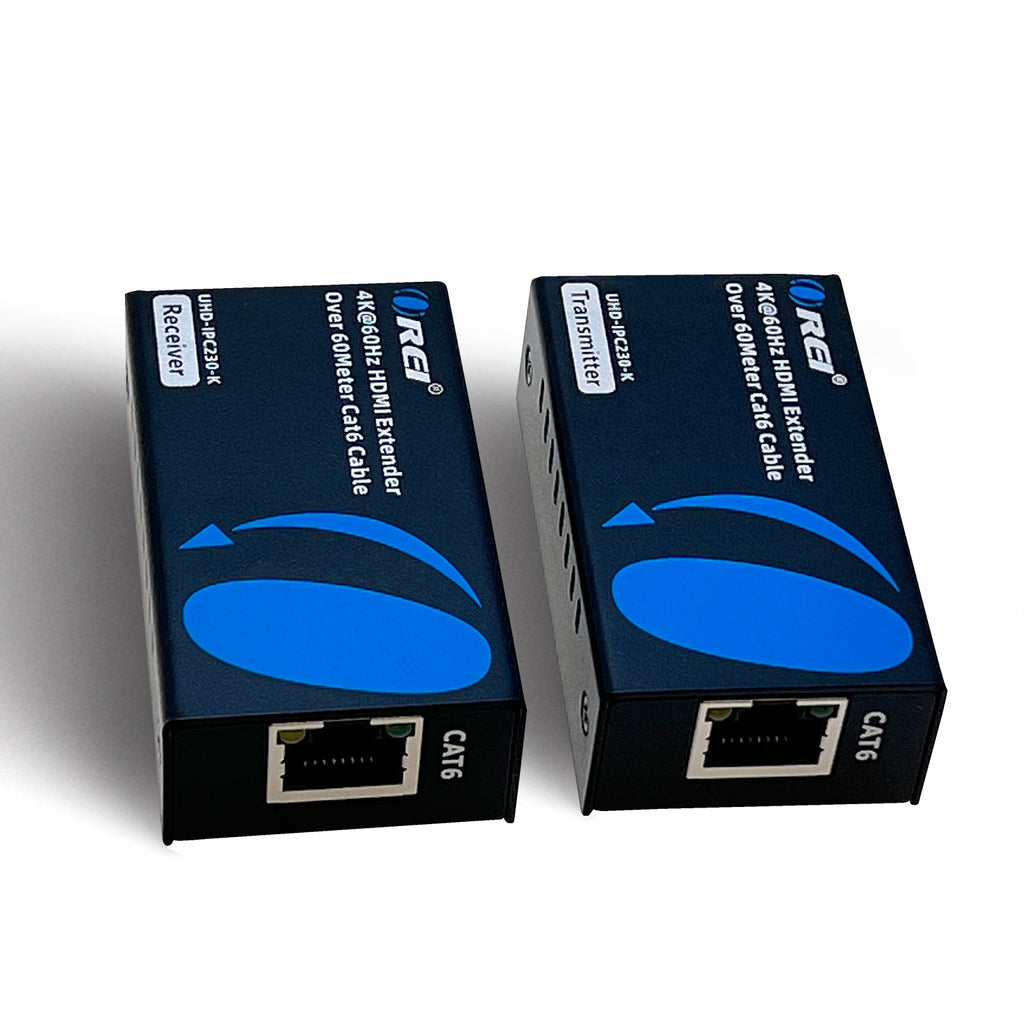

OREI 4K HDMI Extender Balun upto 230ft
This OREI HDMI extender balun allows you to transmit HDMI audio/video signals over CAT/6/7 cable with zero latency along with maintaining original audio/video quality. It supports up to 4K@60Hz YUV 4:4:4 resolution and extends the transmission distance up to 230 feet using high-quality CAT cables. OREI technology transmits uncompressed HDMI audio and video, RS-232 serial, and Bi-directional IR control signals up to 230 feet and supports up to 18 Gbps transmission. The OREI installation can control RS-232 signal devices such as scanners and touchscreen display at baud rates up to 115 kbps.
Compact, durable, and easy to set up and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks. You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa.
HDMI Loop-out - Connect HDMI display to the transmitter for output to local display at the source.
Bi-directional IR control - Enables source devices to recognize remote commands from the remote display or control the remote display from the source device.
RS-232 Control - Accepts control commands via the PC interface.
Analog Audio-out - 3.5mm audio output on receiver for PCM output when the audio stream is along from the source.
Key Features:
- Zero latency.
- 4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable.
- The receiver can extract the digital audio from the transmitter through the S/PDIF port.
- Supports Dolby audio(Dolby Oigital Plus/Dolby TrueHD/Dolby Digital)
- Supports HDR(YUV4:4:4), EDI D passback.
- Transmitter support one HDMI loop-out.
- Support bi-directional IR passback function (20 - 60KHz).

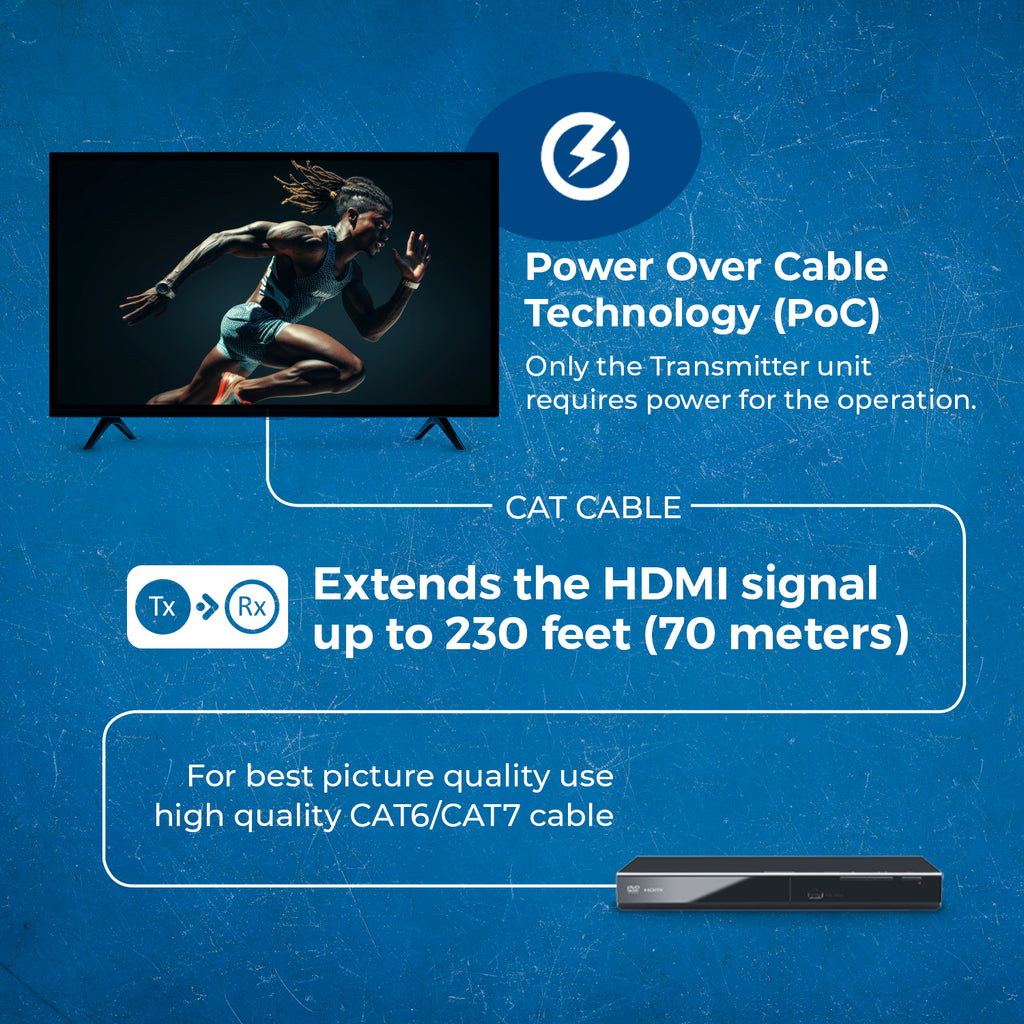

- One receiver can be powered by the transmitter via network cable.
- Lightning Protection, Surge Protection, ESD Protection.
OREI HDMI Extender Over CAT 6/7 with ARC
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 2.2
- HDMI Resolutions: 4096x2160@24/25/30Hz, 3840x2160@24/25/30/60Hz, 1080p@50/60Hz,1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz
- HDMI Audio Formats: LPCM, DTS-HD, DTS-Audio, Dolby Digital Plus, Dolby True HD, Dolby Digital
- Input and Output TMDS Signal: 0.7 ~ 1.2Vp-p(TMDS)
- Input and Output DDC Signal: 5Vp-p(TTL)
- Input Cable Length: ≤8m(AWG24)
- Output Cable Length: ≤8m(AWG24)
- Transmission Distance: ≤70m via CAT6/6A/7
- Protection Level: Electrostatic protection of the whole machine
- 1a Contact discharge level 3
- 1b Air discharge level 3 implementation of the standard: IEC610004-2
- Working Temperature: -20 ~ 60°C
- Storage Temperature: -30 ~ 70°C
- Humidity(no condensation): 0 ~ 90%RH
- Dimension: 106.0 mm (L) x 99.0 mm (W) x 26.2 mm (H)
- Material: Aluminum alloy material + crystal panel
- Treatment process: Grit Blast
- Weight:
- Transmitter: 210g
- Receiver: 210g
- Color: Black
- Power Consumption:
- Transmitter: <4W
- Receiver: <4W
- Power Supply: DC5V/2A
Includes:
- 1x HDMI Sender
- 1x HDMI Receiver
- 1x IR Blaster Cable
- 1x IR Receiver Cable
- 8x Mounting brackets
- 1x DC5V/2A Power Adapter
- 1x User Manual
Warranty:
- 1 year manufacturer's warranty
Request a Quote
OREI UHD-IPC230-K: 4K HDMI Extender Over CAT6/7 upto 230 ft with HDR, IR Control
