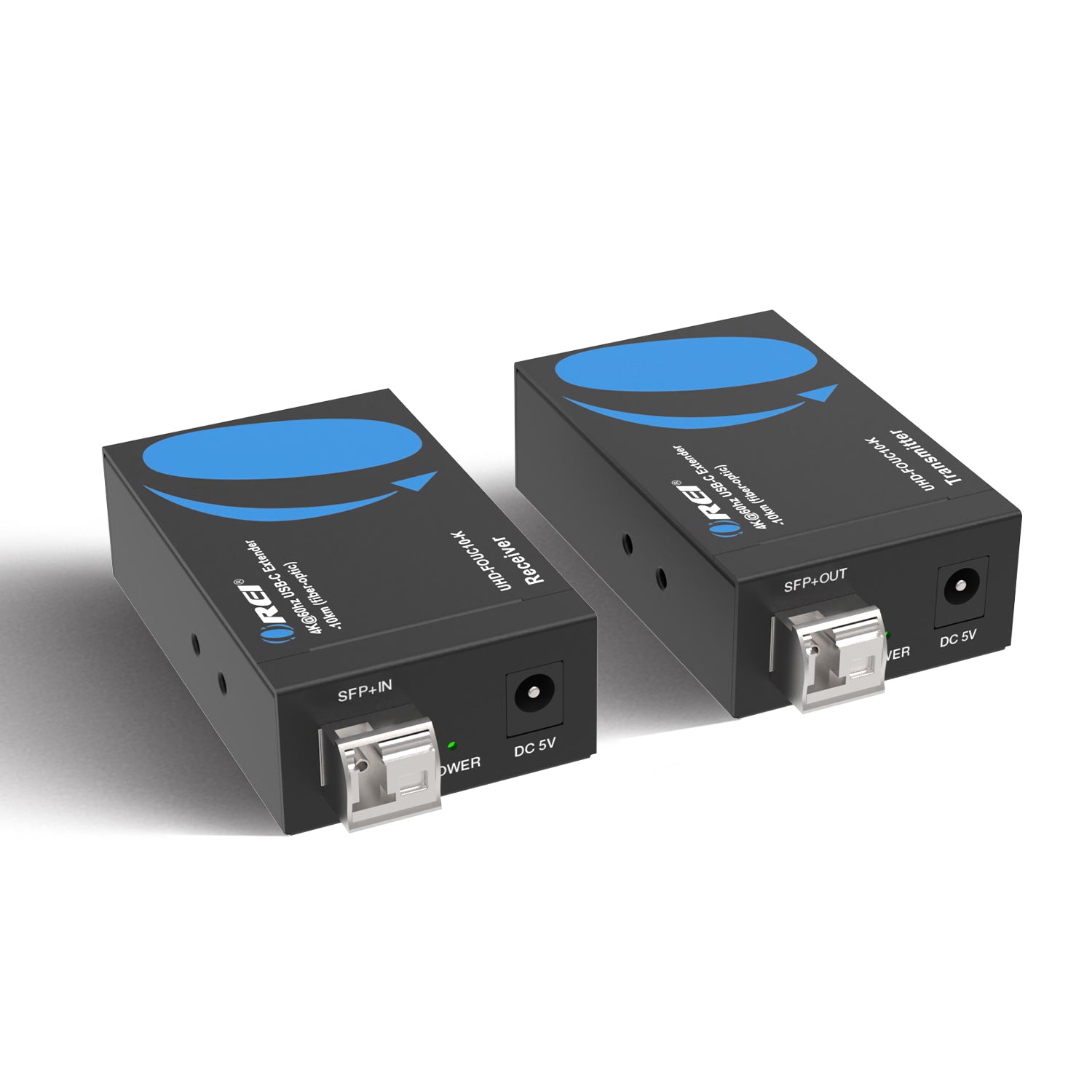

OREI UHD-FOUC10-K: 4K@60HZ USB-C EXTENDER-10KM (FIBER-OPTIC)
This fiber extender can extend video and audio signal up to 10km over a single-mode fiber cable. Video resolution up to 4K2K@50/60Hz RGB 4:4:4.
This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.
Key Features:
- USB-C DisplayPort Alt Mode & HDCP 2.2/2.3 Compliant – Ensures compatibility with USB Type-C video sources and content protection standards across all generations.
- Supports HBR3 (8.1Gbps/lane), Total 32.4Gbps Bandwidth – Delivers ultra-high-speed data transfer for smooth, high-quality AV transmission.
- Supports Resolutions up to 4K@60Hz 4:4:4 – Maintains uncompressed Ultra HD video with full-color depth and vivid clarity.
- HDR10, HDR10+, Dolby Vision & HLG Pass-Through – Preserves high dynamic range formats for lifelike color and contrast.
- VESA Standard Resolution Support – Fully compatible with all standard VESA video resolutions, including legacy modes.
- Full Audio Format Pass-Through – Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.

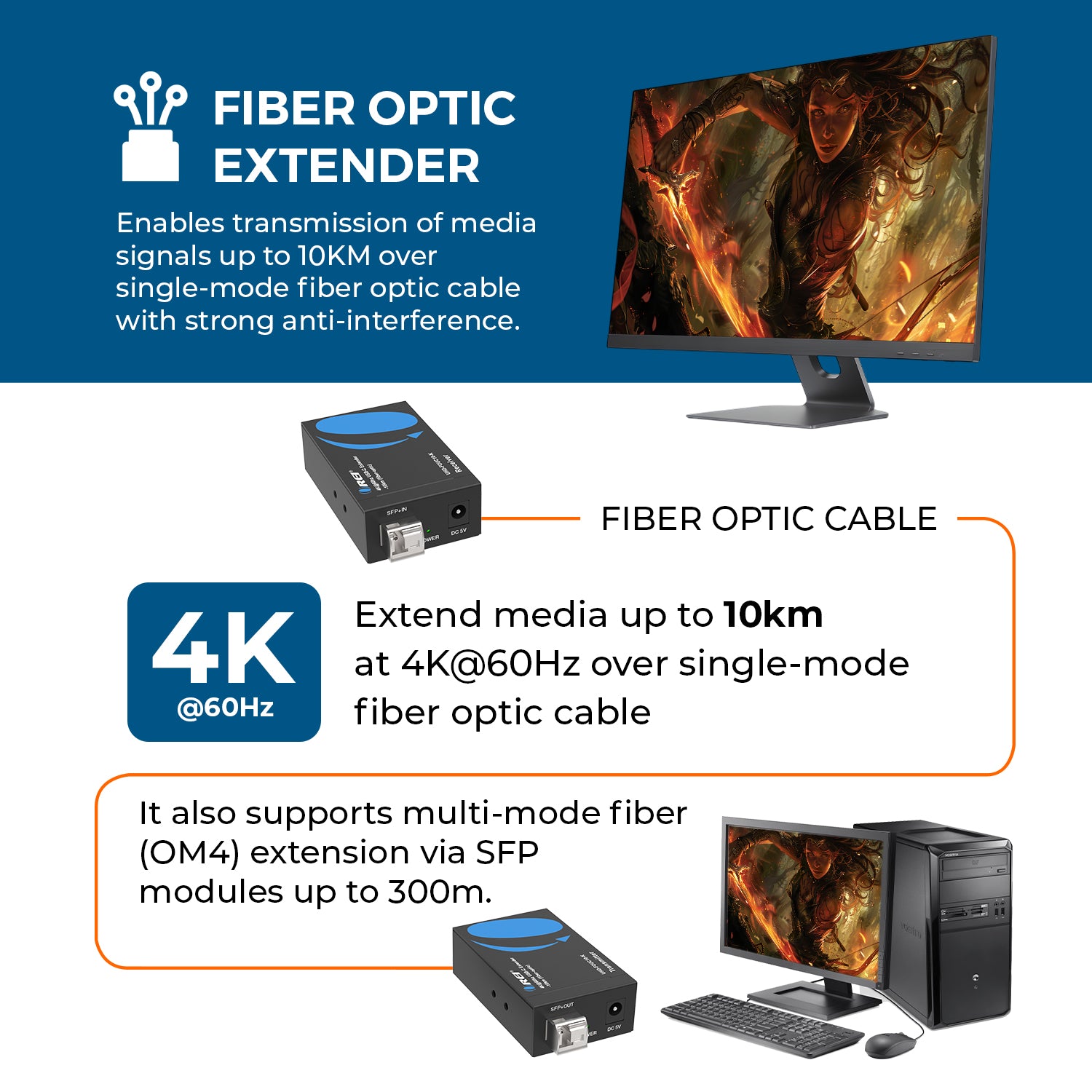

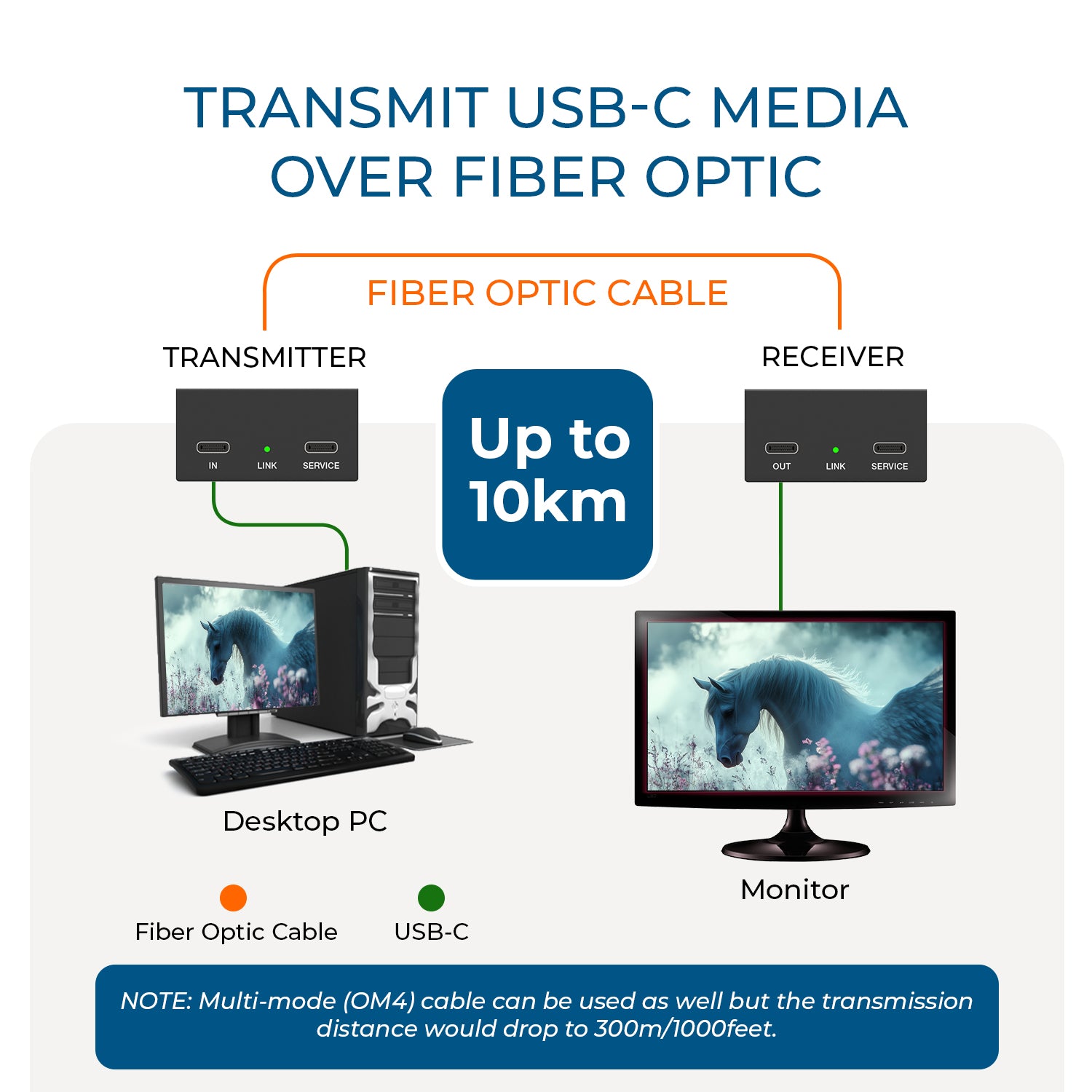

- Extends Signals up to 10km over Single-Mode Fiber – Enables ultra-long distance AV transmission using industry-standard fiber infrastructure.
- Supports Multi-Mode Fiber up to 300m via OM4 – Offers flexibility in fiber deployment with compatible SFP modules.

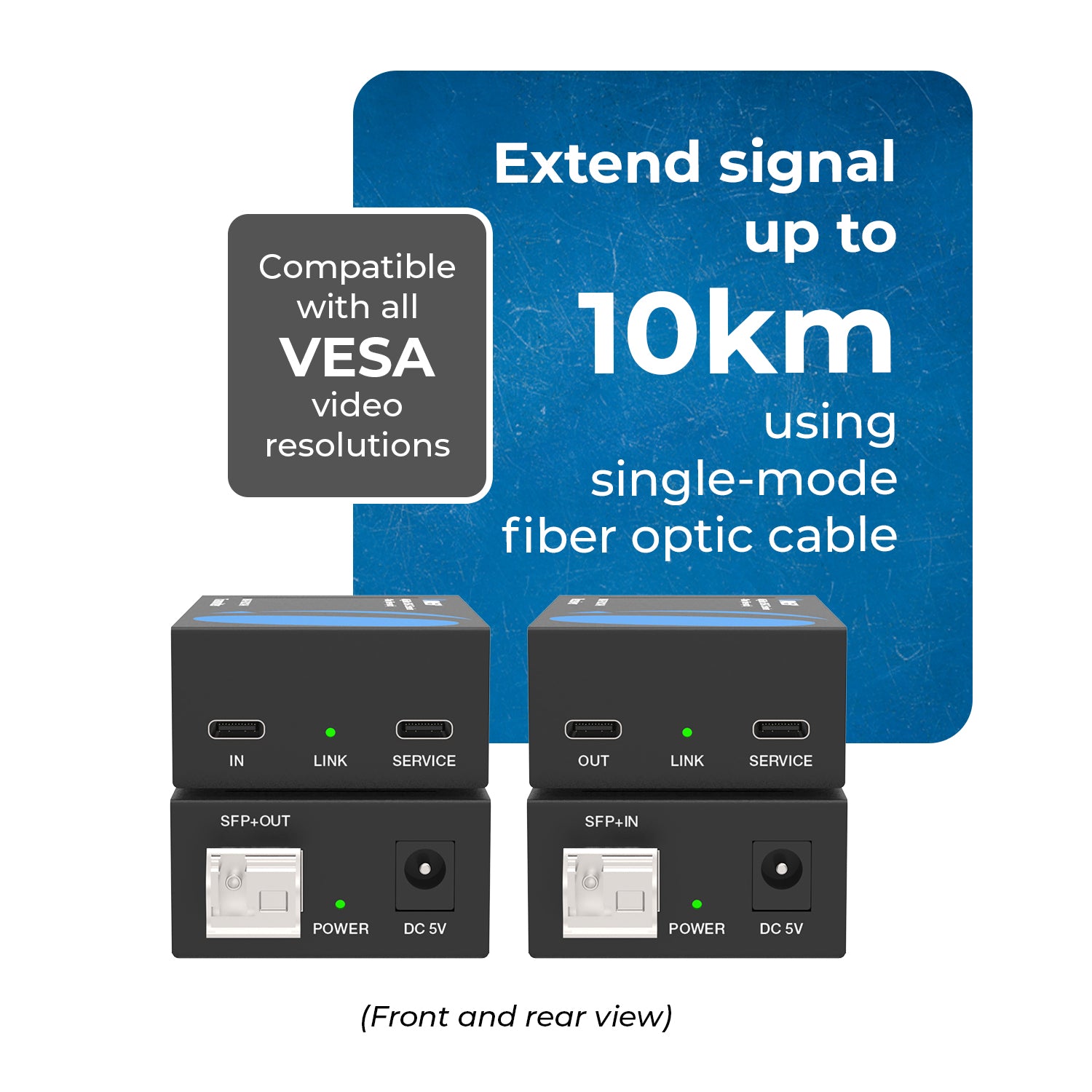

- CONNECTIVITY
- Transmitter: INPUT: 1x IN [USB-C, 24-pin female]
- 1x SERVICE [USB-C, update port]
- OUTPUT: 1x SFP+ OUT [LC female]
- Receiver: INPUT: 1x SFP+ IN [LC female]
- 1x SERVICE [USB-C, update port]
- OUTPUT: 1x DP OUT [DisplayPort signal input port]
- SUPPORTED CAT CABLES
- Single mode/Multiple mode Optical fiber: We recommend you use Single Mode Fiber Optic cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@60HZ: 10 Kilometres
- VIDEO OUTPUT
- Video Bandwidth: 32.4Gbps (8.1/5.4/2.7/1.62Gbps)
- Input & Output Video Resolution: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60 Any VESA resolution is supported.
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- USB-C: Yes
- LOOP-OUT/LOCAL PORT
- Has loop out port: No
- Number of Loop out ports: 0
- AUDIO SUPPORT
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- HDR: HDR10, HDR10+, Dolby Vision, HLG
- COMPLIANCES
- USB-C Compliance: USB Type-C 1.1 DisplayPort ALT Mode
- HDCP Compliance HDCP 2.3/2.2/1.x
- POWER
- Power Consumption: Transmitter: 2.75W (Max), Receiver: 2.5W (Max)
- Power Supply: Input: AC 100 - 240V 50/60Hz
- Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

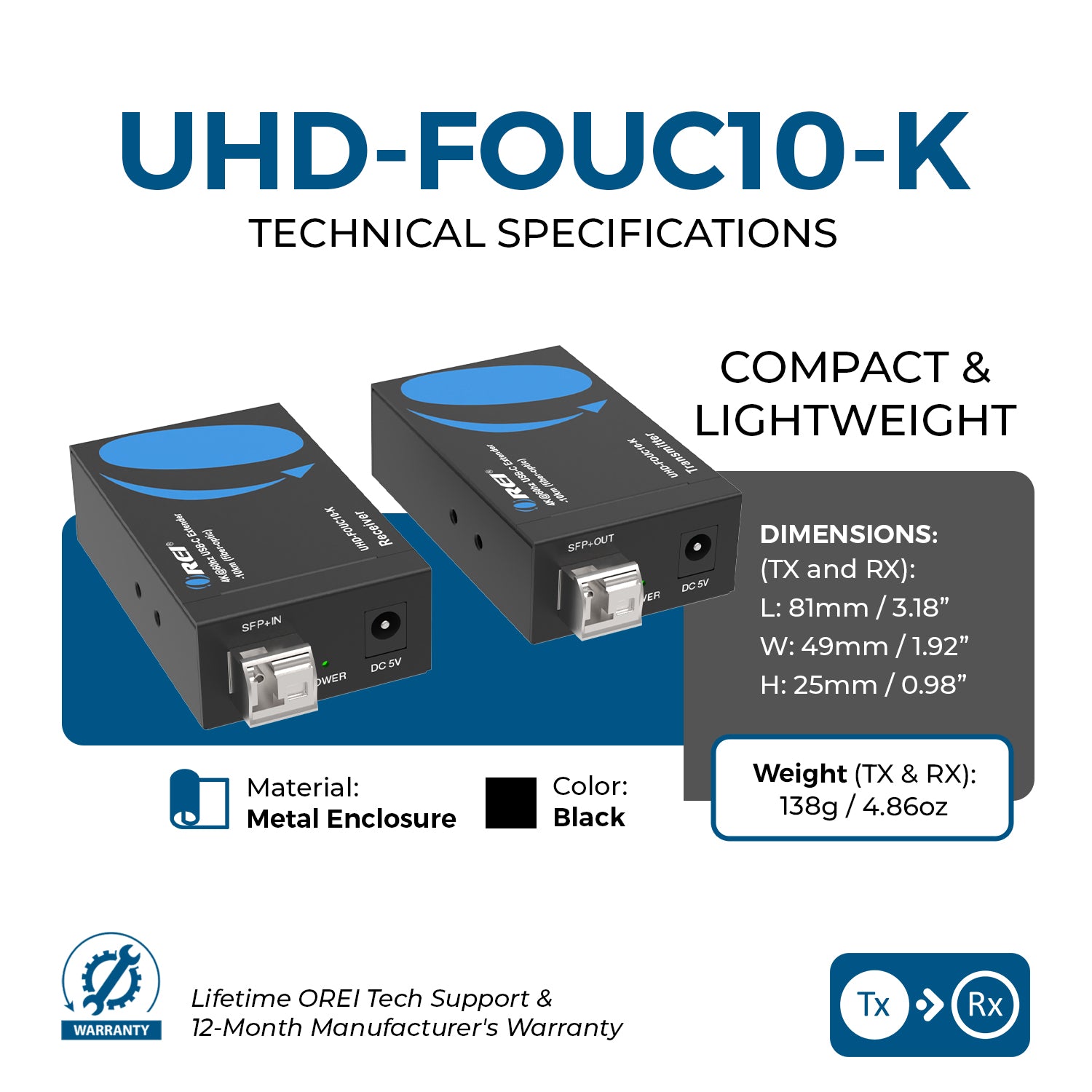

- DIMENSIONS & WEIGHT
- Transmitter: Length: 49mm / 1.9in
- Width: 81mm / 3.2in
- Height: 25mm / 0.98in
- Weight: 138g / 0.30lb
- Receiver: Length: 49mm / 1.9in
- Width: 81mm / 3.2in
- Height: 25mm / 0.98in
- Weight: 138g / 0.30lb
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operating Temperature: 32~104°F / 0~40°C
- Storage Temperature: -4~140°F / -20~60°C
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing

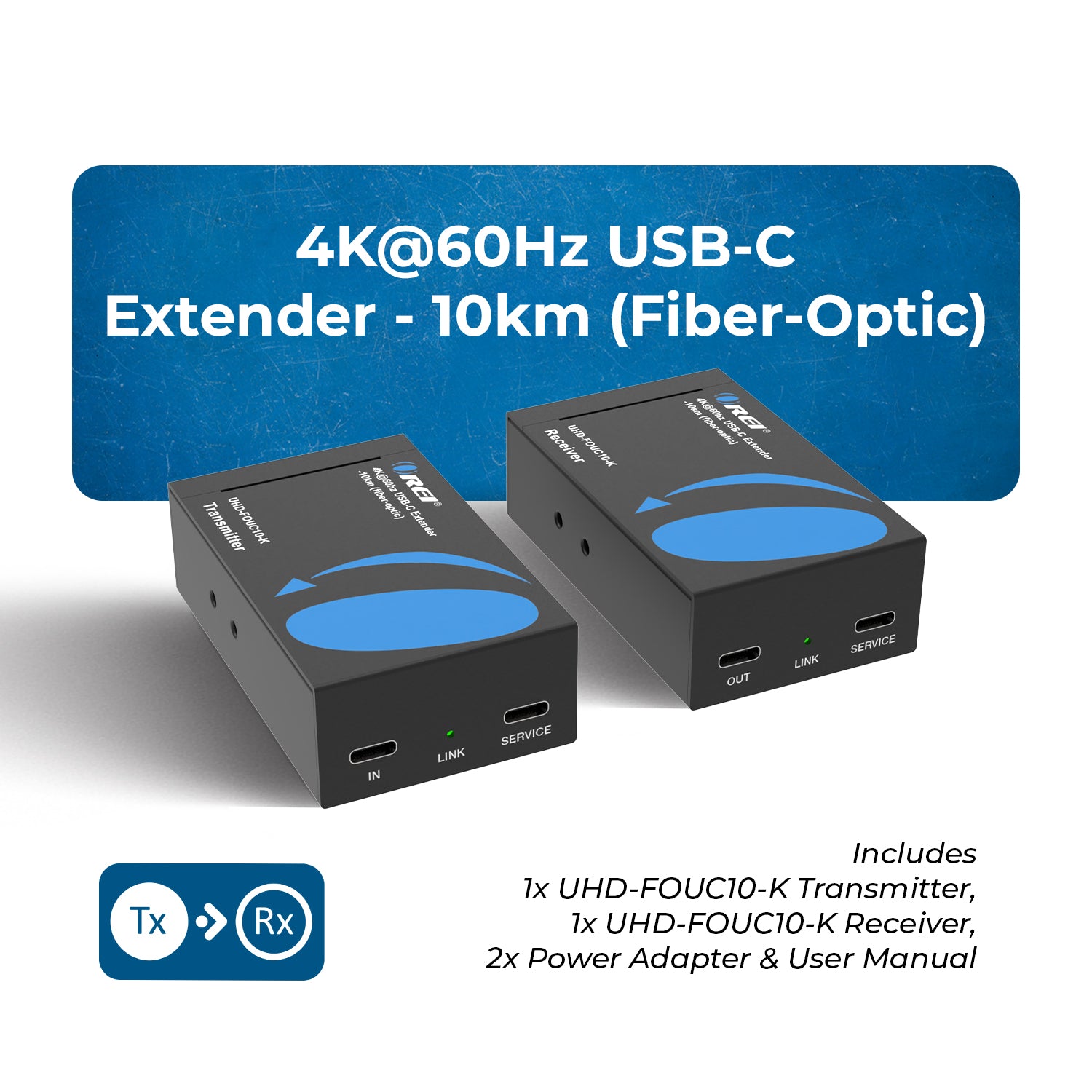

Includes:
- 1x UHD-FOUC10-K (Transmitter)
- 1x UHD-FOUC10-K (Receiver)
- 2x Power Adapter
- User Manual
Warranty:
- 1-Year Manufacturer's Warranty
