Professional AV-over-IP Encoder for 4K Streaming, Distribution & Control

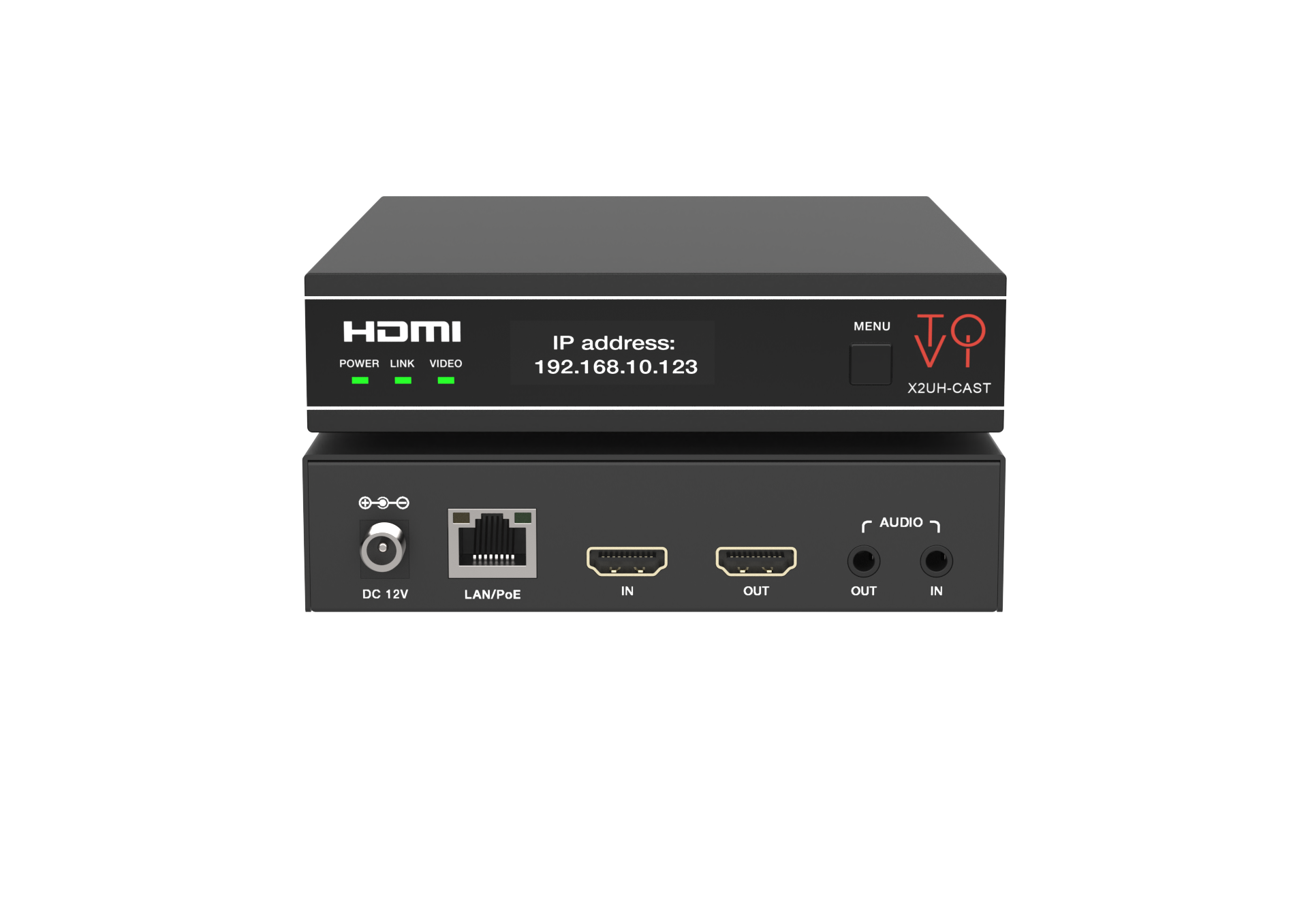

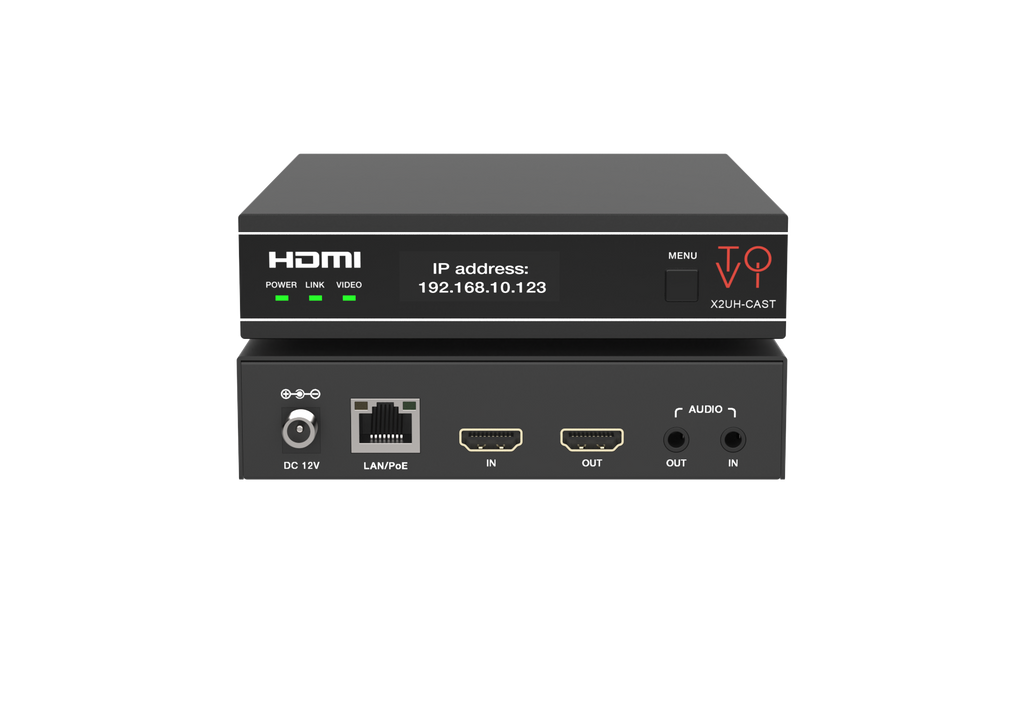

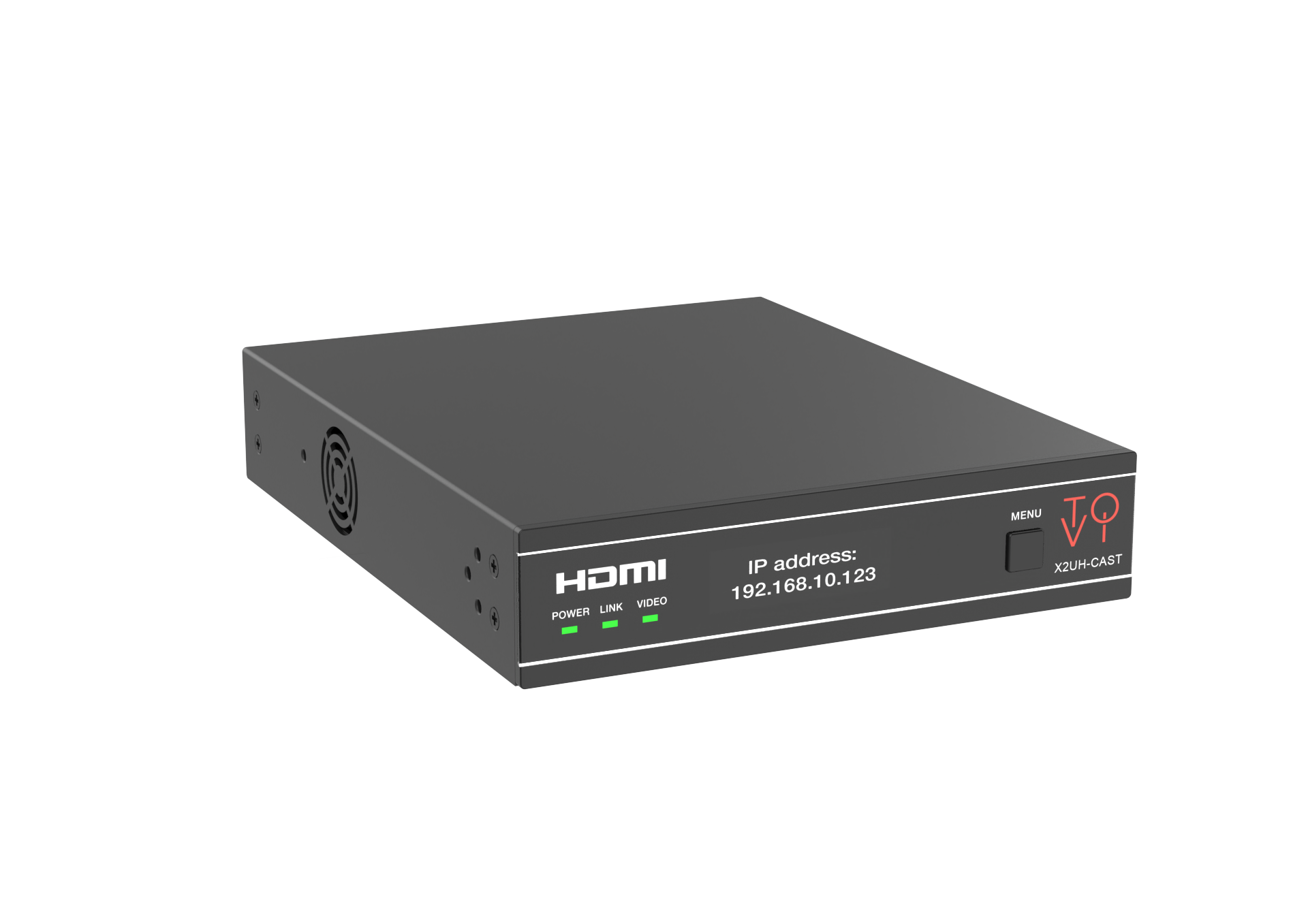

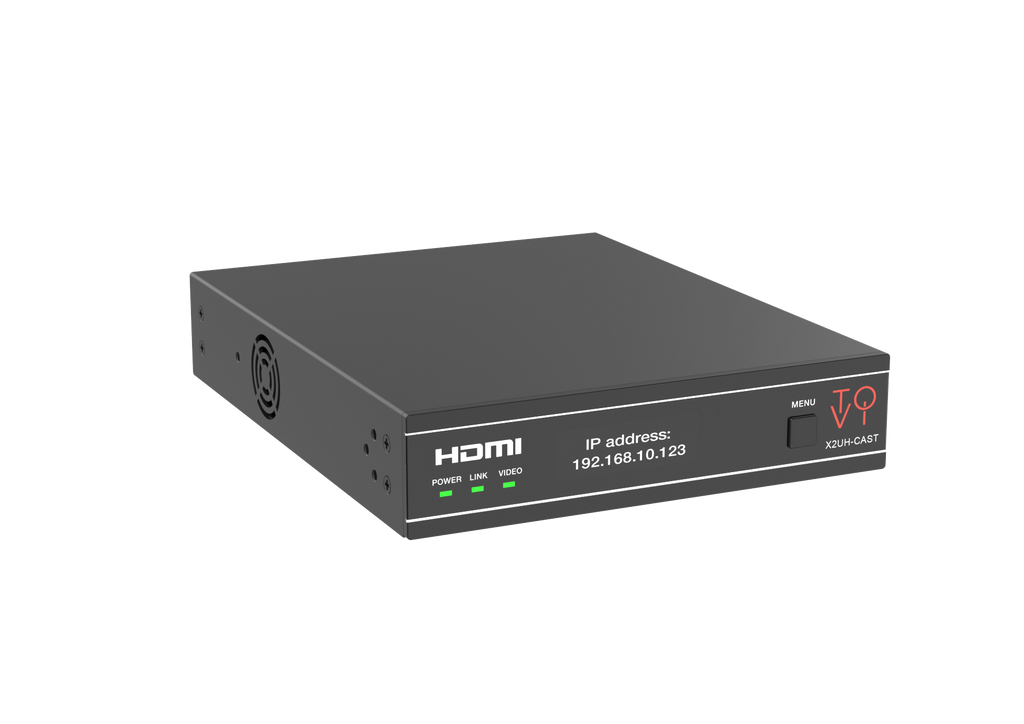

X2UH-CAST is a high-performance AV-over-IP encoder designed for professional AV distribution. Based on H.265/H.264 compression technology, it enables visually lossless 4K@60Hz (4:4:4) video transmission over a 100M/1G Ethernet network. Supporting three simultaneous streams (4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P@50Hz JPEG), it ensures maximum flexibility for streaming, preview, and monitoring applications
With HDMI™ loop-out, analog audio embedding/extracting, and full compatibility with streaming standards like RTSP, RTP, TS, RTMP/RTMPS, this AV Streamer is a versatile solution for broadcasting, control rooms, and AV-over-IP installations. Its Web GUI offers intuitive setup and management, while advanced API controls allow seamless integration with third-party control systems. Compact and 1U/6U V2 rack-compatible, it supports PoE (802.3af), features an OLED display, and includes advanced functions like device discovery, unicast/multicast streaming, EDID configuration, and security with 802.1X protocol.
Key Features:
- 4K@60Hz Ultra HD Encoding – Supports H.264/H.265 HEVC with up to 18Gbps video bandwidth (HDMI™ 2.0b).
- Triple Stream Output – 4K@60Hz H.264/H.265 + 1080P@30 H.264 + 720P@5 JPEG.
- Streaming Protocols – RTSP/UDP, RTSP/TCP, RTP/UDP, TS/UDP, RTMP/RTMPS.
- Flexible Streaming – Supports unicast, multicast, audio-only stream, and audio delay settings.
- Audio Support – LPCM 2CH (48kHz), analog audio embedding & extraction.
- Signal Extension & Distribution – HDMI™ loop-out, image preview, point-to-point, and one-to-many distribution.
- Advanced Control – Web GUI (HTTP/HTTPS), API via TELNET/SSH/TCP socket, stream control (play/pause/stop).
- Network & Power – 100M/1G Ethernet port with PoE (802.3af) support.
- Management & Security – Device Discovery “SHOW ME” function, EDID configuration, 802.1X protocol.
- Installation Ready – Compatible with 1U/6U V2 rack installation

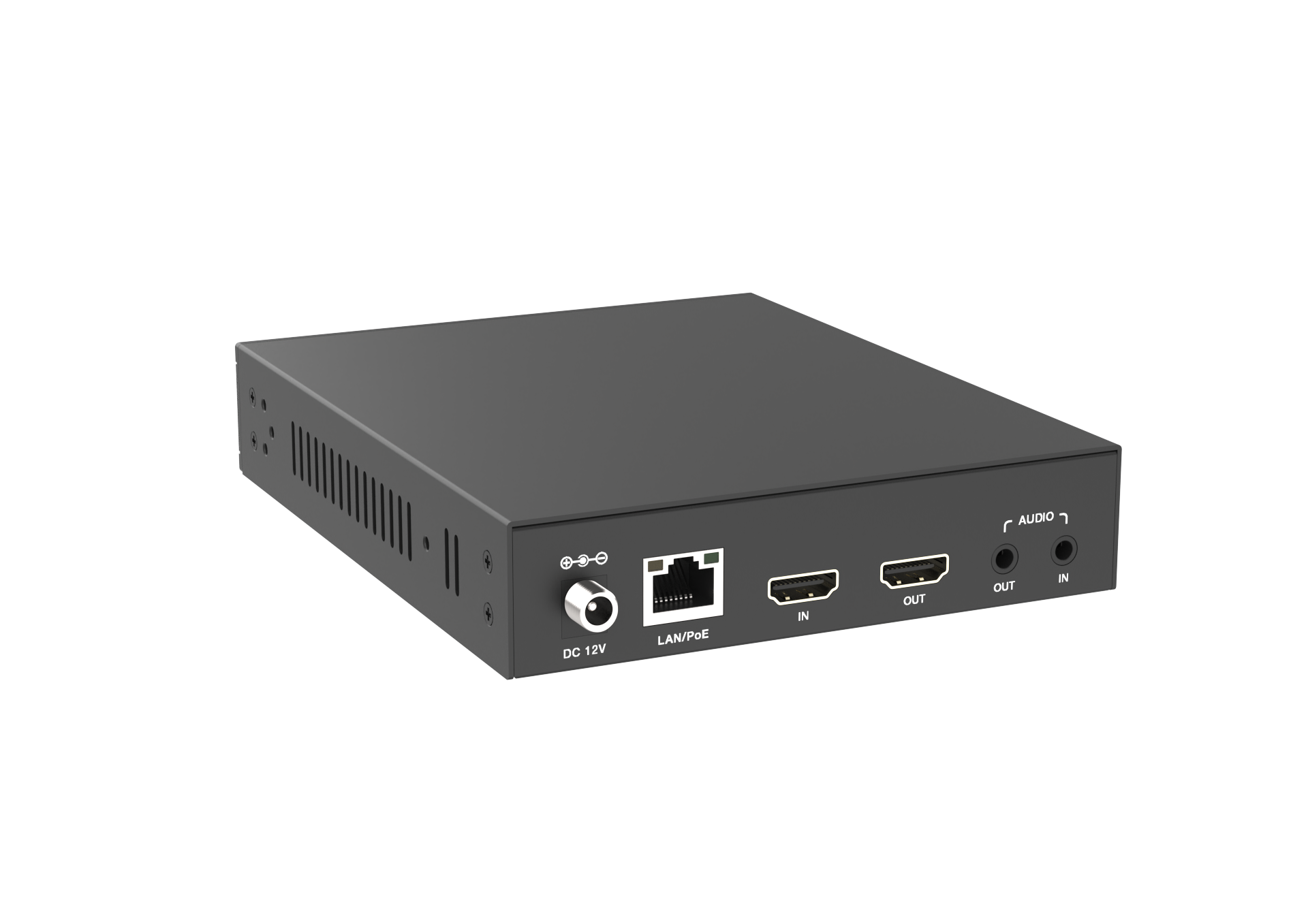

- CONNECTIVITY
- Input Ports: 1× HDMI™ [Type A, 19-pin female]
- 1× 3.5mm [Stereo audio jack]
- Output Ports: 1× HDMI™ [Type A, 19-pin female]
- 1× 3.5mm [Stereo audio jack]
- Network Port: 1× LAN/PoE [RJ45 jack, supports PoE 802.3af power supply]
- EXTENDING DISTANCE
- HDMI™: 16ft / 5m
- Over CAT6/6A/7: 328ft / 100m
- VIDEO OUTPUT
- Video Bandwidth: 18Gbps
- Input Video Resolution: Up to 4K@60Hz (4:4:4)
- Output Video Res
- olution: Push stream resolution: Same as input, 3840×2160, 1920×1080, 1280×720, 640×480 Push stream frame rate: 5~60Hz
- Color Space: HDMI™ input: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Push stream encoding: 4:2:0
- Color Depth: HDMI™ input: 8/10/12bit
- Push stream output: 8bit
- HDR: Not supported
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: Yes
- HDBaseT: No
- RS-232: No
- AUDIO SUPPORT
- Audio Formats: LPCM 2CH 48kHz
- Audio Latency: < 60ms COMPLIANCES HDMI™ Compliance: HDMI™ 2.0b
- POWER
- Power Consumption: 7.2W
- Power Supply: Input: AC 100–240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
- DIMENSIONS & WEIGHT
- Length: 130mm / 5.12in
- Width: 160mm / 6.30in
- Height: 30mm / 1.18in
- Weight: 659g / 1.45lbs
- PROPERTIES
- Color: Black
- Housing: Aluminum + Iron Network
- Video Bandwidth: 1G
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact
- discharge)
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)
Includes:
- 1× X2UH-CAST
- 2× Mounting Ears
- 4× Machine Screws
- 1× Power Adapter
- 1× User Manual
Warranty:
- 1 Year Warranty
