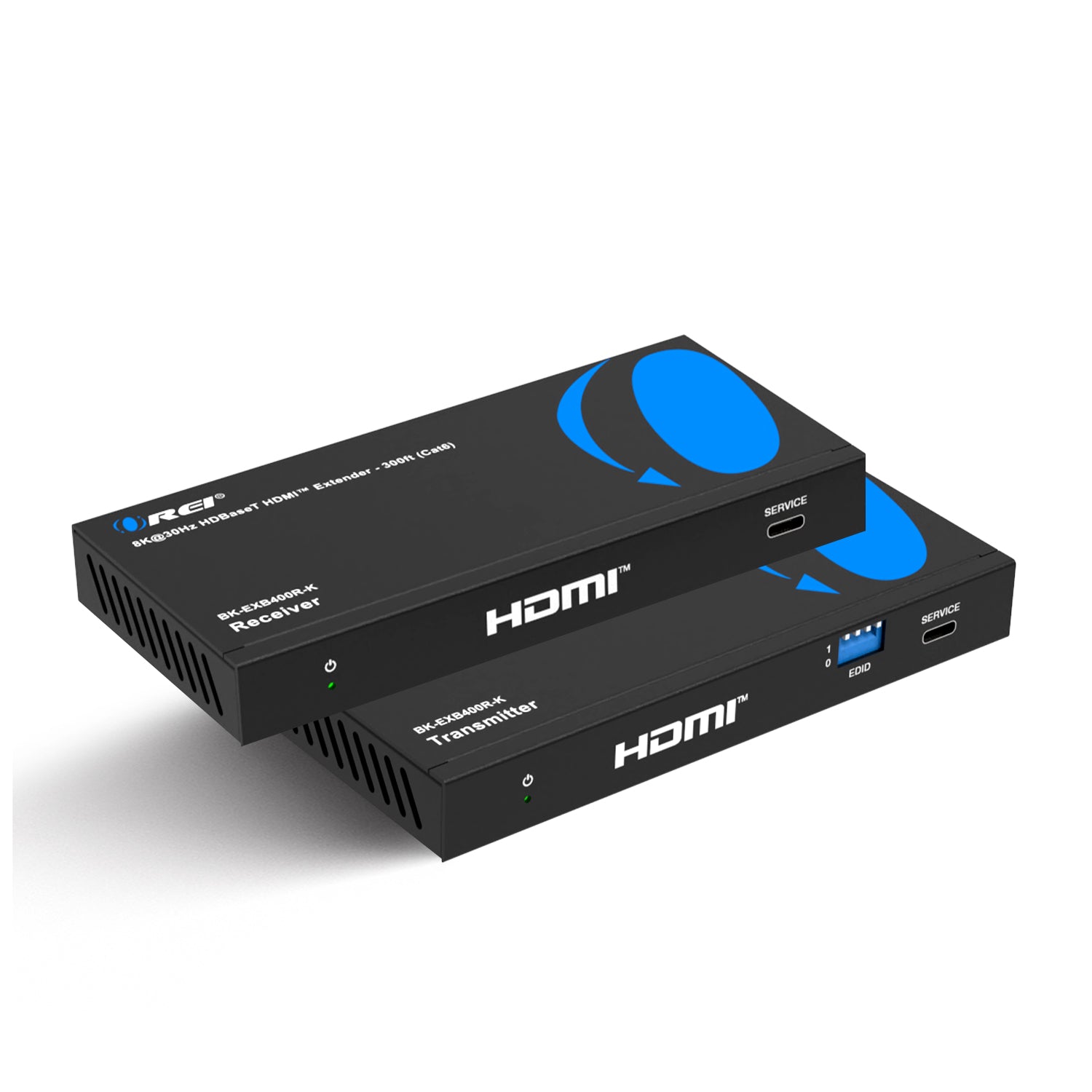

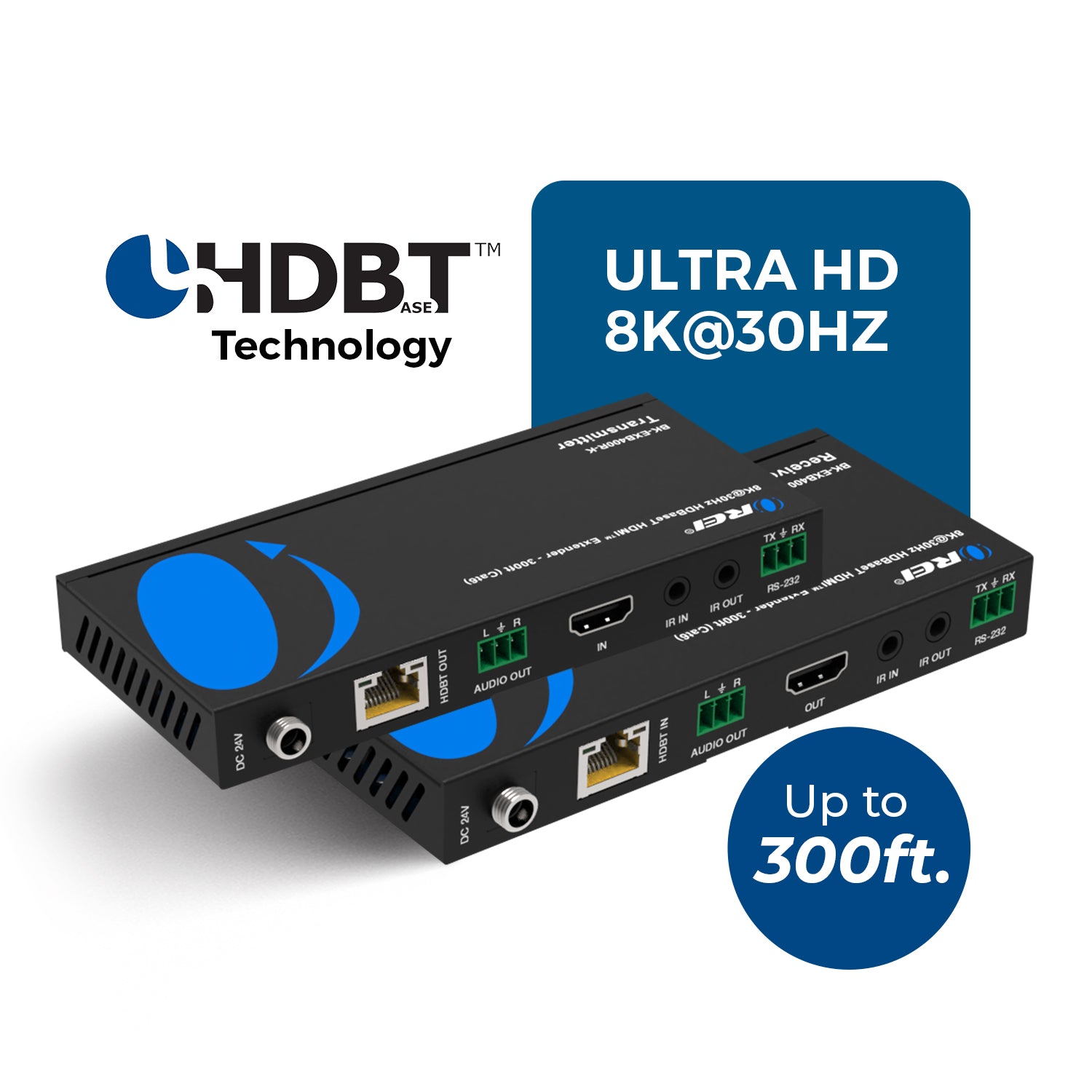

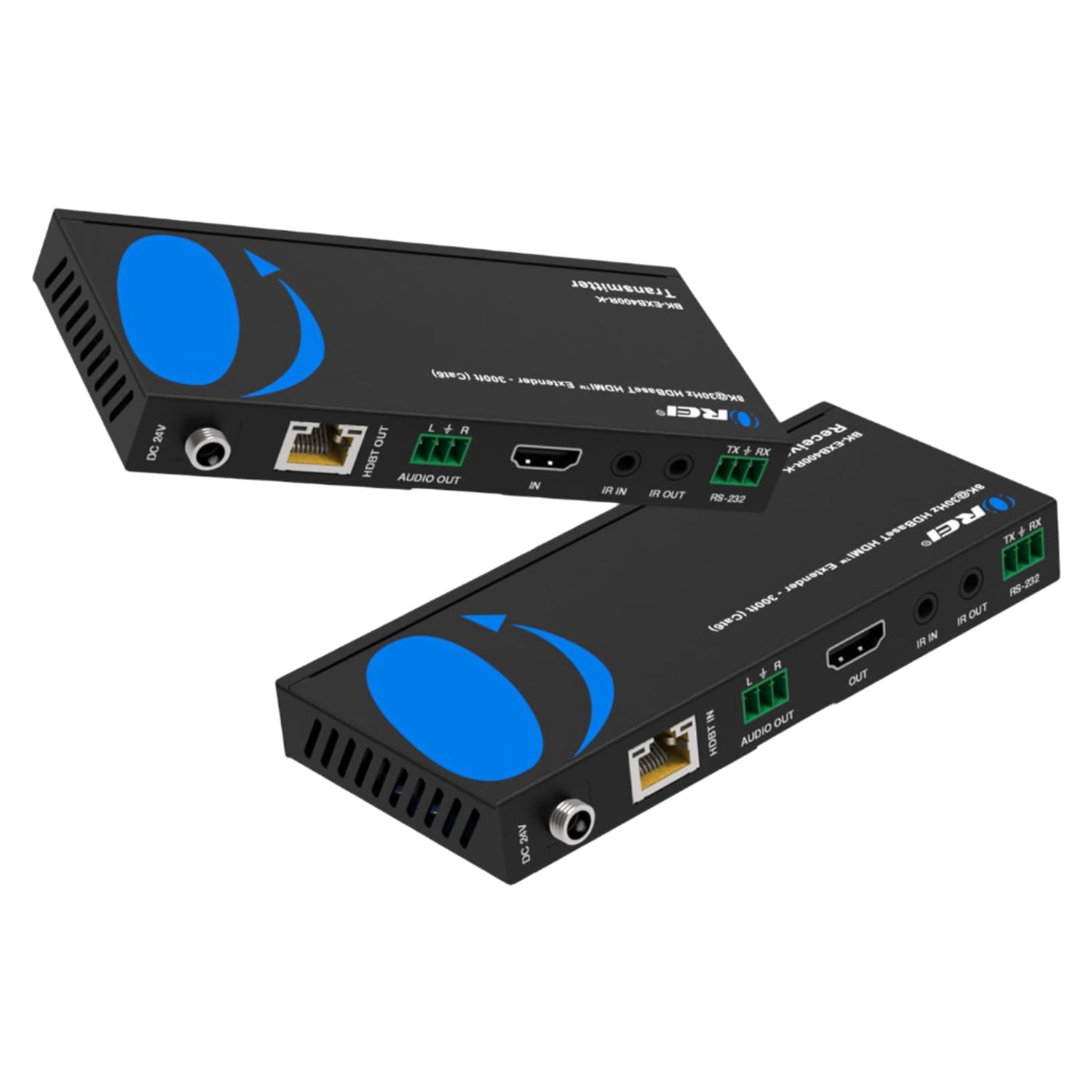

OREI BK-EXB400R-K: 8K@30HZ HDBASET HDMI™ EXTENDER - 300FT (CAT6)
The BK-EXB400R-K HDMI HDBaseT extender offers a reliable solution to extend media signals over long distances. It supports video resolutions up to 8K@30Hz, 4K@120Hz, and 1080p@60Hz with video bandwidth of 40Gbps FRL and 18Gbps TMDS. Featuring HDBaseT technology, it achieves transmission distances of 90m (295ft) at 8K@30Hz and 4K@120Hz, 120m (395ft) at 4K@60Hz, and 150m (492ft) at 1080p@60Hz. It also supports HDR10+, Dolby Vision, and HLG pass-through. Compatible with LPCM 2.0/5.1/7.1, Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and Dolby Digital Plus audio formats. Analog audio extraction is available at both ends. Features RS-232, CEC, and bi-directional IR control. Its compact design enables flexible installation in residential and commercial environments.

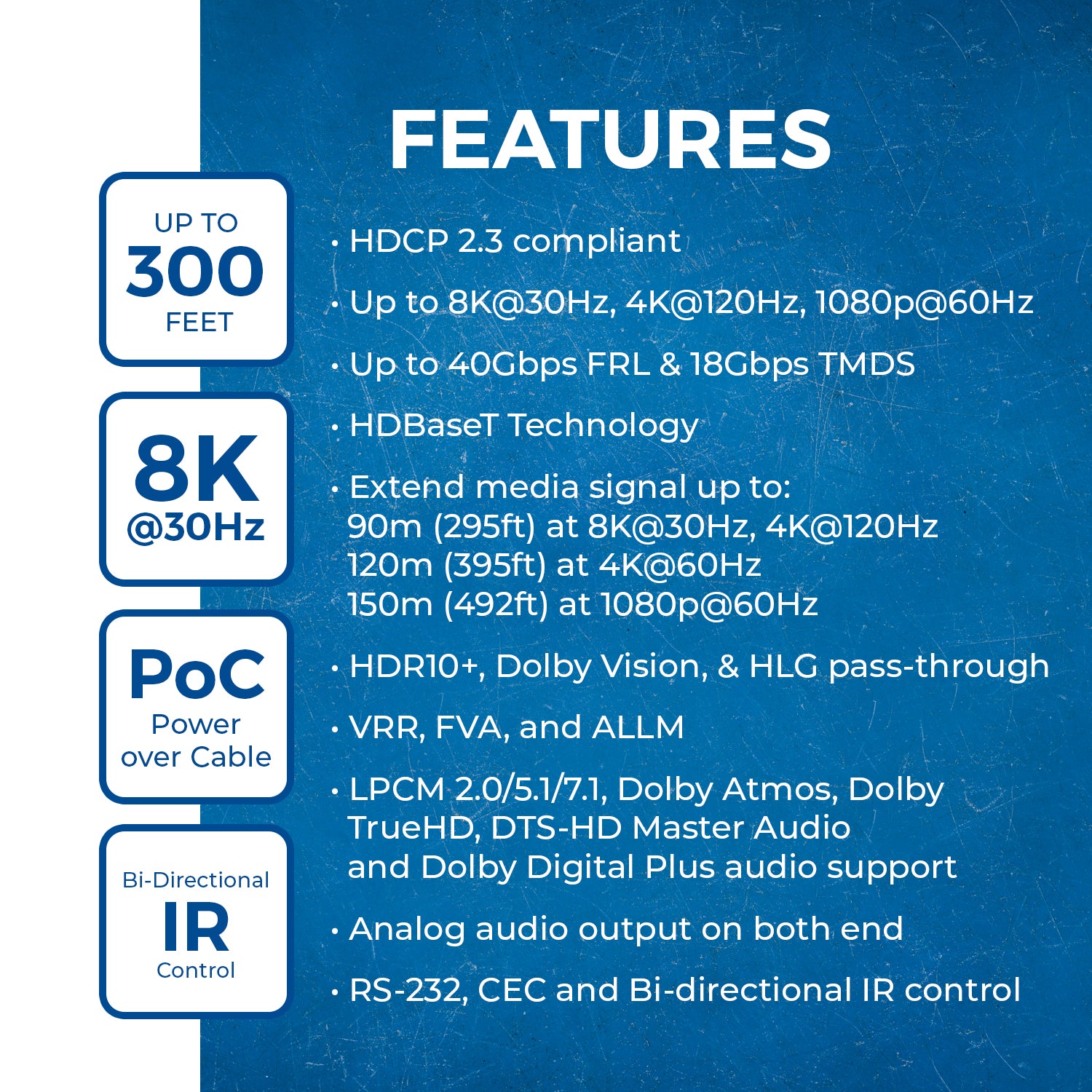

Key Features:
- HDCP 2.3 compliant
- Video resolution up to 8K@30Hz, 4K@120Hz, 1080p@60Hz
- Video bandwidth up to 40Gbps FRL & 18Gbps TMDS
- Features HDBaseT technology

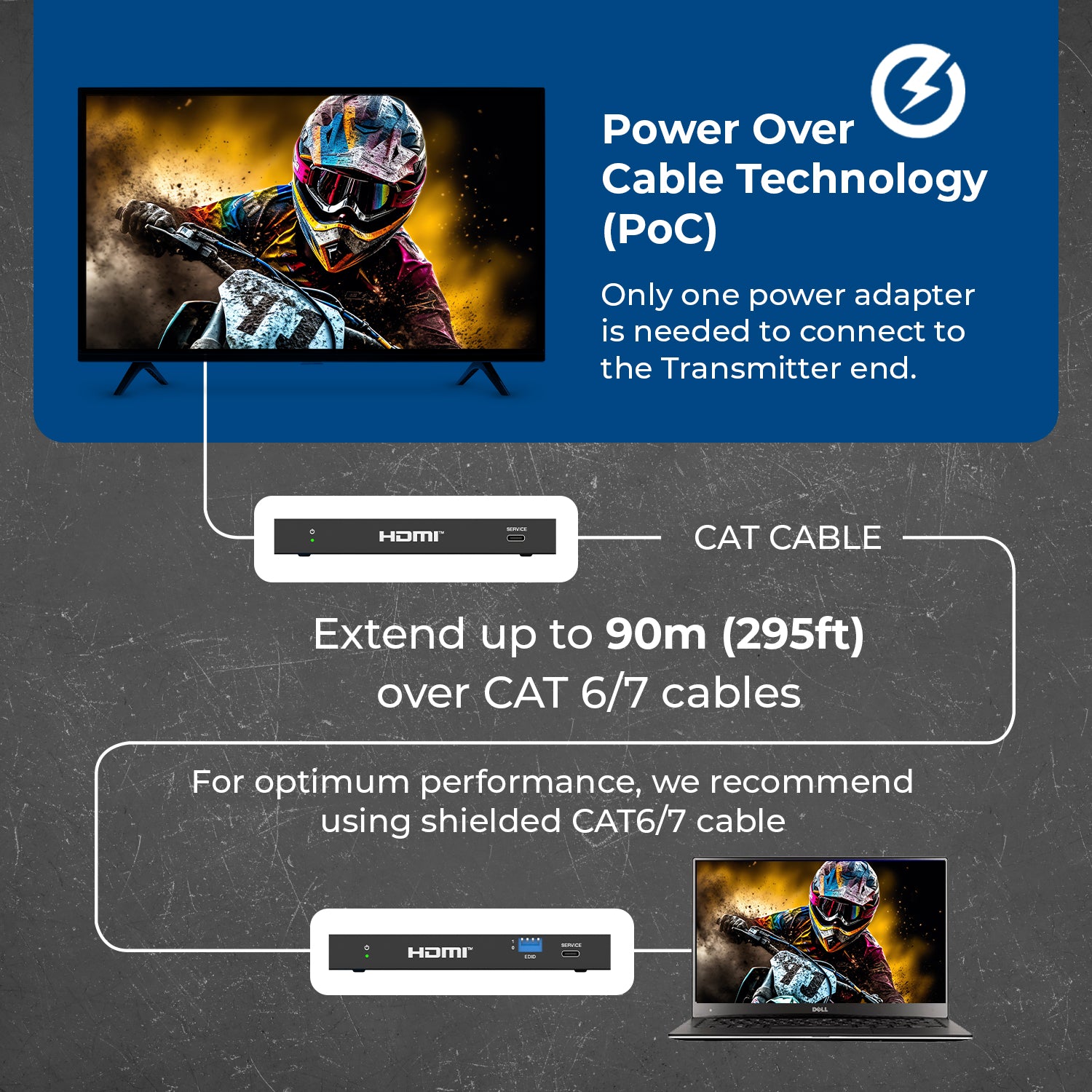

- Extend media signal up to: 90m (295ft) at 8K@30Hz, 4K@120Hz, 120m (395ft) at 4K@60Hz, 150m (492ft) at 1080p@60Hz
- HDR10+, Dolby Vision, and HLG pass-through
- VRR, FVA, and ALLM support
- LPCM 2.0/5.1/7.1, Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio and Dolby Digital Plus audio support
- Analog audio output on both end for audio extraction

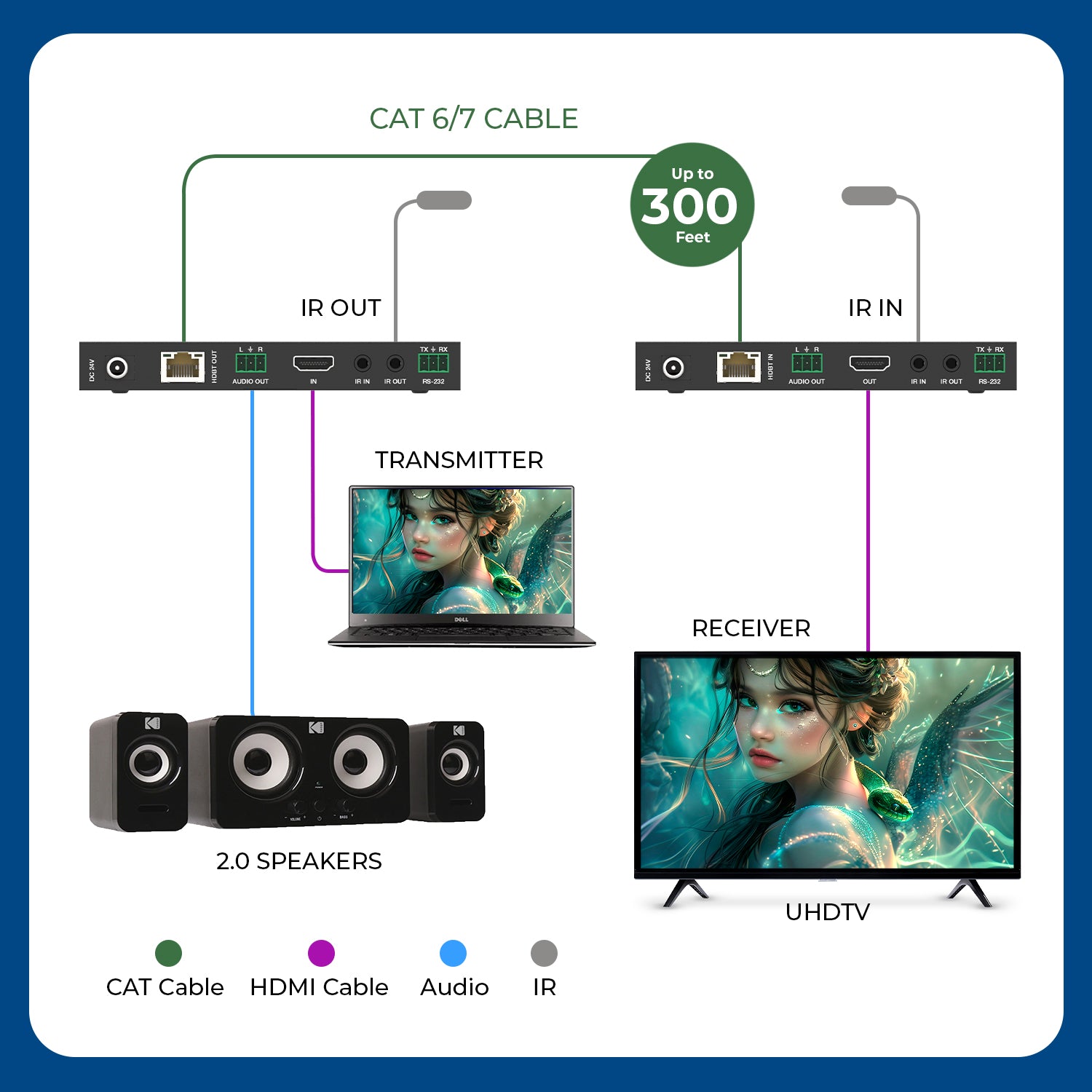

- RS-232, CEC and Bi-directional IR control

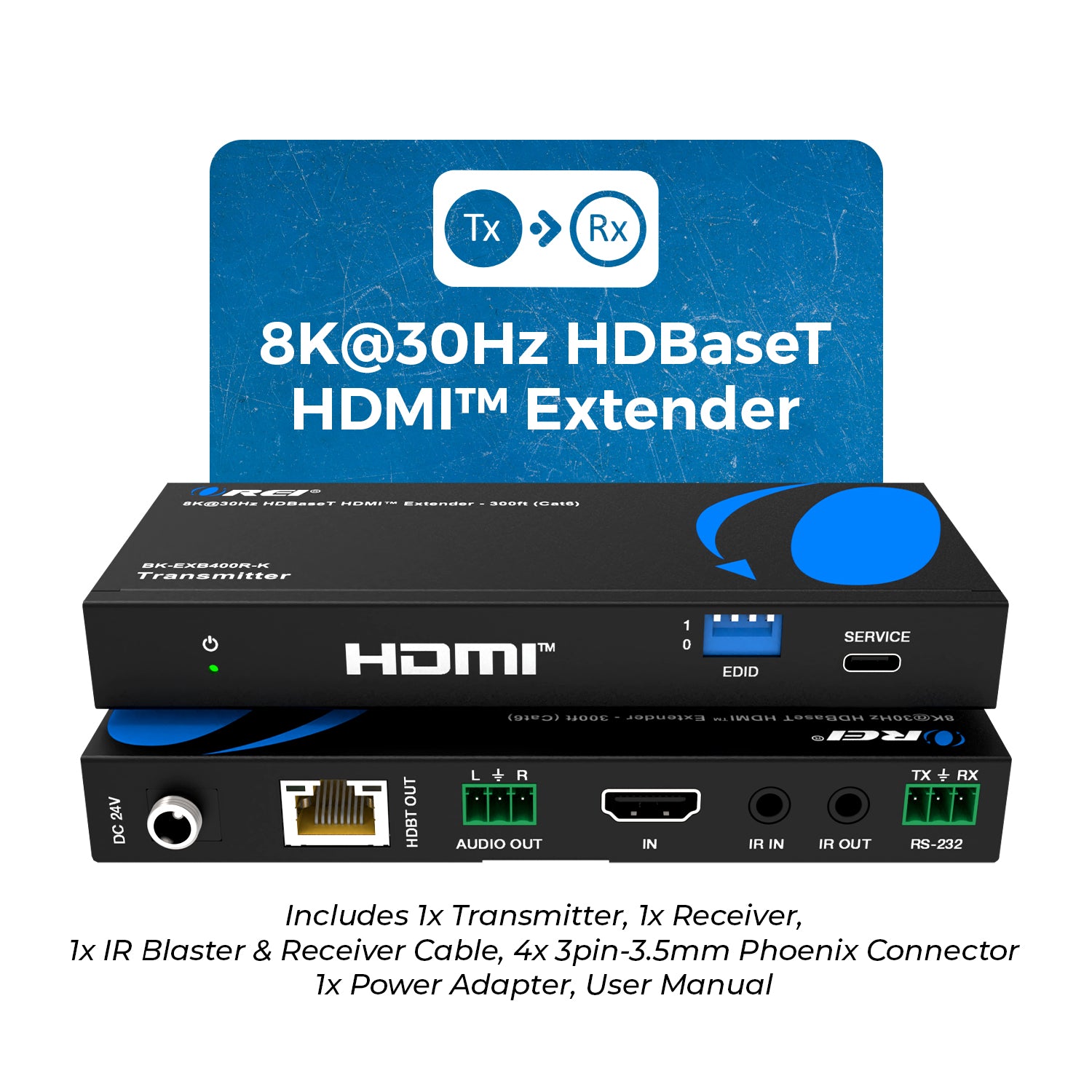

Includes:
- 1x Transmitter
- 1x Receiver
- 1x IR Blaster cable (1.5m)
- 1x IR Wideband Receiver cable (1.5m)
- 1x Power Adapter
- 4x 3pin-3.5mm Phoenix connector
- 4x Mounting Ear
- 8x Machine Screw (KM3*4)
- 1x User Manual
Warranty:
- 1 - Year Manufacturer's Warranty
