OREI UHDS-202: 2 In 2 Out HDMI Matrix
This 18Gbps 2x2 HDMI Matrix switcher supports the transmission of the video signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extract from output A to optical and analog output. This HDMI has 2 input into 2 output Matrix Switcher.
Supports highest video resolution up to 4K x 2K at 60Hz), EDID bypass2 IN 2 OUT HDMI SWITCH - Smart EDID management, 4K/60Hz, 2k@60Hz, 4x1 18G switcher w/ audio de-embedded, HDR. This HDMI switch designed with 2 input ports and 2 output ports, you can choose the HDMI signal source by the IR remote control, easy to access.
It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and IR remote, the corresponding LED indicator on the front panel will be illuminated.
Key Features:
- HDCP2.2 / HDCP1.x, DVI 1.0 compliant
- Supports PCM, Dolby True HD, DTS-HD Master Audio up to 2 Ch. Digital and analog audio output
- Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1
- Support digital and analog audio extract output from output A
- Support 18Gbps video bandwidth
- EDID can be selected with AUTO, COPY, and STD mode via the selector on the front panel
- 2 in 2 out HDMI Switch smart EDID management, 4K/60Hz 4:4:4, 2x2 18G switcher w/ audio de-embedded, HDR, HDCP 2.2
- Flexible control via panel buttons and IR remote

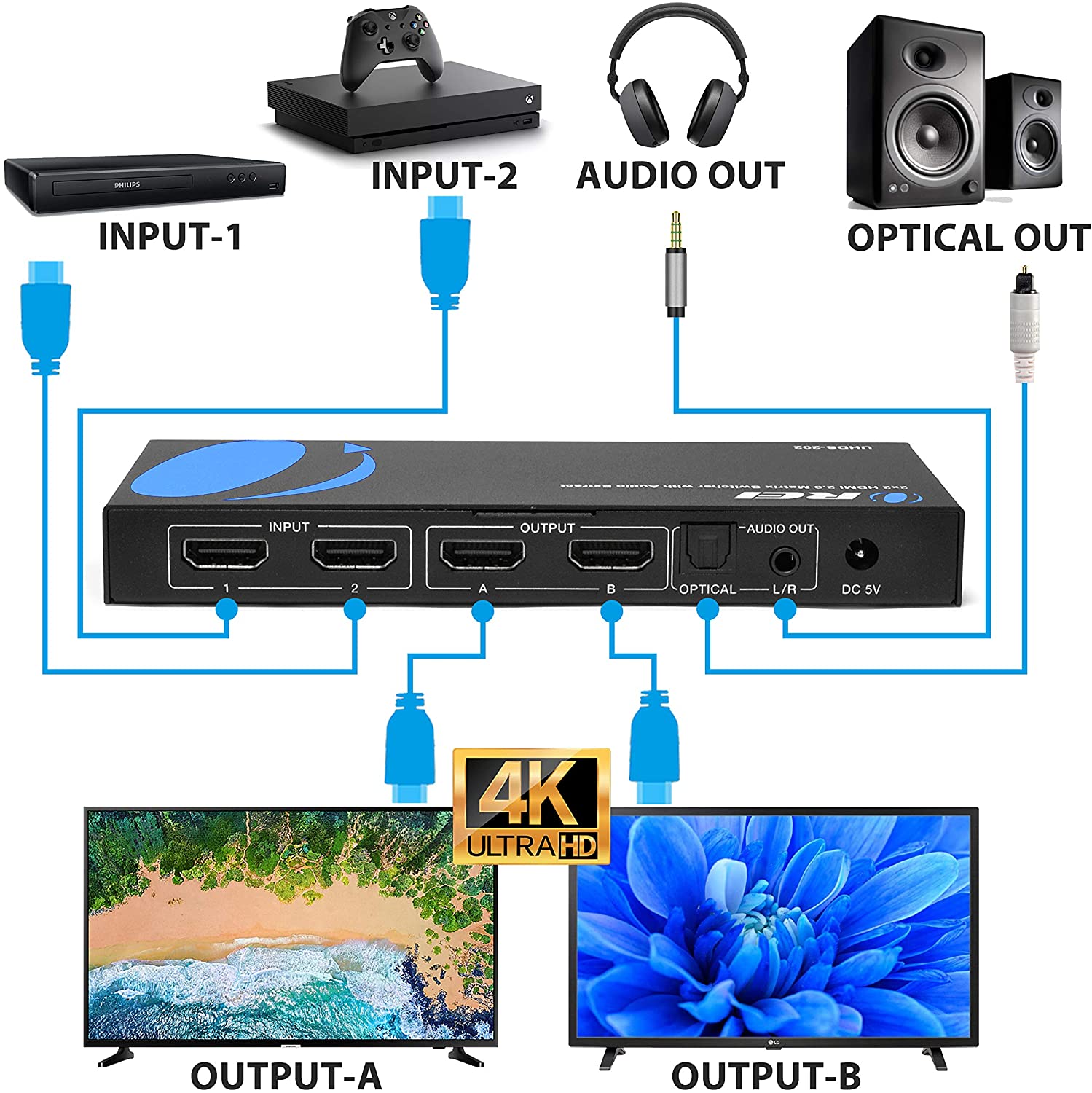

OREI 2x2 HDMI Matrix
- Input Ports:
- 2xHDMI Type A [19-pin female]
- 1xIR Receiver Window
- Output Ports:
- 2xHDMI Type A [19-pin female
- 1xL/R [3.5mm Stereo Mini-jack]
- 1xOPTICAL OUT [Optical jack
- HDCP Compliance: HDCP 2.2 and HDCP 1.x
- DVI Compliance: DVI 1.0
- Video Bandwidth: 594MHz / 18Gbps
- HDMI Video Resolution: Up to 4K2K@50/60Hz YCbCr 4:4:4
- High Dynamic Range: HDR,HDR 10+,HLD,DOLBY VISION
- HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD,DTS-HD
- L/R Audio Formats: Analog stereo PCM 2.0
- Optical Audio Formats: LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)
- ESD Protection: Human-body Model:±8kV (Air-gap discharge) , ±4kV (Contact discharge)
- Dimensions: 144mm (W)×59.5mm (D)×18mm (H)
- Weight: 208g
- Housing: Metal Enclosure
- Color: Black
- Power Consumption: 2.7W
- Power Supply:
- Input: AC100~240V 50/60Hz
- Output: DC5V/1A (US/EU standard, CE/FCC/UL certified)
Includes:
- 1x 2x2 HDMI Matrix Switcher
- 1x Matrix IR Remote
- 1x 5V/1A Power Adapter
- 1x User Manual
Warranty:
- 1 year manufacturer's warranty
