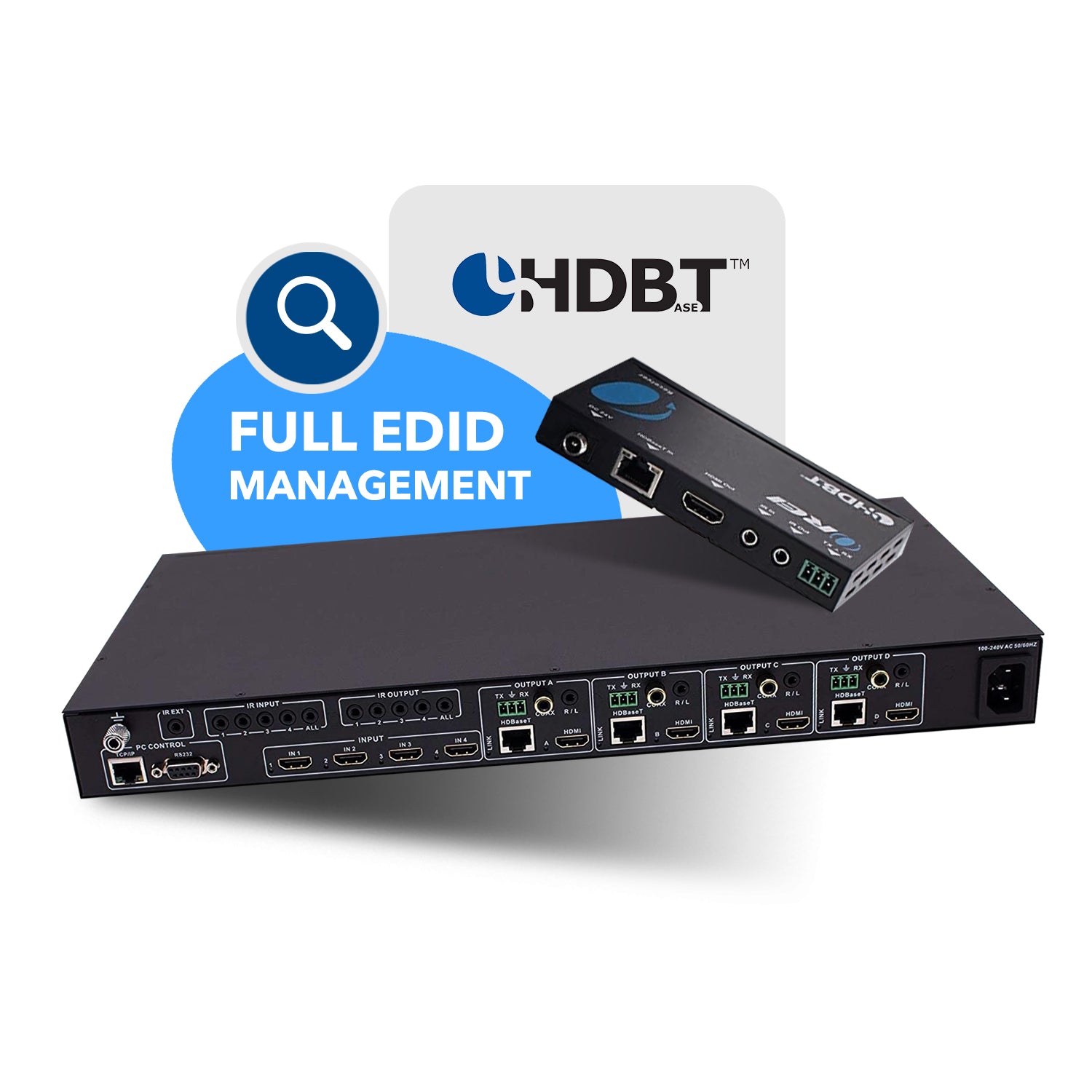

OREI UHD44-EX230-K: 4 in 4 out HDMI Matrix Switcher Extender
The OREI UHD44-EX230-K HDMI HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to up to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a HDBaseT output over a cat5e/cat6 cable which attaches to an additional receiver that converts the output to HDMI.
This matrix switch supports the transmission of video (resolutions up to 4K @ 60Hz YUV 4:2:0) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The extended connection over lan cable can be up to 230 ft for multi-room connectivity for each of the receivers. It also supports bi-directional IR control to send IR signals from the displays to the source or from the source to the displays. RS-232 command prompt control and TCP/IP control to send commands using a PC. It also features Digital coaxial audio output and analog L/R 3.5mm output for each of the four outputs. Full EDID management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix.
This is a great solution for multimedia setup in an environment with multiple displays such as conference rooms, sports bars, schools, news network rooms and more.
Key Features:
- Input ports: 4×HDMI, 5×IR IN, 1×RS-232, 1xRJ-45(Control), 4x RS232
- Output ports: 4×CAT5e/6/7, 4×IR OUT, 4×HDMI
- HDMI connector: Type A 19 pin female
- 4 additional HDMI loop out to connect additional displays near the transmitter or HDMI source via HDMI cable
- RJ-45 connector: WE/SS 8P8C
- 3.5mm connector: (TX and RX) IR Receiver/IR Blaster
- ESD Protection: Human-body Model: ± 8kV (Air-gap discharge)± 4kV (Contact discharge)
- Operating Temperature: 0 ºC~40 ºC/32 ºF~104 ºF
- Storage Temperature: −20 ºC~60 ºC/−4 ºF~140 ºF
- Relative Humidity: 20~90 % RH (non-condensing)
- Power Supply: 100-240V AC Power Supply (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 50 W(max)/0.5w(Standby)
- Dimensions: 440 mm (W)×200 mm (D)×45 mm (H)
- Weight: 1820 g
- Chassis Material: Metal
- Silkscreen Color: Black
- Perfect professional distribution solution to connect 4K Blu-ray players, game consoles, media players, satellite receivers, PCs, laptops and other HDMI sources
- HDBaseT Technology - Uncompressed signal for zero latency and lossless transmission with high quality CAT5e/6/ STP shielded lan cable
- Full Ultra HD Support - 4K @ 60/50Hz @ 12 bit YUV 4:2:0, 4K @ 30Hz 24 bit, 1080p/i @ 60/50Hz, 720p @ 60/50Hz, 576p/i @ 60/50Hz, 480p/i @ 60/50Hz
- Supports all Audio formats: Such as LPCM, DTS HD, and Dolby trueHD. HDCP 2.2 Compliant
- Supports POE - Power Over Cable function so you’ll only need to use power adapter on the transmitter (sender) end and connect the receivers directly with HDMI cables
- Local 4 HDMI displays along with 4 HDBaseT extended remote displays
- Easily control which HDMI source is viewed at which of the displays
- EDID Management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix
- Product Includes: Instructions Manual, 1x HDMI Extender Matrix Transmitter, 4x HDMI Receivers, 1x Power Adapter, 5x IR-Kit, 1x HDMI Matrix Remote, 10x Mounting Ears, 1x RS-232 Cable
- Full OREI Support & 1 Year Warranty
- This unit requires only one power adapter to work
