OREI UHDS-404VW: 4x4 HDMI Matrix with Video Wall
The UHDS-404VW is a multi-purpose high-speed video processing system. It can be configured for 2 different output modes. It can perform as a 4×4 seamless matrix switcher, or as a 2×2, 4×1 or 1×4 video wall solution. It also features a web browser interface module for control and configuration of the matrix, when used stand-alone or with a third party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface and TCP/IP.Key Features:
- HDMI 2.0b, HDCP 2.2/1.4 compliant
- 4×4 Matrix (seamless switch)

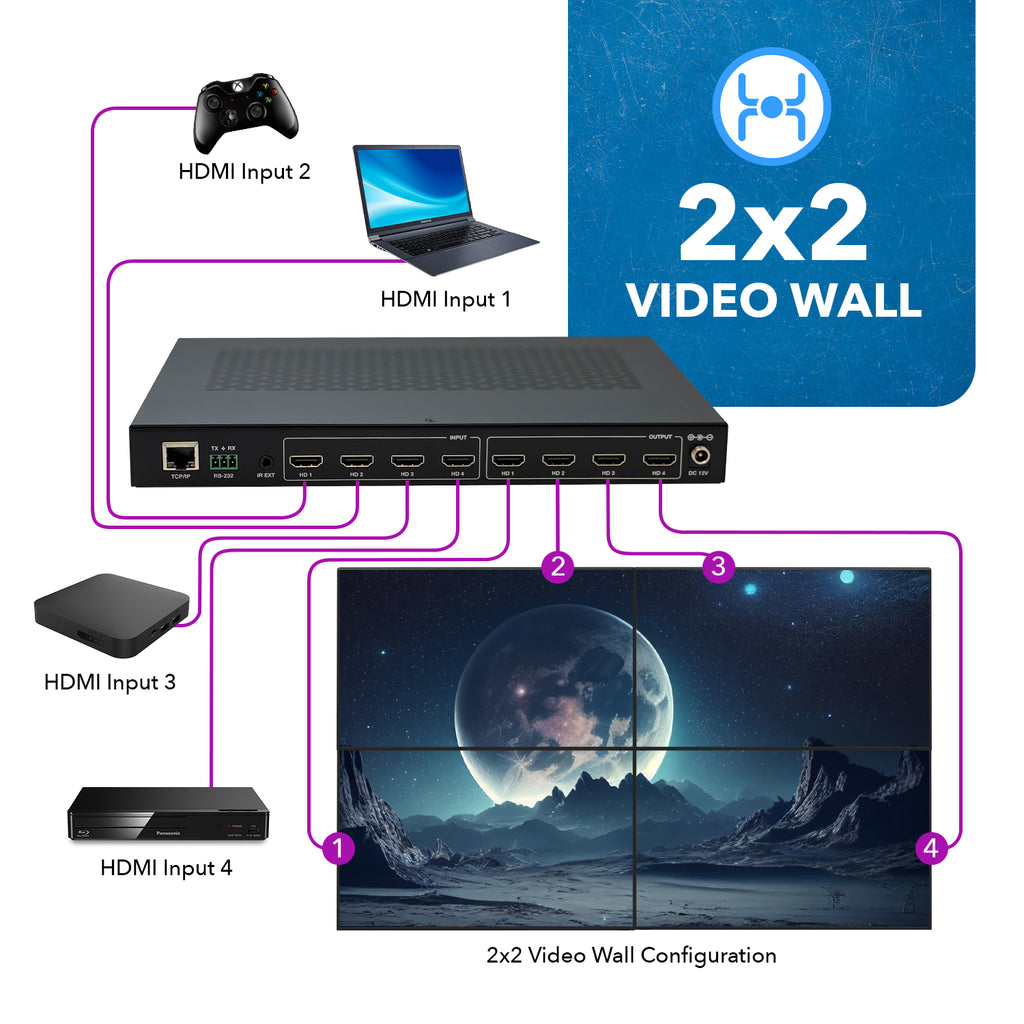

- Video wall (2×2, 4×1 or 1×4 configuration)
- Supports seamless video switching
- Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840×2160 @60Hz 4:4:4, 4096×2160 @60Hz 4:4:4)
- HDMI outputs support upscale or downscale to any resolution, up to 4096×2160@60Hz 4:4:4
- Supports LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- Advanced EDID management
- Web interface module for control and configuration of Matrix
- Controlled by front panel buttons, IR Remote, RS-232, and TCP/IP
- 3rd party drivers available for all major household control brands
- CONNECTIVITY
- INPUT: 4 × HDMI [Type A, 19-pin female]
- OUTPUT: 4 × HDMI [Type A, 19-pin female]
- CONTROL: 1 x LAN [RJ45, 8-pin, female]
- 1 × RS-232 [3-pin Phoenix connector]
- 1 × IR EXT [3.5mm Stereo Mini-jack]
- SUPPORTED HDMI CABLES
- HDMI 2.0/ 2.1 We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
- EXTENDING DISTANCE
- 4K@60Hz: 30 Feet
- VIDEO OUTPUT
- Video Bandwidth: 18 Gbps
- Video Resolutions: Up to 4K@60Hz, 2K@60Hz
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: Yes
- LOOP-OUT / LOCAL PORTS
- Has loop out port: No
- Number of Loop out ports: 0
- AUDIO SUPPORT
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio
- COMPLIANCES
- HDMI Compliance HDMI 2.0b
- HDCP Compliance HDCP 2.2
- POWER
- Power Consumption: 19.56W (Max)
- Power Supply: Input: AC 100-240V 50/60Hz
- Output: DC 12V/2.5A

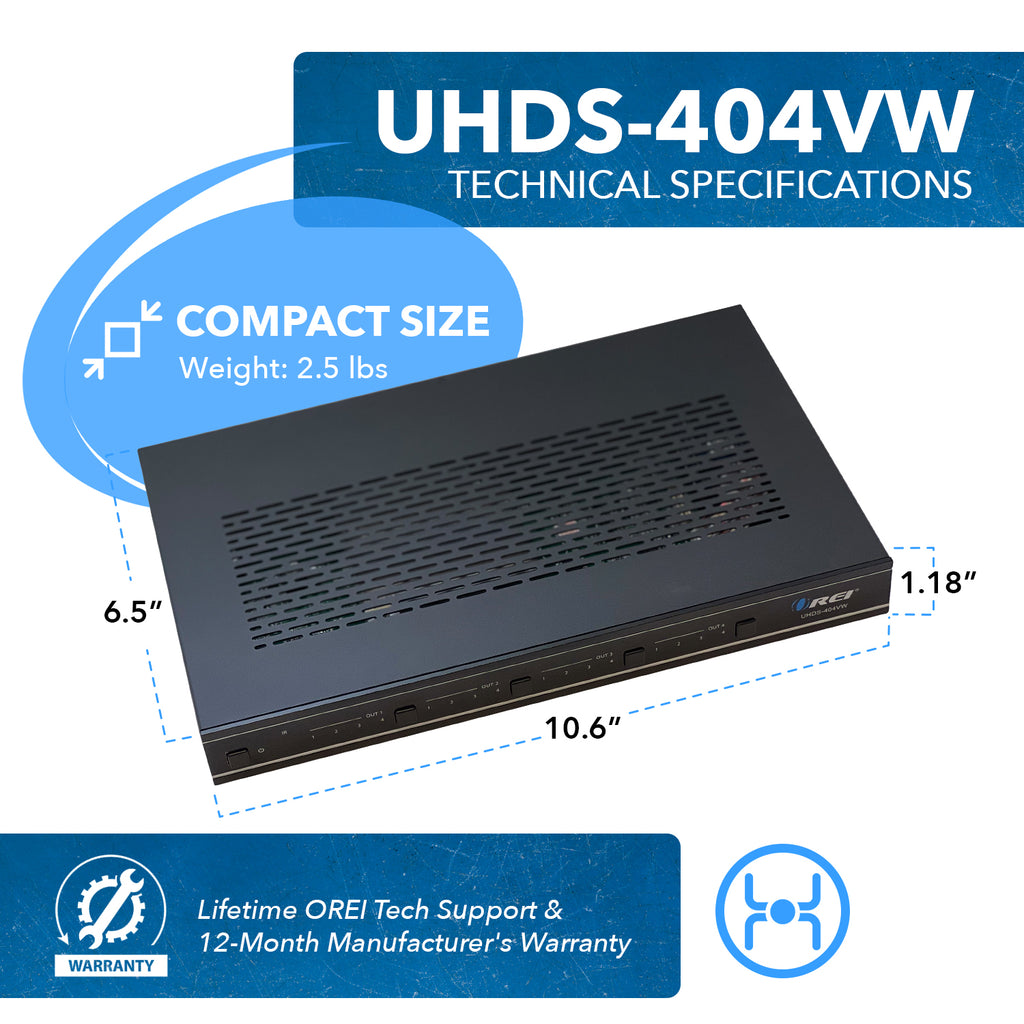

- DIMENSIONS & WEIGHT
- Length: 270mm / 10.63in
- Width: 166mm / 6.54in
- Height: 30mm / 1.81in
- Weight: 1.2kg / 2.64lbs
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
Includes:
- 1x UHDS-404VW
- 1x Matrix IR Remote
- 1x 3pin-3.81mm Phoenix Connector (male)
- 1x 20-60KHz IR Wideband Receiver Cable (1.5m)
- 2x Mounting Ears
- 4x Machine Screws (KM3×4)
- 1x 12V/2.5A Locking Power Adapter
- 1x User Manual
- 1 year manufacturer's warranty
