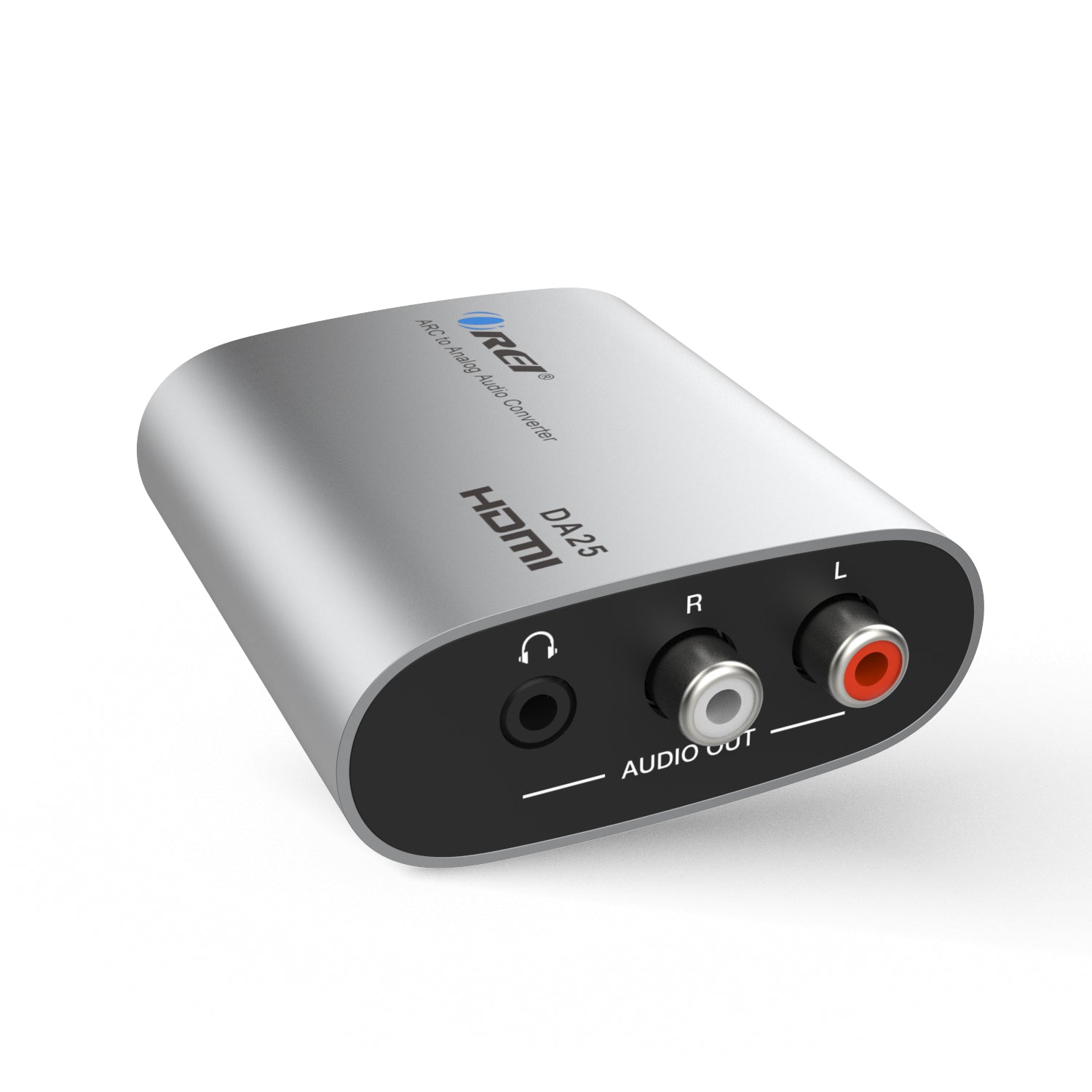

OREI DA25: ARC to Analog Audio Converter
The DA25 HDMI audio extractor is an excellent solution for converting digital ARC audio to Analog RCA or 3.5mm stereo. It features both RCA and 3.5mm analog outputs, enabling connection from an ARC TV to older stereos or amplifiers with only analog inputs. It converts PCM to 2CH stereo audio for seamless compatibility. With its compact design, this device is an ideal addition to any home theater or commercial setup
Key Features:

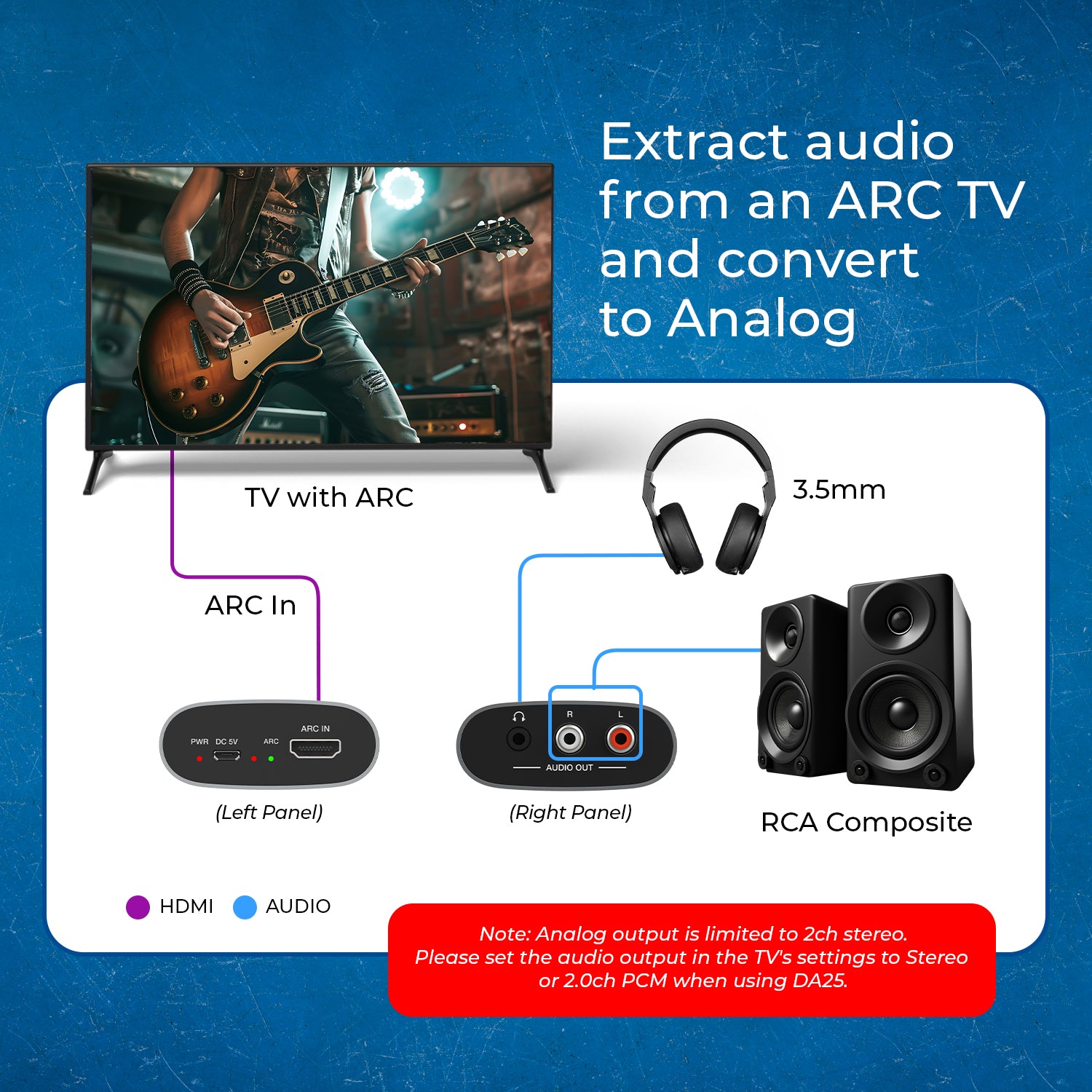

- Extract audio from an ARC TV and convert to Analog

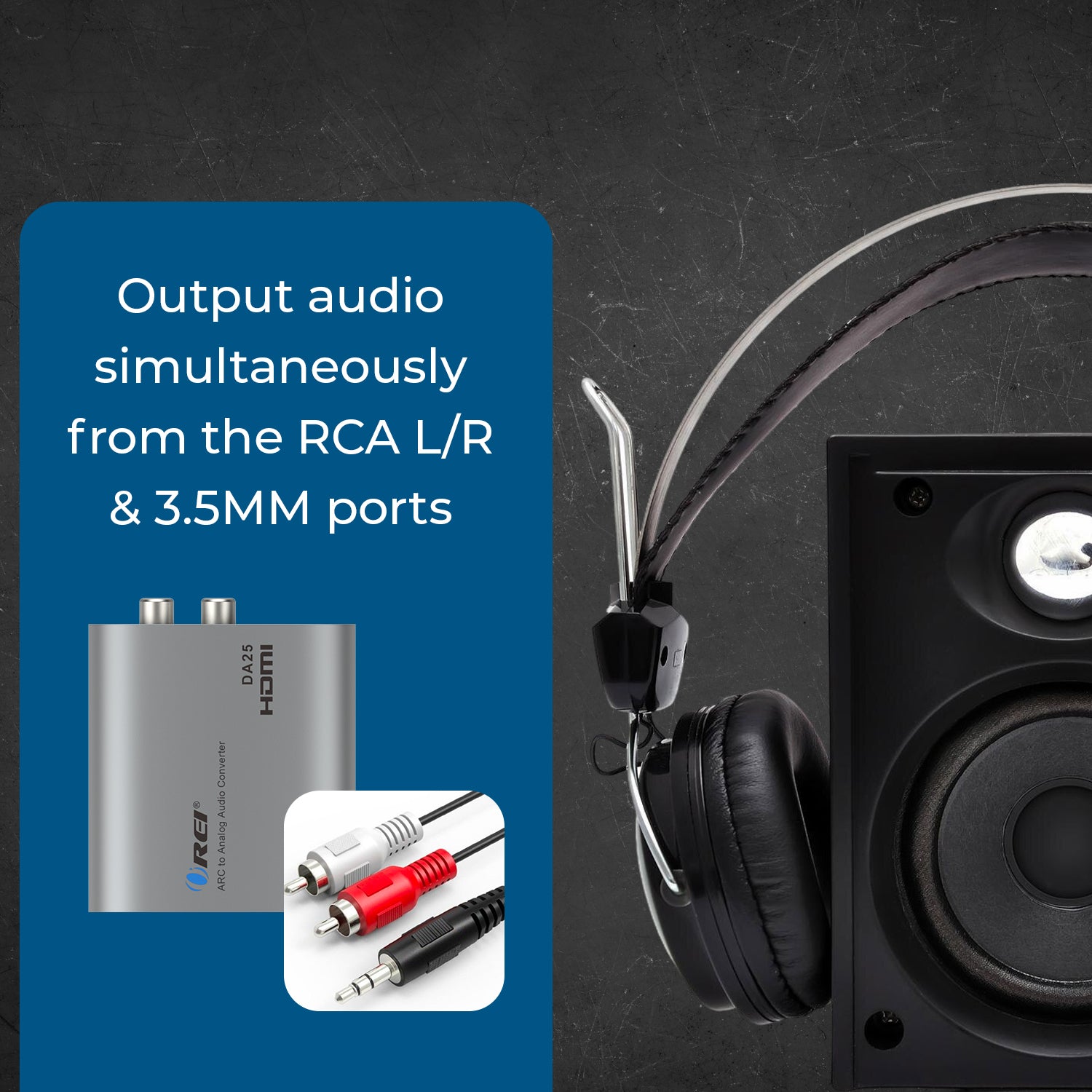

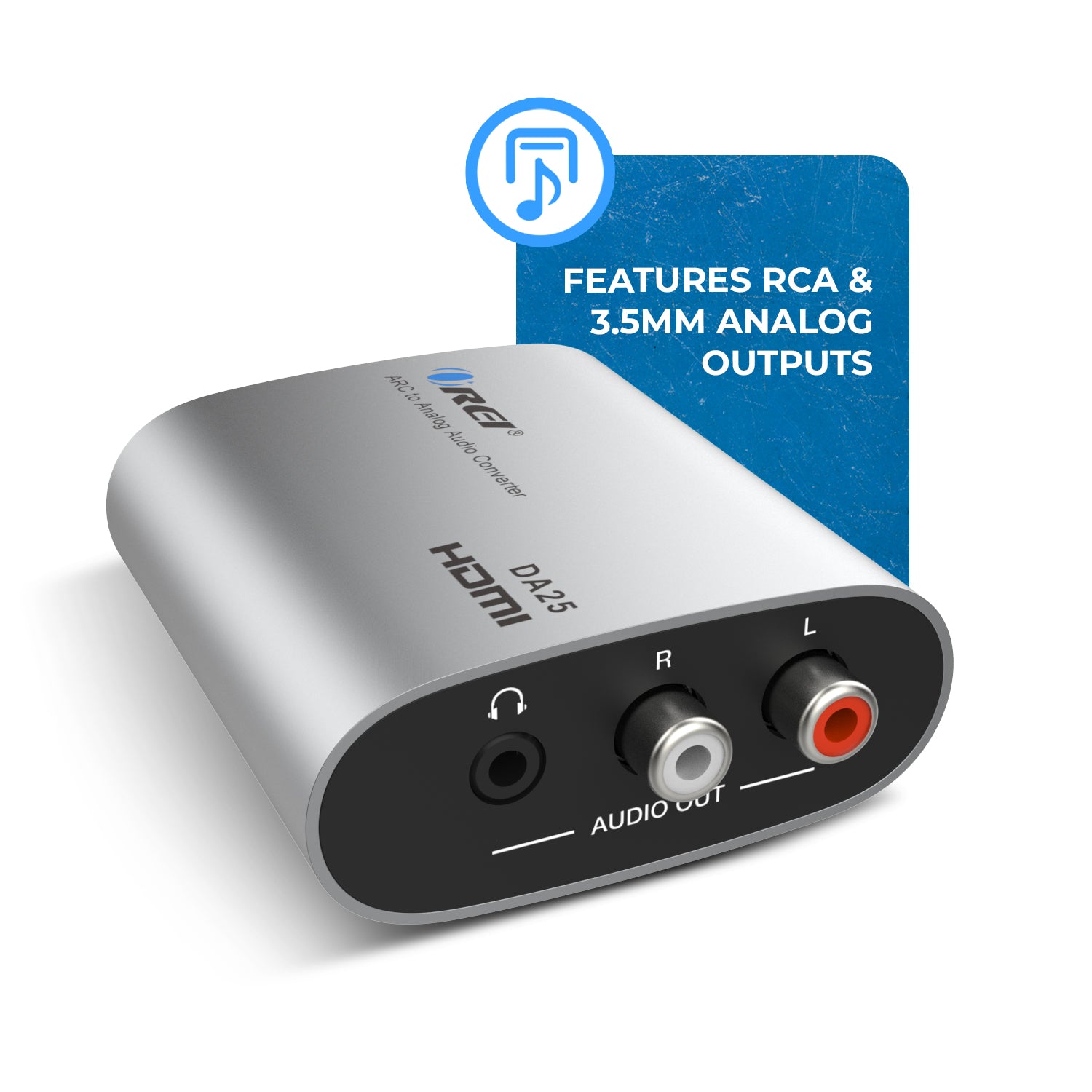

- Features both RCA and 3.5mm Stereo outputs
- Converts PCM audio to 2CH Stereo
- Compact & Durable Design

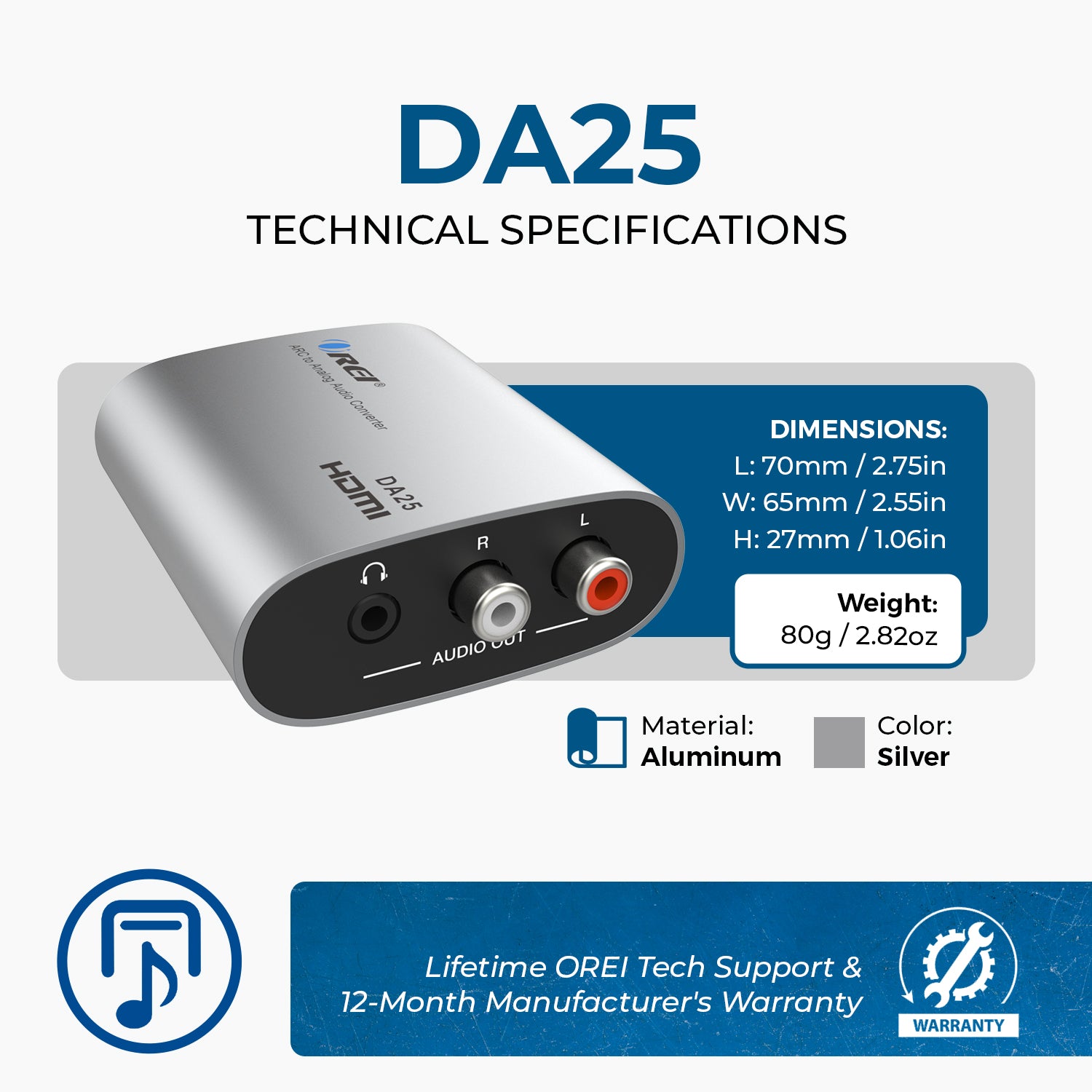

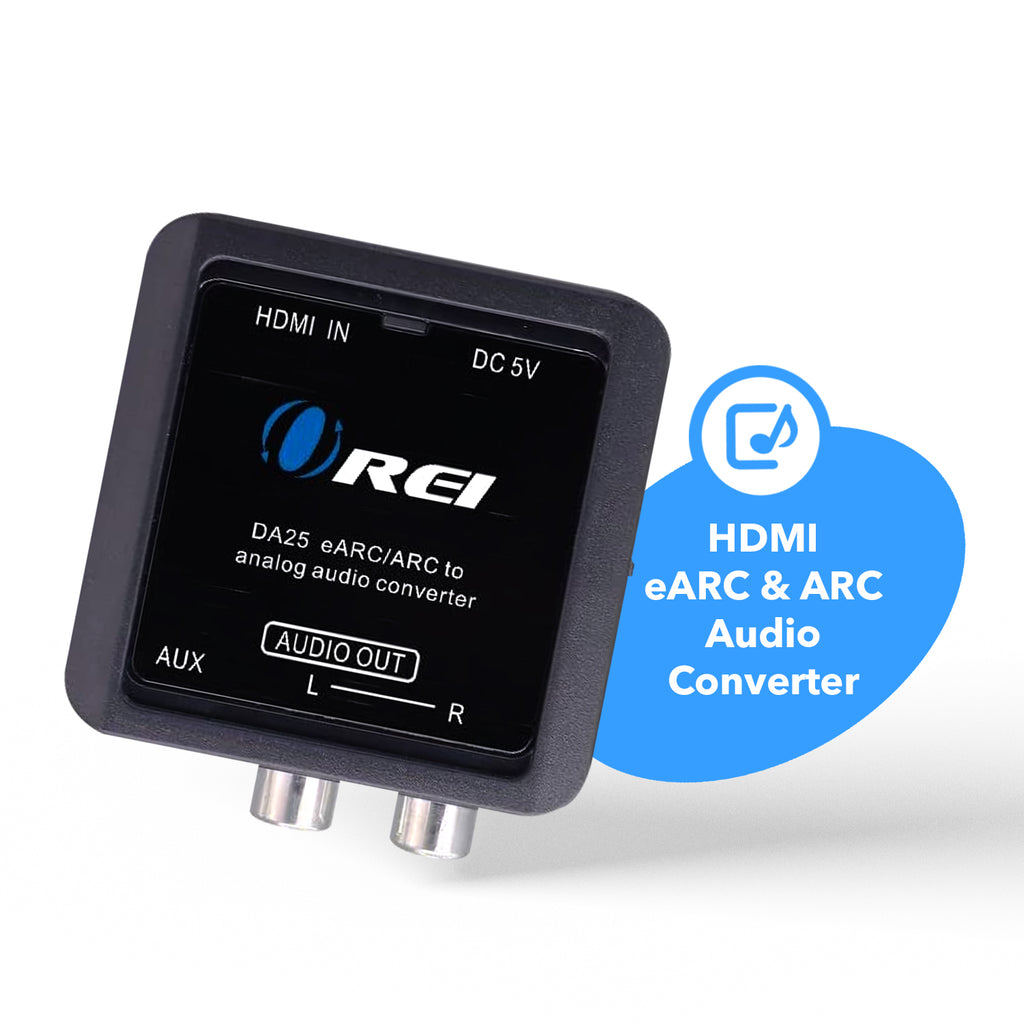

OREI DA25 EARC & ARC TO ANALOG AUDIO CONVERTER
- Input Ports: 1x HDMI eARC/ARC
- Output Ports: 2x RCA
- : 1x 3.5mm AUX
- L/R Audio Formats: PCM / LPCM 2.0
- Audio signal support: Analog RL 2CH
- Sampling Rate: 44, 48, 96 and 192KHz

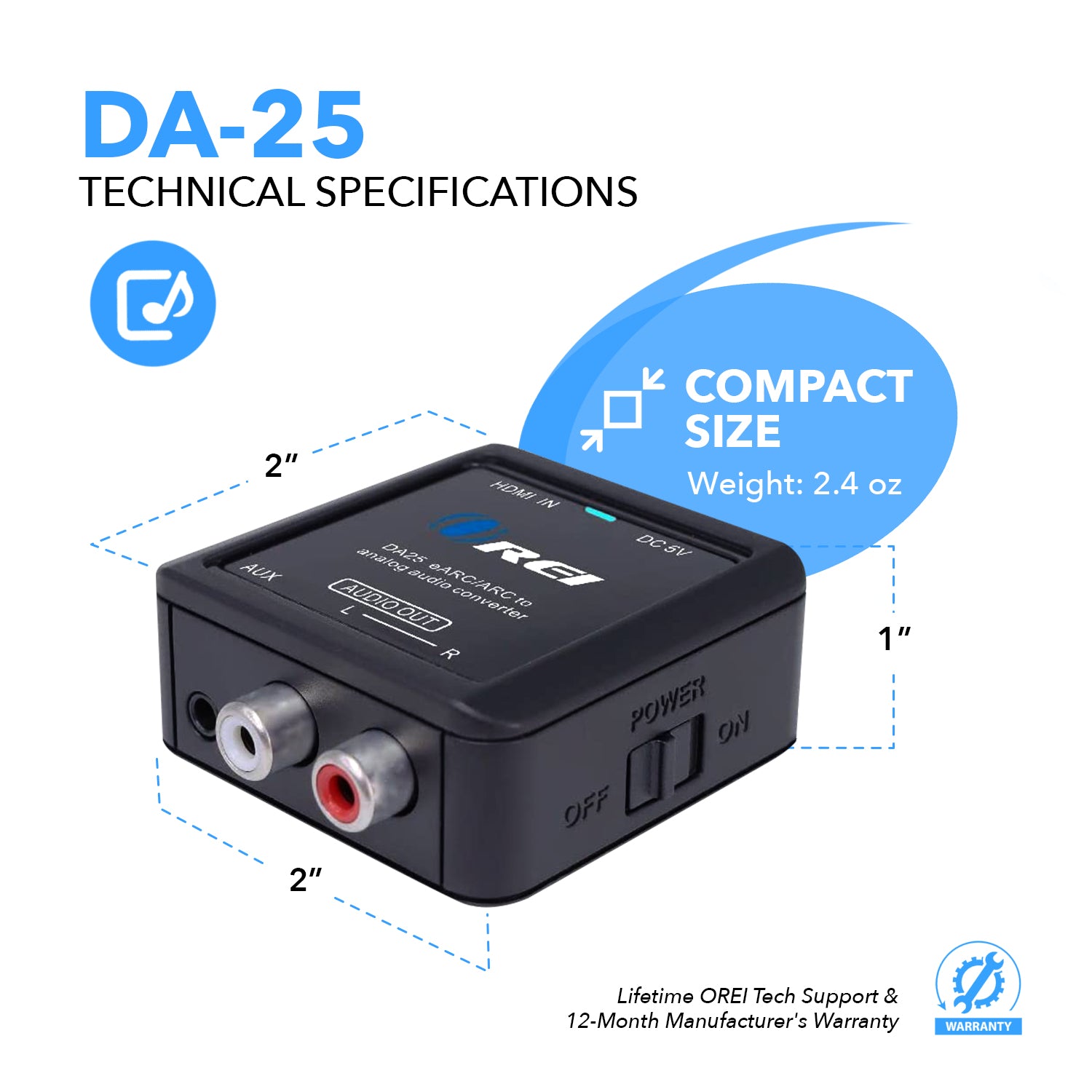

- Height: 25mm
- Width: 52mm
- Depth: 52mm
- Weight: 34g
- Operation Temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10~90 % RH
- ESD Protection: Contact +-6KV air +-10KV
- Power Consumption (Max): 0.5W
- Power Supply: DC 5V / 0.6A / Micro USB
- Color: Black
- Housing: Plastic + Metal (aluminum) For Top Plate
- Finishing: Glass finish + Matte Finish For Top Plate

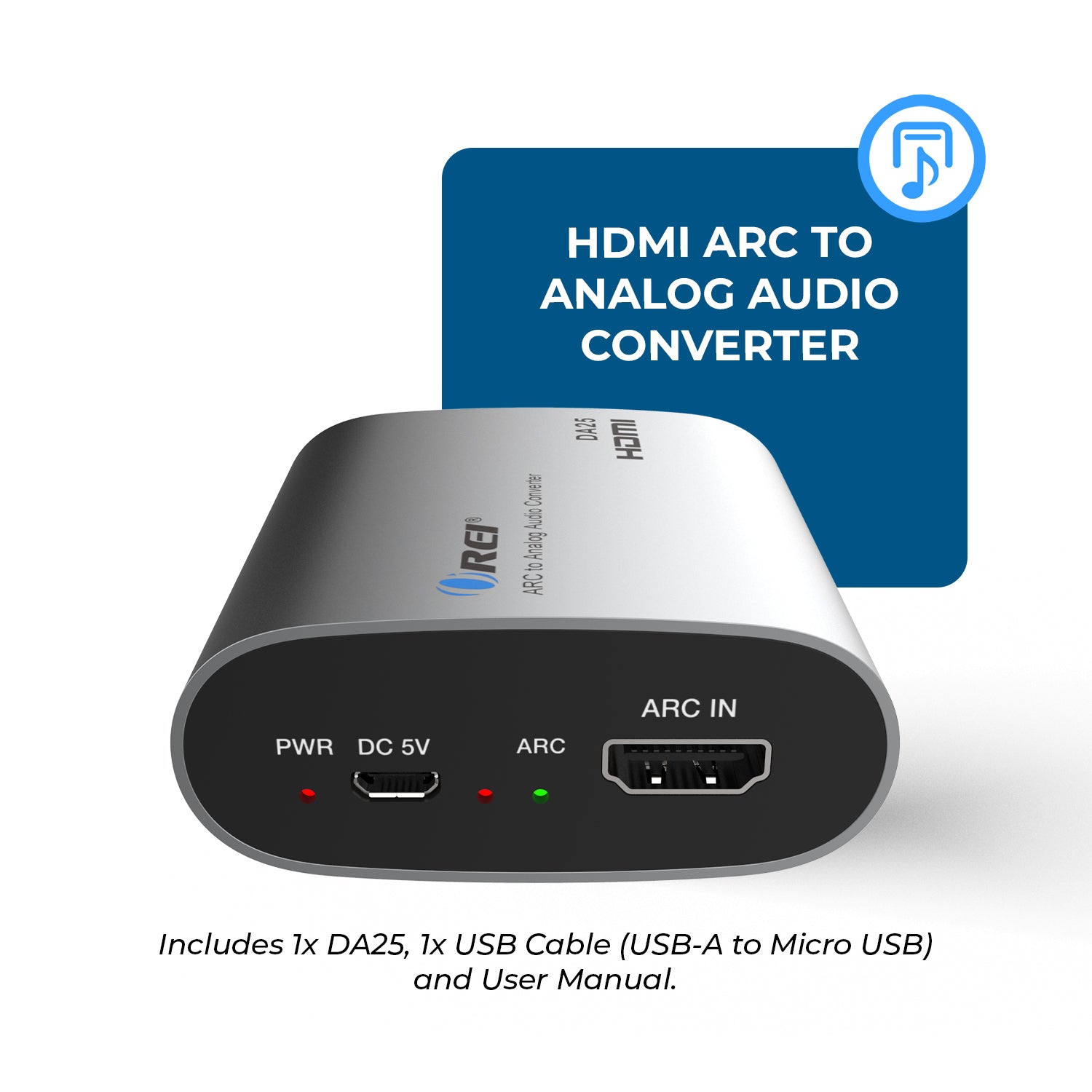

Includes:
- 1x DA25
- 1x USB Cable (USB-A to Micro USB)
- 1x User Manual
- 1 year manufacturer's warranty
Request a Quote
OREI ARC to Analog Audio Converter (DA25)
