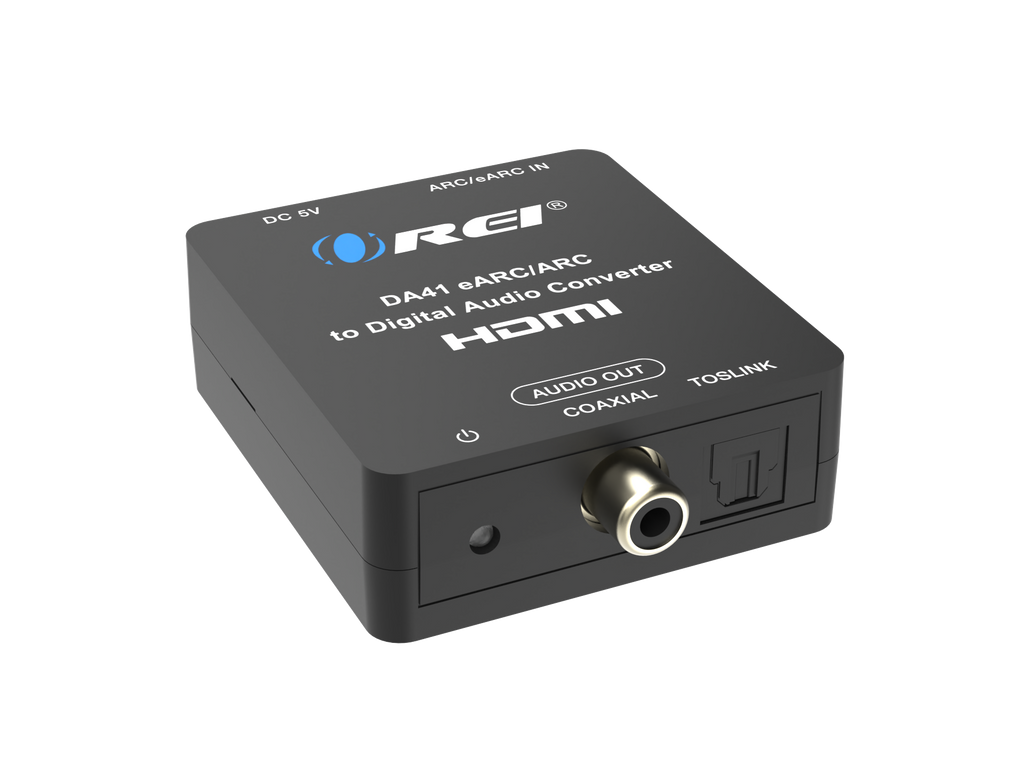

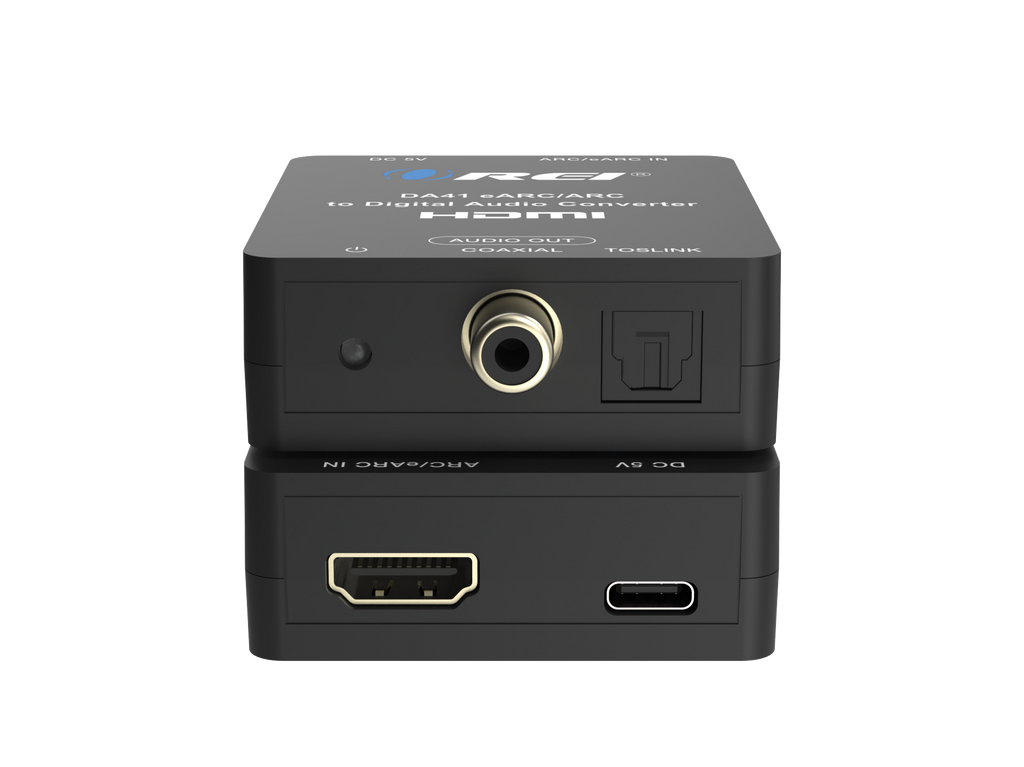

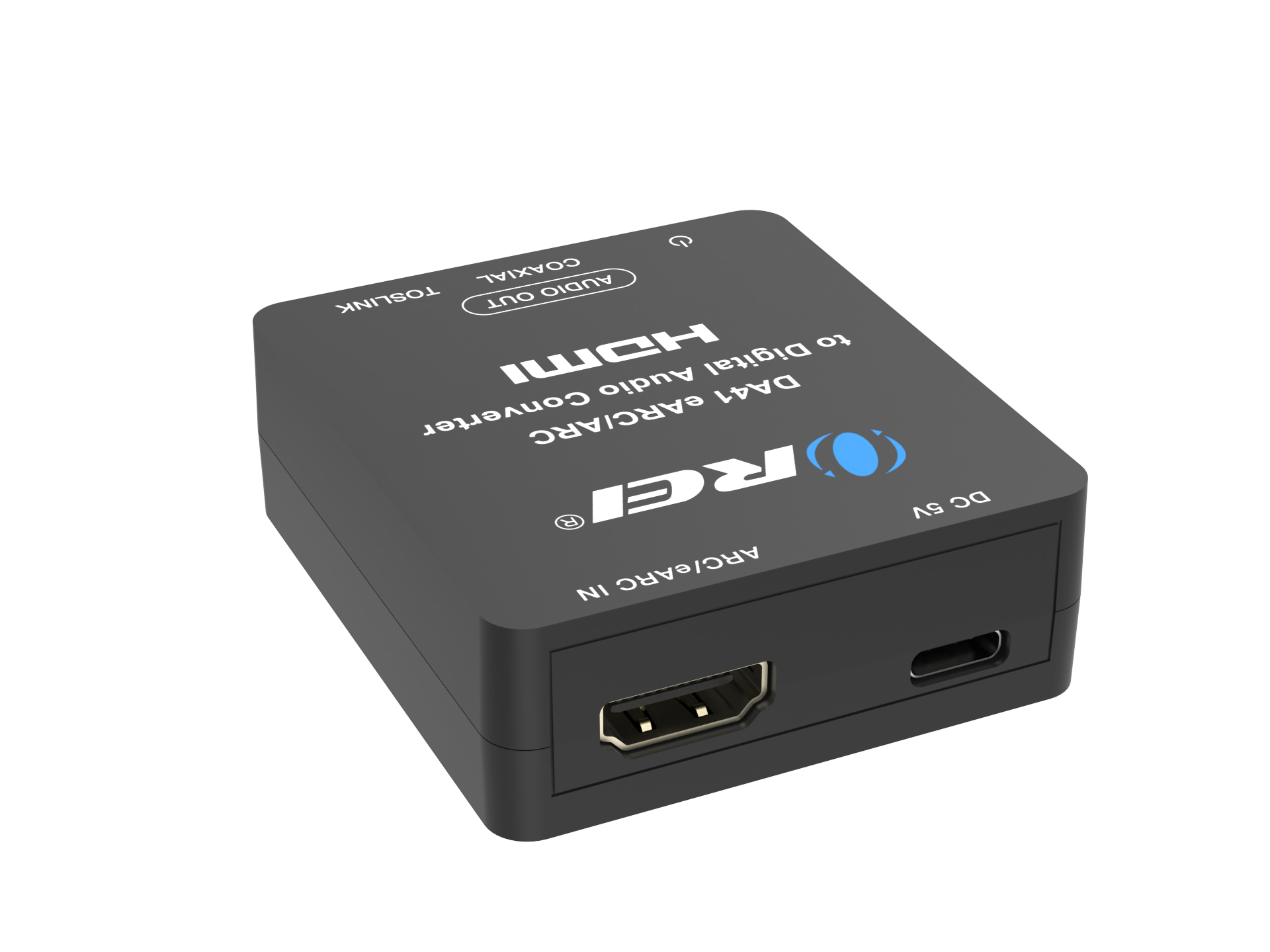

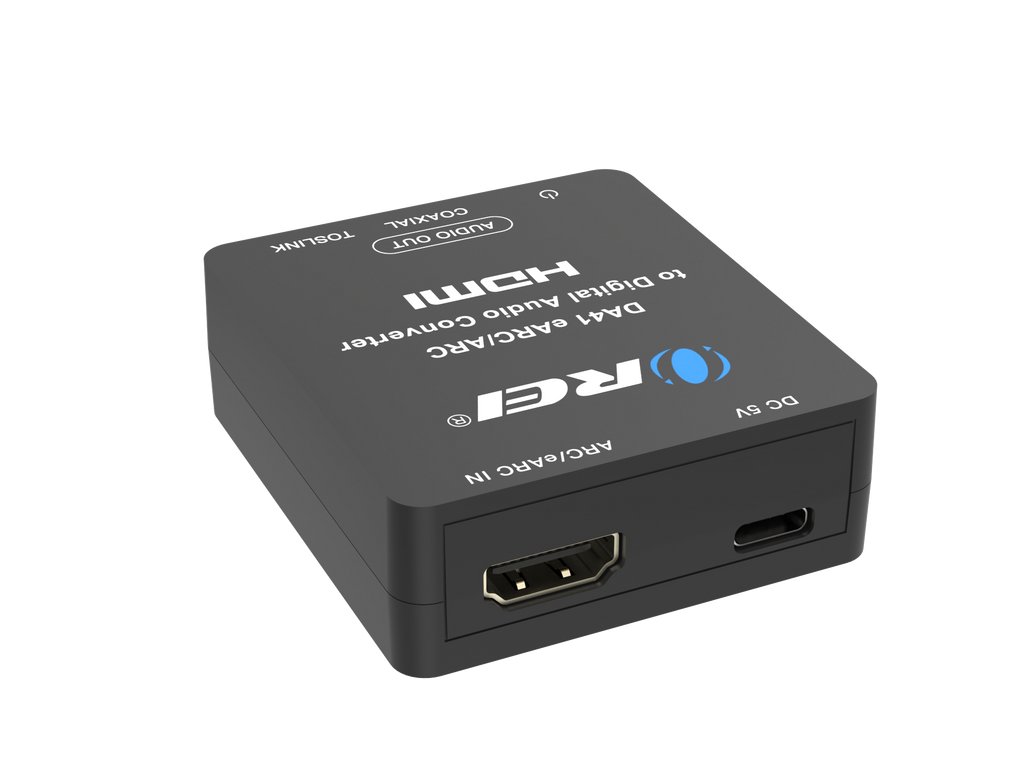

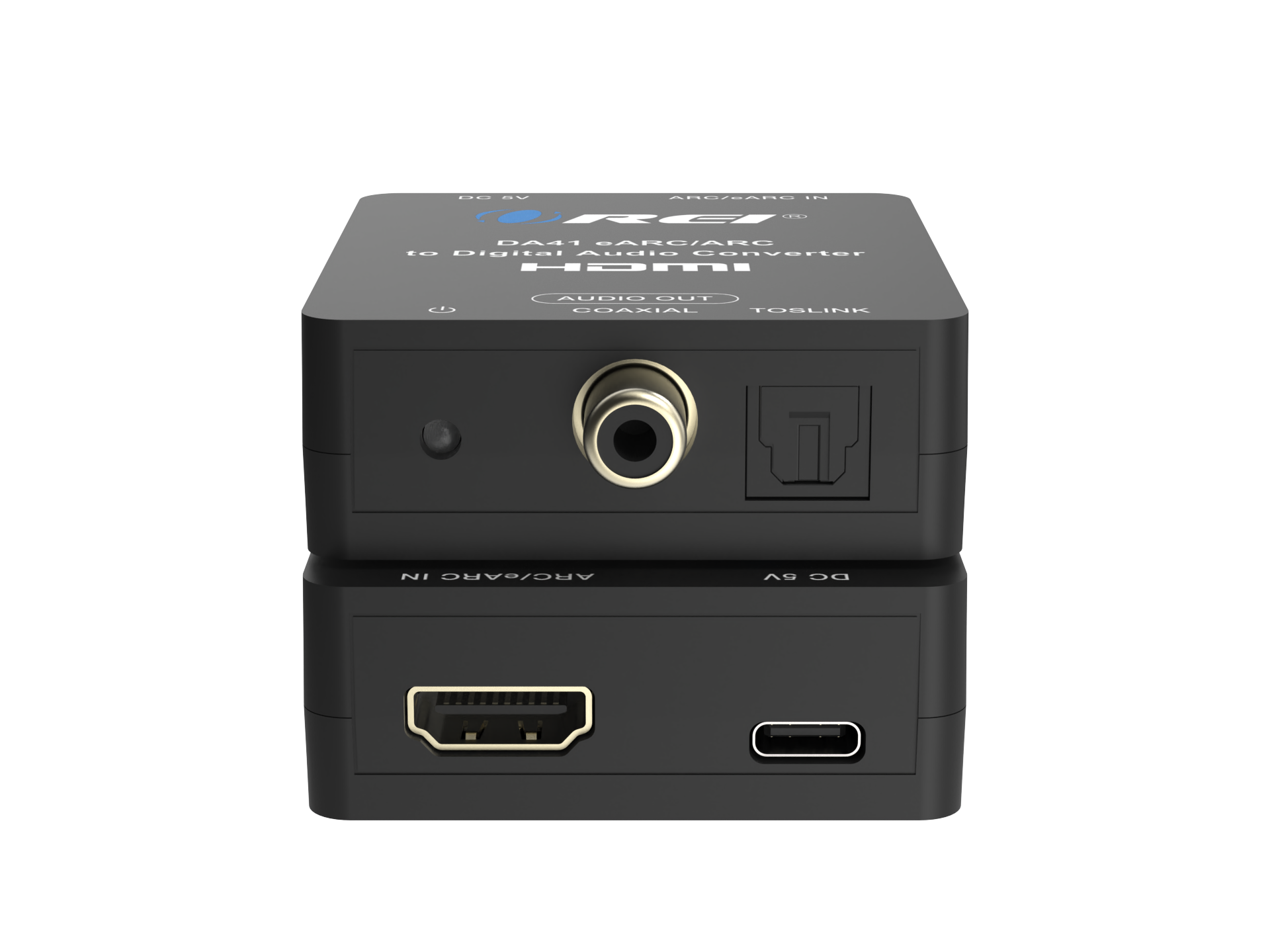

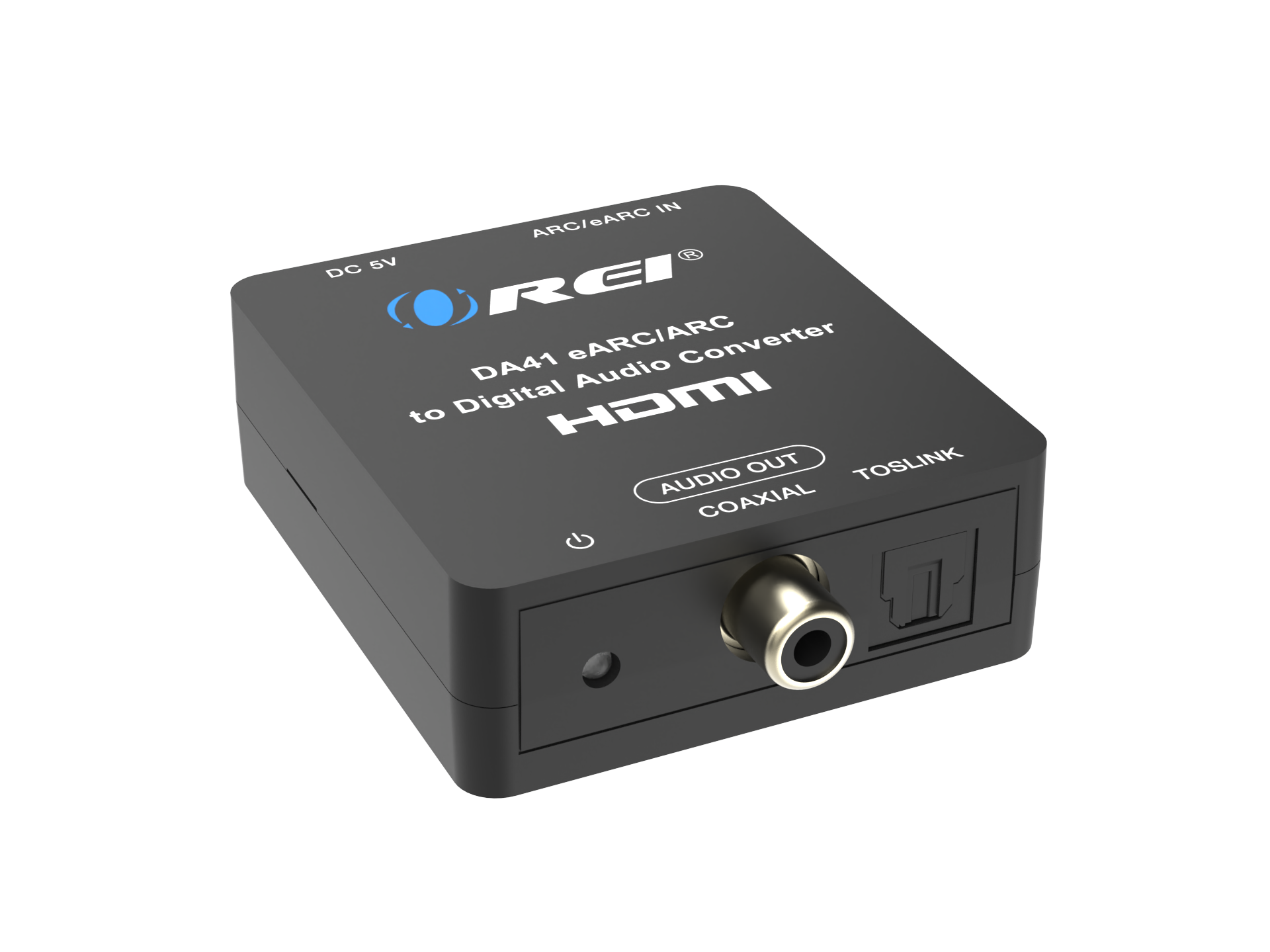

OREI DA41: HDMI (ARC/eARC) To Digital Audio Converter
The DA41 Audio Converter is a compact and efficient solution for converting digital ARC/eARC audio from a modern TV into high-quality digital audio outputs. Designed for seamless integration with audio receivers and amplifiers, it provides both Coaxial and Toslink (Optical) outputs, enabling versatile connectivity for multi-channel home theater or professional AV applications.
Supporting PCM 2.0, Dolby 5.1, and DTS 5.1 audio formats, the DA41 ensures an immersive surround sound experience while maintaining reliable performance. With simple plug-and-play functionality, it requires no additional configuration, making it ideal for users seeking a straightforward, high-performance audio conversion device.
Key Features:
- ARC/eARC to Digital Audio Conversion – Converts TV ARC/eARC signals into simultaneous Toslink (Optical) and Coaxial outputs.
- Dual Audio Outputs – Provides both Coaxial and Toslink connections for flexible integration with receivers or amplifiers.
- Multi-Format Support – Compatible with PCM 2.0, Dolby 5.1, and DTS 5.1 channel audio.
- Plug-and-Play Design – Quick and easy setup with no additional configuration required.
- NOTE: CEC Not Supported – Volume cannot be controlled via the TV remote
- CONNECTIVITY
- INPUT: 1× HDMI™ (ARC/eARC) [Type A, 19-pin female]
- OUTPUT: 1× COAXIAL [RCA]
- 1× TOSLINK [S/PDIF]
- SUPPORTED HDMI CABLES
- HDMI 2.0/2.1: We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
- ADDITIONAL FEATURES
- CEC: No
- ARC: Yes
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- AUDIO SUPPORT
- HDMI Audio Formats: ARC/eARC AUDIO: PCM 2.0CH, Dolby 5.1CH, DTS 5.1CH
- COMPLIANCES
- HDMI™ Compliance HDMI 2.0b
- POWER
- Power Consumption: 0.45W (Max)
- Power Supply: 5V/1A USB Power
- DIMENSIONS & WEIGHT
- Length: 25mm / 0.98in
- Width: 52mm / 2.04in
- Height: 52mm / 2.04in
- Weight: 34g / 1.1oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20% ~ 80% relative humidity, no condensation
- Storage Humidity: 10% ~ 90% relative humidity, no condensation
- 1x DA41
- 1x USB Cable (USB-A to USB-C)
- 1x Power Adapter
- User Manual
- 1-year manufacturer's warranty
