OREI USB-FO5-K: USB-B to USB-A EXTENDER-5KM (FIBER-OPTIC)

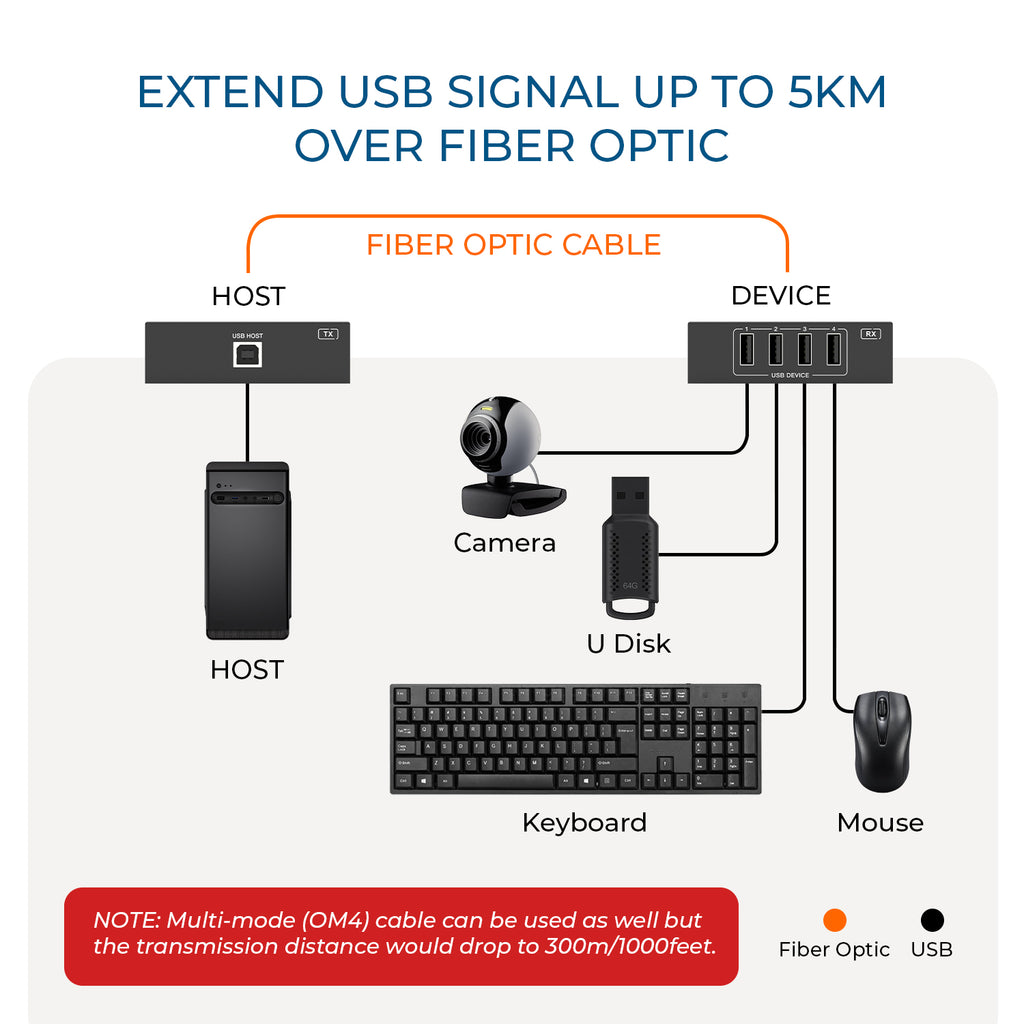

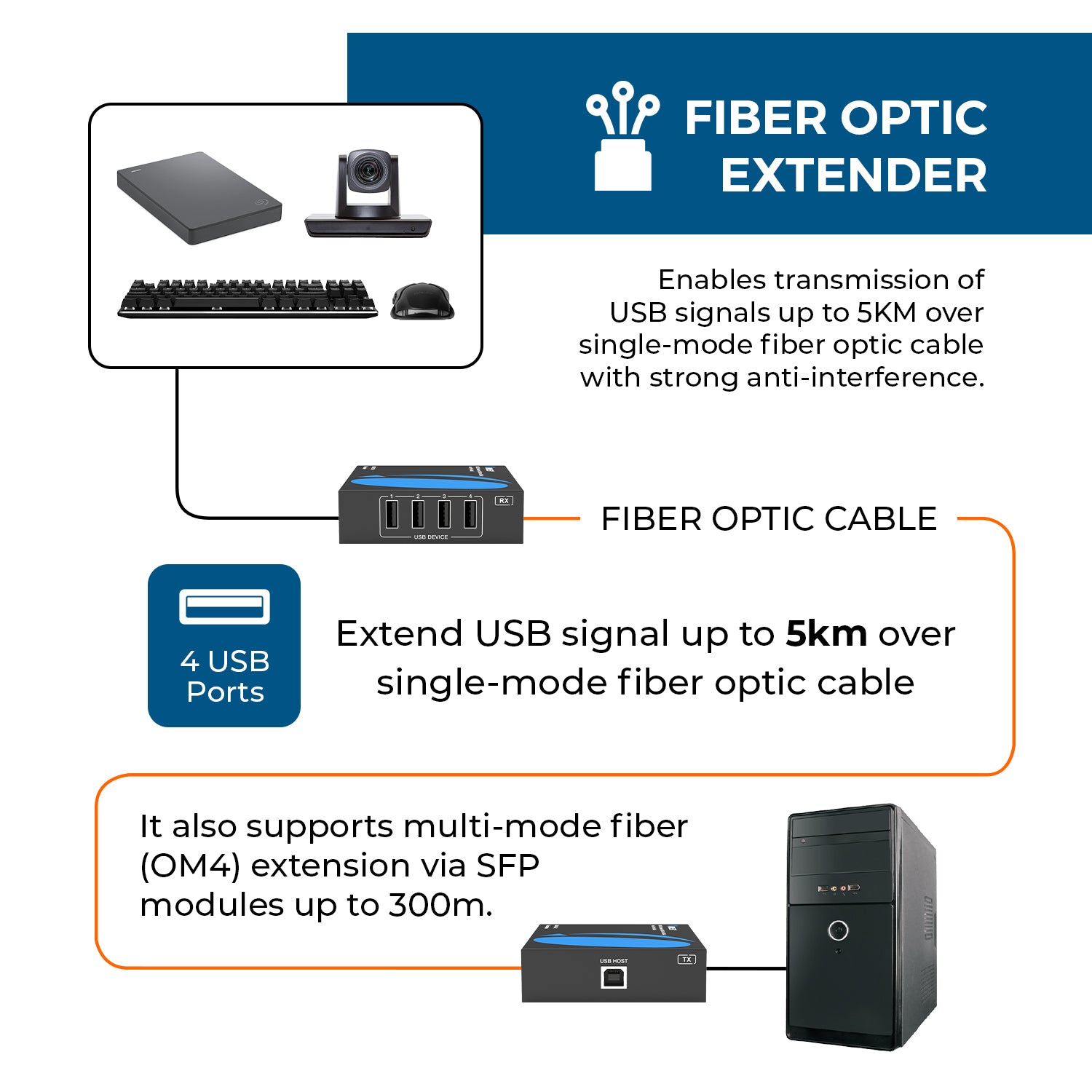

USB-FO5-K is a high-performance 4-Port USB 2.0 Fiber Optic Extender designed to provide long-distance, stable, and interference-free USB connectivity for mission-critical applications. It enables extension of up to four USB devices up to 5 km over single-mode fiber or up to 300 m over OM4 multi-mode fiber, making it ideal for environments requiring secure and reliable data transmission.

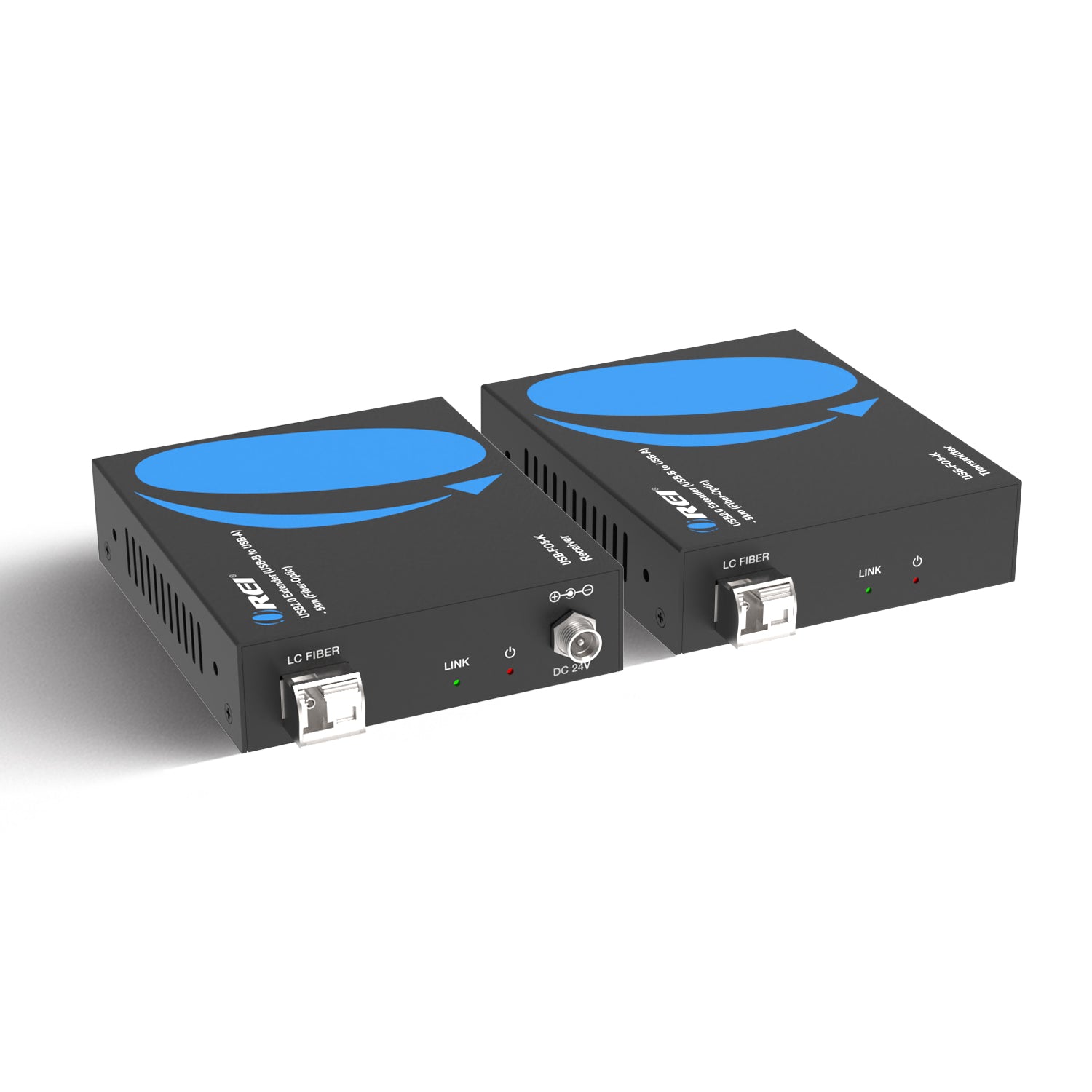

Each system consists of a Transmitter (TX) that connects to the host computer and a Receiver (RX) that supports up to four USB devices, including USB peripherals such as keyboards, mice, touchscreens, printers, scanners, storage devices, and more. With full compliance to USB 2.0/1.1 standards and data transfer rates up to 480 Mbps, it ensures smooth, high-speed communication without signal loss.
Designed for professional and industrial installations, this extender is widely used in military and police command centers, traffic management systems, medical and healthcare environments, government facilities, commercial presentations, multimedia setups, and public utility infrastructures. Featuring plug-and-play functionality with no drivers required, the USB-FO5-K provides a simple, robust, and reliable long-distance USB extension solution.
Key Features:
- Long-Distance USB Extension – Extends USB 2.0 signals up to 5km over single-mode fiber.
- High-Speed Data Transfer – Maintains USB 2.0 data rates up to 480Mbps.
- Multi-Port Connectivity – Supports up to four USB devices simultaneously.
- Automatic Device Recognition – Compatible with high-speed, full-speed, and low-speed USB devices.
- Powered USB Ports – Receiver provides 5V/1A power to connected devices.
- Multi-Platform Support – Works with Windows, Linux, and Mac operating systems.
- Plug-and-Play Operation – No drivers or software configuration required.

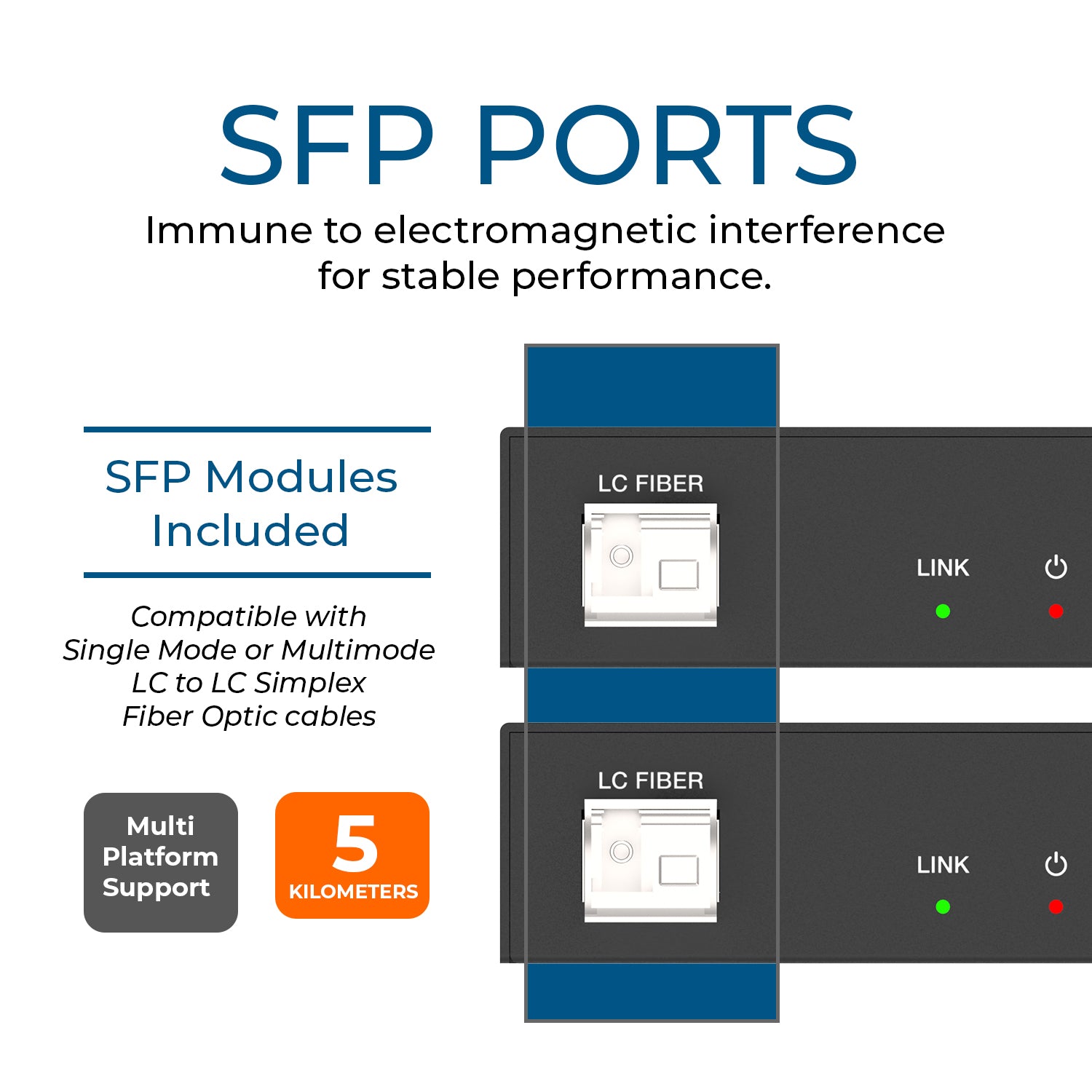

- Fiber Optic Reliability – Immune to electromagnetic interference for stable performance.

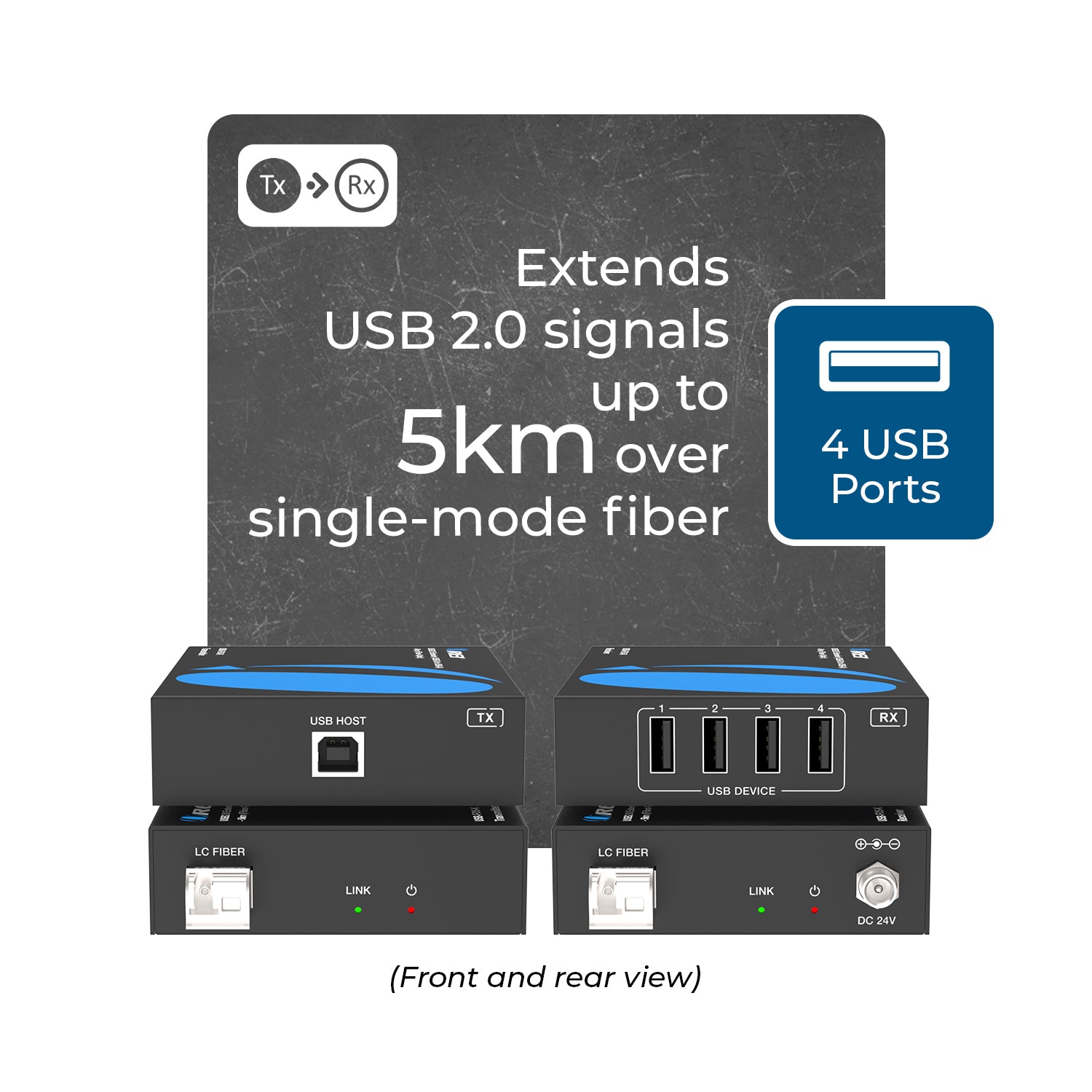

- CONNECTIVITY
- Transmitter: INPUT: 1× USB HOST [USB Type B, 4-pin female]
- OUTPUT: 1× LC FIBER [LC female]
- Receiver: INPUT: 1× LC FIBER [LC female]
- OUTPUT: 4× USB DEVICE [USB Type A, 4-pin female]
- PACKAGE CONTENTS
- 1x USB-FO5-K (Transmitter)
- 1x USB-FO5-K (Receiver)
- 2x Fiber Optic Modules
- 1x USB Cable (USB-A to USB-C)
- 8x Machine Screw
- 4x Mounting Ear
- 1x Power Adapter
- User Manual
- SUPPORTED CAT CABLES
- Single mode/Multiple mode Optical fiber: We recommend you use Single Mode Fiber Optic cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@60HZ: 5 Kilometres
- VIDEO OUTPUT
- USB Bandwidth: High-speed (480Mbps) Full-speed (12Mbps) Low-speed (1.5Mbps)
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: Yes
- PoC: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- USB-C: Yes
- LOOP-OUT/LOCAL PORT
- Has loop out port: No
- Number of Loop out ports: 0
- AUDIO SUPPORT
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- HDR: HDR10, HDR10+, Dolby Vision, HLG
- POWER
- Power Consumption: Transmitter: 1W (Max), Receiver: 24.24W (Max)
- Power Supply: Input: AC 100 - 240V 50/60Hz
- Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

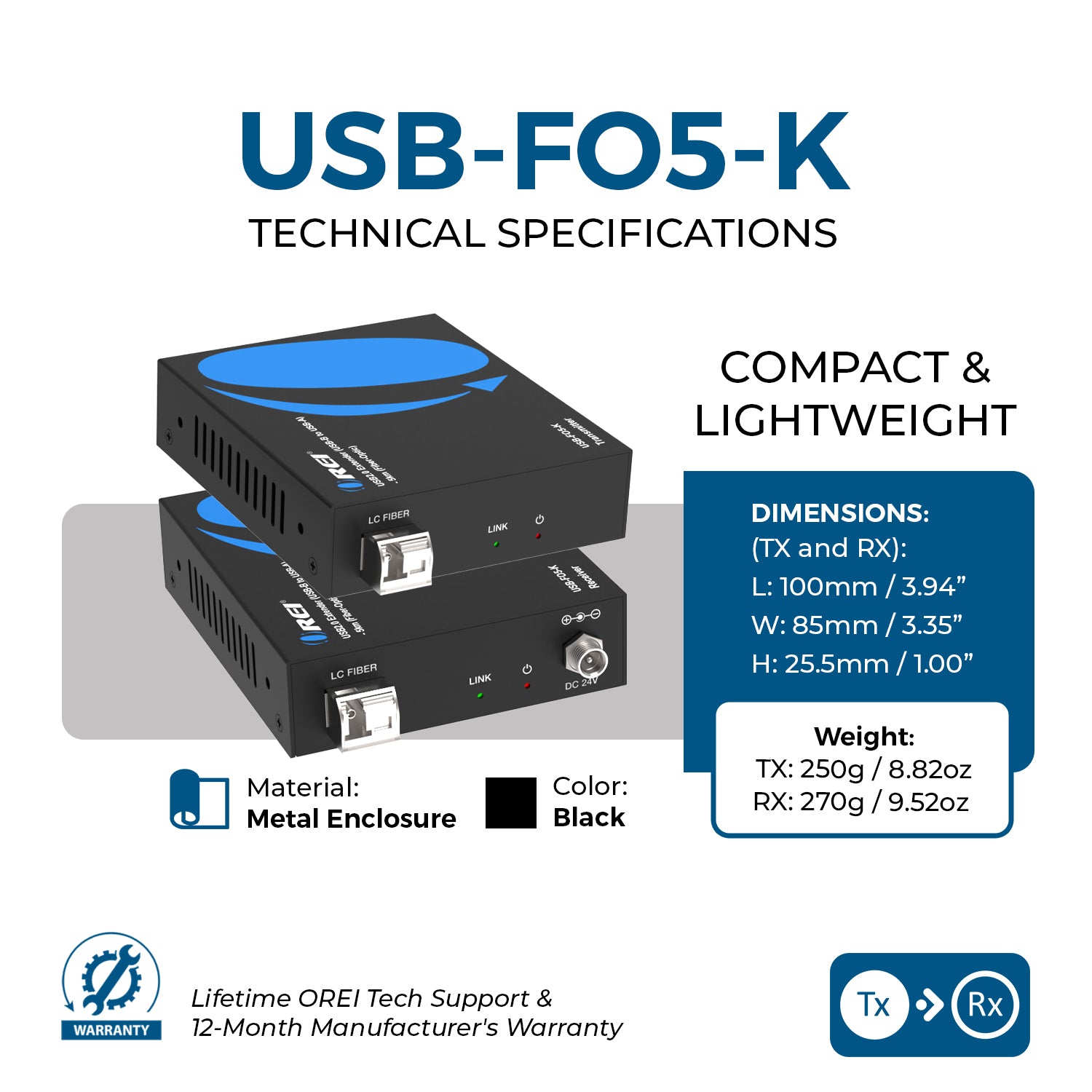

- DIMENSIONS & WEIGHT
- Transmitter: Length: 100mm / 3.94in
- Width: 85mm / 3.35 in
- Height: 25.5mm / 1.00in
- Weight: 250g / 8.82oz
- Receiver: Length: 100mm / 3.94in
- Width: 85mm / 3.35 in
- Height: 25.5mm / 1.00in
- Weight: 270g / 9.52oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 32°F~104°F / 0°C~40°C
- Storage Temperature: -4°F~140°F / -20°C~60°C
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing
- WARRANTY
- 1-Year Manufacturer's Warranty
Includes:
- 1x USB-FO5-K (Transmitter)
- 1x USB-FO5-K (Receiver)
- 2x Fiber Optic Modules
- 1x USB Cable (USB-A to USB-C)
- 8x Machine Screw
- 4x Mounting Ear
- 1x Power Adapter
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
