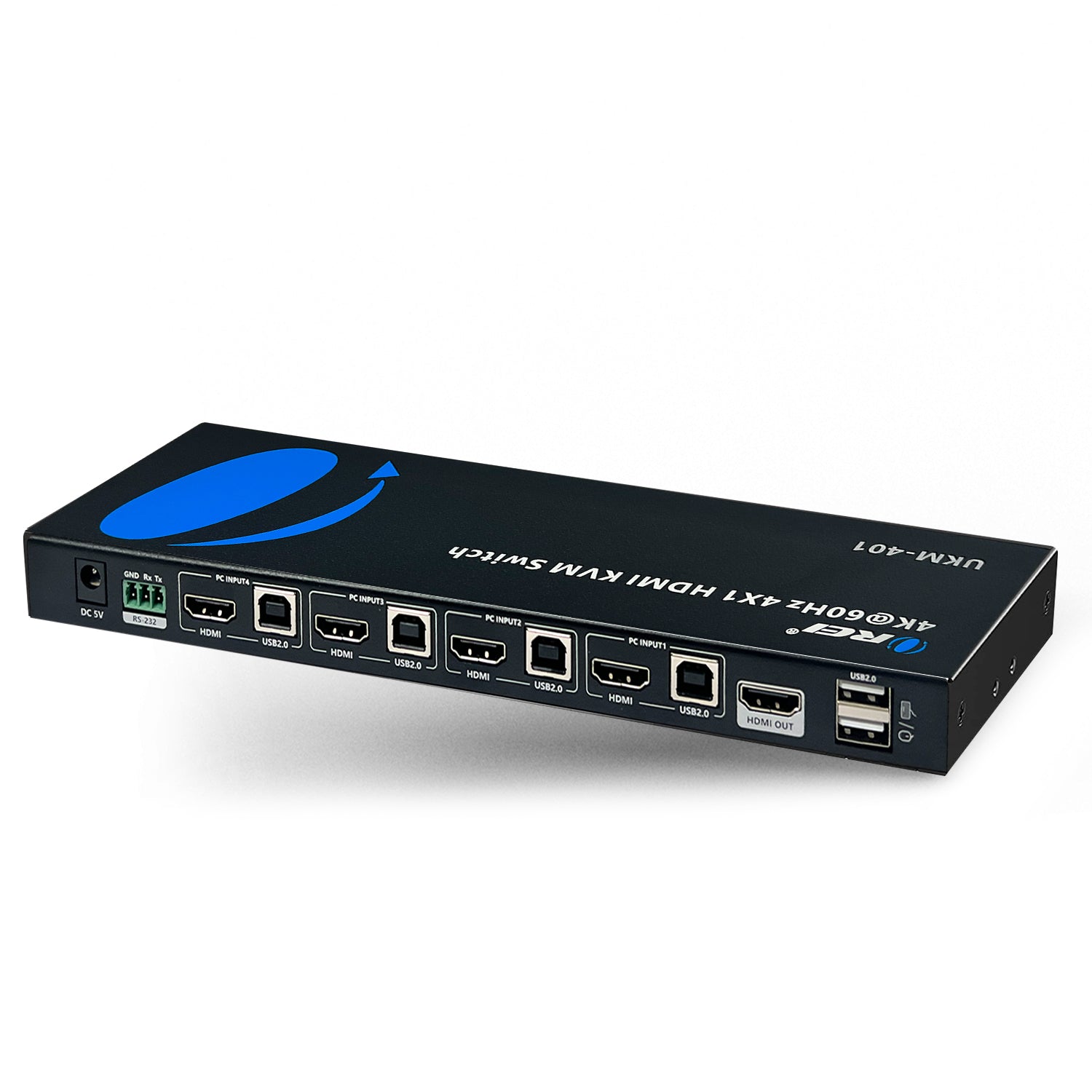

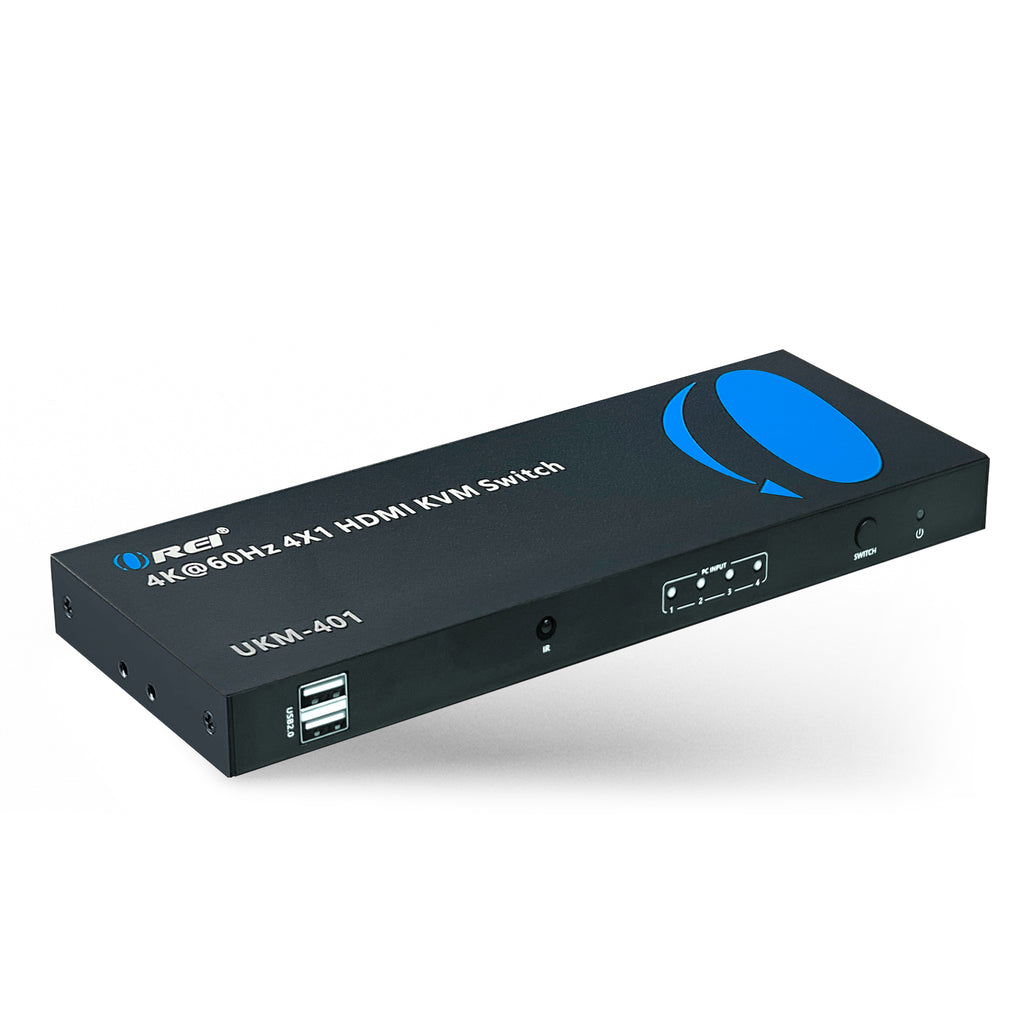

OREI UKM-401: Ultra HD 4K 4x4 HDMI KVM Switch

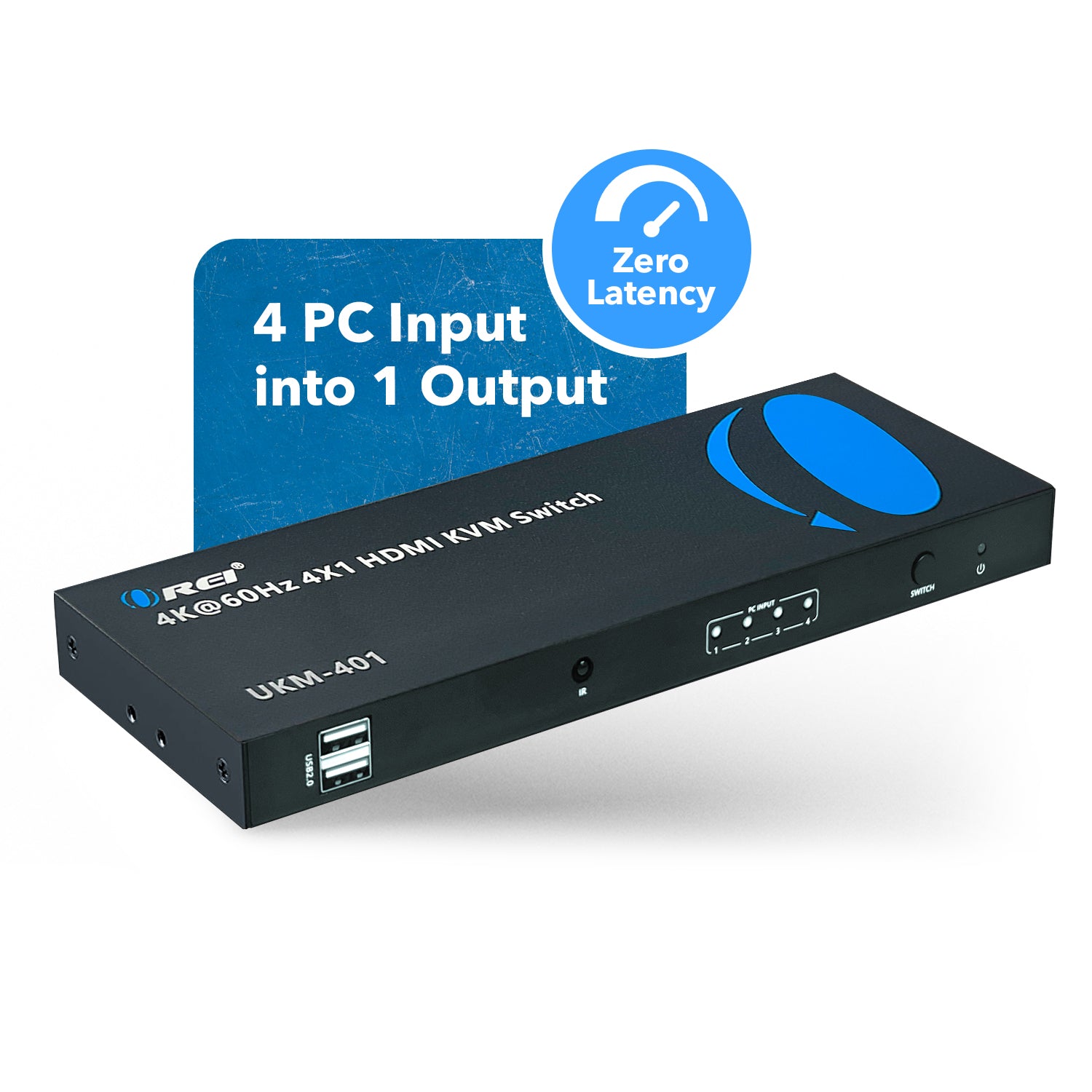

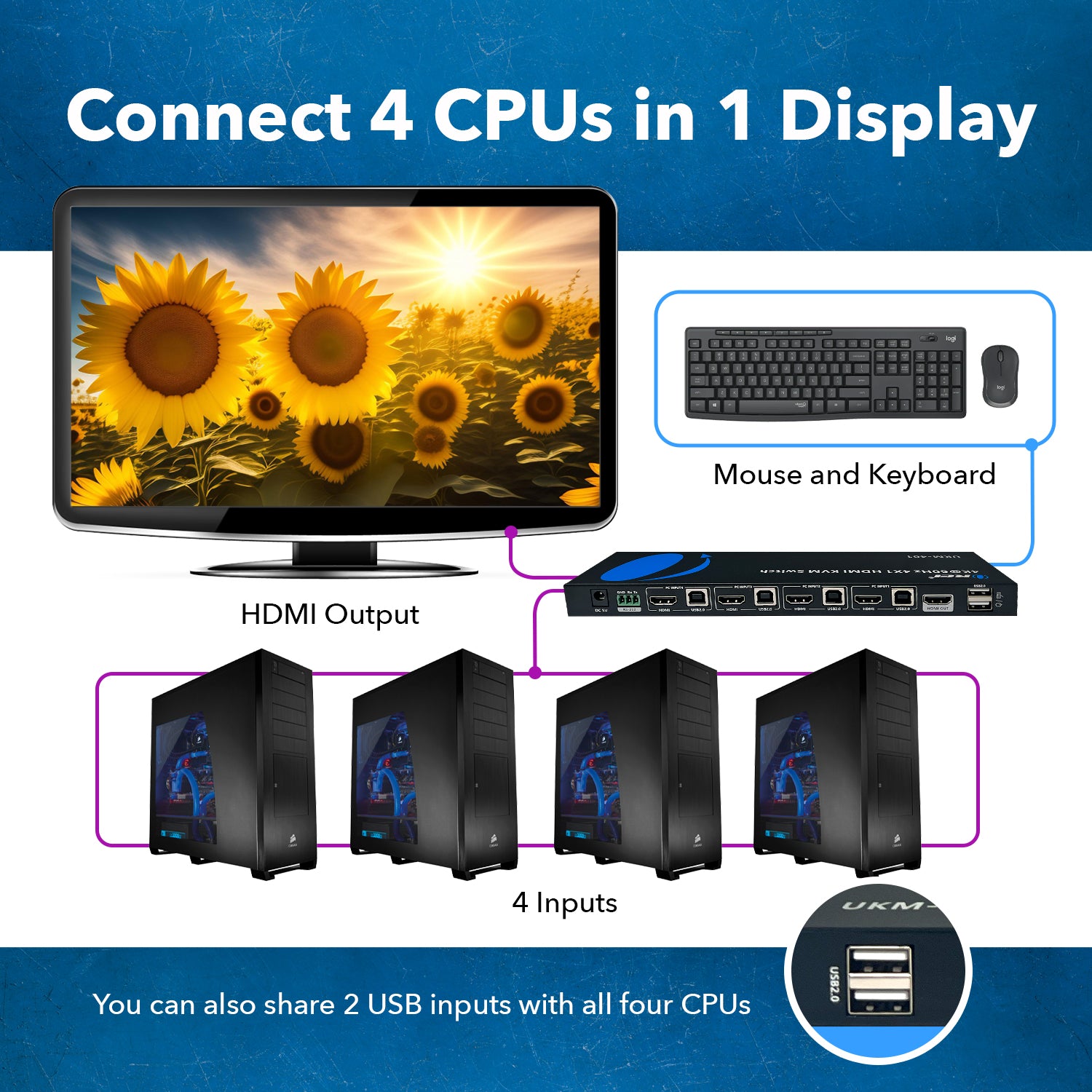

The UKM-401 is a 4K@60Hz 4X1 HDMI KVM Switch that features 4 HDMI inputs and 1 output. It features 4 USB-B and 4 USB-A ports to connect a PC or laptop and other computer peripherals such as keyboard or mouse. This versatile device allows you to connect 4 PCs and control & switch between them using only 1 set of Keyboard, mouse and Monitor

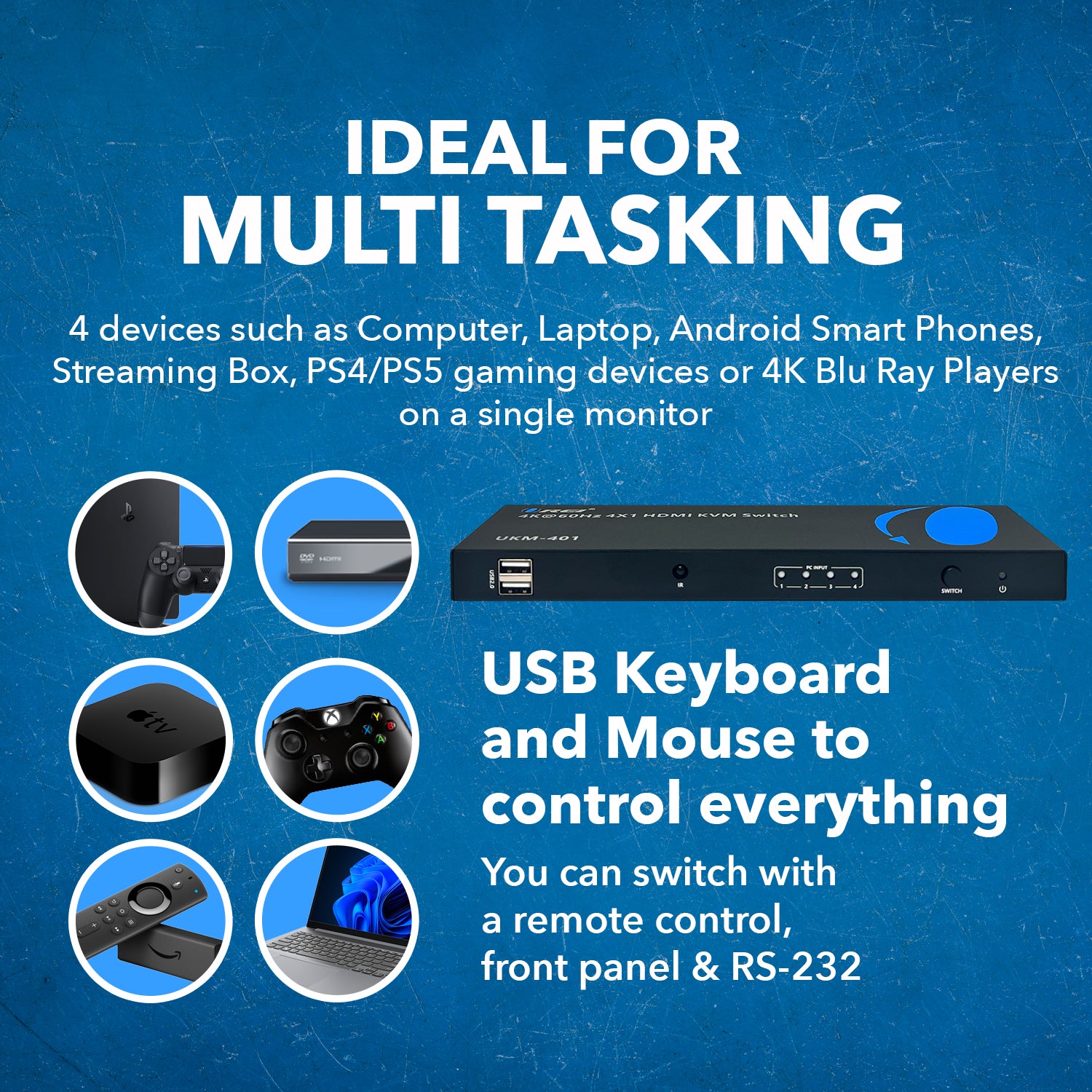

Users can easily control the KVM switch via the RS-232 port, the included remote control, and the front panel buttons. It is widely used in security monitoring, education and training, exhibitions and broadcasting, command centers, etc.
It has HDMI 2.0 and HDCP 2.2/1.4 compliant. Easy and flexible to install and simple to operate.
KVM - This feature allows you to control 4 PCs through a single set of Keyboard, Mouse and Display.
RS-232 Control - The device can be easily controlled through a PC using RS-232 protocol commands.
Key Features:
- HDMI 2.0 & HDCP 2.2 Compliant
- Video resolutions up to 4K@60Hz
- 4 HDMI Inputs and 1 Output with 4 USB Inputs and Outputs
- USB 2.0 Compliance

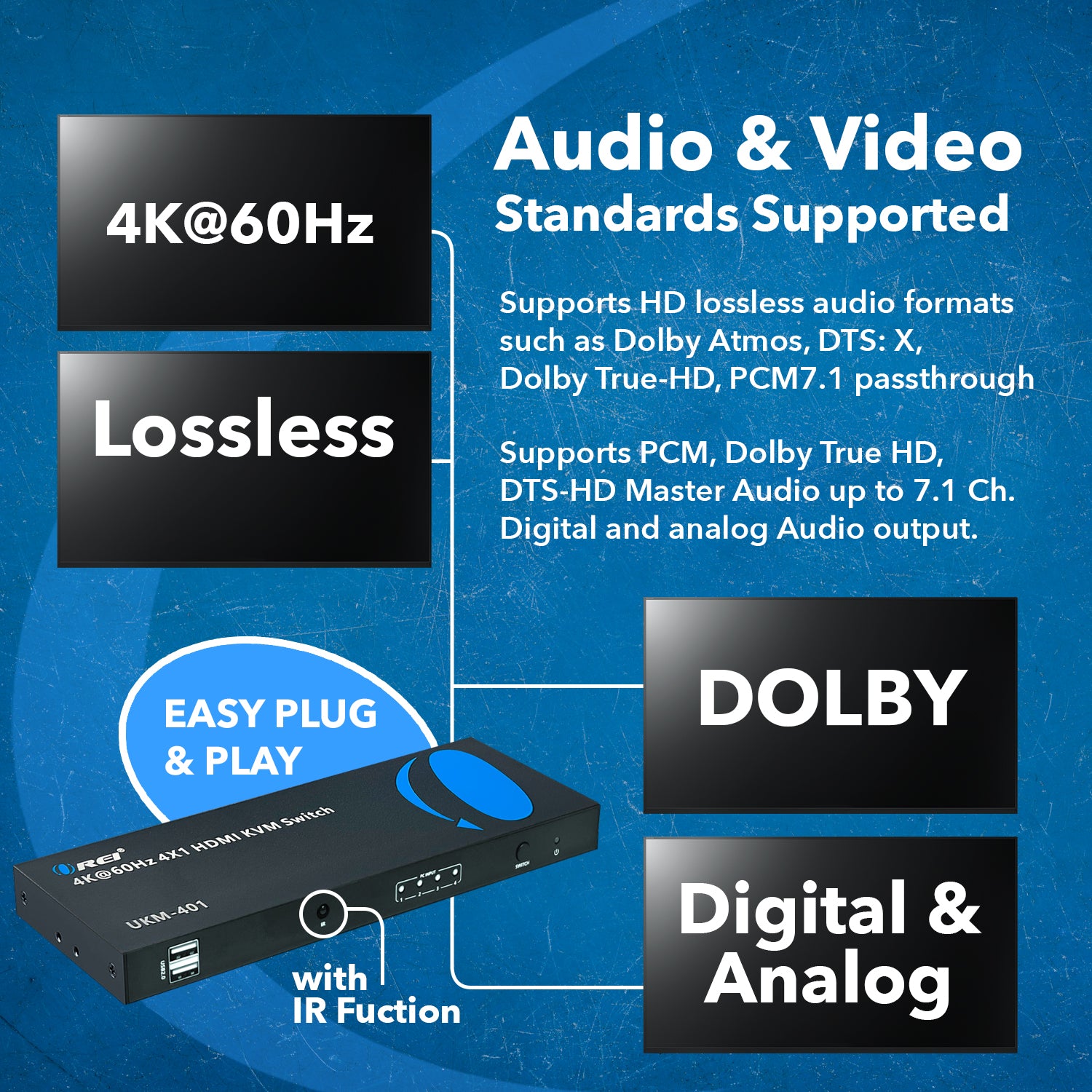

- Supports lossless audio formats such as Dolby Atmos, DTS:X, Dolby True-HD, PCM7.1 passthrough from HDMI
- Compact design for easy and flexible installation
Lightweight and Durable Metal Enclosure
INPUT PORTS: 4 HDMI input
OUTPUT PORTS: 1 HDMI output
AUDIO AND VIDEO
Video Bandwidth: 600 MHz
Video Resolution: 4096x2160@24/25/30/50/60Hz
HDMI Audio Formats: LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital Plus/Dolby TrueHD 7.1/Dolby Digital/Dolby Atmos
POWER
Power Consumption: <3W
PROTECTION
Operation Temperature: -20°C `60°C
Storage temperature: -30°C `70°C
Relative Humidity: 0 `90%RH

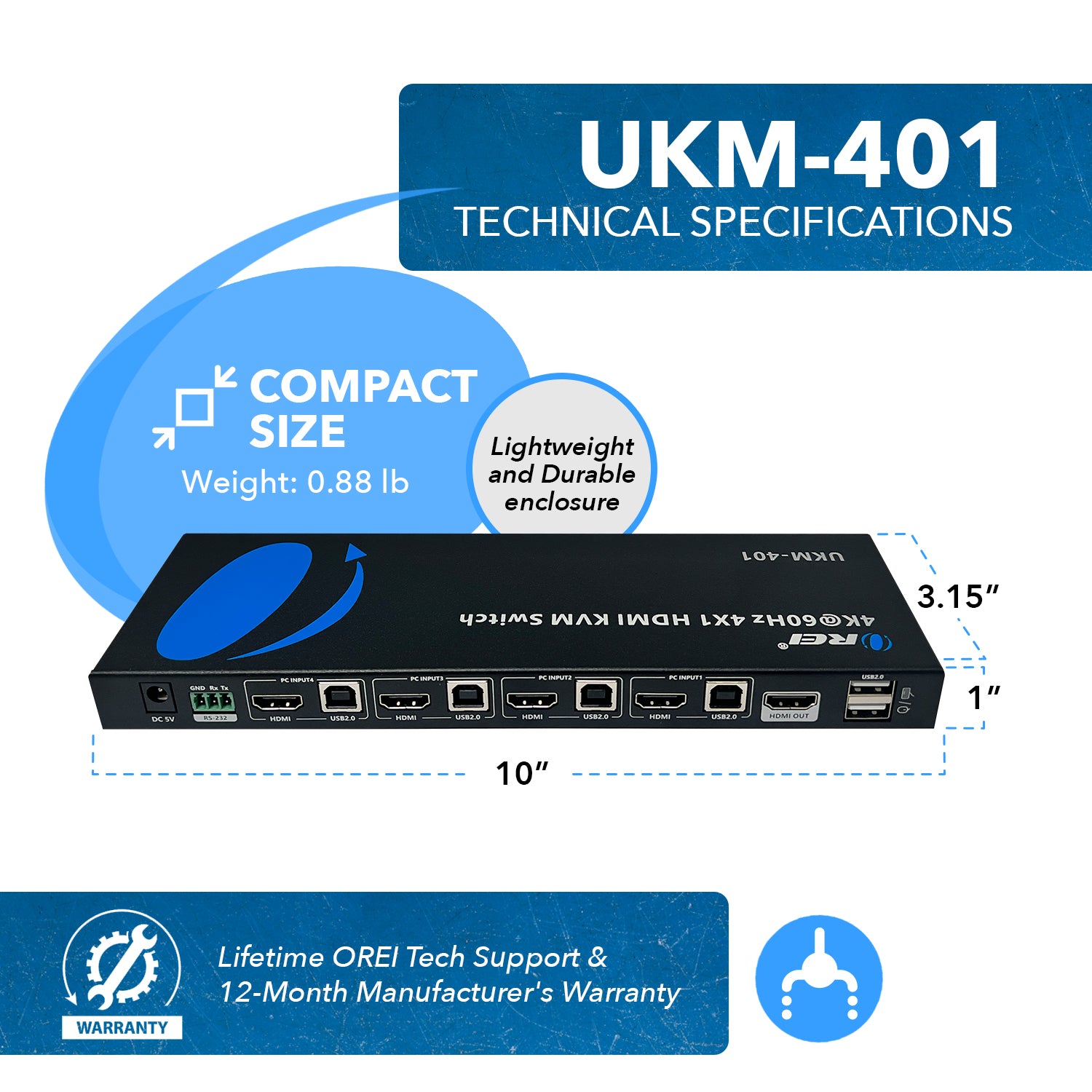

DIMENSIONS & WEIGHT
Height: 21mm
Width: 80mm
Depth: 250mm
Weight: 510g

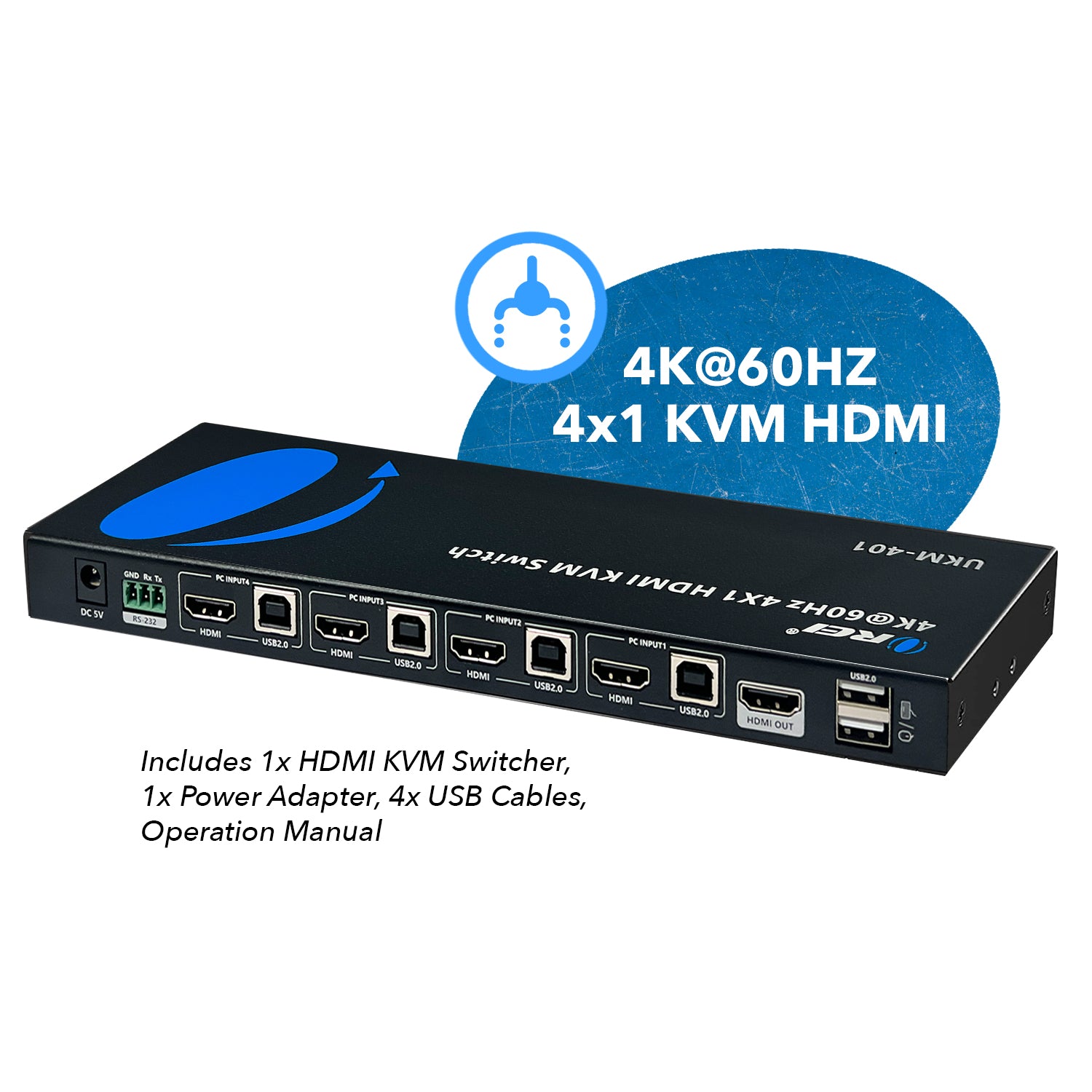

- 1x UKM-401 KVM Switch
- 1x Power Adapter 5V/1A
- 1x Remote Control
- 1x Mounting Ear
- 6x Screw
- 2x Grounding Screw
- 1x Terminal Block
- 6x USB 2.0 Type A to Type B Cable
- 1x User Manual
- 1 year manufacturer's warranty
