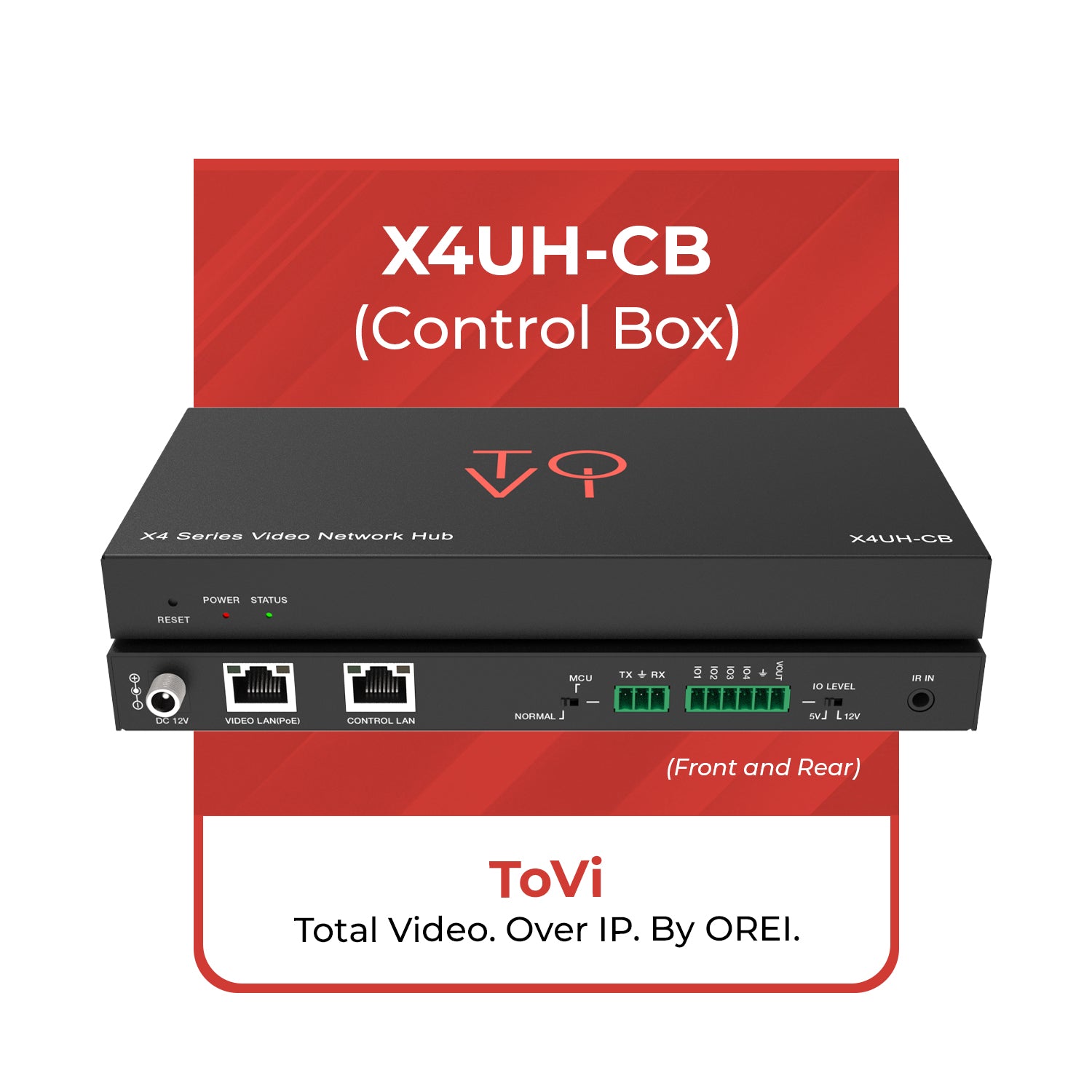

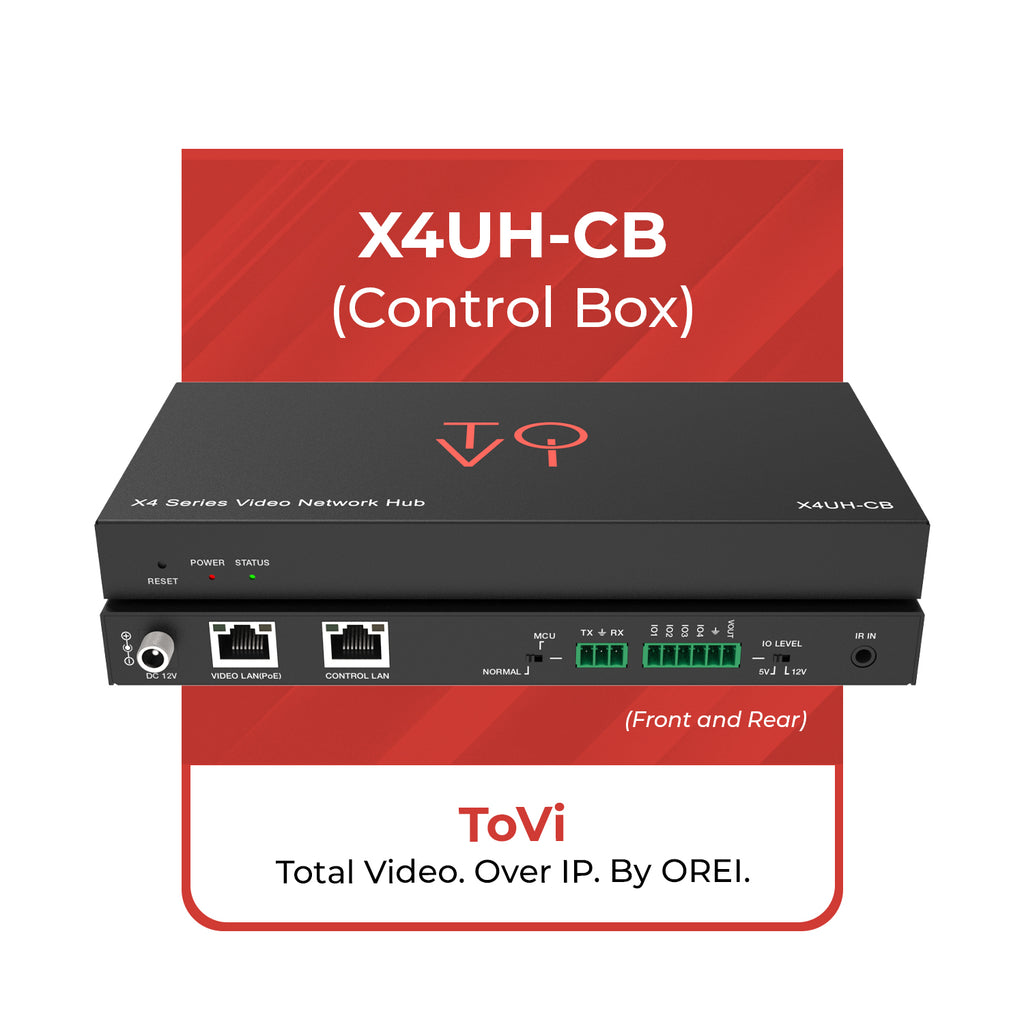

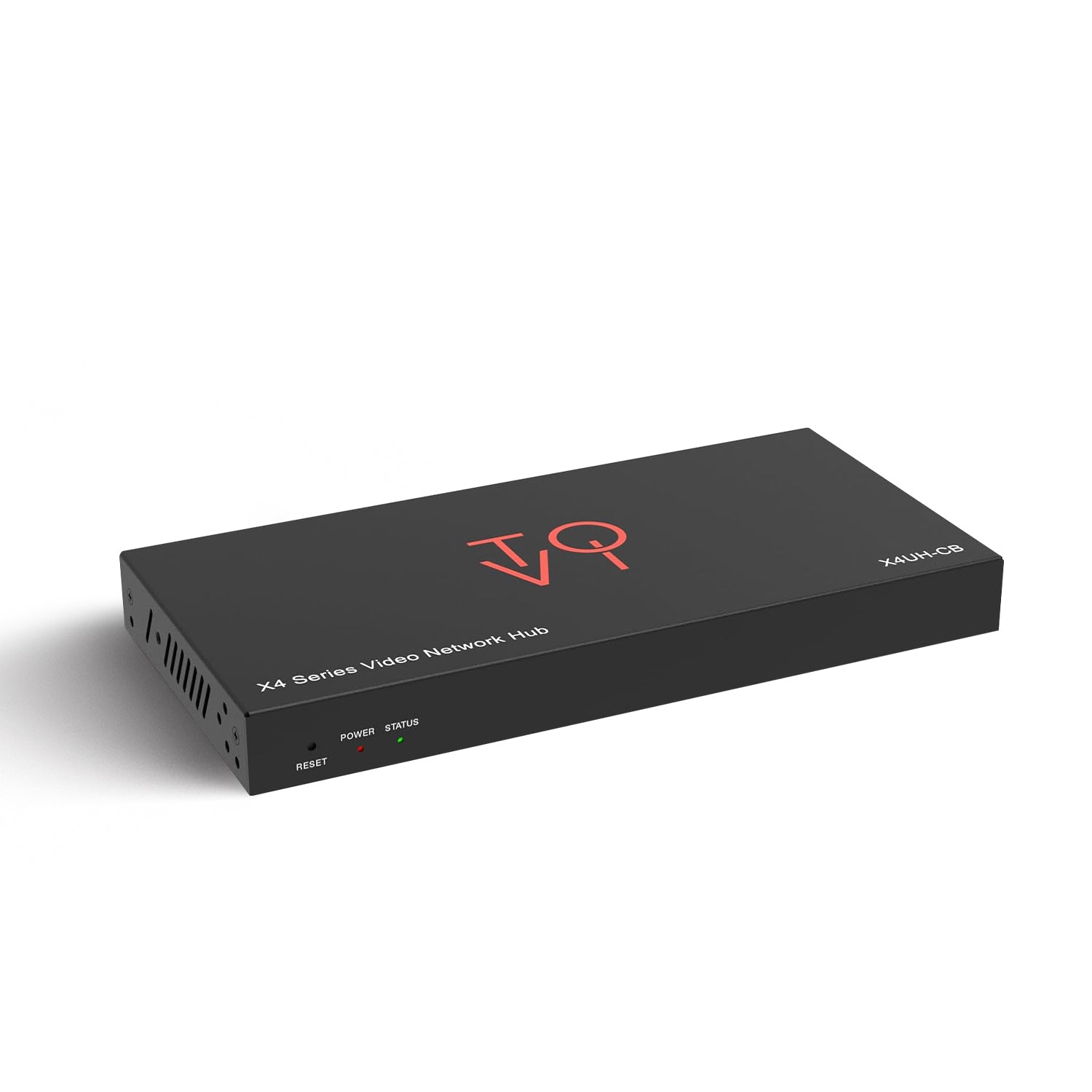

ToVi X4 Series (4K) Video Network Hub

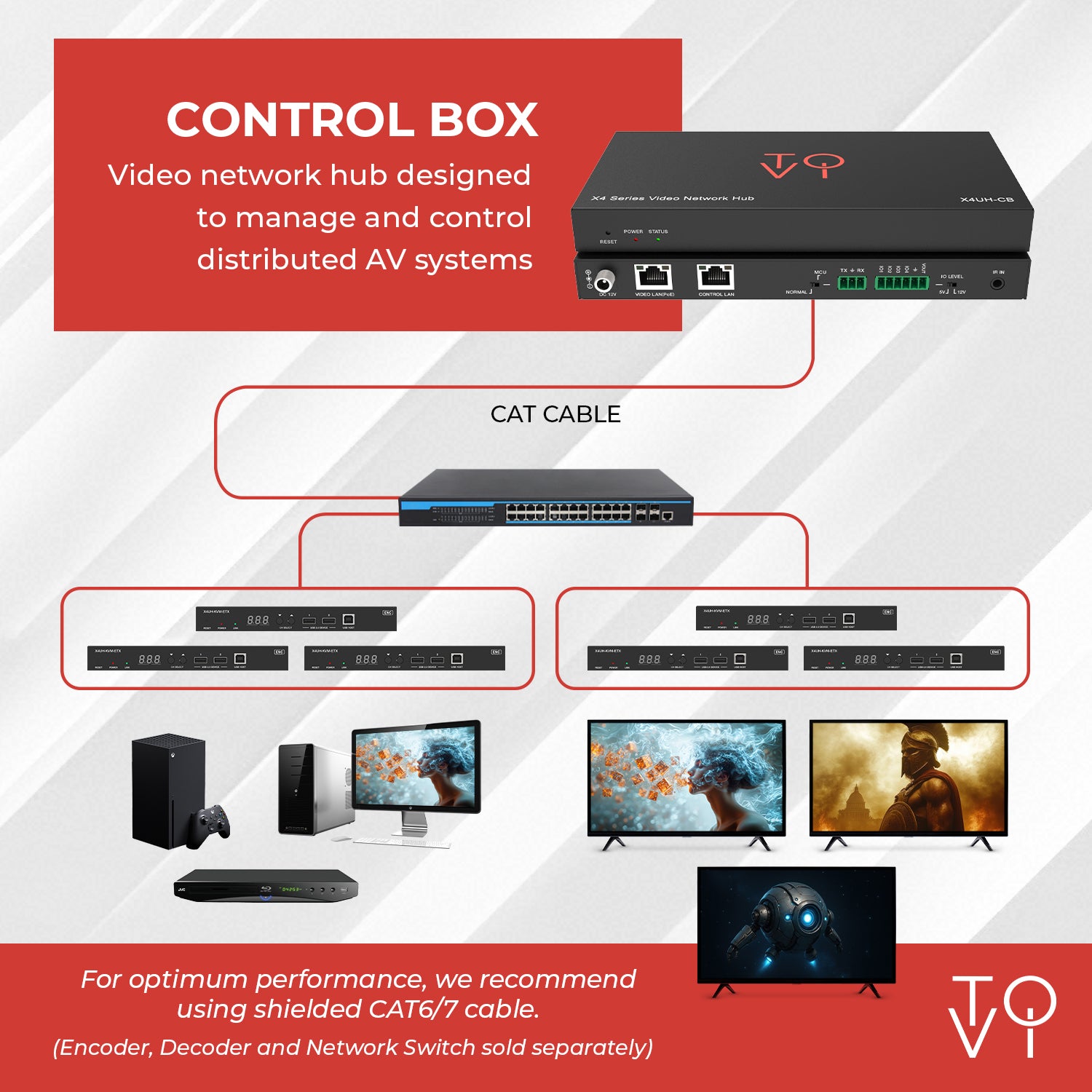

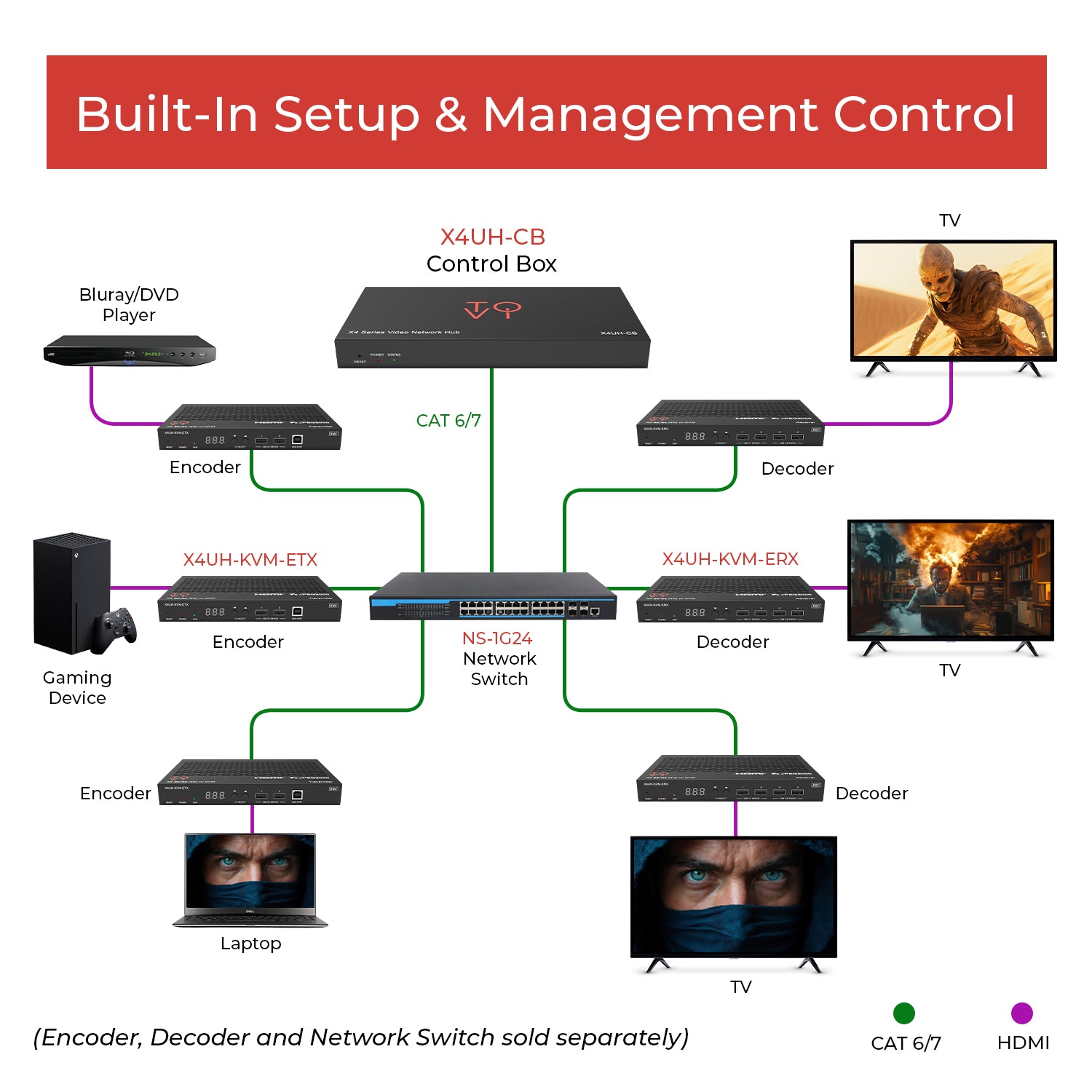

The X4UH-CB is a high-performance video network hub designed to manage and control distributed AV systems utilizing the ToVi X4 Series models. Featuring dual network ports for dedicated control and multicast video traffic, it ensures efficient and secure network isolation while delivering exceptional performance and reliability.
Built to support a wide range of IP configurations—including Auto, DHCP, and Manual—the X4UH-CB also offers HTTPS, SSH, and SFTP compatibility for enhanced security. A built-in web-based GUI with Drag & Drop functionality allows for intuitive configuration and real-time image previews, streamlining project setup and management.
This hub supports a comprehensive suite of control options including video, audio, RS-232, IR, KVM, and CEC, making it a flexible solution for AV distribution. Additional features include GPIO control, wide-band IR signal reception, and compatibility with third-party control systems via LAN and RS-232.
Engineered with robust protection circuits and designed for 24/7 continuous operation, the X4UH-CB is ideal for mission-critical environments requiring stability, scalability, and ease of use.
Key Features:
- Easy Project Creation – Intuitive setup and system management with built-in control options.
- Multiple IP Configuration Modes – Supports Auto, DHCP, and Manual set tings for flexible network integration
- Enhanced Security Protocols – Compatible with HTTPS, SSH, and SFTP for secure communication

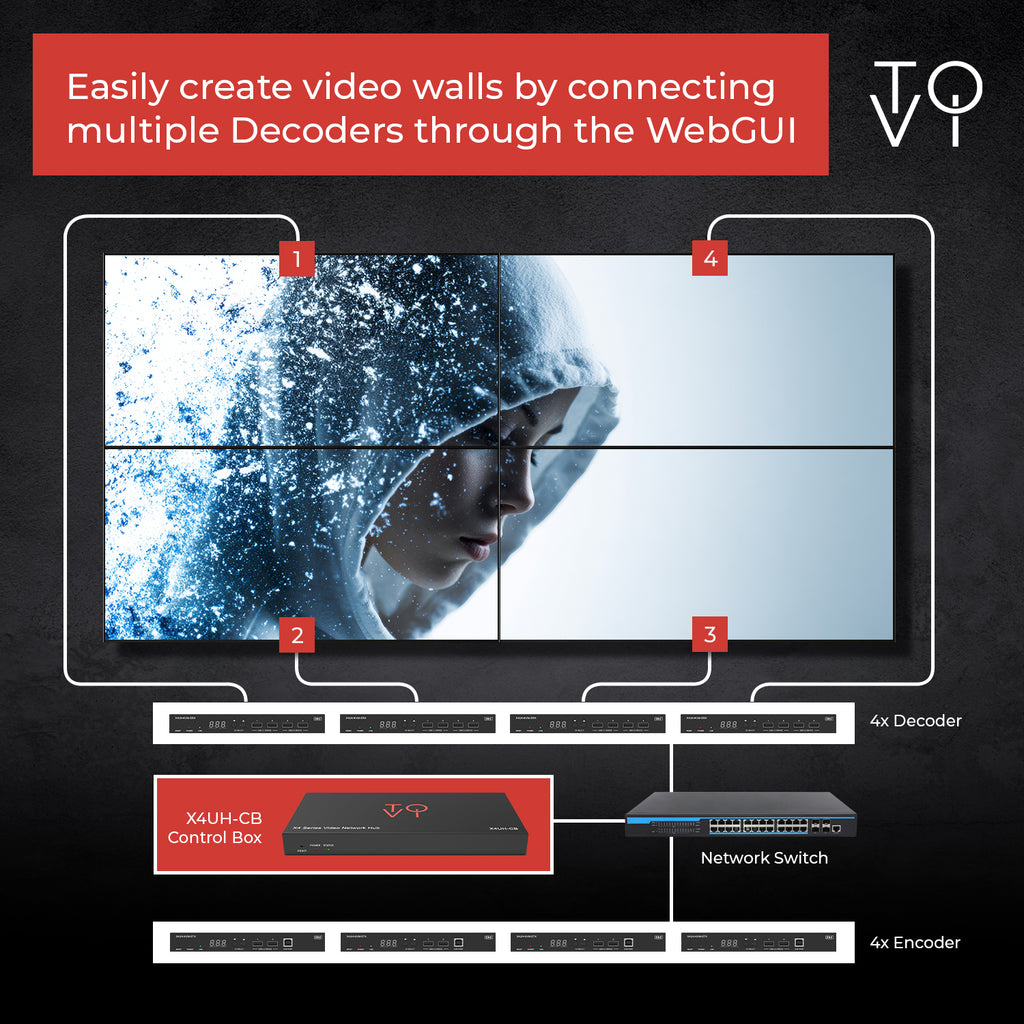

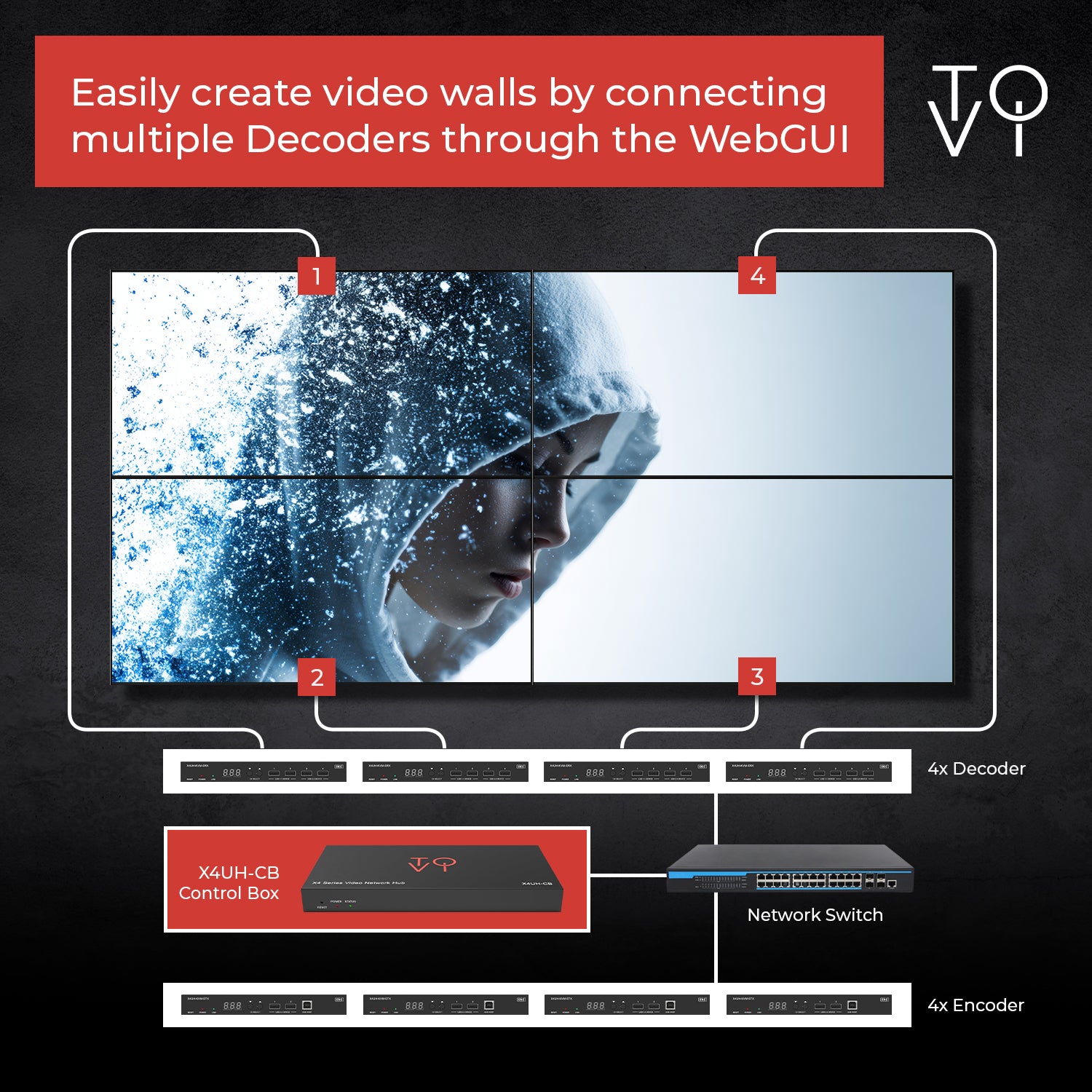

- Web GUI Interface – Built-in drag-and-drop Web GUI for easy control and system monitoring
- Image Preview – Allows real-time monitoring of content streams
- Full System Control – Supports video, audio, RS-232, IR, KVM, and CEC management on X4 Series Extenders
- Dual LAN Ports – Isolates Control and Multicast networks; VIDEO LAN supports PoE for simplified power delivery
- Third-Party Control Support – Integrates with external control systems via LAN or RS-232 ports
- IR Signal Reception – Wide-band 12V IR receiver via 3.5mm input
- GPIO Control – Includes 4-channel GPIO ports with selectable 5V/12V levels
- Industrial-Grade Protection – Features multi-circuit, lightning, and ESD protection
- 24/7 Reliability – Engineered for continuous, round-the-clock operation in demanding environments
- CONNECTIVITY
- Control Ports: 2 x 100M LAN [RJ45 connector] [VIDEO LAN supports PoE]
- 1 x IR IN [3.5mm audio jack, 12V level]
- 1 x DIGITAL I/O [6-pin 3.81mm phoenix connector]
- 1 x RS-232 [3-pin 3.81mm phoenix connector]
- SUPPORTED CAT CABLES
- CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- Transmission Distance: 100m (CAT5E/6/6A/7)
- Network Bandwidth: 100M
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: Yes
- KVM: Yes
- PoC/PoE: Yes
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: Yes
- POWER
- Power Consumption: 4.5W
- Power Supply: 12V/1A

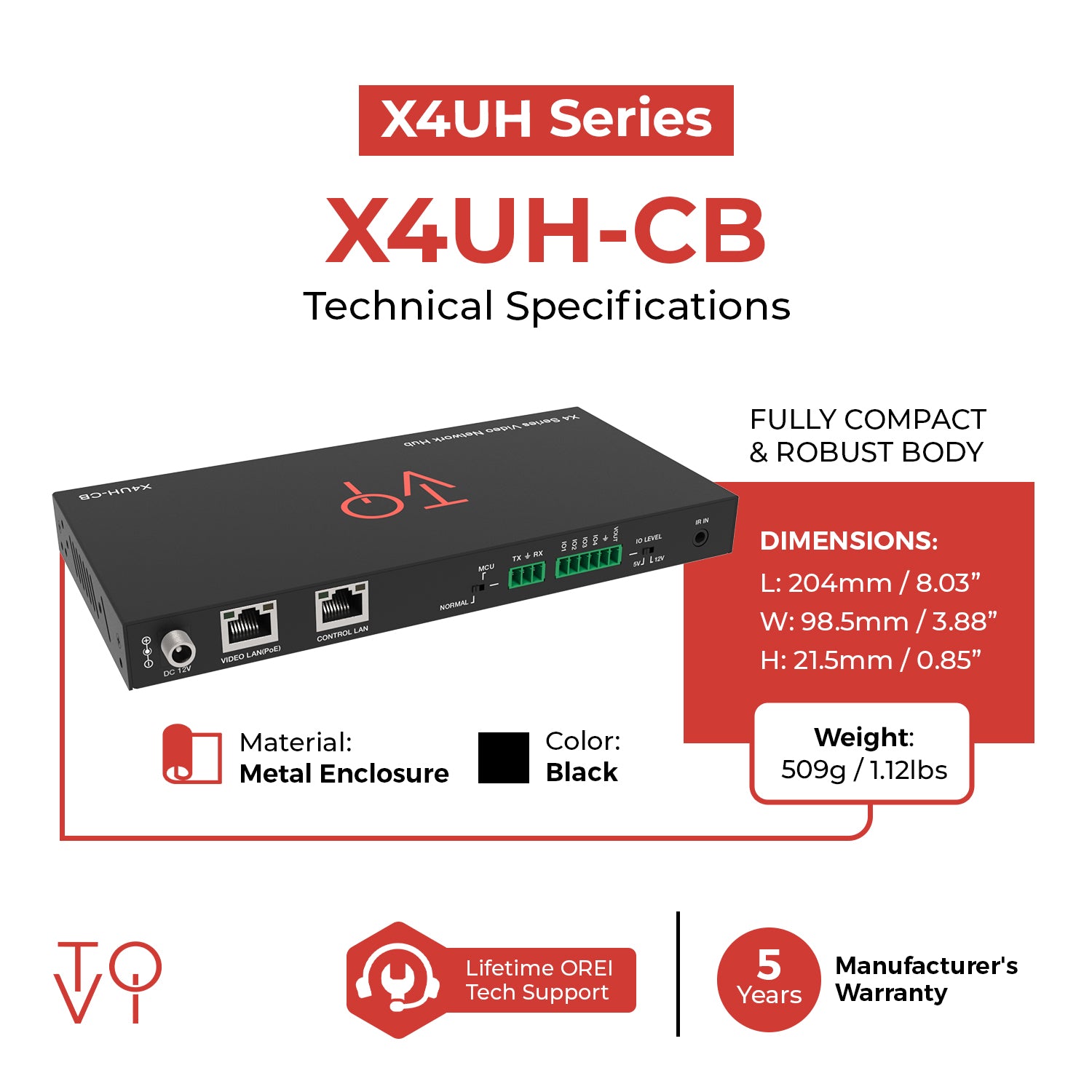

- DIMENSIONS & WEIGHT
- Length: 204mm / 8.03in
- Width: 98.5mm / 3.88in
- Height: 21.5mm / 0.85in
- Weight: 509g / 1.12lbs
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing

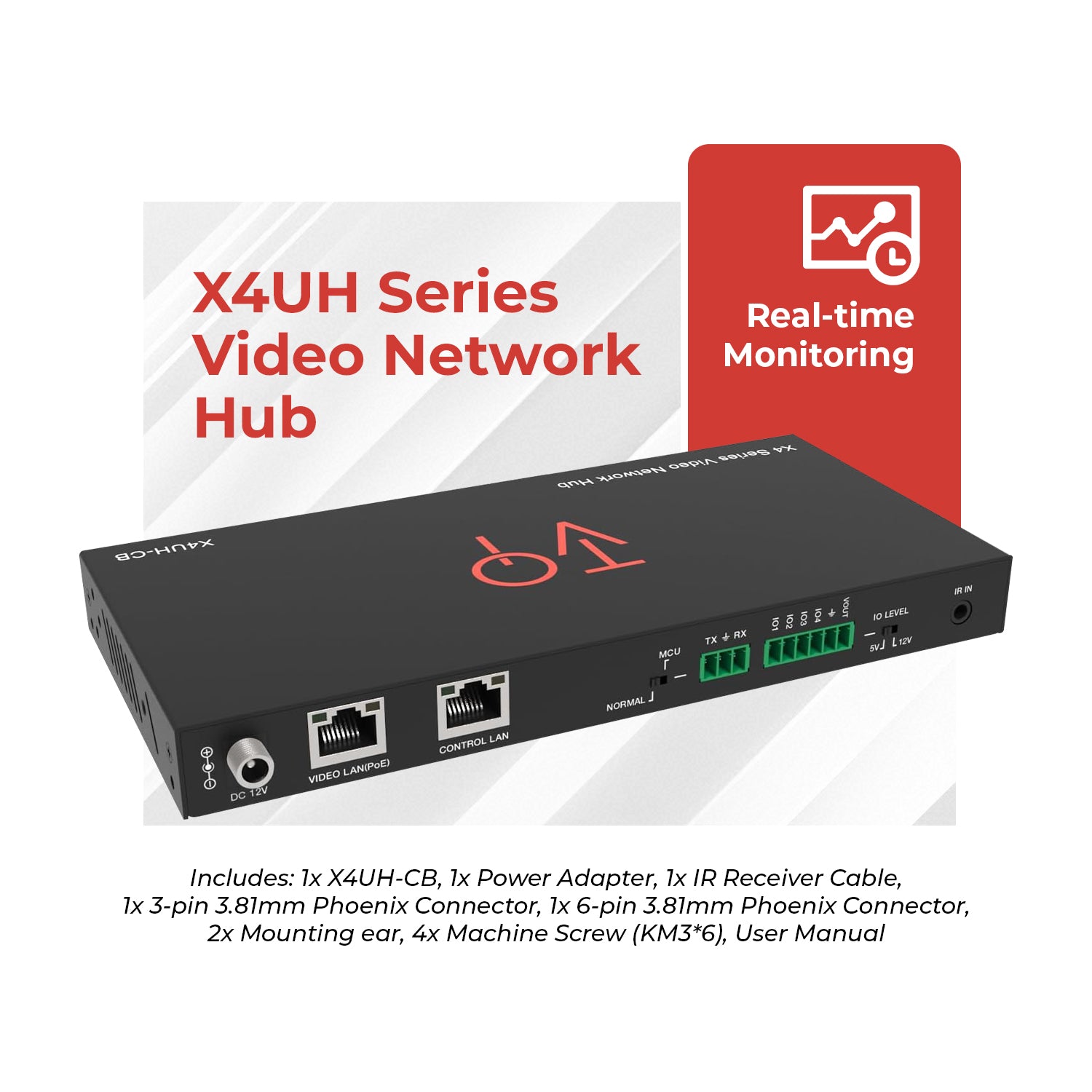

Includes:
- 1x X4UH-CB
- 1x 20kHz-60kHz 12V IR Receiver Cable (1.5 meters)
- 1x 3-pin 3.81mm Phoenix Connector (male)
- 1x 6-pin 3.81mm Phoenix Connector (male)
- 2x Mounting Ear
- 4x Machine Screw (KM3*6)
- 1x 12V/1A Locking Power Adaptor
- User Manual
- 1-year manufacturer's warranty
