PRODUCT CODE:

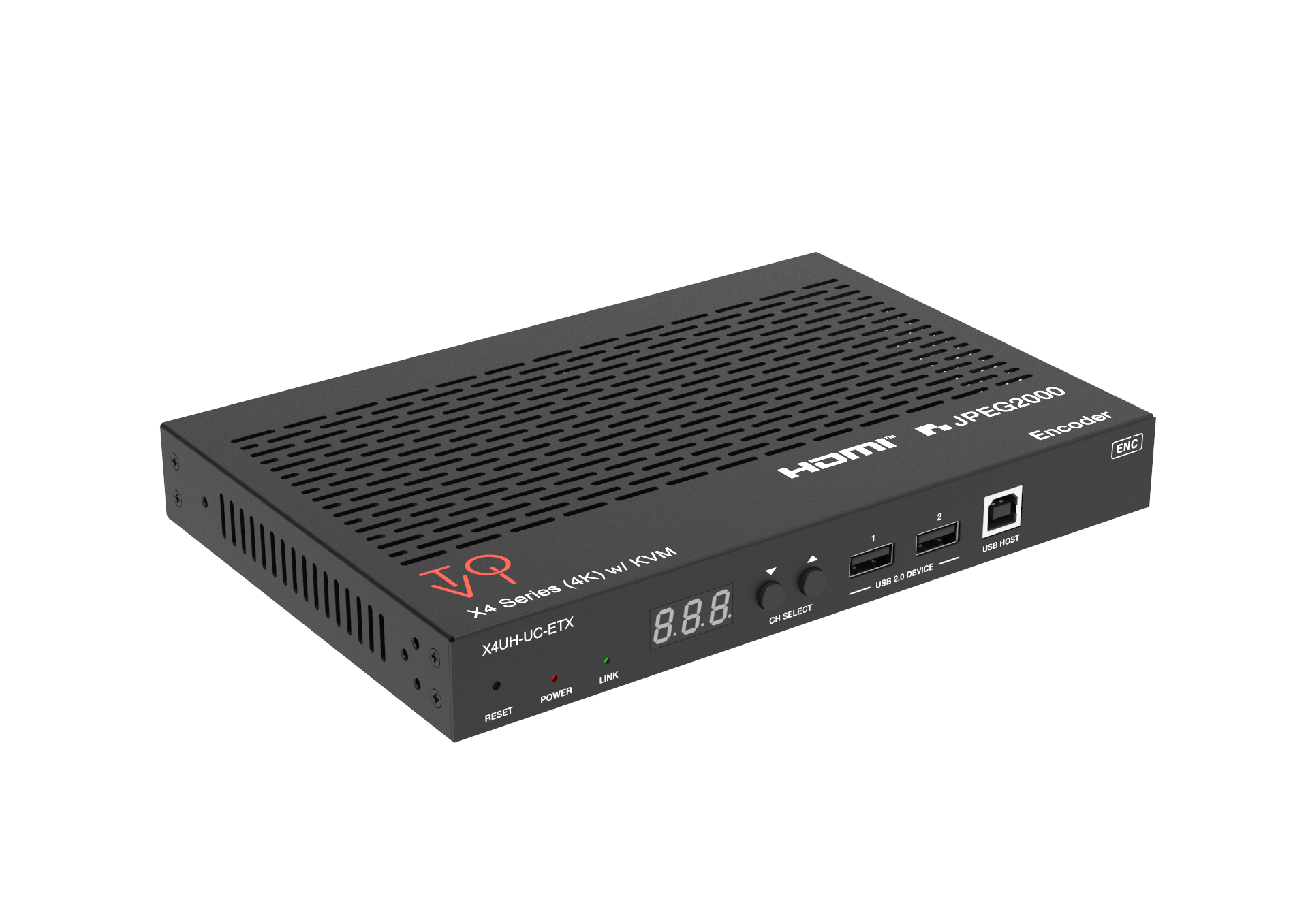

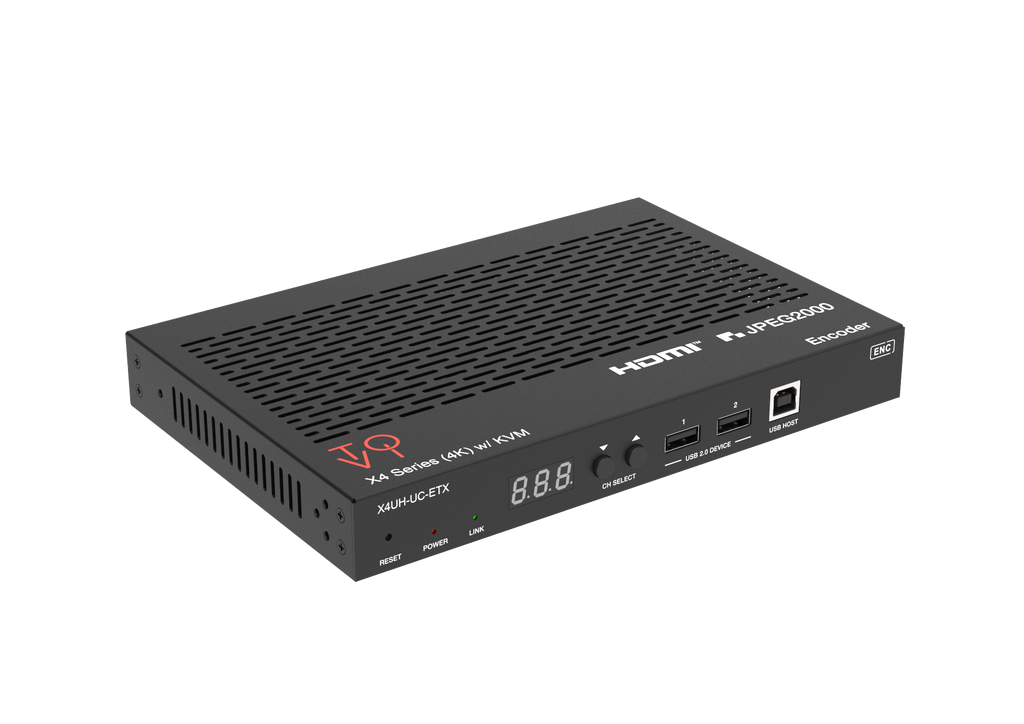

ToVi X4 4K Encoder (Video Wall, KVM, eARC) - (X4UH-UC-ETX)

PRODUCT CODE:

ToVi X4 4K Encoder (Video Wall, KVM, eARC) - (X4UH-UC-ETX)

~~$799.00~~ $529.00

In Stock: Usually Ships in 24 Hours

HDCP 2.2 Compliant
HDMI™ & USB-C Dual Inputs
Intelligent Video Wall Management

Quantity:

REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

ToVi X4 Series (4K) w/ KVM

The X4UH-UC-ETX is a high-performance HDMI™ and USB-C over IP extender built on advanced JPEG2000 technology, designed for seamless, low-latency AV signal transmission with integrated KVM functionality. Equipped with ASPEED AST1530 for image compression, it supports video resolutions up to 4K@60Hz 4:4:4, delivering exceptional image quality over long distances via standard Cat6/6a/7 cables. This extender features HDMI™ and USB-C inputs with automatic switching, comprehensive audio functions including ARC/eARC, S/PDIF, analog audio return, and supports audio embedding and de-embedding. Additional capabilities include bi-directional IR, RS-232, CEC control, USB 2.0/ KVM, PoE, and built-in relay and I/O ports for contact control.

The X4UH-UC-ETX offers unmatched flexibility for AV distribution, video walls (up to 9x9), matrix switching, and control. Ideal for professional AV, control centers, and modern collaboration environments.

Key Features:

HDCP 2.2 Compliant – Ensures compatibility with modern content and protection standards.
4K@60Hz 4:4:4 Video Resolution – Transmits uncompressed, high-quality video up to 328ft (100m) via Cat6/6a/7 cables.
HDMI™ & USB-C Dual Inputs – Supports auto-switching based on active signal detection for seamless operation.
USB-C Power & Data Transmission – Delivers video, audio, USB, and power (up to 100W) via the USB-C port.
Comprehensive Signal Extension – Transmits video, digital/analog audio, IR, RS-232, CEC, and USB 2.0 over Ethernet.
Audio Return & Management – Supports ARC/eARC, S/PDIF, and analog audio return (analog return in point-to-point mode only).
Audio Embedding & De-embedding – Integrates or separates audio signals for flexible system design.
Relay & I/O Control Ports – Two relay ports and two I/O ports for advanced contact control.
Flexible Video Distribution – Supports unicast, multicast, matrix switching, and video walls up to 9x9.
Intelligent Video Wall Management – Offers easy setup and novel layout configurations.
MJPEG Sub stream – Allows real-time video previews on portable devices
1G Ethernet with PoE – Supports managed Gigabit networking with PoE (802.3at) or 12V local power.
HDR & Advanced Audio Support – HDR10, Dolby Vision, HLG bypass, and premium audio formats including Dolby Atmos and DTS:X.
Multiple Control Options – Operate via front panel, IR, RS-232, TCP/IP, or intuitive Web GUI. Also compatible with X4UH-CB control box.
Smart Networking Design – Ensures simple, reliable, and flexible installation in complex AV environments.

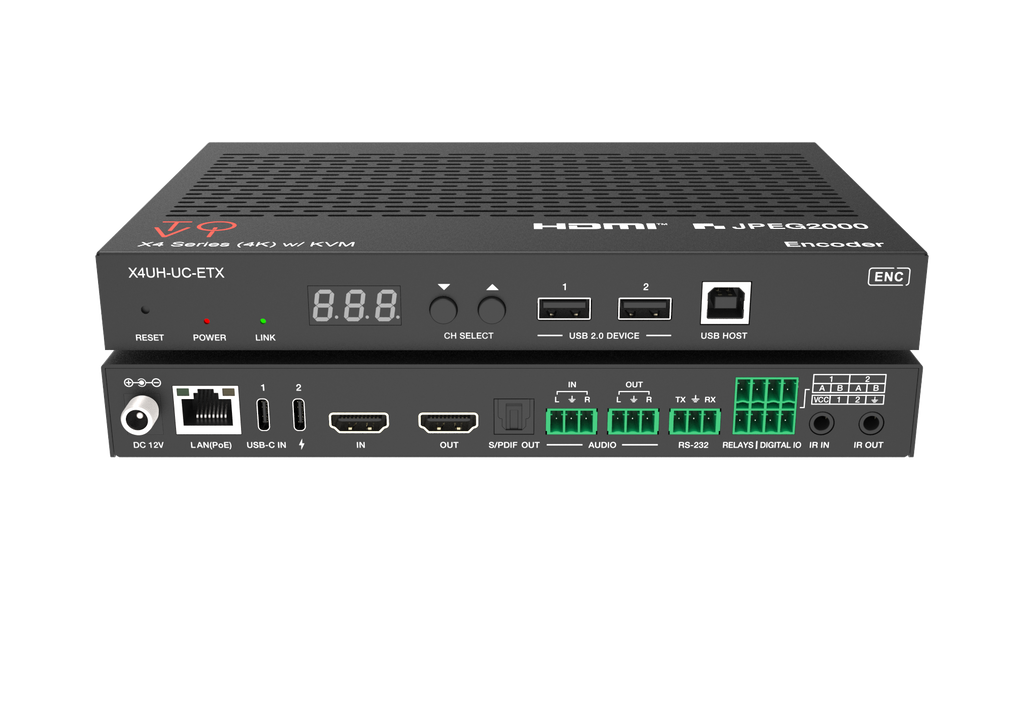

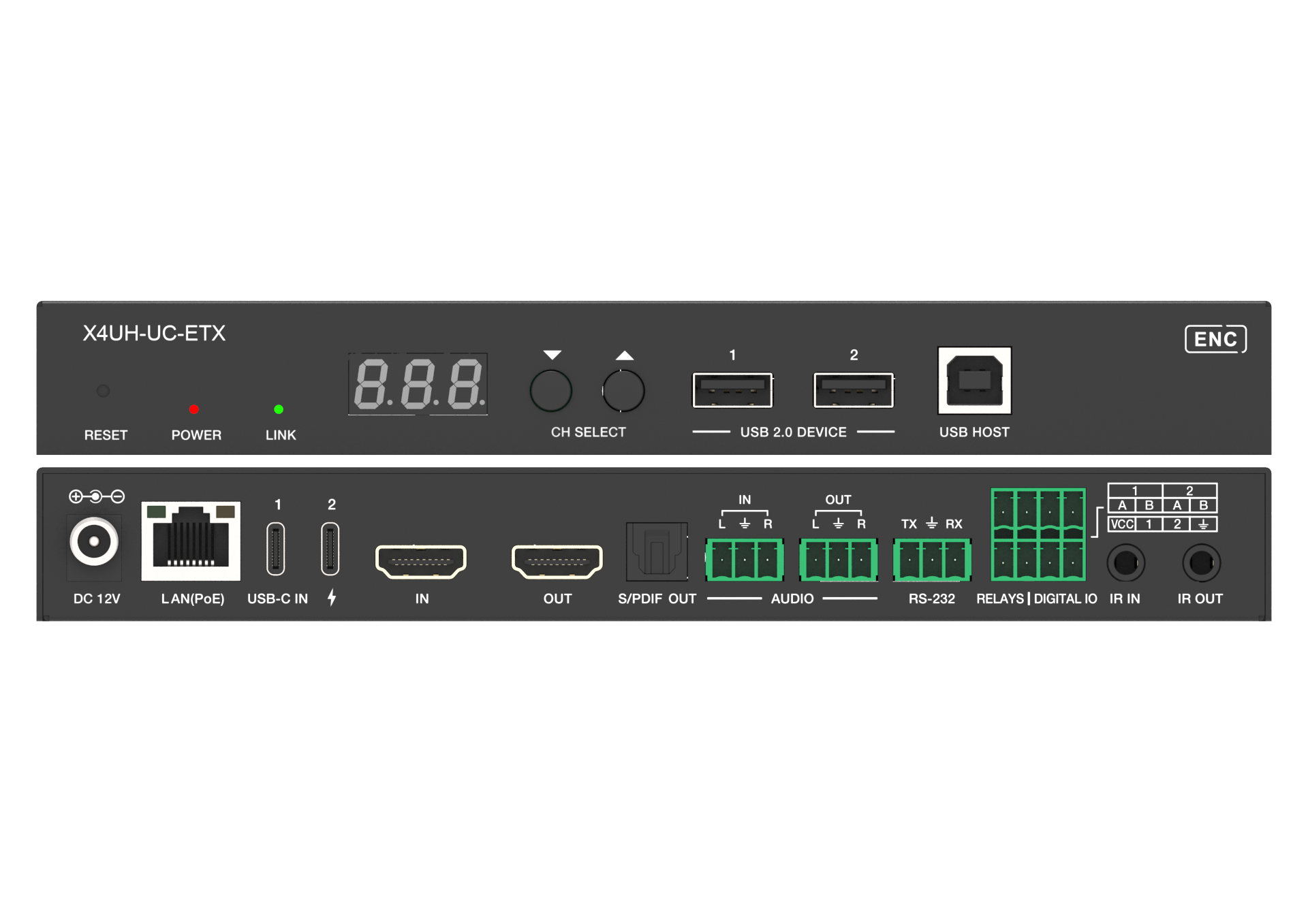

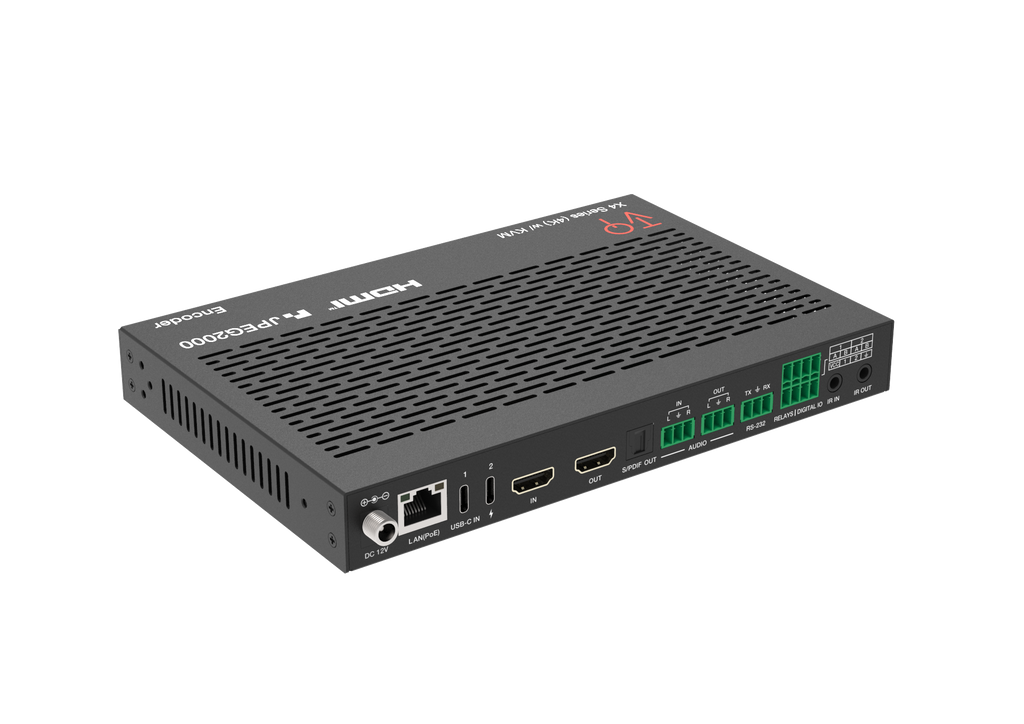

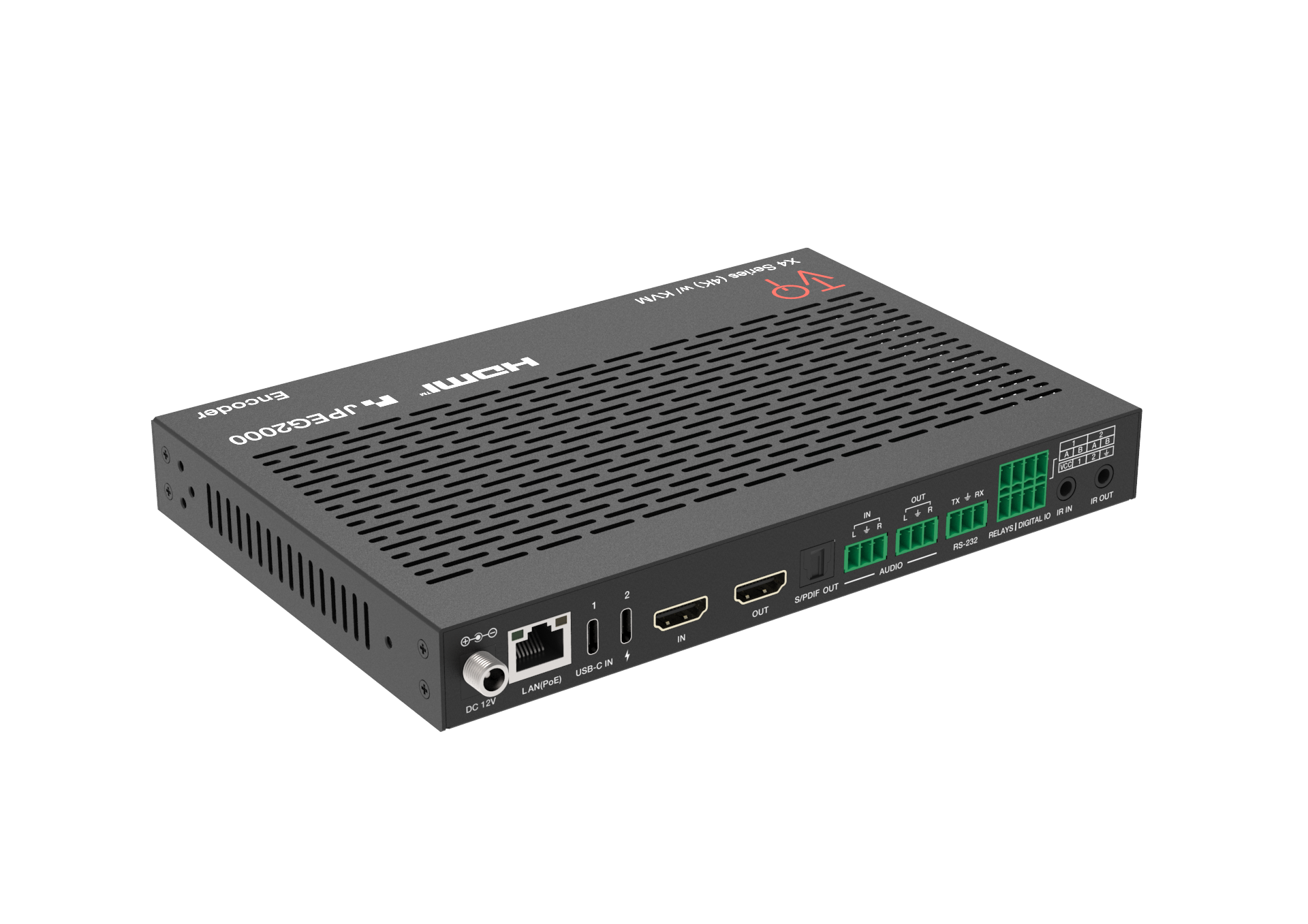

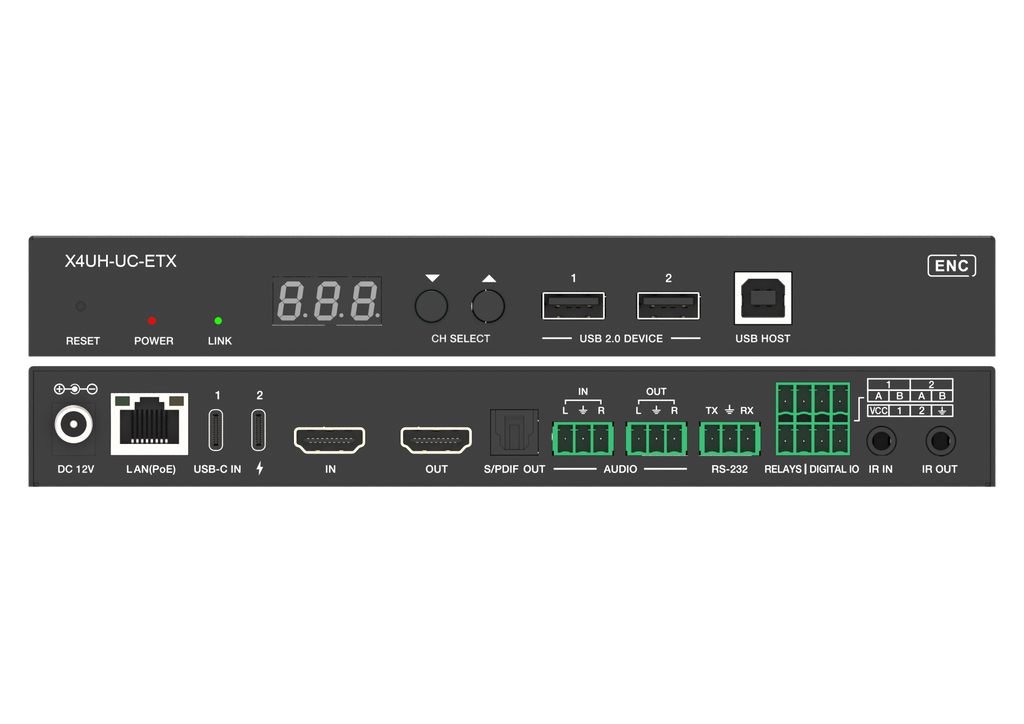

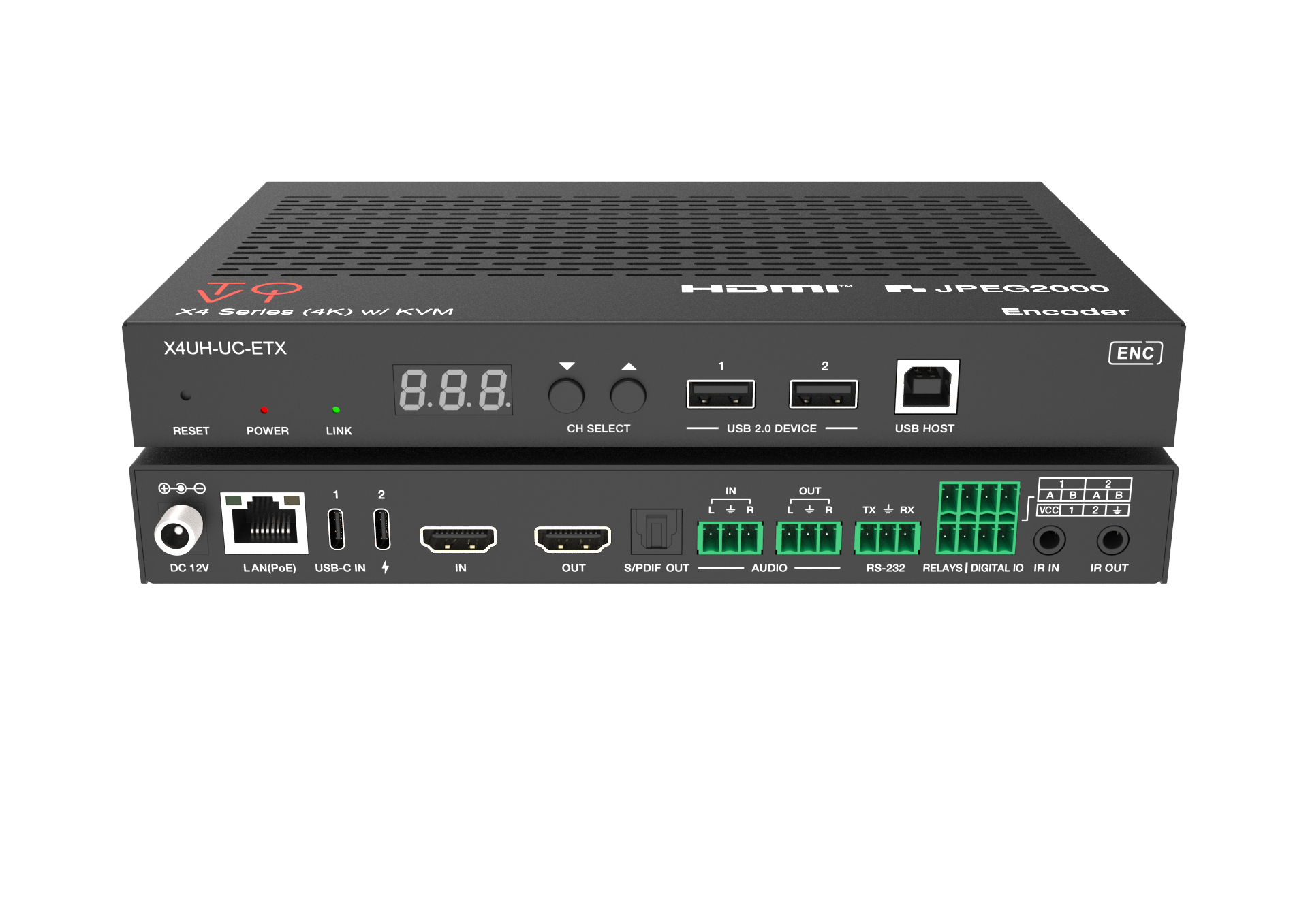

CONNECTIVITY
Transmitter: INPUT: 1 x IN [HDMI™ Type A, 19-pin female]
1 x L/R AUDIO [3-pin 3.81mm Phoenix connector]
1 x USB-C Video [USB Type C, 24-pin female]
1 x USB-C Charging [USB Type C, 24-pin female]
OUTPUT: 1 x OUT [HDMI™ Type A, 19-pin female]
1 x L/R AUDIO [3-pin 3.81mm Phoenix connector]
1 x S/PDIF OUT [Optical audio connector]
CONTROL: 1 x RS-232 [3-pin 3.81mm Phoenix connector]
1 x LAN(PoE) [RJ45]
1 x USB 2.0 HOST [USB Type B, 4-pin female]
2 x USB 2.0 [USB Type-A, 4pin female]
2 x RELAYS [3.81mm Phoenix connector]
2 x DIGITAL IO [3.81mm Phoenix connector]
1 x IR IN [3.5mm audio jack, 5V/12V IR]
1 x IR OUT [3.5mm audio jack, 5V/12V IR]
SUPPORTED CAT CABLES
CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz: 328 Feet
VIDEO OUTPUT
Video Bandwidth: 18Gbps
Video Resolutions: 480i ~ 1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50Hz/60Hz 4:4:4
Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth: 8/10/12-bit
Video Compression Standard: JPEG2000
Video Network Bandwidth: 1G
ADDITIONAL FEATURES
CEC: Yes
ARC: Yes
USB KVM: Yes
PoC/PoE: Yes
IR Control: Yes
Downmix: No
Downscale: No
Over IP: Yes
HDBaseT: No
RS-232: Yes
AUDIO SUPPORT
HDMI™ Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X
COMPLIANCES
HDMI™ Compliance HDMI™ 2.0b
HDCP Compliance HDCP 2.2
POWER
Power Consumption: Encoder: 8.52W, Decoder: 7.08W (Max)
Power Supply: Input: AC100 - 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
DIMENSIONS & WEIGHT
Transmitter: Length: 204mm / 8.03in
Width: 136mm / 5.35in
Height: 25.5mm / 1.00in
Weight: 631g / 1.39lbs
PROPERTIES
Color: Black
Housing: Metal Enclosure
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity: 20%~80% (relative humidity, non-condensing)
Storage Humidity: 10%~90% (relative humidity, non-condensing)
