PRODUCT CODE:

ToVi X4 4K Encoder (Video Wall, KVM, eARC) - (X4UH-KVM-ETX)

PRODUCT CODE:

ToVi X4 4K Encoder (Video Wall, KVM, eARC) - (X4UH-KVM-ETX)

~~$799.00~~ $529.00

In Stock: Usually Ships in 24 Hours

HDCP 2.2 Compliant
100m Signal Extension
Flexible AV Routing

Quantity:

REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

ToVi X4 Series (4K) w/ KVM

The X4UH-KVM-ETX is a versatile HDMI extender and AV-over-IP solution designed for high-performance, long-distance signal transmission. Fully compliant with HDCP 2.2 and HDMI 2.0b, it supports 4K@60Hz (4:4:4) video with up to 18Gbps bandwidth, delivering uncompromised ultra-high-definition quality.

It extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables, transmitting video, analog and digital audio, IR, RS-232, CEC, and USB data seamlessly over Ethernet.

This compact unit integrates copper and fiber ports, supporting ARC/eARC, S/PDIF, and analog audio return channels for flexible audio routing. Channel configuration is simplified via front panel buttons and an LED display.

The X4UH-KVM includes two relay channels and two I/O ports for contact control, supporting diverse AV control scenarios. It enables unicast, multicast, point-to-point, matrix switching, and scalable video wall deployments up to 9x9 setup. Intelligent video wall class management and real-time MJPEG sub-stream preview enhance monitoring and operational efficiency.

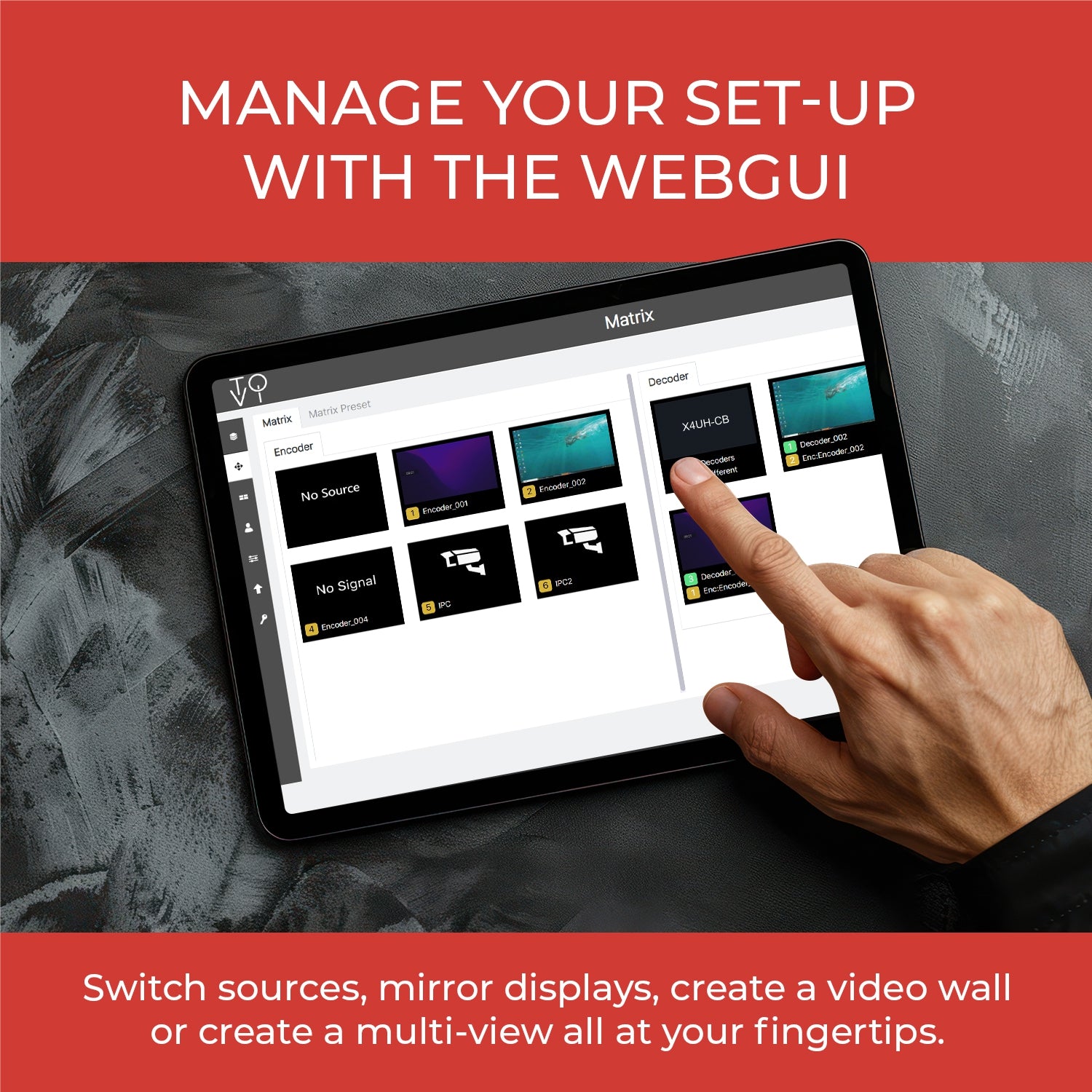

Operating on a 1G Ethernet network with PoE support, the device offers comprehensive control and configuration through a built-in web interface, Telnet, and SSH. Control is made easier using the X4UH-CB to control all your X4UH Series devices on a single network. It supports a broad range of HDMI audio formats, including LPCM 2.0/5.1/7.1, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). The smart networking design ensures easy, flexible installation for commercial AV, broadcast, and professional environments.

Note: The X4UH-KVM-ETX supports RTSP stream preview through VLC with max resolution up to 1080p@60Hz with options for Width, Height, Frame Rate, Bandwidth, Aspect Ratio and Encode Quality Number setting.The sub stream URL examples are mentioned below.
URL: http://IP:PORT/?action=stream&w=x&h=x&fps=x&bw=x&as=x&mq=x

Example 1 (normal stream):
http://ast4-client82C564BB84B5:8080/?action=stream

Example 2 (with output adjustments):
http://169.254.8.65:8080/?action=stream&w=320&h=240&fps=30&bw=8000& as=0

Key Features:

Video Resolutions – In addition to pristine 4K@60Hz (4:4:4), it supports high-refresh rate and multi-resolution formats such as 1080p@120Hz, 2560×1440@25/30/60Hz, and 4096×2160@25/30/60Hz..
Long-Distance Extension – Extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables.
Comprehensive Signal Transmission – Simultaneously transmits video, analog/digital audio, IR, RS-232, CEC, and USB over Ethernet
Integrated Copper and Fiber Ports – Offers versatile connectivity options within one compact unit.
Audio Return Support – Compatible with ARC/eARC, S/PDIF, and analog audio return for flexible audio management.
User-Friendly Channel Configuration – Front panel buttons and LED screen facilitate straightforward setup.
Contact Control Ports – Includes 2-channel relay and 2-channel I/O ports for diverse control applications.
Advanced Signal Routing – Supports unicast, multicast, point-to-point, matrix switching, and video wall functionality (up to 9x9).
Intelligent Video Wall Management – Features video wall class management and MJPEG sub-stream real-time preview.
1G Ethernet with PoE Support – Simplifies installation and power delivery over standard network infrastructure.
Robust Control Interfaces – Built-in web interface, Telnet, and SSH for flexible device management. Control is made even easier through the X4UH-CB Network Hub.
Wide Audio Format Support – Compatible with LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD).
Smart Networking Design – Ensures easy, flexible installation for diverse professional AV environments

CONNECTIVITY
Transmitter: INPUT: 1 x HDMI™ [Type A, 19-pin female]
1 x L/R AUDIO [3-pin 3.81mm Phoenix connector]
OUTPUT: 1 x HDMI™ [Type A, 19-pin female]
1 x L/R AUDIO [3-pin 3.81mm Phoenix connector]
1 x SPDIF [Optical]
CONTROL: 1 x RS-232 [3-pin 3.81mm Phoenix connector]
1 x LAN (PoE) [RJ45]
1 x FIBER [Fiber Optic]
1 x USB 2.0 HOST [Type B, 4-pin female]
2 x USB 2.0 [Type-A, 4pin female]
2 x RELAYS [3.81mm Phoenix connector]
2 x DIGITAL IO [3.81mm Phoenix connector]
1 x IR IN [3.5mm Stereo Jack]
1 x IR OUT [3.5mm Stereo Jack]
SUPPORTED CAT CABLES
CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz: 328 Feet
VIDEO OUTPUT
Video Bandwidth: 18Gbps
Video Resolutions: Up to 4K@60Hz 4:4:4
Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth: Input: 8/10/12-bit Output: 8-bit
Video Compression Standard: JPEG2000
Video Network Bandwidth: 1G
ADDITIONAL FEATURES
CEC: Yes
ARC: Yes
USB KVM: Yes
PoC/PoE: Yes
IR Control: Yes
Downmix: No
Downscale: No
Over IP: Yes
HDBaseT: No
RS-232: Yes
AUDIO SUPPORT
HDMI™ Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
COMPLIANCES
HDMI™ Compliance HDMI™ 2.0b
HDCP Compliance HDCP 2.2
POWER
Power Consumption: Idle : 2.88W, Full load : 8.52W
Power Supply: Input: AC100 - 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
DIMENSIONS & WEIGHT
Transmitter: Length: 204mm / 8.03in
Width: 136mm / 5.35in
Height: 25.5mm / 1.00in
Weight: 631g / 1.39lbs
PROPERTIES
Color: Black
Housing: Metal Enclosure
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity: 20%~80% (relative humidity, non-condensing)
Storage Humidity: 10%~90% (relative humidity, non-condensing)
