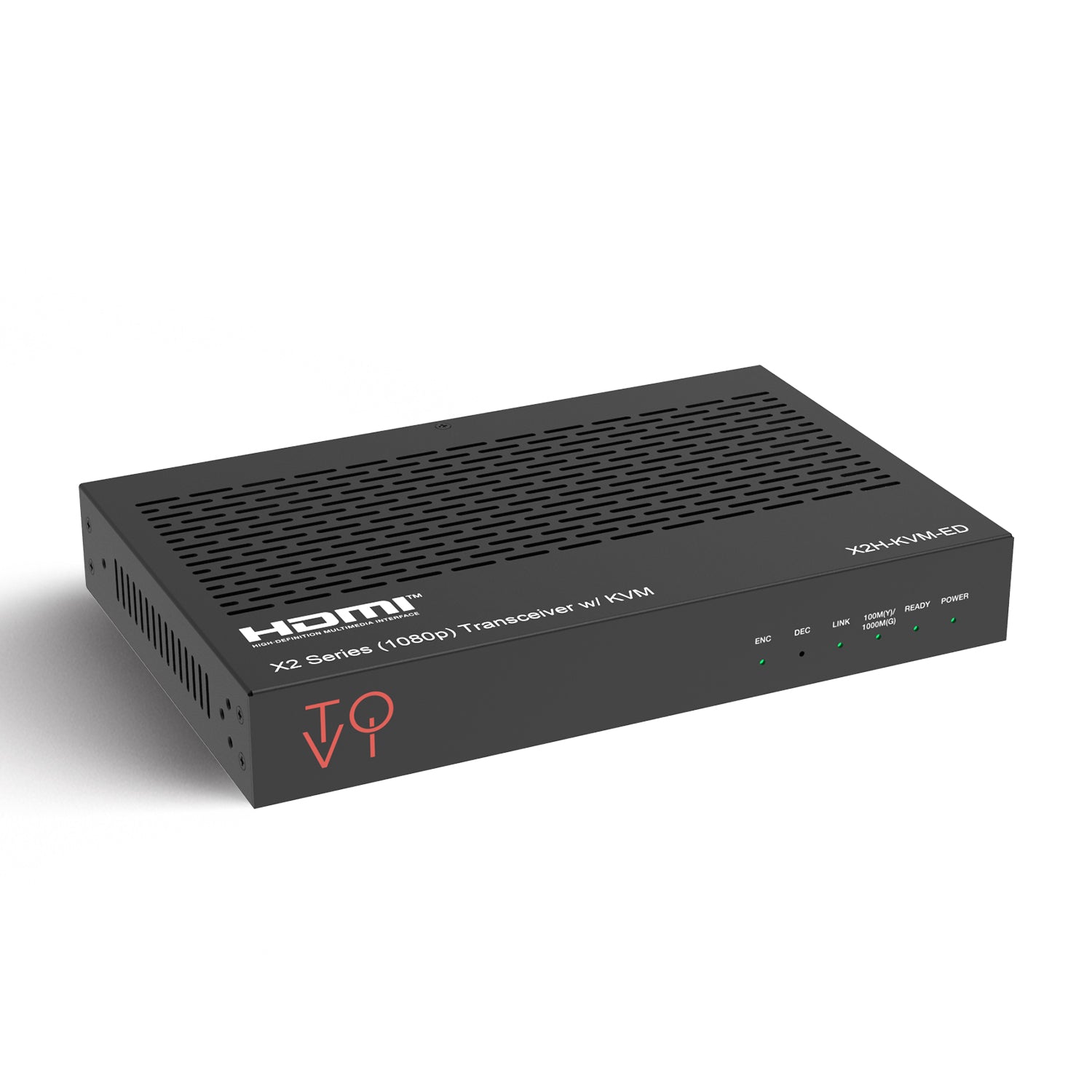

ToVi X2 Series (4K) Transceiver w/ KVM
The X2H-KVM-ED is a high-performance AV-over-IP solution for advanced video distribution, system control, and flexible display management. It supports HDMI 1.4 & HDCP 1.4 and delivers 4K@30Hz & 1080p@60Hz video with 4.95Gbps bandwidth, ensuring ultra-HD quality. With LPCM 2.0CH 48kHz audio, it also features audio routing with 6-pin phoenix Analog input and output. The combined encoder/decoder design allows you to configure it as either a transmitter or receiver. It supports both Fiber optic and RJ45 for signal transmission up to 328ft/100m.
Each decoder handles up to 16 signals, allowing window roaming, splicing, overlay, and multi-window display—ideal for control rooms, command centers, and digital signage. The system features KVM seat management for one-to-one or one-to-many PC control.
It supports H.264/H.265 protocols for seamless IPC and camera integration, with point-to-point extension, character overlay, scrolling text, and HD video/image backgrounds. Over a 1G network, it enables distribution, multicast, matrix switching, and video wall setups with centralized user rights management.

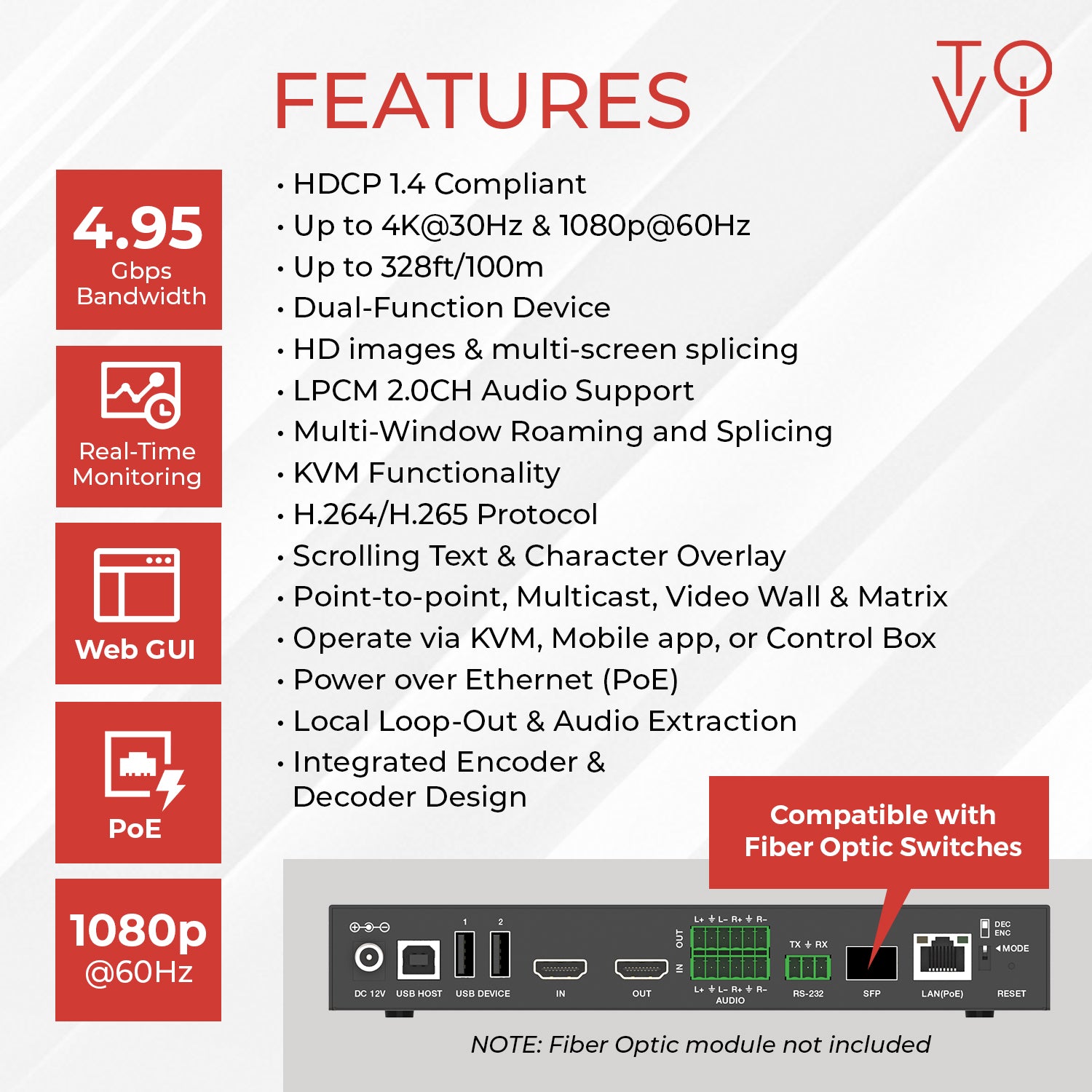

Key Features:
- HDMI 1.4 & HDCP 1.4 Compliant – Ensures compatibility with protected UHD content.
- Video Resolutions up to 4K@30Hz & 1080p@60Hz – Delivers crystal-clear visuals with 4.95Gbps bandwidth for uncompromised signal quality.
- Long distance transmission – Transmit audio/video signals up to 328ft/100m.
- 4:2:2 encoding/decoding – Delivers accurate color restoration for vivid imagery.

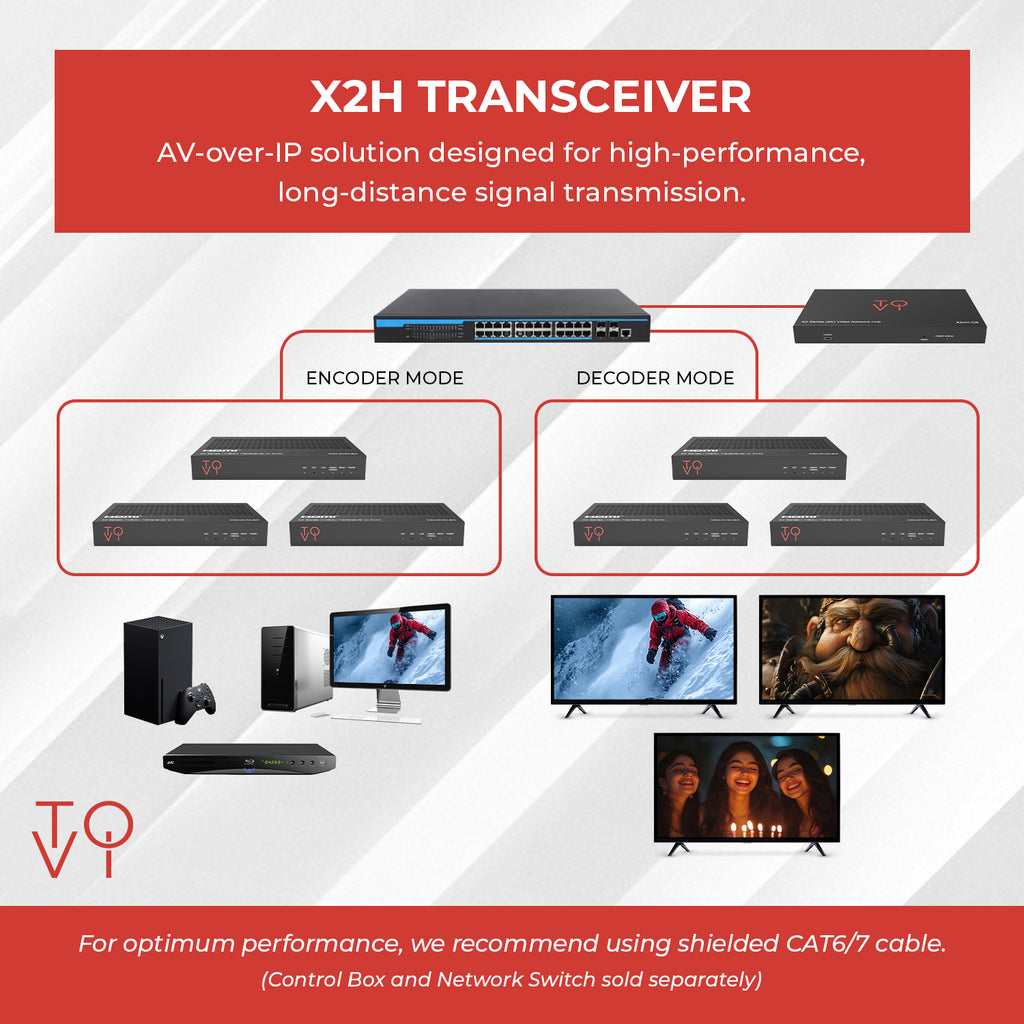

- Dual-Function Device – Can be configured as either a transmitter or receiver, switchable based on application needs.

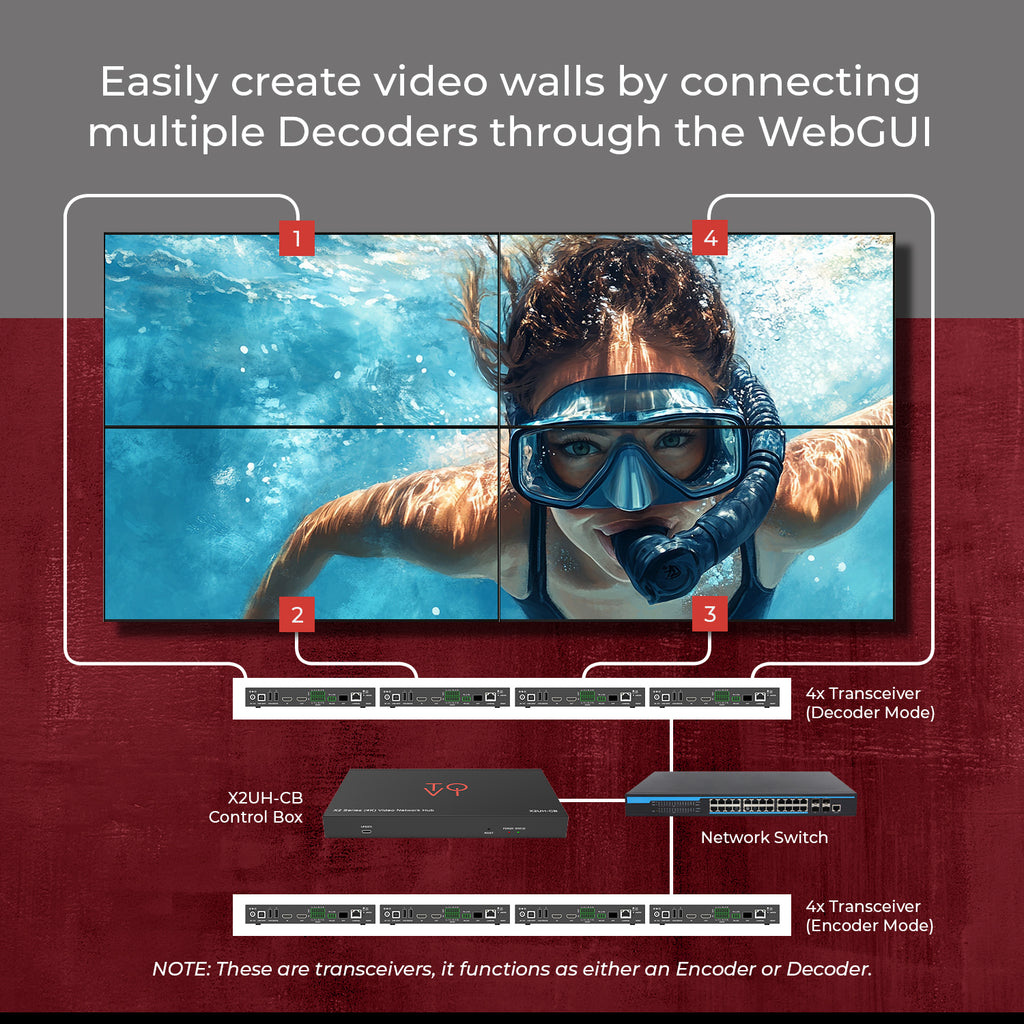

- High-definition background images and multi-screen splicing – Allows flexible, expansive display setups.
- LPCM 2.0CH Audio Support – Maintains high-fidelity sound at 48kHz sampling.
- Multi-Window Roaming and Splicing – Each decoder supports up to 16 sources with dynamic window management and overlay.
- KVM Functionality – Enables one-to-one or one-to-many PC control from a single user station.
- H.264/H.265 Protocol Support – Seamless integration with IP cameras and surveillance systems.
- Scrolling Text & Character Overlay – Supports on-screen alerts, labels, and dynamic content overlay.

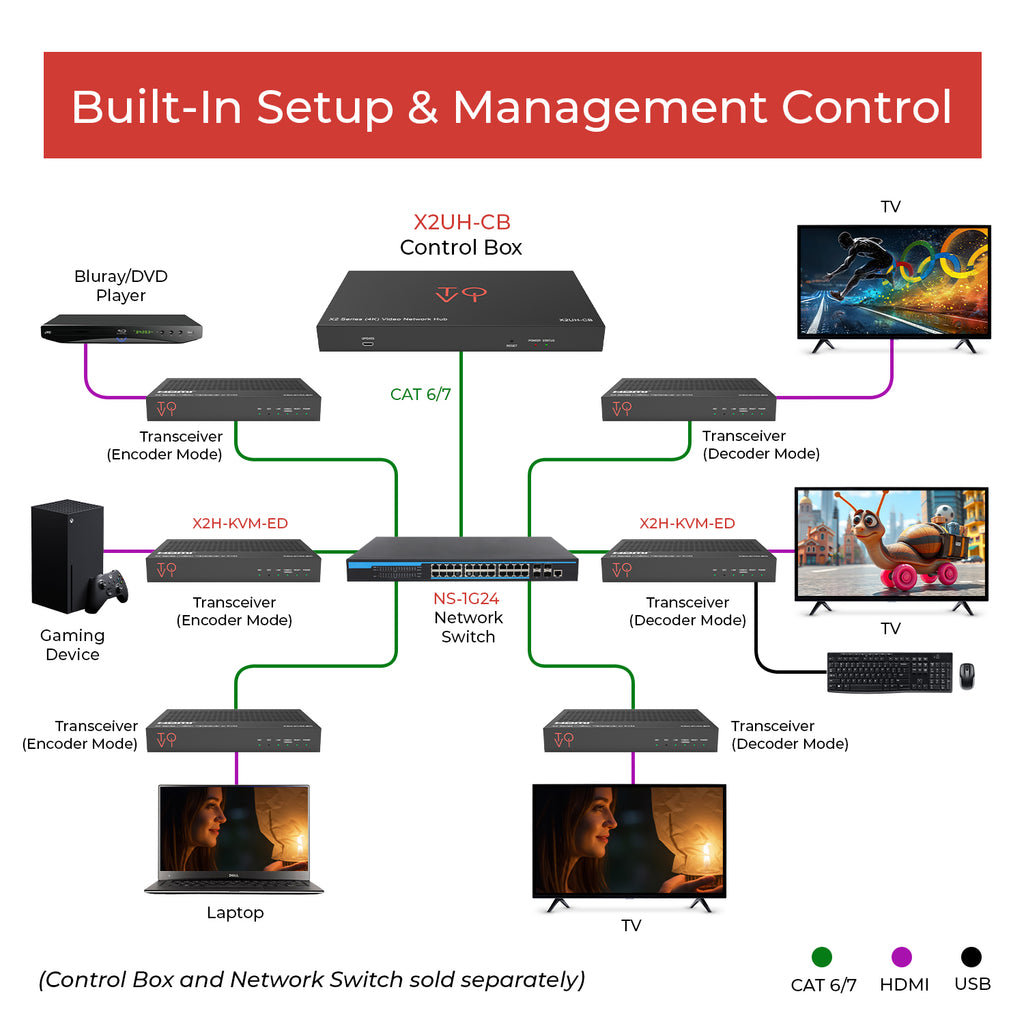

- Video Wall & Signal Routing Over 1G Network – Facilitates point-to-point extension, multicast, and matrix switching.
- User Rights Management – Secure access control across all endpoints.

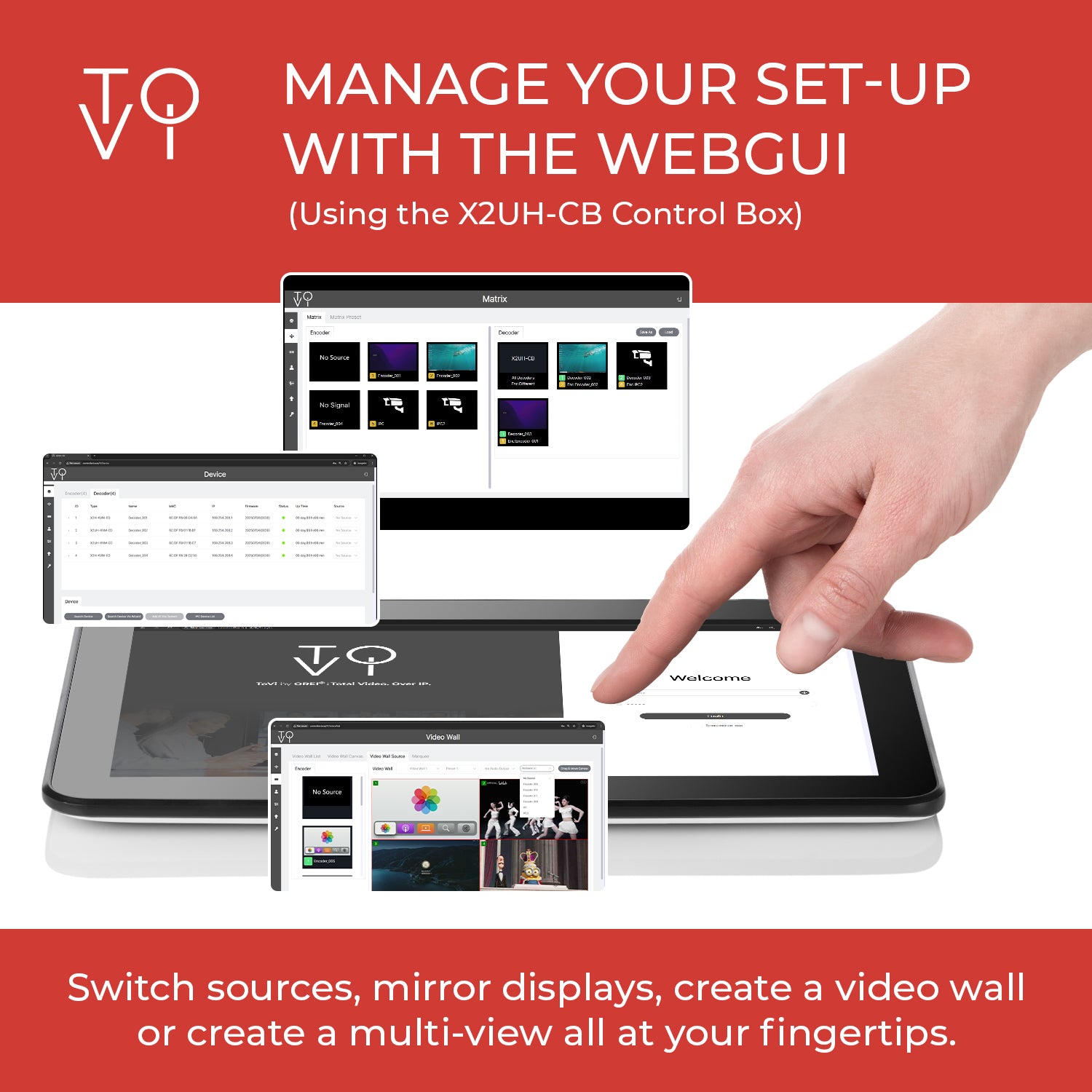

- Flexible Control Options – Operate via KVM, mobile app, or supported control servers (X2UH-CB).
- Standard PoE (802.3af Class 3) – Simplifies power delivery with no need for external adapters.
- HDMI Local Loop-Out & Audio Extraction – Enhances system flexibility for local monitoring and audio routing.
- Integrated Encoder & Decoder Design – Compatible with Fiber Optic and RJ45 for flexible transmission.

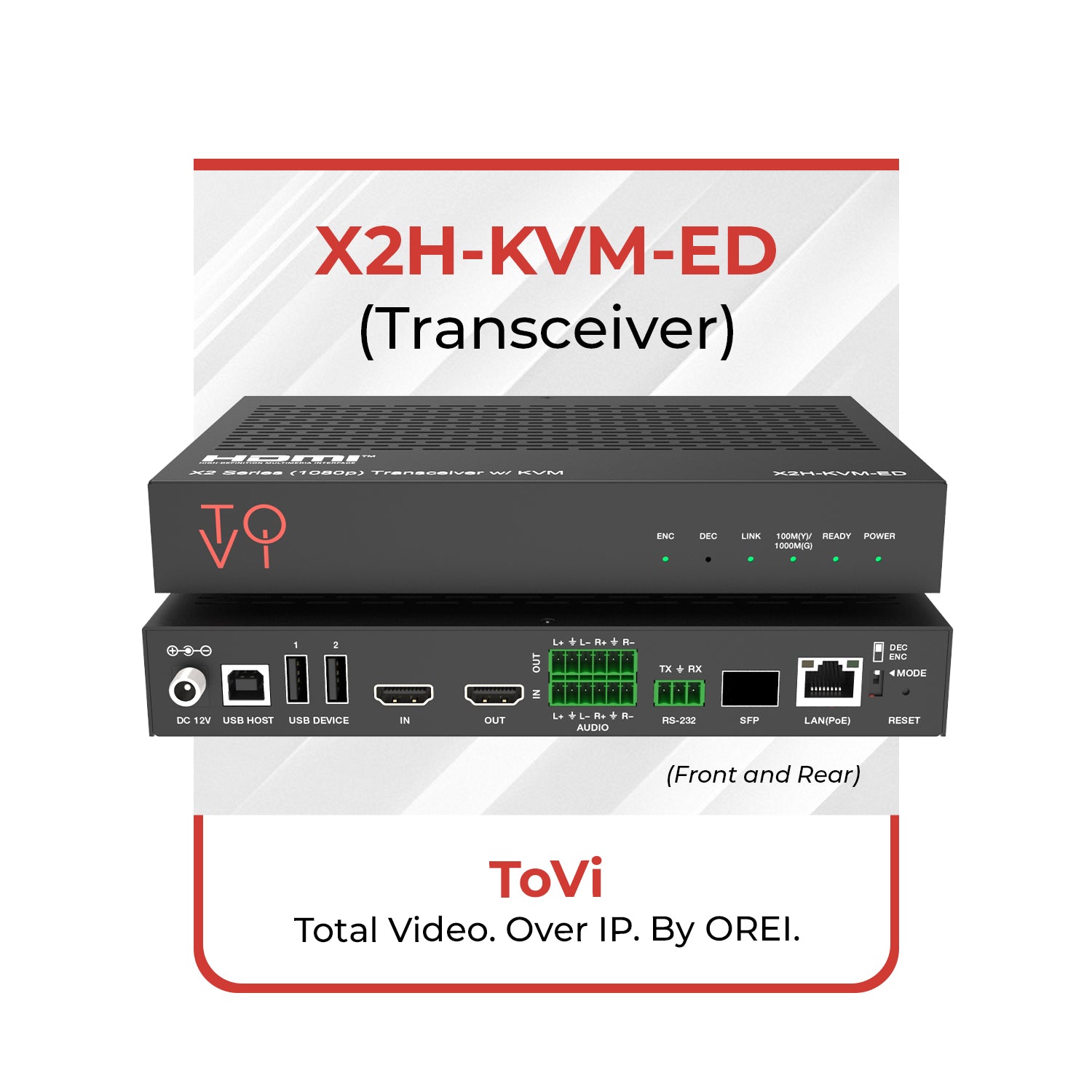

- CONNECTIVITY
- INPUT: 1 x IN [HDMI™ Type A, 19-pin female]
- 1 x AUDIO [3-pin phoenix connector, stereo balanced linear interface]
- OUTPUT: 1 x OUT [HDMI™ Type A,19-pin female]
- 1 x AUDIO [3-pin phoenix connector, stereo balanced linear interface]
- CONTROL: 1 x LAN (PoE) [RJ45]
- 1 x RS-232 [3-pin phoenix connector]
- 1 x USB HOST [Type B, 4-pin female]
- 2 x USB [Type A, 4-pin female]
- 1 x SFP [Fiber]
- SUPPORTED CAT CABLES
- CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@30Hz: 328 Feet
- VIDEO OUTPUT
- Video Bandwidth: 4.95Gbps
- Video Resolutions: Up to 4K@30Hz, 1080P@60Hz
- Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
- Color Depth: 8/10/12bit
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- KVM: Yes
- PoC/PoE: Yes
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: Yes
- HDBaseT: No
- RS-232: Yes
- AUDIO SUPPORT
- HDMI™ Audio Formats: LPCM 2.0CH, 16bit, 48k
- Analog Audio Formats PCM 2.0
- COMPLIANCES
- HDMI™ Compliance HDMI™ 1.4
- HDCP Compliance HDCP 1.4
- POWER
- Power Consumption: Encoder: 6.6W (Max.); Decoder: 5.28W (Max.)
- Power Supply: Input: AC 100 - 240V 50/60Hz
- Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)

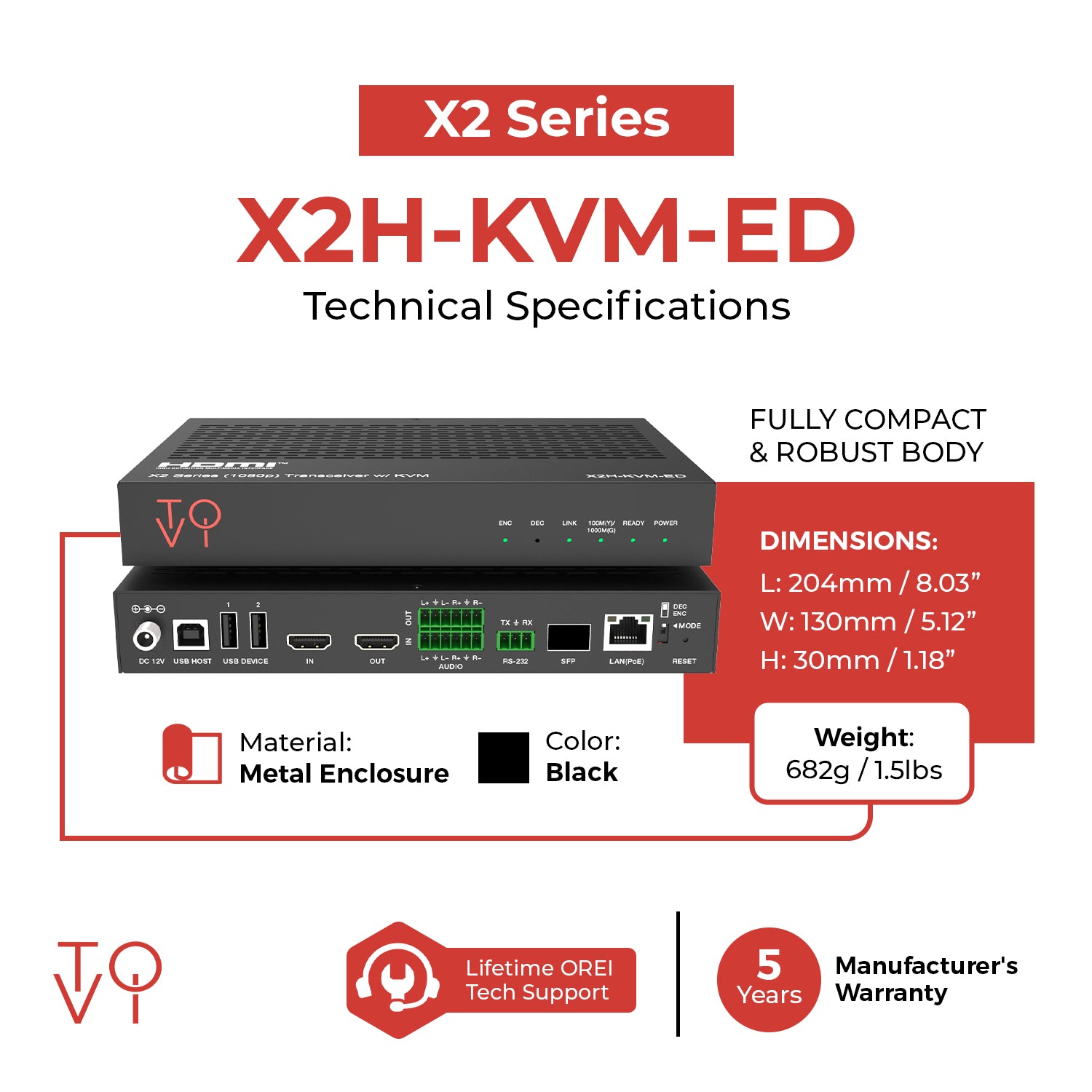

- DIMENSIONS & WEIGHT
- Length: 204mm / 8.03in
- Width: 130mm / 5.12in
- Height: 30mm / 1.18in
- Weight: 682g / 1.50lbs
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing

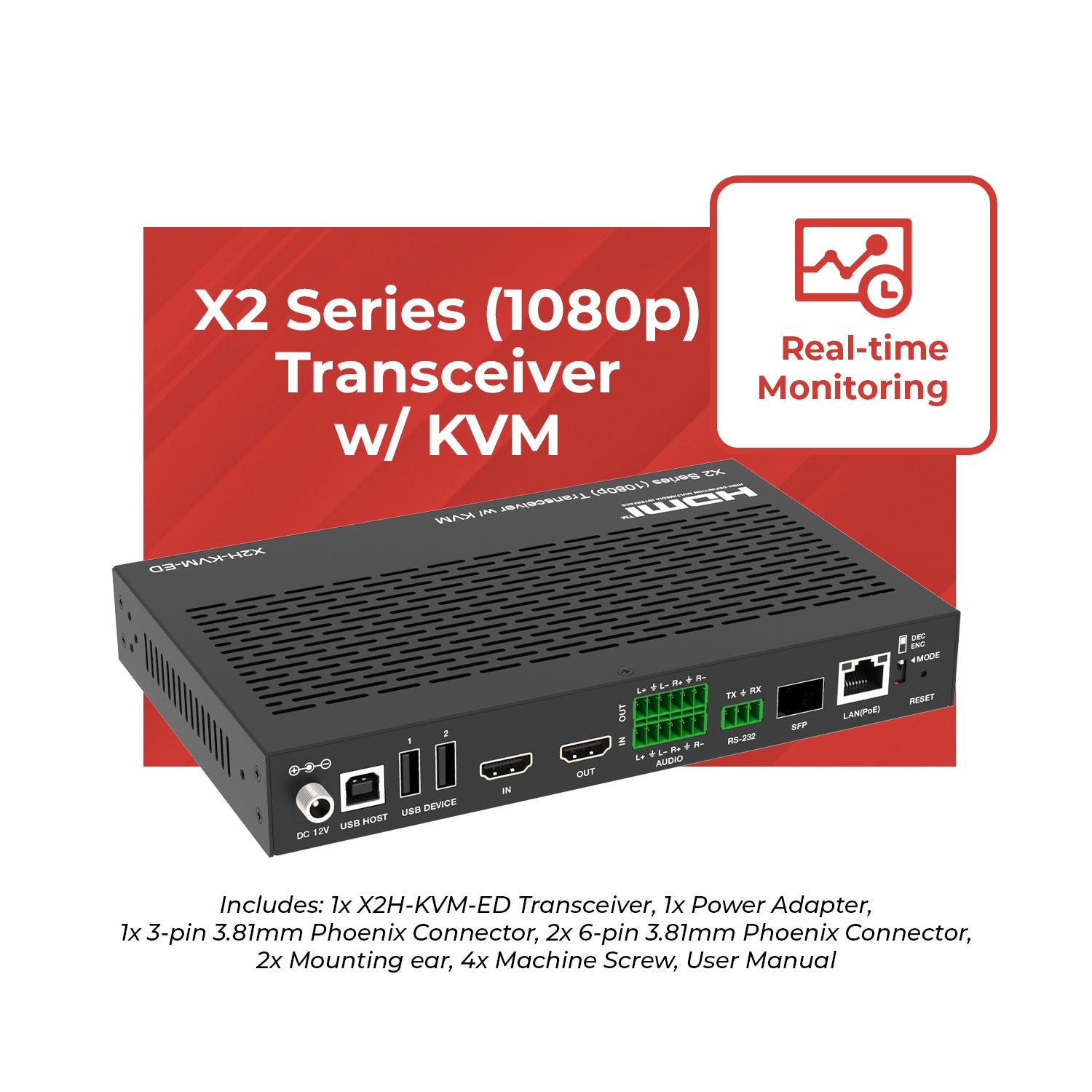

Includes:
- 1x X2H-KVM-ED Transceiver
- 2x 6pin-3.81mm Phoenix Connector (male)
- 1x 3pin-3.81mm Phoenix Connector (male)
- 4x Screw
- 2x Mounting Ear
- 1x Power Adapter
- User Manual
Warranty:
- 5-Year Manufacturer's Warranty
