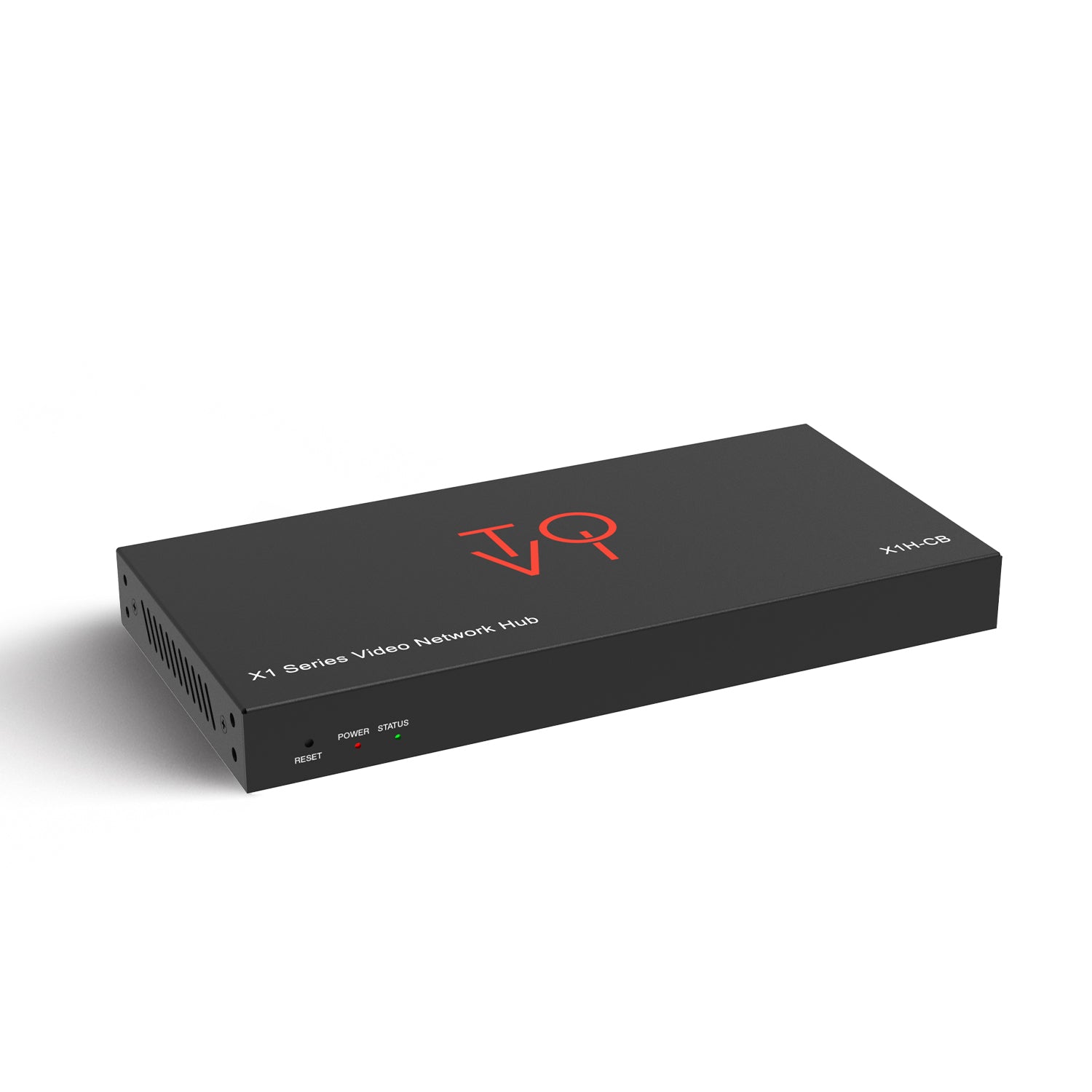

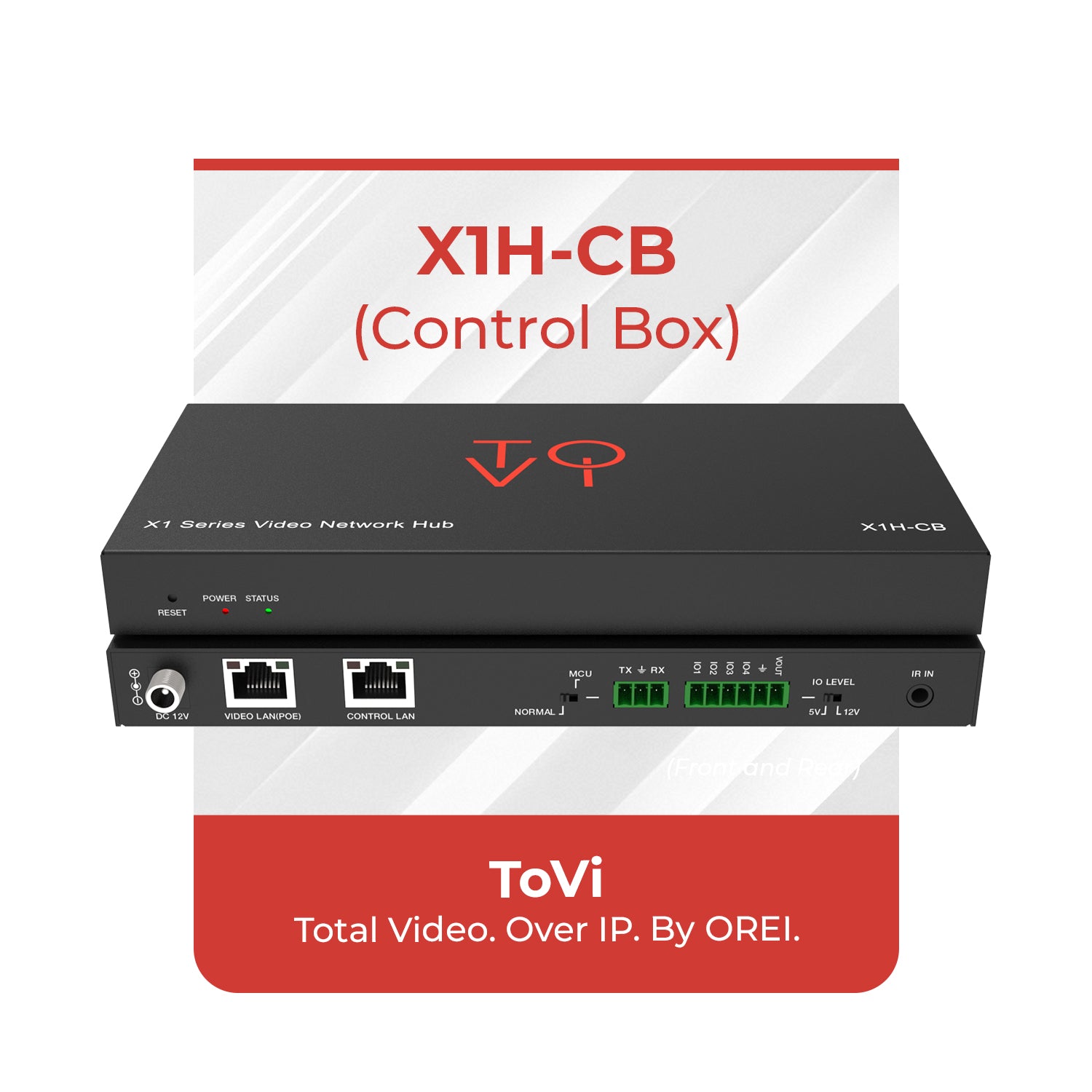

TOVI X1 Series Video Network Hub / Control Box

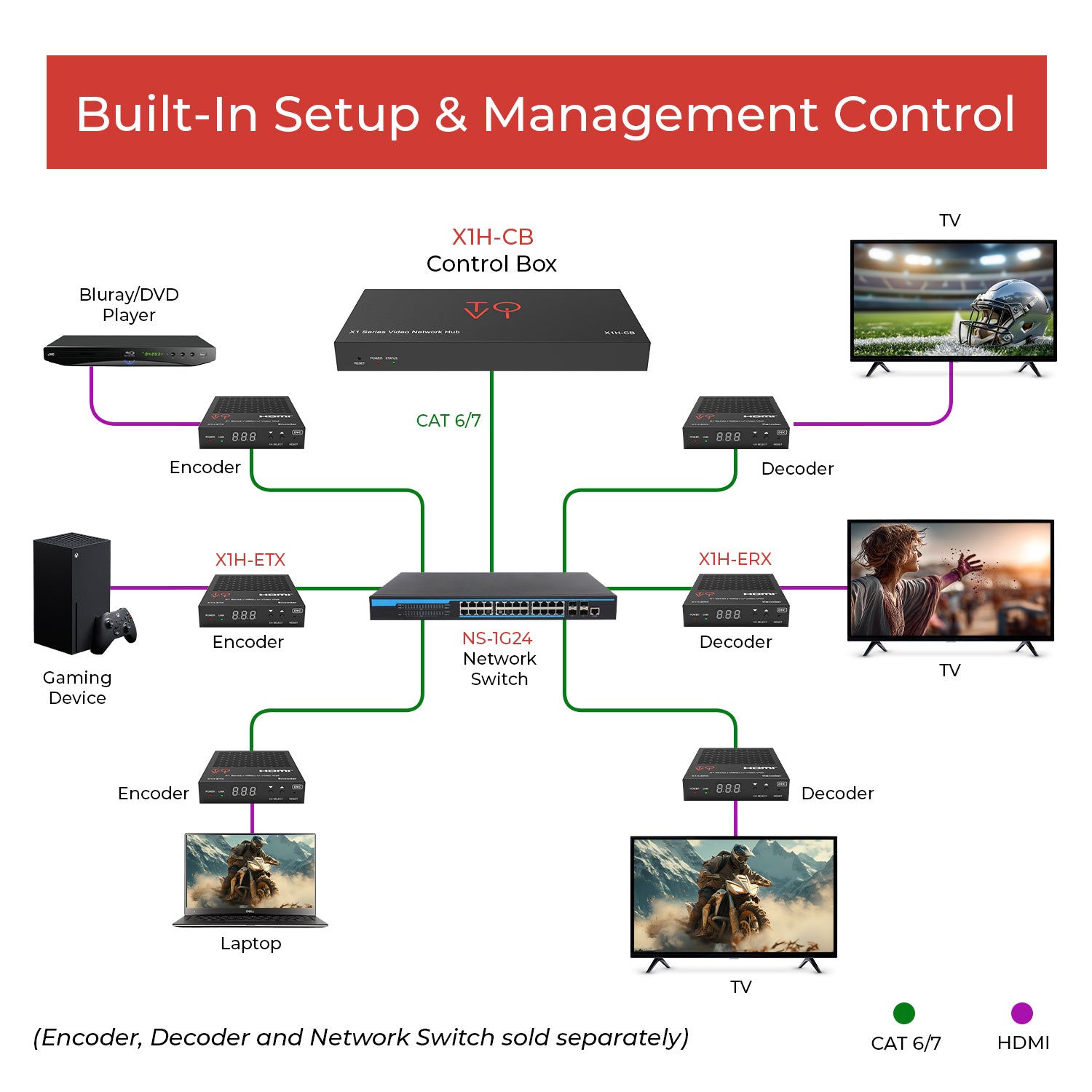

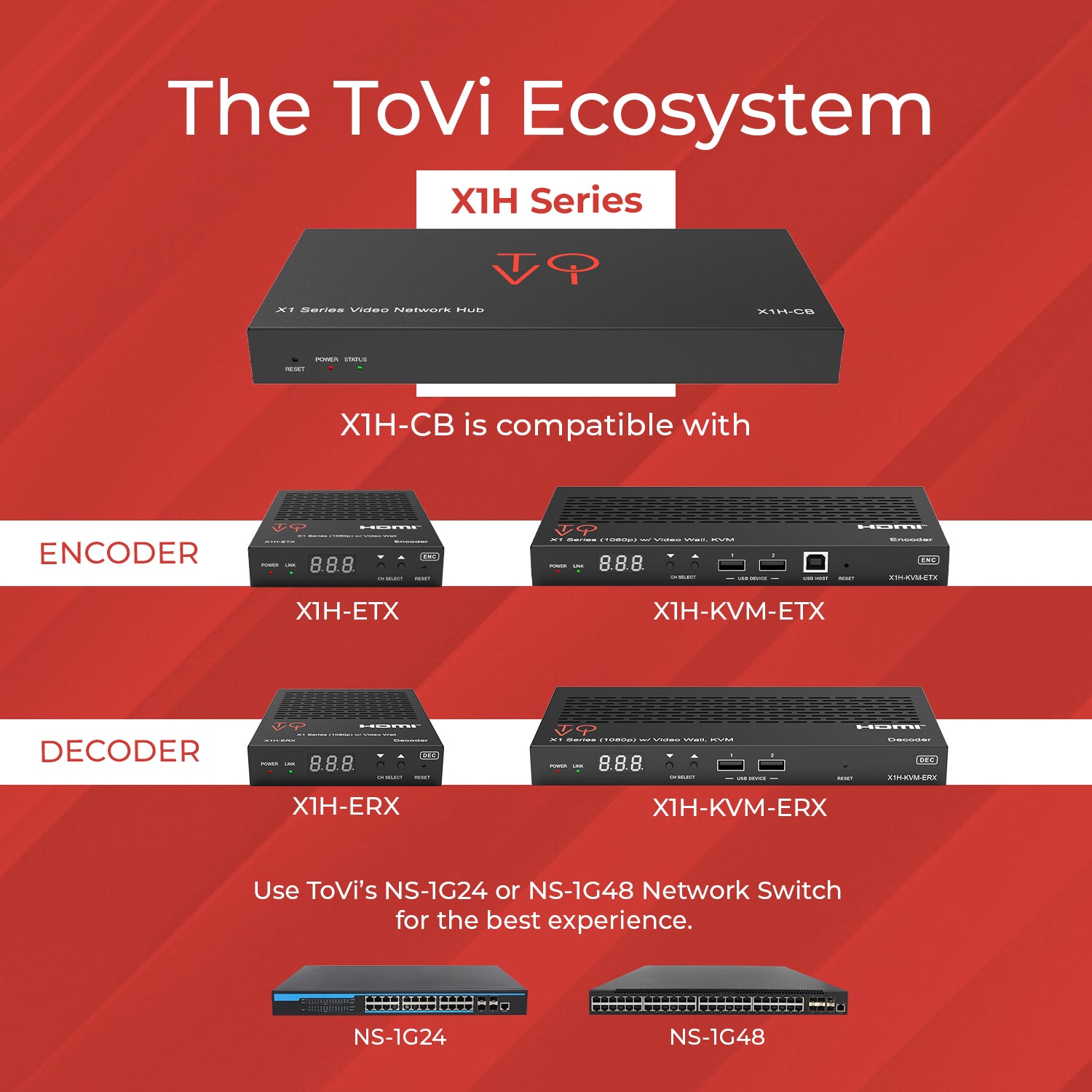

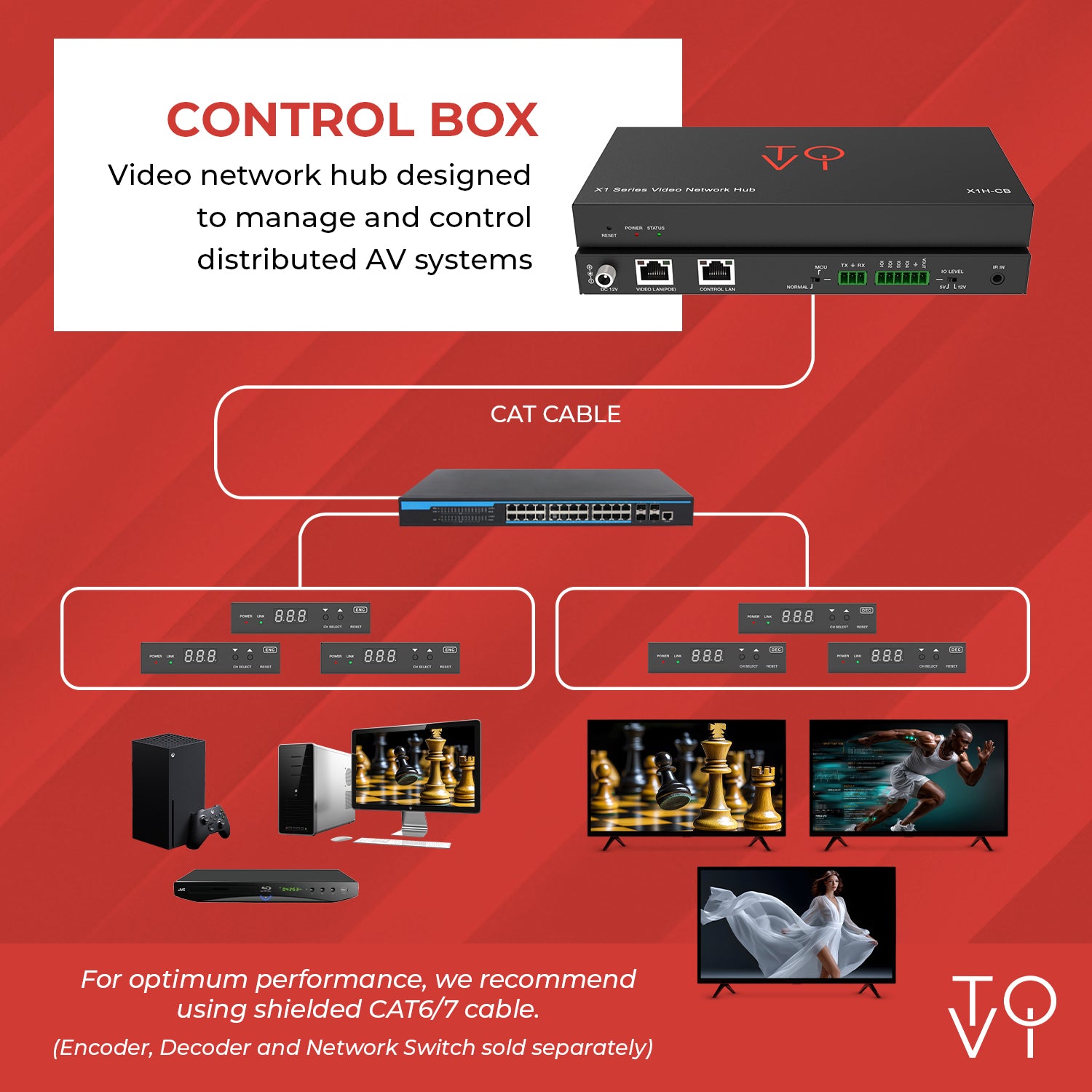

The X1H-CB is a dedicated IP video control box designed to work seamlessly with ToVi’s X1 series of H.264/H.265 AV over IP products. It simplifies system control and integration by managing video, audio, RS-232, IR, and KVM signals across distributed IP-based setups.
Equipped with dual 100M ports, the X1H-CB isolates control and multicast networks for stable and efficient performance. The unit features a user-friendly Web GUI with drag-and-drop capabilities and supports HTTPS and SSH protocols for secure remote access and configuration.
Additional functionality includes a PoE-supported VIDEO LAN port, a 12V-compatible IR input via 3.5mm jack, and four GPIO ports with selectable 5V or 12V output. It supports third-party control system integration and is protected against lightning, surges, and ESD—making it a reliable choice for 24/7 commercial or industrial operation.
Key Features:
- H.264/H.265 IP Video Control Support – Optimized for use with ToVi’s X1H series for efficient AV signal management.
- Dual 100M Network Ports – Separates control and multicast traffic to ensure system stability.

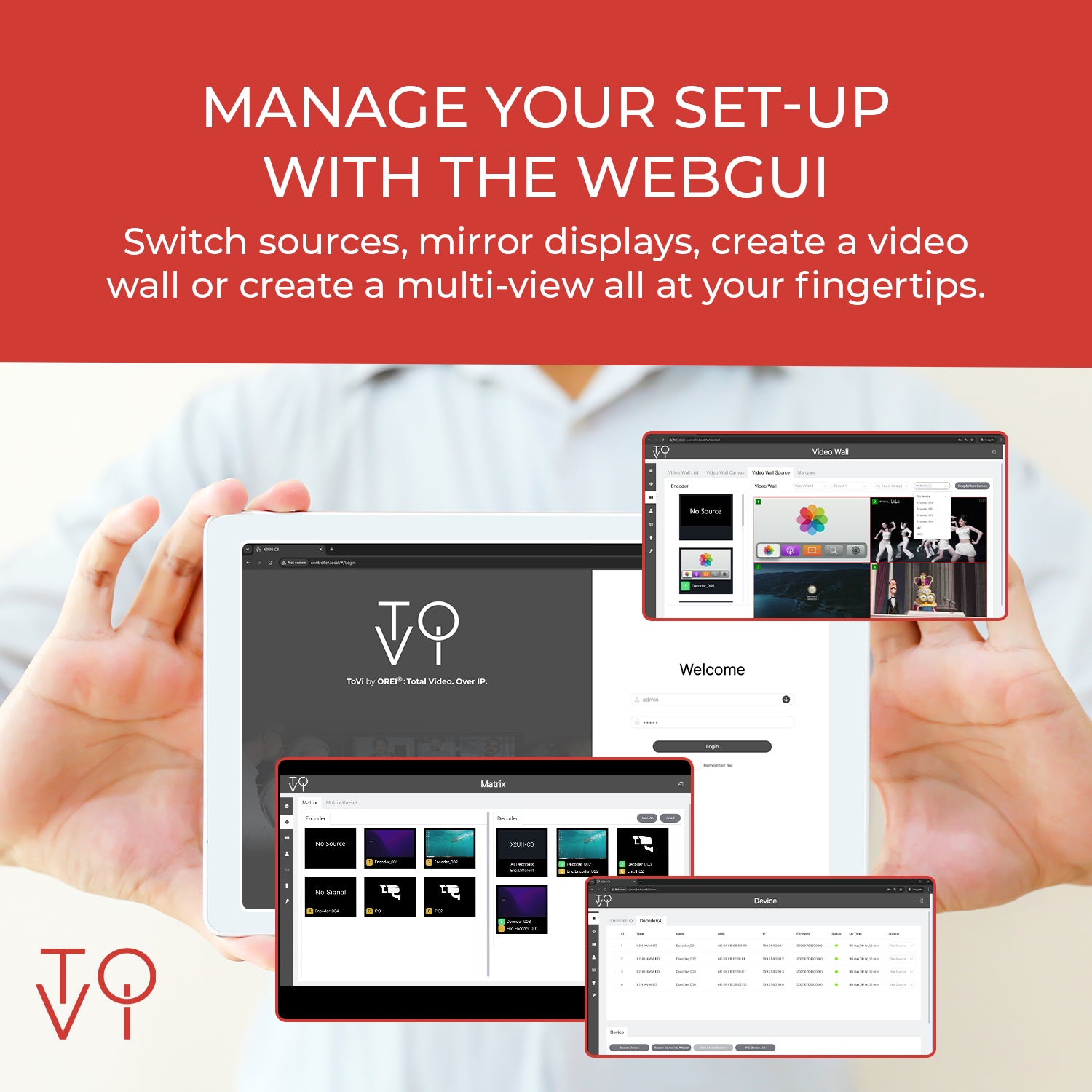

- Web GUI with Drag & Drop – Provides an intuitive user interface for simplified setup and operation.
- HTTPS & SSH Protocols – Enables secure remote access and configuration.
- Full Signal Control – Supports video, audio, RS-232, IR, and KVM across distributed IP systems.
- PoE-Enabled VIDEO LAN Port – Reduces cabling and simplifies power delivery.
- IR Input via 3.5mm Jack – Accepts 12V wide-band IR signals for flexible control options.
- Four GPIO Ports – Offers selectable 5V or 12V control outputs for custom integration.
- Third-Party Control Compatibility – Supports LAN, RS-232, and external control systems.
- Built for 24/7 Operation – Includes surge, lightning, and ESD protection for mission-critical environments.
- CONNECTIVITY
- Control Ports: 2 x LAN [RJ45]
- 1 x IR IN [3.5mm stereo jack, 12V level]
- 1 x DIGITAL I/O [6-pin 3.81mm phoenix connector]
- 1 x RS-232 [3-pin 3.81mm phoenix connector]
- SUPPORTED CAT CABLES
- CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- Transmission Distance: 100m (CAT5E/6/6A/7)
- Network Bandwidth: 100M
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- KVM: No
- PoC/PoE: Yes
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: Yes
- HDBaseT: No
- RS-232: Yes
- POWER
- Power Consumption: 4.5W
- Power Supply: 12V/1A

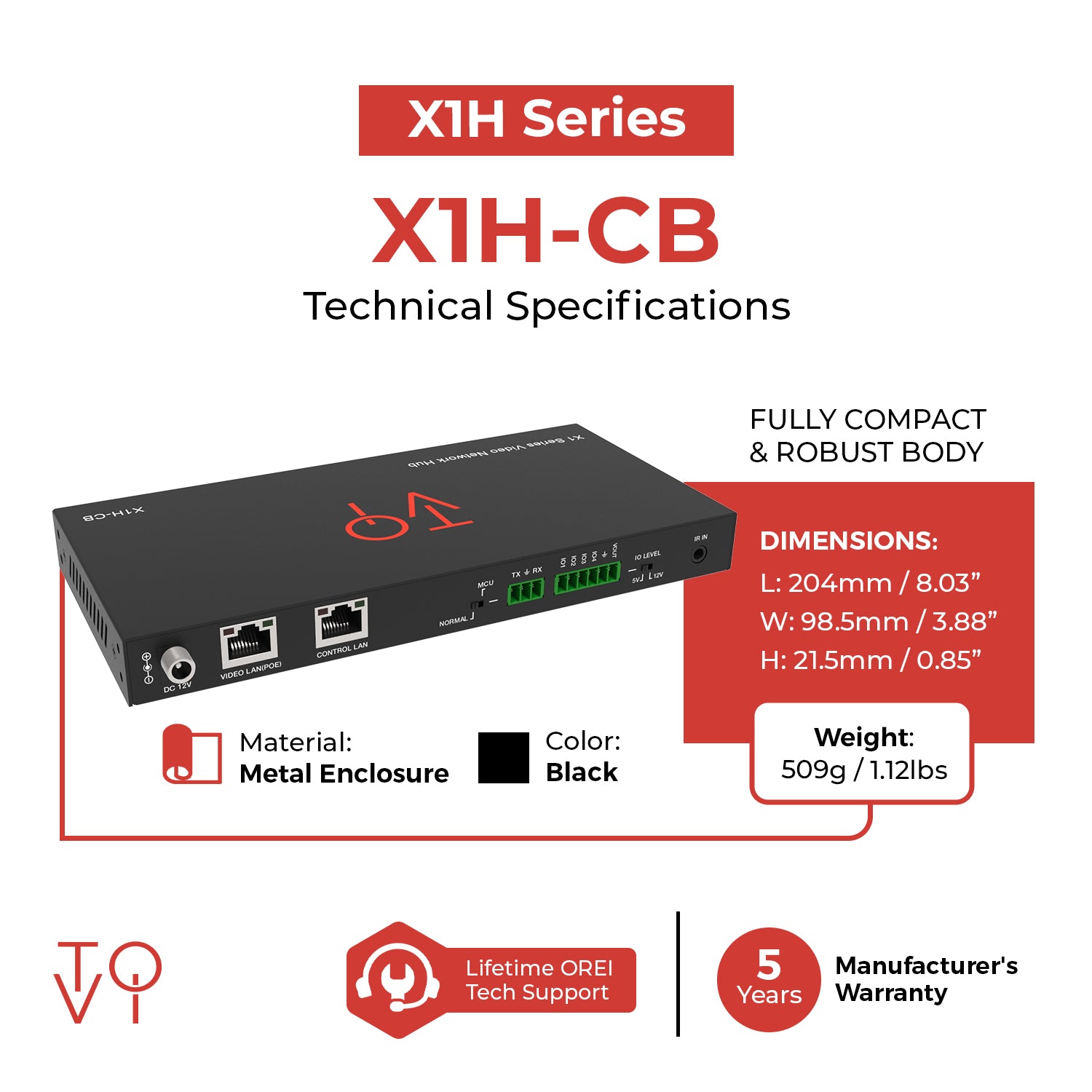

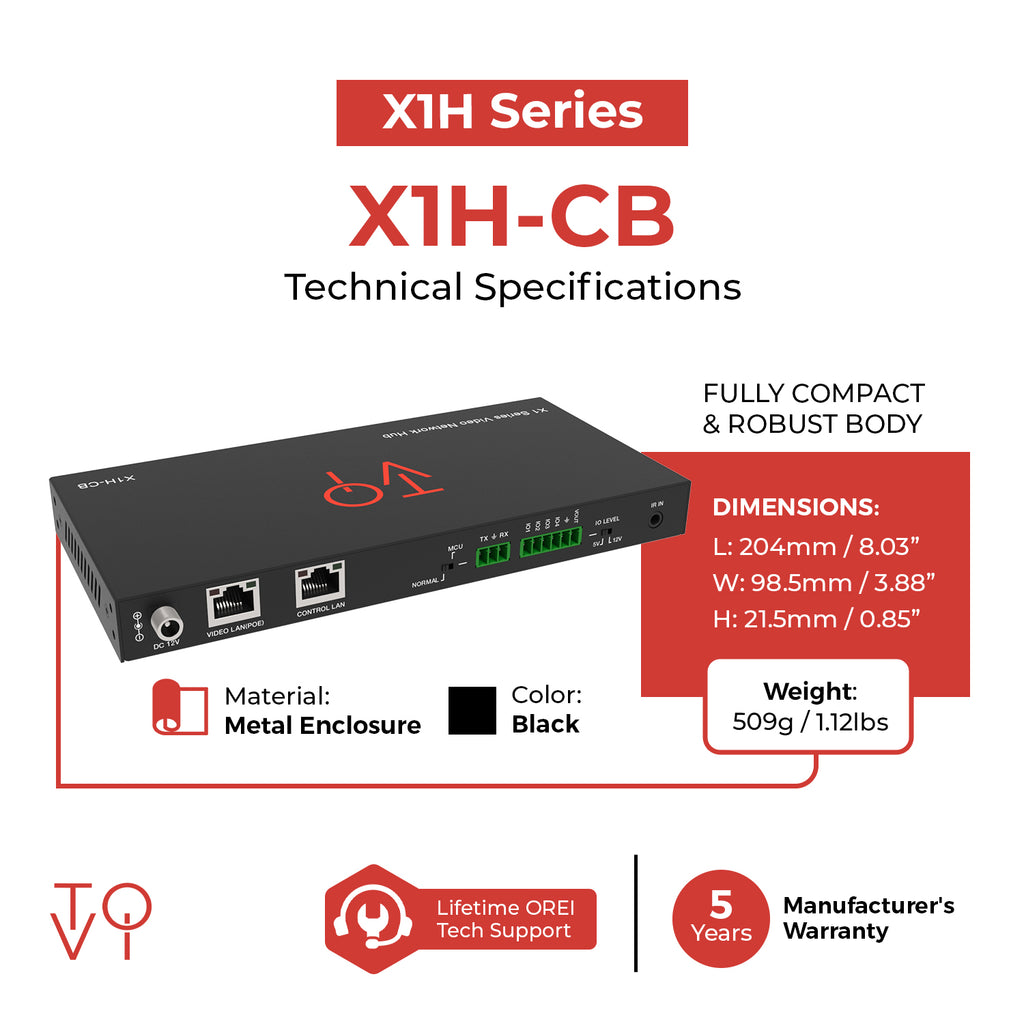

- DIMENSIONS & WEIGHT
- Length: 204mm / 8.03in
- Width: 98.5mm / 3.88in
- Height: 21.5mm / 0.85in
- Weight: 509g / 1.12lbs
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing

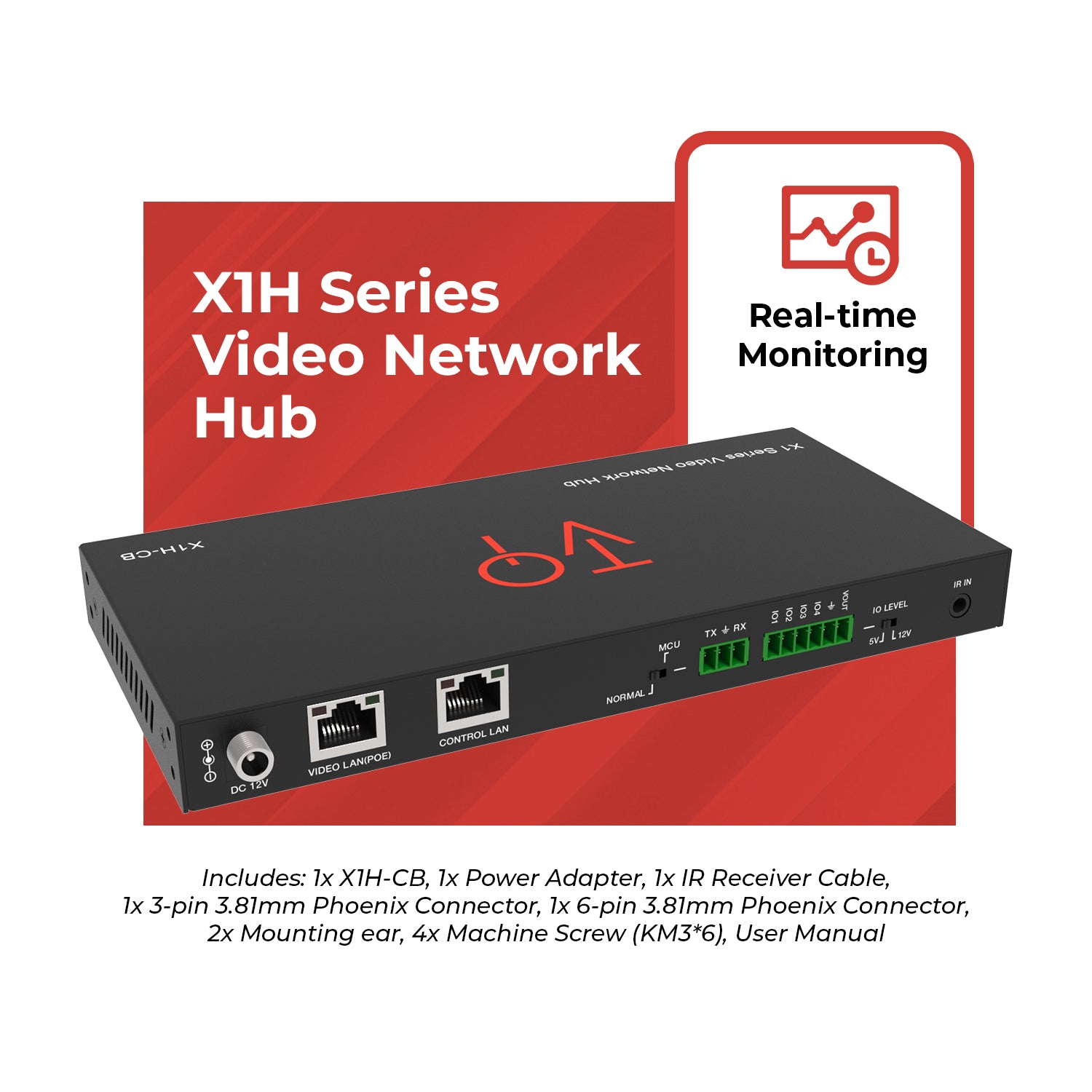

Includes:
- 1x X1H-CB
- 1x IR Receiver Cable (1.5 meters)
- 1x 3-pin 3.81mm Phoenix Connector (male)
- 1x 6-pin 3.81mm Phoenix Connector (male)
- 2x Mounting Ear
- 4x Machine Screw (KM3*6)
- 1x Power Adapter
- User Manual
- 1-year manufacturer's warranty
