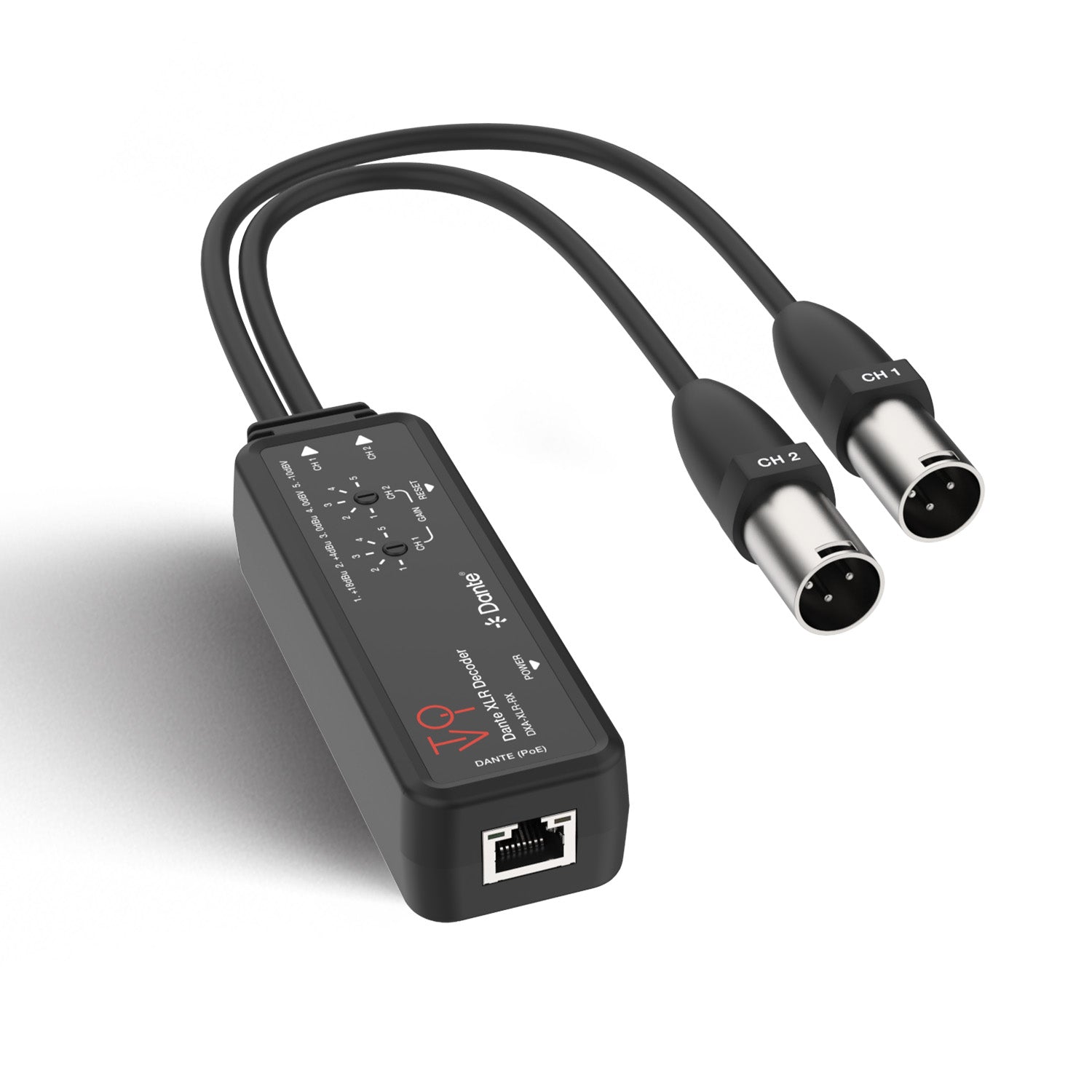

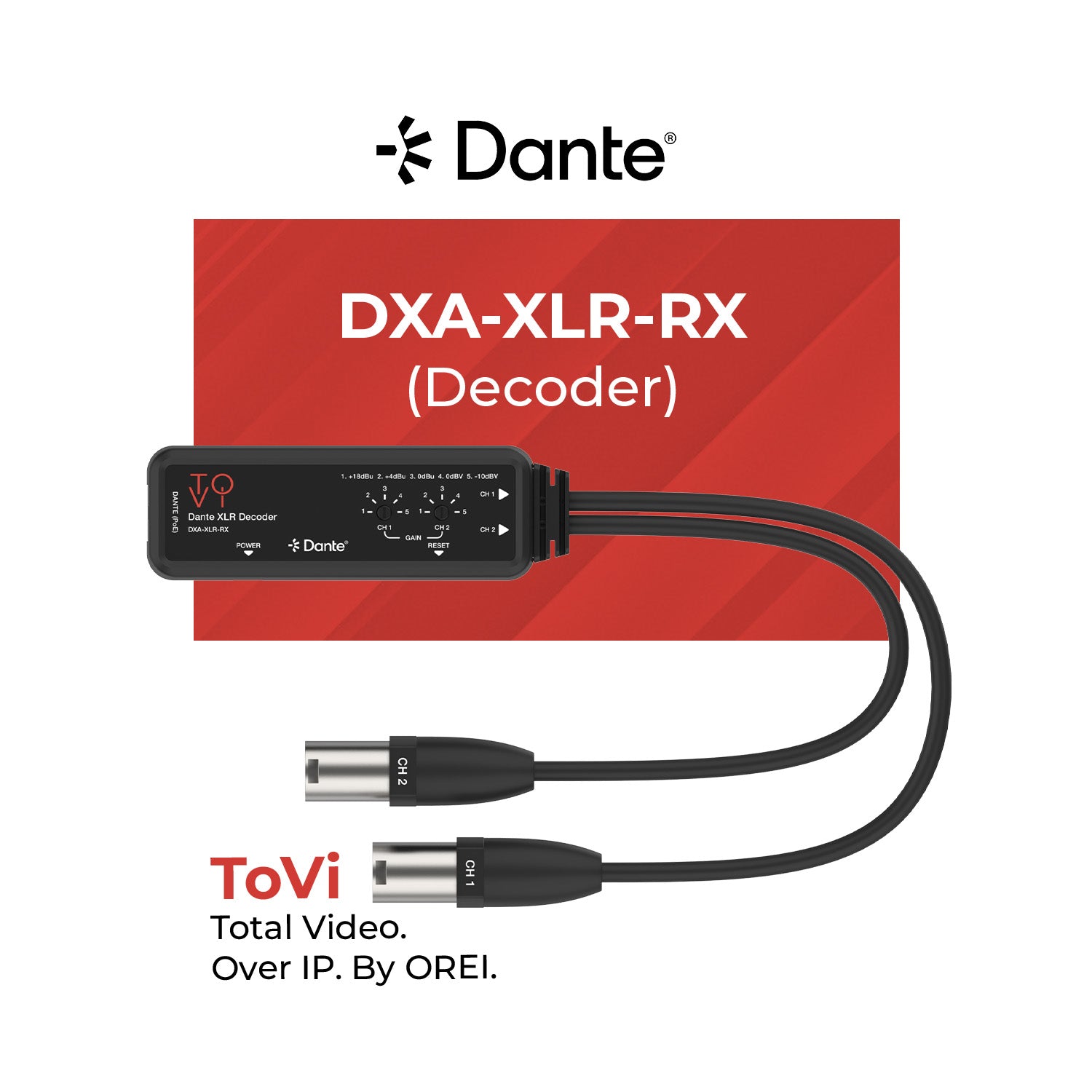

ToVi Dante® XLR Decoder DXA-XLR-RX
The DXA-XLR-RX is a professional audio converter that transforms Dante® digital audio streams into high-quality XLR analog outputs. Utilizing the advanced Dante® Ultimo 2x2 platform, it delivers pristine 24-bit/96kHz audio conversion with configurable latency settings (1/2/5ms) for precise synchronization. The adapter features balanced/unbalanced XLR analog outputs with five-level gain adjustment (+18dBu to -10dBv) for optimal signal matching across various audio systems.

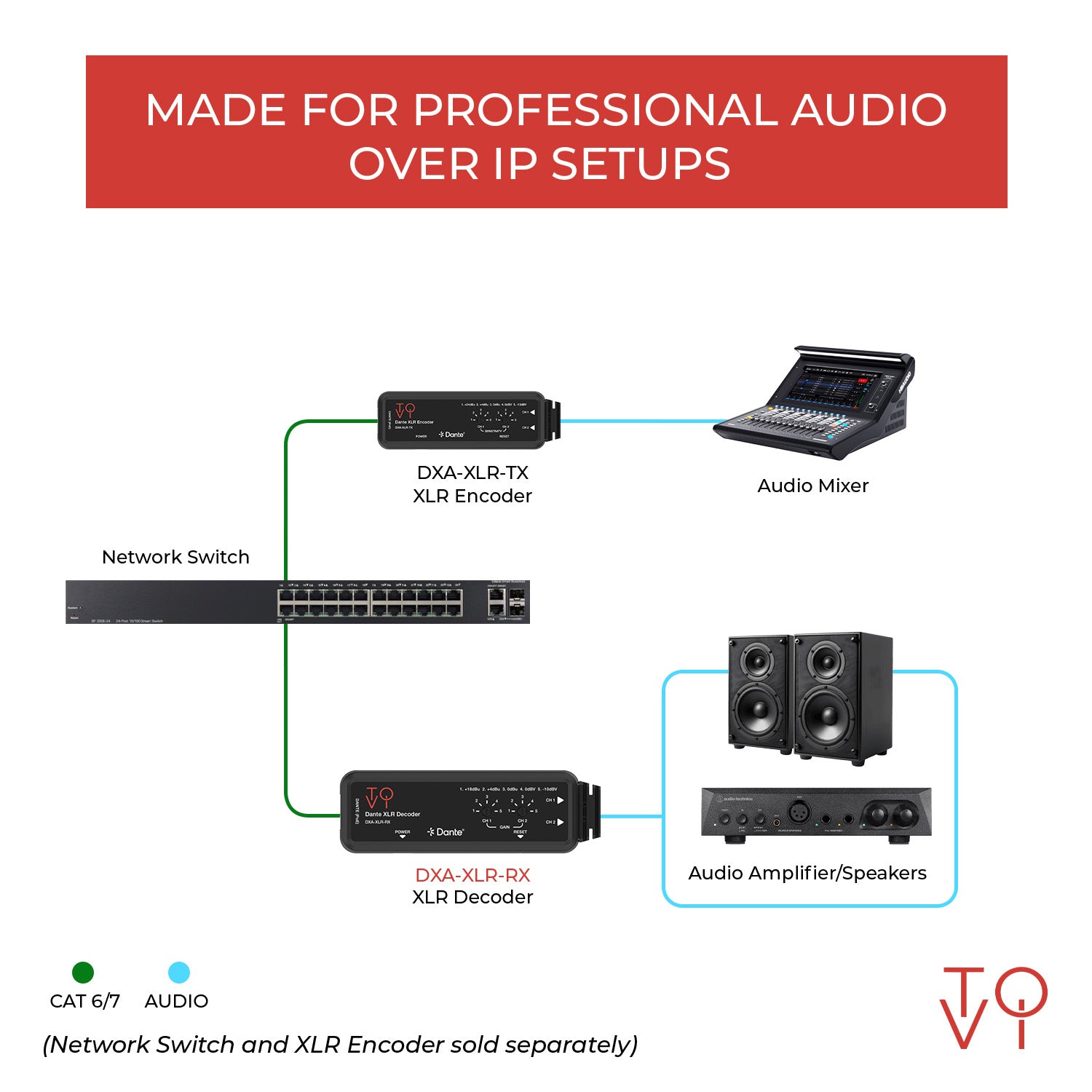

With dual power options via USB-C or Power over Ethernet (802.3af), this compact device enables seamless integration of Dante® networks with professional audio equipment, making it ideal for live sound reinforcement, broadcast facilities, and installed audio systems requiring reliable digital-to-analog conversion.
Key Features:
- Dante® to XLR Conversion – Converts Dante® digital streams to 2-channel XLR analog audio
- Professional XLR Outputs – Balanced/unbalanced connections for pro audio systems
- 5-Level Gain Adjustment – +18dBu to -10dBv output range for optimal signal matching
- High-Resolution Audio – Supports up to 96kHz/24-bit sampling quality
- Configurable Audio Delay – 1ms, 2ms, or 5ms latency settings

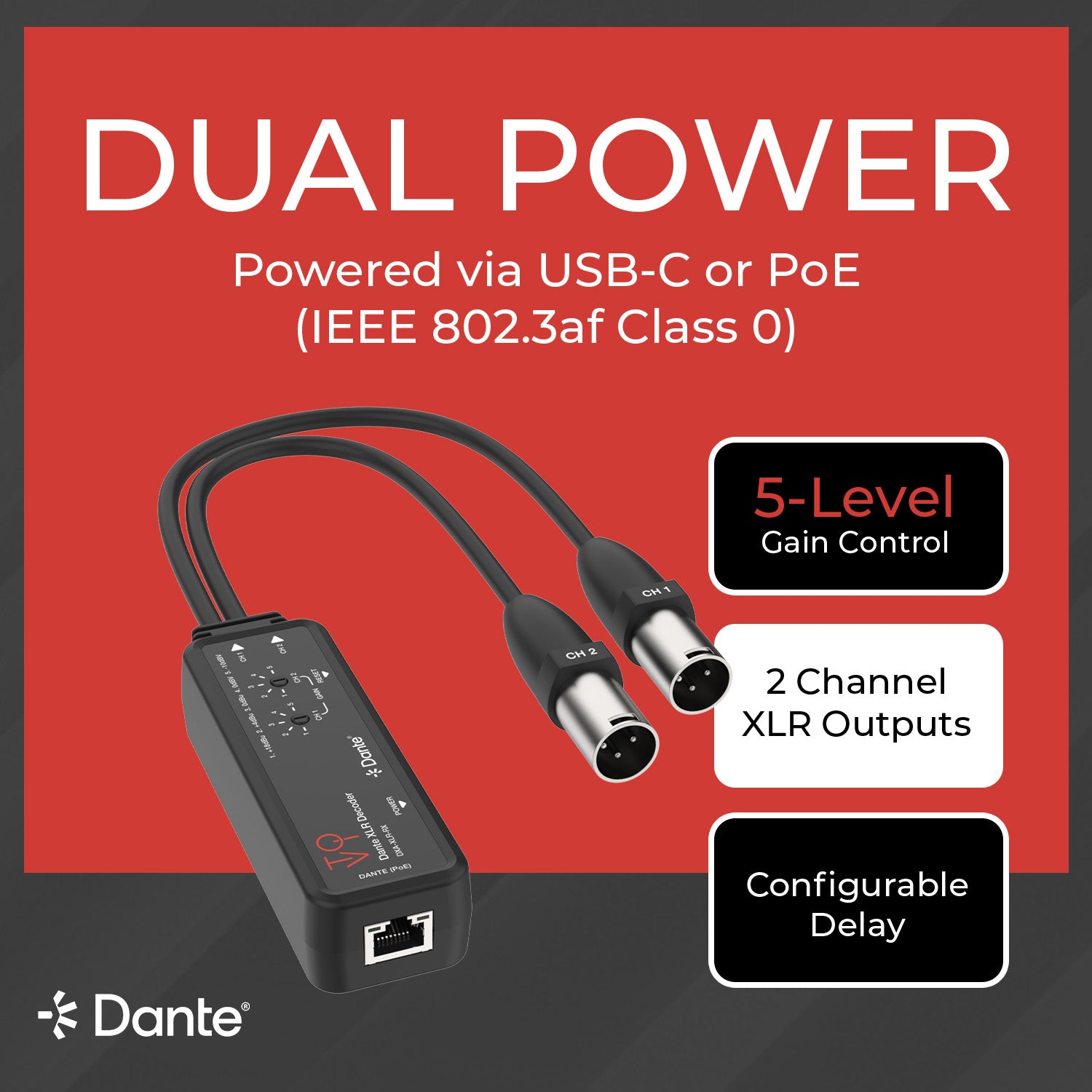

- Dual Power Options– USB-C or PoE (802.3af) operation
- Compact Design – Space-efficient installation for professional environments
- Seamless Integration – Full Dante® platform compatibility and interoperability
- CONNECTIVITY
- INPUT: 1× DANTE [RJ45 connector, PoE]
- 1× POWER [USB-C with USB power only, 12-pin female]
- OUTPUT: 2× CH1/CH2 XLR [XLR female plug, with 30cm cable]
- OTHERS: 1× RESET button [System reboot button]
- 2× GAIN knob [5-level dip switch]

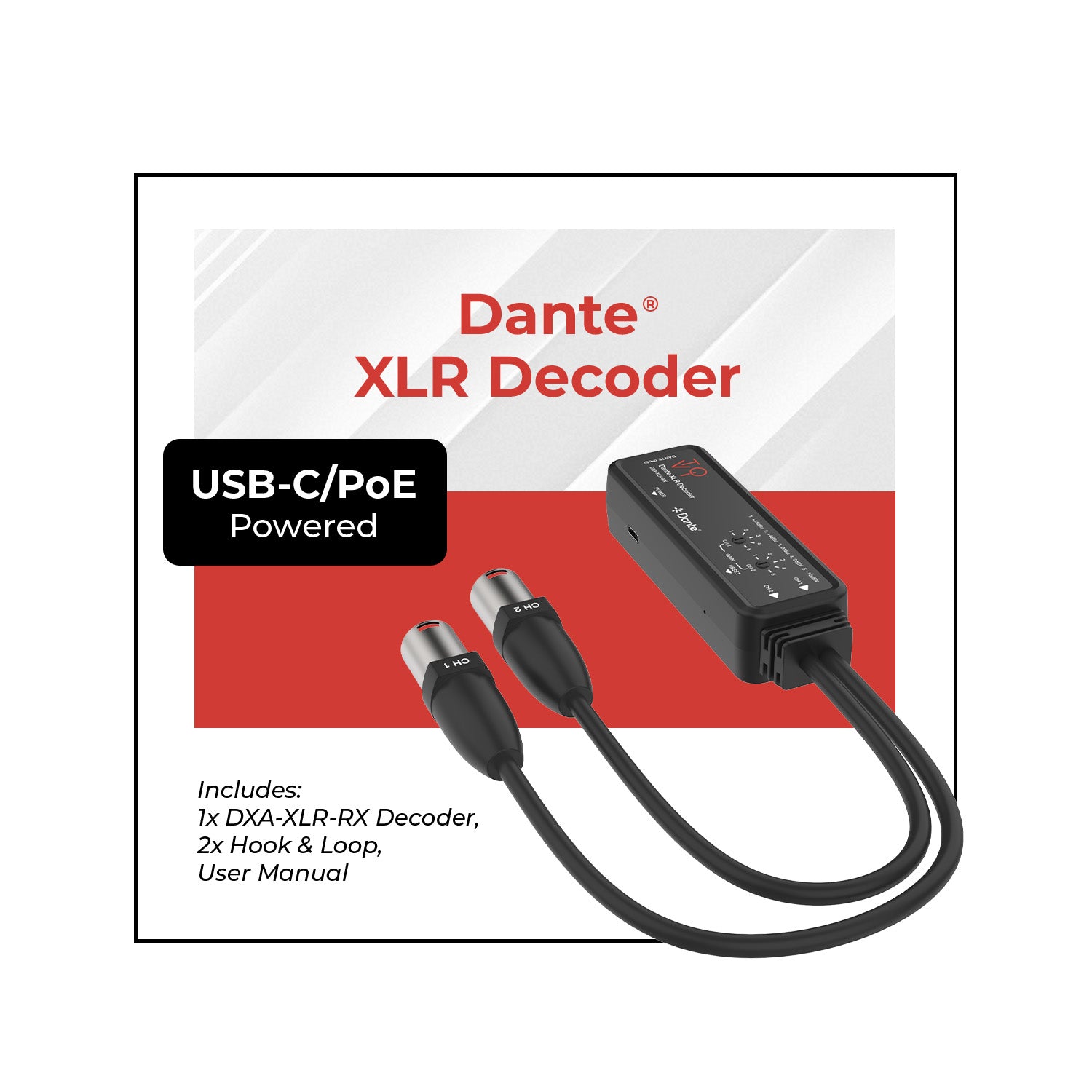

- PACKAGE CONTENTS
- 1x DXA-XLR-RX
- 2x Hook & Loop
- 1x User Manual
- VIDEO OUTPUT
- Network Bandwidth: 100Mbps
- Transmission Distance:
- Up to 328ft/100m (CAT6/6A/7)
- ADDITIONAL FEATURES
- PoE : Yes
- Audio Embedding : Yes
- AV over IP : Yes
- Web GUI : No
- AES67 Compatible : Yes
- 2-Channel XLR Input : Yes
- Sensitivity Adjustment : Yes (5-Level)
- USB-C Power : Yes
- RS-232 : No
- Network Transmission : Yes (Up to 100m / 328ft)
- POWER
- Power Consumption: 1.25W (Max)
- Power Supply: USB input: 5V/500mA
- PoE input: PoE IEEE802.3af Class 0

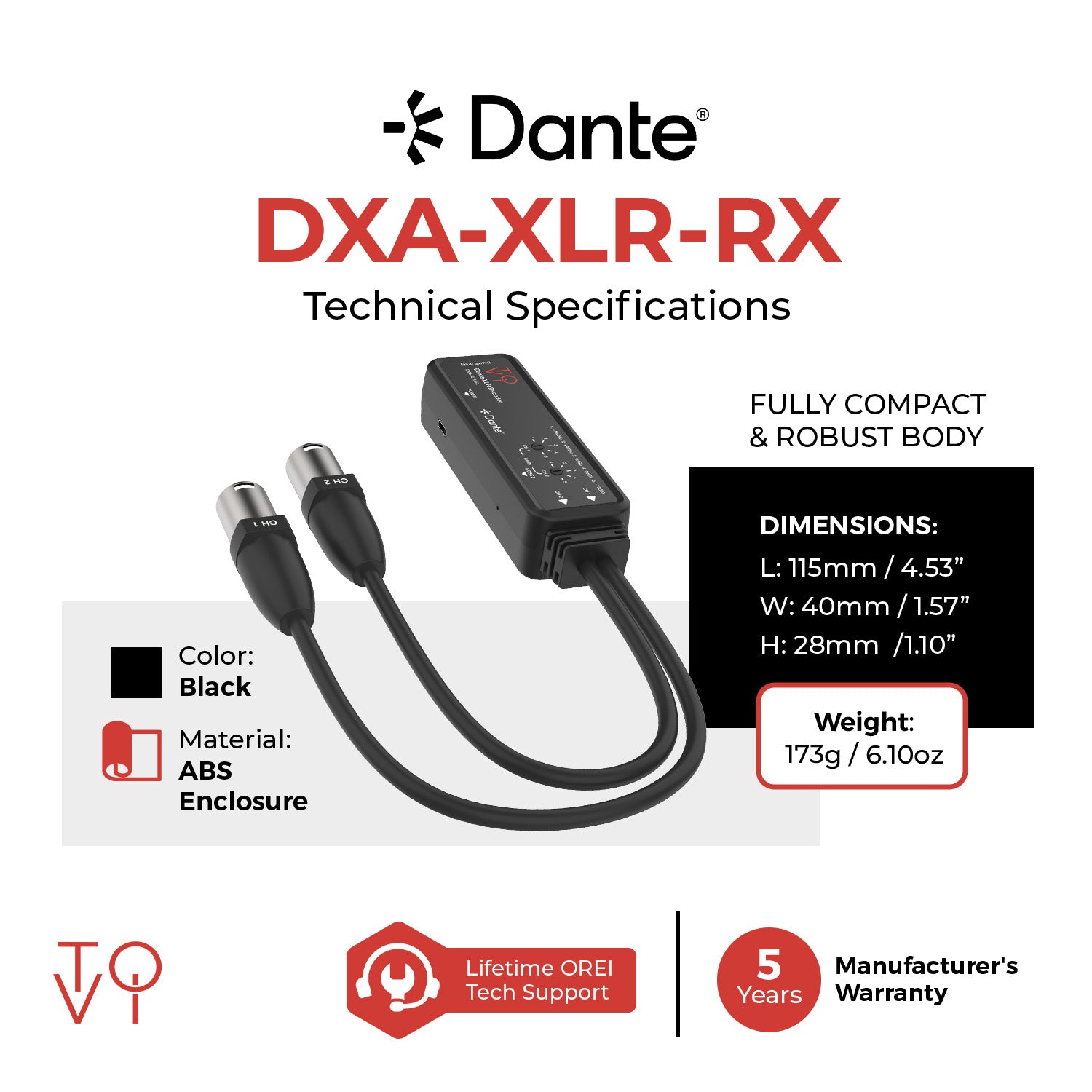

- DIMENSIONS & WEIGHT
- Length: 115mm/4.53in
- Width: 40mm/1.57in
- Height: 28mm/1.10in
- Weight: 173g/6.10oz
- PROPERTIES
- Color: Black
- Housing: Plastic Enclosure
- Operation Temperature: 32°F~104°F/0°C~40°C
- Storage Temperature: -4°F~140°F/-20°C~60°C
- Operating Humidity: 20%~80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)
- WARRANTY
- 5-Year Manufacturer's Warranty
Includes:
- 1x DXA-XLR-RX
- 2x Hook & Loop
- 1x User Manual
WARRANTY:
- 5-Year Manufacturer's Warranty
