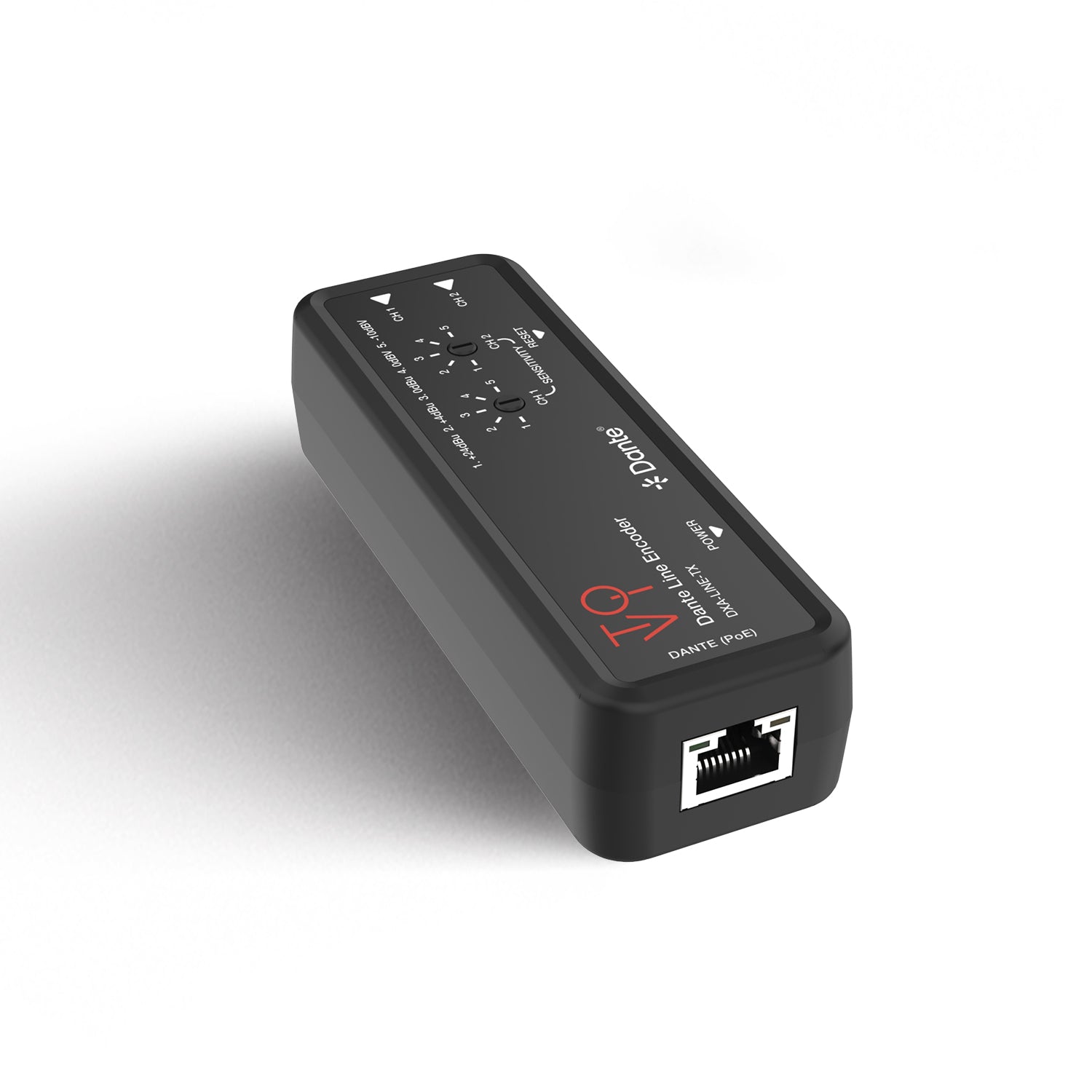

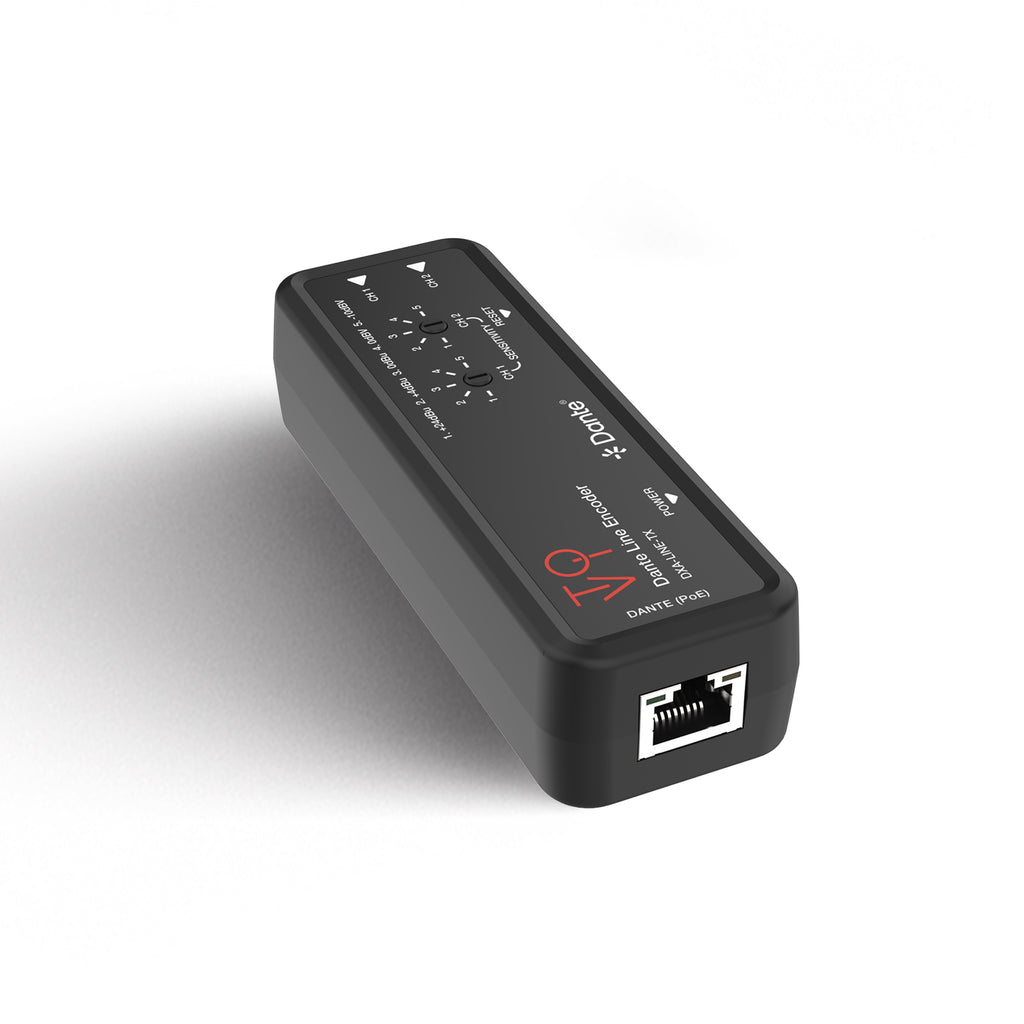

ToVi Dante® Line Encoder (DXA-LINE-TX)
The DXA-LINE-TX is a professional audio transmitter designed to convert two-channel analog audio into high-quality Dante® digital audio streams. Based on the Dante® Ultimo 2x2 solution, it supports balanced/unbalanced analog inputs with five-level sensitivity adjustment (+24dBu to -10dBv) for optimal signal matching. The adapter delivers 24-bit audio quality at sampling rates up to 96kHz and features configurable Dante® audio latency settings (1/2/5ms) for precise synchronization.

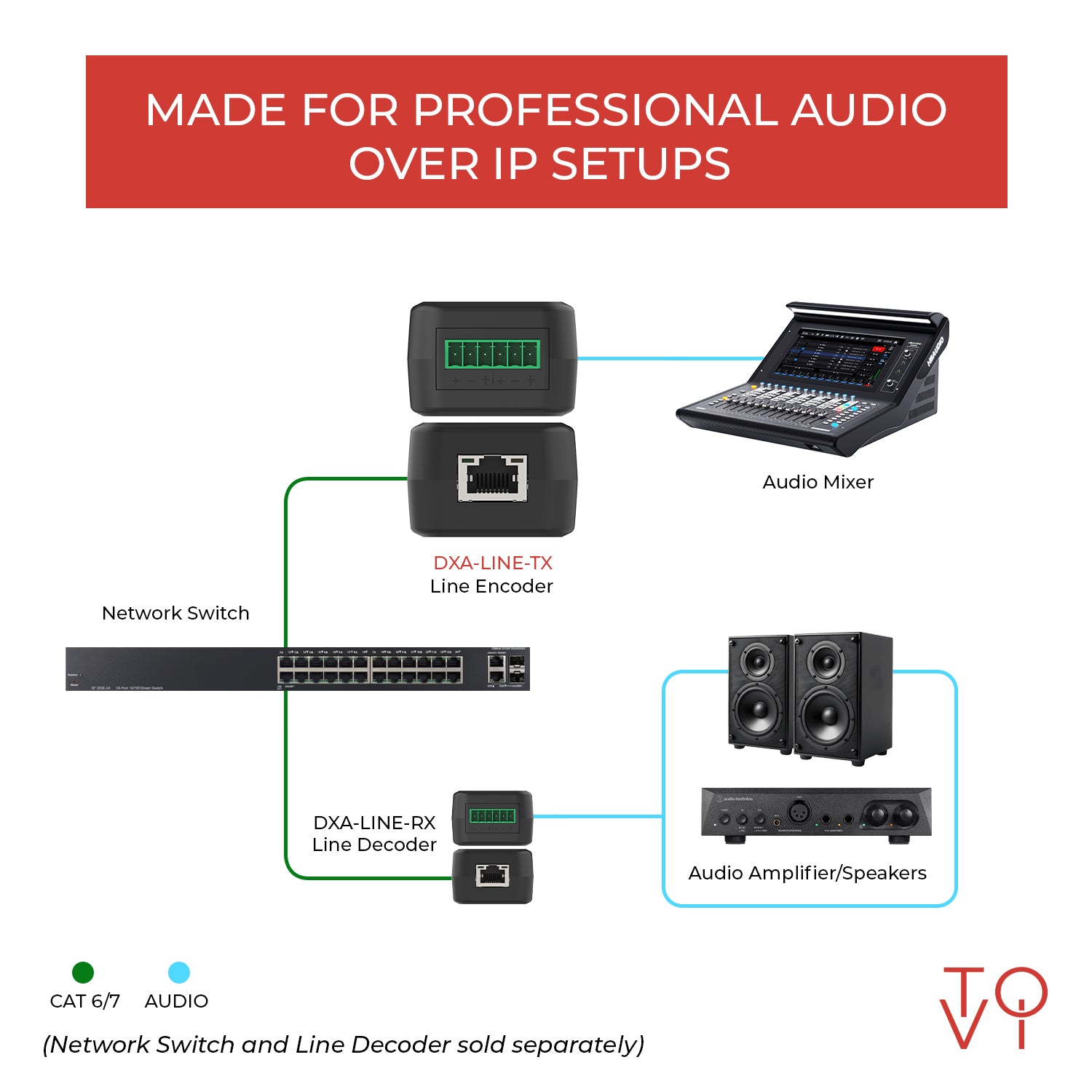

With flexible power options via USB-C or Power over Ethernet (802.3af), this compact device enables seamless integration of analog audio sources into Dante® networks, making it ideal for live sound, broadcasting, and installed audio systems.
Key Features:
Key Features:
- Dante® Audio Transmission – Converts 2-channel analog audio to Dante® digital streams
- Balanced/Unbalanced Inputs – Supports professional and consumer audio sources
- 5-Level Sensitivity Adjustment – +24dBu to -10dBv input range for optimal signal matching
- High-Resolution Audio – Supports up to 96kHz/24-bit sampling quality
- Configurable Audio Delay – 1ms, 2ms, or 5ms latency settings

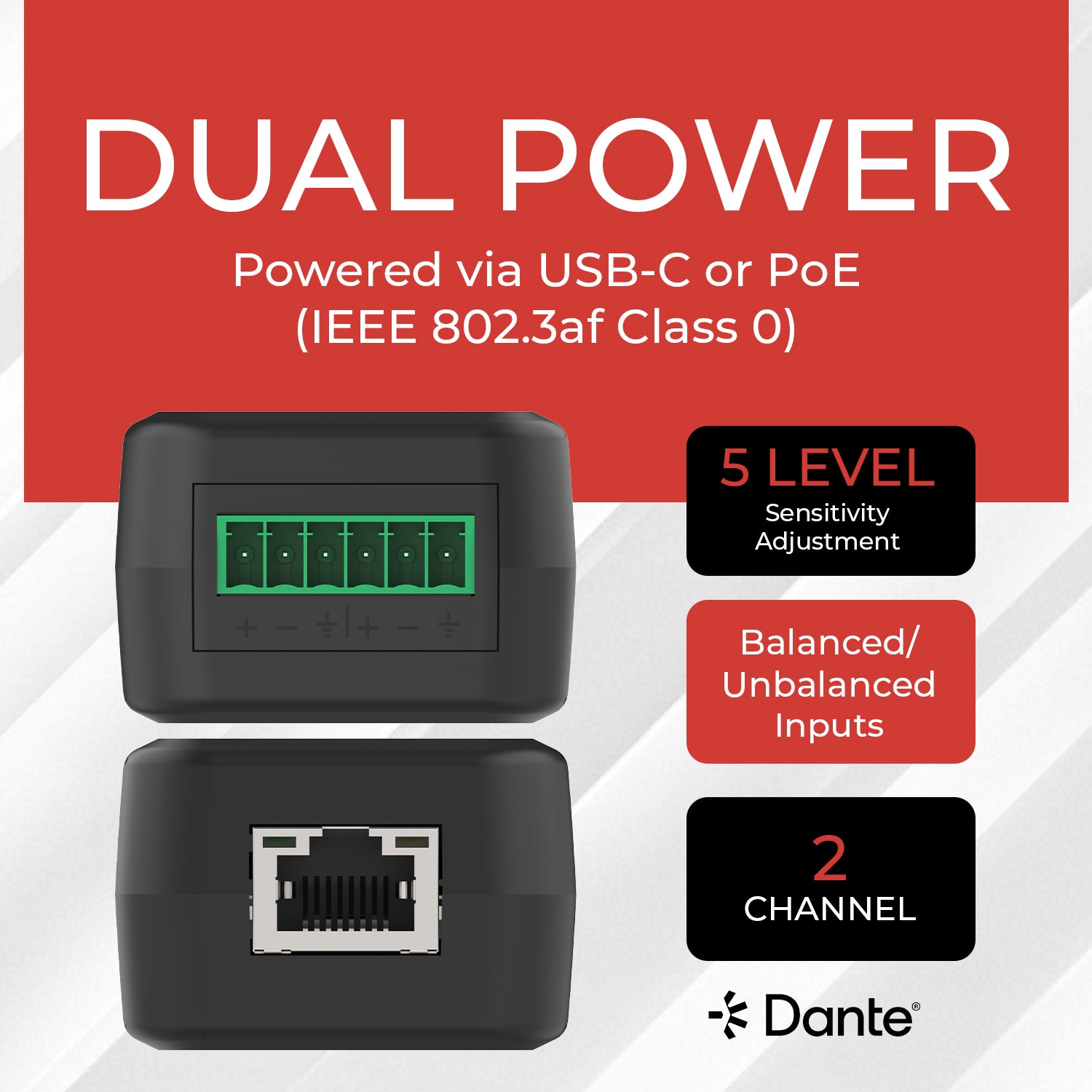

- Dual Power Options– USB-C or PoE (802.3af) operation
- Compact Design – Space-efficient installation for any environment
- Professional Networking – Full Dante® platform compatibility
- CONNECTIVITY
- INPUT: 2× CH1/CH2 LINE [6pin-3.5mm phoenix connector]
- 1× POWER [USB-C power and firmware update port, 12-pin female]
- OUTPUT: 1× DANTE [RJ45 connector, PoE]
- OTHERS: 1× RESET button [System reboot button]

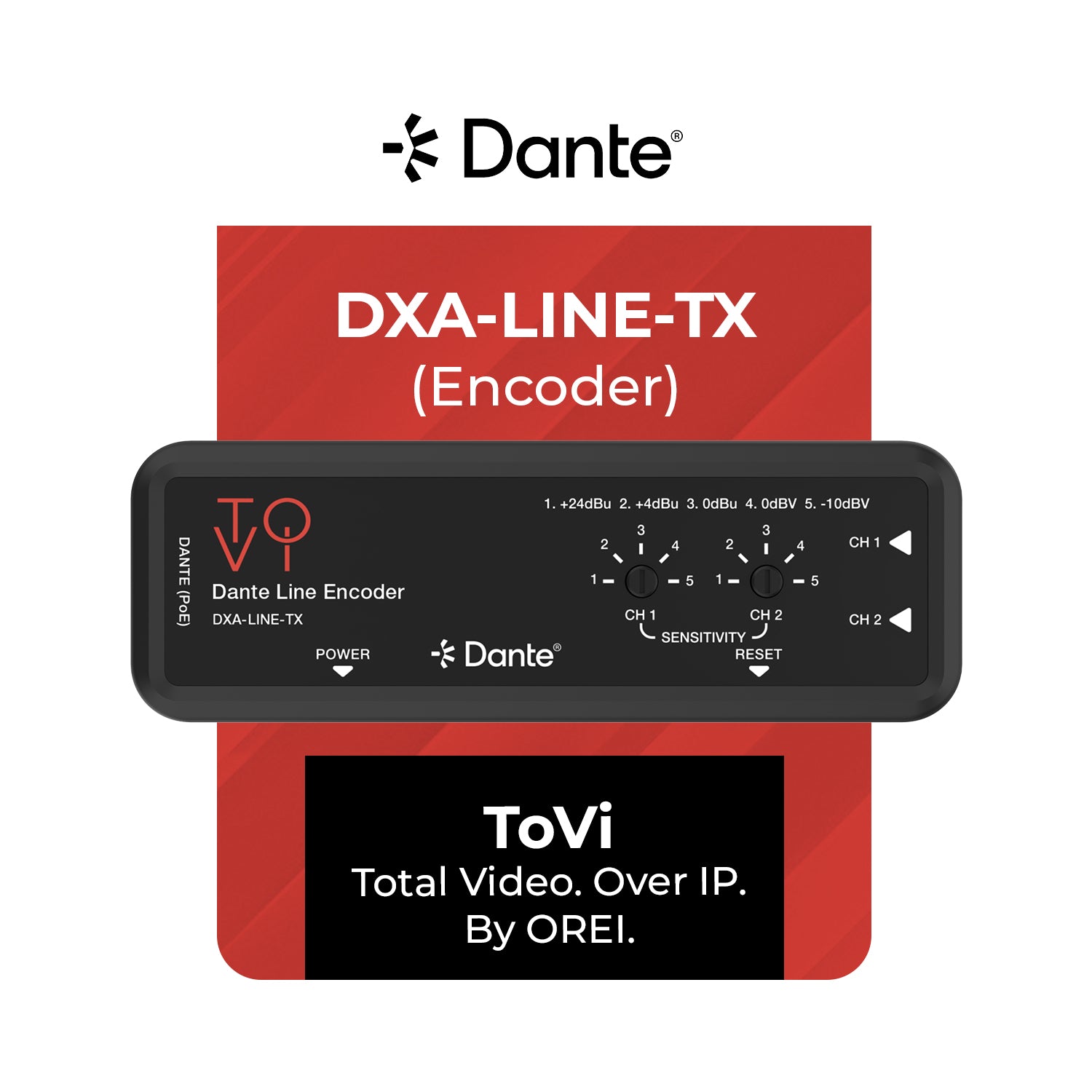

- 2× SENSITIVITY knob [5-level dip switch]
- PACKAGE CONTENTS
- 1× DXA-LINE-TX
- 1× 6-Pin to 3.5mm Phoenix Connector (Male)
- 2× Hook & Loops
- 1× User Manual
- ADDITIONAL FEATURES
- PoE: Yes
- IR Control: No
- Audio Embedding: Yes
- Audio Extraction: No
- AV over IP: Yes
- AES67 Compatible: Yes
- 2-Channel Line Input: Yes
- IR Control: No
- USB-C Power: Yes
- Web GUI: No
- RS-232: No
- HDBaseT: No
- Fiber Optic Support: No
- Network Transmission: Yes (Up to 100m / 328ft)
- HDCP: No
- POWER
- Power Consumption: 2W (Max)
- Power Supply: USB input: 5V/500mA
- PoE input: PoE IEEE802.3af Class 0

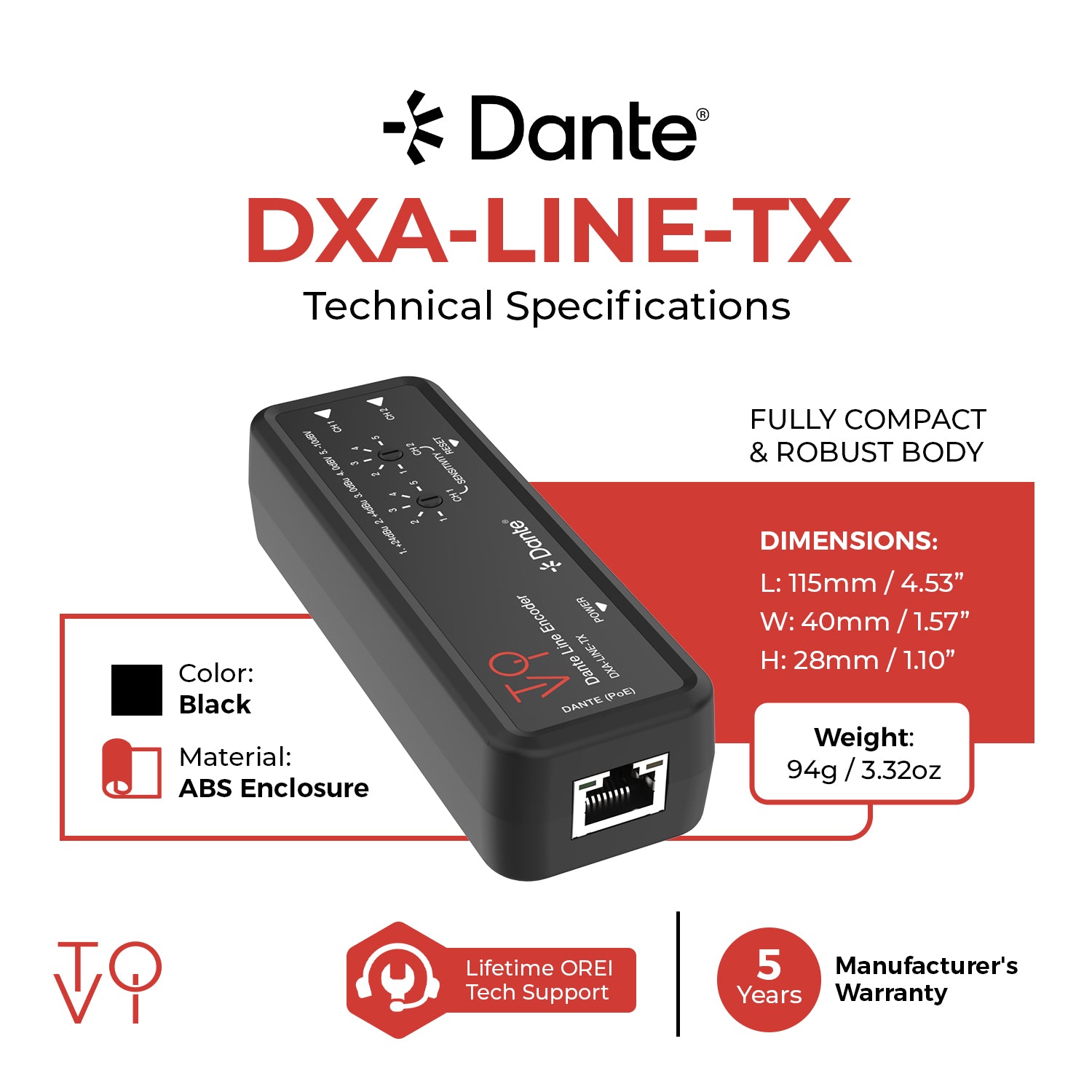

- DIMENSIONS & WEIGHT
- Length: 115mm/4.53in
- Width: 40mm/1.57in
- Height: 28mm/1.10in
- Weight: 94g/3.32oz
- PROPERTIES
- Color: Black
- Housing: Plastic Enclosure
- Operation Temperature: 32°F~104°F/0°C~40°C
- Storage Temperature: -4°F~140°F/-20°C~60°C
- Operating Humidity: 20 - 80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)
- WARRANTY
- 5-Year Manufacturer's Warranty

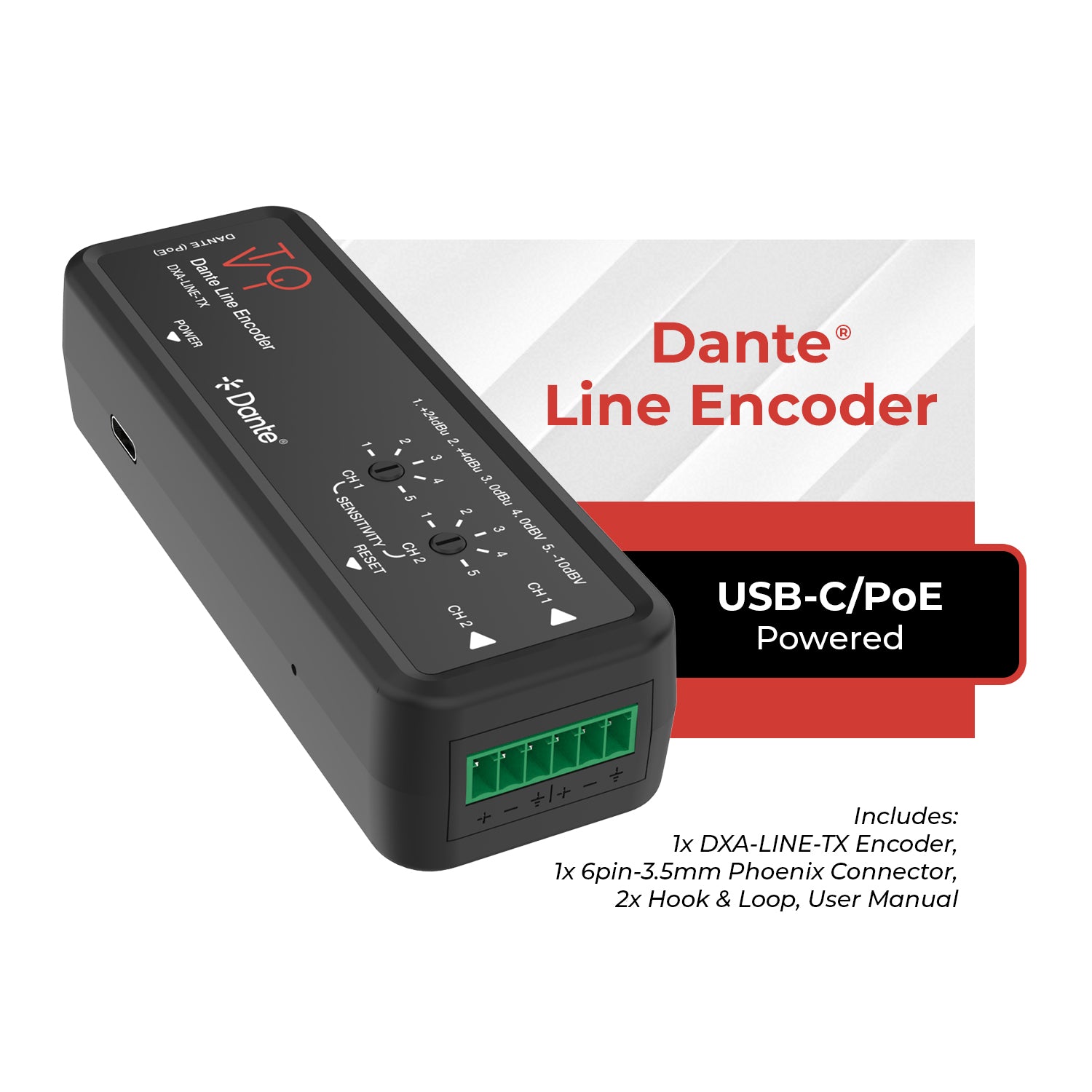

Includes:
- 1× DXA-LINE-TX
- 1× 6-Pin to 3.5mm Phoenix Connector (Male)
- 2× Hook & Loops
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
