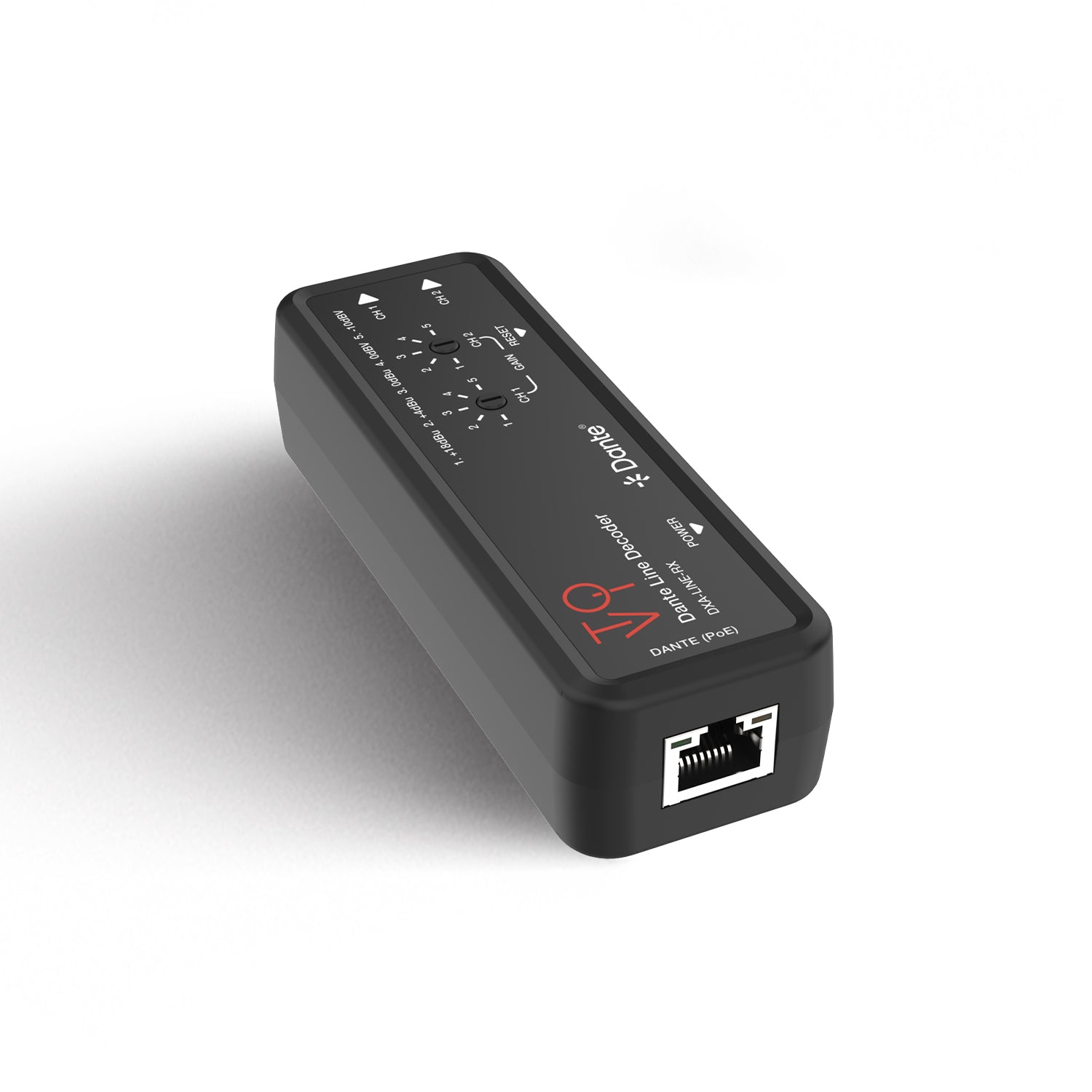

ToVi Dante® Line Decoder (DXA-LINE-RX)
The DXA-LINE-RX is a professional audio converter that transforms Dante® digital audio streams into high-quality analog outputs. Utilizing the advanced Dante® Ultimo 2x2 platform, it delivers pristine 24-bit audio at sampling rates up to 96kHz with configurable latency settings (1/2/5ms) for precise synchronization. The adapter features balanced/unbalanced analog outputs with five-level gain adjustment (+18dBu to -10dBv) for optimal signal matching across various audio systems.

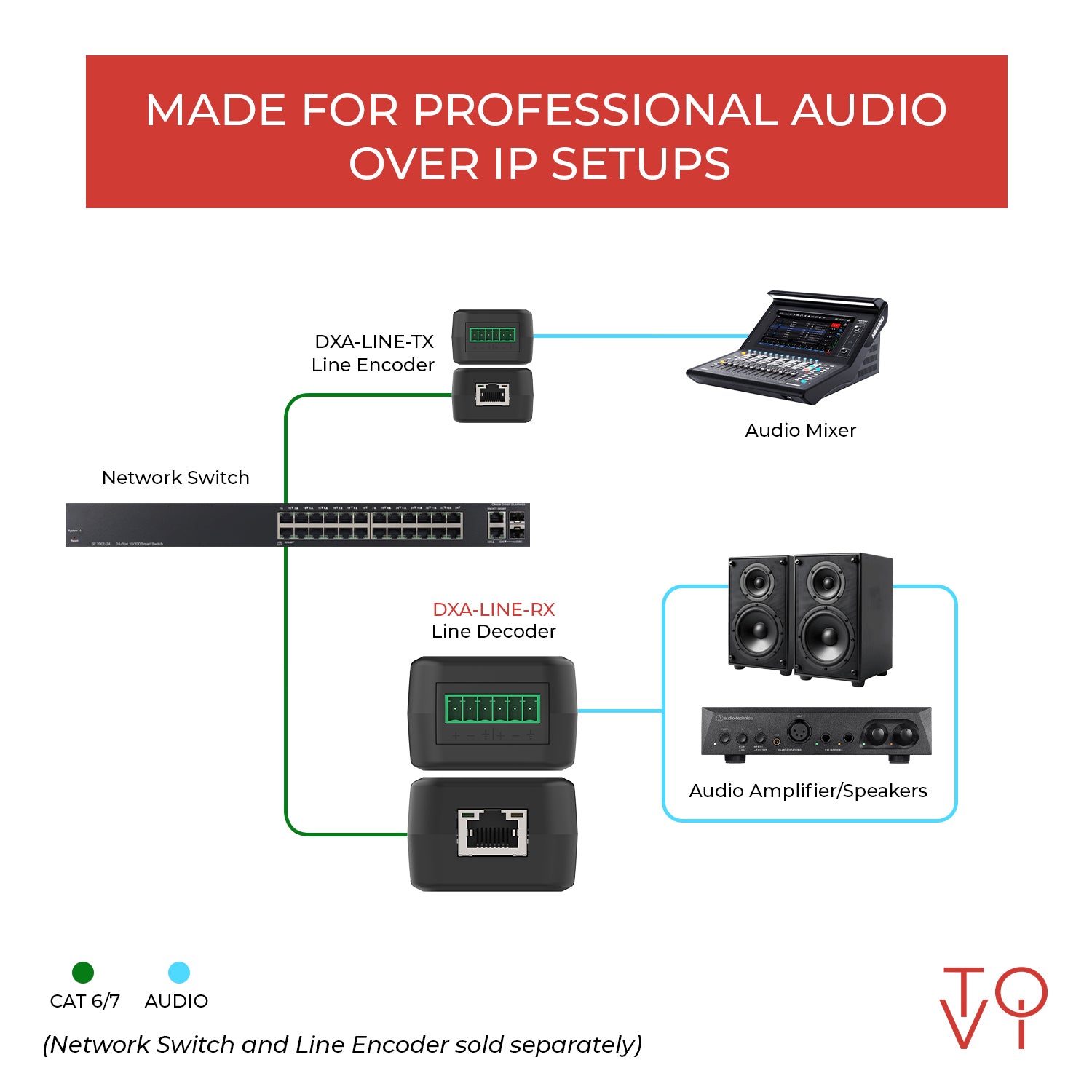

With flexible power options via USB-C or Power over Ethernet (802.3af), this compact device enables seamless integration of Dante® networks with analog equipment, making it ideal for live sound reinforcement, broadcast facilities, and installed audio systems requiring reliable digital-to-analog conversion.
Key Features:
- Dante® to Analog Conversion – Converts 2-channel Dante® streams to balanced/unbalanced analog audio.

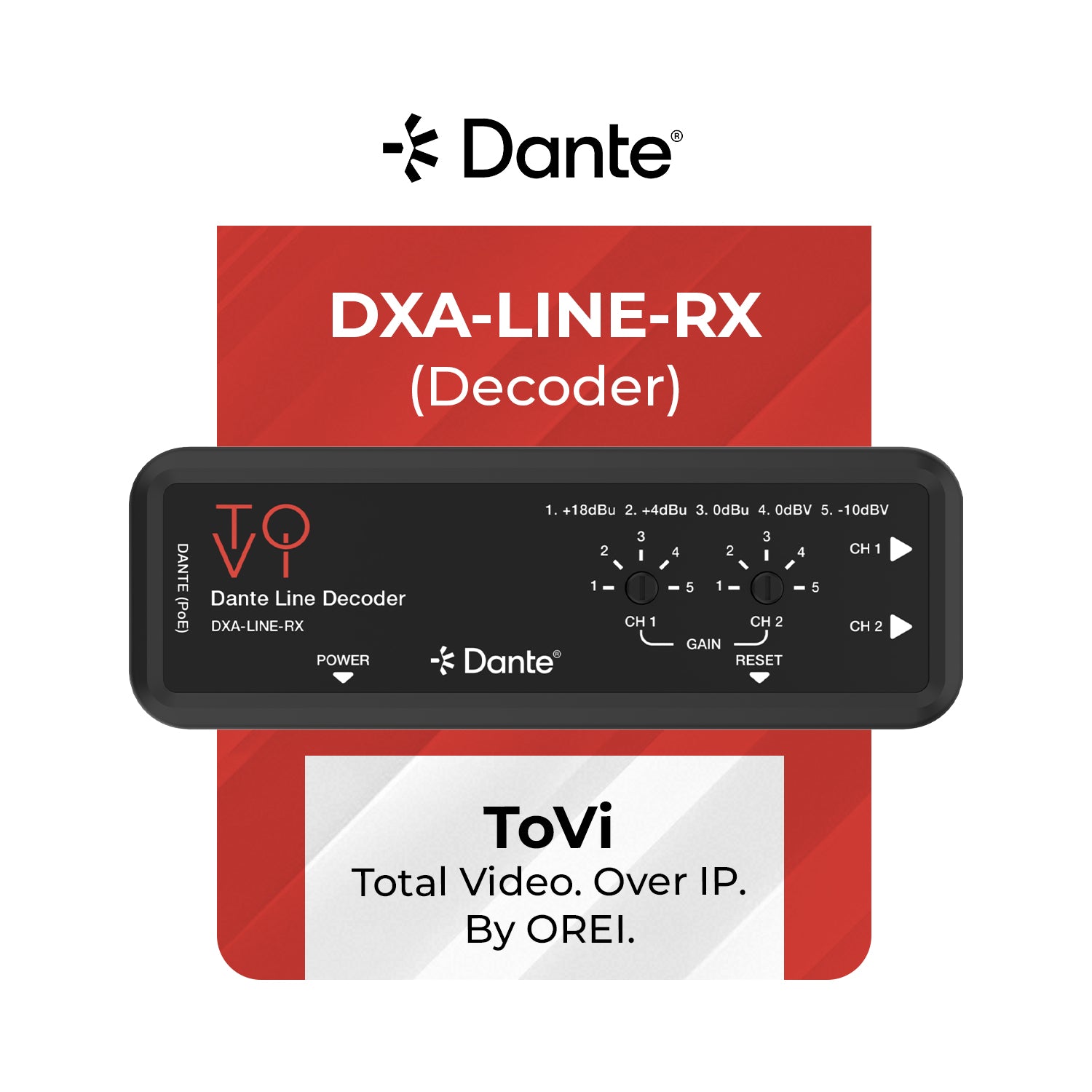

- 5-Level Gain Adjustment – Provides +18dBu, +4dBu, 0dBu, 0dBv, and -10dBv output levels.
- High-Resolution Audio – Supports up to 96kHz/24-bit sampling quality.
- Configurable Audio Delay – 1ms, 2ms, or 5ms latency settings for perfect synchronization.

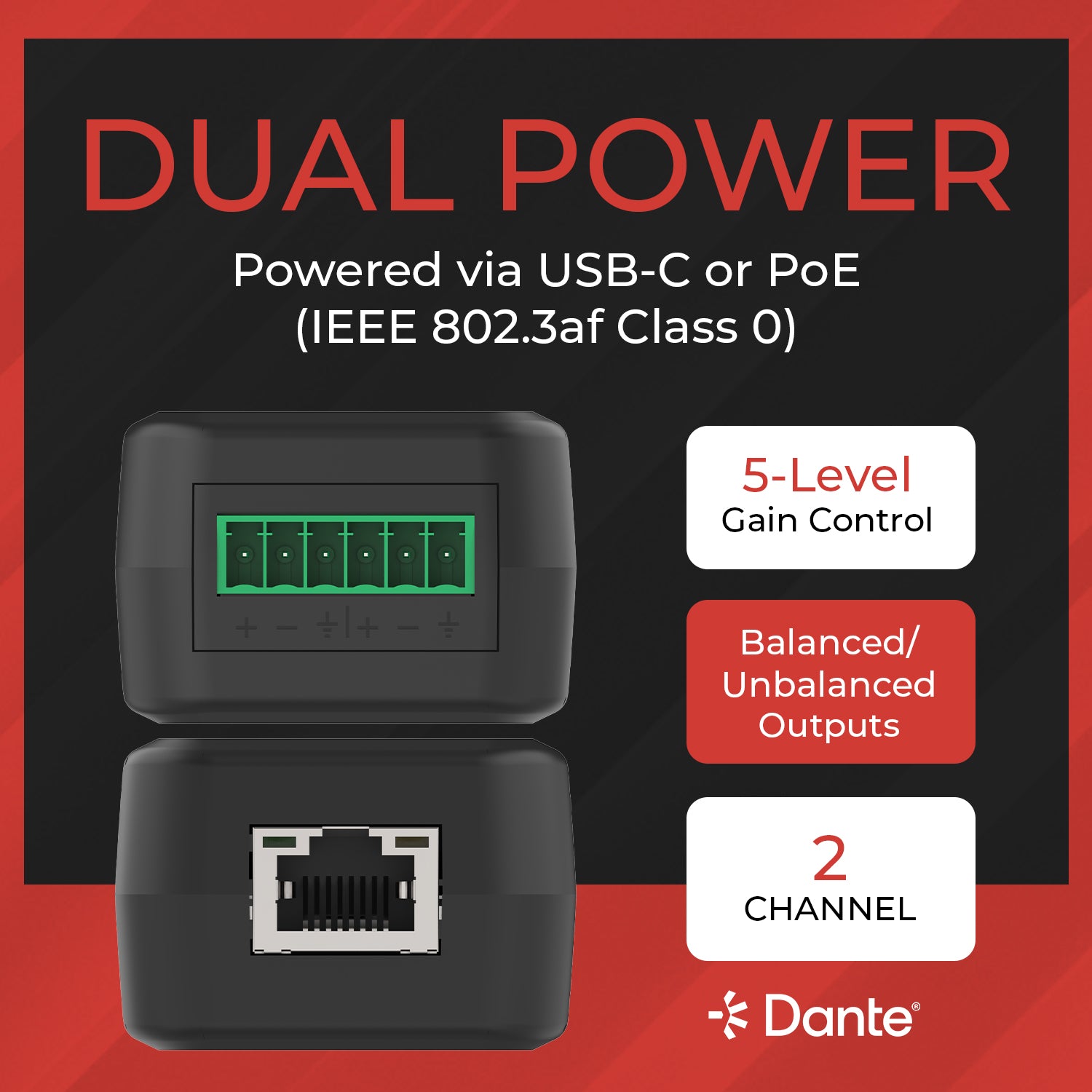

- Dual Power Options – USB-C or PoE (802.3af) operation for flexible installation.
- Professional Connectivity– Balanced/unbalanced outputs for versatile system integration.
- Compact Design – Space-efficient form factor for professional environments.
- Plug-and-Play Integration – Simple setup with automatic Dante® network discovery
- CONNECTIVITY
- INPUT: 1× DANTE [RJ45 connector, PoE]
- 1× POWER [USB-C with USB power only, 12-pin female]
- OUTPUT: 2× CH1/CH2 LINE [6pin-3.5mm phoenix connector]
- OTHERS: 1× RESET button [System reboot button]
- 2× GAIN knob [5-level dip switch]

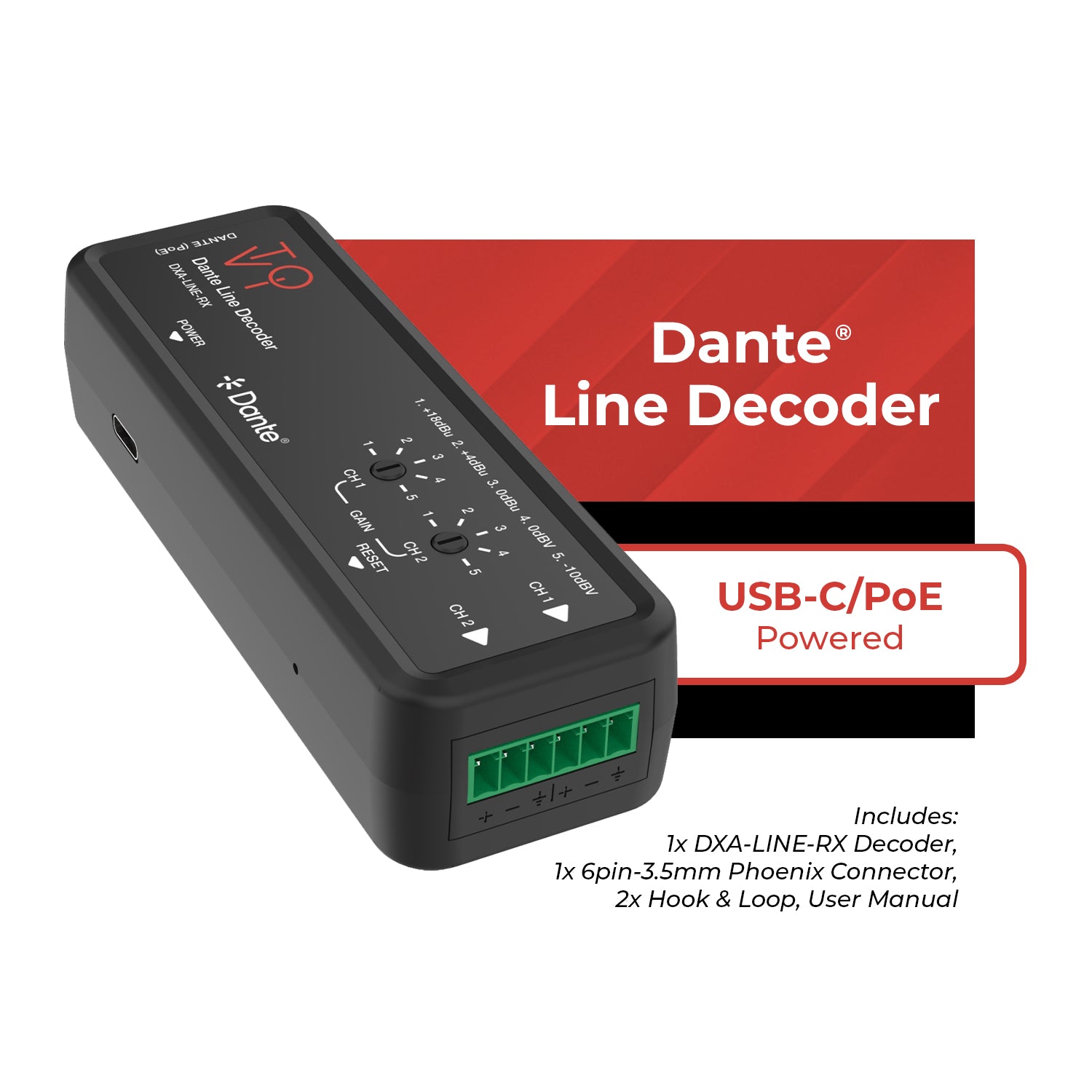

- PACKAGE CONTENTS
- 1× DXA-LINE-RX
- 1× 6pin-3.5mm Phoenix Connector (male)
- 2× Hook & Loop
- 1× User Manual
- VIDEO OUTPUT
- Network Video Bandwidth: 100M
- Transmission Distance:
- Up to 328ft/100m (CAT6/6A/7)
- ADDITIONAL FEATURES
- PoE: Yes
- Audio Embedding: Yes
- Audio Extraction: No
- AV over IP: Yes
- AES67 Compatible: Yes
- 2-Channel Line Input: Yes
- USB-C Power: Yes
- Fiber Optic Support: No
- Network Transmission: Yes (Up to 100m / 328ft)
- POWER
- Power Consumption: 1.25W (Max)
- Power Supply: USB input: 5V/500mA
- PoE input: PoE IEEE802.3af Class 0

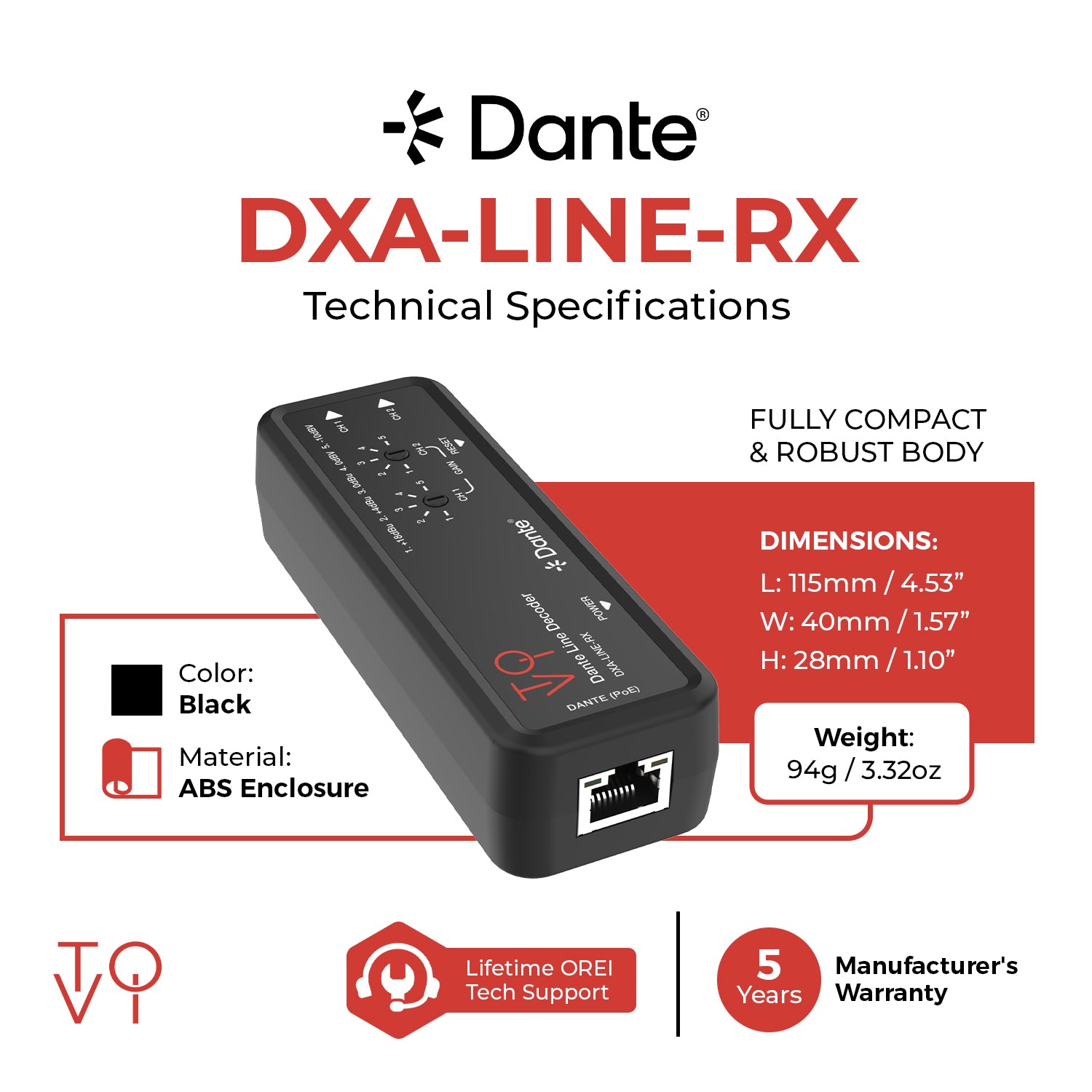

- DIMENSIONS & WEIGHT
- Length: 115mm/4.53in
- Width: 40mm/1.57in
- Height: 28mm/1.10in
- Weight: 94g/3.32oz
- PROPERTIES
- Color: Black
- Housing: Plastic Enclosure
- Operation Temperature: 32°F~104°F/0°C~40°C
- Storage Temperature: -4°F~140°F/-20°C~60°C
- Operating Humidity: 20 - 80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)
- WARRANTY
- 5-Year Manufacturer's Warranty
Includes:
- 1x DXA-LINE-RX
- 1x 6pin-3.5mm Phoenix Connector (male)
- 2x Hook & Loop
- 1x User Manual
WARRANTY:
- 5-Year Manufacturer's Warranty
