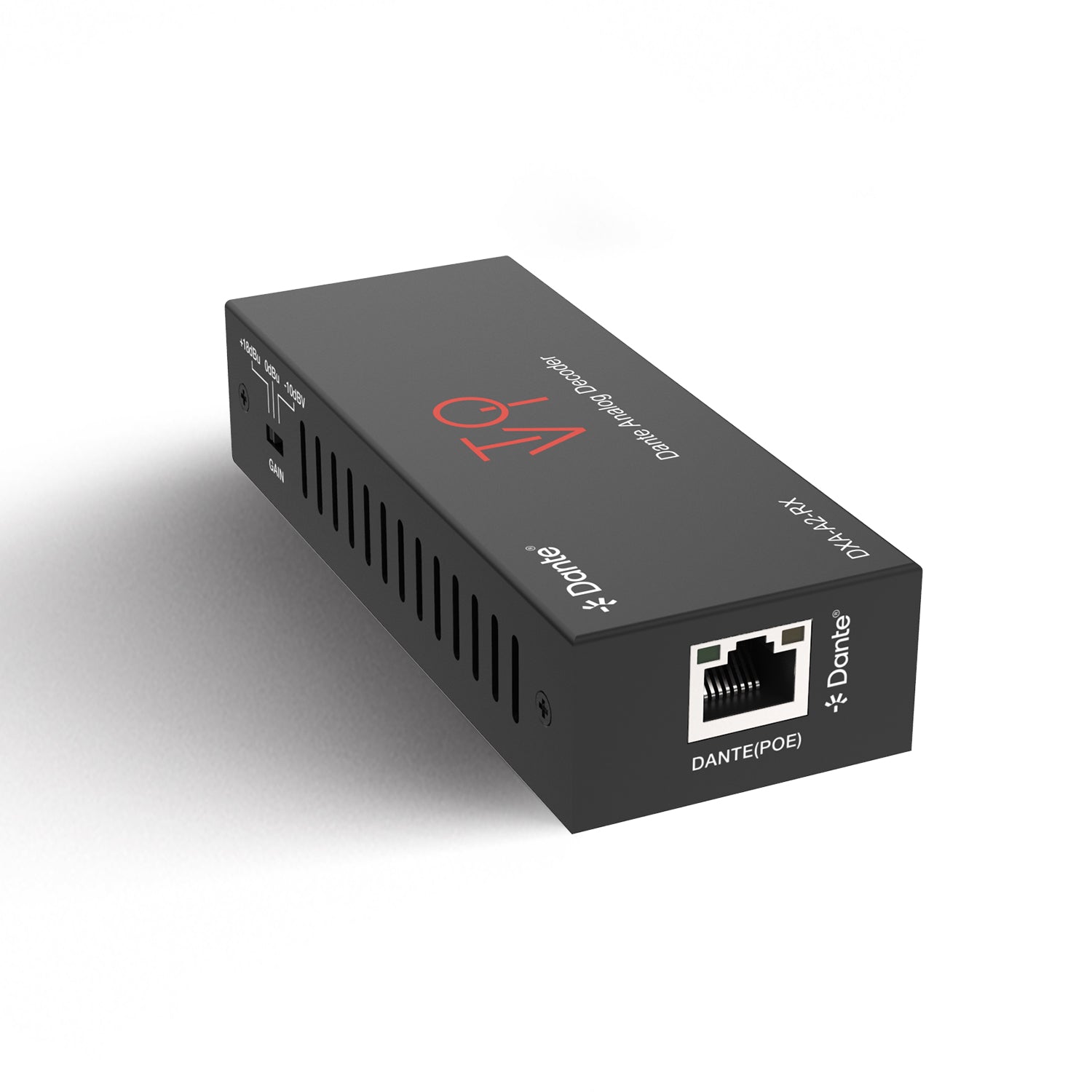

ToVi Dante 2CH Analog Audio Decoder with POE (DXA-A2-RX)

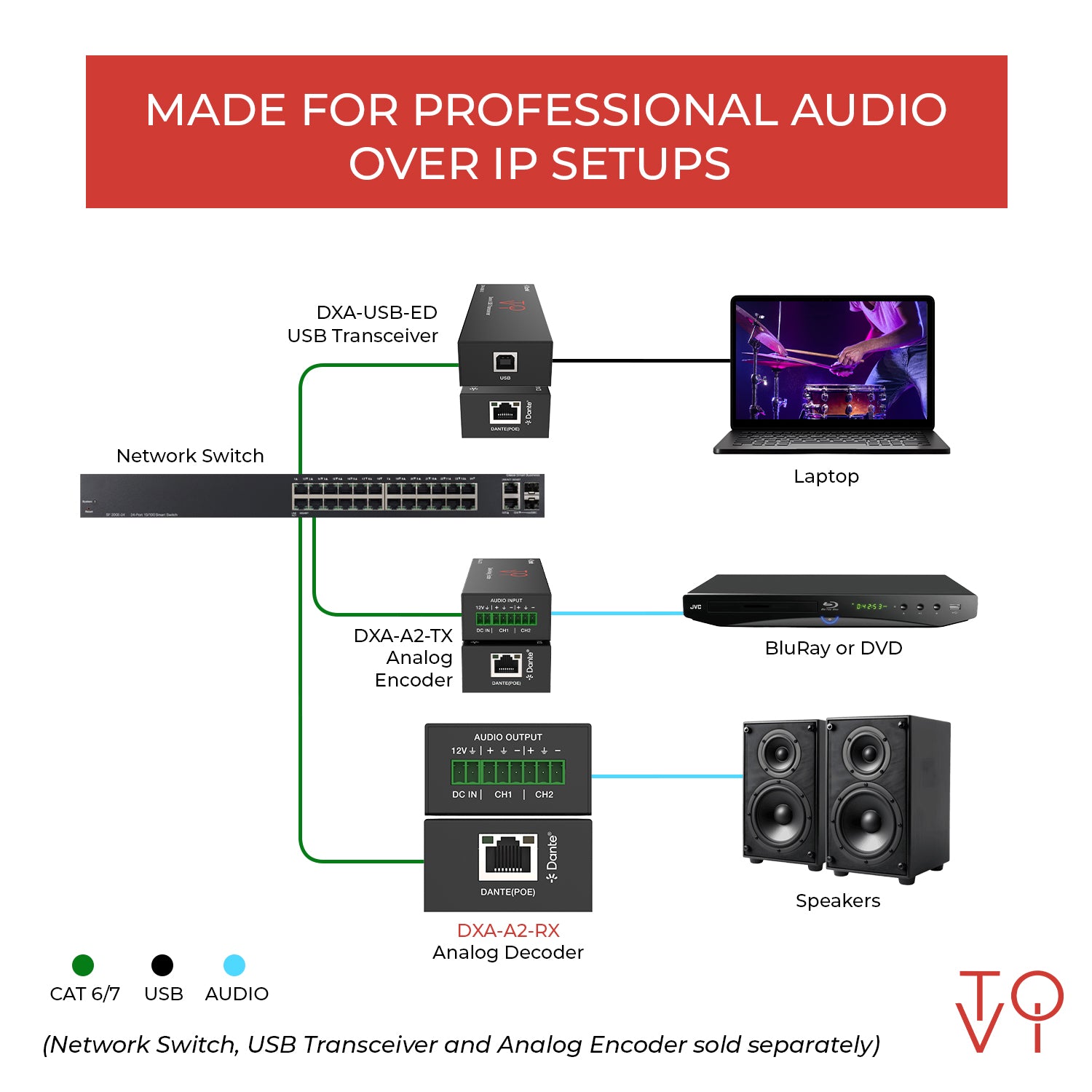

The ToVi DXA-A2-RX is a 2-channel Dante analog audio decoder designed to decode high-quality analog audio from standard IP networks with full AES67 compatibility. It supports both balanced and unbalanced audio outputs and offers three selectable gain levels (+18dBu, 0dBu, and –10dBV) to accommodate different signal types and installation needs.
With support for 24-bit audio sampling at 44.1 kHz, 48 kHz, and 96 kHz, the DXA-A2-RX ensures clean, accurate audio delivery for professional AV environments. The unit can be powered via PoE (IEEE 802.3af Class 0) or through a 12V DC 2-pin phoenix connector, offering flexibility for diverse deployment setups.
Key Features:
- Dante Audio Decoder – Converts network transmitted audio to analog output
- Balanced/Unbalanced Outputs – Flexible connectivity options
- 96kHz/24bit Hi-Res Audio – High-quality sound performance
- 3-Level Gain Control – +18dBu/0dBu/-10dBV settings

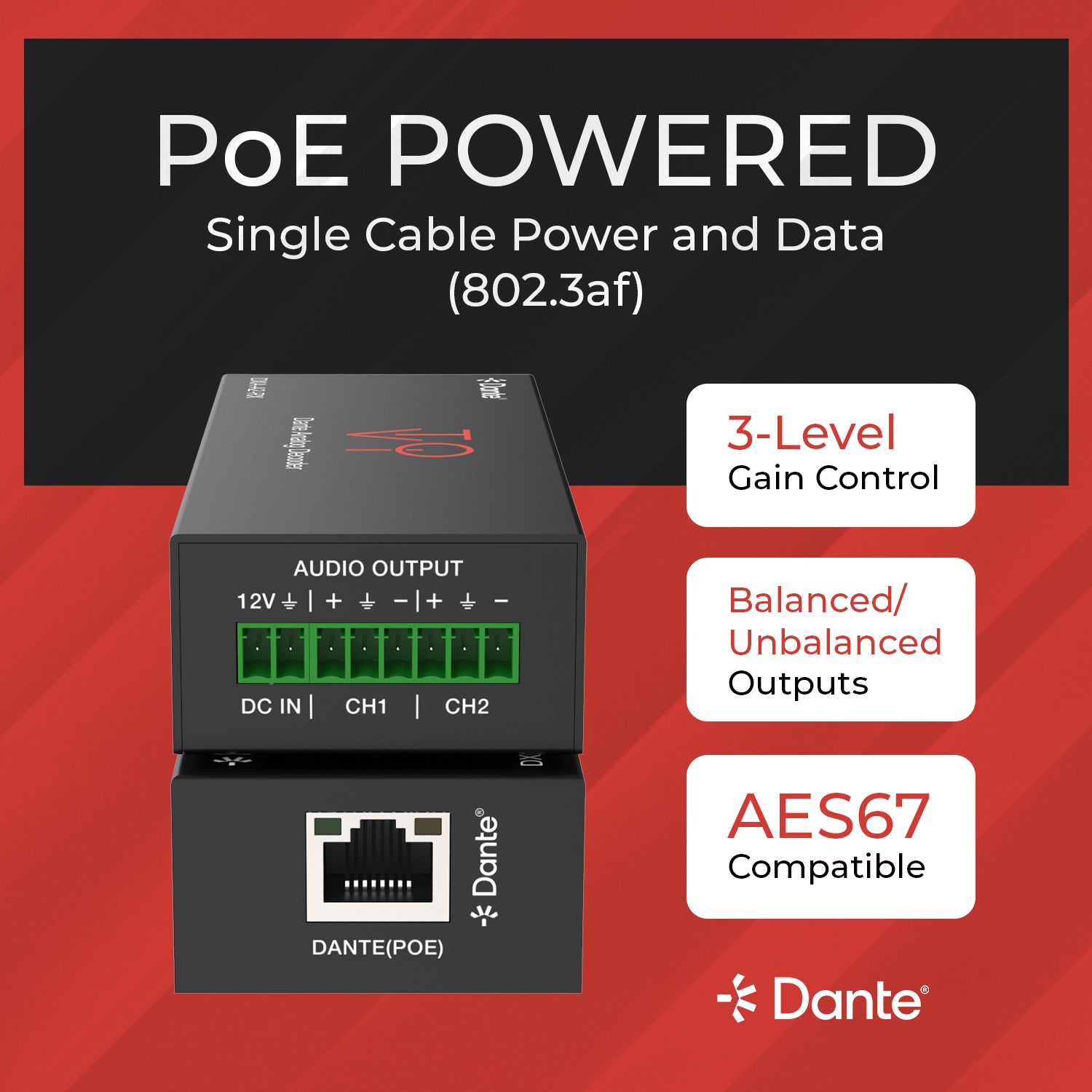

- PoE Powered – Single-cable power and data (802.3af)
- AES67 Compatible– Works with standard audio-over-IP systems
- Compact Design – Space-saving professional installation
- Plug-and-Play – Easy setup and operation

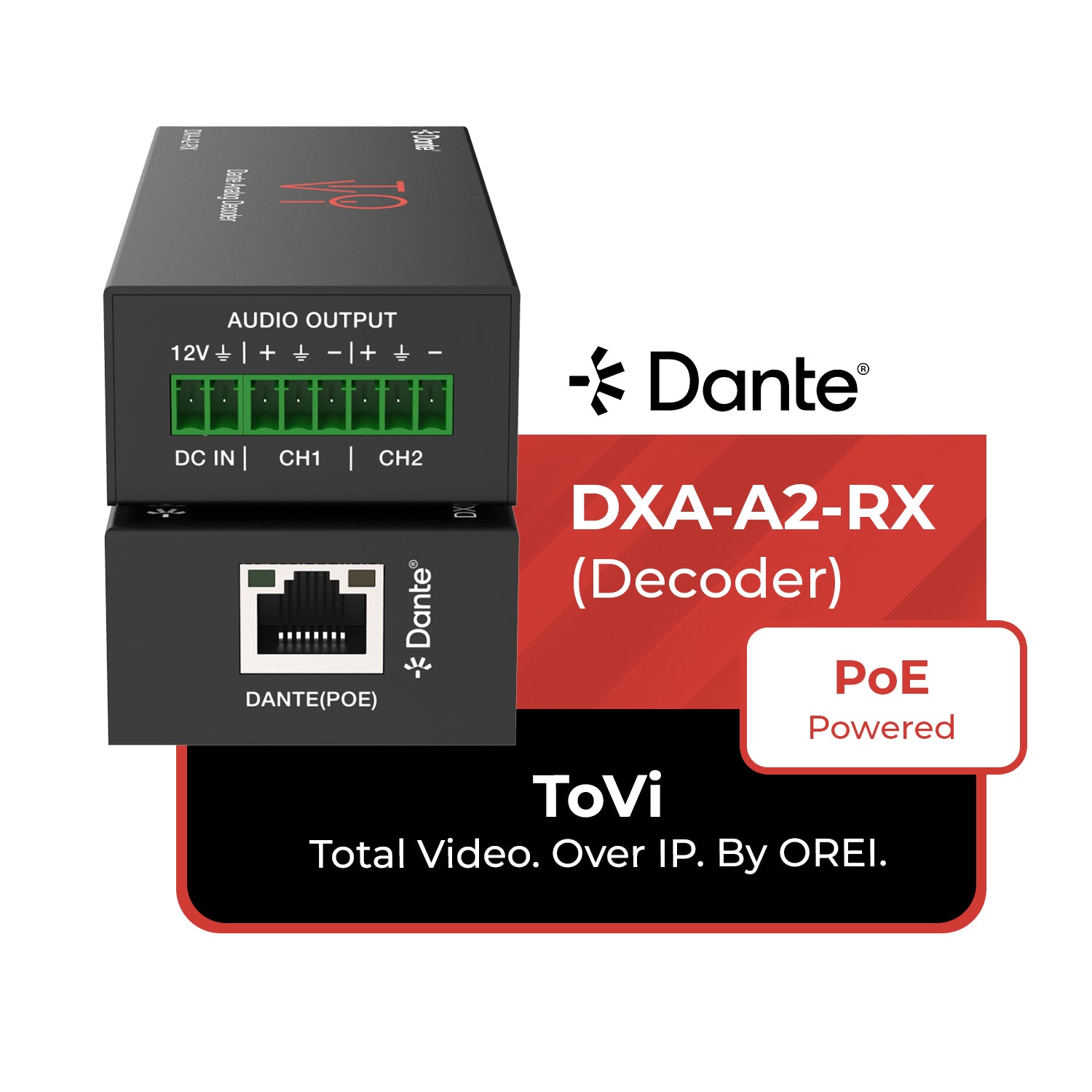

- CONNECTIVITY
- INPUT: 1x DANTE [RJ45 connector, POE]
- 1x PWR [2-pin phoenix, 3.81mm]

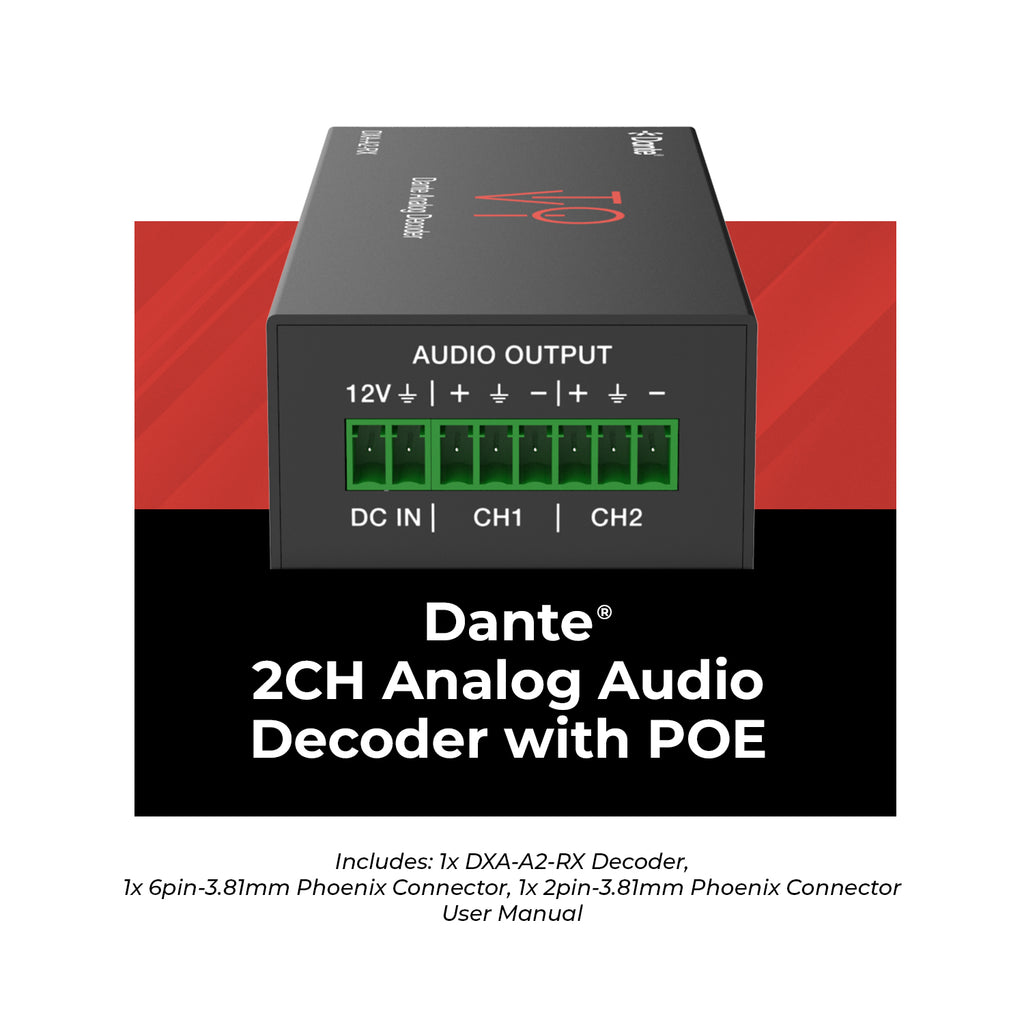

- OUTPUT: 1x AUD [6-pin phoenix, 3.81mm]

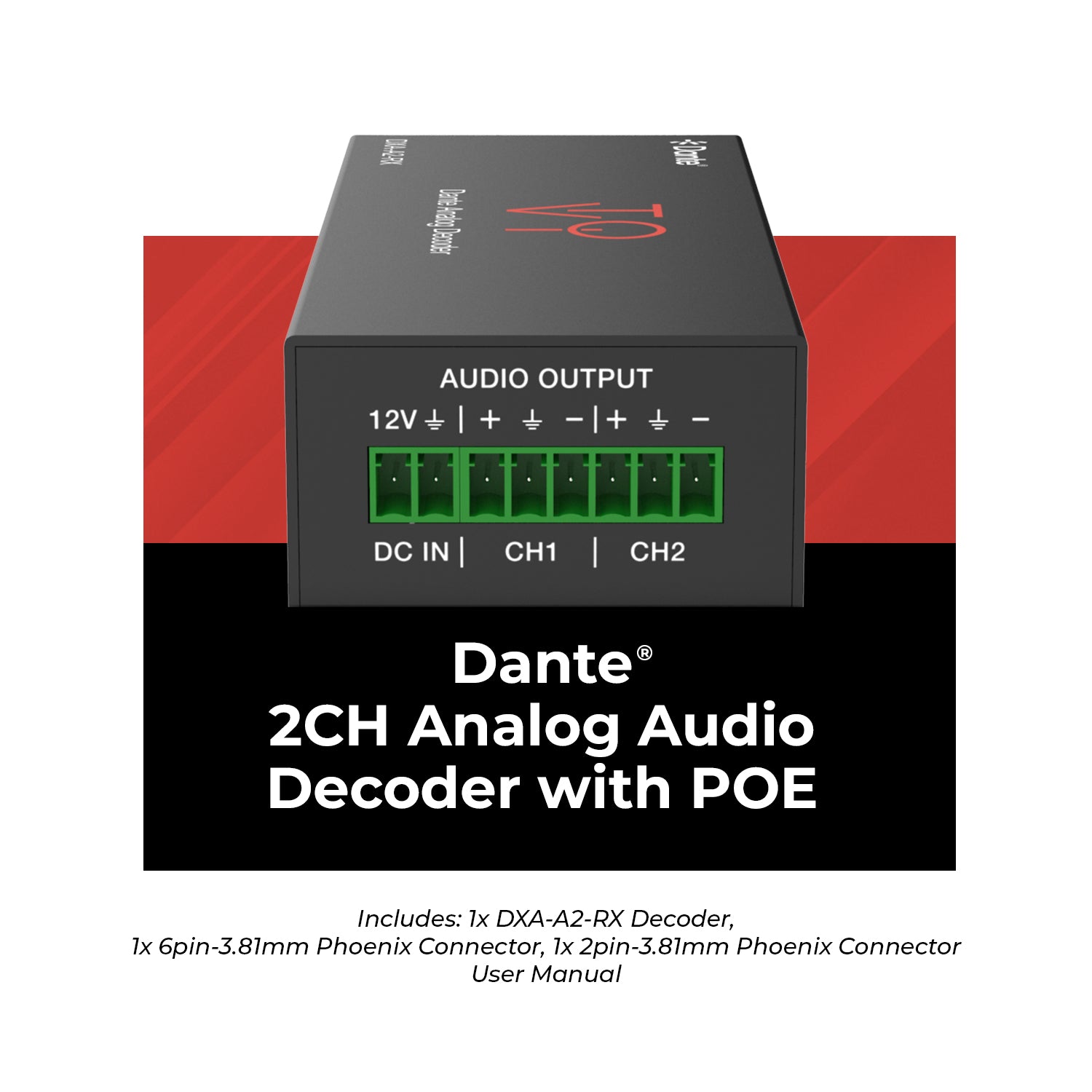

- PACKAGE CONTENTS
- 1× Dante 2CH Analog Audio Decoder
- 1× 6pin-3.81mm Phoenix Connector (male)
- 1× 2pin-3.81mm Phoenix Connector (male)
- 1x User Manual
- VIDEO OUTPUT
- Network Video Bandwidth: 100M
- Transmission Distance: Up to 100m (CAT6/6A)
- ADDITIONAL FEATURES
- PoE: Yes
- Audio Extraction: Yes
- AV over IP: Yes
- AES67 Compatible: Yes
- Dante® Decoder: Yes
- 2-Channel Analog Output: Yes
- High-Resolution Audio: Yes
- Plug & Play: Yes
- Web GUI: No
- Network Transmission: Yes (Up to 100m / 328ft)
- POWER
- Power Consumption: 1.2W
- Power Supply: DC input: 12V
- POE input: IEEE802.3af Class 0

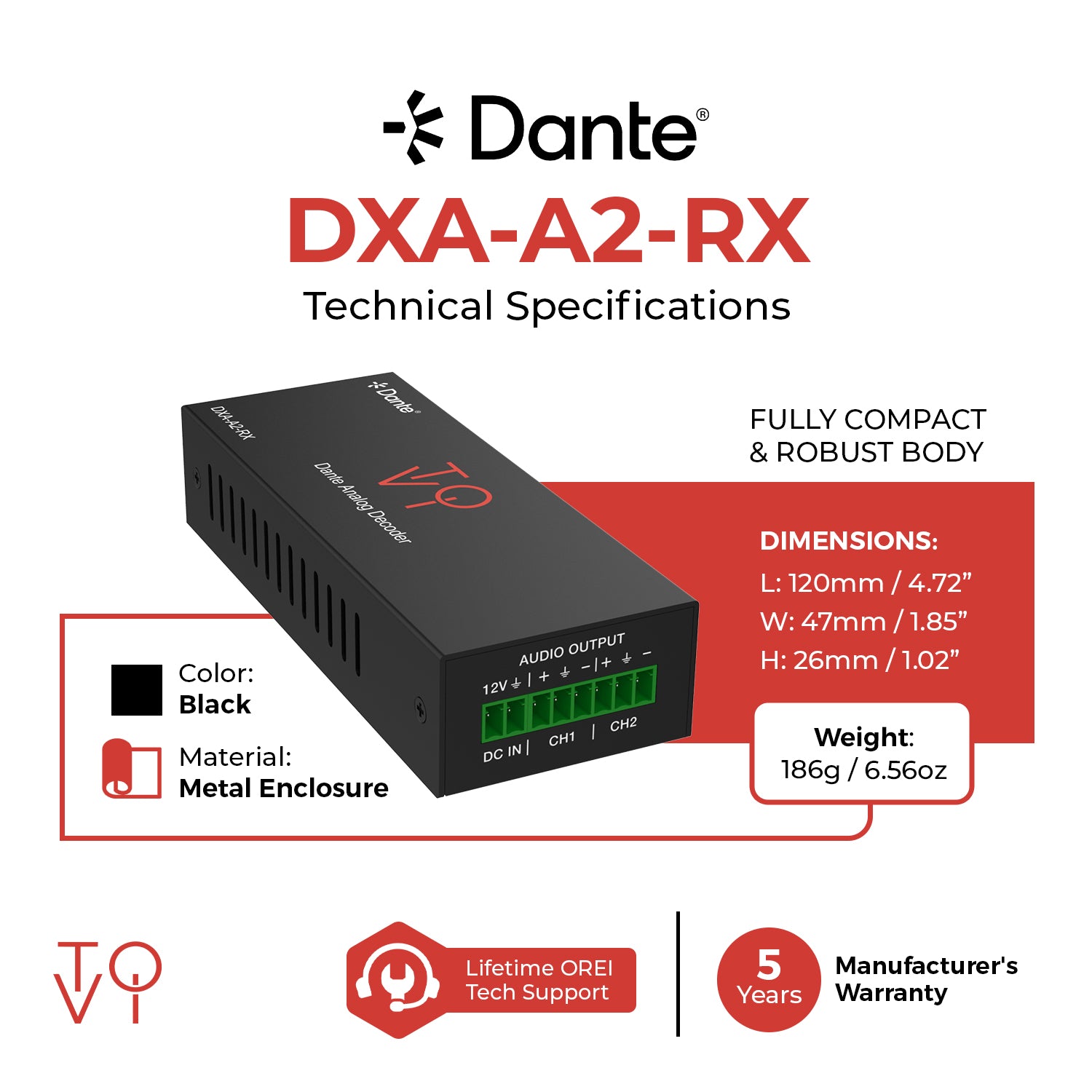

- DIMENSIONS & WEIGHT
- Length: 120mm / 4.72in
- Width: 47mm / 1.85in
- Height: 26mm / 1.02in
- Weight: 186g
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 32 - 104°F / 0 - 40°C
- Storage Temperature: -4 - 140°F / -20 - 60°C
- Operating Humidity: 20 - 90% (relative humidity, non-condensing)
- WARRANTY
- 5-Year Manufacturer's Warranty
Includes:
- 1x DXA-A2-RX
- 1x 6pin-3.81mm Phoenix Connector (male)
- 1x 2pin-3.81mm Phoenix Connector (male)
- 1x User Manual
WARRANTY:
- 5-Year Manufacturer's Warranty
