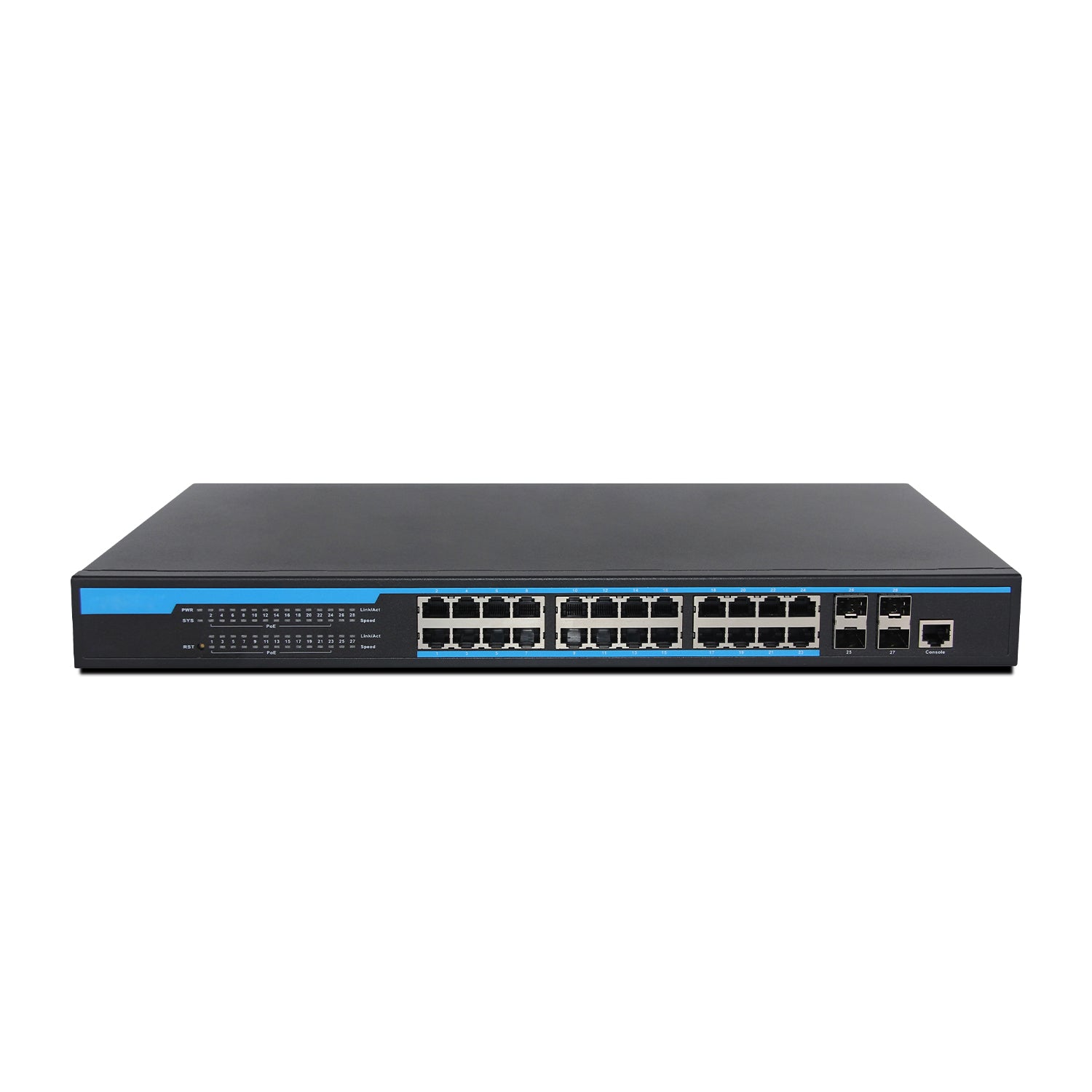

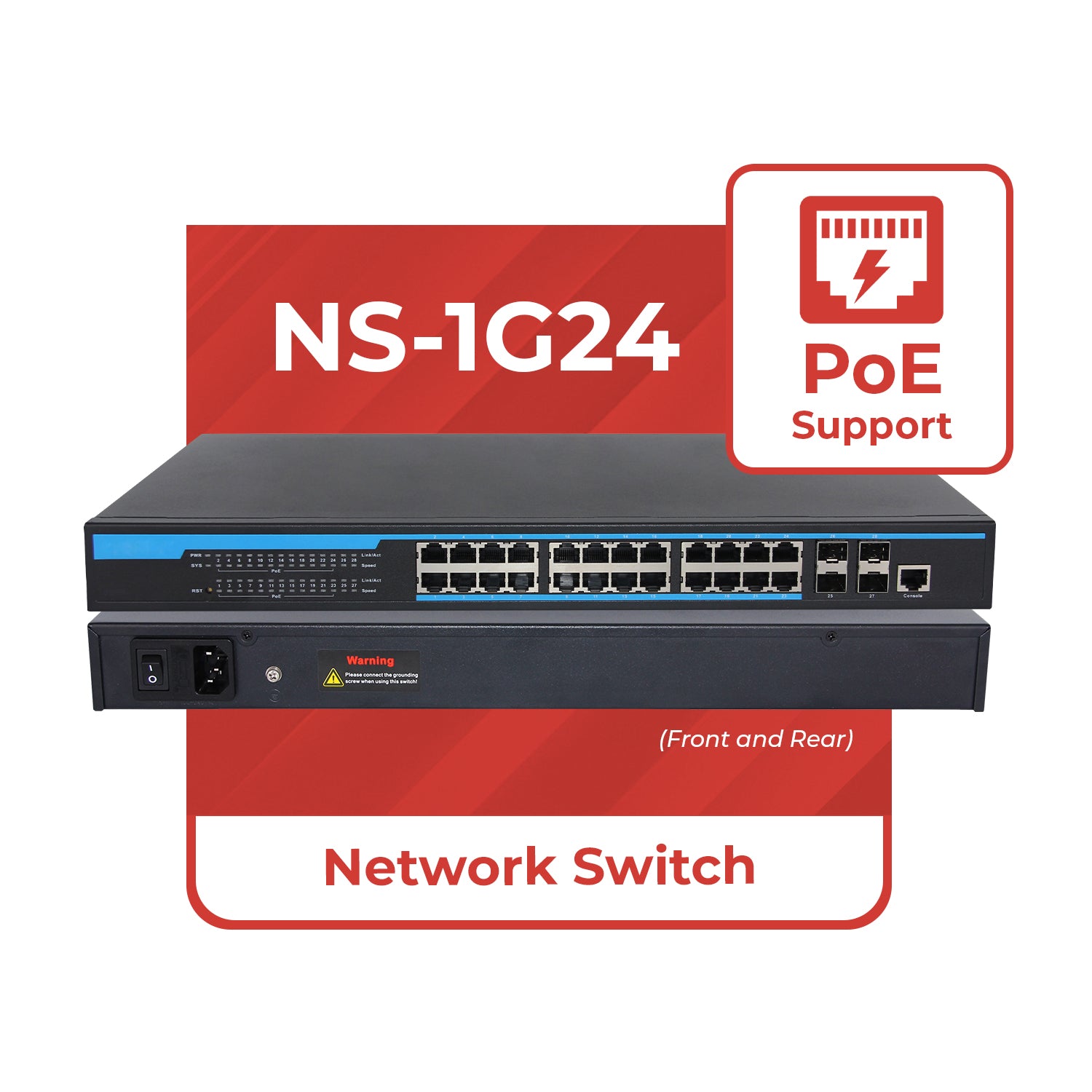

ToVi 24-Port Gigabit PoE Switch w/ 4×10G SFP+ Uplink (1U Rackmount)

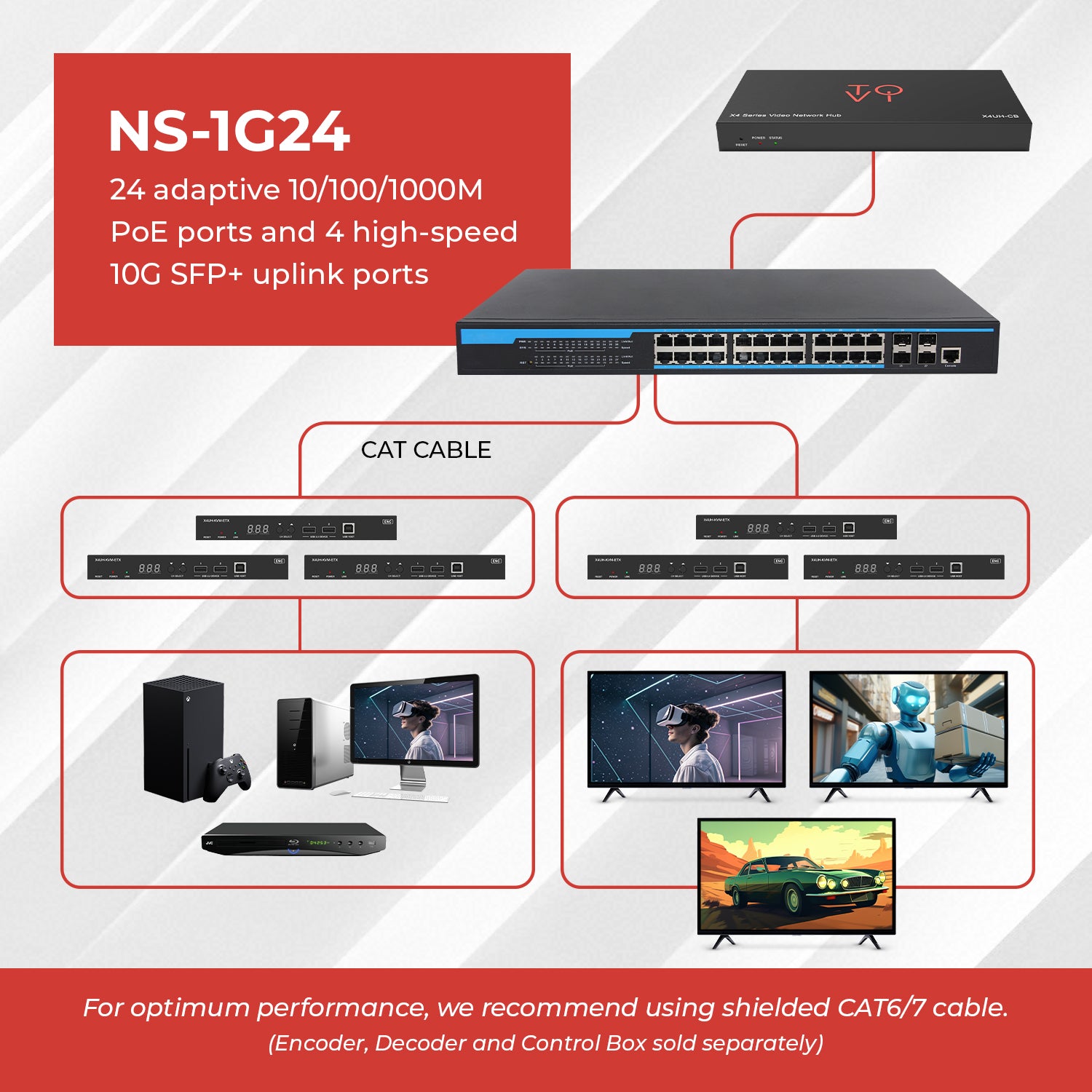

The NS-1G24 Network Switch is a powerful solution featuring 24 adaptive 10/100/1000M PoE ports and 4 high-speed 10G SFP+ uplink ports. Designed for high-performance networking, it supports full line-speed forwarding to ensure smooth, stable data transmission across all connected devices.

With a durable 1U 19-inch metal chassis, the switch supports both desktop and rack-mount installations, making it highly adaptable for a range of environments. Whether used as a core switch for small LANs, an aggregation switch for medium-sized networks, or an access switch in large enterprise systems, it delivers reliable connectivity.

The built-in web-based management interface allows for flexible network control, while PoE support simplifies deployment of IP cameras, wireless access points, and other AV devices like the ToVi range of products by OREI. The NS-1G24 is completely compatible with and made specifically for ToVi’s X1, X2, and X4 series of products.

Key Features:

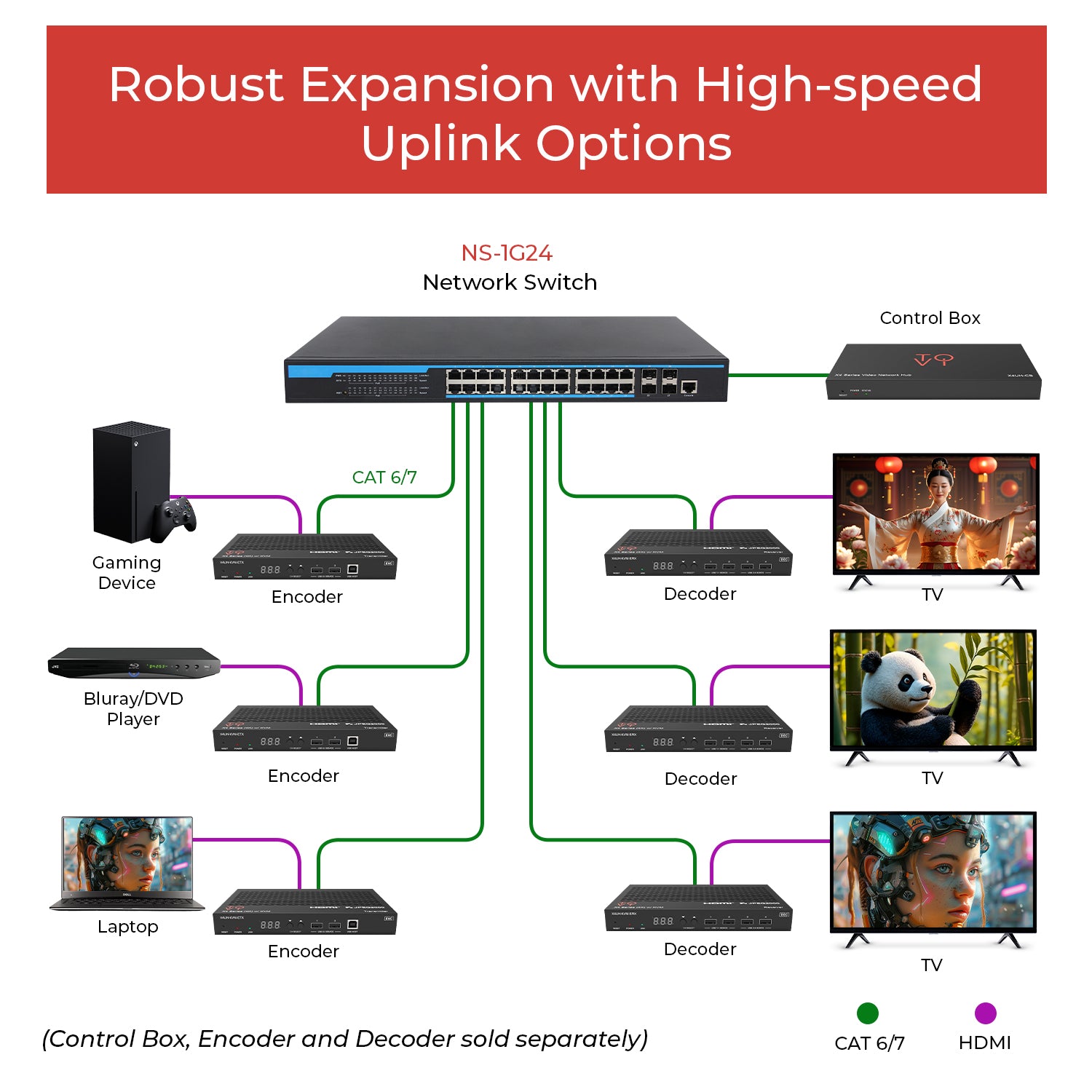

24 1Gbps Adaptive PoE Ports + 4x 10G SFP+ Ports – Offers robust expansion with high-speed uplink options.

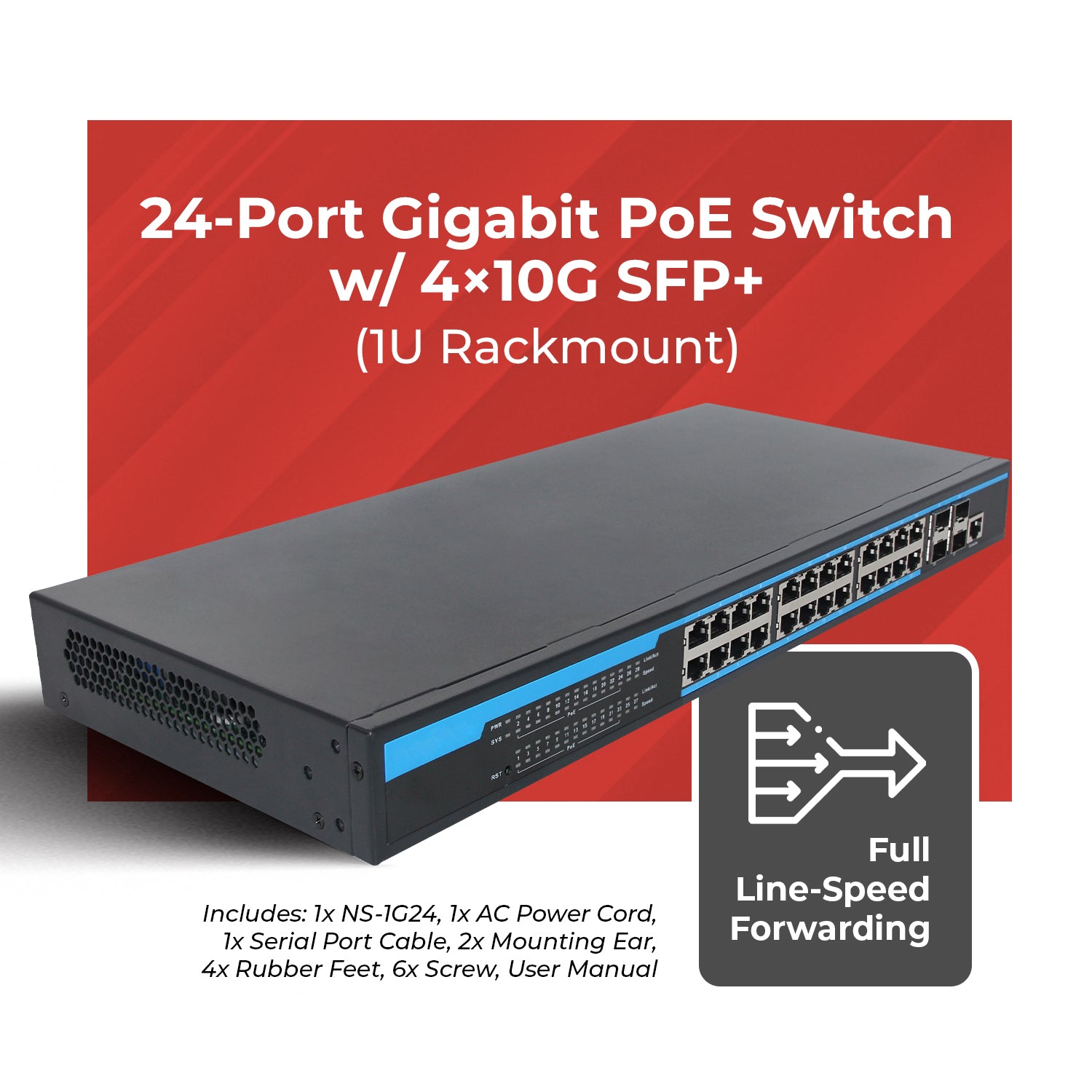

Full Line-Speed Forwarding – Ensures stable, uninterrupted data transfer across all ports.
Standard 19-Inch 1U Rackmount Design – Fits both rack-mounted and desktop installations.
Durable Metal Housing – Built for reliable operation in varied environments including surveillance and enterprise AV applications.
Plug-and-Play Setup – No software installation required for basic deployment.
PoE Support – Simplifies installation of powered network devices like cameras and AV Over IP products.
Web-Based Management Interface – Enables convenient, centralized network monitoring and control.
Made for ToVi – Compatible with ToVi’s X1, X2, and X4 series of products.

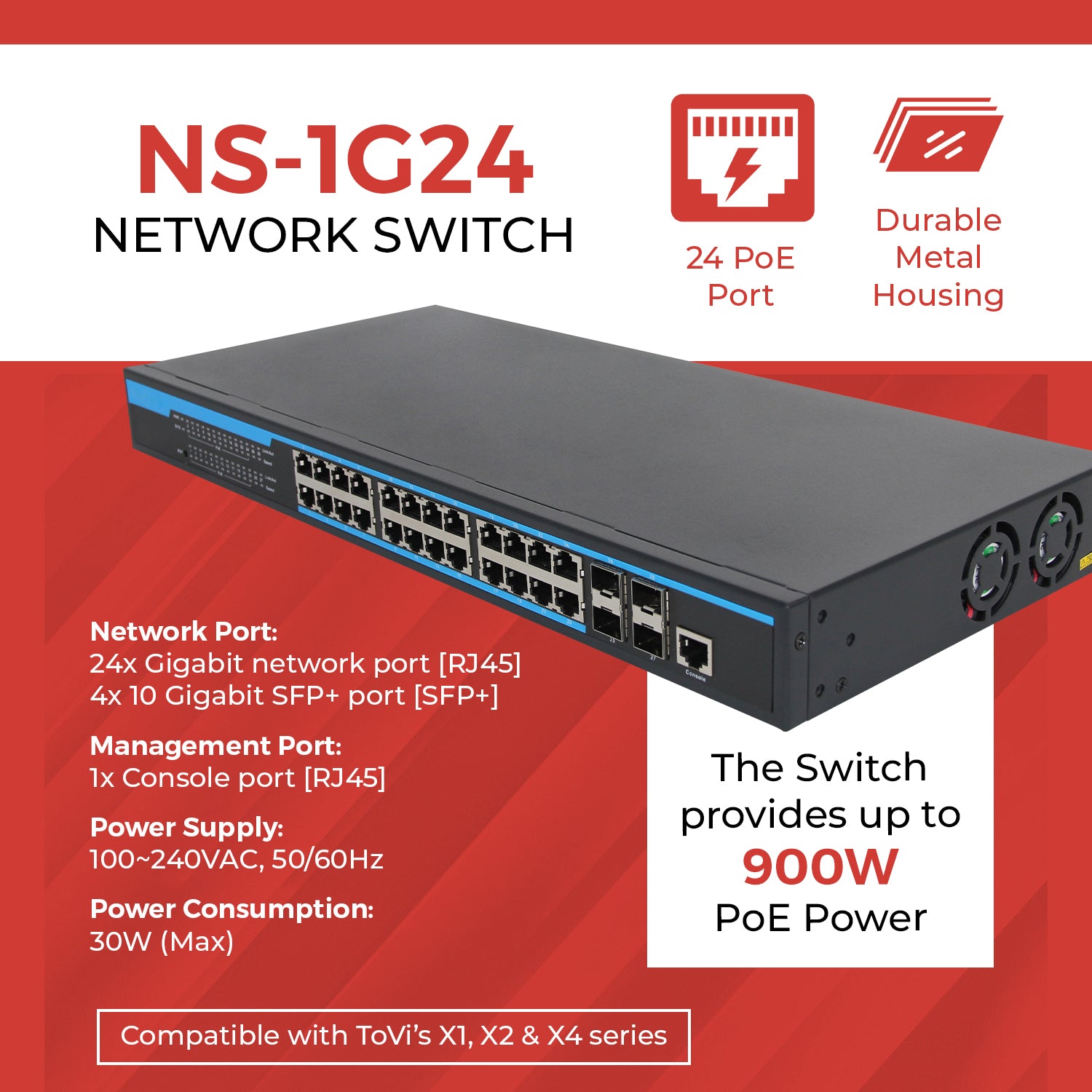

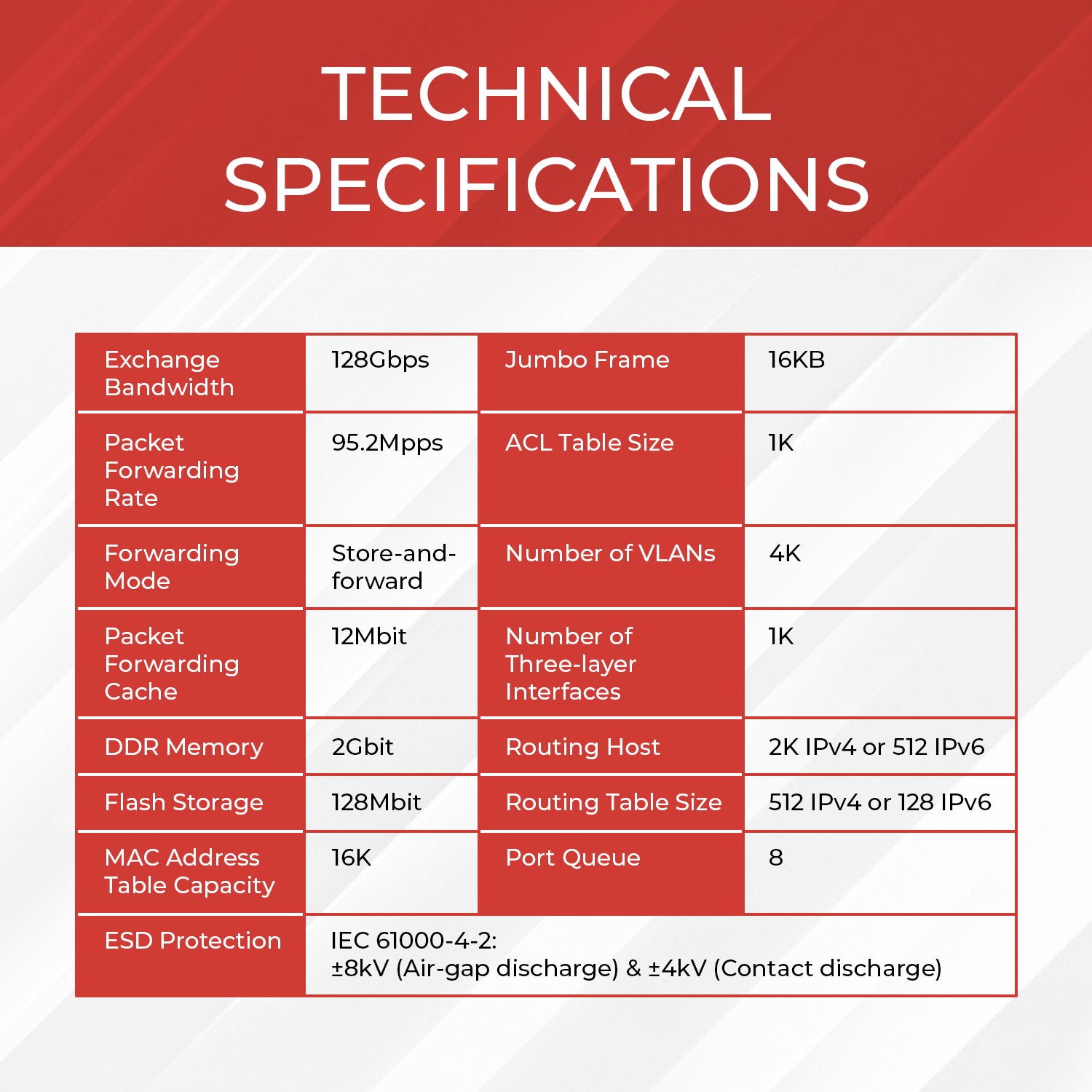

GENERAL
Ports: 24 x Gigabit network port [RJ45]
4 x 10 Gigabit SFP+ port [SFP+]
Forwarding Mode: Store-and-forward
Number of VLANs: 4K
Number of Three-layer Interfaces: 1K
Routing Host: 2K IPv4 or 512 IPv6
Routing Table Size: 512 IPv4 or 128 IPv6
ACL Table Size: 1K
Packet Forwarding Cache: 12 Mbit
MAC Address Table Capacity: 16K
Port Queue: 8
PERFORMANCE
Exchange Bandwidth: 128 Gbps
Packet Forwarding Rate: 95.2 Mbps
Jumbo Frame: 16KB
DDR Memory: 2 Gbit
Flash Storage: 128 Mbit
POE
PoE Ports: 1-24
PoE Standard: IEEE802.3af, IEEE802.3at
PoE Power Budget: 420W
Maximum PoE Power Per Port: 30W
PoE Voltage: 52V
PoE Pin Definition: V - (RJ45 Pin 1,2), V + (RJ45 Pin 3,6)

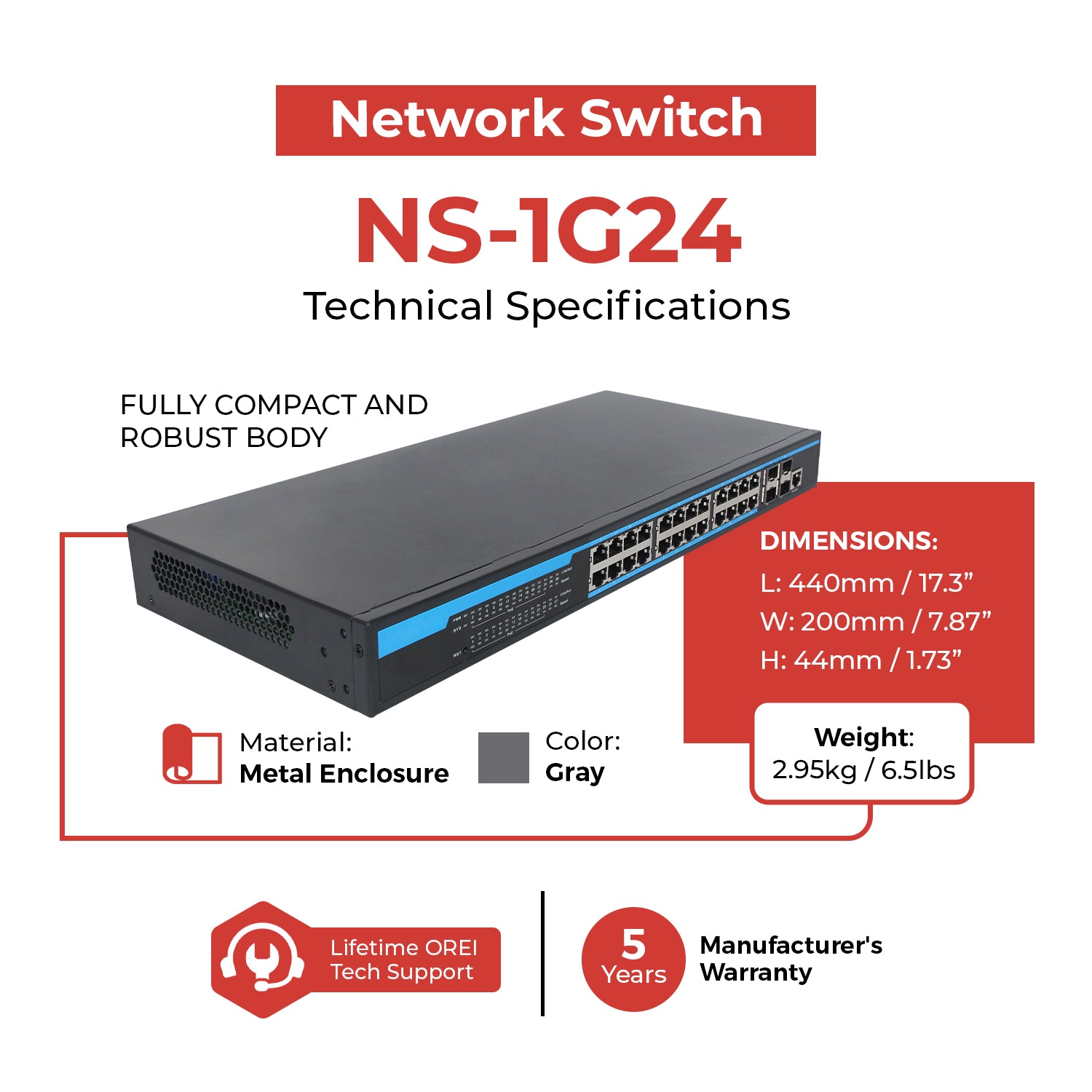

MECHANICAL
Dimensions (L × W × H): L: 440mm / 17.3in | W: 200mm / 7.87in | H: 44mm / 1.73in
Weight: 2.95kg / 6.5lbs
Color: Gray
Material: Metal Enclosure
Mounting: 1U Rack Mountable
ENVIRONMENT
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -10°C ~ 70°C / 14°F ~ 158°F
Humidity: 5%~95% relative humidity, non-condensing
ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
