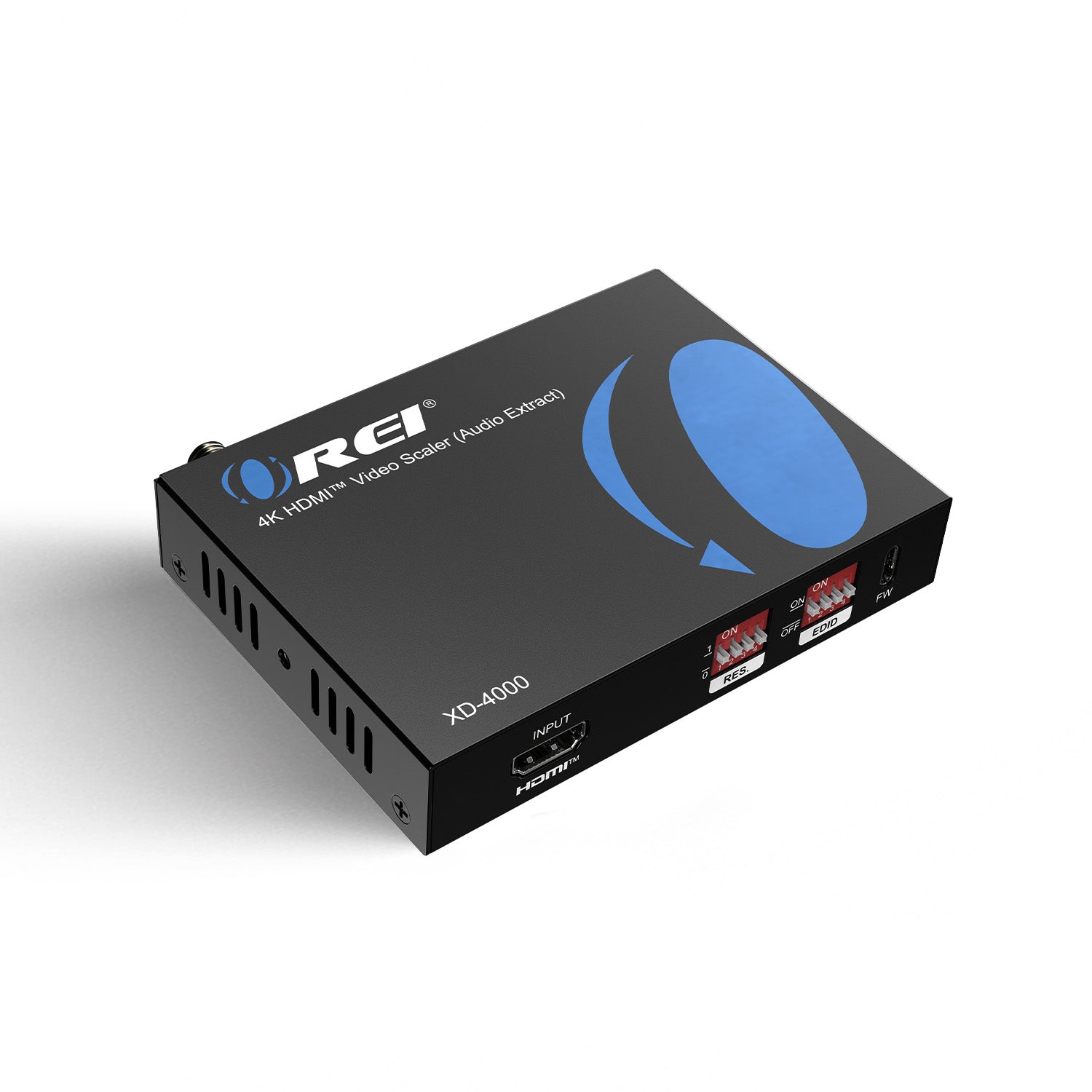

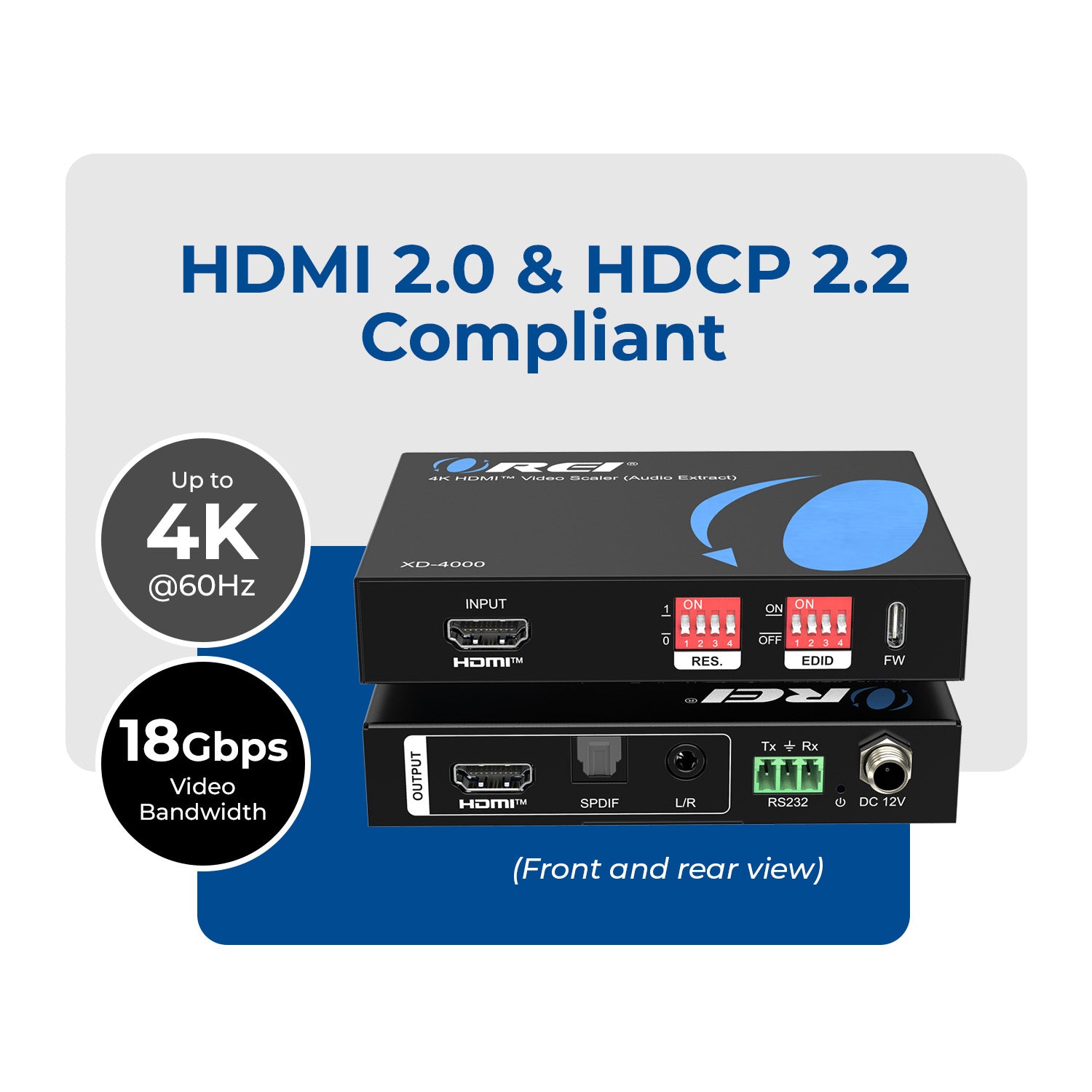

The XD-4000 is a compact, high-performance video processing solution designed to scale HDMI video signals while providing flexible audio breakout options. Fully compliant with HDMI 2.0 and HDCP 2.2/1.4, it supports the full 18Gbps bandwidth and delivers output resolutions up to 4K@60Hz 4:4:4, while also supporting downscaling to 640×480@60Hz for compatibility with legacy displays and AV equipment. Featuring integrated audio de-embedding, the XD-4000 extracts HDMI audio to both digital and analog outputs for seamless integration with external sound systems. Built-in DIP switches allow quick adjustment of output resolution and EDID settings without software, while RS-232 control enables easy integration into professional AV control systems. With support for CEC pass-through and a compact design, the XD-4000 is an ideal solution for conference rooms, digital signage, commercial AV installations, and home theater applications

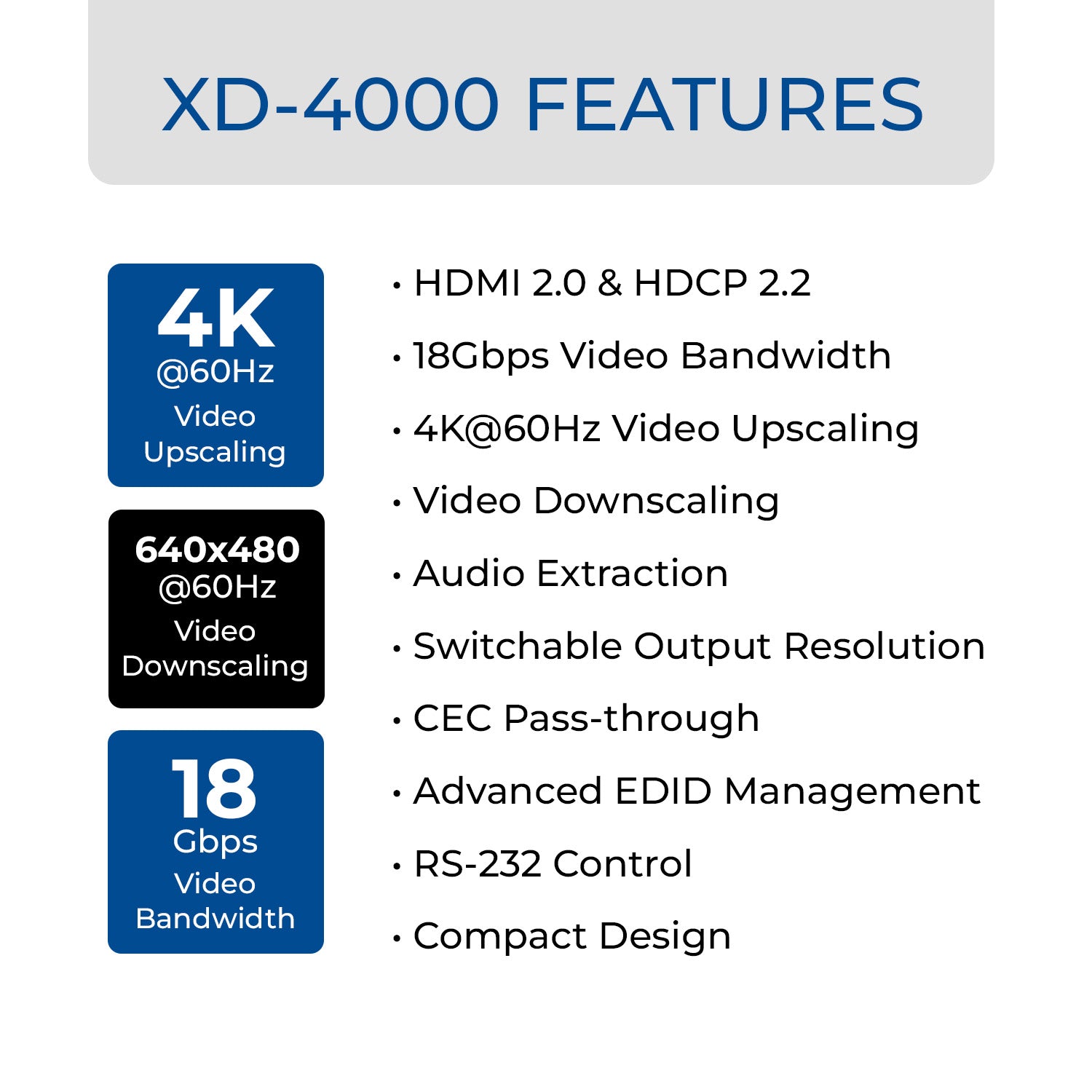

Key Features:
- HDCP 2.2 Compliant - Compliant with HDMI 2.0 and HDCP 2.2/1.4 for seamless compatibility with modern HDMI sources, displays, and protected content.
- 18Gbps Video Bandwidth – Supports full-bandwidth, uncompressed HDMI video transmission.
- 4K Video Upscaling– Scales video signals up to 4K@60Hz 4:4:4 for enhanced image quality.
- Video Downscaling– Supports output resolutions down to 640×480@60Hz for compatibility with legacy displays.

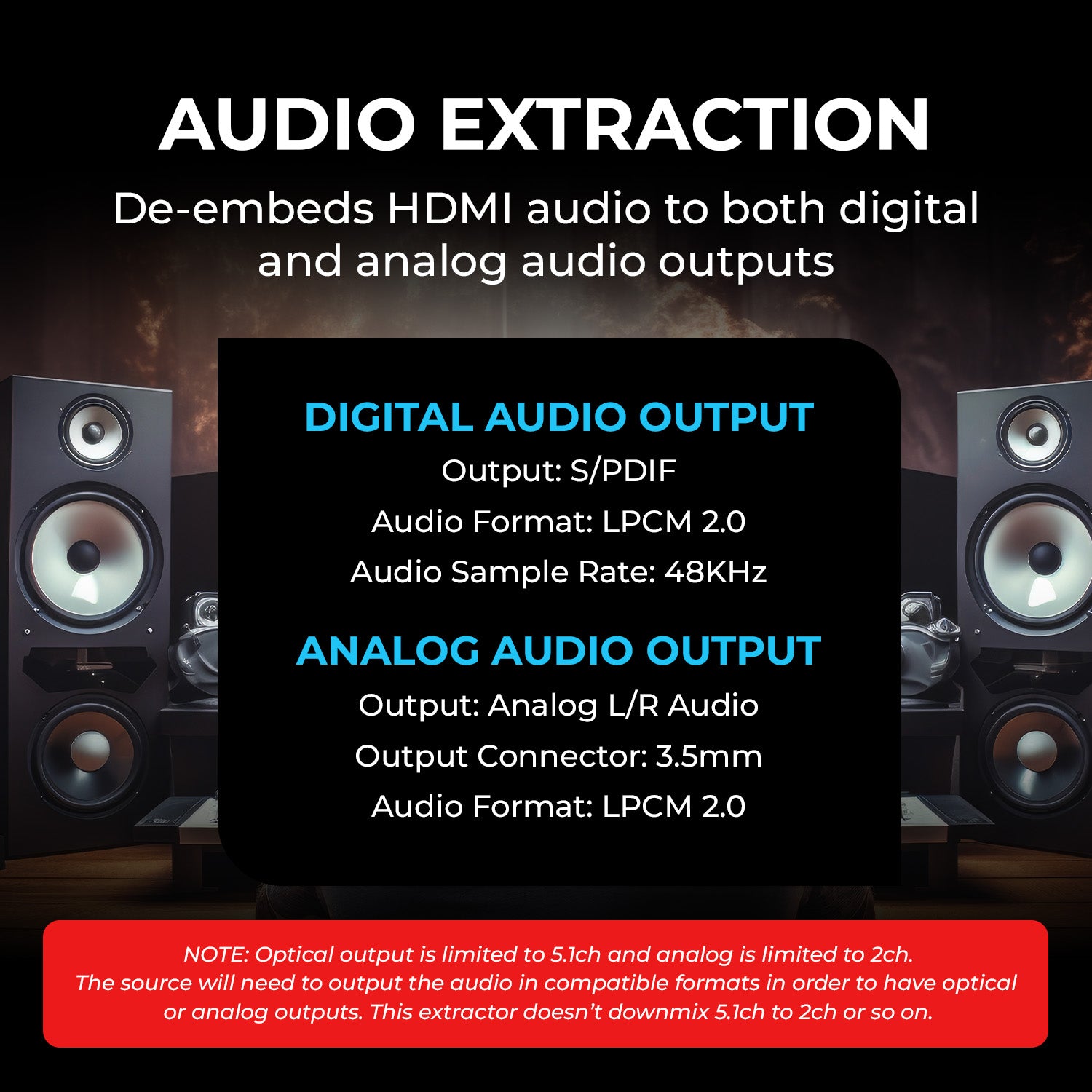

- Audio Extraction – De-embeds HDMI audio to both digital and analog audio outputs.

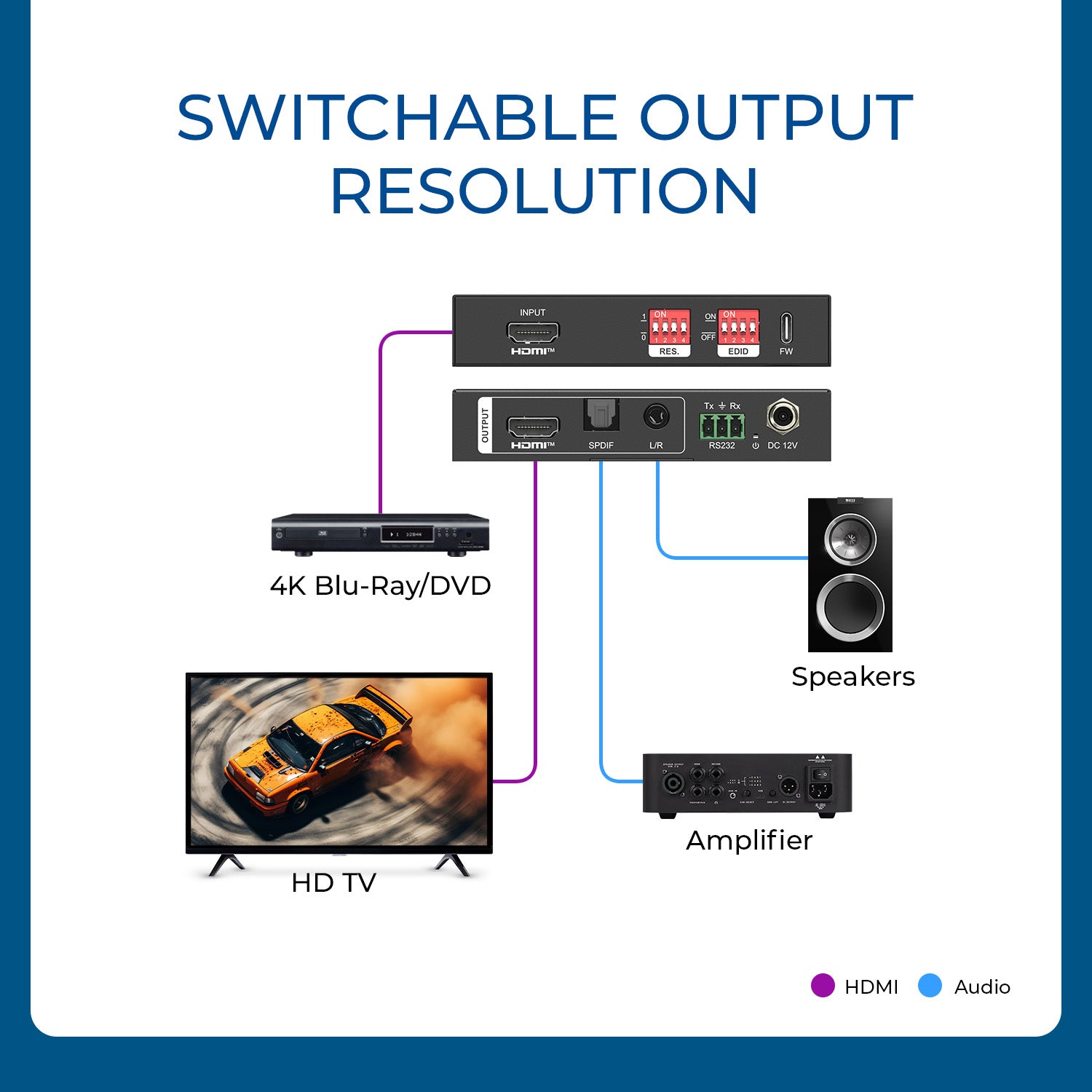

- Switchable Output Resolution – Easily select output resolutions using built-in DIP switches.
- CEC Pass-through – Preserves HDMI CEC communication between connected devices.
- Advanced EDID Management–Optimizes compatibility between source devices and displays.
- RS-232 Control – Supports integration with professional AV control and automation systems.
- Compact Design – Space-saving form factor for easy installation in commercial and residential AV environments.
- VIDEO
- 1x HDMI 2.0 Type-A female port
- 1x HDMI 2.0 Type-A female port
- COMPLIANCES
- HDMI 2.0
- HDCP 2.2
- VIDEO OUTPUT
- 18Gbps
- 4K@60Hz 4:4:4,HDR
- SUPPORTED RESOLUTIONS
- Upto4K@60Hz4:4:4,HDR
- Upto4K@60HzRGB8-bit
- AUDIO OUTPUT
- LPCM 2.0

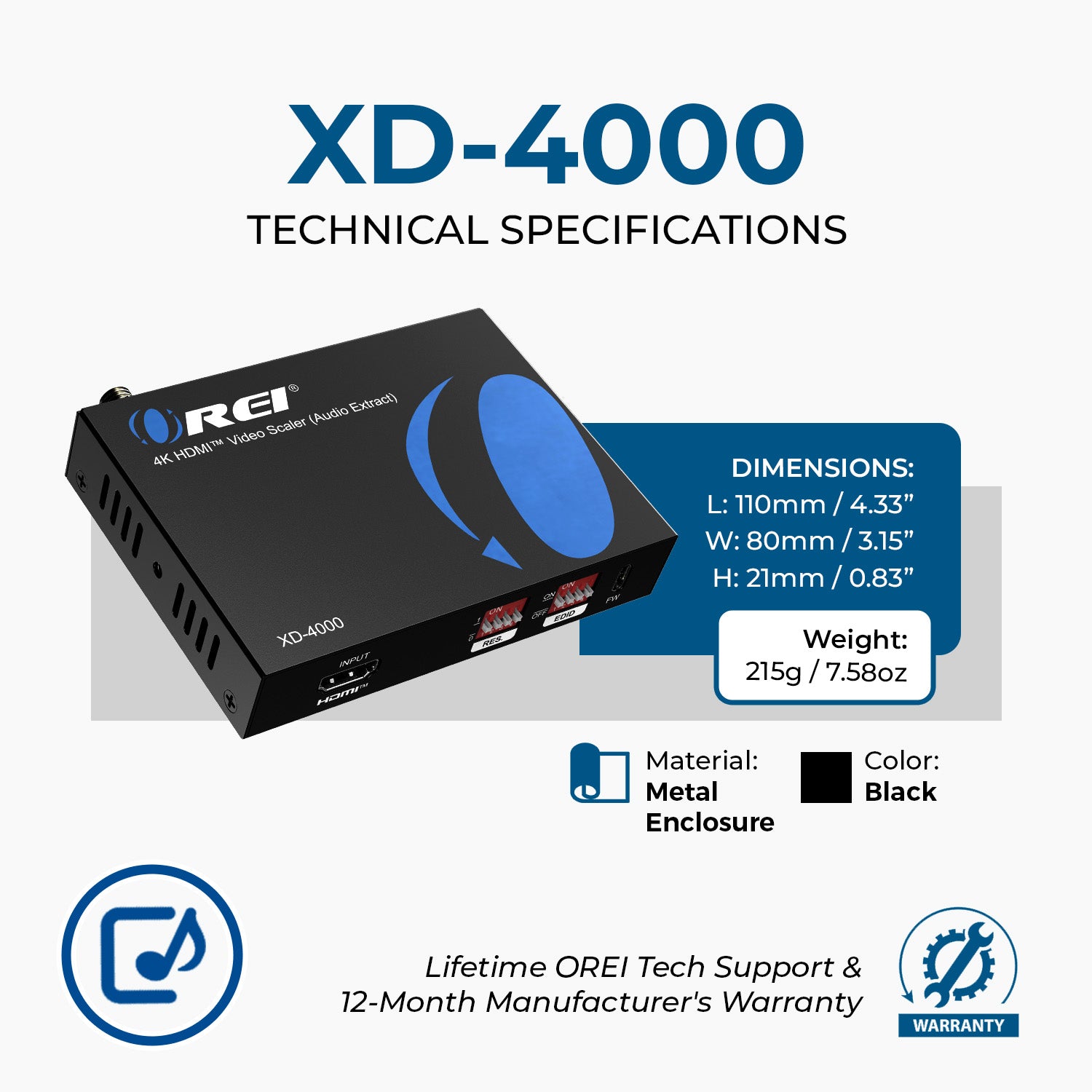

- DIMENSIONS & WEIGHT
- Height: 21.08mm
- Width:80.1mm
- Depth:109.9mm
- Weight:215g
- POWER
- Power Consumption (Max):≤ 4.5W
- Power Supply:Input: AC 100V~240V, 50/60Hz;Output: DC 12V/1A
- PHYSICAL PROPERTIES
- Color: Black
- Housing: Metal

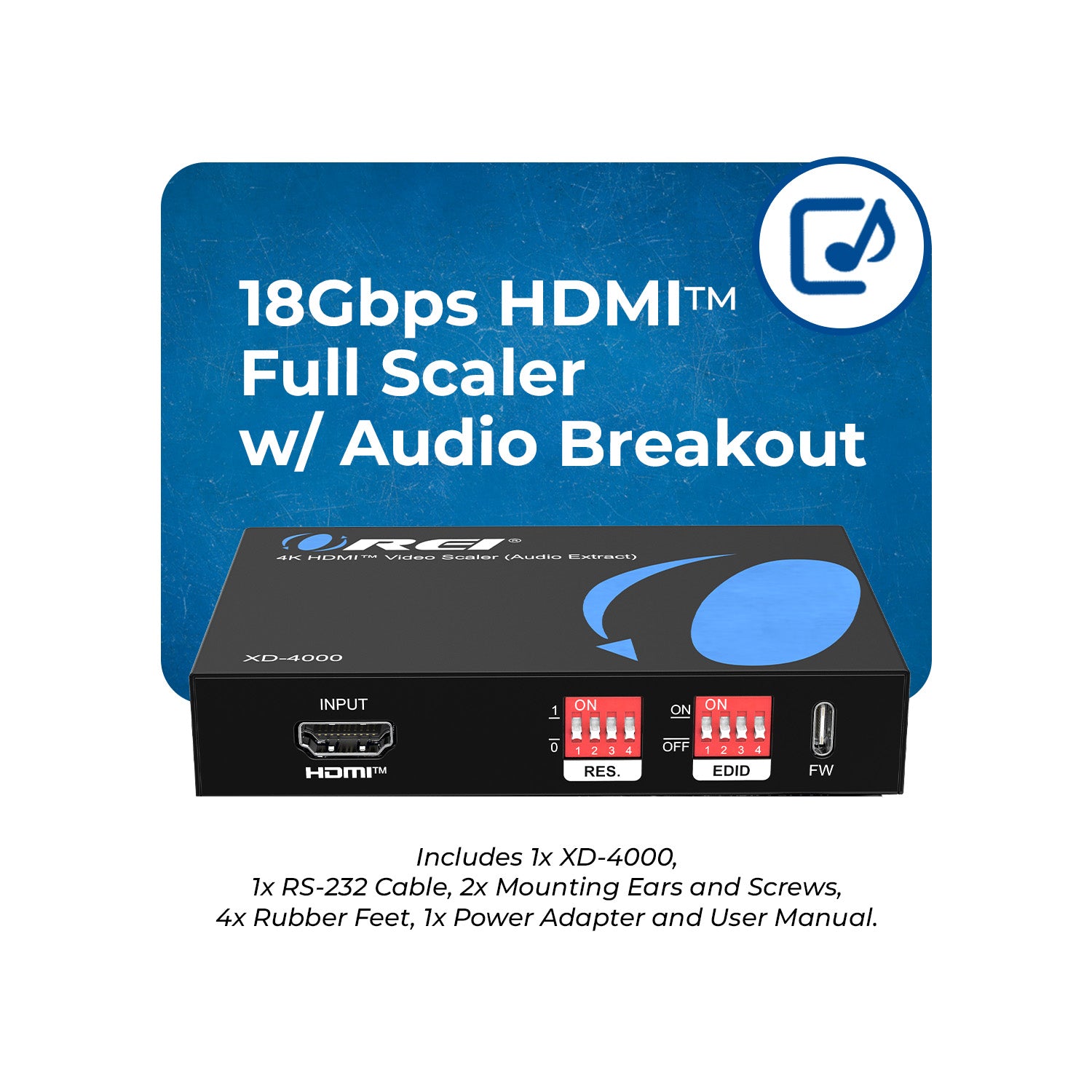

Includes:
- 1x XD-4000
- 1x RS-232 Cable
- 2x Mounting Ears
- 2x Mounting Screws
- 4x Rubber Feet
- 1x Power Adapter
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
