OREI USB3-WPE330WP-K: USB 3.2 EXTENDER (DUAL USB-C) - 330FT (CAT6)
USB3-WPE330WP-K is a professional-grade solution for long-distance USB signal transmission, ideal for commercial, educational, and industrial environments. Designed in a US 1-Gang standard decora wall plate format, this system extends USB 3.2 Gen 1 signals up to 100m (328ft) over a single Cat6a cable, providing seamless connectivity for USB devices across large spaces.

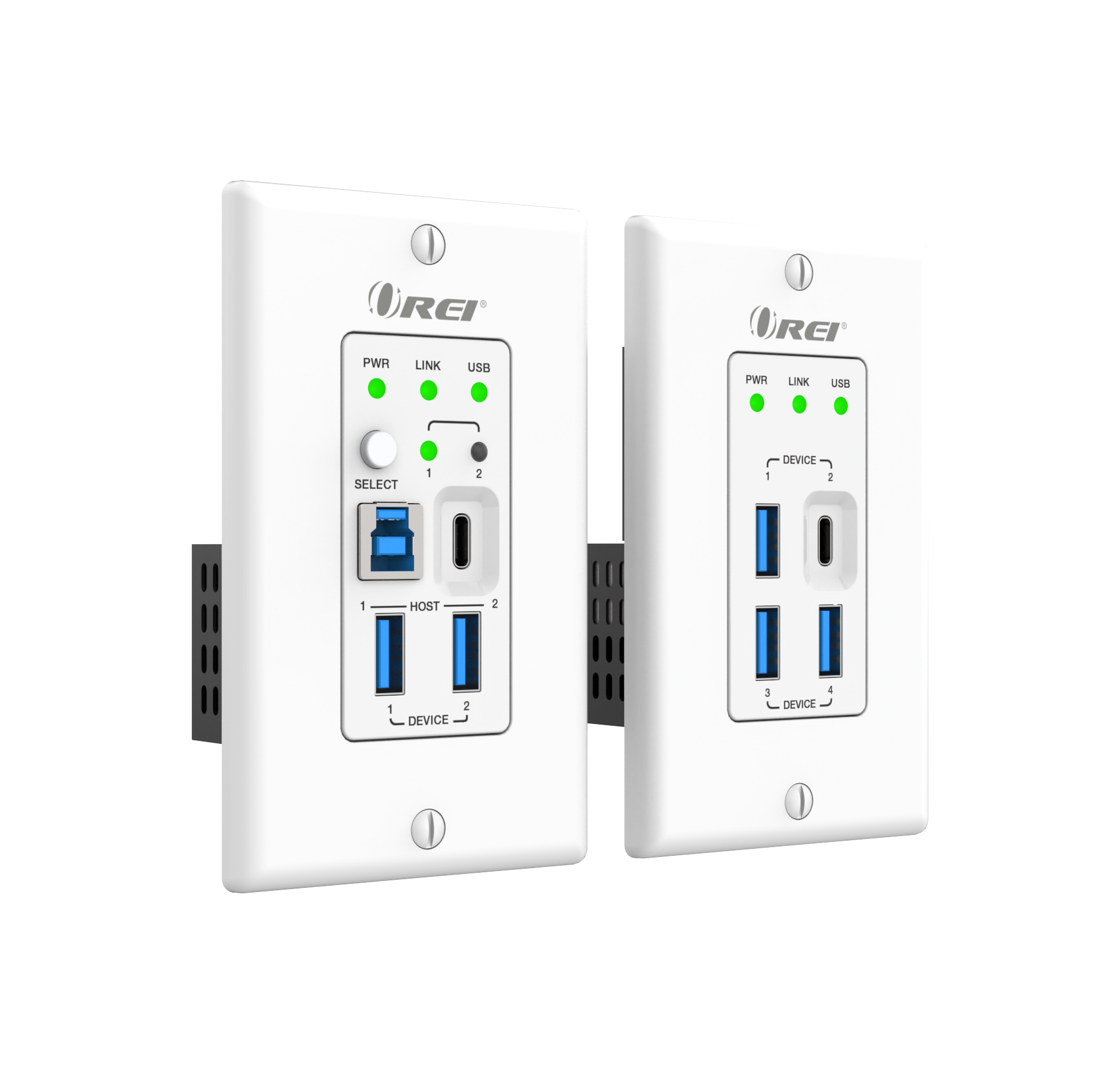

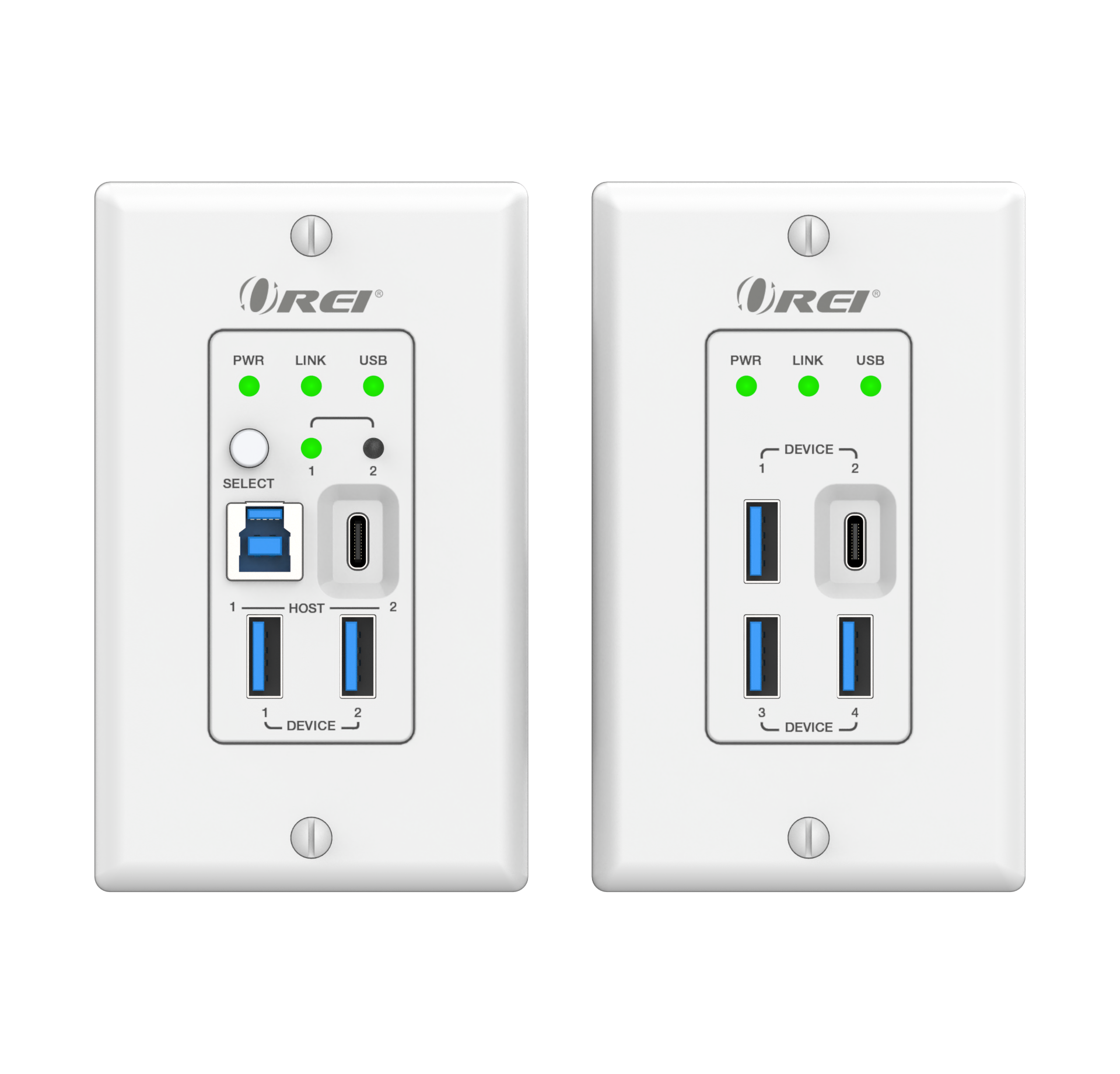

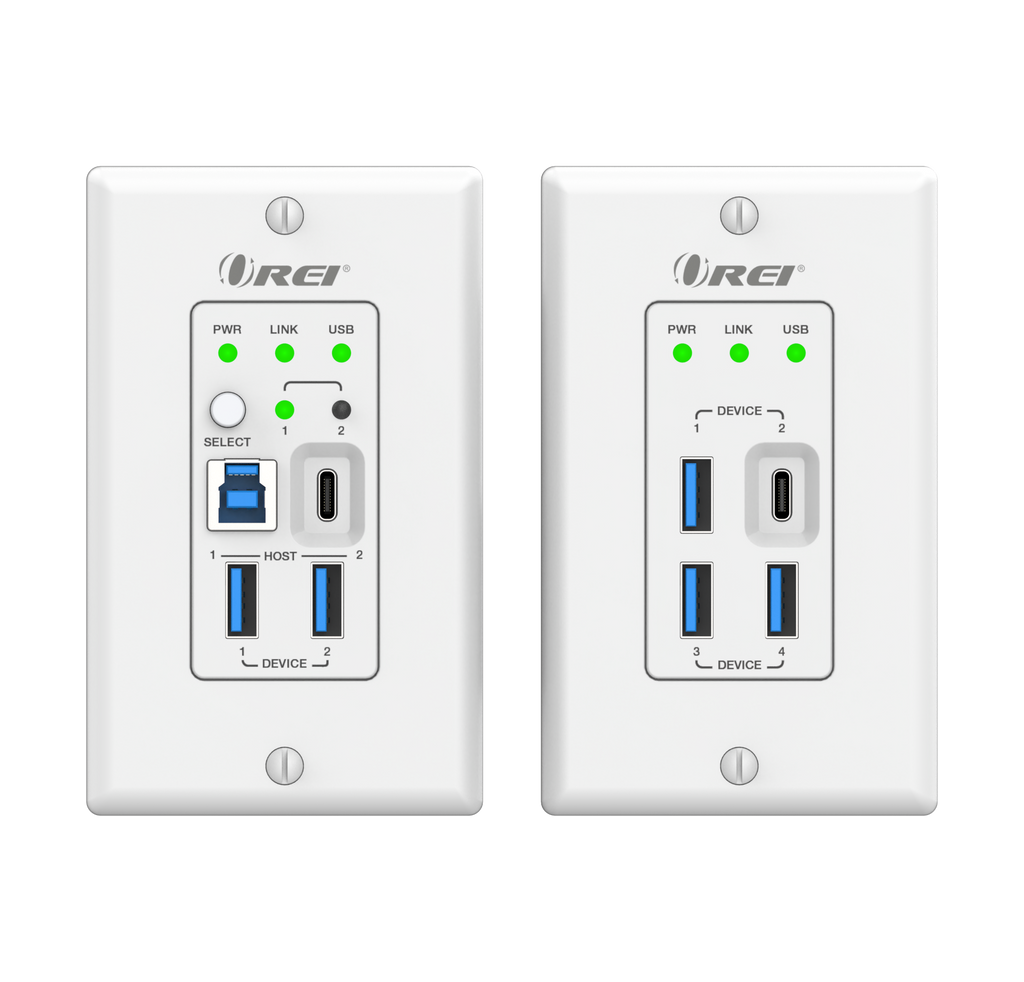

The transmitter offers one USB-C and one USB-B selectable input, along with two USB-A loop-out ports for convenient local device connection. The receiver provides one USB-C and three USB-A output ports, delivering both high-speed data and power to connected devices. Bi-directional 24V PoC (Power over Cable) simplifies installation by requiring power at only one end of the system.
This extender is ideal for applications requiring reliable, long-distance USB transmission, including webcams, PTZ cameras, keyboard, mouse, USB microphones, printers, scanners, touch panels, and more.
Key Features:
- US 1-Gang Standard Decora Wall Plate Design – Provides a sleek, professional finish ideal for permanent installations.
- USB 3.2 Gen 1 Extension up to 100m/328ft – Extends USB signals over a single Cat6a cable for reliable, high-speed transmission.
- 5Gbps Data Transfer Rate – Ensures fast, stable performance for a wide range of USB devices.
- Backwards Compatible with USB 2.0 and 1.1 – Supports legacy USB devices for maximum system flexibility.
- Hardware Acceleration for Isochronous and Bulk Transfer – Optimizes performance for audio, video, and high-speed data applications.
- Selectable Input Ports on Transmitter – Offers one USB-B and one USB-C input with both auto-switching and manual selection modes.
- RS-232 Pass-through and API Control – Enables system integration and external control for advanced installations.
- Firmware Upgrade via USB-C Service Port – Provides convenient system updates for long-term functionality.
- FSYNC GPIO Pass-through for Industrial Cameras – Supports synchronization of specialized camera systems.
- Receiver with Multiple Device Ports – Includes one USB-C and three USB-A output ports (two 5V@1A, one 5V@1.5A) for flexible device connectivity and power supply.
- Bi-directional 24V PoC (Power over Cable) – Allows the system to operate with power supplied from either the transmitter or receiver, eliminating the need for additional power adapters.
- Plug-and-Play Operation – Requires no drivers or software for quick and easy setup.
- CONNECTIVITY

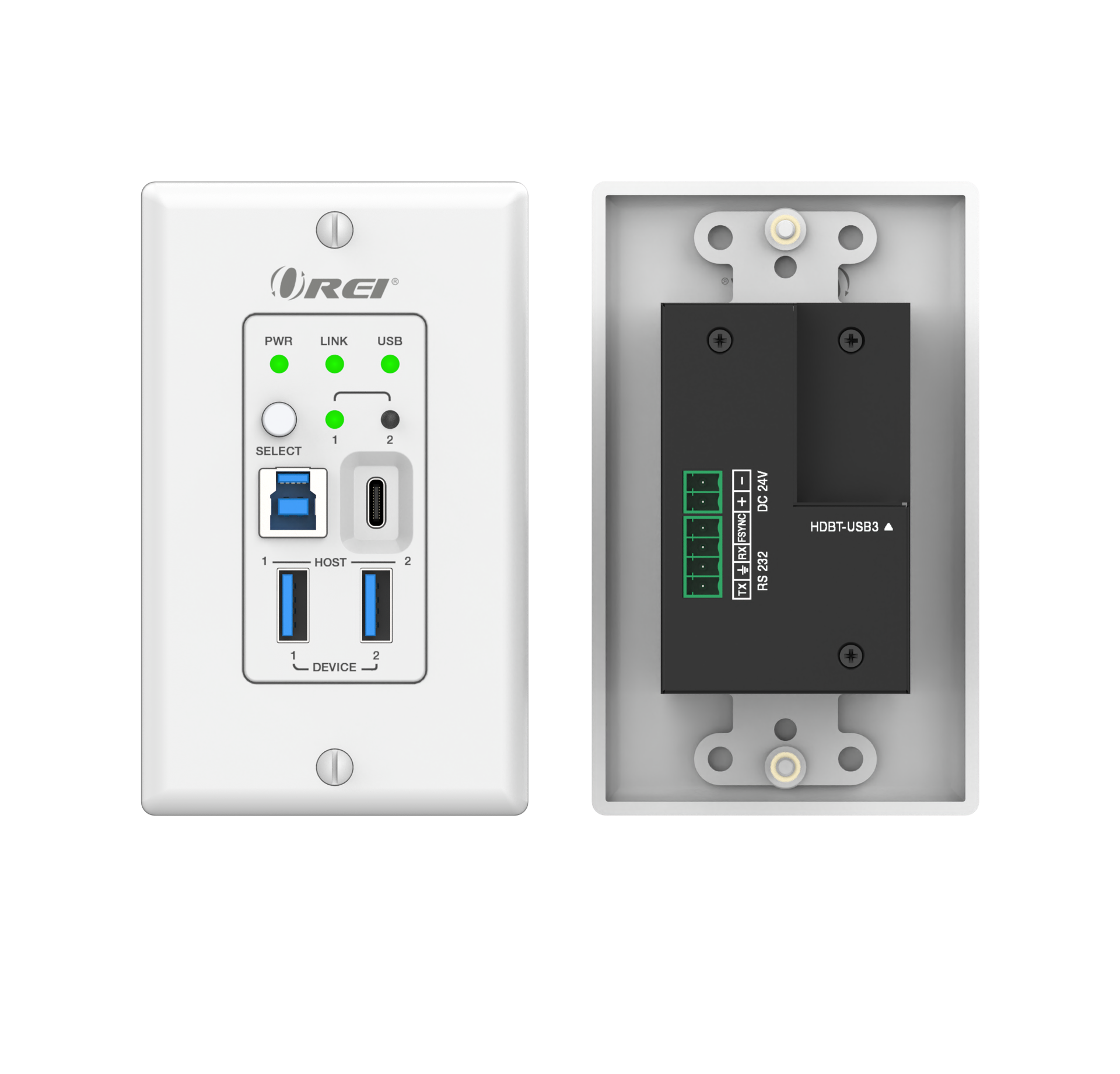

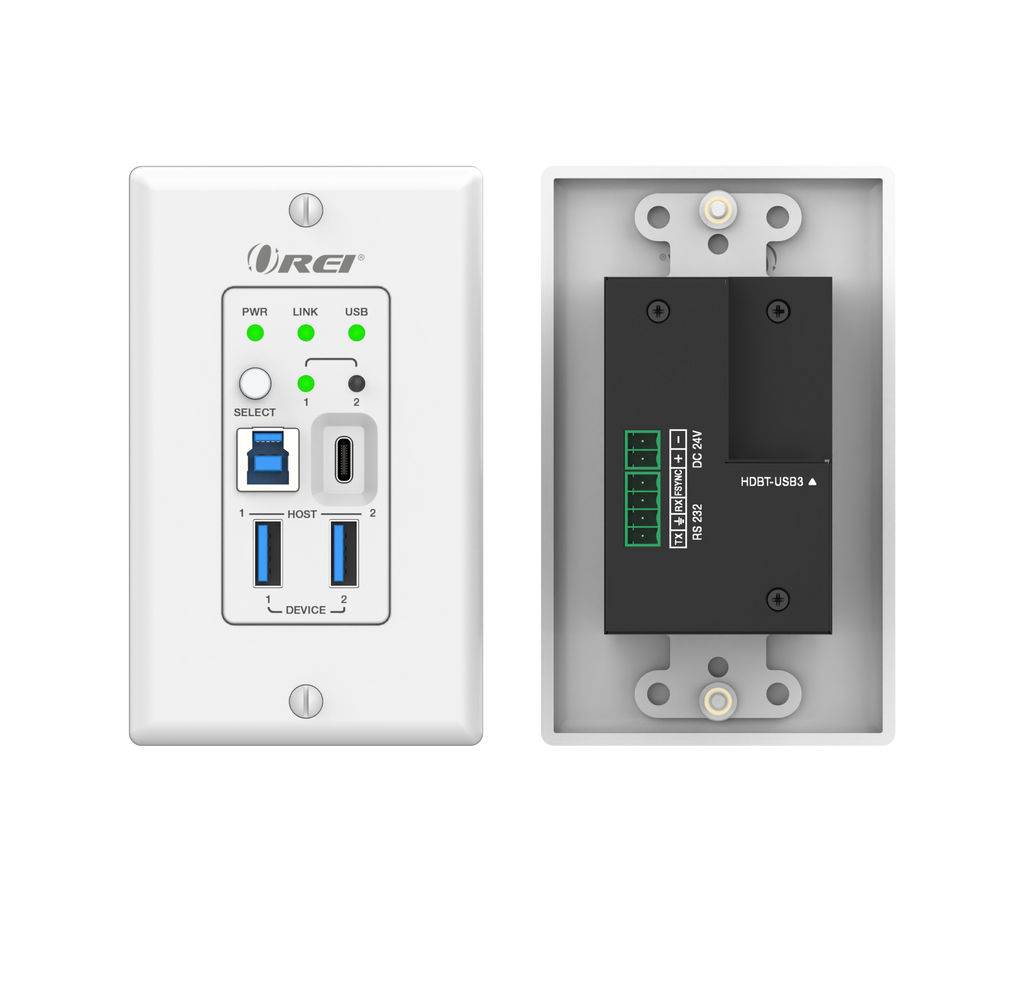

- Transmitter: INPUT: 1× HOST 1 [USB Type C, 24-pin female]
- 1× HOST 2 [USB Type B, 9-pin female]
- OUTPUT: 2× USB-A DEVICE [USB Type A, 9-pin female]

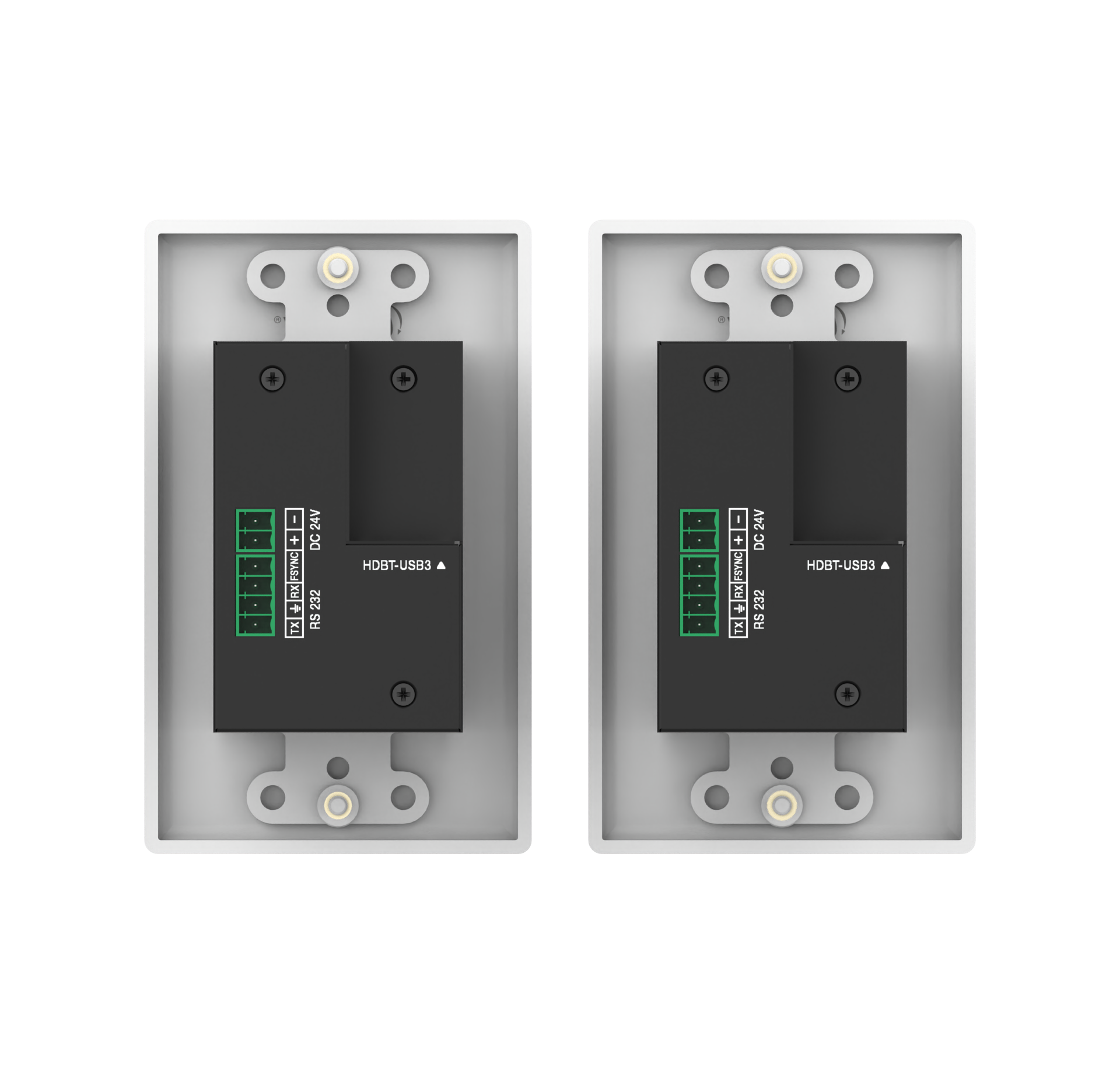

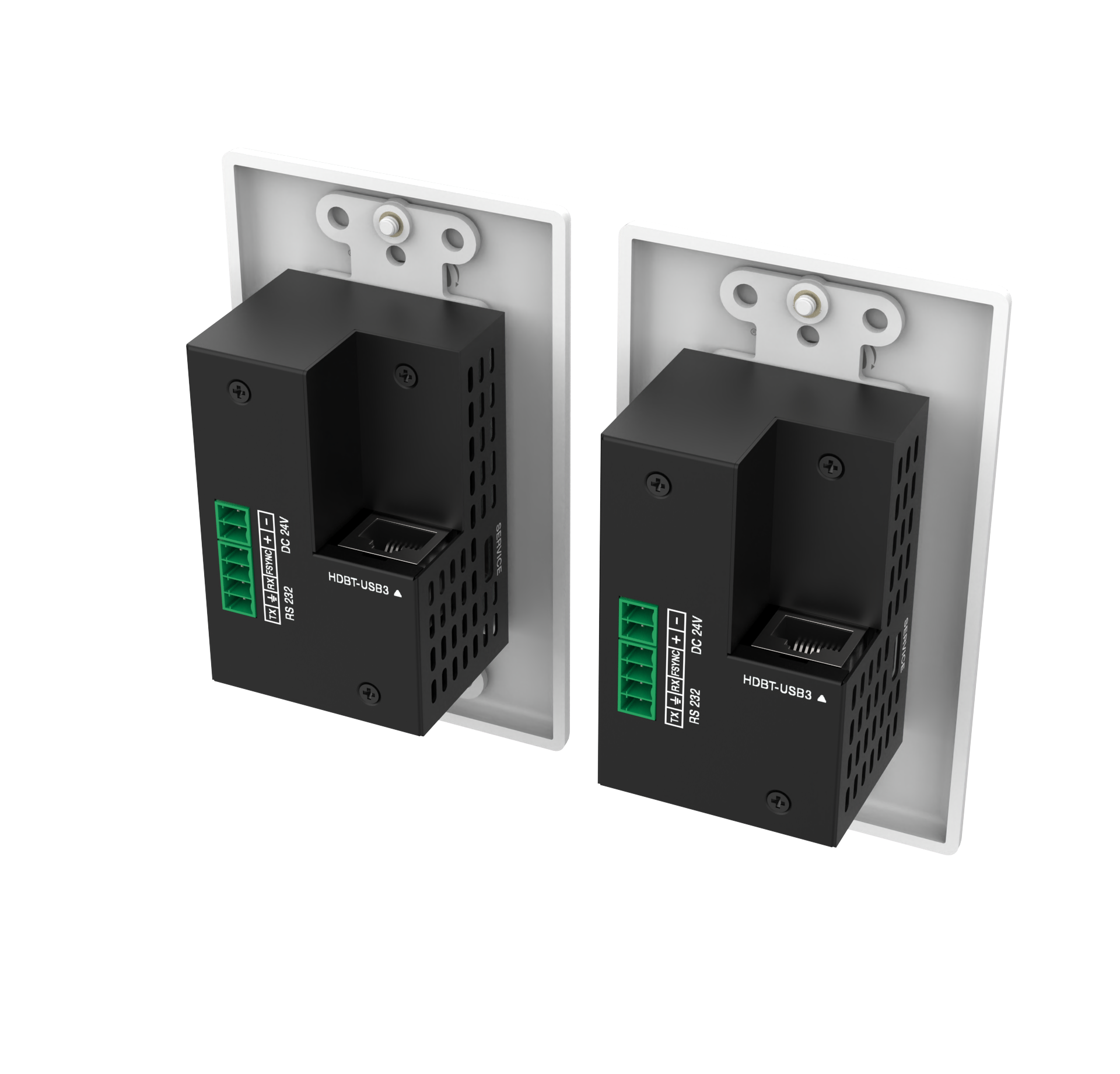

- 1× HDBT-USB3 [RJ45 connector, 24V PoC]
- Control 1× RS-232 [3pin-3.5mm phoenix connector]
- 1× FSYNC [1pin-3.5mm phoenix connector]
- 1× SERVICE [USB Type C, firmware update port]

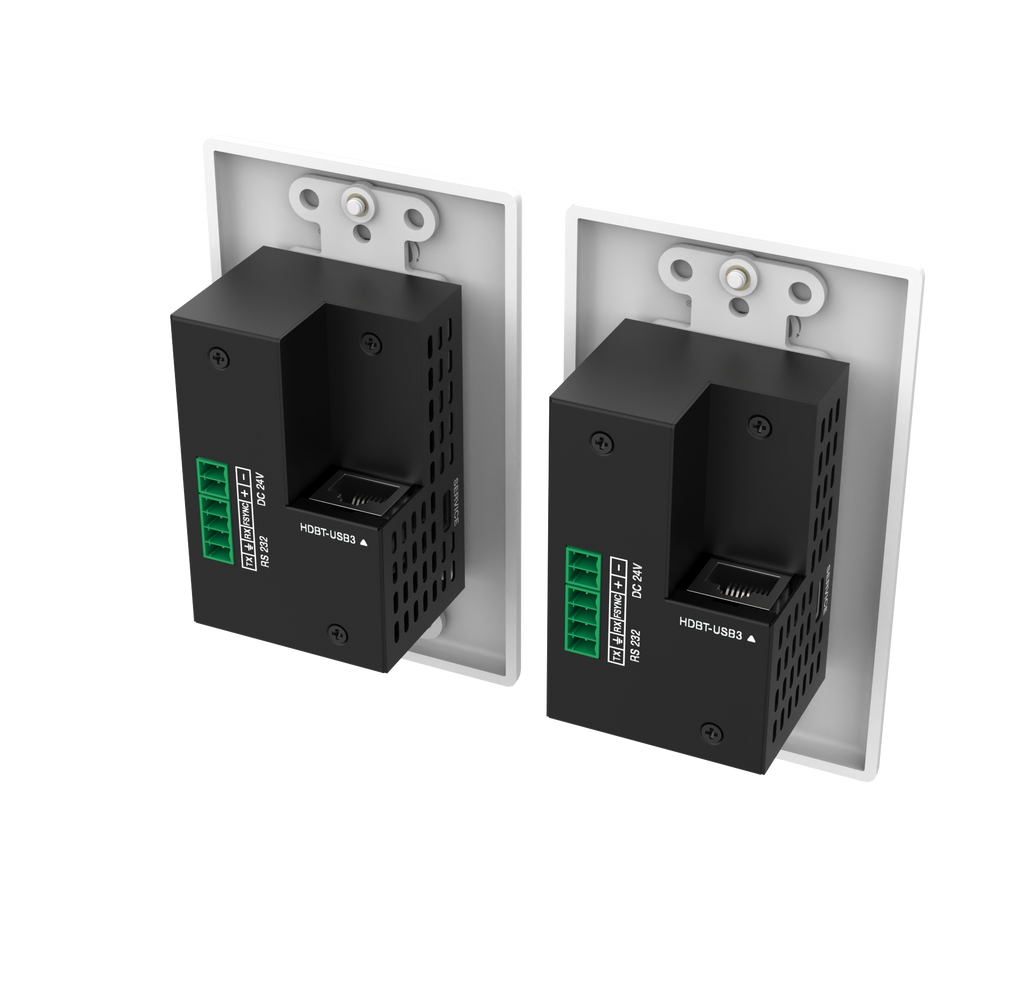

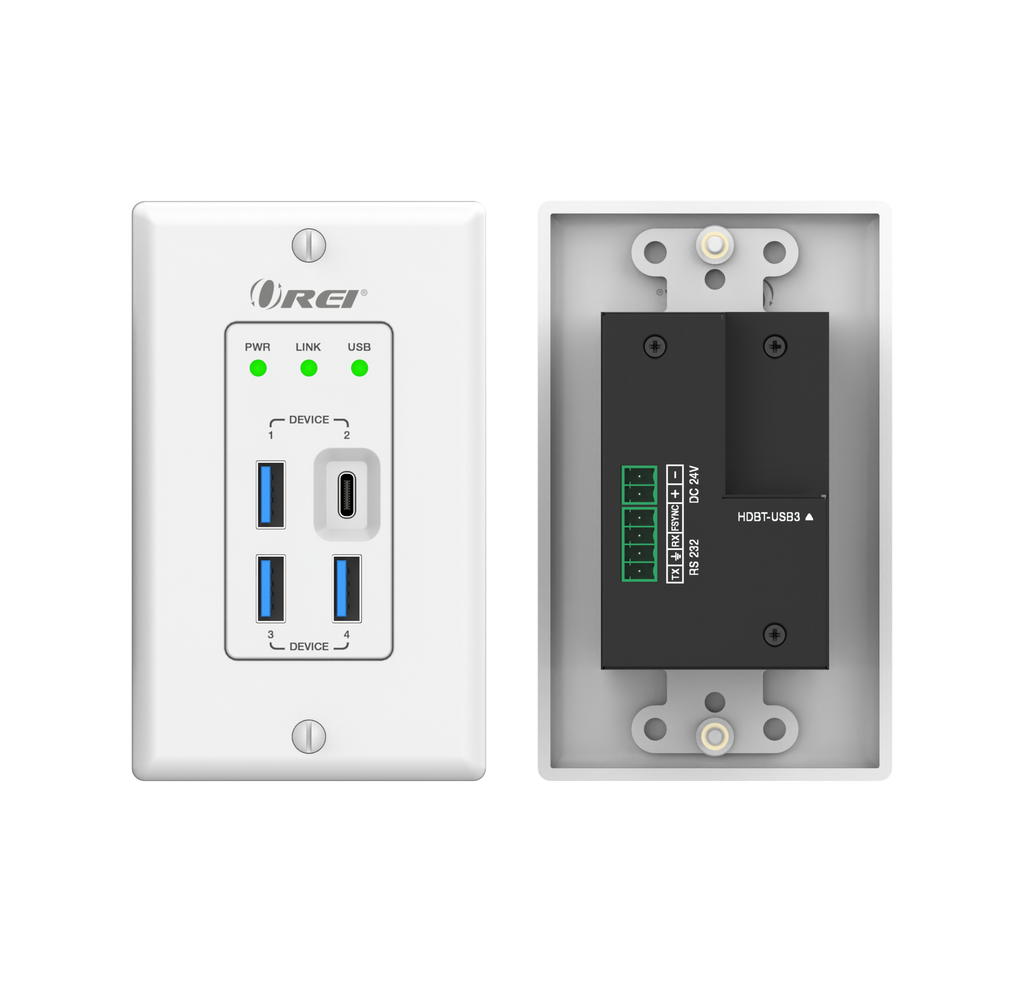

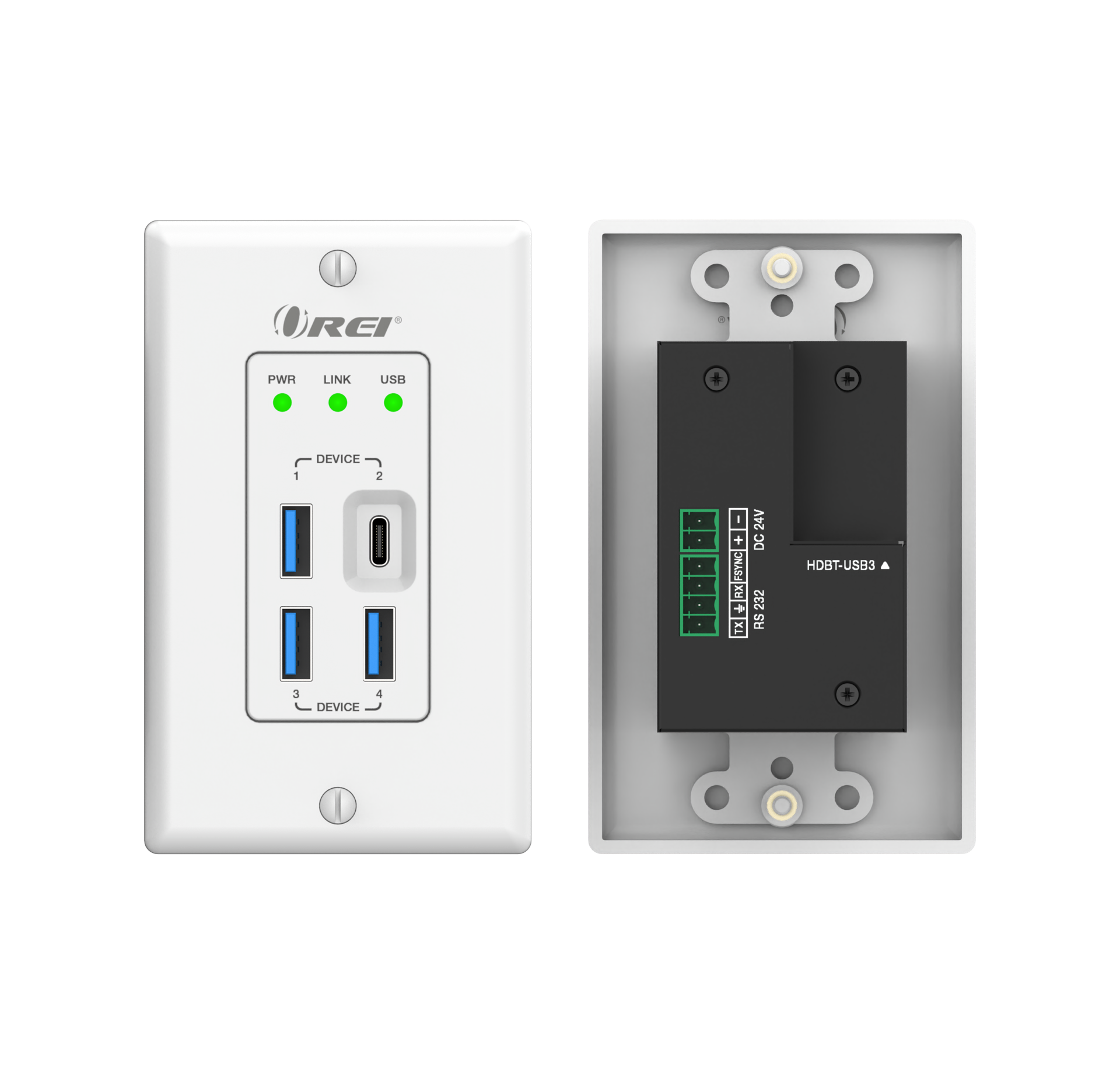

- Receiver: INPUT: 1× HDBT-USB3 [RJ45 connector, 24V PoC]
- OUTPUT: 3× USB-A DEVICE [USB Type A, 9-pin female]
- 1× USB-C DEVICE [USB Type C, 24-pin female]
- Control 1× RS-232 [3pin-3.5mm phoenix connector]
- 1× FSYNC [1pin-3.5mm phoenix connector]
- 1× SERVICE [USB Type C, firmware update port]
- SUPPORTED CAT CABLES
- CAT5e/6/7 cables: We recommend you use CAT6/7 cables for optimum performance.
- EXTENDING DISTANCE
- Over CAT 6: 330 Feet/100M
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC/PoE: Yes
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: Yes
- COMPLIANCES
- USB Compliance USB 3.2 Gen1
- POWER
- Power Consumption: 62W (Max)
- Power Supply: Input: AC 100~240V 50/60Hz Output: DC 24V/3.75A (US/EU standards, CE/FCC/UL certified)
- DIMENSIONS & WEIGHT
- Transmitter & Receiver: Length: 45mm / 1.77in
- Width: 42mm / 1.54in
- Height: 103.5mm / 4.07in
- Weight: 115g / 4.06oz
- Receiver: Length: 45mm / 1.77in
- Width: 42mm / 1.54in
- Height: 103.5mm / 4.07in
- Weight: 115g / 4.06oz
- PROPERTIES
- Color: White + Black
- Housing: Plastic Front Panel + Metal Enclosure
- Transmission Distance: 100m/328ft over CAT6a (F/FTP) cable; 1.5m/4.9ft over USB cable
- Transmission Rate: Up to 5Gbps
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
- Sperating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing
Includes:
- 1x USB3-WPE330WP-K Transmitter
- 1x USB3-WPE330WP-K Receiver
- 2x 2pin-3.5mm Phoenix Connector (Male)
- 2x 4pin-3.5mm Phoenix Connector (Male)
- 2x Top Pane
- 4x Machine Screw
- 1x Power Adapter
- User Manual
Warranty:
- 1 Year Warranty
