$49.99

  |

In Stock: Usually Ships in 24 Hours

  • USB over CAT5e/6 Extender
  • Supports Power Over Cable (PoC)
  • Simple plug and play setup
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

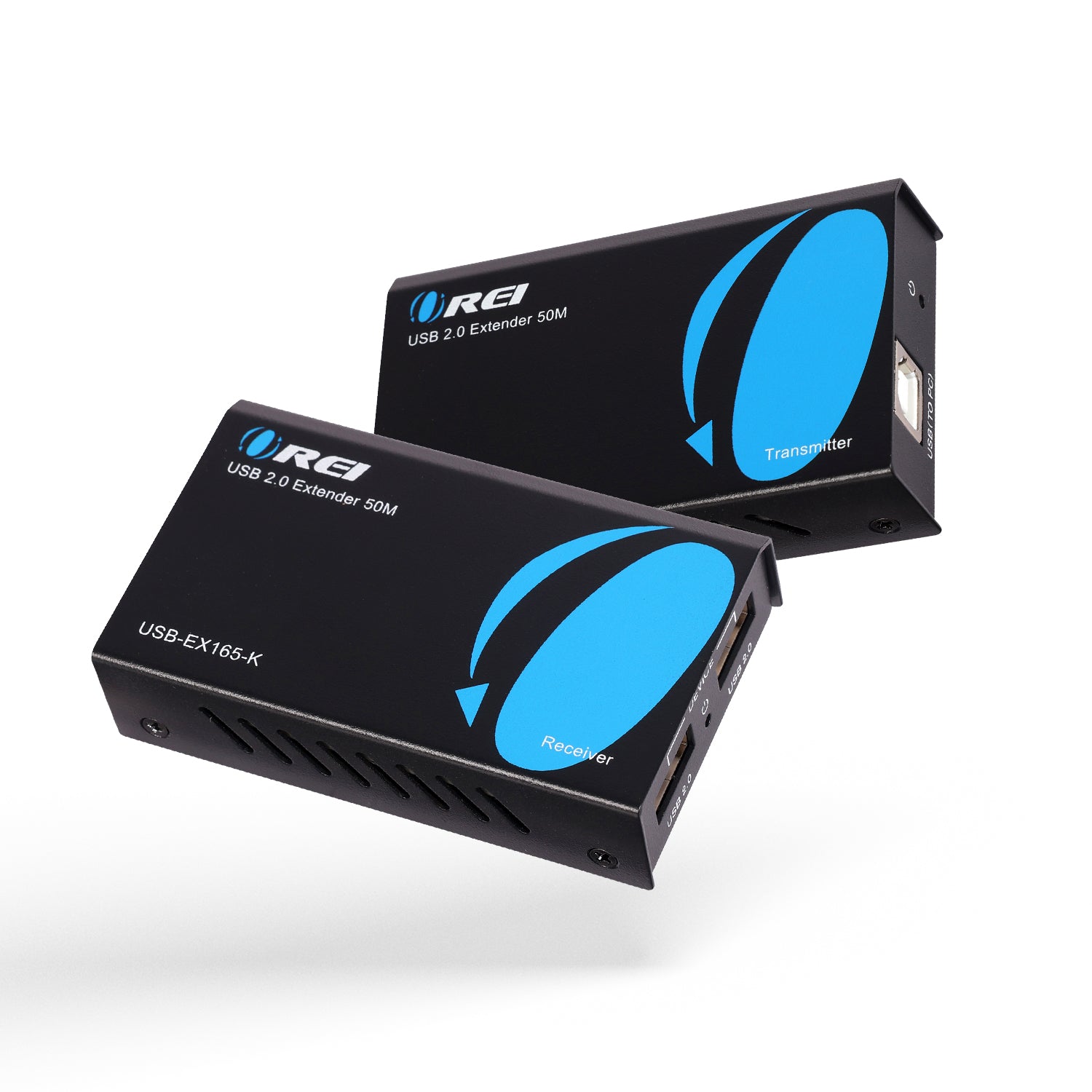

OREI USB-EX165-K USB Over Ethernet Extender

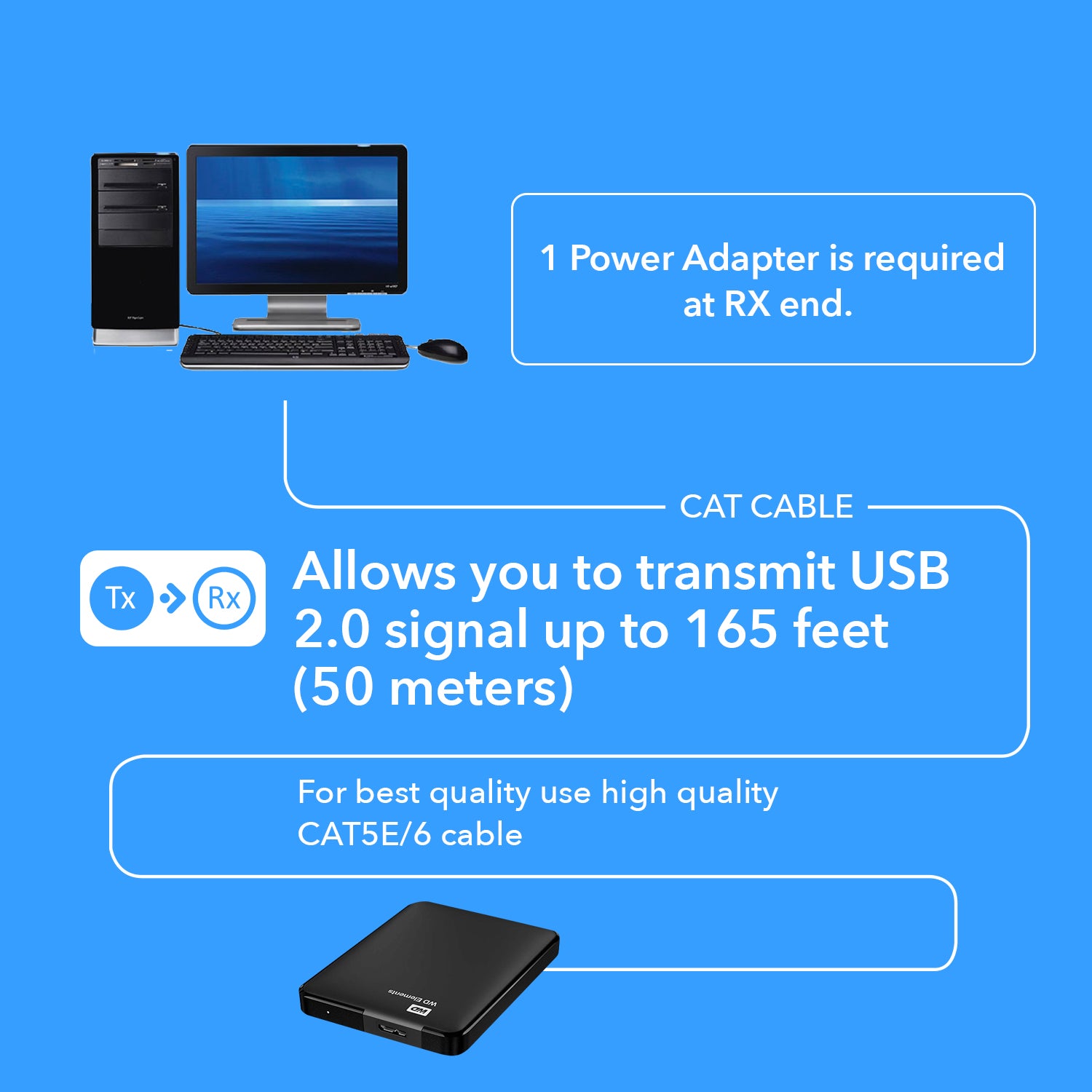

The OREI USB-EX165-K USB Extender box allows you to transmit up to USB 2.0 signal up to 165 feet. The USB over ethernet extender extends the distance up to 60 meters through CAT5e/6 network cable. Supports Windows, Mac OS, Android, Linux operating systems. In addition, you need to connect a 5V/1A power supply to the receiver.

The product can be widely used for long-distance signal transmission between a PC and a USB device. Simple plug and play, no drive and setting installation required.

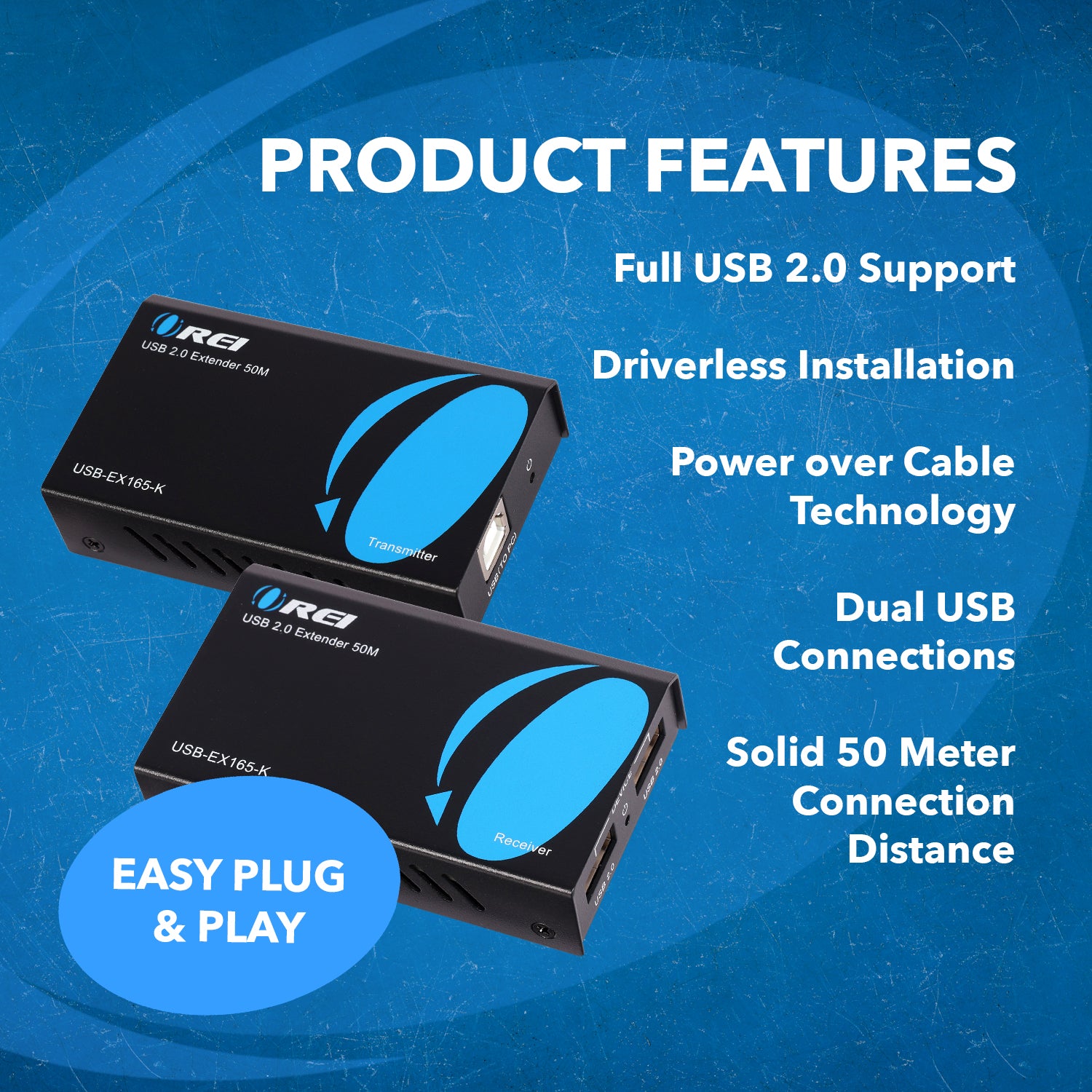

Key Features:
  • Powered USB Range Balun supports High - Speed USB 2.0 Function (Max 480Mbps)
  • Supports Any Operating Systems such as ( Windows, macOS, Android, Linux)
  • Supports one USB-B port input in the transmitter
  • Supports two USB 2.0 ports output in receiver
  • No Software Needed for this USB Extender
  • Solid Connection for PC, Printers, Touch Screen, Video Conferencing, Webcams, Game Controls, Keyboards, Mouse, Mic
  • NOTE: The transmission distance can only go up to 130 Feet (40 Meters) for some USB 2.0 Hubs
  • The receiver is powered supply by connecting 5V/1A power adapter
  • Plug & Play USB over ethernet extender
  • Compact design for easy and flexible installation
  • Lifetime Full OREI Support & 12 Month Warranty
  • Contact us for any reason, we are based in the US for full local support

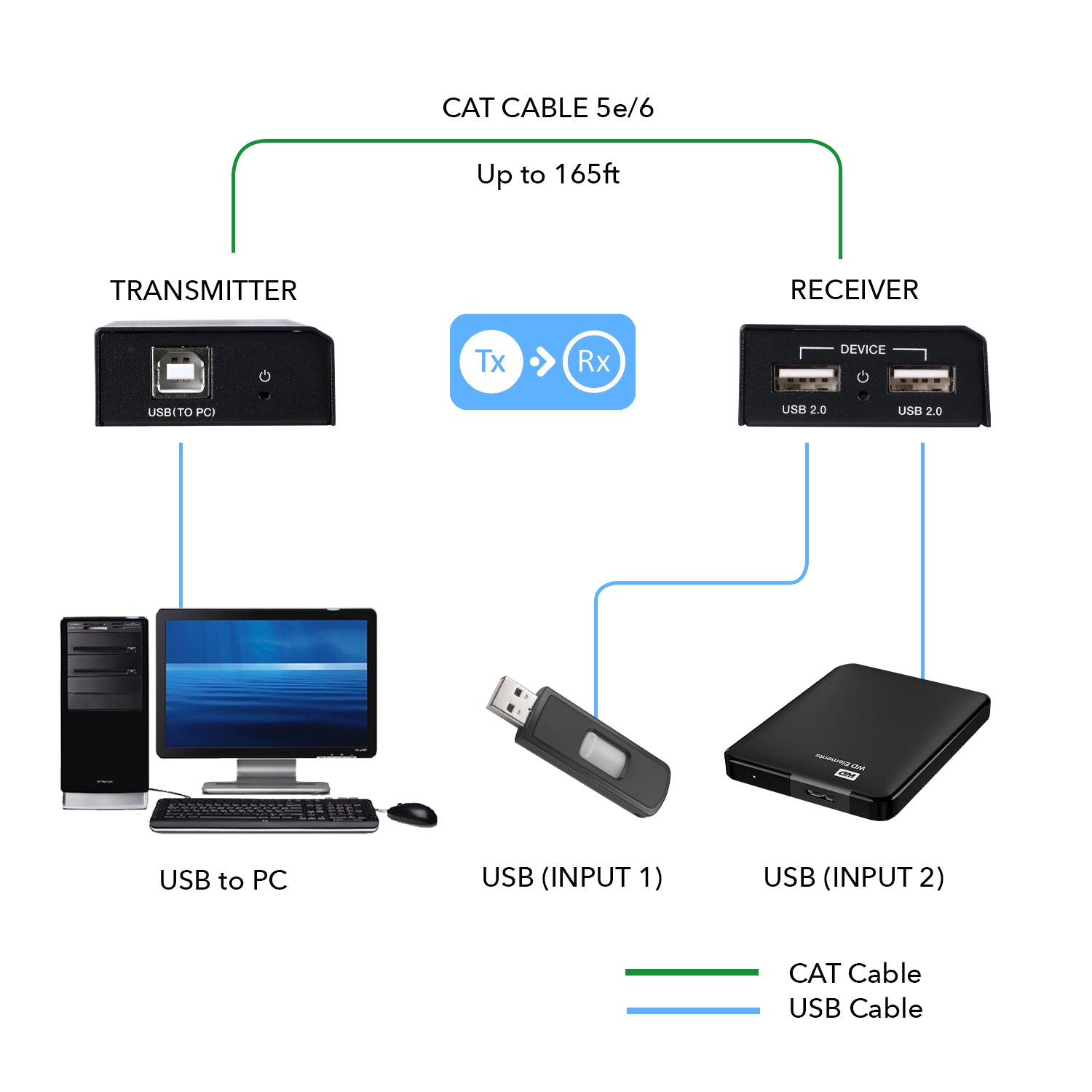

  • Transmitter:
    • Input Ports:
      • 1× USB [USB-B, female]
    • Output Port:
      • 1× CAT [RJ45, female]
  • Receiver:
    • Input Port:
      • 1× CAT [RJ45, female]
    • Output Ports:
      • 2× USB [USB-A, female]

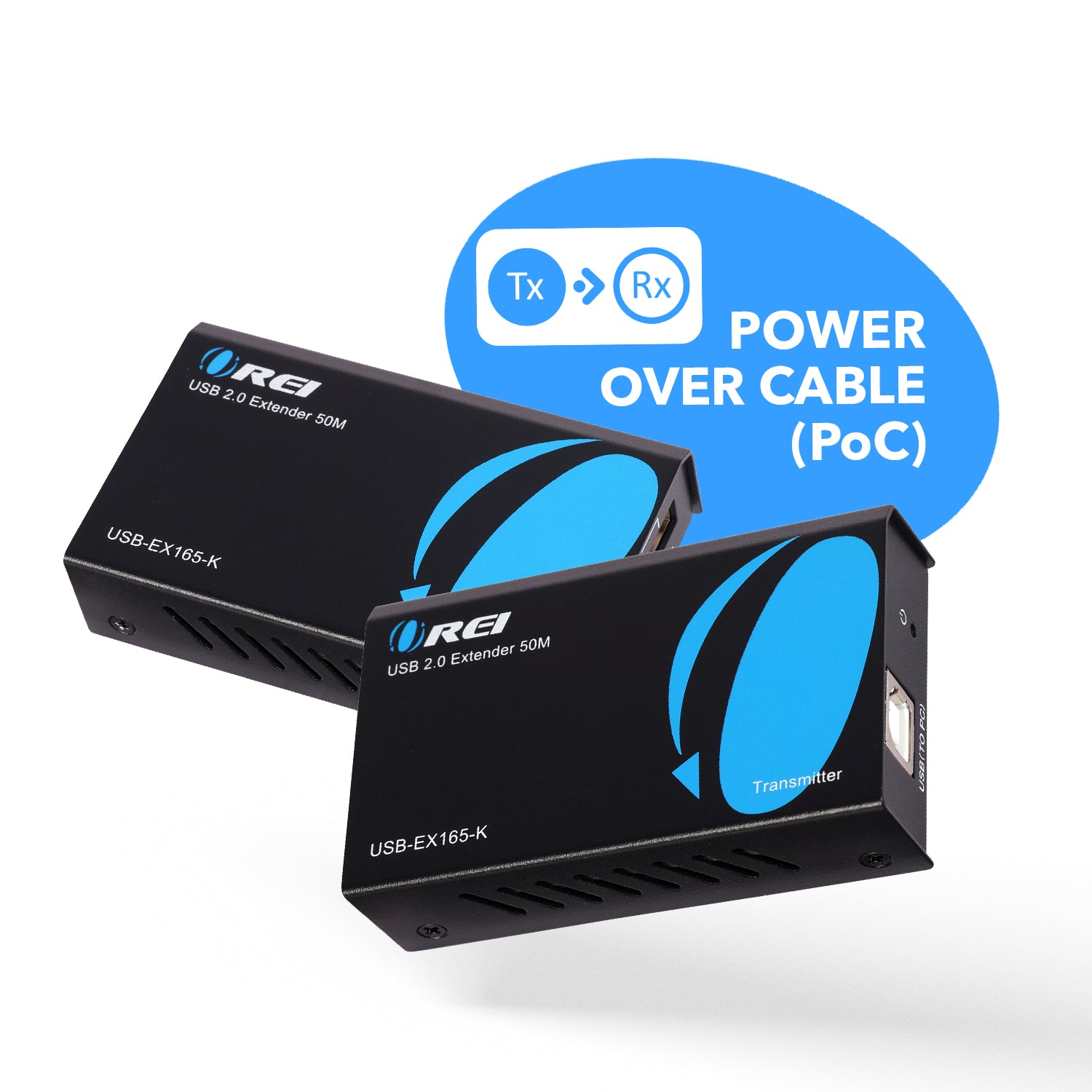

  • Support one-way POC function. Receiver is powered supply by connecting 5V/1A power adapter
  • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • ESD Protection - Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
  • Relative Humidity: 20~90% RH (non-condensing)

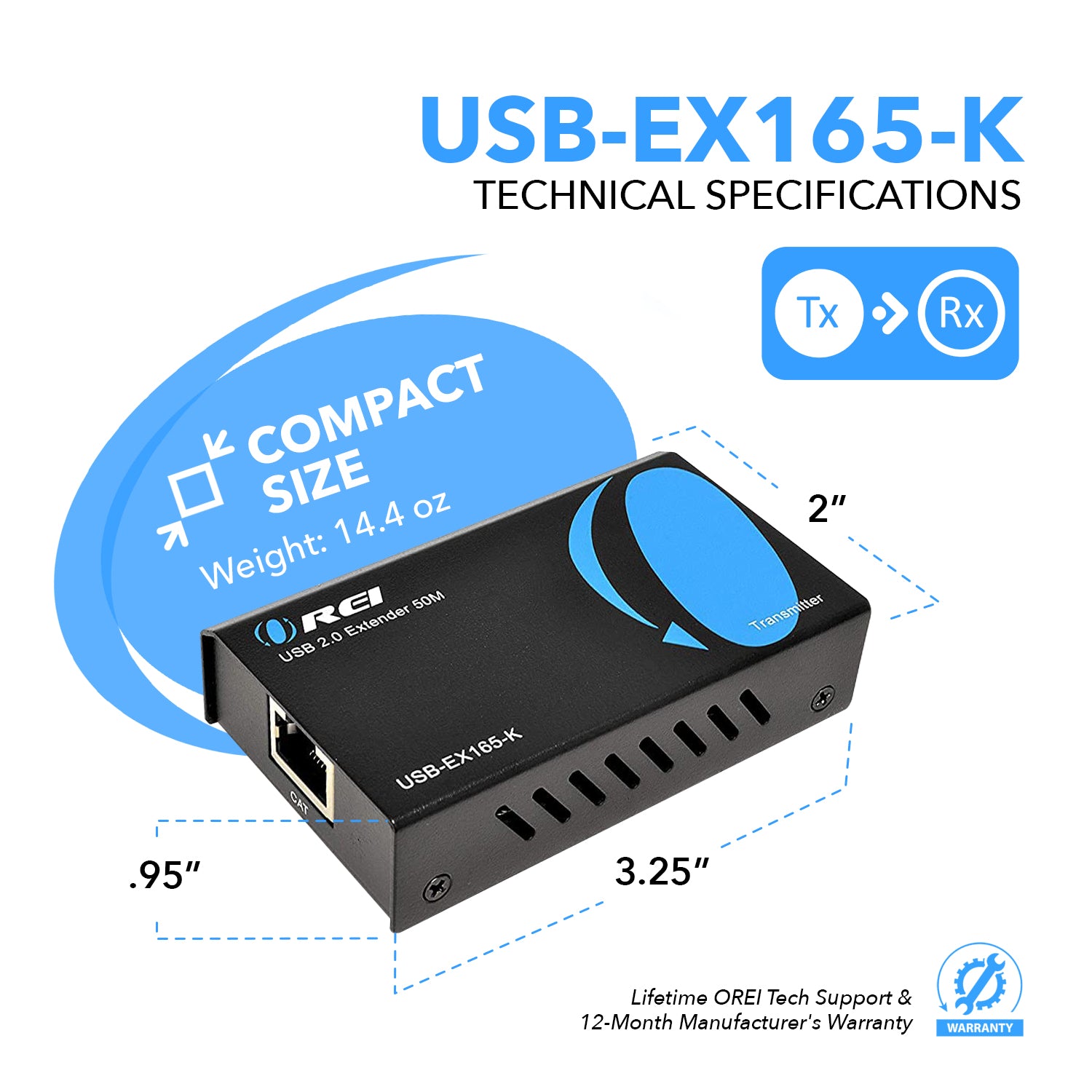

  • Dimensions: 82mm [W] x 49mm [D] x 20mm [H]
  • Weight: 100g
  • Power Supply:
    • Input: AC100~240V 50/60Hz
    • Output: DC 5V/1A
  • Power Consumption:
    • Transmitter: 0.7W
    • Receiver: 1W
  • Housing: Metal Enclosure
  • Color: Black

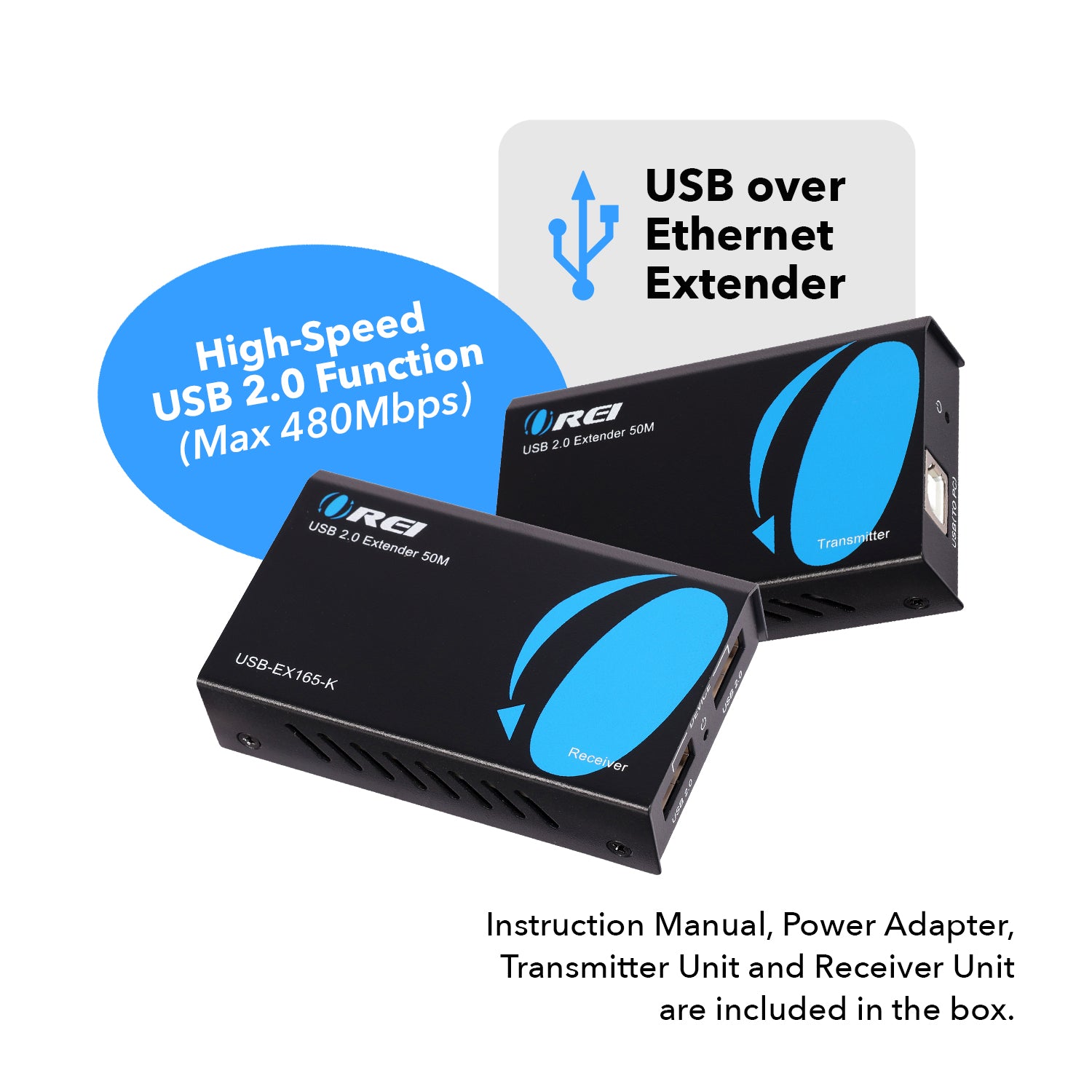

Includes:

  • 1x USB 2.0 Transmitter unit
  • 1x USB 2.0 Receiver unit
  • 1x USB cable (USB-B male head to USB-A male head, one meter)
  • 1x 5V/1A Power Adapter
  • 1x User Manual

Warranty:

  • 1-Year manufacturer's warranty
