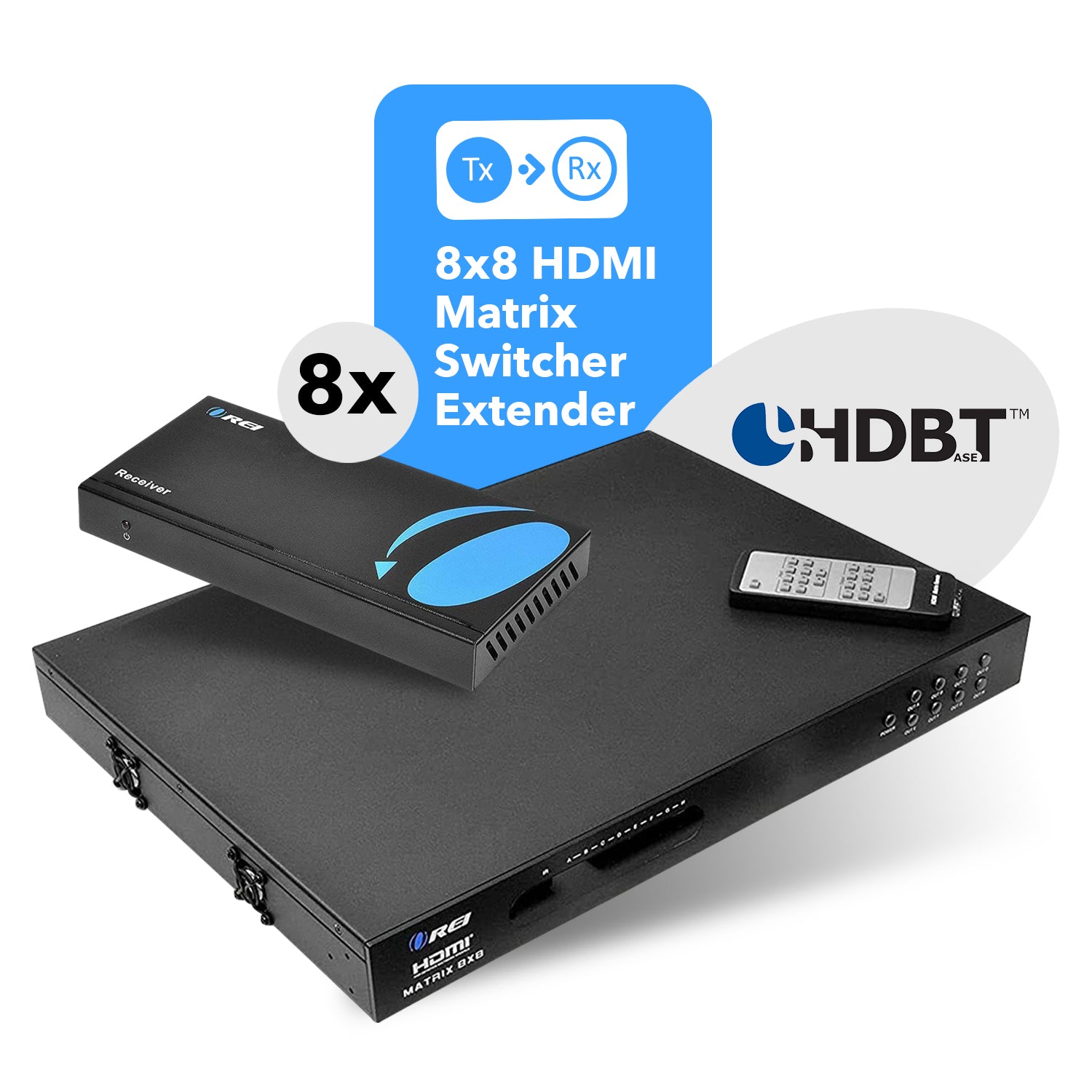

OREI UHD88-EXB230R-K: 8 in 8 out HDMI Matrix Switcher Extender

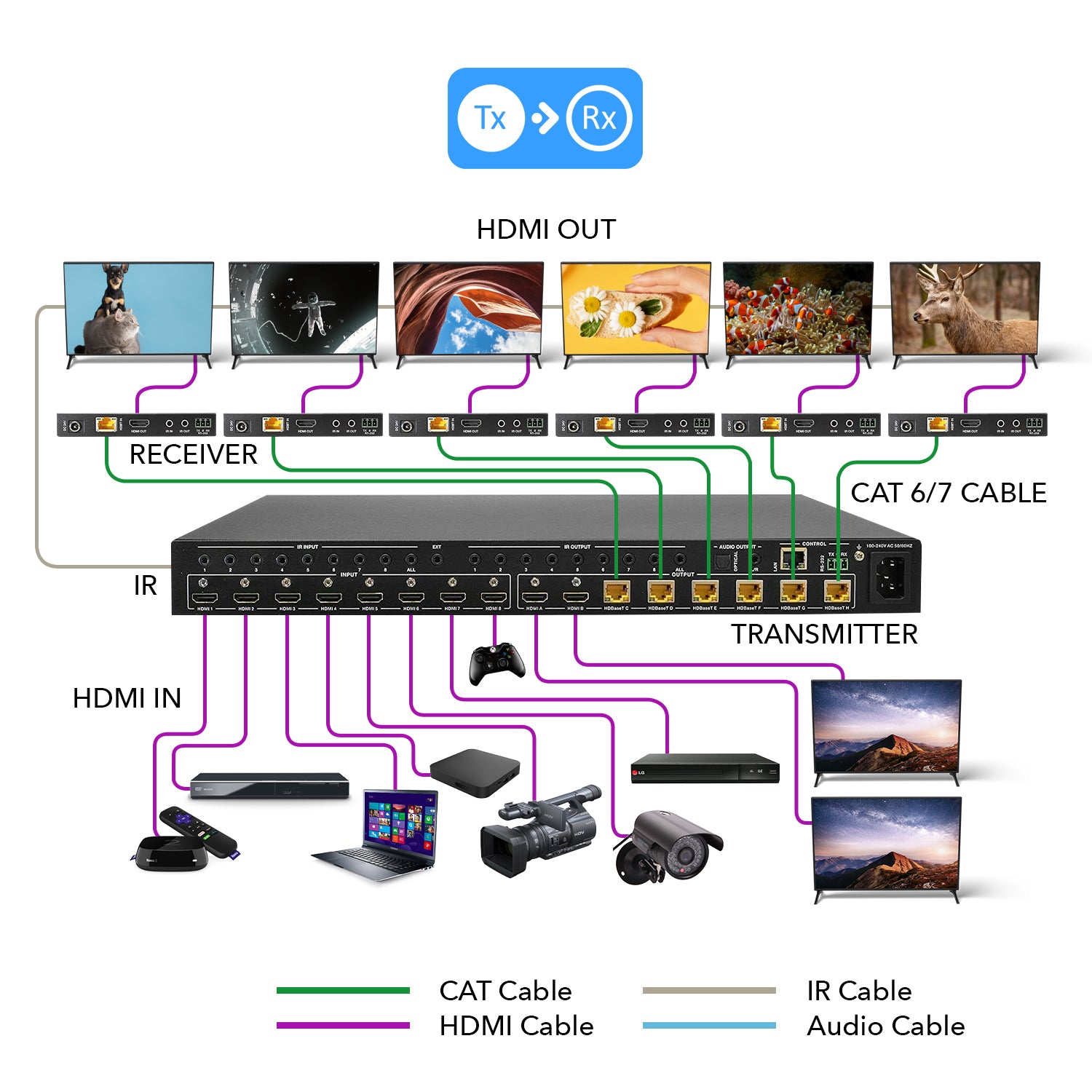

8X8 - 8 Inputs & 6 Outputs Over CAT5e/6/7 LAN Cable upto 330 Feet. Plus Additional 2 HDMI Out Source at Local Location. Perfect Professional Distribution Product, ideal for 4K Blu Ray Players, Game Consoles, Media Players, Satellite Receivers, Computers, Laptops and Other Sources.
Full Ultra HD Support - 4K 60/50Hz@ 12 bit , 4K @60Hz, 4K 30Hz@24 bit, 2K@60Hz 60/50Hz@1080p/i, 60/50Hz@720p, 60/50Hz@576p/i, 60Hz@480p/i; SUPPORTS ALL DIGITAL AUDIO COMPATIBILITY: Such as LPCM, DTS HD, and Dolby trueHD. HDMI 2.0 FEATURES Supports HDMI2.0 4K@50/60Hz YUV420; LATEST HDCP 2.2/1.4 COMPLIANT: Supports RS-232 Function, 4 Channel Bypass. FULL EDID Managment.
Support wideband IR( 30-60Kh) Matrix System. IR Transport Channel Can be Forwards and Backward

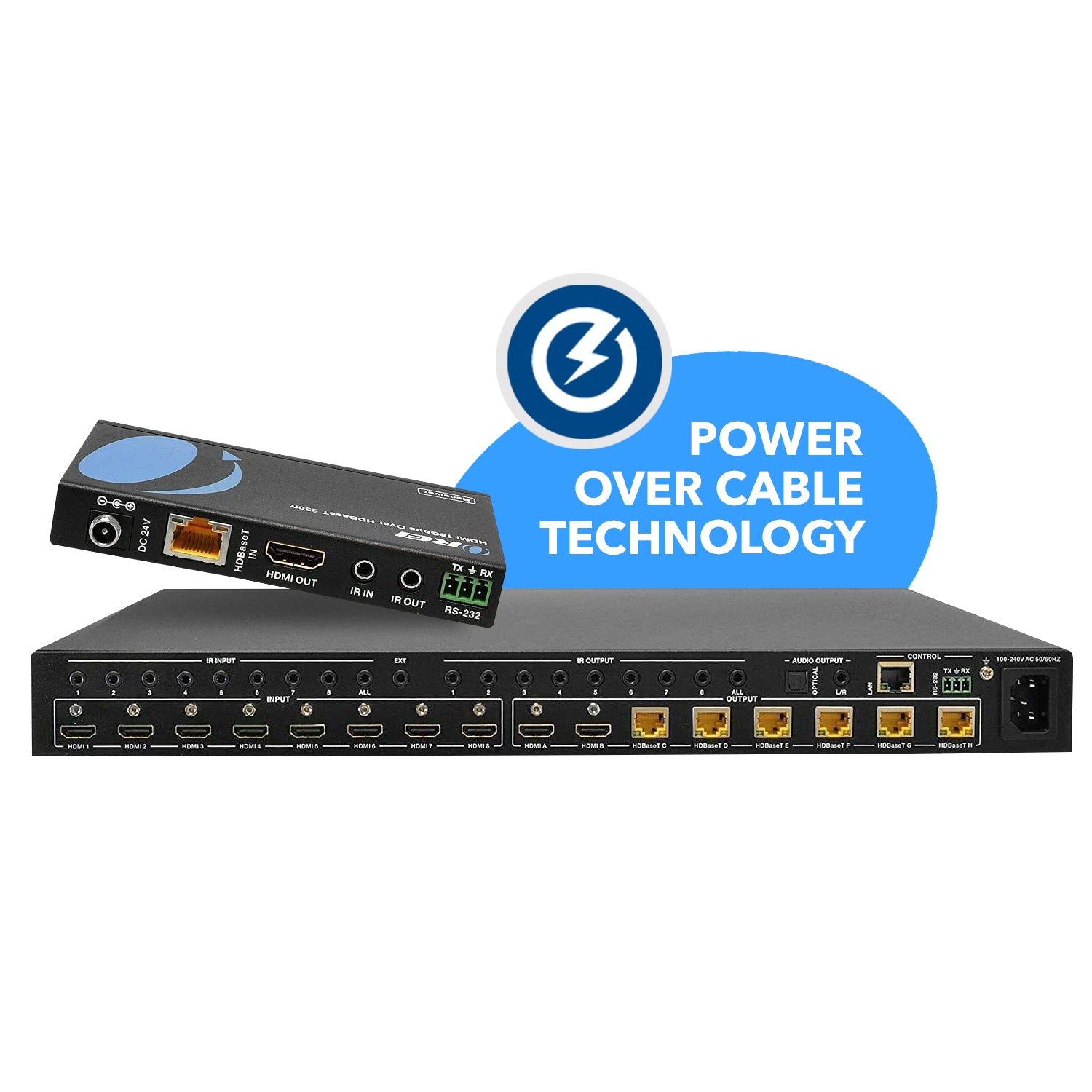

HDBaseT Technology - Uncompressed Signal for Zero Latency, A good quality CAT5e/6/ STP shielded cable is essential in delivering quality content. CAT6 is recommended for better Performance. Avoid using signal converters/adapters. Supports POE Power Over Cable Function, so only power adapter is required at the Transmitter End.
Key Features:
- HDMI 2.0b, HDCP 1.4/2.2 compliant
- Up to 4K2K@60Hz (4:4:4) on all HDMI and HDBaseT ports
- Supports pass-through audio up to 7.1 channels of High Definition audio
(LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Digital and analog audio extractor from any one of outputs (Configurable)
- HDR and smart EDID management supported
- 24V POC on all HDBaseT ports
- Control is via on-panel Button, IR, RS-232, LAN and Web UI
- 1U rack mounted design size
- This unit requires only one power adapter to work
OREI 8x8 HDMI Matrix Extender
- Matrix:
- Input Ports:
- 8×HDMI Type A [19-pin female]
- 9×IR input [3.5mm Stereo Mini-jack]
- 1×RS-232 [Phoenix connector]
- 1×LAN [RJ45 connector]
- Output Ports:
- 2×HDMI Type A [19-pin female]
- 6×HDBaseT Out [RJ45]
- 9×IR output [3.5mm Stereo Mini-jack]
- 1×Optical audio [S/PDIF]
- 1×Stereo audio [3.5mm Stereo Mini-jack]
- Receiver:
- Input Ports:
- 1×HDBaseT In [RJ45]
- 1×IR In [3.5mm Stereo Mini-jack]
- Output Ports:
- 1×HDMI Type A [19-pin female]
- 1×IR Out [3.5mm Stereo Mini-jack]
- 1×RS-232 [Phoenix connector]
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 1.4/2.2
- Video Resolutions: Up to4K2K@60Hz (4:4:4)
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- HDR and smart EDID management supported
- 24V POC on all HDBaseT ports
- Operation Temperature: 32 - 104°F / 0 - 40°C
- Storage temperature: -4 - 140°F / -20 - 60°C
- ESD Protection - Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge)
- Relative Humidity: 20 - 90% RH (no condensation)
- Video Bandwidth: 18Gbps

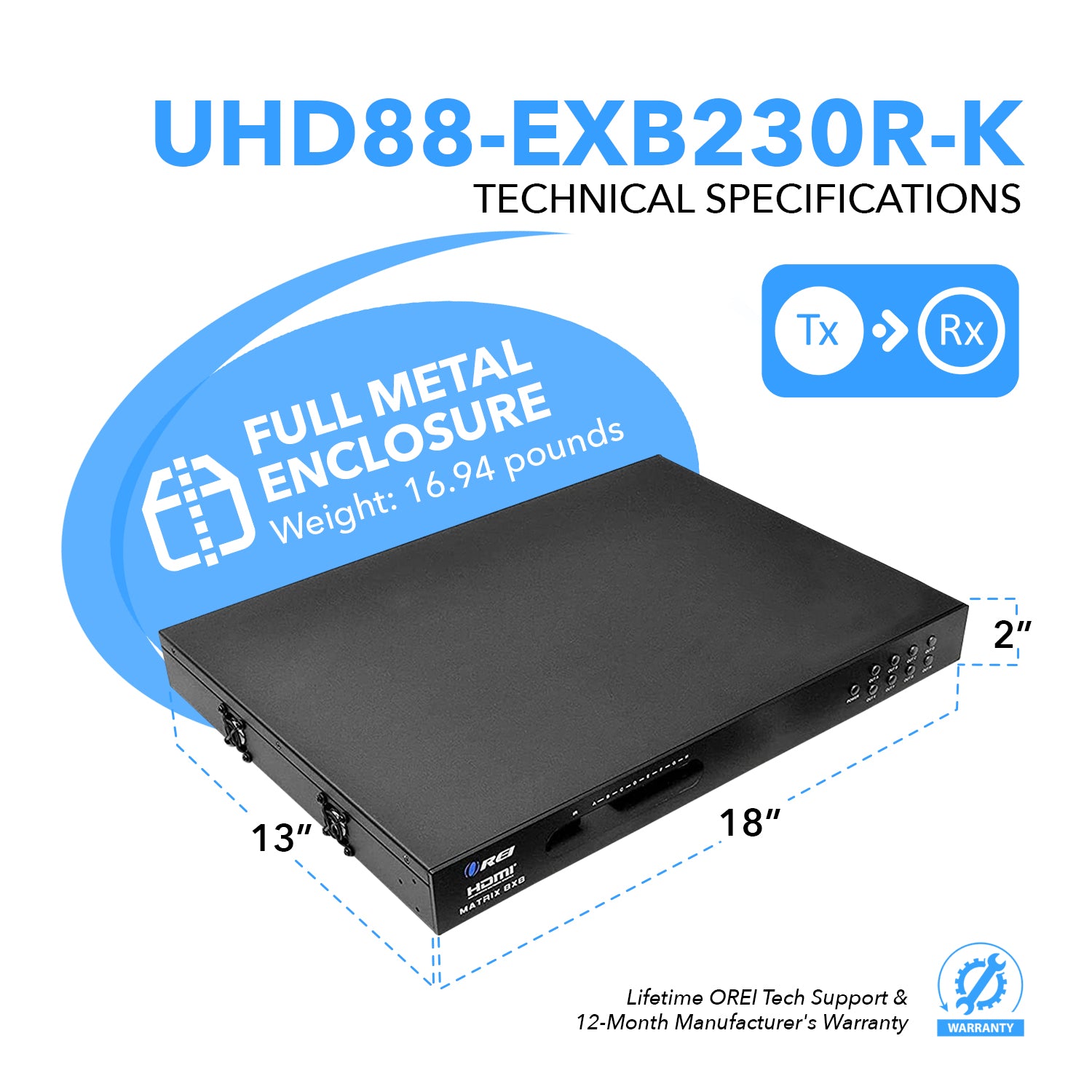

- Dimentions:
- Transmitter: 440mm [W] x 320mm [D] x 44.5mm [H]
- Receiver: 115mm [W] x 65mm [D] x 17mm [H]
- Weight:
- Transmitter: 3Kg
- Receiver: 206g
- Power Supply - 100~240V AC 50/60Hz
- Power Consumption: 74W
- Housing: Metal
- Color: Black

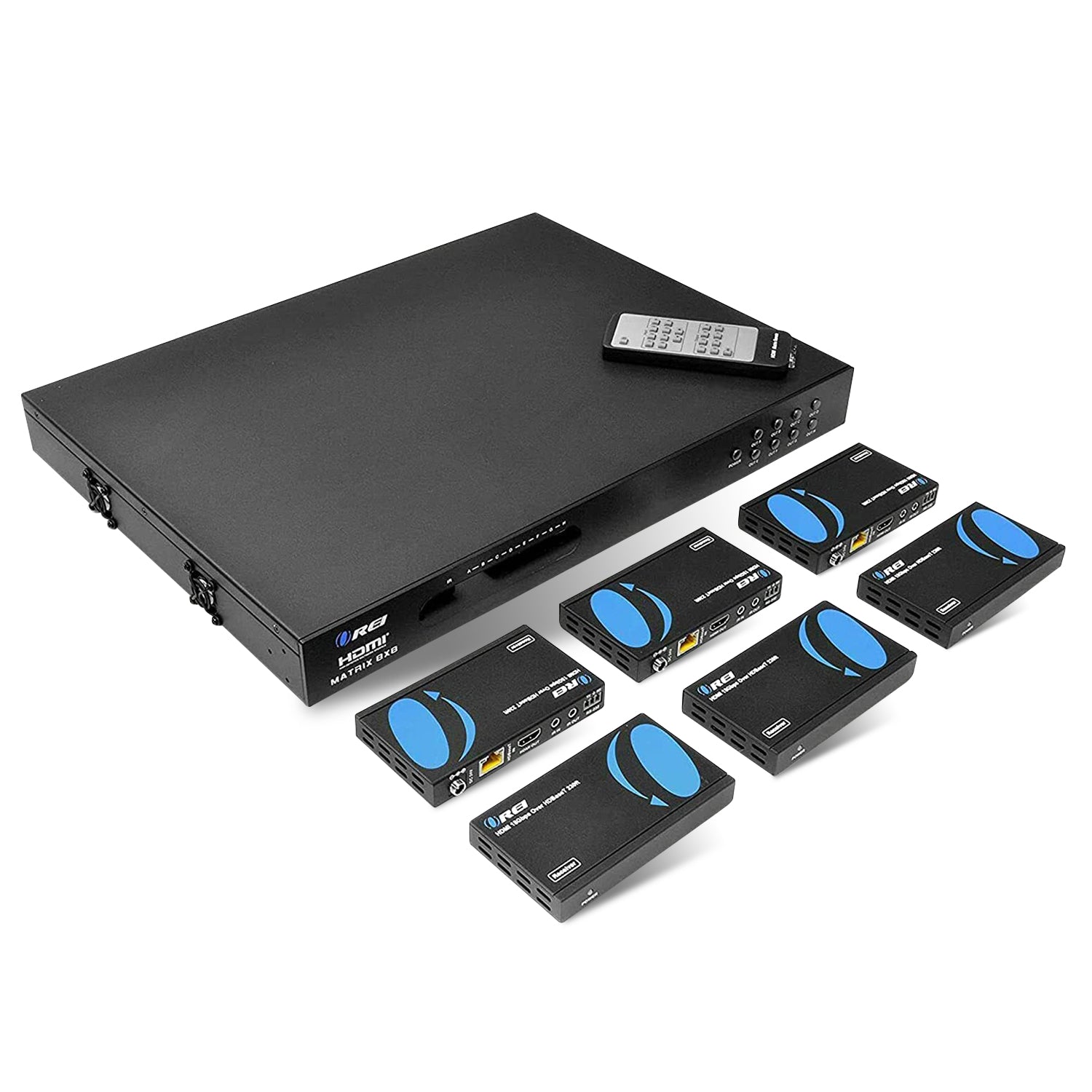

Includes
- 1x HDBaseT™ 8×8 Matrix Switcher
- 6x HDBT Receivers
- 1x IR Remote Control (Matrix)
- 1x RS-232 serial cable
- 7x Phoenix connectors
- 1x 100~240V AC 50/60Hz Power Cable
- 16x Wideband IR receiver cables
- 15x Wideband IR blaster cables
- 12x Mounting Ears (Receiver)
- 2x Mounting Ears (Matrix)
- 1x User Manual
Warranty
- 1 Year OREI Warranty and Lifetime Support
