$1,899.00

  |

In Stock: Usually Ships in 24 Hours

  • Supports HDBaseT 4K@60Hz YUV 4:4:4 up to 300 feet
  • Built-in independent audio matrix
  • Supports PoC, Bi-directional IR, RS-232, LAN and Web GUI
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

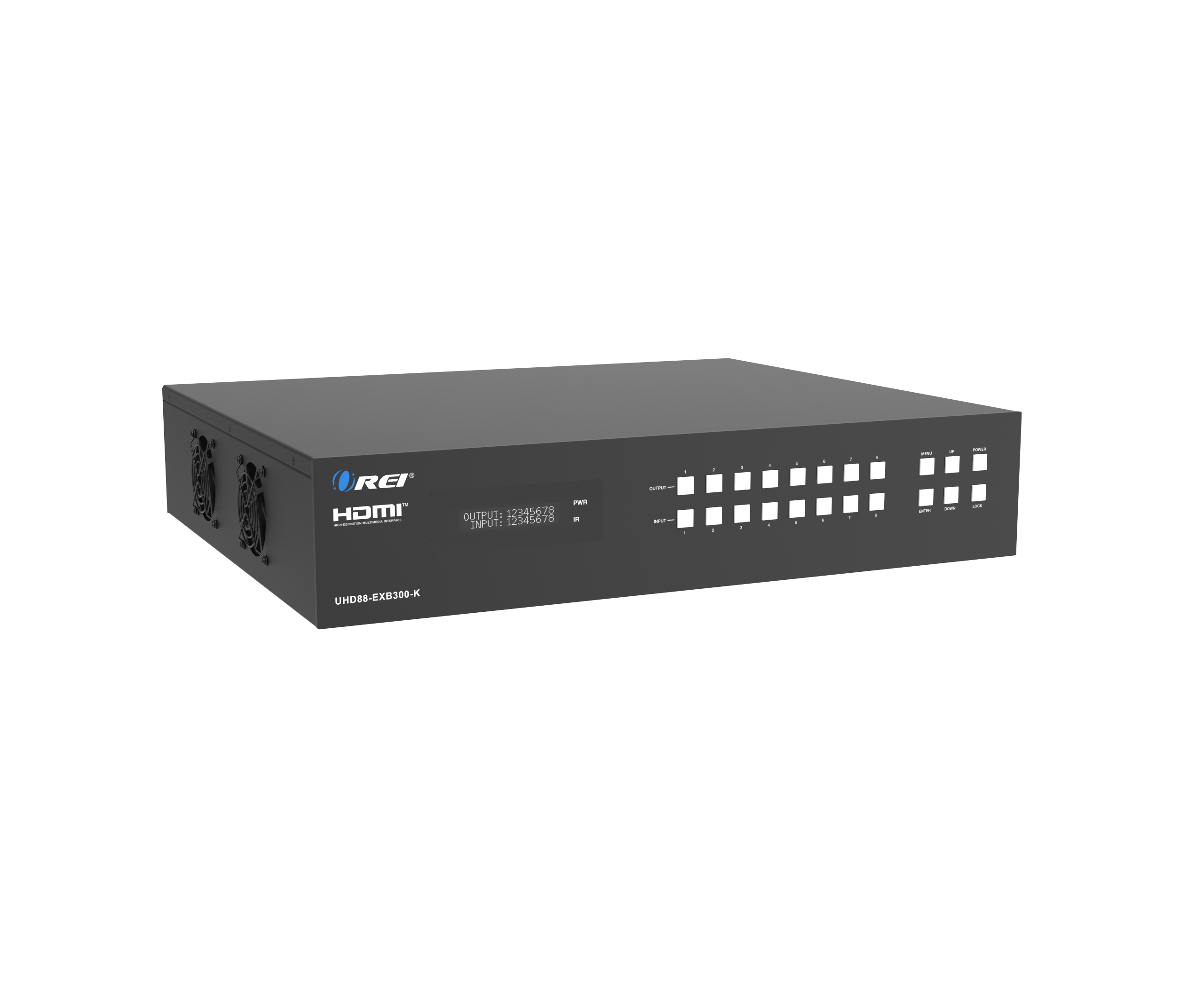

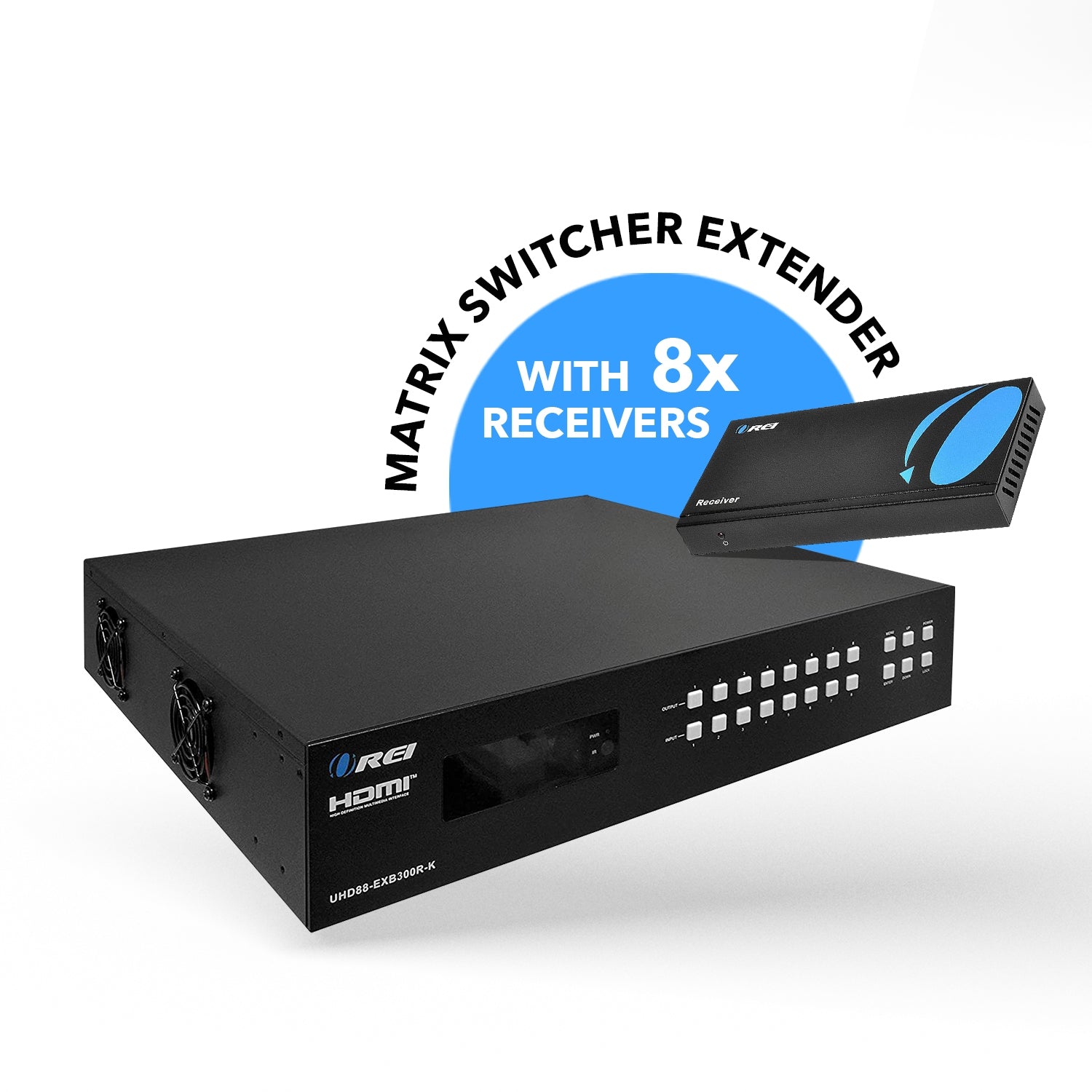

OREI UHD88-EXB300-K HDMI MATRIX SWITCHER EXTENDER - 300 FEET

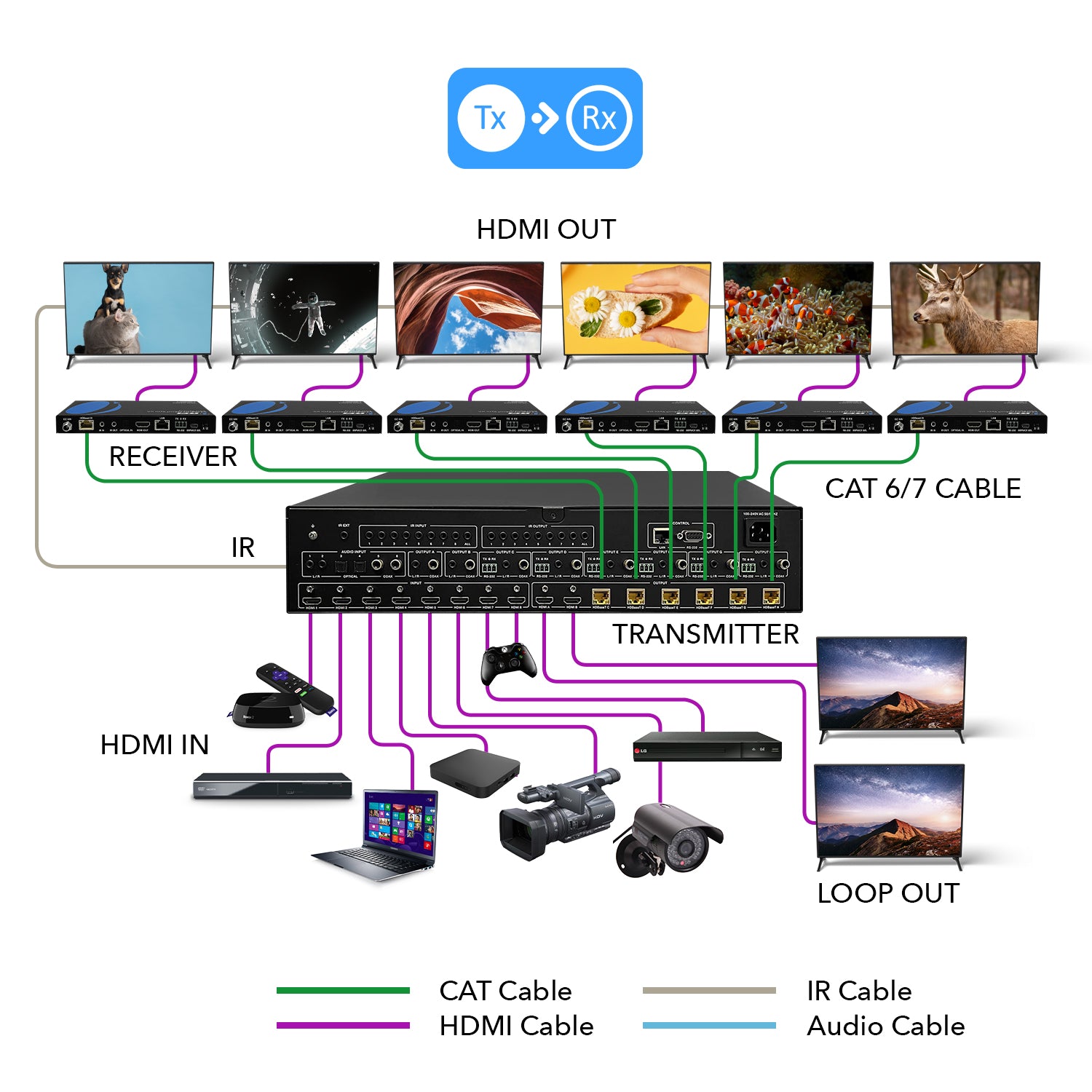

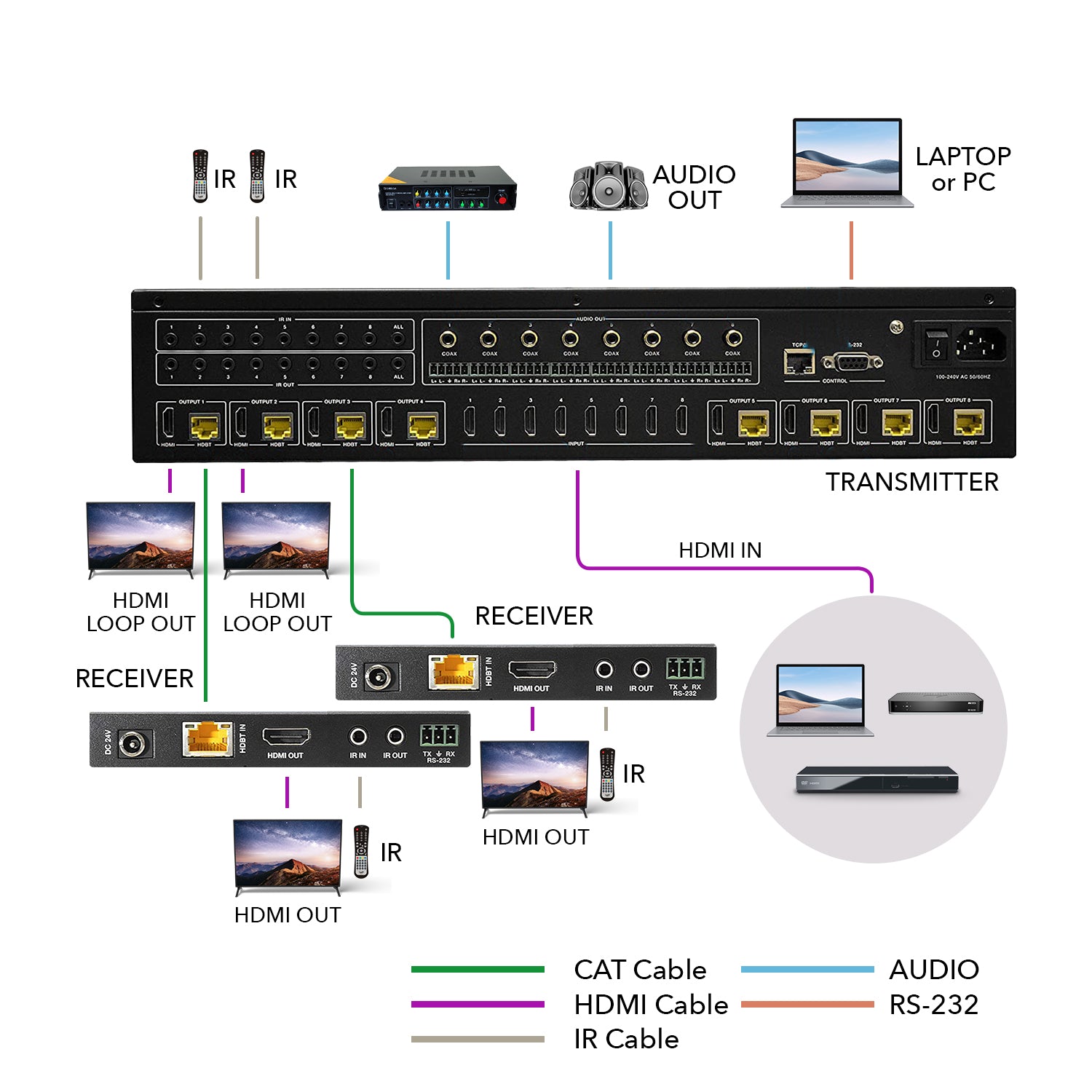

Few sample applications:

The 8x6 HDBaseT HDMI Matrix Switcher supports transmission of video resolution up to 4K@60Hz YUV 4:4:4 and multichannel audio (digital, analog stereo) while providing flexible control via front panel button (with OLED screen), IR remote, RS-232 or Web GUI. You can switch any of 8 sources to 2 independent outputs and 6 HDBaseT outputs.

These HDBaseT ports extend distance up to 330 feet / 100 meters and resolution up to 1080p@60Hz or distance up to 300 feet / 90 meters and resolution up to 4K2K@60Hz YUV 4:4:4 via single CAT6/7 cable. All HDMI outputs support internal audio embed, you can choose the external embed audio by Web GUI. The Matrix Switcher built-in an independent audio matrix and the audio matrix can be choose audio input signal from 6 external audio sources, 8 HDMI inputs audio or 8 ARC audio inputs, and audio volume / mute / delay function can be adjusted by Web GUI.

Moreover, the product supports two-way IR function (except 2 local HDMI outputs), and the IR control follows HDMI video channel. The product provides an intuitive set of front panels with OLED screen and supports front panel button, IR remote, RS-232 or Web GUI control ways.

HDBaseT Technology - Uncompressed Signal for Zero Latency. A good quality CAT5e/6 STP shielded cable is essential in delivering quality content. Shielded CAT6 is recommended for better performance. Avoid using signal converters/adapters.

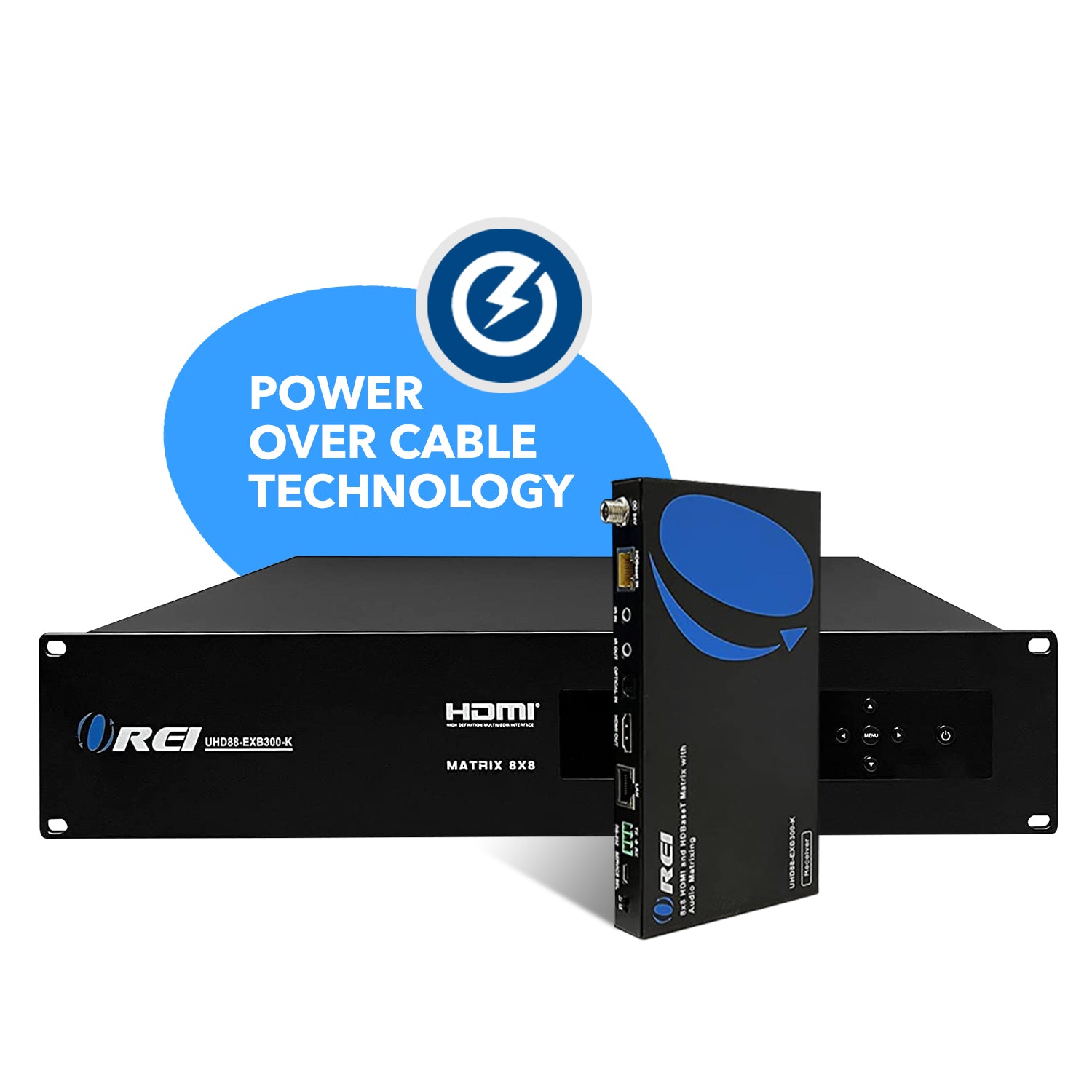

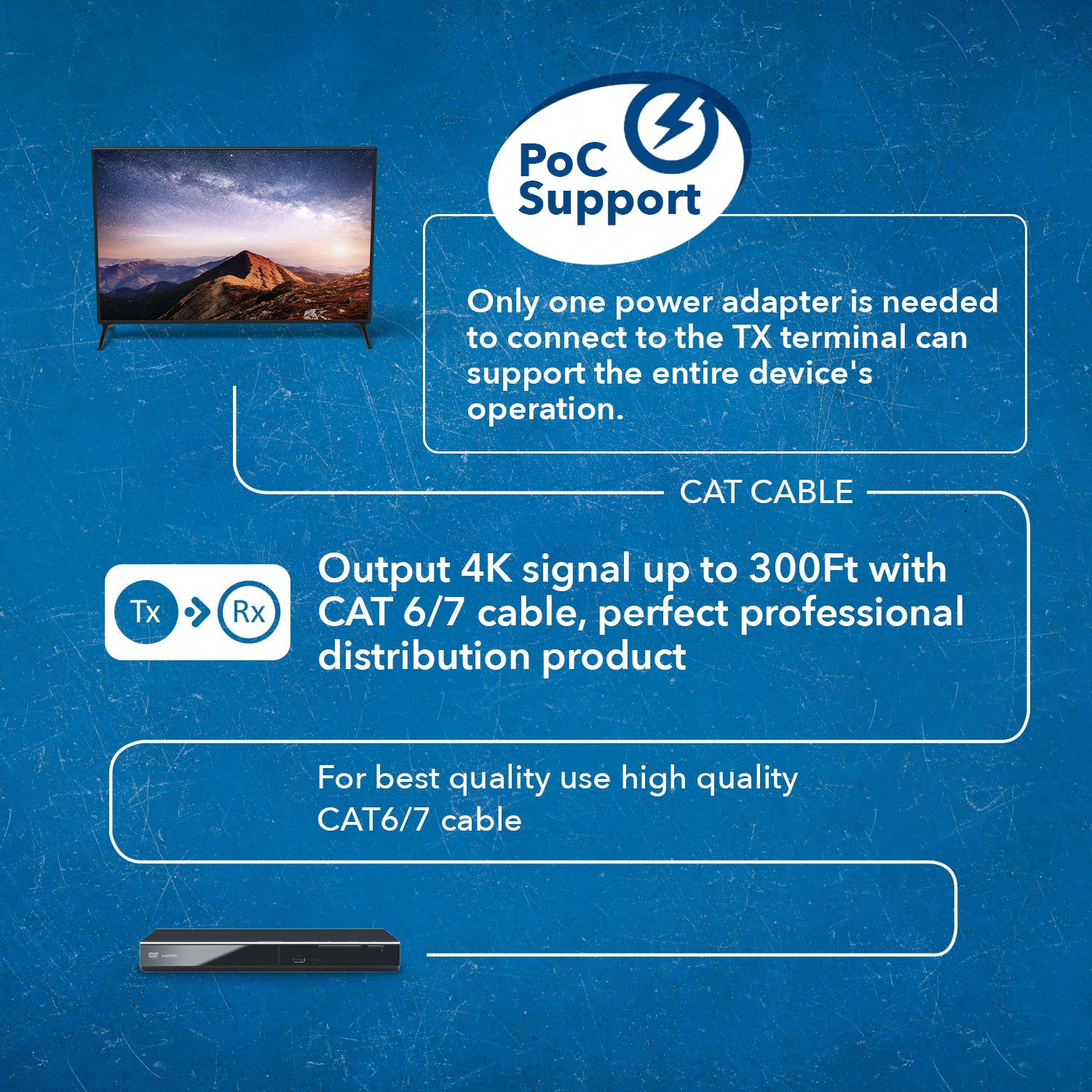

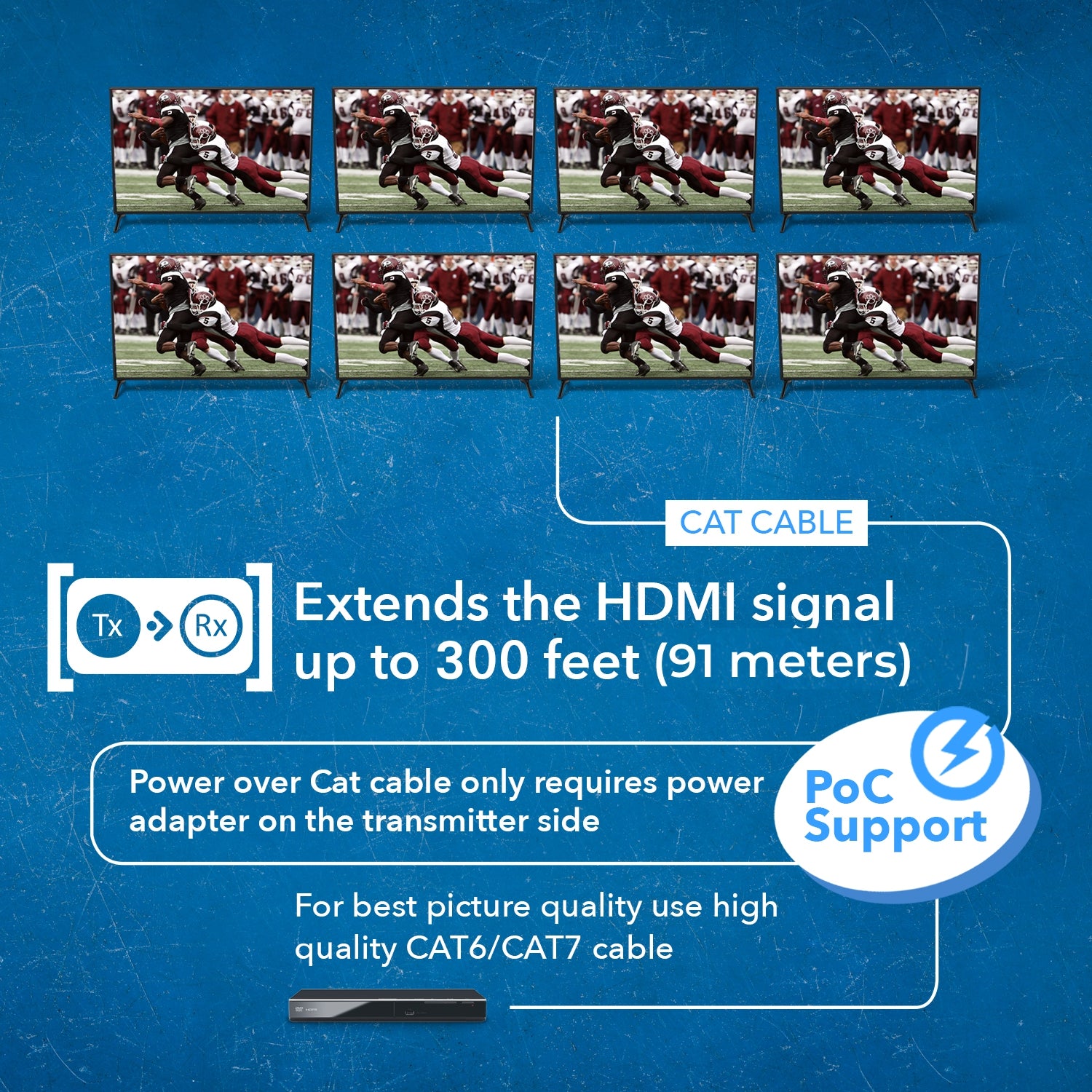

Supports POE Power Over Cable Function, so only a power adapter is required at the Transmitter End.

Key Features:
  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Support 8 HDMI sources to 2 independent HDMI outputs and 6 HDBaseT outputs
  • Supports Video resolution up to 4K@60Hz (YUV 4:4:4)
  • All HDMI outputs support audio embed and de-embed
  • Can extends 4K@60Hz up to 300 feet & 1080p@60Hz up to 330 feet
  • Supports 24V PoC where Transmitter is powered and Receiver don’t need to power supply
  • Supports bi-directional IR & RS-232 pass-through
  • HDMI Pass-through audio up to 7.1 channels of high-definition audio (LPCM, Dolby TrueD and DTS-HD Master Audio)
  • Built-in independent audio matrix with volume, mute and audio delay adjustment (PCM 2.0 only)
  • HDR, ARC, CEC and smart EDID management are supported
  • Control via front panel button, IR remote, RS-232 and Web GUI

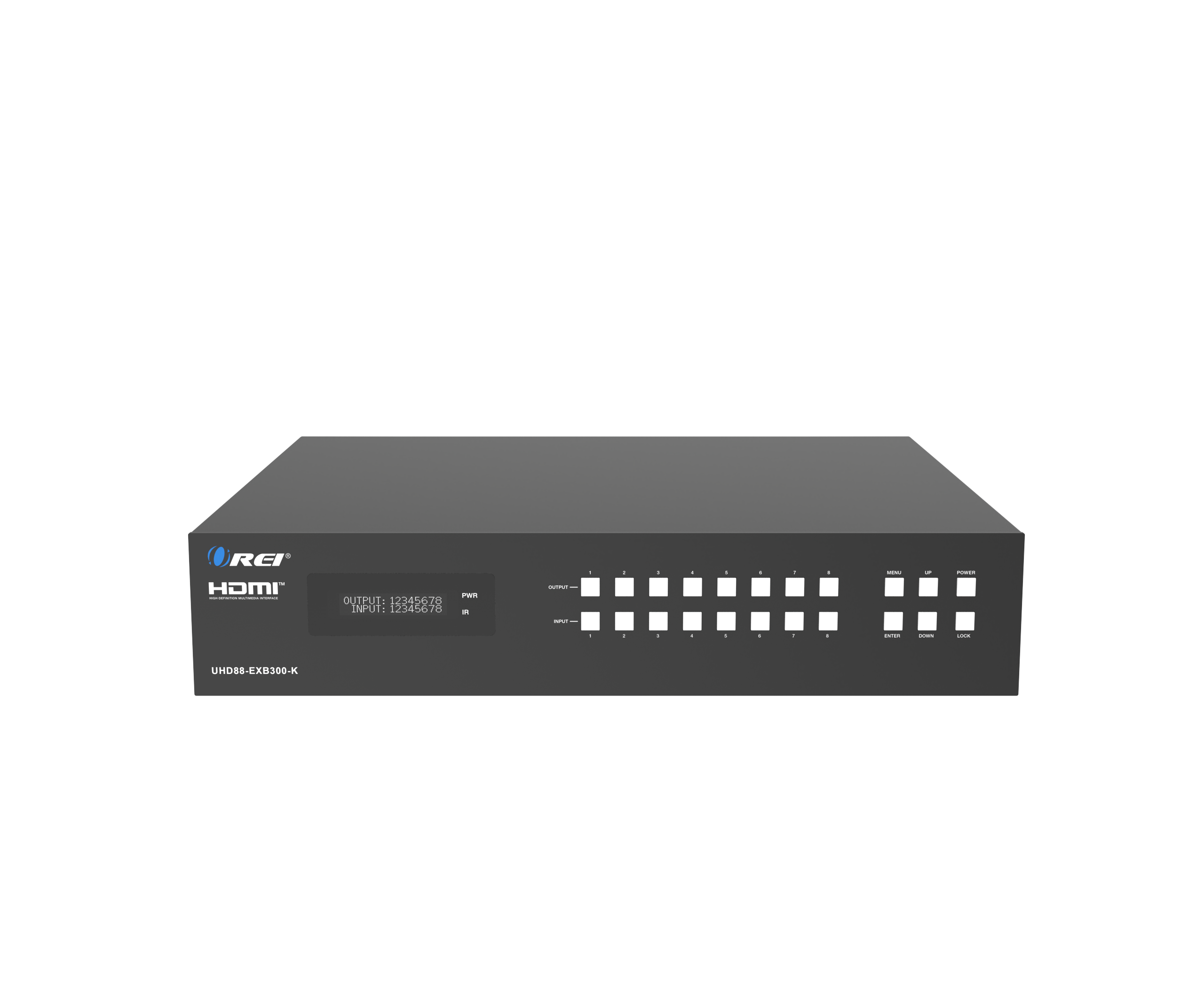

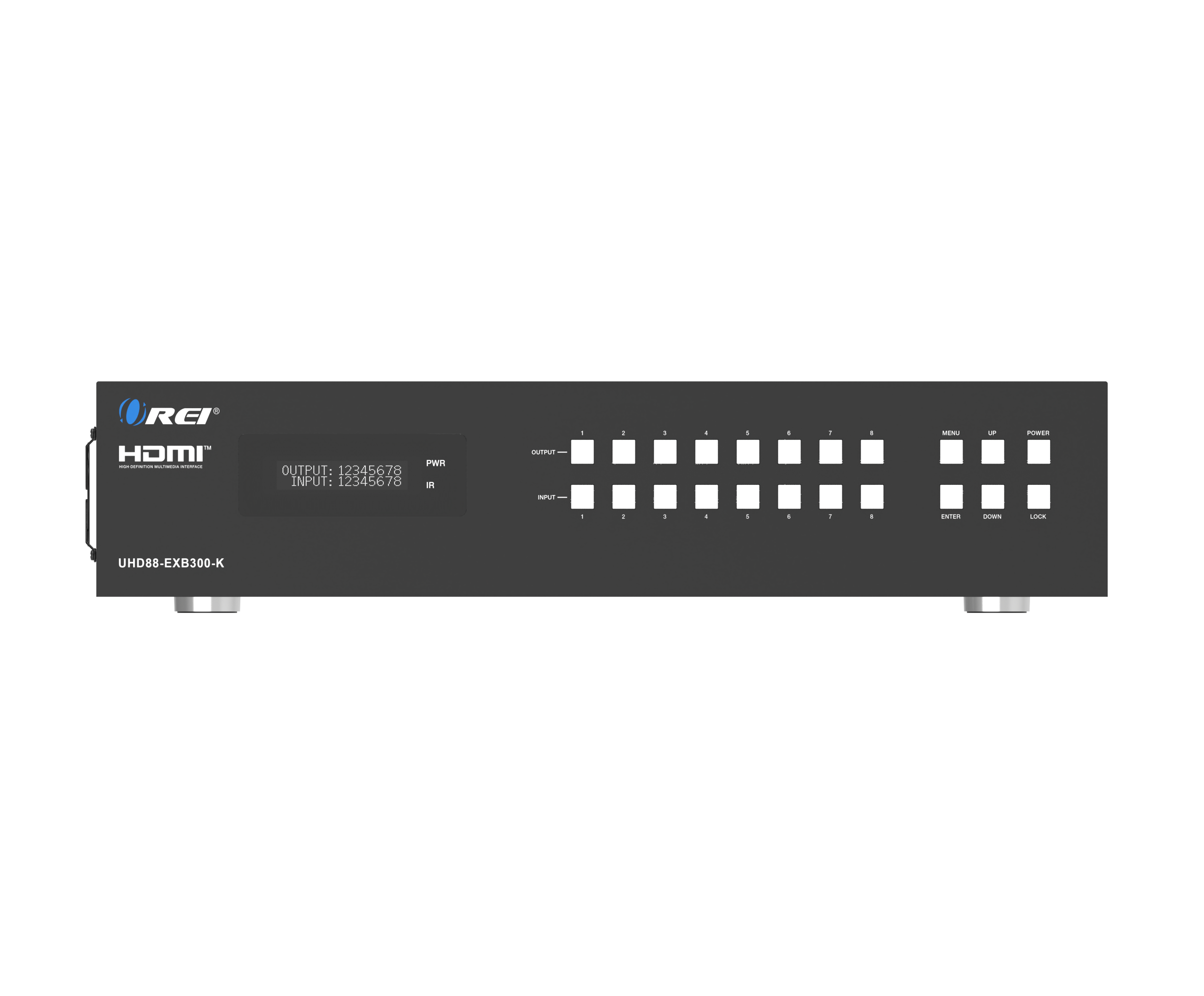

  • 2U rack mounted design with aluminium housing on the front
  • This unit requires only one power adapter to work
  • AUDIO AND VIDEO

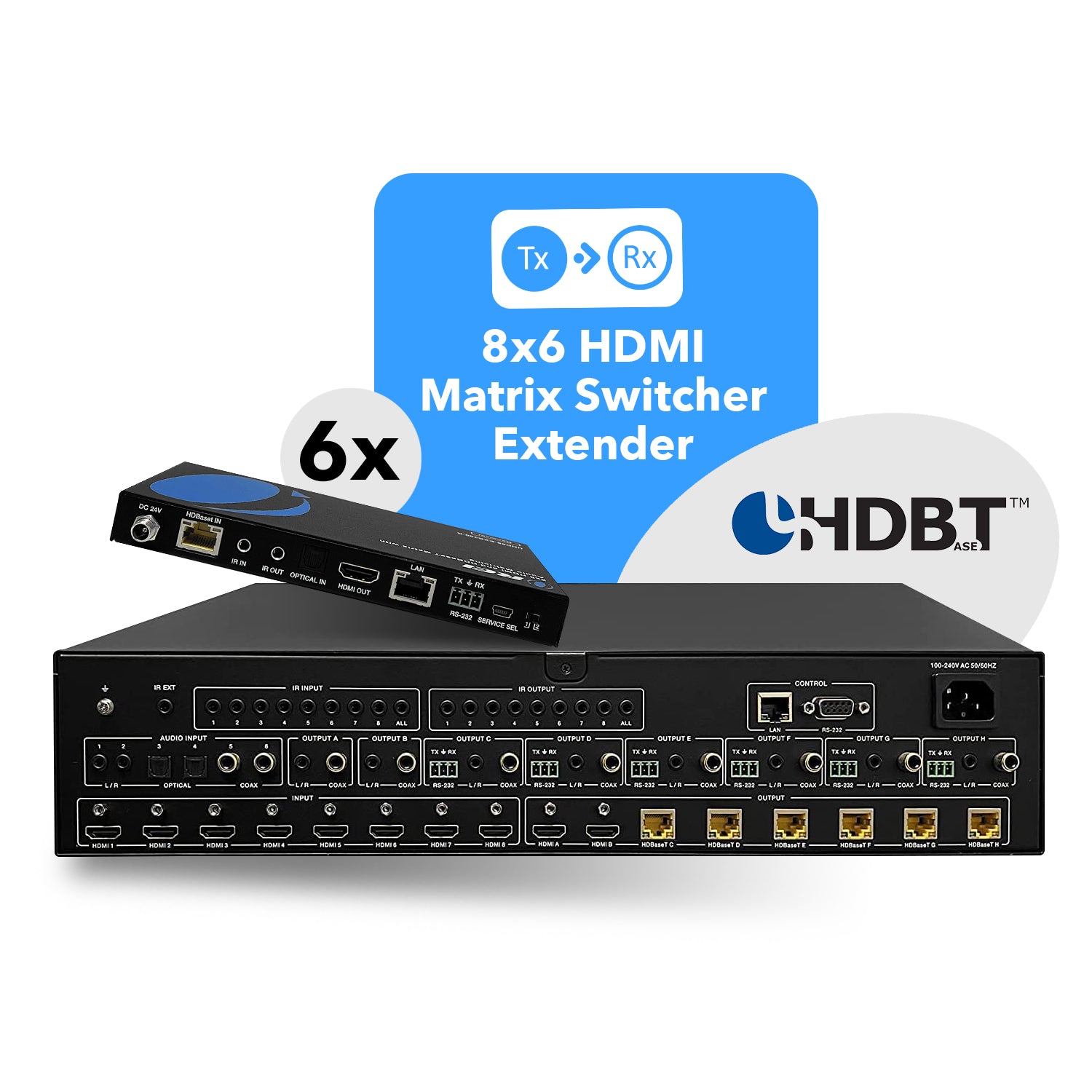

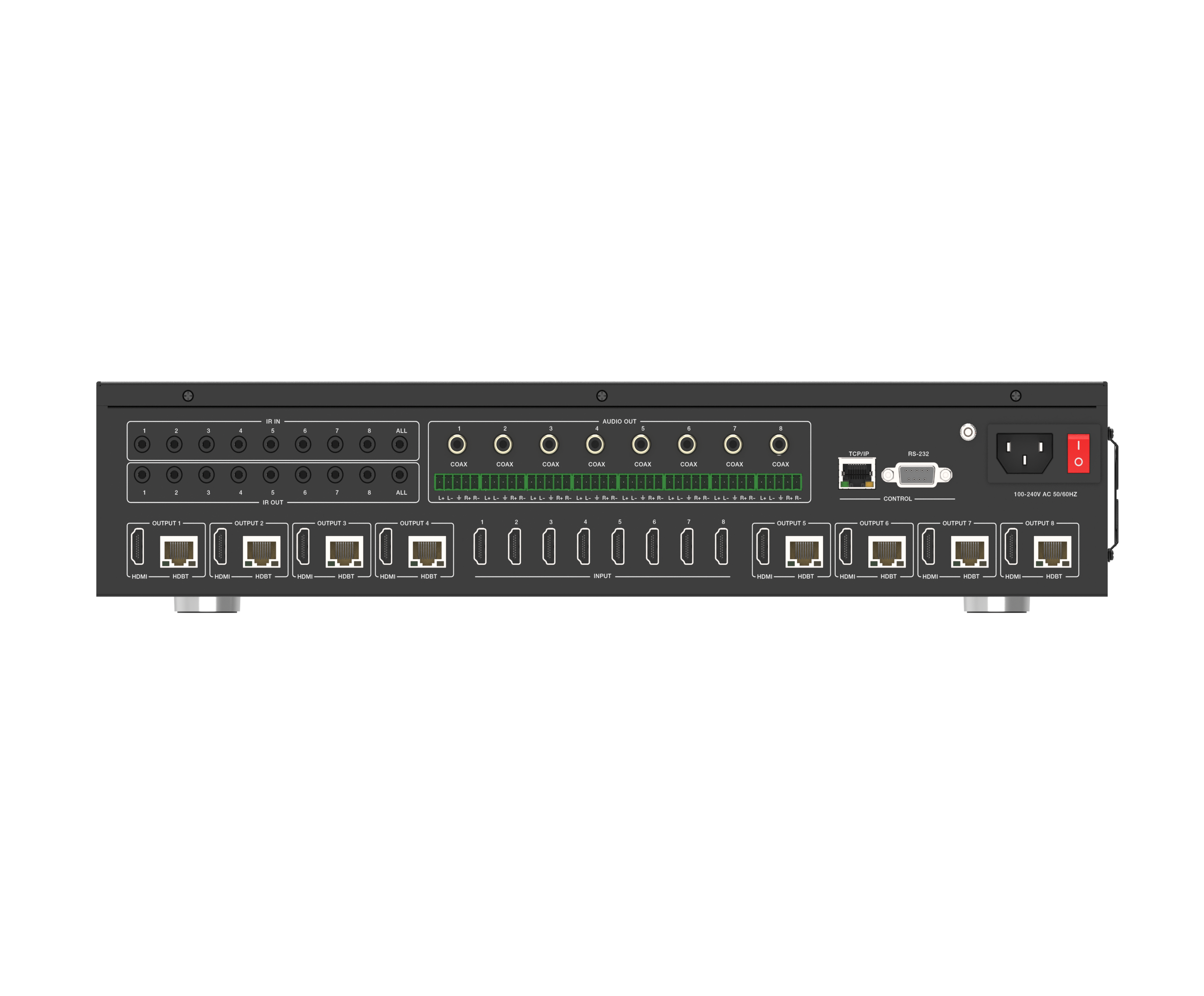

    • Transmitter:
      • INPUT PORTS:
        • 8x HDMI Type A [19-pin female]
        • 9x IR INPUT [3.5mm Stereo Mini-jack]
        • 1x IE EXT [3.5mm Stereo Mini-jack]
        • 2x L/R Audio INPUT [3.5mm Stereo Mini-jack]
        • 2x Optical Audio INPUT [S/PDIF]
        • 2x Coaxial Audio INPUT [RCA]
      • OUTPUT PORTS:
        • 2x HDMI Type A [19-pin female]
        • 9x IR OUTPUT [3.5mm Stereo Mini-jack]
        • 8x L/R Audio OUTPUT [3.5mm Stereo Mini-jack]
        • 8x Coaxial Audio OUTPUT [RCA]
        • 6x HDBaseT OUTPUT [RJ45]
      • CONTROL PORTS:
        • 6x RS-232 [Phoenix jack]
        • 1x LAN [RJ45]
        • 1x RS-232 [DB9]

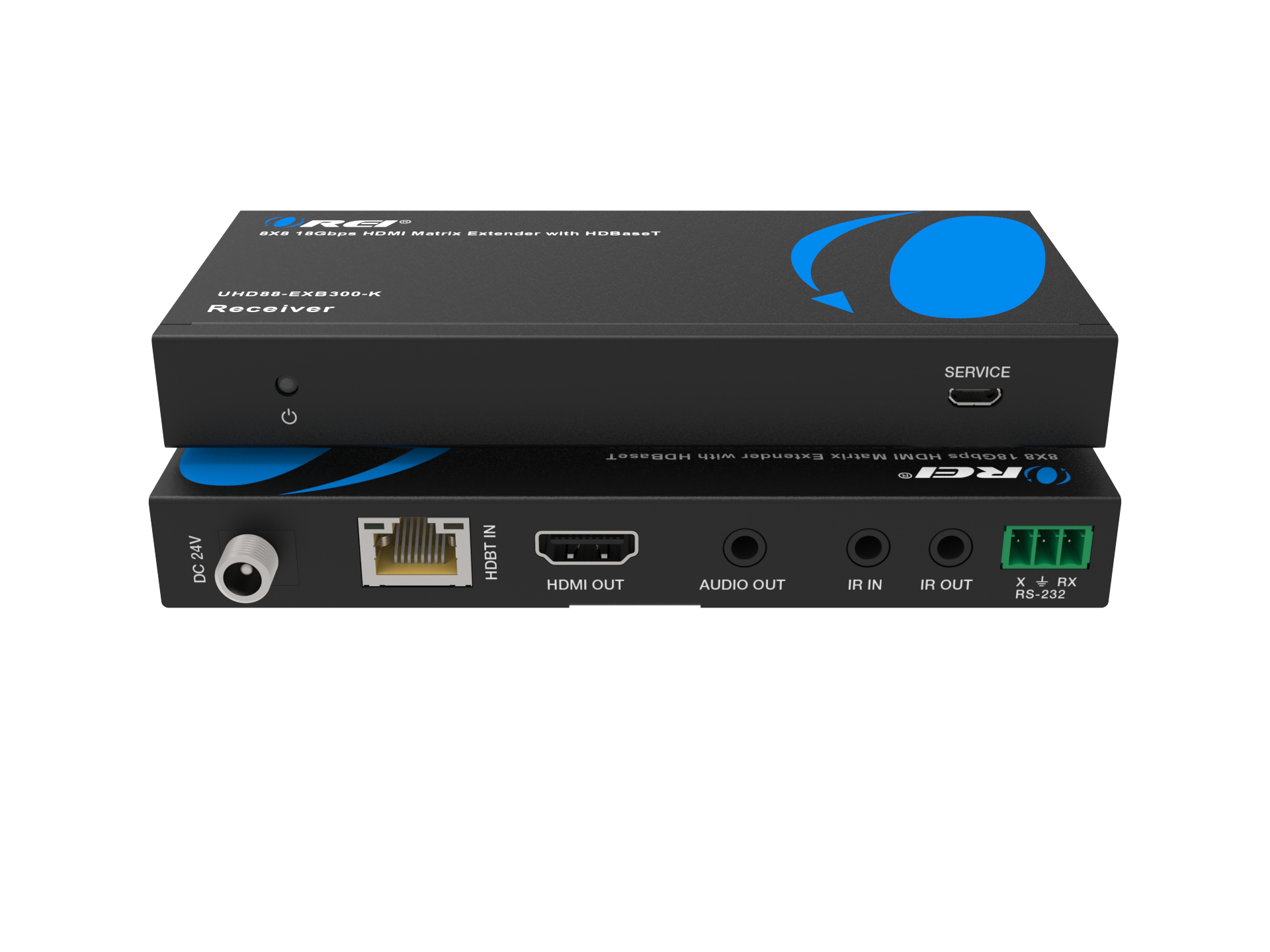

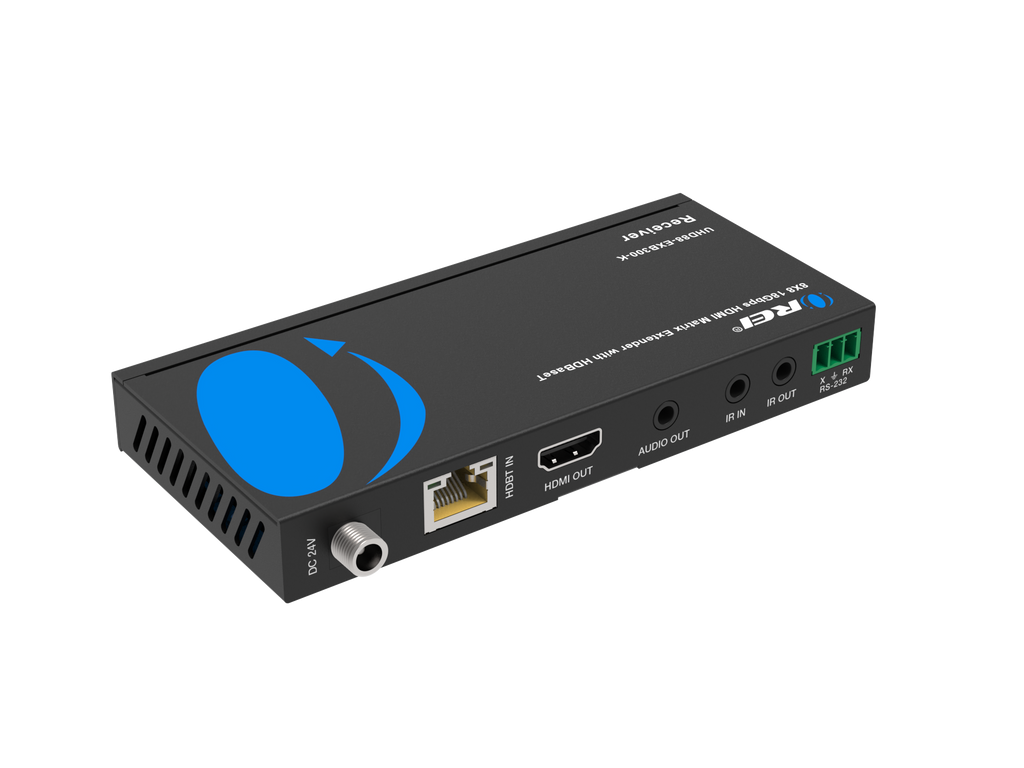

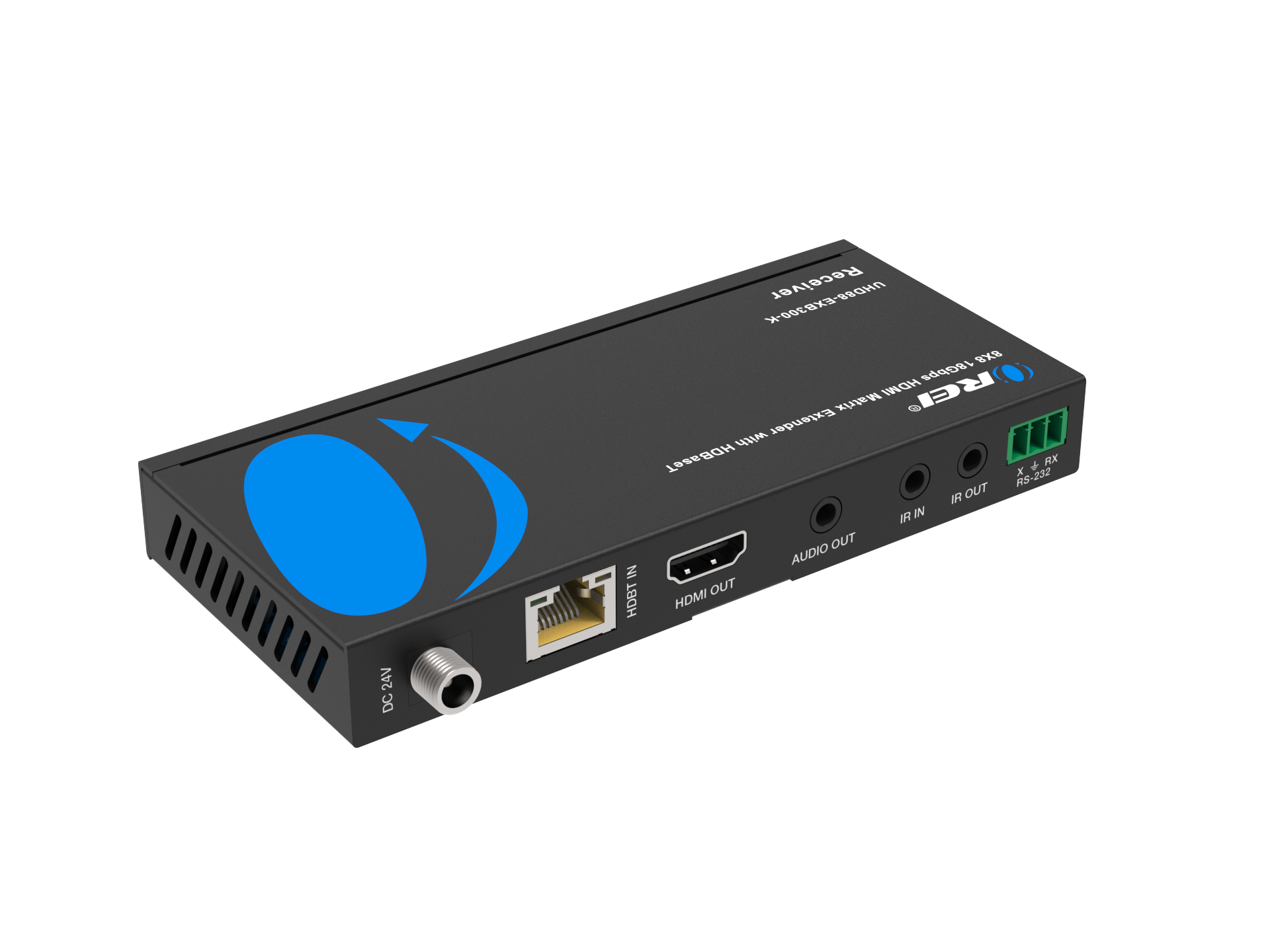

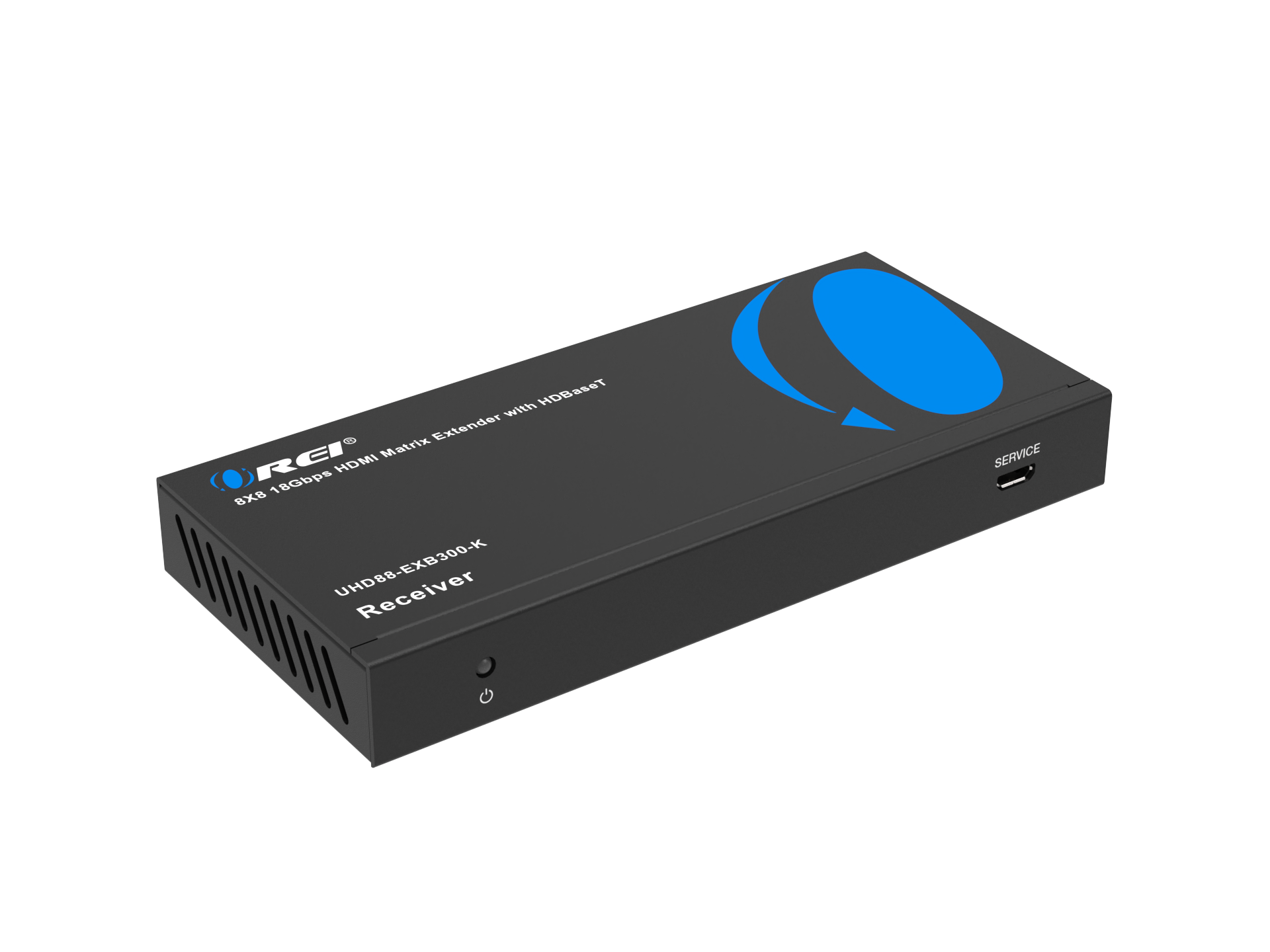

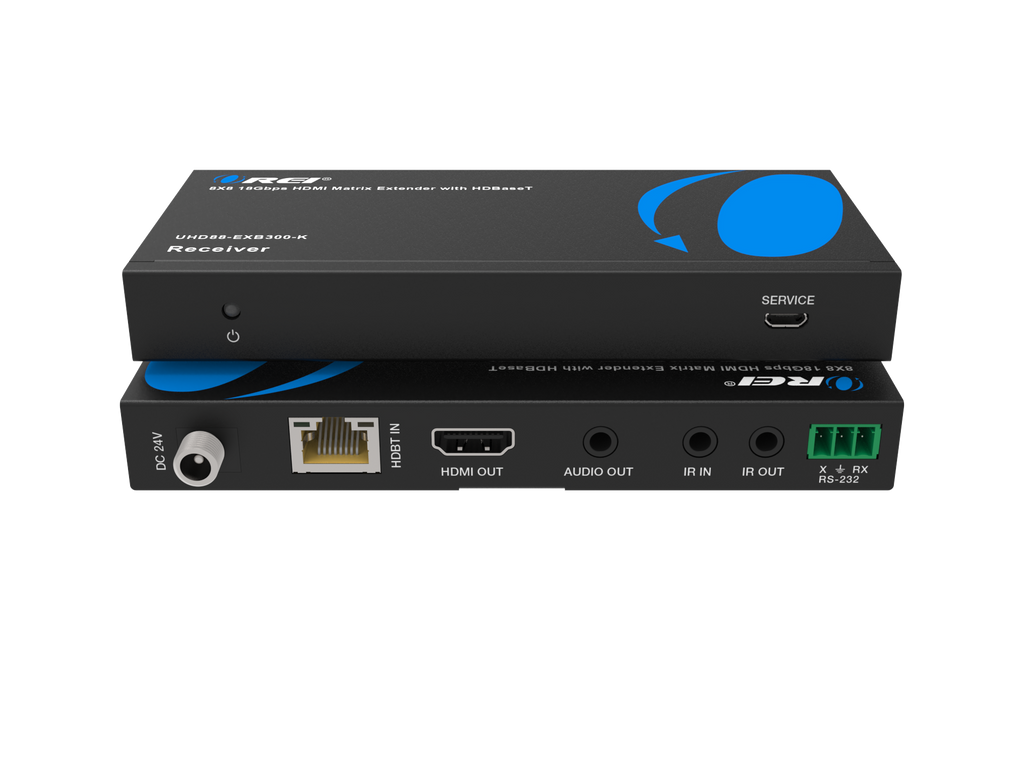

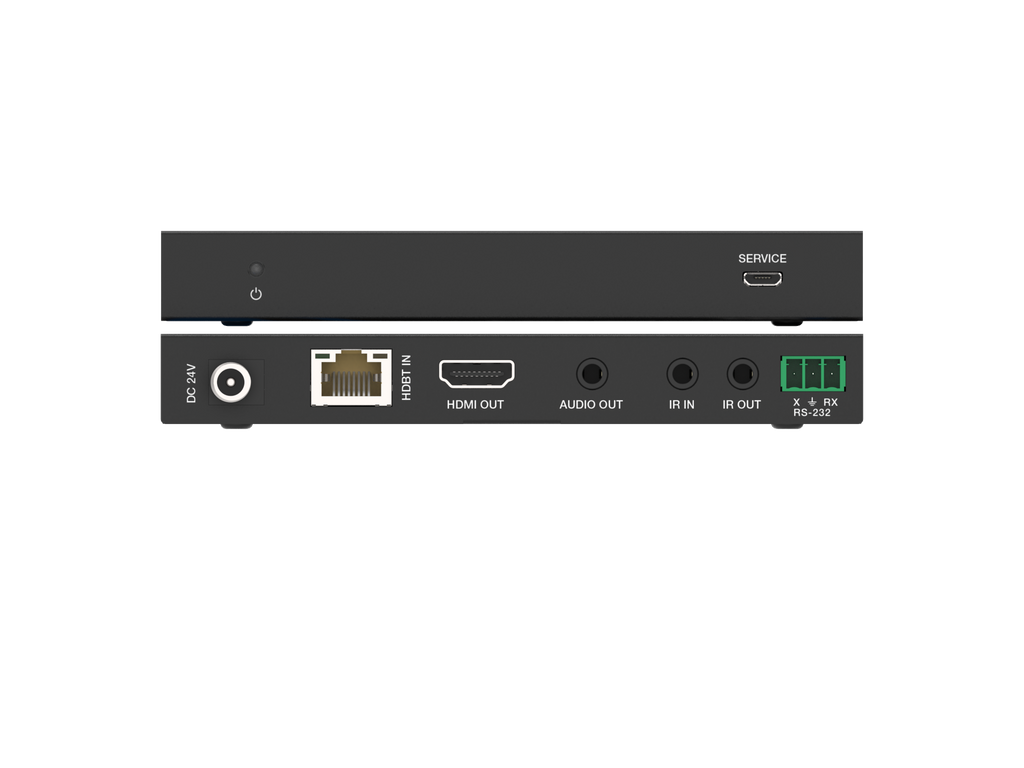

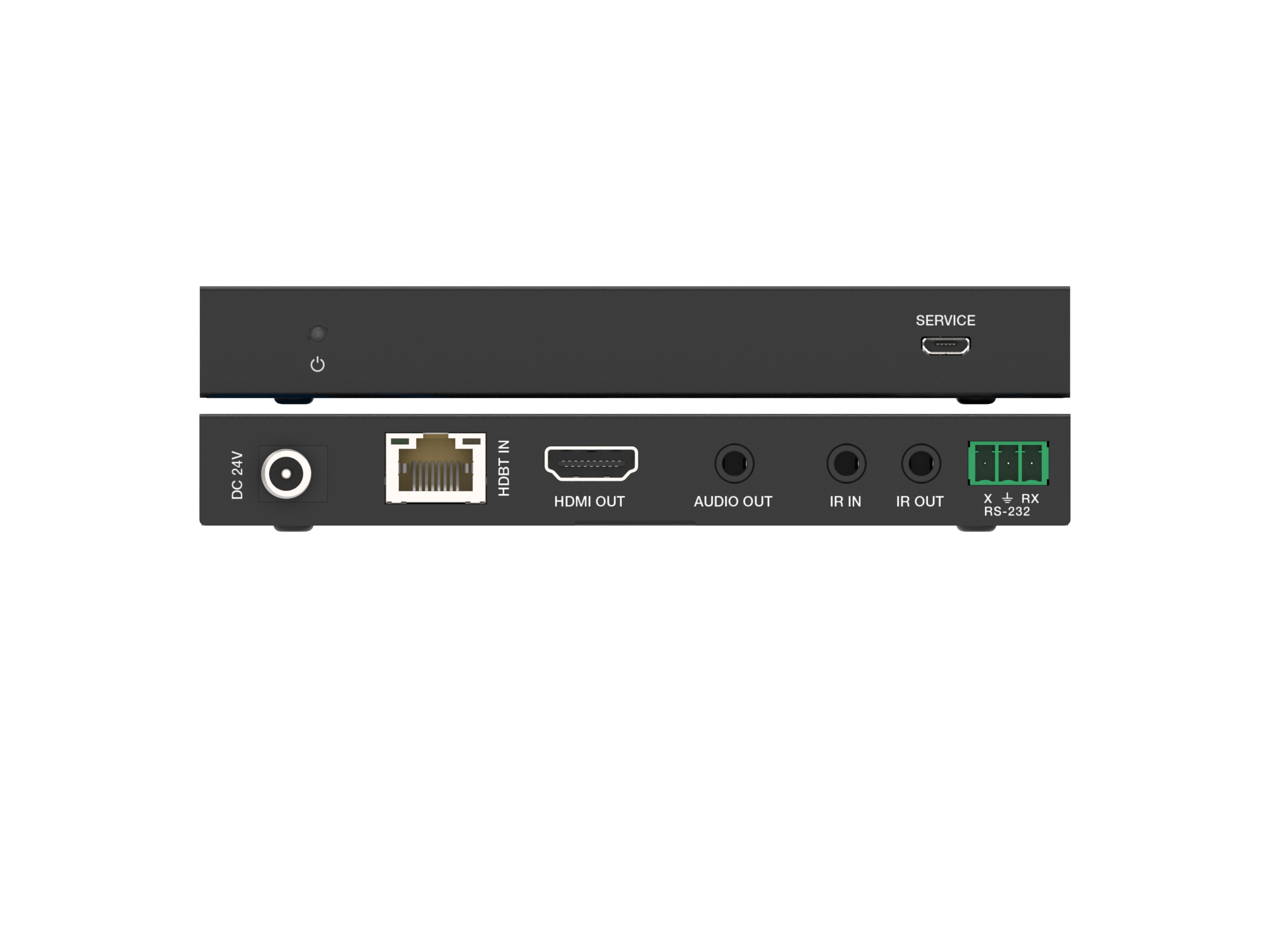

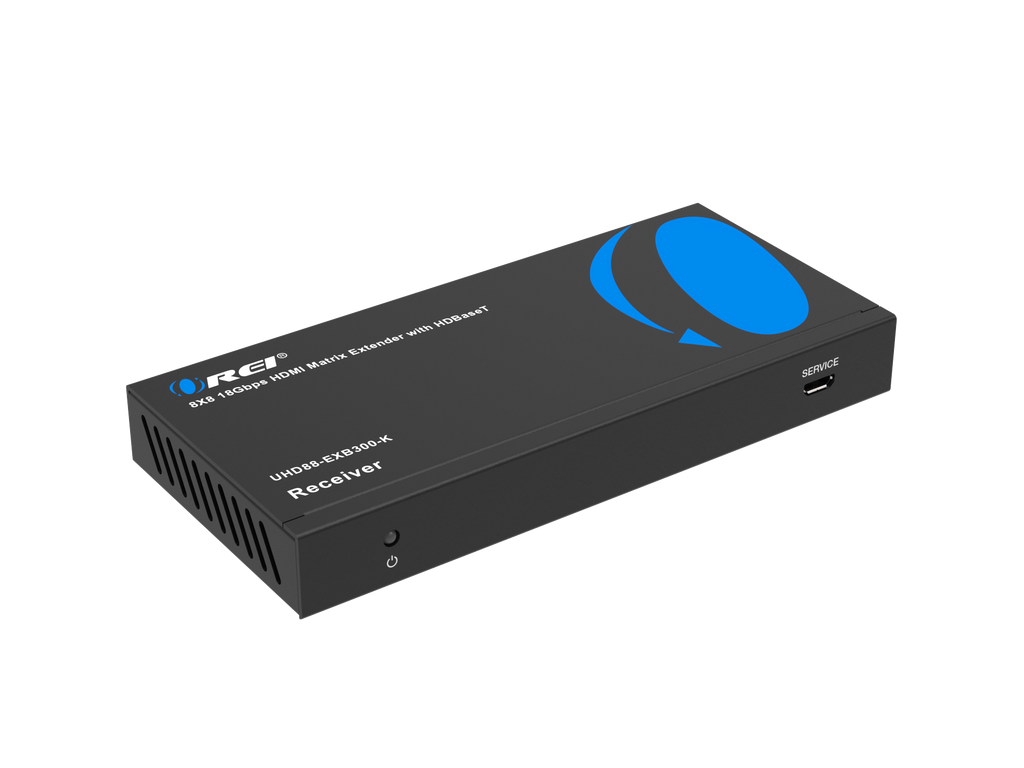

    • Receiver:
      • INPUT PORTS:
        • 1x HDBaseT IN [RJ45]
        • 1x IR IN [3.5mm Stereo Mini-jack]
        • 1x OPTICAL IN [S/PDIF]
      • OUTPUT PORTS:
        • 1x HDMI Type A [19-pin female]
        • 1x IR OUT [3.5mm Stereo Mini-jack]
      • CONTROL PORTS:
        • 1x RS-232 [Phoenix jack]
        • 1x LAN [RJ45]
        • 1x SERVICE [Micro USB]
  • COMPLIANCES
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • SUPPORTED CAT CABLES
    • CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
    • 4K@30Hz: Up to 300 Feet
    • 1080p@60Hz: Up to 330 Feet
  • VIDEO OUTPUT
    • Video Bandwidth: 18 Gbps
    • Video Resolutions: Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@24/30Hz, 1080p@120Hz and 1080p 3D@60Hz, 1080i@60Hz
    • Color Space: RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz)
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: Yes
    • ARC Function: Yes
    • USB KVM Function: No
    • PoC/PoE Function: Yes
    • IR Controller: Bi-Directional IR
    • Downscaler Function: No
    • Over Network/IP Function: No
    • HDBaseT Function: Yes
    • RS-232 Function: Yes
  • LOOP-OUT/LOCAL PORT
    • Has loop out port: Yes
    • Number of Loop out ports: 2
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM 2/5.1/7/1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Audio Formats (Audio Matrix): PCM 2.0, 32K/44.1K/88.2K/96K/192K, 16/20/24-bit
    • Audio Volume (Audio Matrix): -20dB ~ 0dB
    • L/R Audio Formats: Analog Stereo 2CH
  • SIGNALS
    • TMDS Signals: 3.3V
    • DDC Signals: 5V
    • Infrared: 20KHz ~ 60KHz

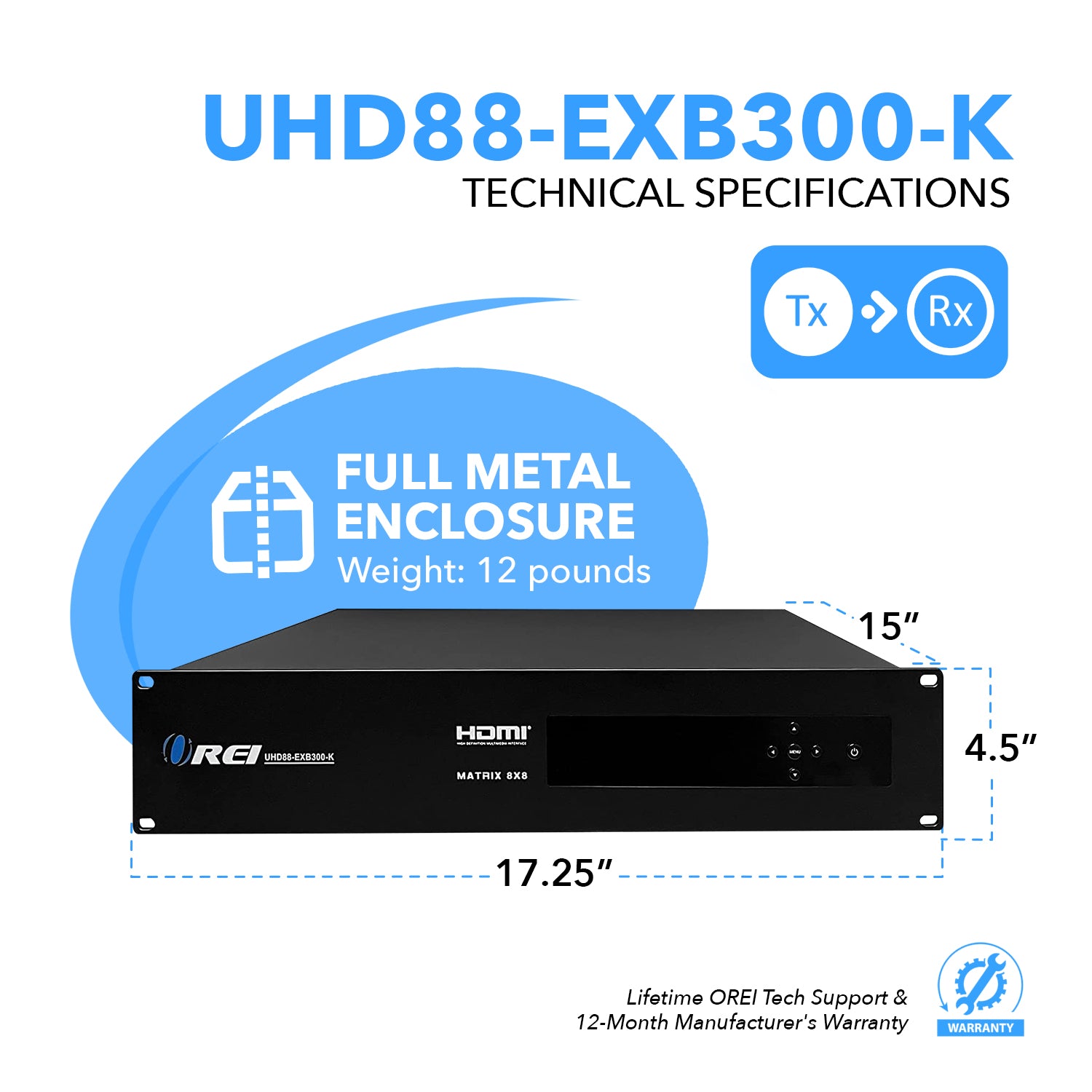

  • DIMENSIONS & WEIGHT
    • Transmitter:
      • Height: 88.6mm
      • Width: 483mm
      • Depth: 373mm
      • Weight: 6.7kg
    • Receiver:
      • Height: 20mm
      • Width: 171.8mm
      • Depth: 97mm
      • Weight: 333g
  • PROTECTION
    • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (non-condensing)
    • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
    • Electrostatic Protection of the whole Machine: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
  • RJ-45 CONNECTOR TYPE
    • WE/SS 8P8C
  • POWER
    • Power Consumption (Max): 85W
    • Power Supply: 100~240V AC 50/60Hz Power cable
  • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Metal Enclosure

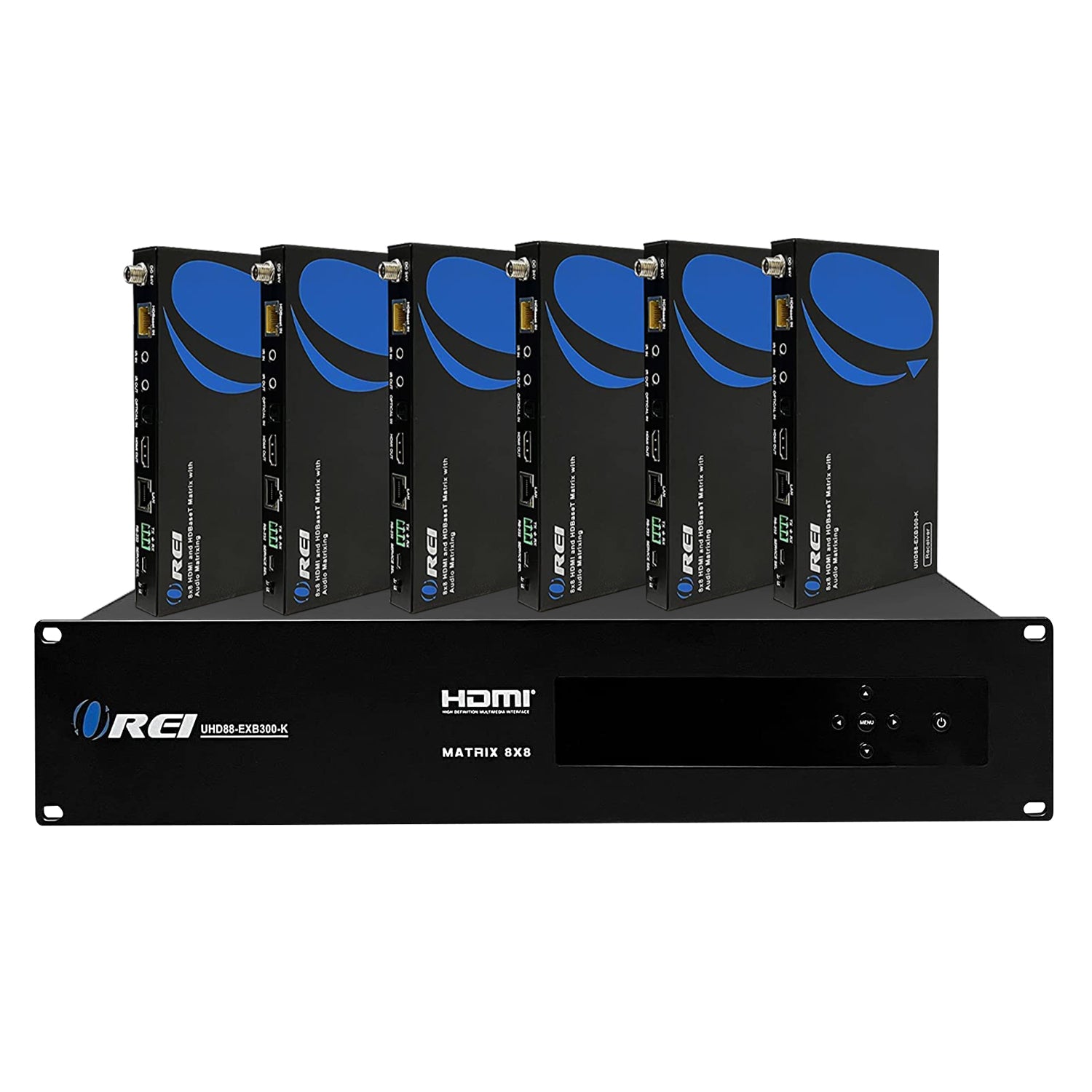

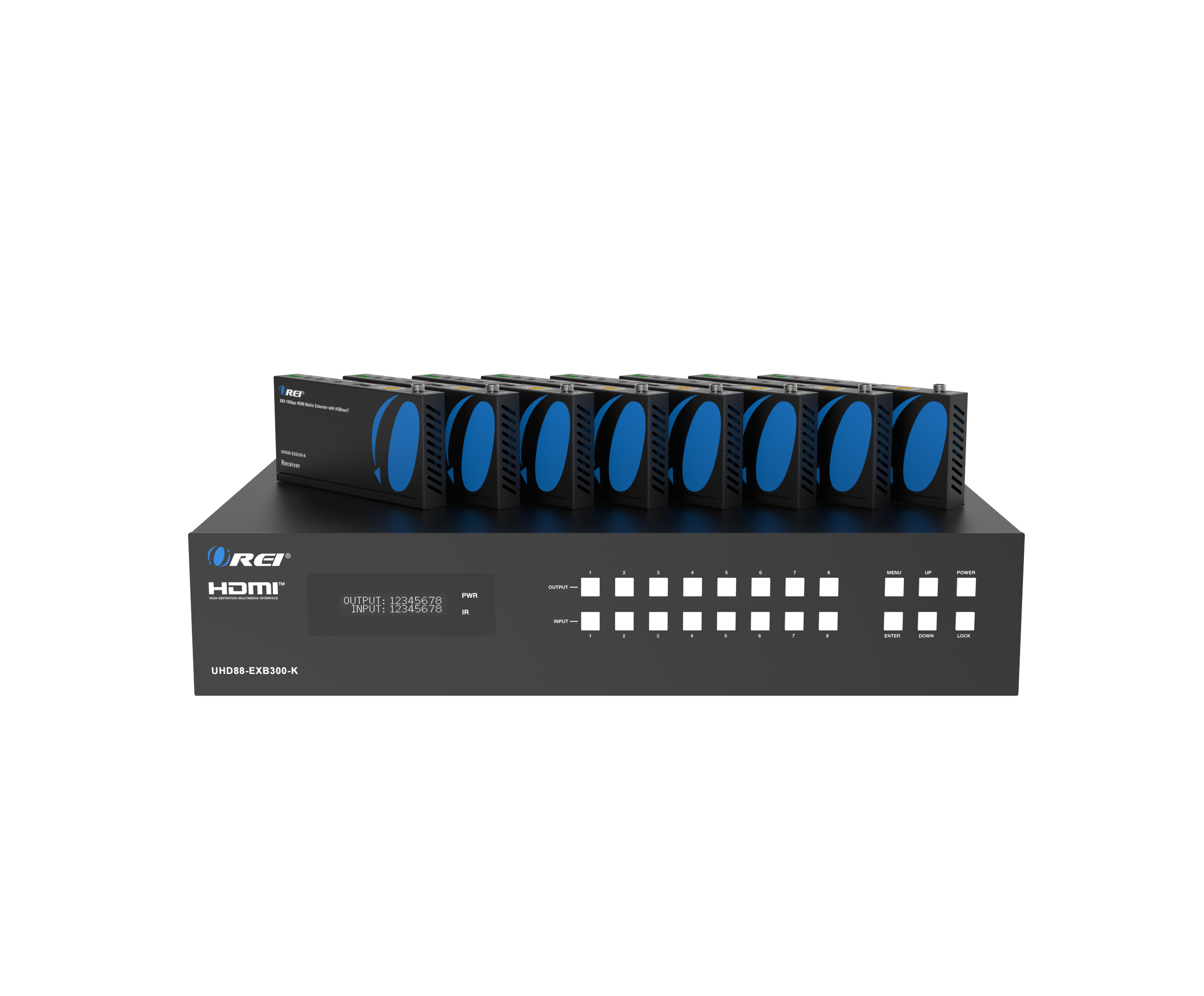

Includes:

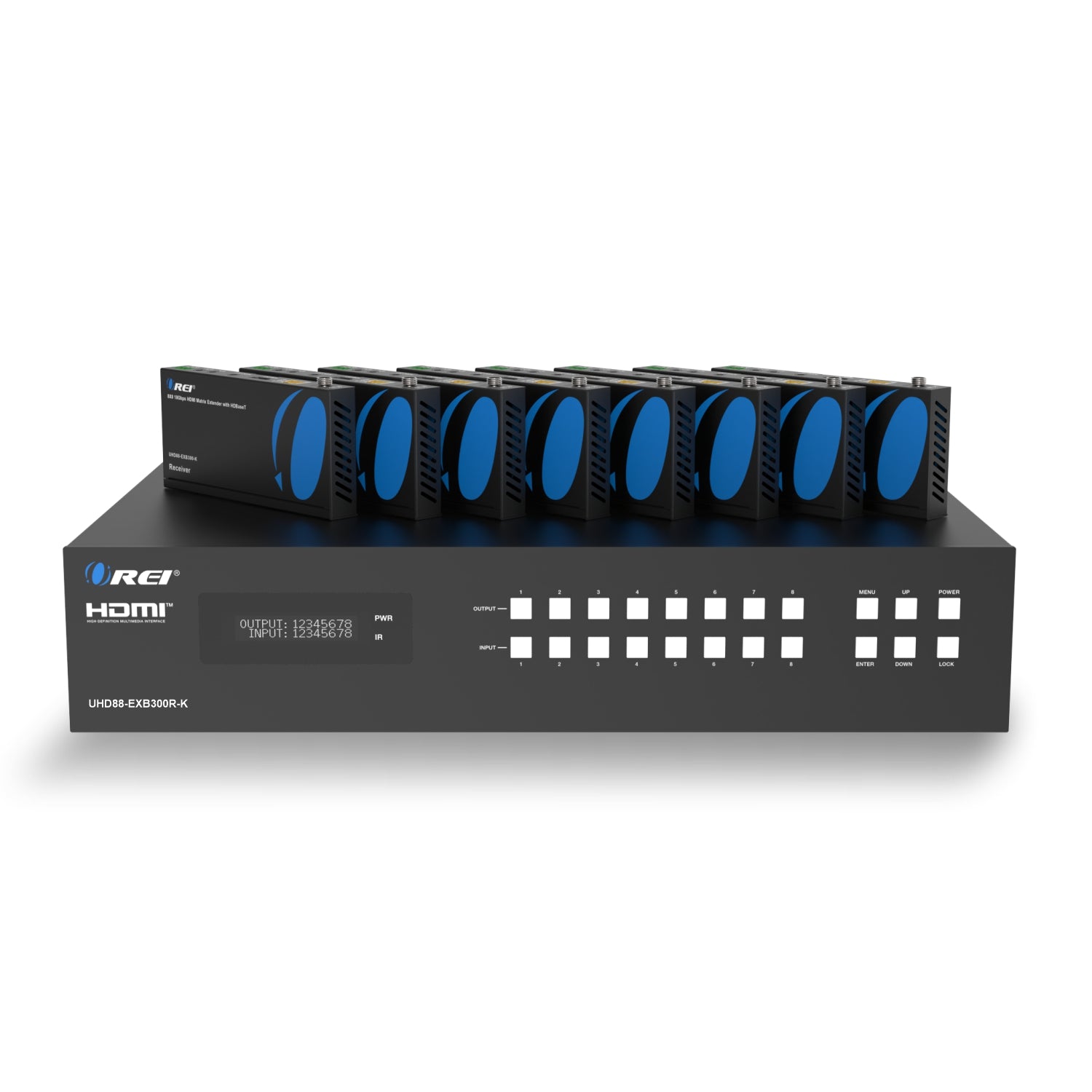

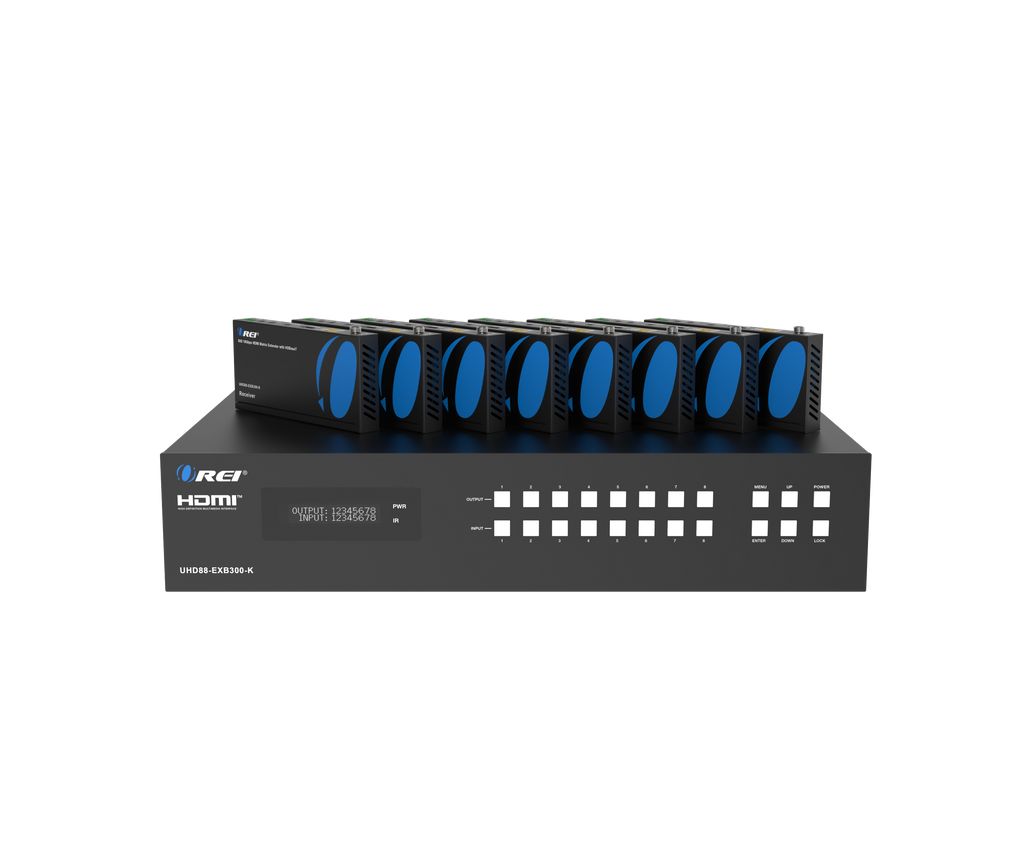

  • 1x 8x8 HDBaseT HDMI Transmitter
  • 6x HDBaseT Receivers
  • 9x Wideband IR Blaster cables
  • 10x Wideband IR Receiver cables
  • 1x Matrix IR Remote
  • 1x 100~240V AC 50/60Hz Power cable
  • 1x RS-232 serial cable (1.5m, male to femle head)
  • 16x 3-pin Phoenix Connectors
  • 12x Mounting Ears
  • 1x User Manual

Warranty:

  • 1 - Year Manufacturer's Warranty
