$999.00

  |

In Stock: Usually Ships in 24 Hours

  • Built in Audio Matrixing
  • Supports HDR10, Dolby Vision, ARC, CEC and smart EDID management
  • 24V POC on all HDBaseT ports
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

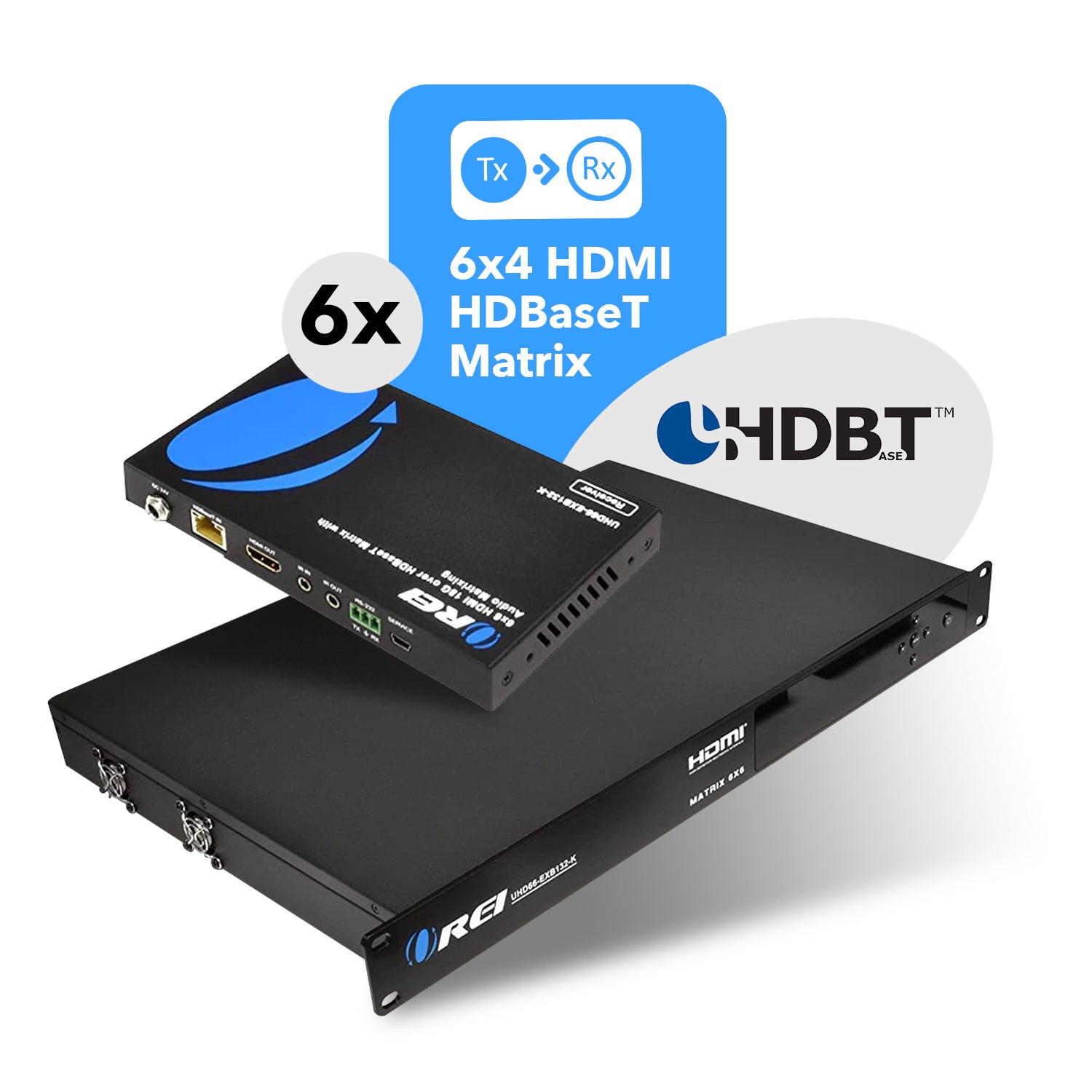

OREI UHD66-EXB132-K - 4K 6x4 HDBaseT HDMI Matrix - 132 Feet


UHD66-EXB132-K is 6x6 HDMI HDBaseT matrix supports the transmission of video (resolutions up to 4K@60Hz 4:4:4, HDCP 2.2, HDMI 2.0) and multi-channel digital audio from 6 HDMI sources to 4 HDBaseT outputs and 2 independent HDMI 2.0 outputs.

HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 230 feet and the HDMI Loop outputs support cable lengths of up to 33 feet. This matrix built-in an independent 18x12 digital audio matrix with volume/delay tuning and also supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTSHD Master Audio as well as 3D video content pass-through.

The matrix can be easily controlled via the front panel button, IR, RS-232, Telnet and Web GUI.

Key Features:
  • HDMI 2.0b, HDCP 2.2 and DVI compliant

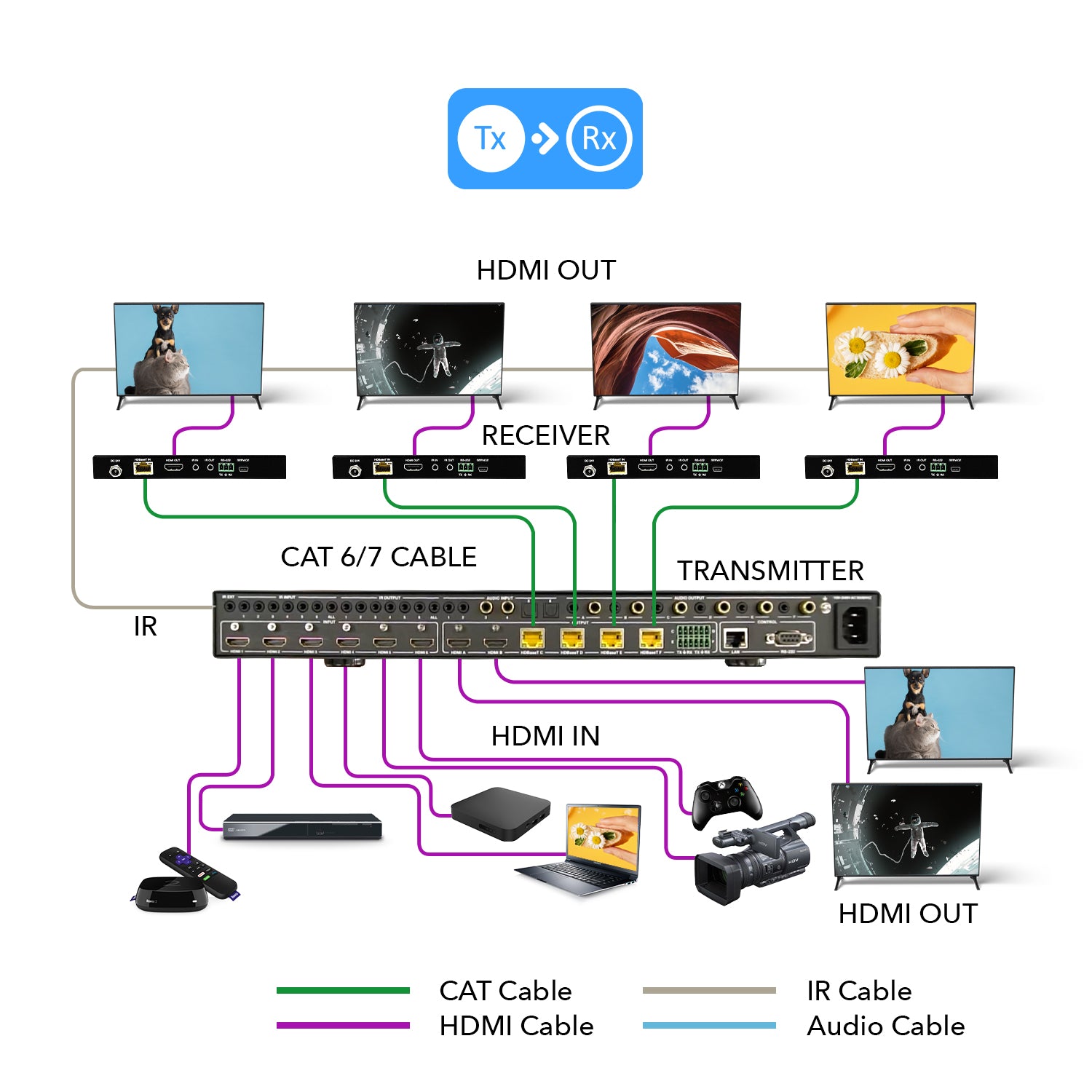

  • Routes 6 HDMI sources to 6 displays including 4 HDBaseT outputs and 2 local outputs
  • Supports resolutions up to 4K@60Hz (YUV 4:4:4) on all HDMI ports
  • Supports automatic 4K@60Hz (YUV 4:4:4) to 4K@60Hz (YUV 4:2:0) conversion for all HDBaseT outputs

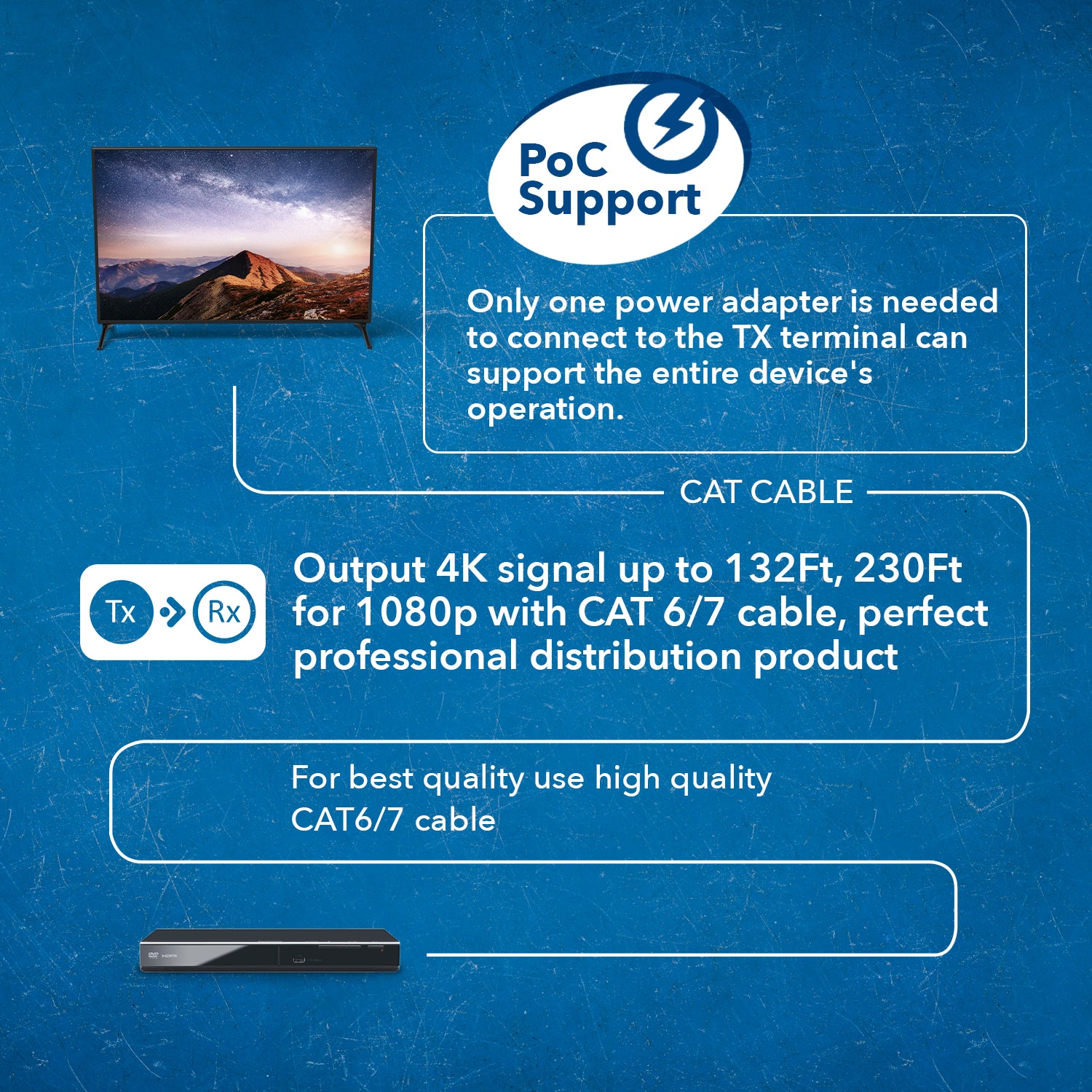

  • 4K signals can be transmitted up to 130 feet/40 meters and 1080p up to 230 feet/70 meters via CAT6/7
  • Supports LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
  • Built-in independent audio matrix with Volume, Mute and Audio delay adjustment for lip-sync (LPCM only)
  • HDR10, Dolby Vision, ARC, CEC and smart EDID management supported

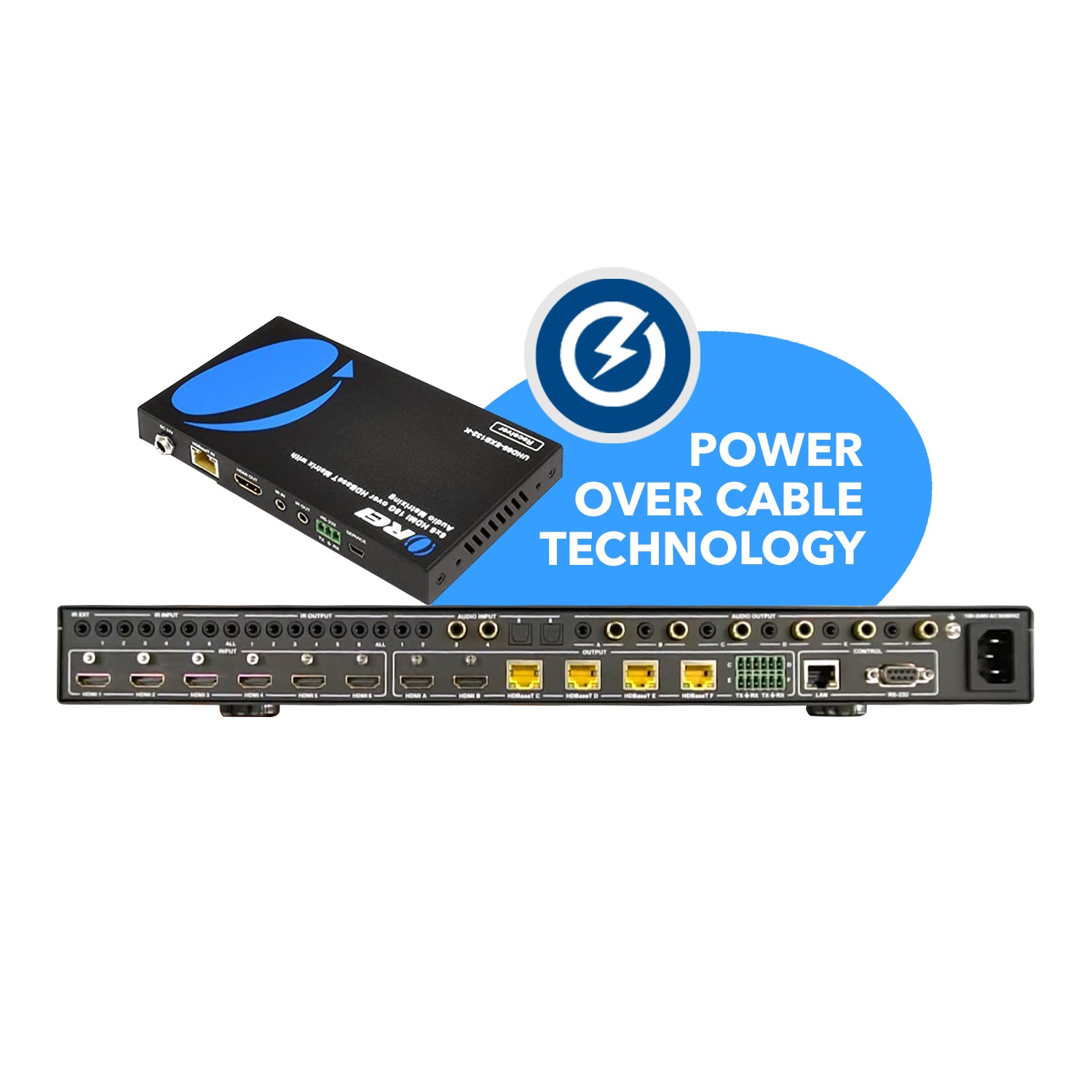

  • 24V POC on all HDBaseT ports
  • Control is via on-panel Button, IR, RS-232, Telnet and Web GUI
  • 1U rack mounted design with aluminium front panel housing
  • AUDIO AND VIDEO
    • Inputs:
      • 6x HDMI Type A [19-pin female]
      • 2x L/R Audio IN [3.5mm Stereo Mini-jack]
      • 2x Optical Audio In [S/PDIF]
      • 2x Coaxial Audio In [S/PDIF]
      • 8x IR In [3.5mm Stereo Mini-jack]
      • 4x RX-232 [3pin Phoenix Jack]
      • 1x TCP/IP [RJ45]
    • OUTPUTS:
      • 2x HDMI Typpe A [19-pin female]
      • 4x HDBaseT Out [RJ45]
      • 6x L/R Audio Out [3.5mm Stereo Mini-jack]
      • 6x Optical Out [S/PDIF]
      • 7x IR Out [3.5mm Stereo Mini-jack]
  • COMPLIANCES & PROTOCOLS
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2 & 1.4
  • SUPPORTED CAT CABLES
    • SUPPORTED CAT CABLES: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
    • 4K@60Hz: 130 Feet
    • 1080p@60Hz: 230 Feet
  • VIDEO OUTPUT
    • Video Bandwidth: Up to 18 Gbps
    • Video Resolutions: Up to 4K@60Hz (YUV 4:4:4), 1080p@120Hz, 1080p 3D@60Hz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 10-bit, 12-bit
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: Yes
    • ARC Function: Yes
    • USB KVM Function: No
    • PoC/PoE Function: Yes
    • IR Controller: Yes
    • Downscaler Function: No
    • Over Network/IP Function: No
    • HDBaseT Function: Yes
    • RS-232 Function: Yes
  • LOOP-OUT/LOCAL PORT
    • Has loop out port: Yes
    • Number of Loop out ports: 2
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM 2/5.1/7.1Ch, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • SPDIF/Optical Audio Formats: LPCM 2/5.1/7.1Ch, Dolby Digital, DTS 5.1, Dolby Digital+
    • Analog/Coaxial Audio Formats: LPCM 2CH up to 192KHz sample rate
    • L/R Audio Formats: Analog Stereo 2Ch
  • SIGNALS
    • TMDS Signals: 3.3V
    • DDC Signals: 5V
    • Infrared Frequency: 20KHz - 60KHz
  • DIMENSIONS & WEIGHT
    • Height: 44.5mm
    • Width: 483mm
    • Depth: 303mm
    • Weight: 2110g
  • PROTECTION
    • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (Non-condensing)
    • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
    • Electrostatic Protection of the whole Machine: Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
  • RJ-45 CONNECTOR
    • WE/SS 8P8C
  • POWER
    • Power Consumption (Max): 60W
    • Power Supply: Input: AC 100 - 240V 50/60Hz
  • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Metal Enclosure
    • Processing Technology: Metal Plate
    • Finishing: Powder Spraying Technology, Screen Printing

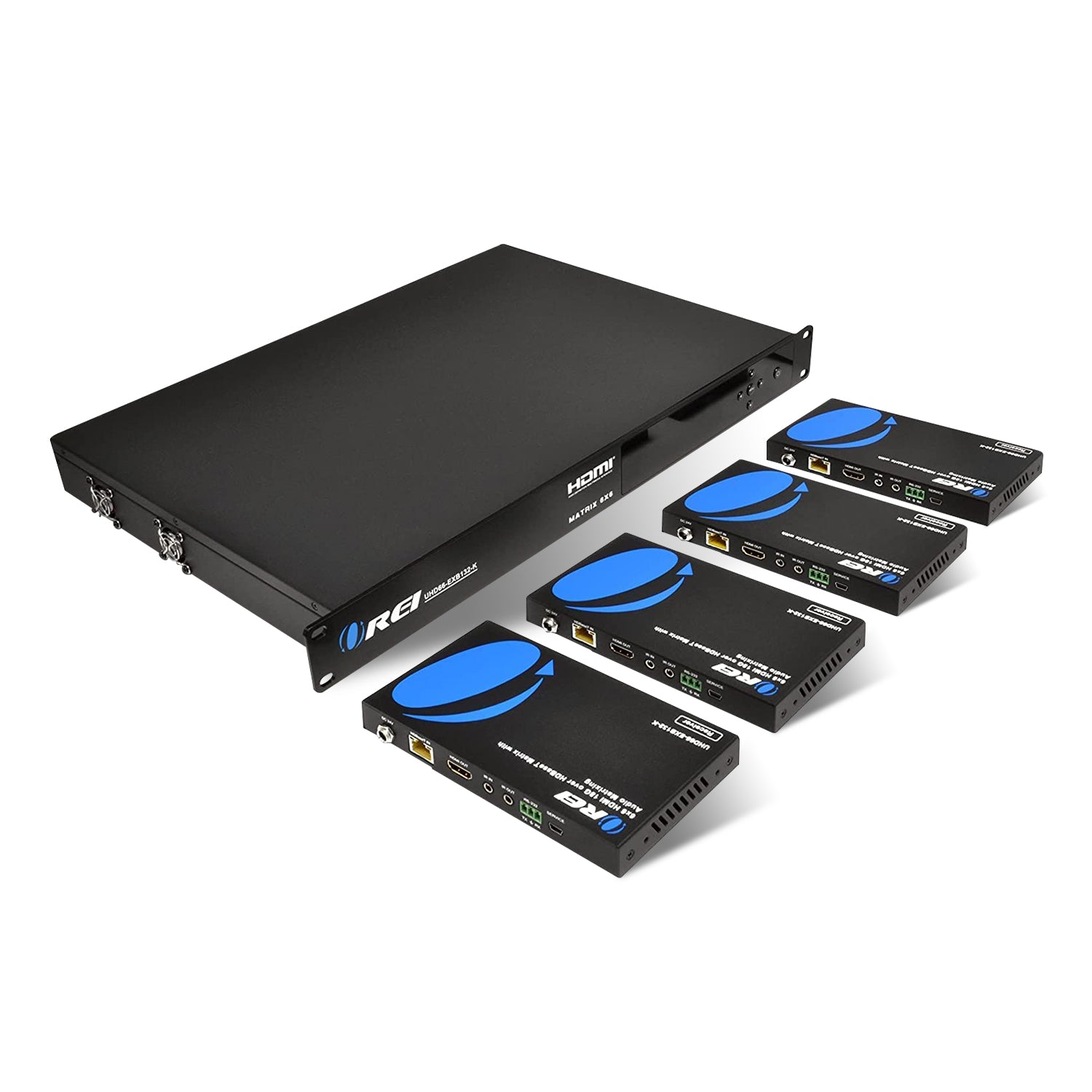

Includes:

  • 1x HDMI Matrix Transmitter
  • 4x HDBaseT Receivers
  • 7x Wideband IR Blaster cables
  • 8x Wideband IR Receiver cables
  • 1x RS-232 male to female cable
  • 1x AC power cable
  • 1x Remote Controller
  • 1x User Manual

Warranty:

  • 1-Year Manufacturer's Warranty



Request a Quote


OREI 4K 6x4 HDMI HDBaseT Matrix Over CAT6/7 up to 132 Feet, 18Gbps Bandwidth with HDR, CEC & IR Control (UHD66-EXB132-K)
