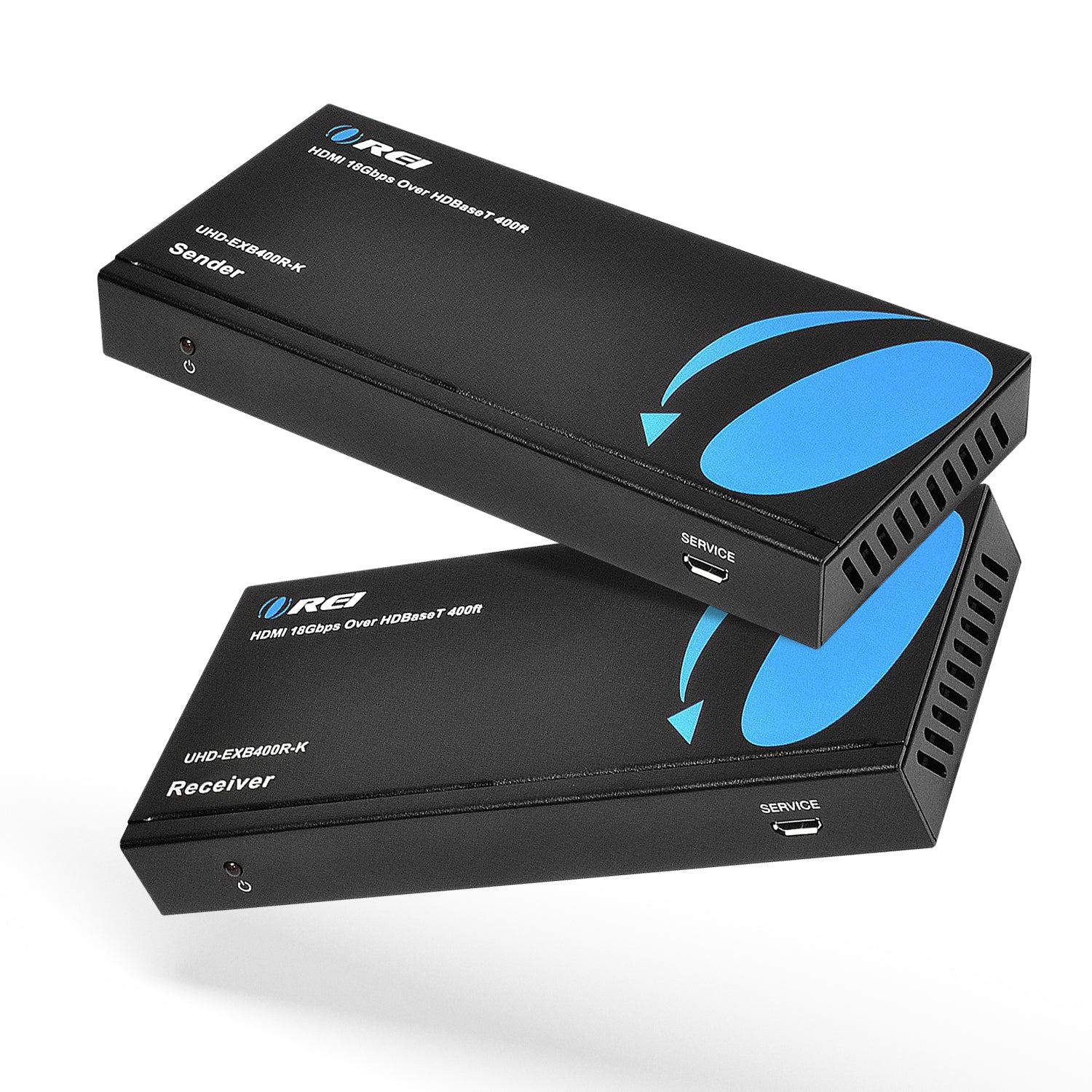

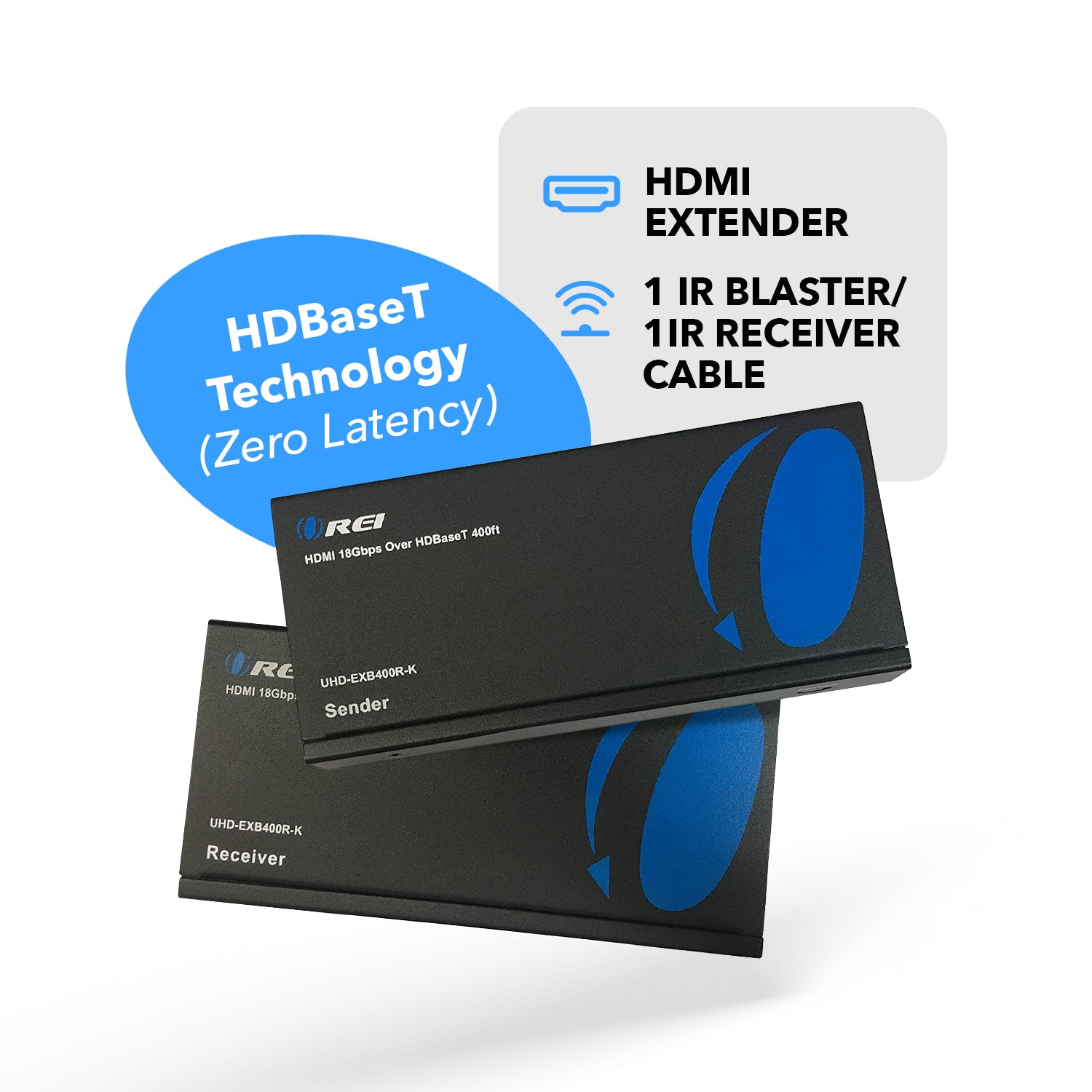

OREI HDBaseT HDMI Extender 4K Upto 400 feet, Bi-directional IR Control
Using a single Cat5e/6 cable, the extender transmits uncompressed HDMI audio and video, RS-232 serial and bi-directional IR control up to 400 feet(150meter) from the previous unit in the chain(either the transmitter or another transceiver), including the 4K signal @ 60Hz and 2K@60Hz.
RS-232 serial signals and IR remote control signals also pass through the transceiver, so your HDBaseT installation can control such RS-232 devices as scanners and touchscreen displays at baud rates up to 115 Kbps. You can also operate a Blu-ray player using its remote when at the remote monitor and vice versa. Attach the OREI Extender to a wall, rack or pole using the included hardware.
Key Features:
- Extends the 4K HDMI signal up to 400 feet
- Supports HDBaseT Technology

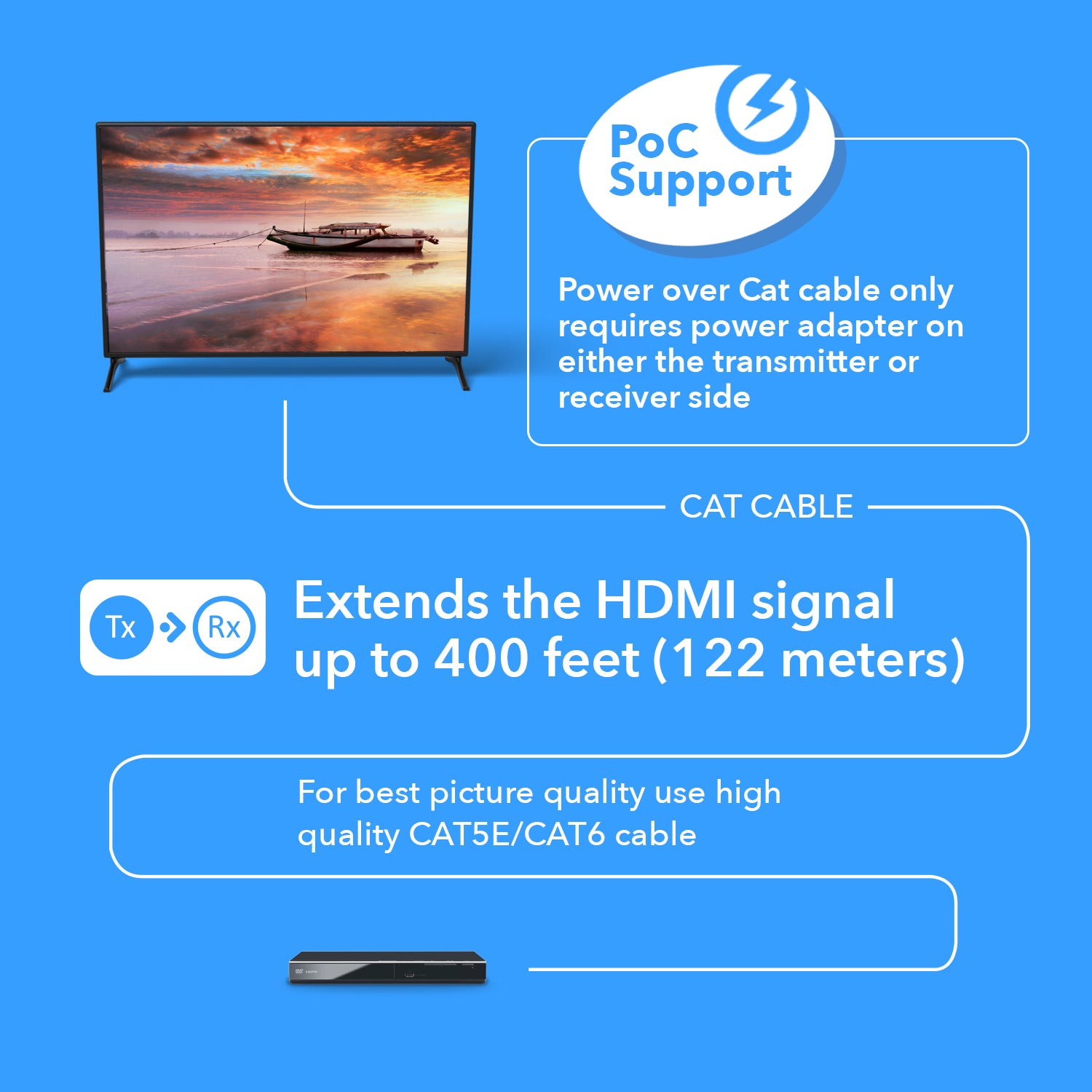

- Support PoC (Power over Cable) function
- Support 18Gbps video bandwidth
- DVI compliant

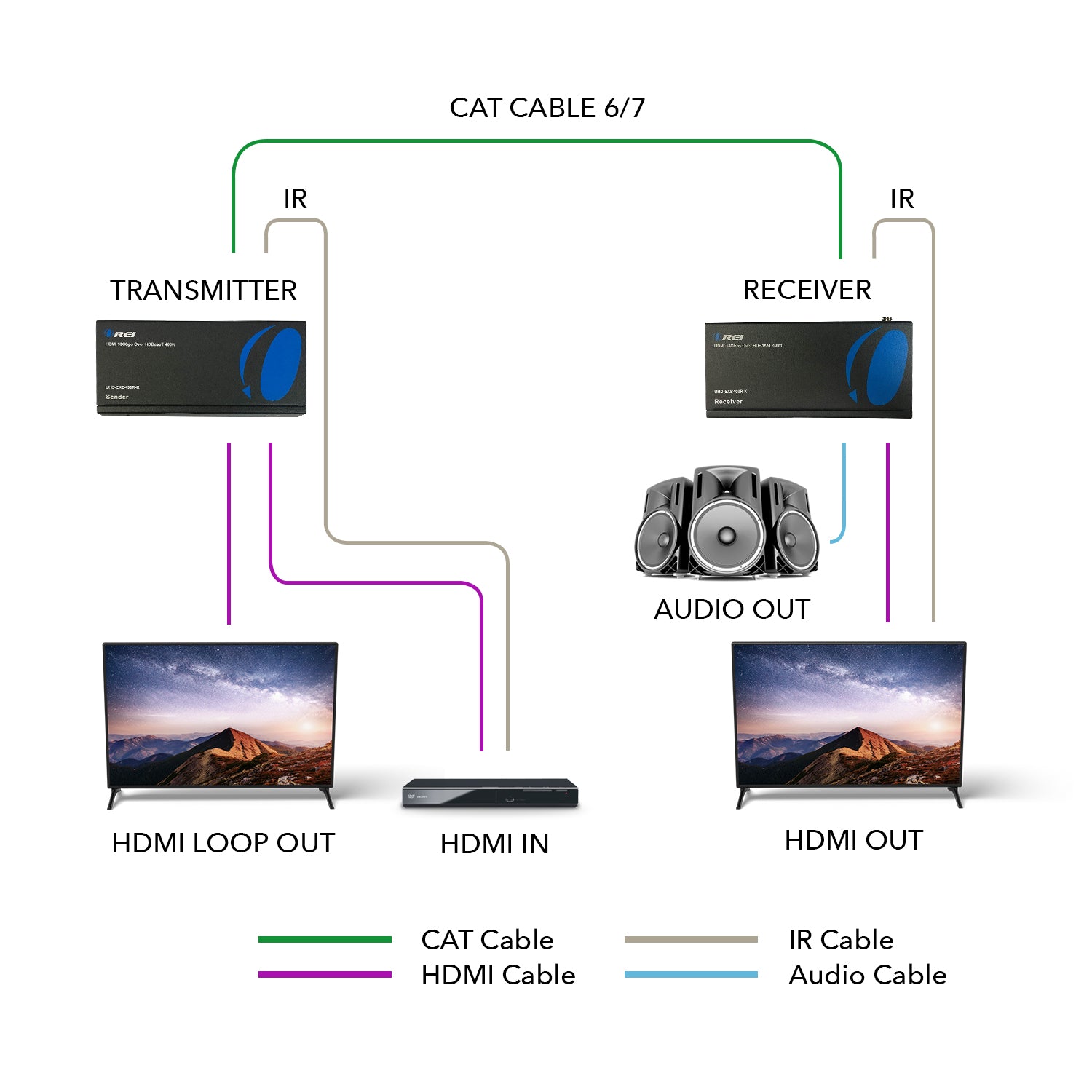

- Support one HDMI loop output on the transmitter
- De-embeded audio to analog stereo output on receiver
- Supports Bi-Directional IR
- RS-232 serial signals and IR remote control signals also pass through the transceiver, so your HD BaseT installation can control such RS-232 devices as scanners and touchscreen displays at baud rates up to 115 Kbps
- HDMI Extender by Cat5e/6 extends the HDTV display up to 400 feet for 4K@60Hz
- The maximum extended transmission distance via a single Cat5e/6 cable:
- 394ft / 120 meters for 4K2K signal
- 492ft / 150 meters for 1080P signal
- Has more flexiblility and convenience in cable construction
- HDR, HDR10+, Dolby Vision and HLG function
- Supports LPCM 2.0-channel surround sound, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- Requires no software or drivers, making setup simple
- It mounts to a wall, rack or pole using the included hardware.
- This unit requires only one power adapter to work

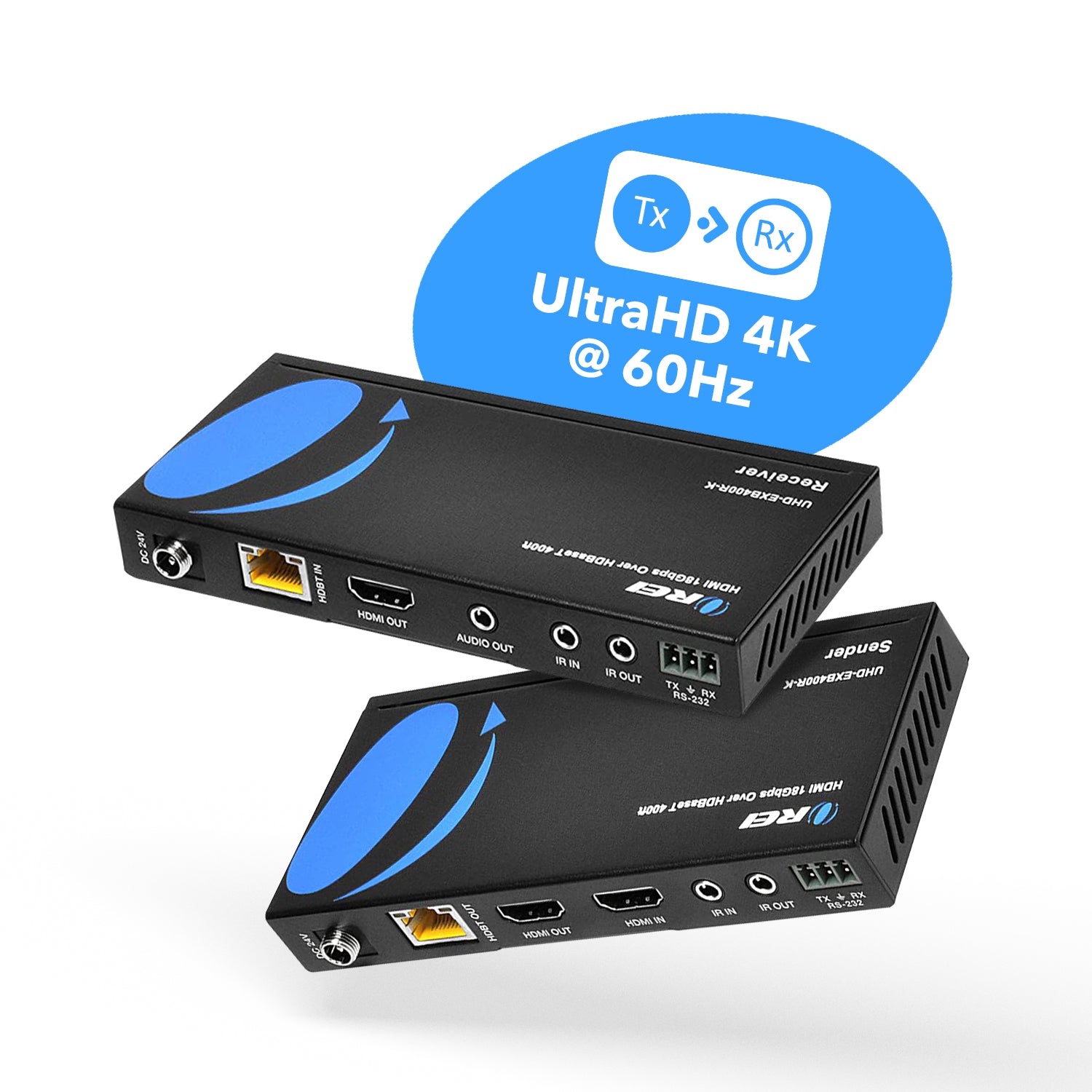

- Transmitter:
- Input Port:
- 1x HDMI Type A [19-pin female]
- Output Ports:
- 1x HDMI Type A [19-pin female]
- 1x HDBT OUT [RJ45, 8-pin female]
- Control Ports:
- 1x IR IN [3.5mm Stereo Mini-jack]
- 1x IR OUT [3.5mm Stereo Mini-jack]
- 1x RS-232 [Phoenix jack]
- 1x SERVICE [Mini-USB, Update port]
- Input Port:
- Receiver:
- Input Ports:
- 1x HDBT IN [RJ45, 8-pin female]
- Output Port:
- 1x HDMI Type A [19-pin female]
- 1x AUDIO OUT [3.5mm Stereo Mini-jack]
- Control Ports:
- 1x IR IN [3.5mm Stereo Mini-jack]
- 1x IR OUT [3.5mm Stereo Mini-jack]
- 1x RS-232 [Phoenix jack]
- 1x SERVICE [Mini-USB, Update port]
- Input Ports:
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 2.2
- DVI compliant
- Video Resolutions: Up to 4K@50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i. All HDMI 3D TV formats
- POC (Power over Cable), either TX or RX is powered by one 24V@1A power supply
- HDMI Audio Formats (Pass-through): LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- L/R Audio Formats: PCM 2.0
- Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth:
- 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
- 8-bit (4K60Hz 4:4:4 )
- Operation Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage temperature: -4°F ~ 140°F / -20°C ~ 60°C
- ESD Protection - Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge)
- Relative Humidity: 20 - 90% RH (no condensation)
- Video Bandwidth: 18Gbps

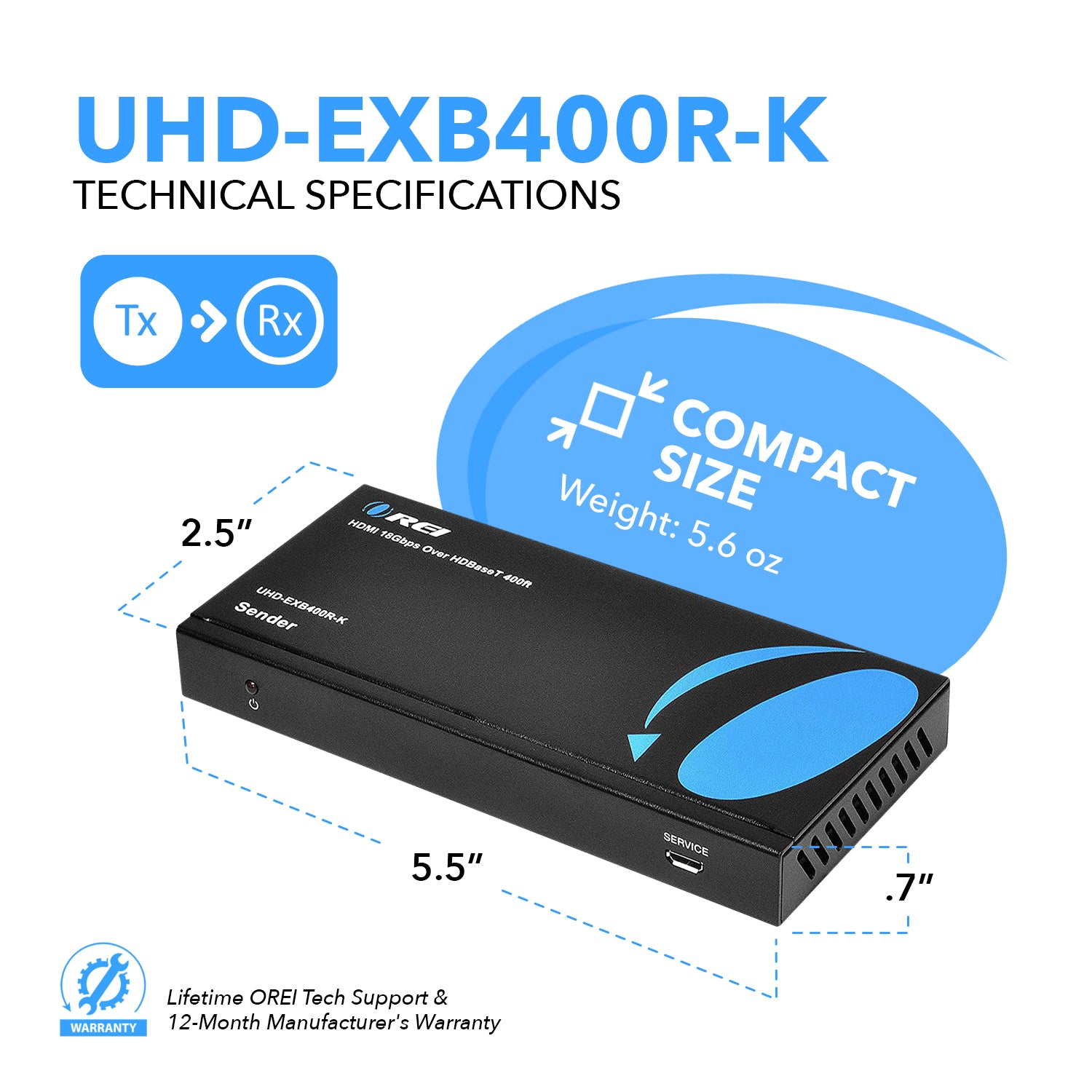

- Dimensions: 140mm [W] x 65mm [D] x 18mm [H]
- Weight:
- Transmitter: 160g
- Receiver: 155g
- Power Supply:
- Input: AC100 - 240V 50/60Hz
- Output: DC 24V/1A (Locking connector)
- Power Consumption: 9.36W
- Housing: Metal
- Color: Black
Includes
- 1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
- 1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
- 1 x IR Blaster cable (1.5 meters)
- 1 x 20~60KHz IR Receiver cable (1.5 meters)
- 4 x Mounting Ear
- 2 x 3-pin Phoenix connector
- 1 x 24V/1A Locking Power adapter
- 1 x User Manual
Warranty
- 1 Year OREI Warranty and Lifetime Support
