In Stock: Usually Ships in 24 Hours

  • 4 Inputs - 1 output HDMI Multiviewer switch
  • Video resolution up to 1080p@60Hz

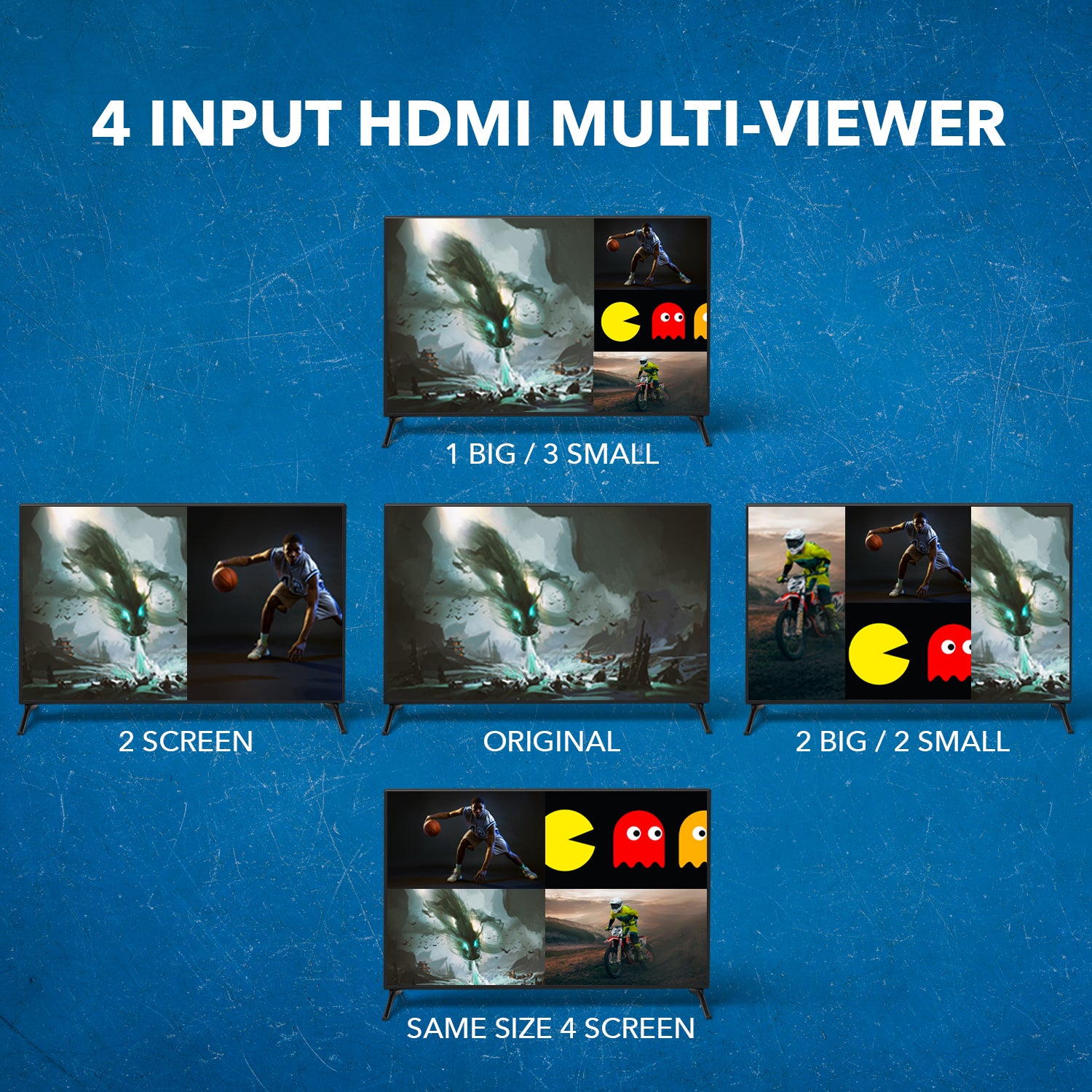

  • Supports 5 display mode

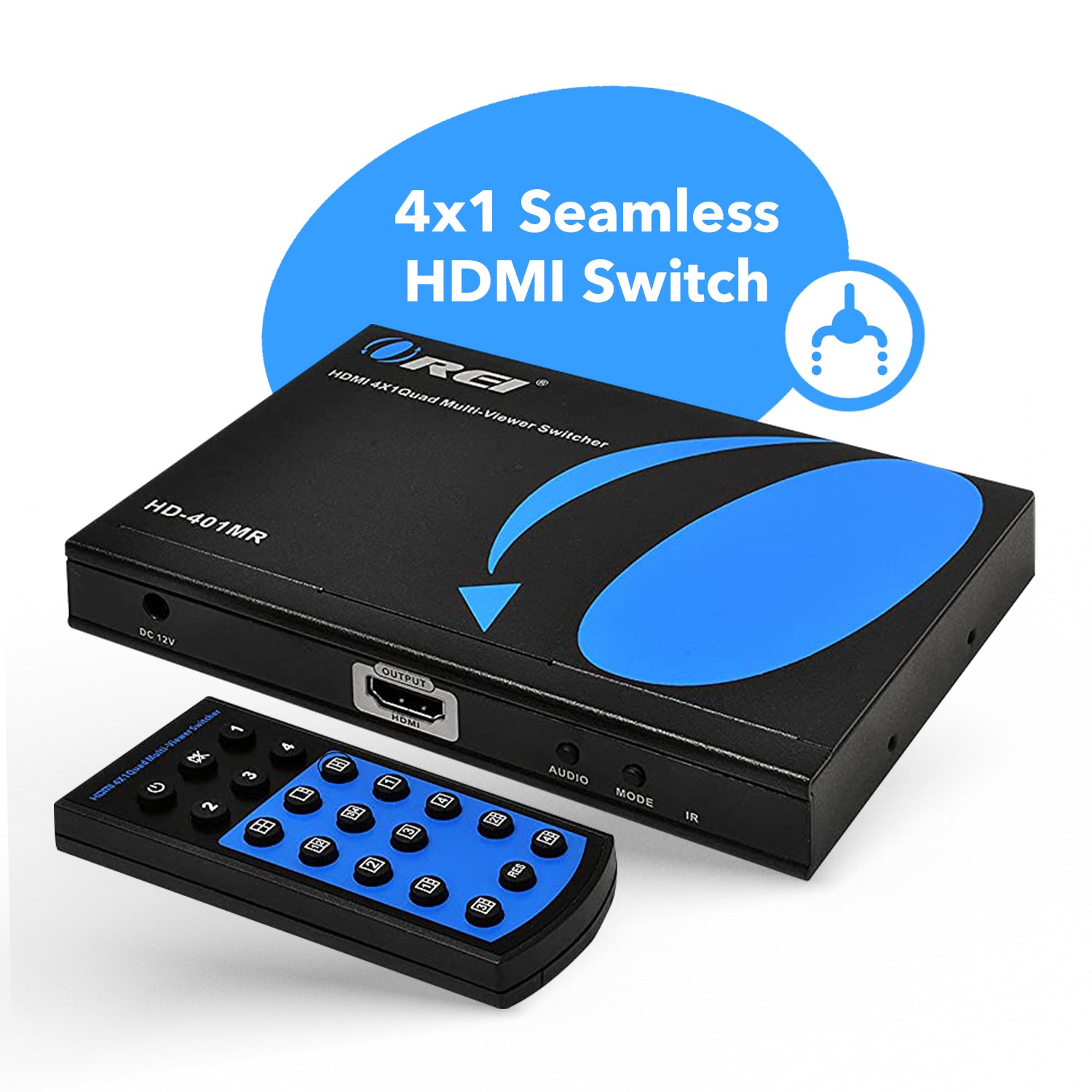

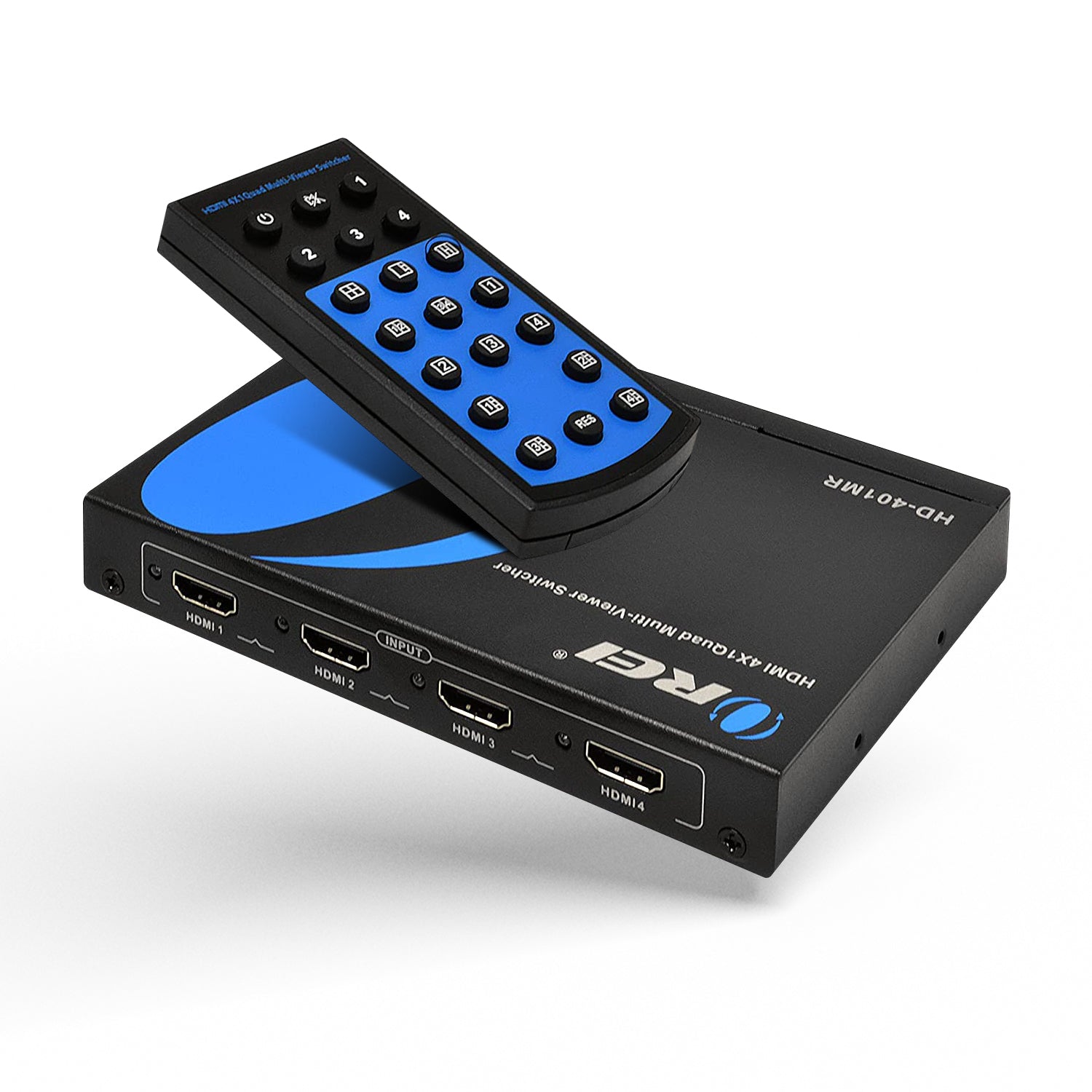

The OREI HD-401MR high performance 4x1 quad multi-viewer supports four high definition input contents be displayed on one screen simultaneously, and five multi-viewer display modes can be selected. The product can be controlled via the front panel button and remote control.


The HD-401MR is compact, durable and easy to set up and use. The switch between sources is seamless and quick without lag. It supports up to full HD 1080p@60Hz display and sources along with 3D support. Ideal for multi HDMI user video conferencing systems, monitoring, live games, shopping mall, exhibition hall, stock market, display mall, education, surveillance etc.

Key Features:
  • Output resolution can be selected by panel buttons and remote control
  • Multiple video resolution: 1080P@60Hz, 720p@60Hz, 480P@60Hz
  • Input: AC100 - 240V 50/60Hz
  • Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
  • Quad multi-viewer with five display modes supported

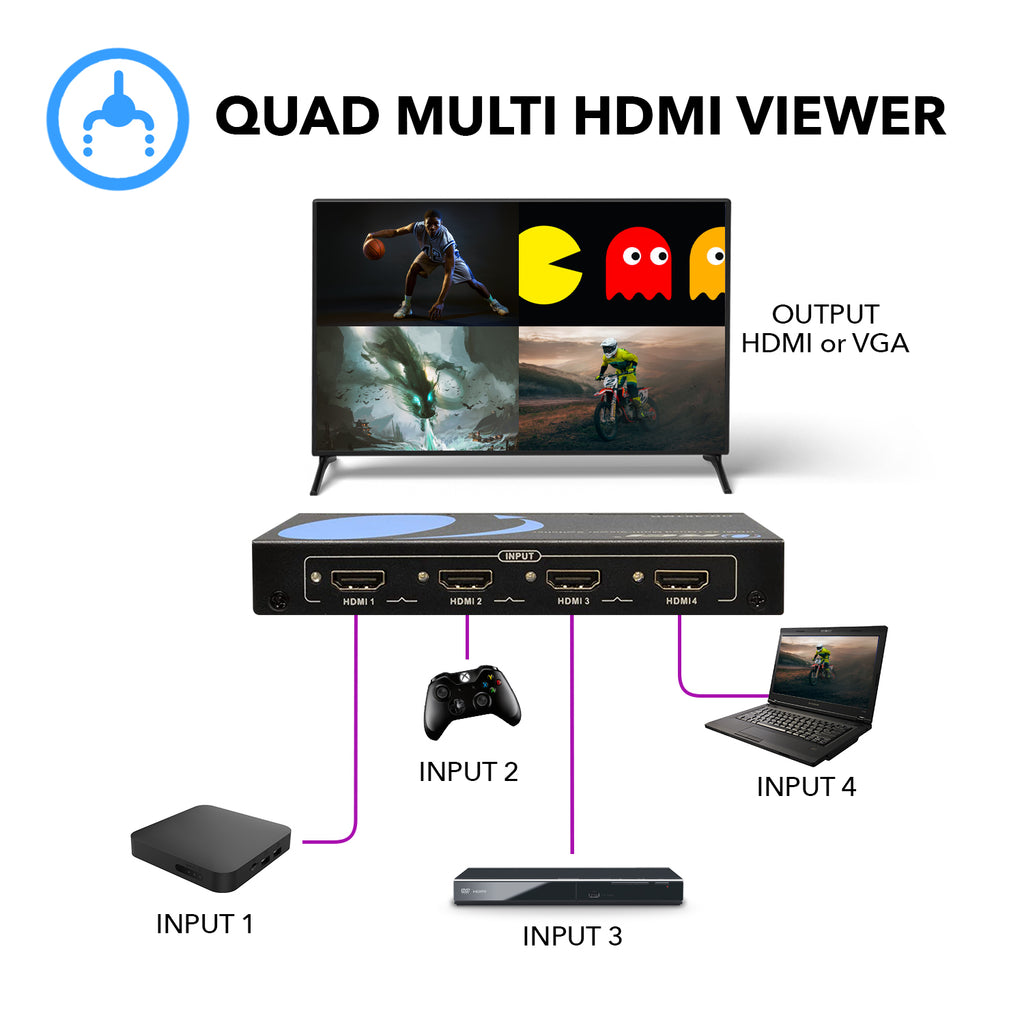

  • This HDMI switcher designed with 4 Input ports and 1 output port, you can choose the HDMI signal source by the IR remote control and front panel buttons
  • 4x1 HDMI Switcher with Multi HDMI Viewer - Supports 4 HDMI input sources to a single HD TV or Display with quick switching about 32ms of lag
  • This HDMI matrix switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices

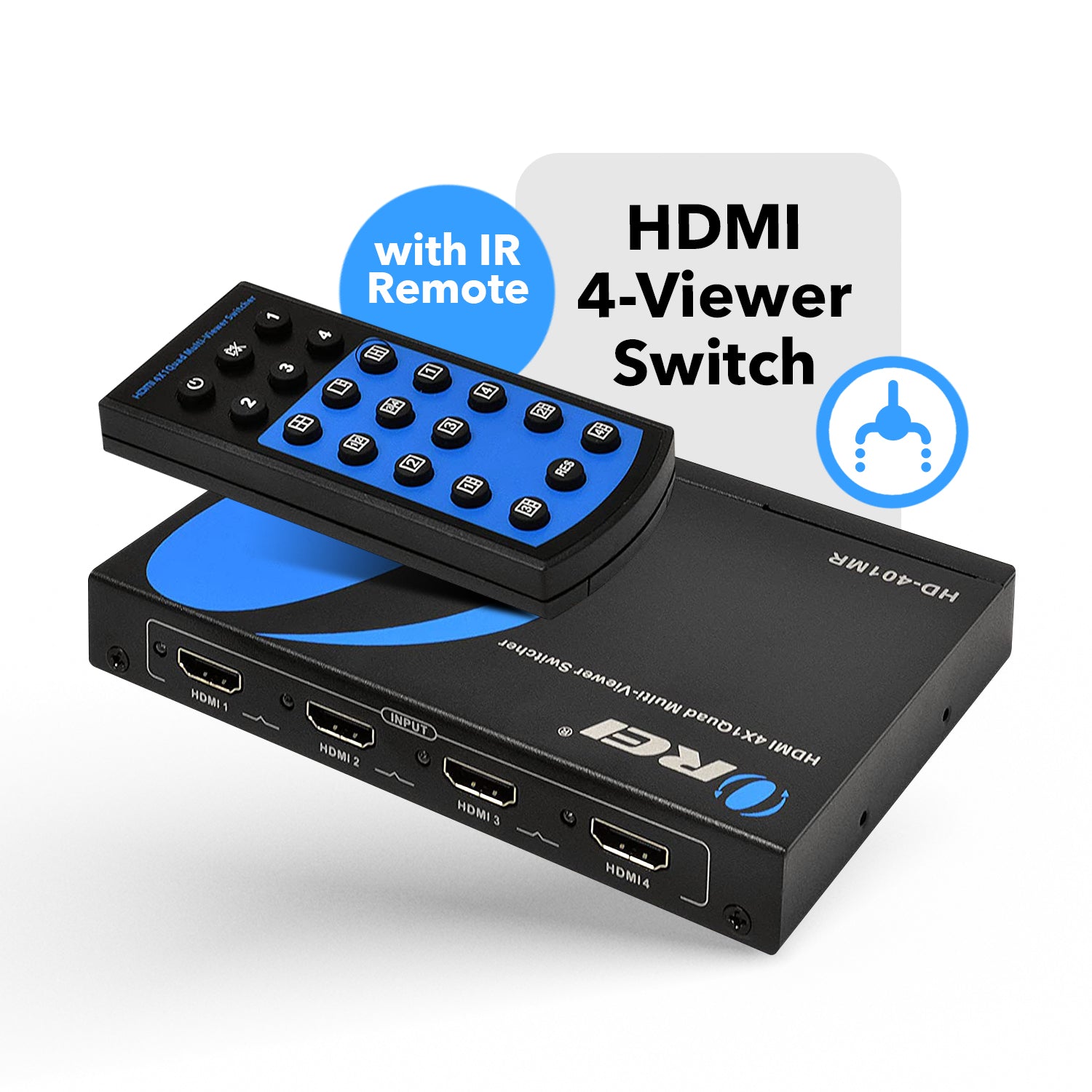

  • Control via front panel buttons and the remote control
  • Inputs: 4 × HDMI Type A [19-pin female]
  • Output Ports: 1 × HDMI Type A [19-pin female]
  • Video Bandwidth: 4.5Gbps
  • Video Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
  • Color Space: RGB YCbCr4:4:4
  • HDMI Audio Formats: PCM
  • HDMI Compliance: HDMI 1.3
  • HDCP Compliance: HDCP 1.2
  • Power Supply: DC 12V/2A
  • Power Consumption: <10W
  • CEC: Pass through
  • Operating Temperature: -20 - 40°C
  • Storage Temperature: 0°C ~ 40°C
  • Relative Humidity: <10W
  • Height: 21.20 mm
  • Width: 178.50 mm
  • Depth: 104.74 mm
  • Weight: 340g
  • Safety and Emission: CE | FCC | RoHS


  • OREI HD-401MR Switcher
  • Power Supply 110/240V
  • Instruction manual


  • 1 year manufacturer's warranty

Request a Quote

OREI HDMI Multiviewer 4x1 Seamless HDMI Switch - 4 Ports - 1080p
