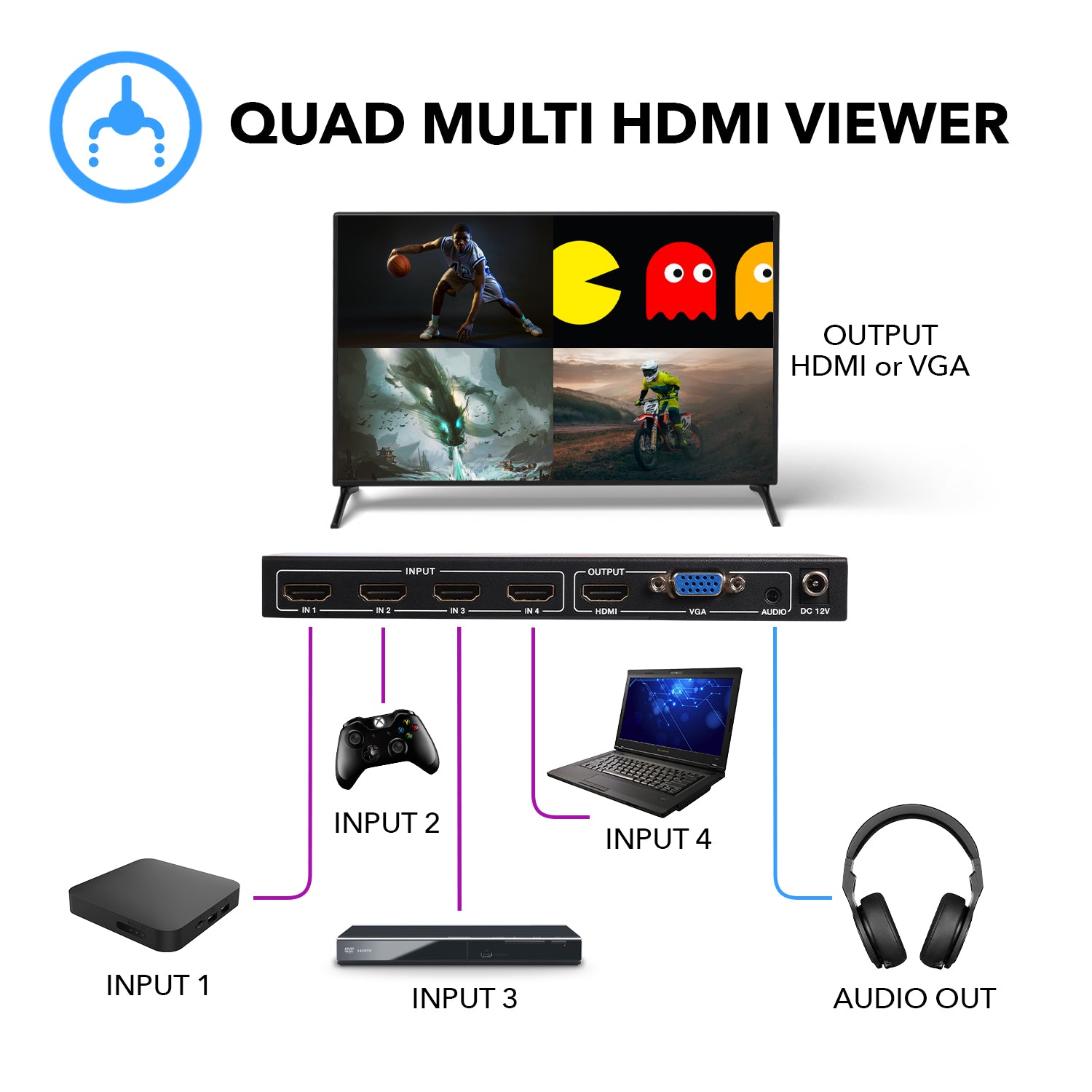

4x1 4K HD high performance 4—1 quad multi-viewer supports four routes HDMI high definition input contents are displayed on one HDMI screen and one VGA screen simultaneously. HDMI Switcher Multiview is a 4 port HDMI switcher for your cable receiver, directly, gaming console, PlayStation, Nintendo Switch, and home theater setup. It supports analog audio output that can be selected from different input sources. It supports 4 HDMI inputs and 1 HDMI output, allowing for HDMI 1.4, along with HD and compatibility on all HDMI. Output resolution can be adjusted and supports the maximum up to 4K@30Hz.It supports 4 high definition input sources to be displayed on 1 screen, It has three Multi-View effect mode which is selectable by IR remote control or built-in buttons.
Supports the MHL function with LED indicators. Inputs can be switched with the IR remote control, also can be controlled by a built-in button.
Supports equalizer TMDS output: 25mhz 225MHz TMDS clock. Also, Supports automatic identification of signal sources and automatically jumping to the next port with a signal source when the existing signal source is disconnected.
Key Features:
HDMI 1.4b, HDCP 1.4 compliant

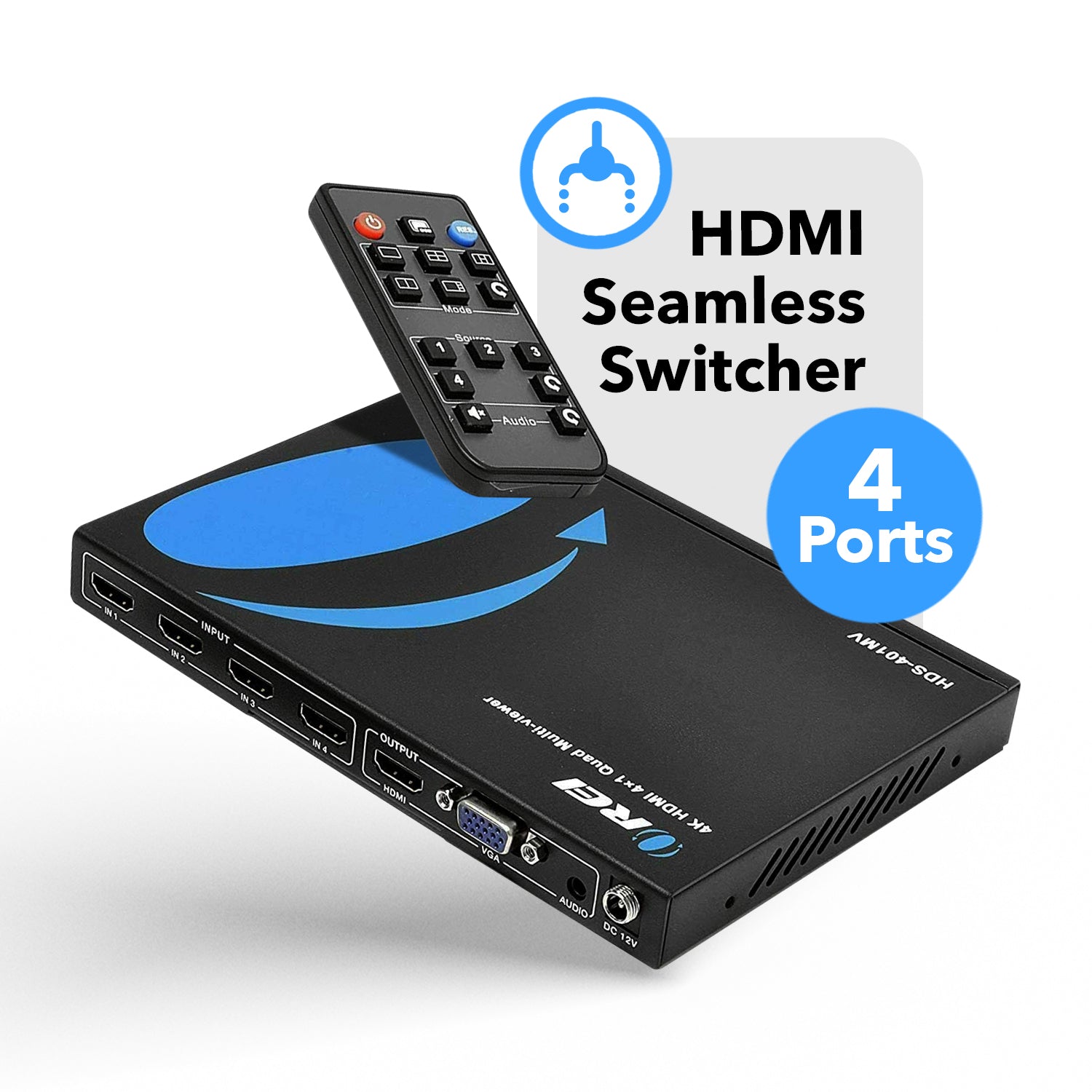

This HDMI switcher designed with 4 Input ports and 1 output port
Supports 4 HDMI input sources to an HD TV or display with real-time fast seamless switching up to 4K@30Hz
This HDMI MultiViewer 4x1 switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices
HDMI supports resolution the maximum up to 3840x2160@30Hz,1920x1080@50/60Hz, 1280x720@50/60Hz, 1920x1200@60Hz
VGA supports resolution the maximum up to 1920x1200@60Hz.1920x1080@50/60Hz, 1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz
Input resolution can automate recognition(480p~4K30Hz, 800x600~4K30Hz)
Output resolution can be selected by on-panel button and remote control
All other audio options are supported, integrated Audio converter for simultaneous digital and analog audio output on all audio output channels
Supports 1/2/4 windows multi-view modes.

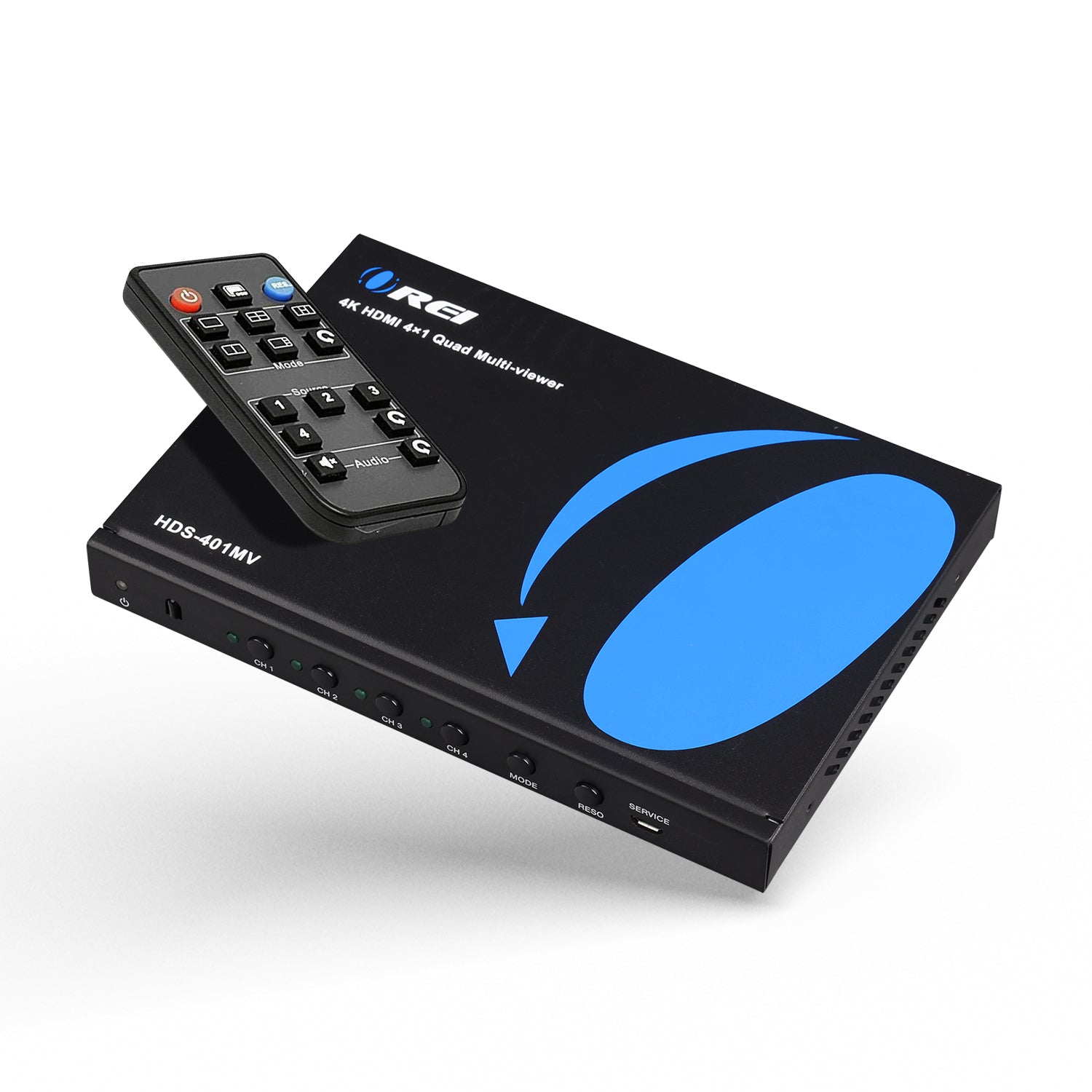

Control is via on-panel button and remote control
Note: If output resolution selects the 4K30Hz, the VGA port will not support

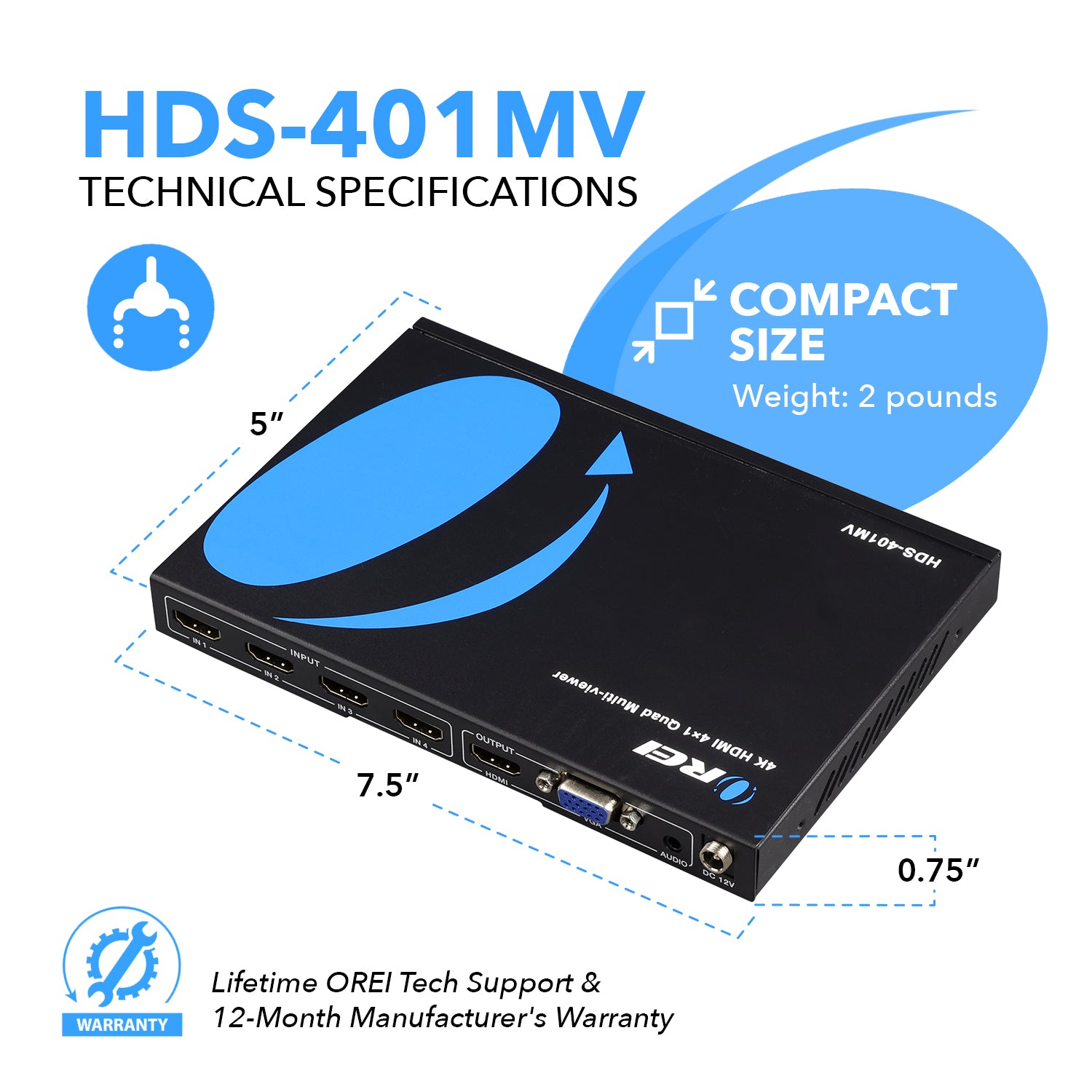

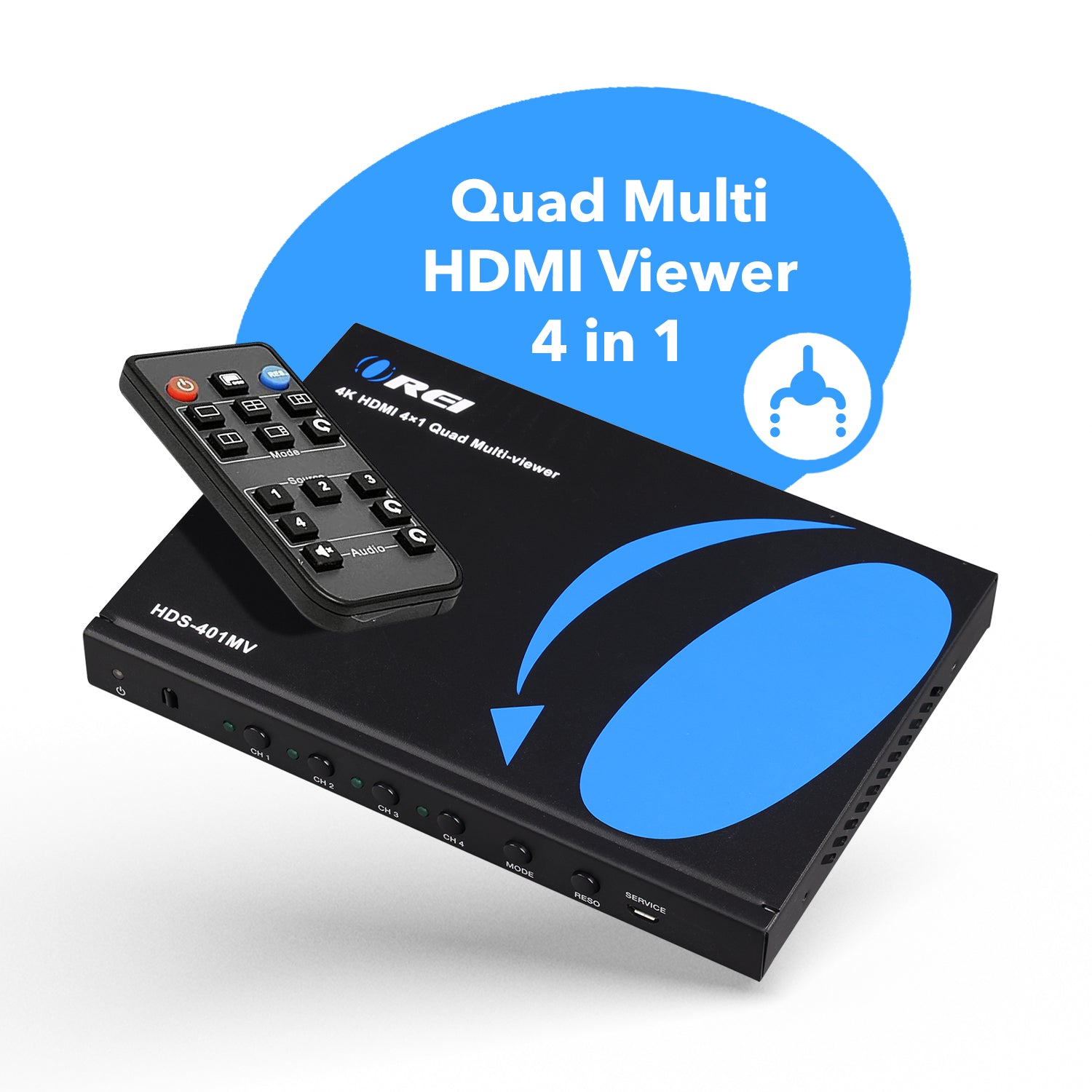

OREI 4x1 HDMI Switch
Input Ports:
4x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Output Ports:
1x HDMI Type A [19-pin female]
1x VGA [VGA-D]
1x Audio [3.5mm Stereo Mini-jack]
HDMI Signal: HDMI 1.4b
HDCP Compliance: HDCP 1.4
Video Bandwidth: 10.2Gbps
Video Resolutions: 3840x2160@30Hz,1920x1080@50/60Hz,1920x1200@60Hz, 1280x720@50/60Hz,1024x768@60Hz
Analog Audio Formats: LPCM2.0 44.1KHz 48Hz
Color Depth: 8-bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Operating Temperature: 0°C~40°C / 32°F~104°F
ESD Protection: Human body model: ±8kV (air-gap discharge) , ±4kV (contact discharge)
