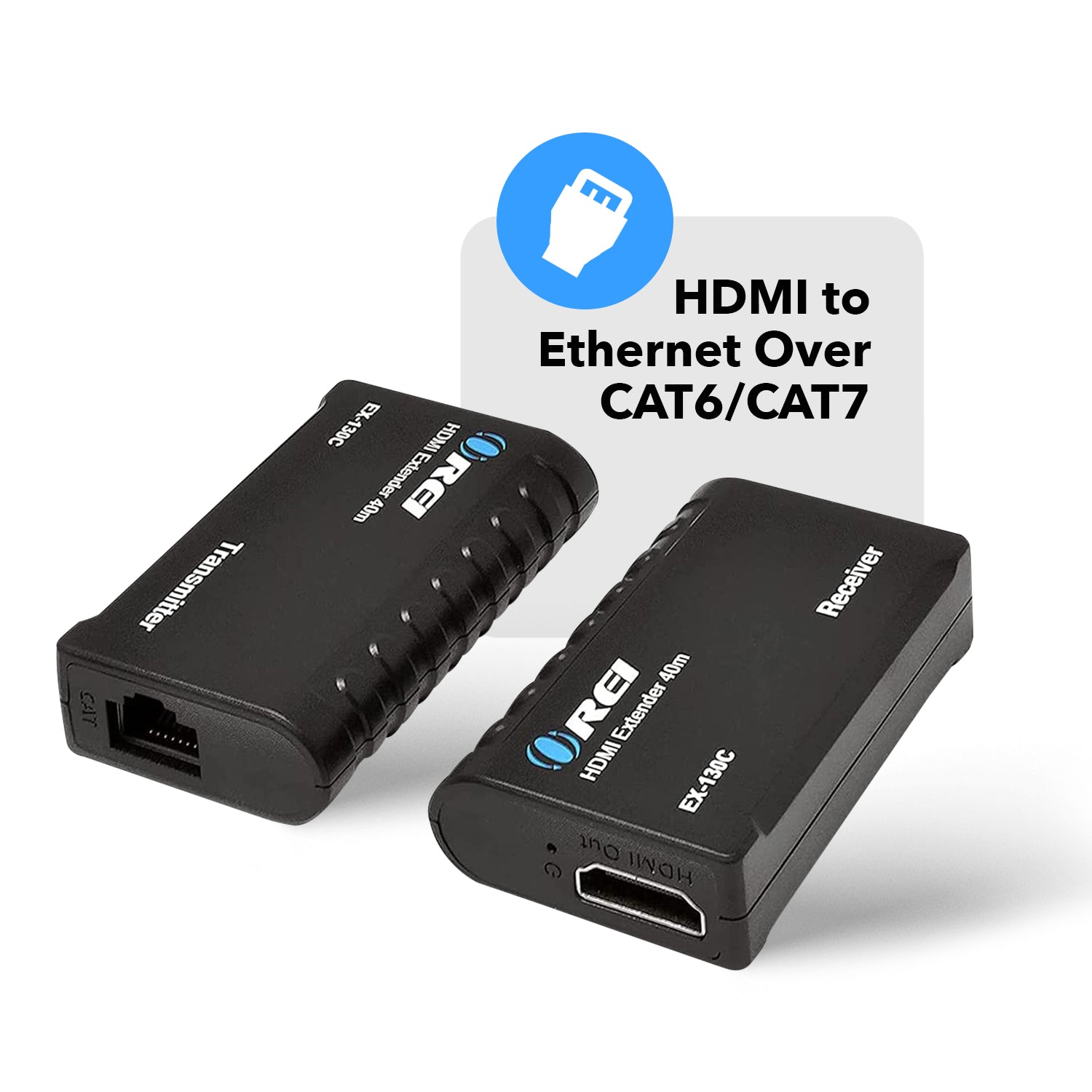

OREI EX-130C: 1080p HDMI Extender up to 130Ft

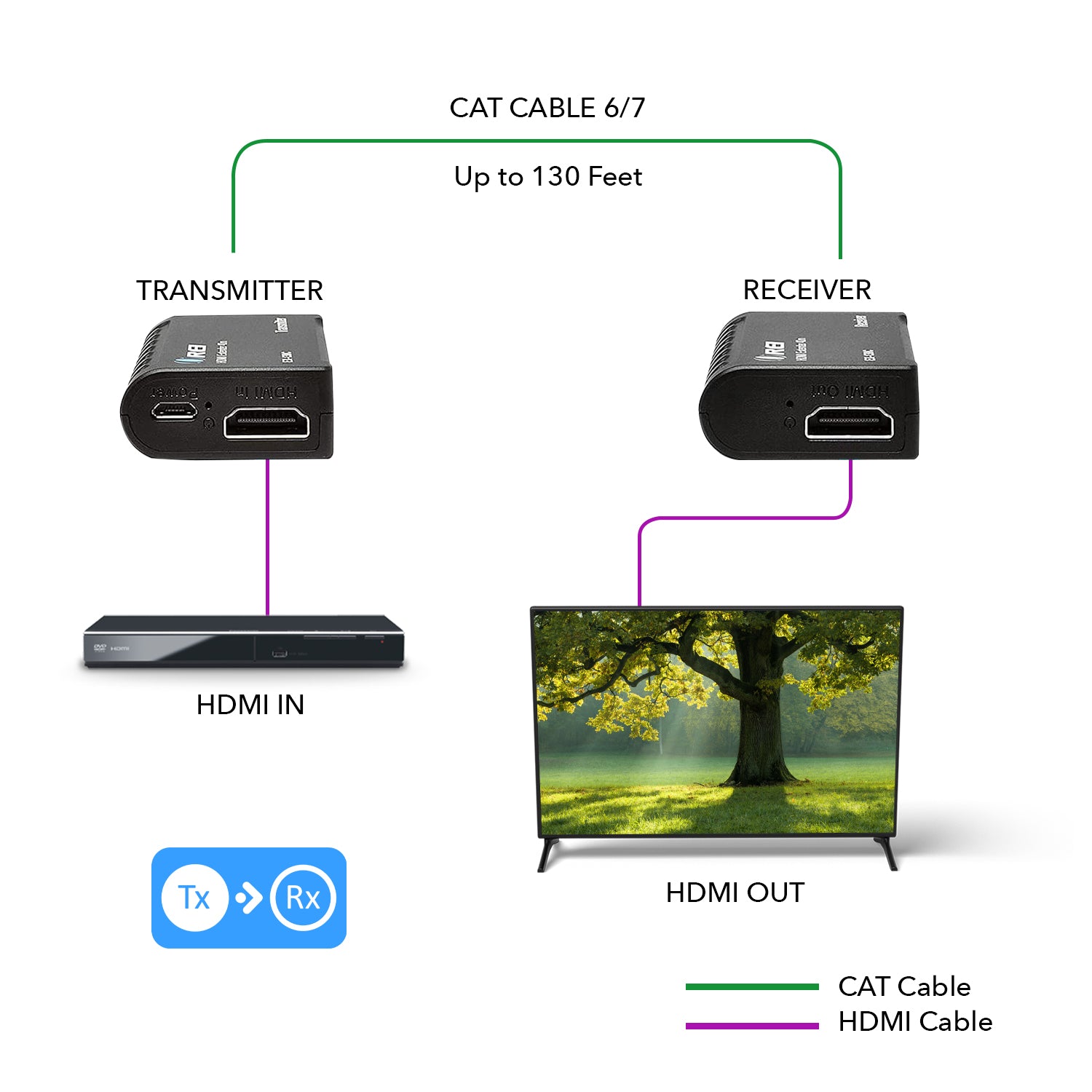

The OREI EX-130C HDMI extender allows to transmit HDMI 1080p signal up to 40 Meters (131FT) by using UTP CAT6/7.The extender offers the most convenient solution for HDMI extension over a single CAT6 with long-distance capability and is the perfect solution for any application.
Key Features:
- HDMI 1.4, HDCP 1.4 compliant
- Supports resolution up to 1080p@60Hz
- Dolby True HD, DTS-HD Master Audio 7.1CH digital audio supported
- Supports video bandwidth up to 1.65Gbps

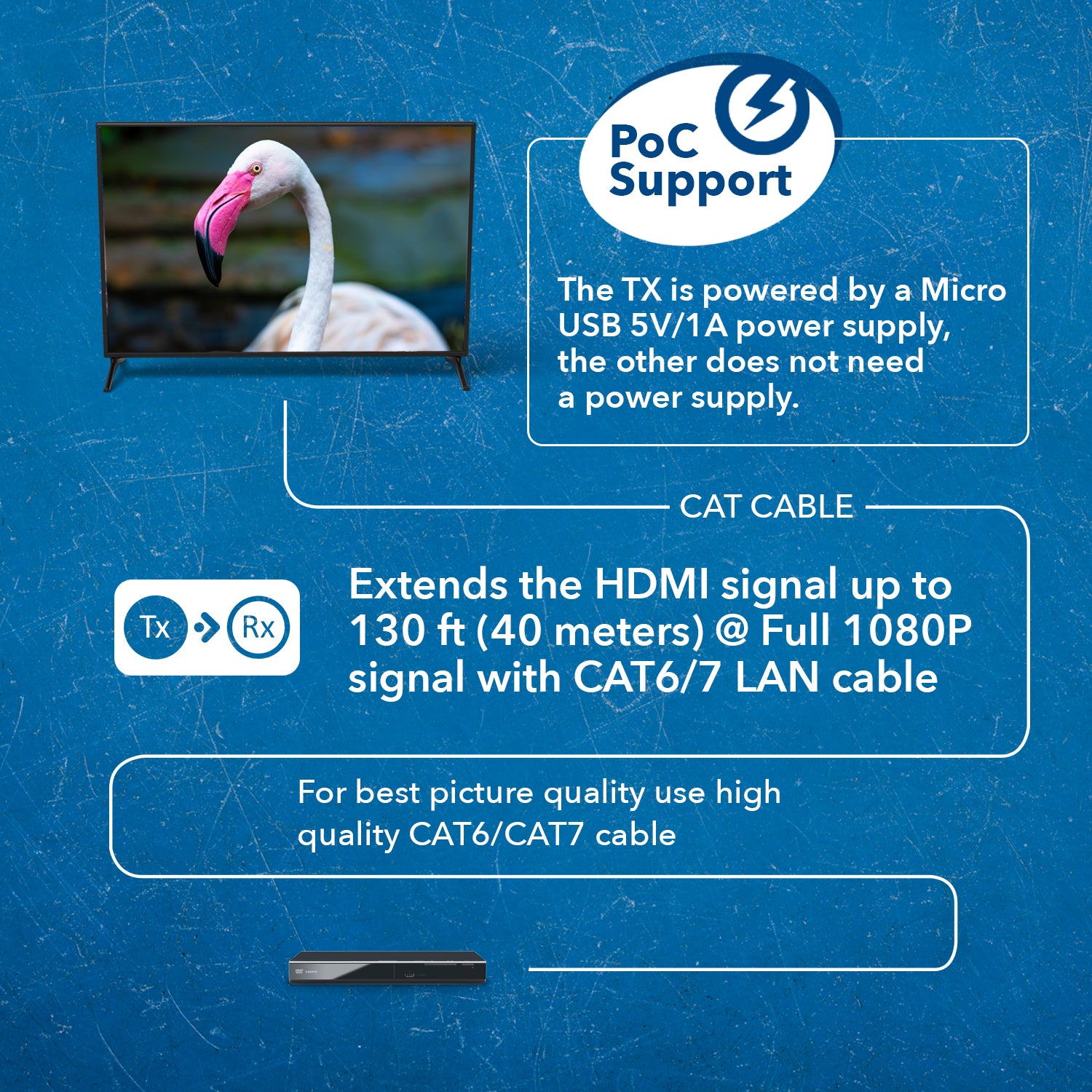

- POC (Power Over Cable) function is supported
- The TX is powered by a Micro USB 5V/1A power supply, the other does not need a power supply
- Supports the dial switch to change extender distance at the receiver end
- When the switch dial to the left distance between 65ft/20m and 131ft/40m
- The right distance between 1.64ft/0.5m and 65ft/20m
- This unit requires only one power adapter to work

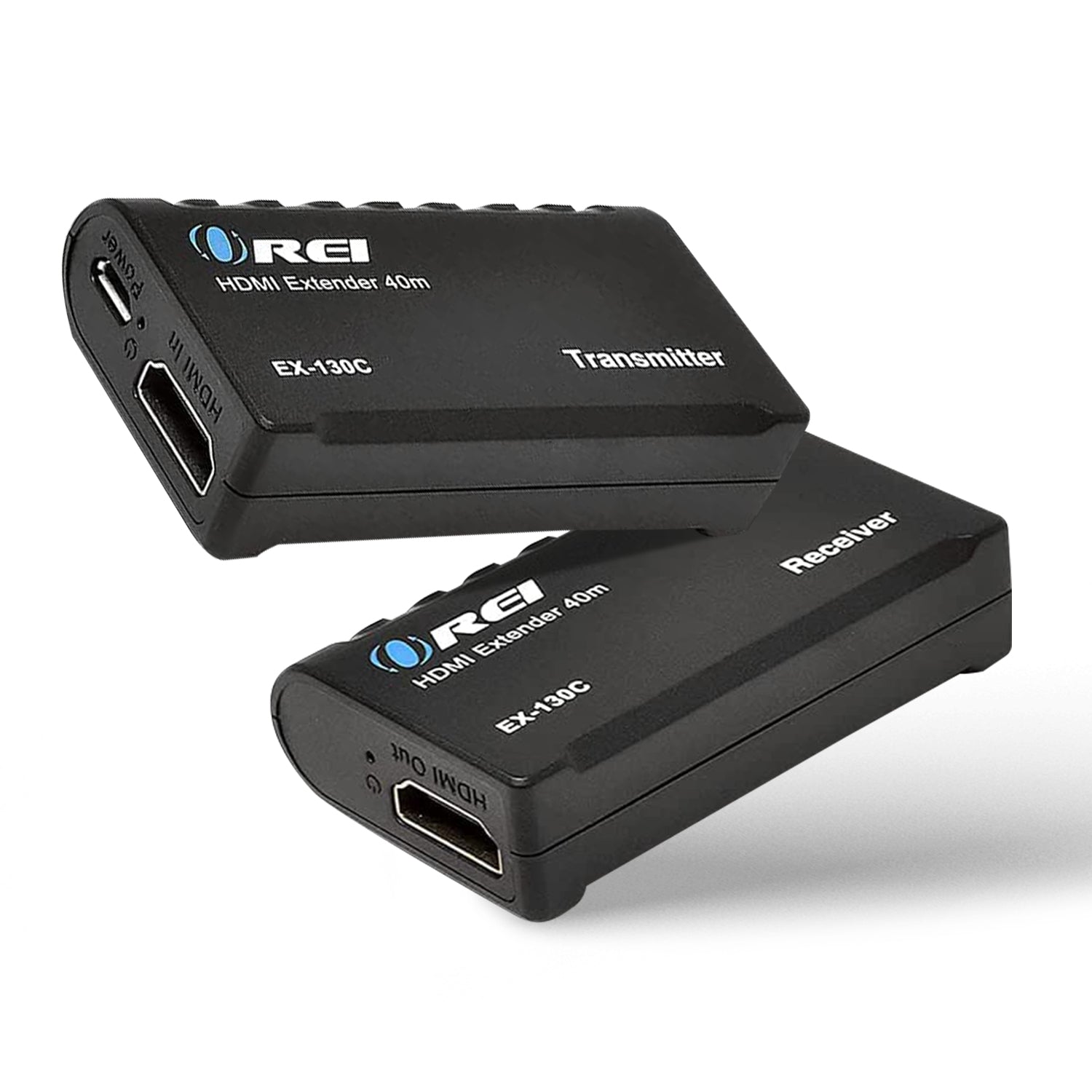

- Transmitter:
- Input Ports:
- 1x HDMI Type A [19-pin female]
- 1x 5V/1A [Micro USB]
- Output Port:
- 1x CAT [RJ45]
- Input Ports:
- Receivers:
- Input Port:
- 1x CAT [RJ45]
- Output Port:
- 1x HDMI Type A [19-pin female]
- Input Port:
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 1.65Gbps
- Video Resolution: 1080p@60Hz
- Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 8-bit
- HDMI Audio Formats: DolbyTrue HD DTS-HD MasterAudio 7.1CH
- Operation Temperature: 32 - 104°F / 0 - 40°C
- Storage temperature: -4 - 140°F / -20 - 60°C
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
- Relative Humidity: 20~90% RH (non-condensing)

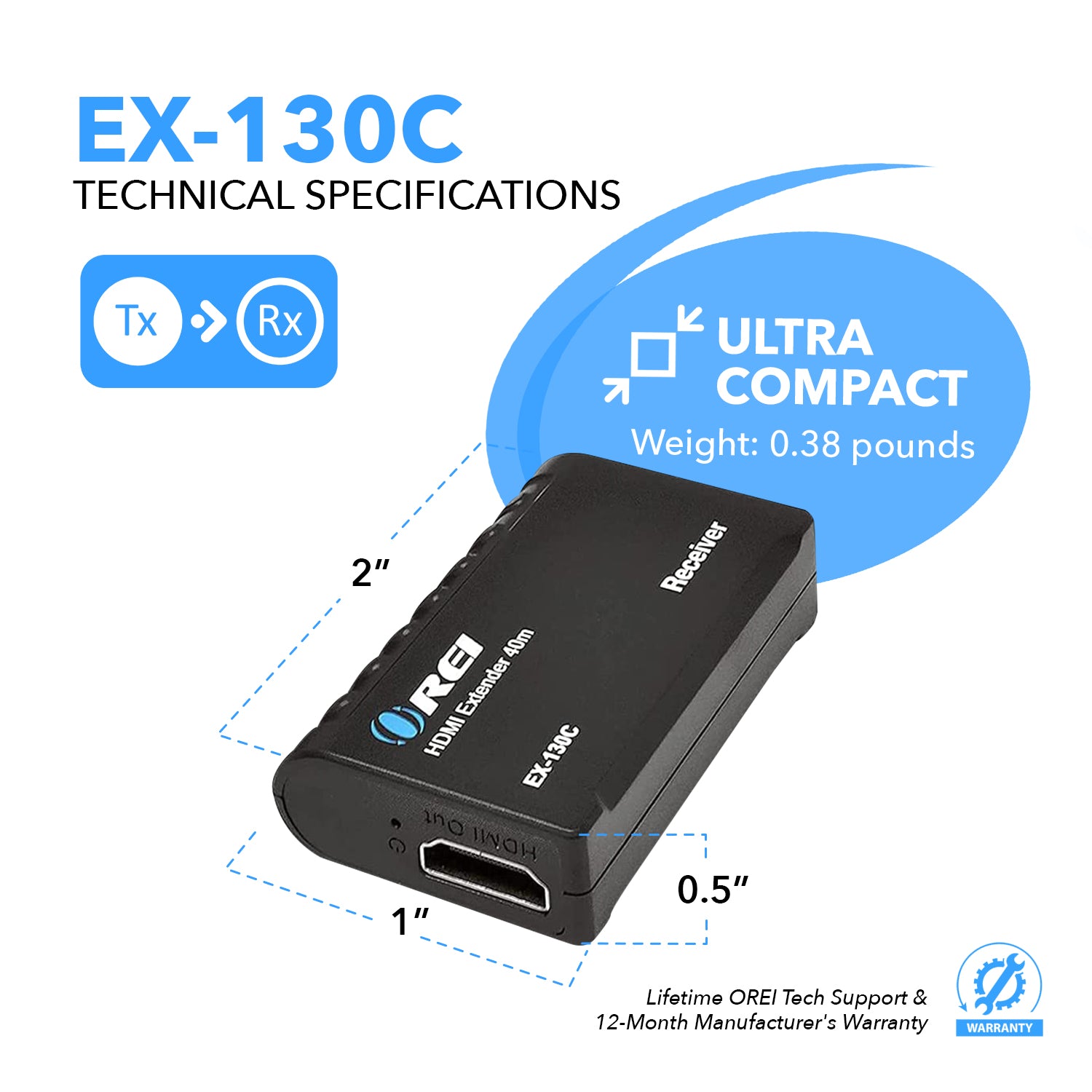

- Dimensions: 64.4mm[W] x 37.5mm[D] x 16.5mm[H]
- Weight:
- Transmitter: 22.3g
- Receiver: 22.5g
- Power Supply: Micro USB 5V/1A
- Power Consumption(Max): 1.6W
- Housing: Plastic Enclosure
- Color: Black
Package content and Warranty:
Includes:
- 1x HDMI Extender
- 1x HDMI Receiver
- 1x Micro USB Cable
- 1x USB Power adapter (US standard, 5V/1A)
- 1× User Manual
Warranty:
- 1-Year manufacturer's warranty
