$299.00

  |

In Stock: Usually Ships in 24 Hours

  • Supports audio up to 7.1Ch
  • Supports Bi-directional IR, PoC, ARC, RS-232
  • Extends signals up to 330 feet
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

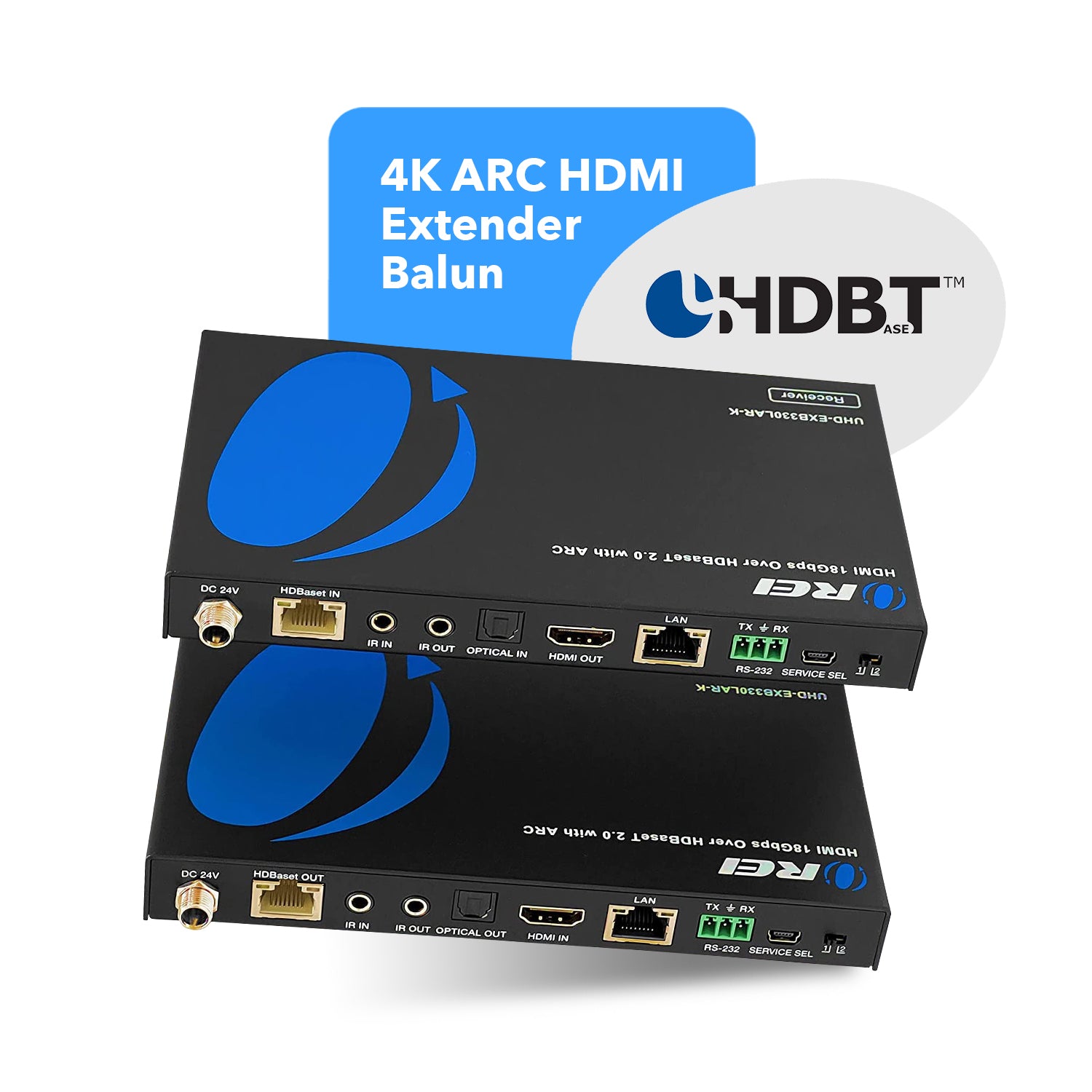

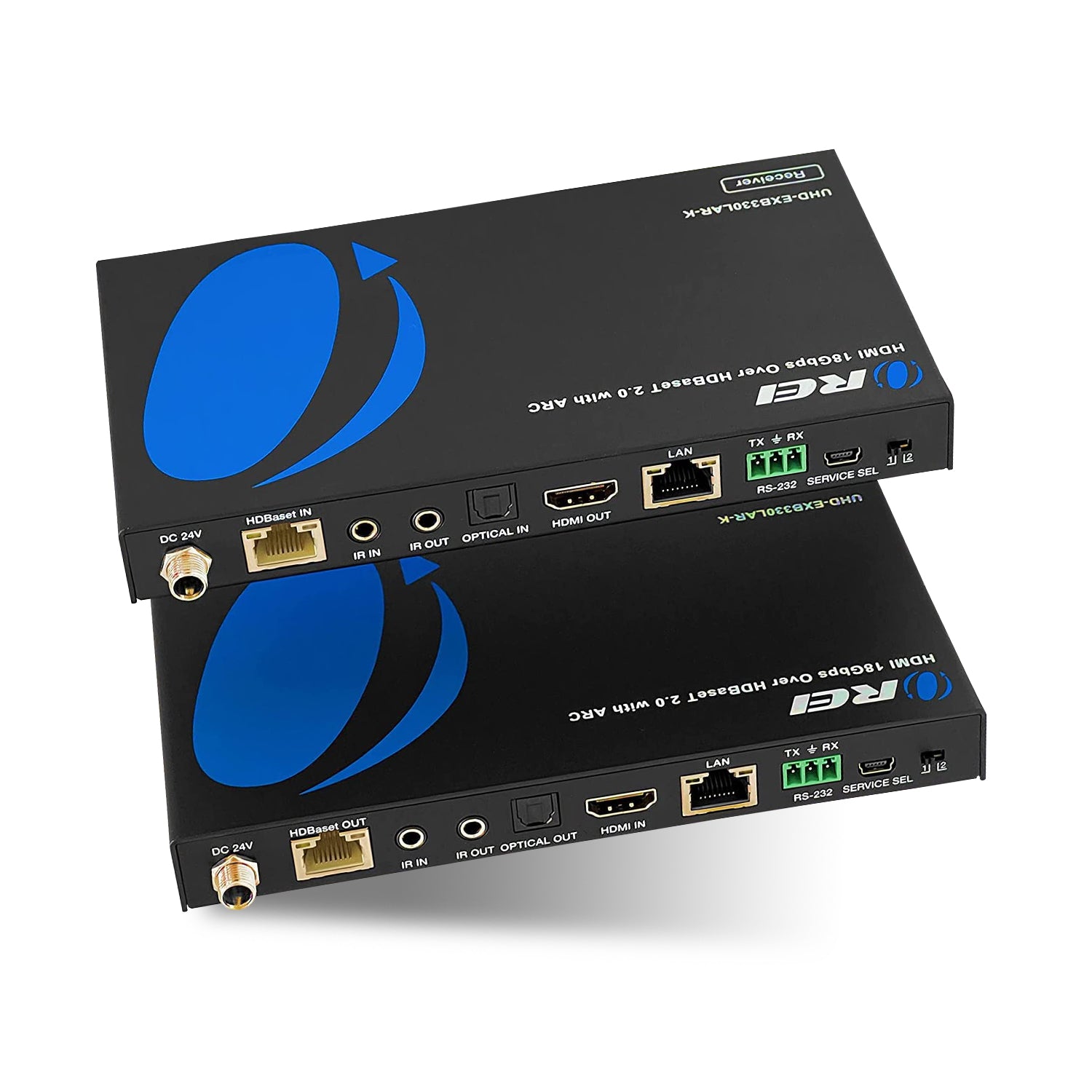

OREI UHD-EXB330LAR-K HDMI Extender up to 330 Feet

The HDBaseT HDMI extender enables transmission of video resolutions up to 4K@60Hz (YUV 4:4:4) along with HD audio, dedicated optical audio pathways, HDBaseT Ethernet, Two-Way IR, RS-232, 24V PoC & ARC signals up to 330ft.

ARC function enables audio from a compatible display to be routed back from the receiver unit to the transmitter. The latest HDBaseT 2.0 technology can make your home or office set up more efficient and easier to use.

Key Features:
  • HDMI 2.0b, HDCP 2.2 & HDCP 1.4 compliant
  • Supports video resolutions up to 4K@60Hz (4:4:4:), 4K@30Hz & 1080p@120Hz
  • Audio up to 7.1 Channels of High-Definition audio pass through (LPCM, Dolby TrueHD & DTS-HD Master Audio)
  • Supports HDBaseT 2.0 over a single CAT6/7 cable up to 330ft
  • Supports ARC & CEC

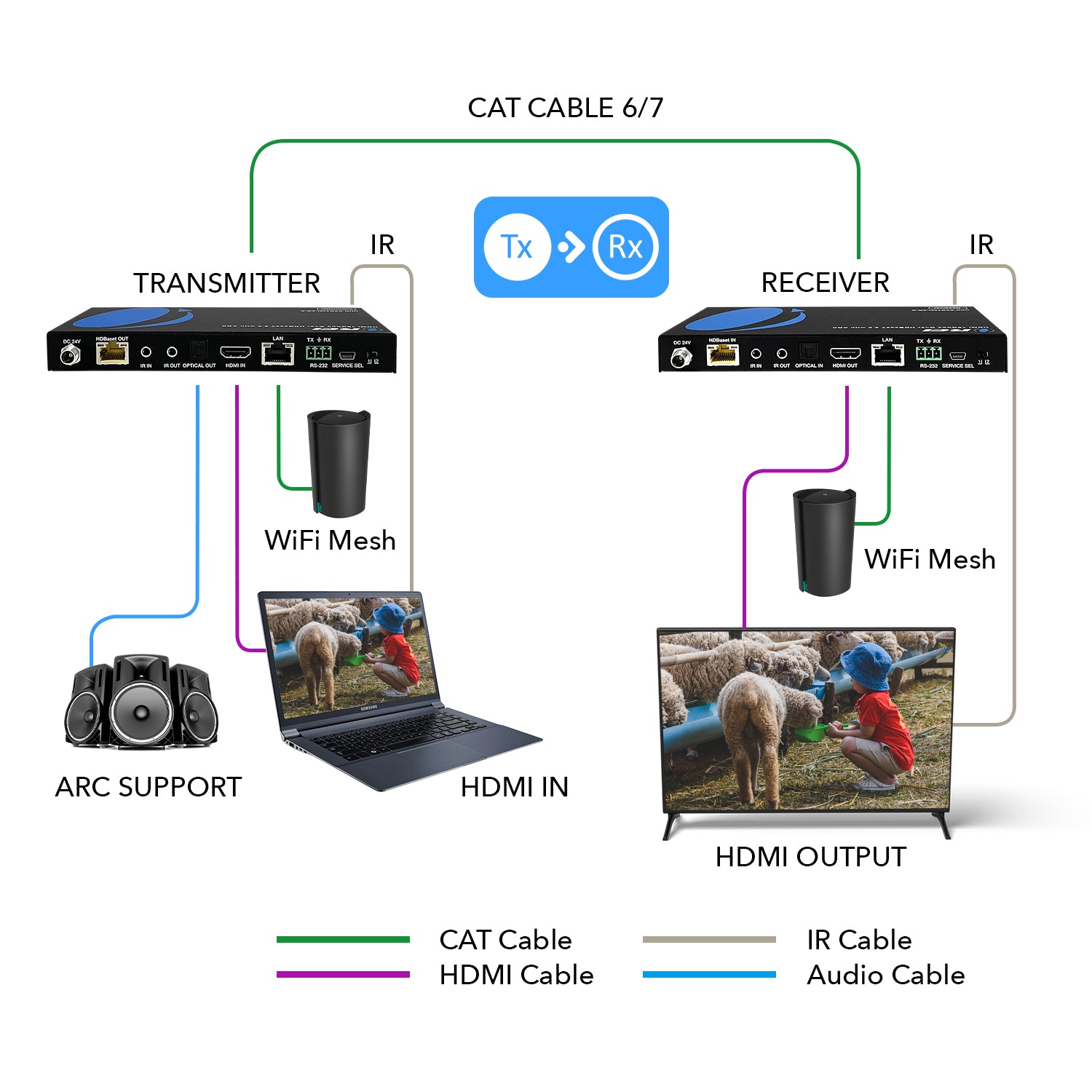

  • 5-Play convergence: HD video & audio, IR/RS-232/Ethernet/PoC
  • Two-Way PoC (Power Over Cable), either TX or RX powered by 24V/1A, the other one doesn't need power supply
  • AUDIO AND VIDEO

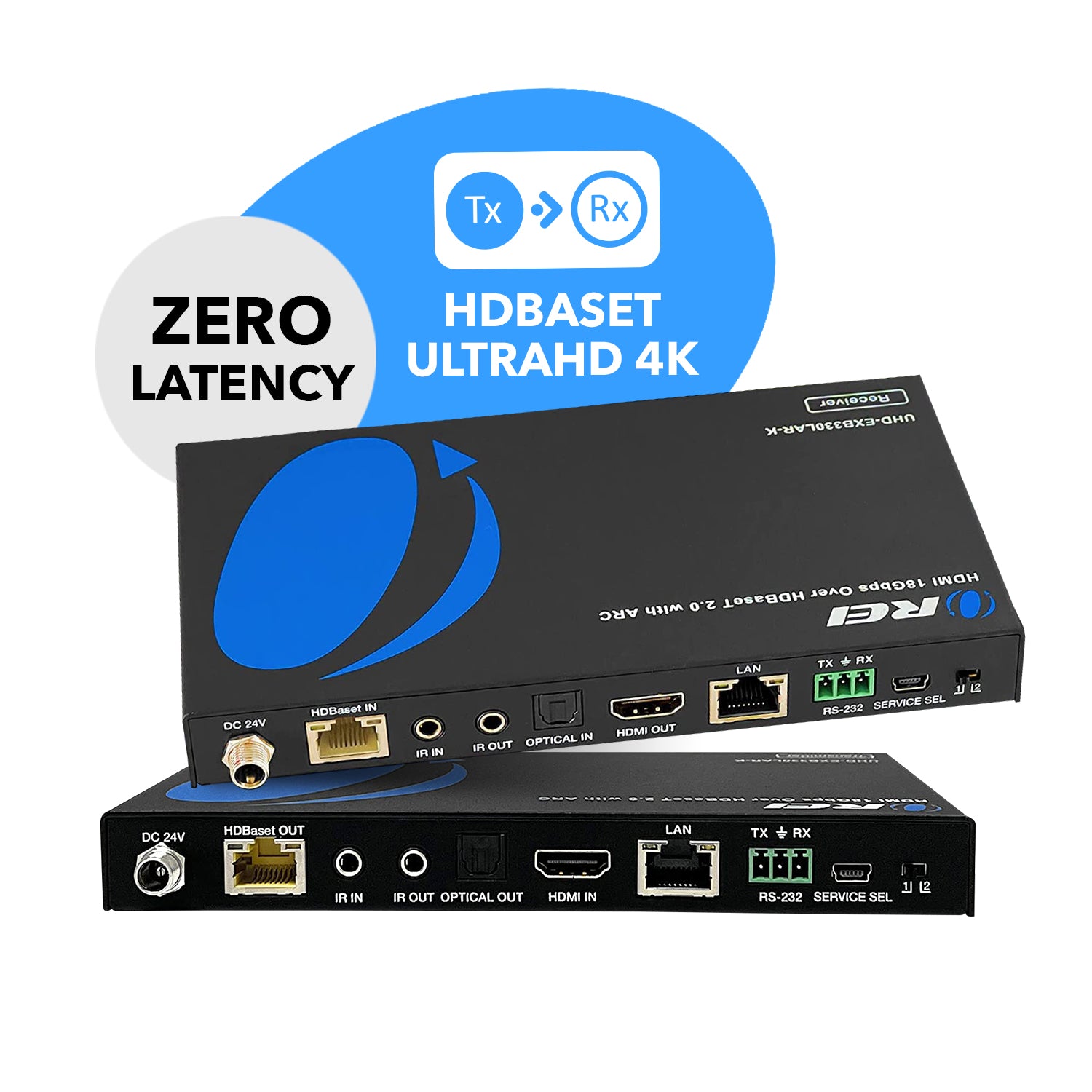

    • Transmitter:
      • INPUT PORTS:
        • 1x HDMI Type A [19-pin female]
        • 1x IR In [3.5mm Stereo Mini-Jack]
        • 1x LAN [RJ45]
      • OUTPUT PORTS:
        • 1x HDBaset Out [RJ45]
        • 1x IR Out [3.5mm Stereo Mini-Jack]
        • 1x Optical Out [S/PDIF]
    • Receiver:
      • INPUT PORTS:
        • 1x HDBaseT In [RJ45]
        • 1x IR IN [3.5mm Stereo Mini-Jack]
        • 1x Optical In [S/PDIF]
      • OUTPUT PORTS:
        • 1x HDMI Type A [19-pin female]
        • 1x IR Out [3.5mm Stereo Mini-Jack]
        • 1x LAN [RJ45]
  • COMPLIANCES
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • SUPPORTED CAT CABLES
    • CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
    • 4K@60Hz: Up to 330 Feet
  • VIDEO OUTPUT
    • Video Bandwidth: 18 Gbps

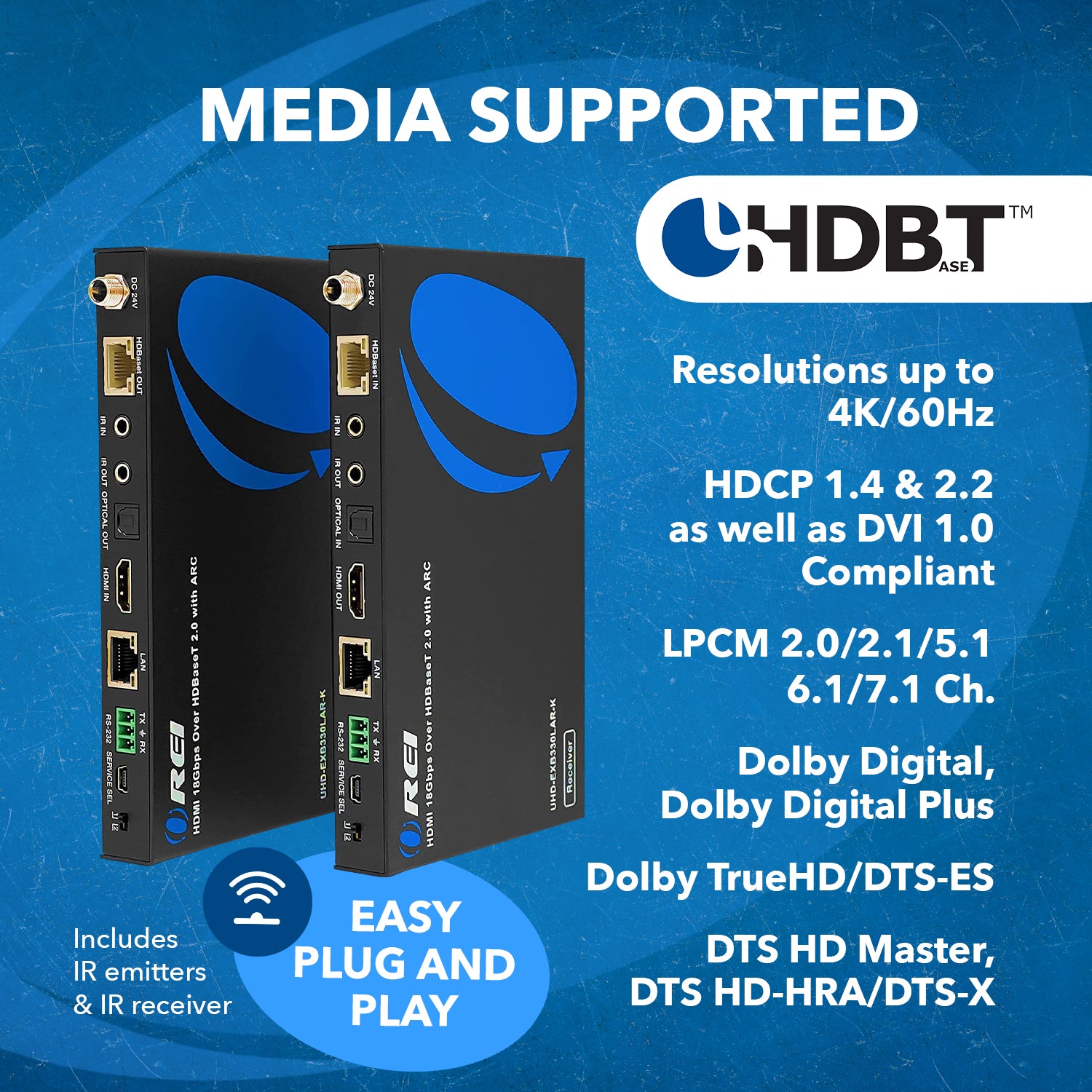

    • Video Resolutions: Up to 4K@60Hz (4:4:4), 4K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 8-bit, 10-bit, 12-bit
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: Yes
    • ARC Function: Yes
    • USB KVM Function: No
    • PoC/PoE Function: Yes
    • IR Controller: Bi-Directional IR
    • Downscaler Function: No
    • Over Network/IP Function: No
    • HDBaseT Function: Yes
    • RS-232 Function: Yes
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM 2/5.1/7.1Ch, Dolby Digital, DTS, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • SIGNALS
    • TMDS Signals: 3.3V
    • DDC Signals: 5V

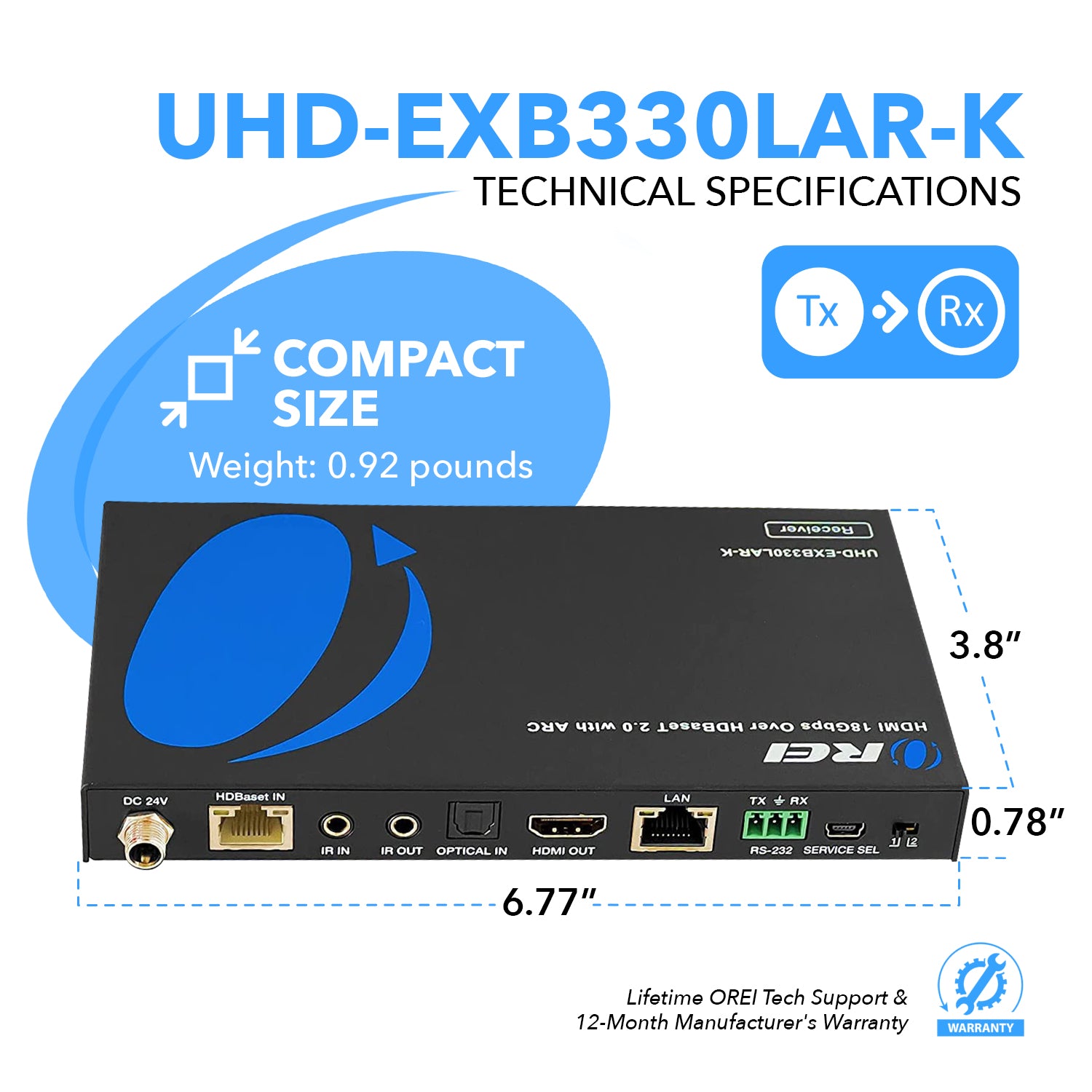

  • DIMENSIONS & WEIGHT
    • Height: 20mm
    • Width: 172mm
    • Depth: 97.5mm
    • Weight:
      • Transmitter: 420g
      • Receiver: 425g
  • PROTECTION
    • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (non-condensing)
    • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
    • Electrostatic Protection of the whole Machine: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
  • RJ-45 CONNECTOR TYPE
    • WE/SS 8P8C
  • POWER
    • Power Consumption (Max): 11W
    • Power Supply:
      •  Input: AC100 - 240V 50/60Hz
      • Output: DC 24V/1A (US/EU standards, CE/FCC/UL Certified)
  • PHYSICAL PROPERTIES
    • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Metal Enclosure

Includes:

  • 1x HDMI Transmitter
  • 1x HDMI Receiver
  • 2x Wideband IR TX
  • 2x Wideband IR RX
  • 1x 24V/1A DS Power Supply
  • 4x Mounting ears
  • 1x User Manual

Warranty:

  • 1 - Year Manufacturer's Warranty
