$129.00

  |

In Stock: Usually Ships in 24 Hours

  • Extends 4K@30Hz with HDBaseT HDMI extender over Cat5e/6
  • HDBaseT Technology for Lossless & Zero Latency transmission
  • 10.2 Gbps Bandwidth
  • CEC - allows you to command and control other CEC enabled devices that are connected through HDMI without user intervention
  • Full HDCP 2.2 Compliant
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

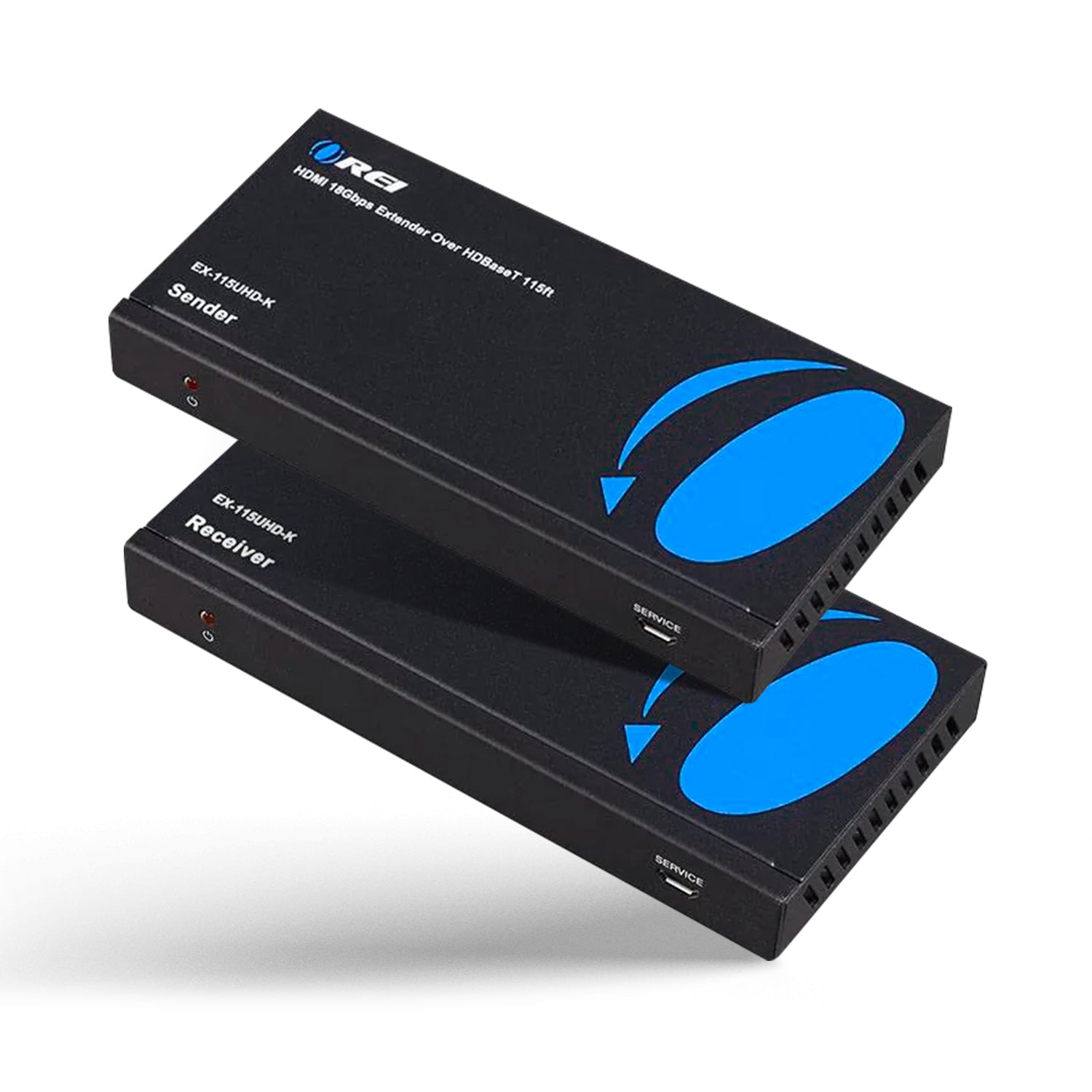

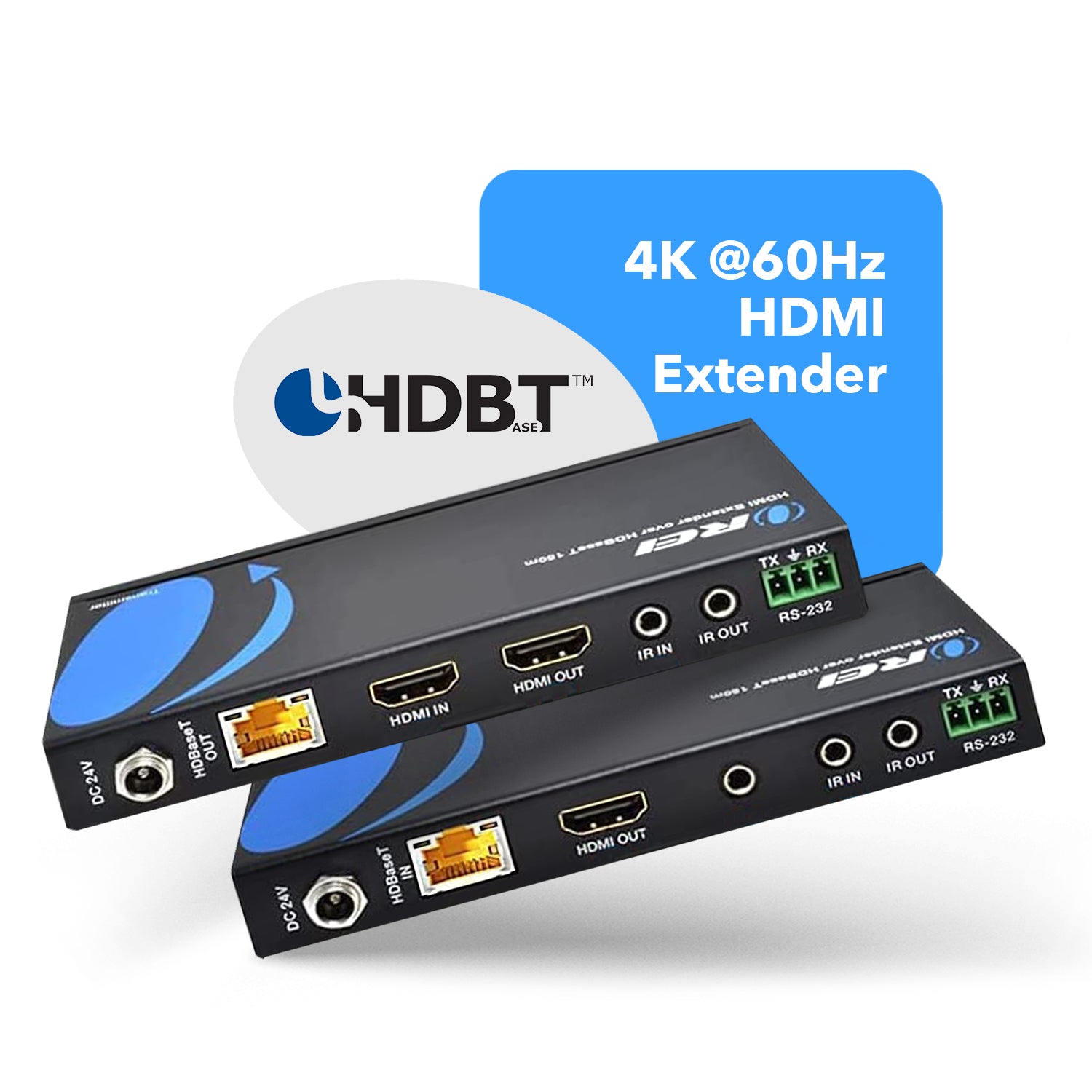

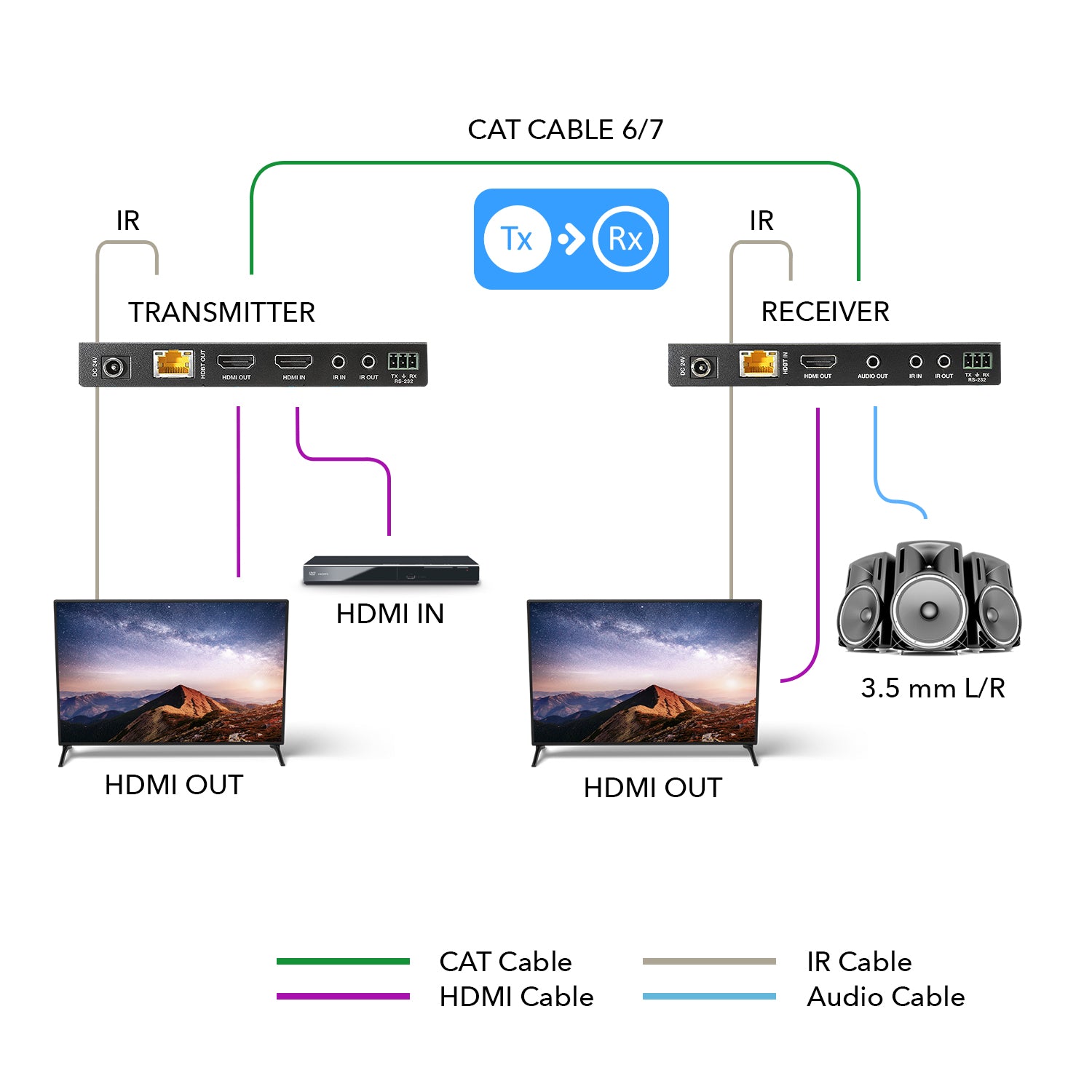

The OREI EX-115UHD-K HDMI extender allows you to transmit HDMI audio/video signals over Cat5e/6 cable along with maintaining original audio/video quality. Equipped with the HDBaseT technology, it can transmit video resolutions up to 4K@30Hz to 130 Feet (40m) and 1080p to 230 Feet (70m) with high-definition multi-channel audio. Enjoy lossless and zero latency transmission with simple plug & play installation. This kit also supports PoC (power over cable), RS-232 serial port and Bii-directional IR control.

Compact, durable and easy to set up and operate. Ideal for home, businesses, home theater systems and more.

You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa. Power Over Cable - only use one included power adapter at either transmitter side or the receiver side to power both units.

Supports CEC - which allows you to command and control other CEC enabled devices that are connected through HDMI without user intervention.

Bi-directional IR control - enables source device to recognize remote commands from remote display or control the remote display from the source device.

RS-232 Control - accepts control commands via PC interface.

The package includes Orei EX-115UHD-K HDMI Extender (Transmitter & Receiver Units), 1x Power adapter, 1x IR Receiver & Transmitter Cable, 4x Mounting ears, 2x 3-Pin Phoenix Connector & User manual.

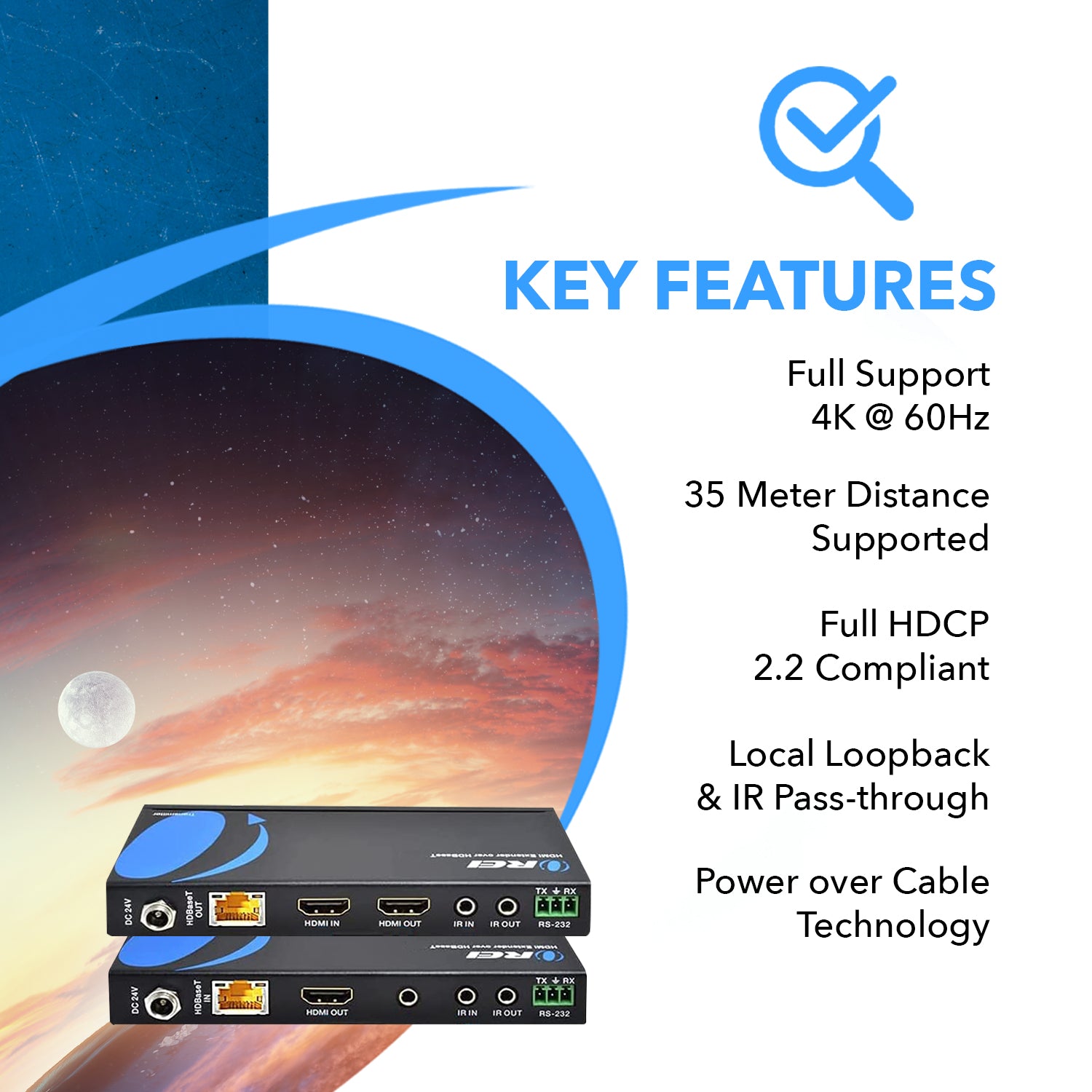

Key Features:
  • Extends 4K@30Hz with HDBaseT HDMI extender over Cat5e/6 allows you to transmit HDMI audio/video up to 130 Feet (40m) & 1080p up to 230 Feet (70m)
  • HDBaseT Technology for Lossless & Zero Latency transmission
  • Bi-directional IR enables source device to recognize remote commands to control HDMI source at the secondary location or vice-versa
  • Supported resolution: 4K @ 60Hz 4:2:0, 4K@30Hz, 1080p or lower resolutions
  • 10.2 Gbps Bandwidth
  • CEC - allows you to command and control other CEC enabled devices that are connected through HDMI without user intervention
  • RS-232 command control port

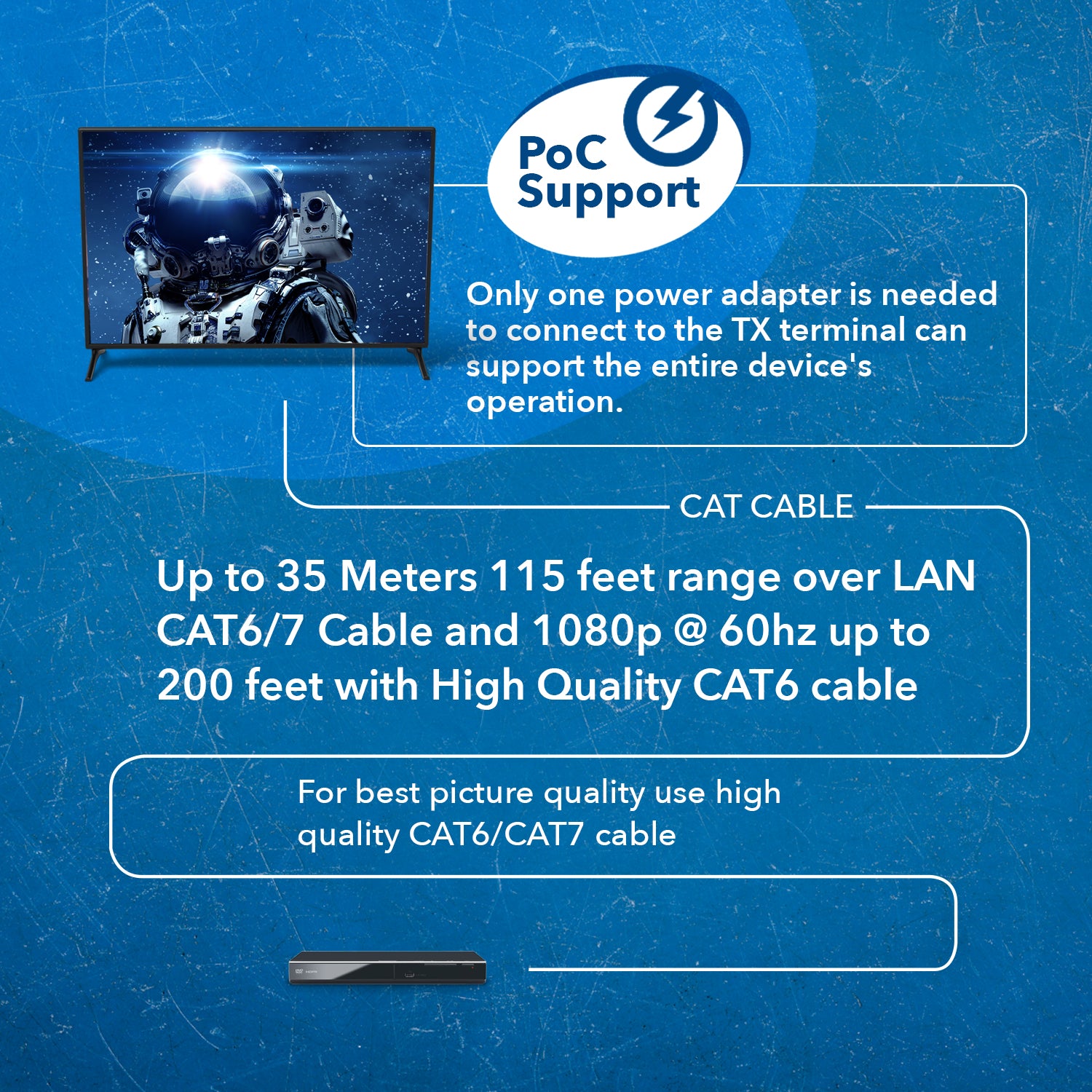

  • Power over Cable – only use one power adapter at either transmitter side or the receiver side to power both units
  • Heavy-duty cool metal enclosure protects and keeps the unit cool by aiding in quick heat absorption and dissipation; Compact in size for easy plug & play installation
  • Full HDCP 2.2 Compliant
  • Includes: Sender unit, Receiver unit, Instructions manual, World-wide voltage power adapter, Mounting kit & IR-kit. Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty

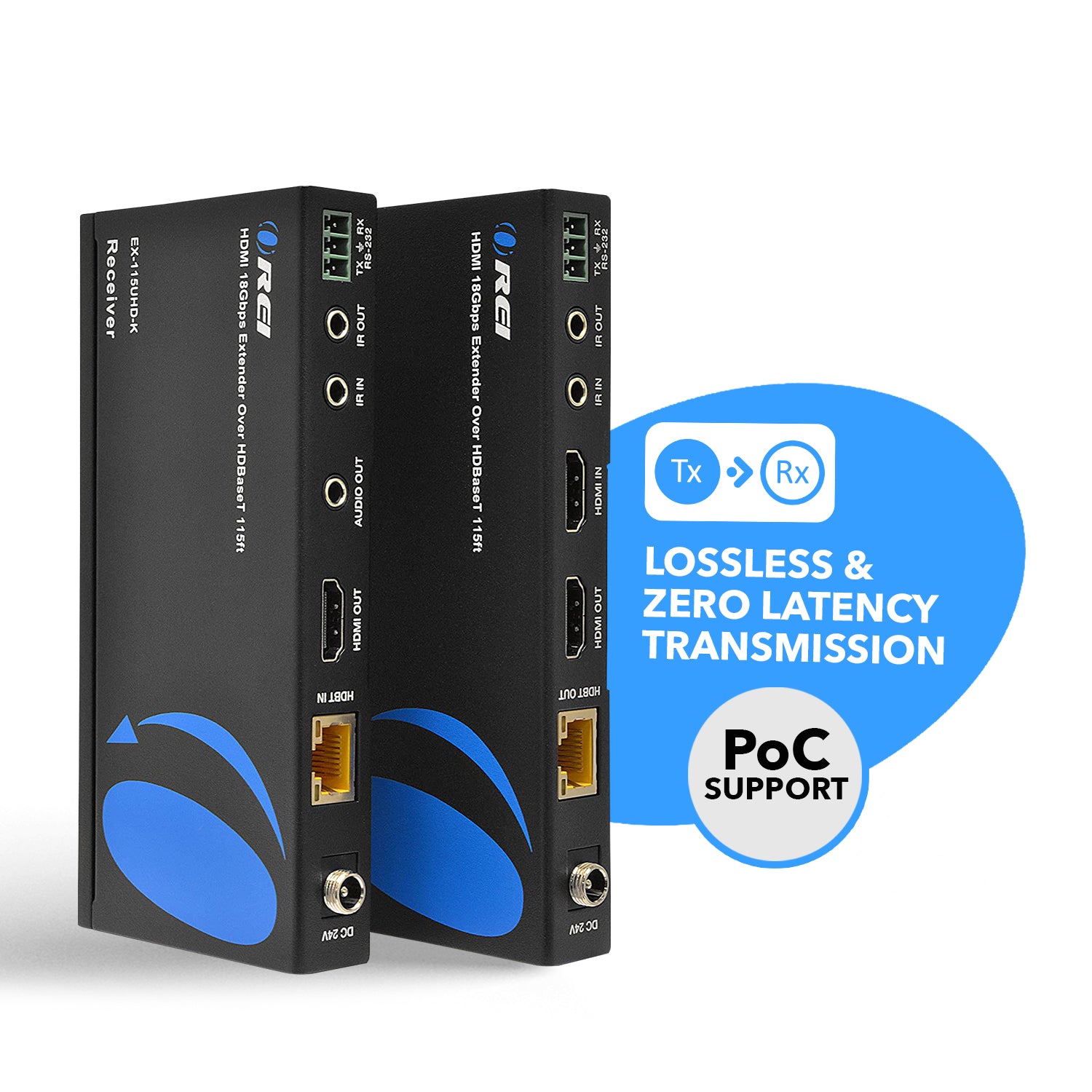

  • Transmitter:
    • Input Port:
      • 1×HDMI Type A [19-pin female]
    • Output Port:
      • 1×HDBT Out [RJ45]
    • Control Ports:
      • 1×IR In [3.5mm Stereo Mini-jack]
      • 1×IR Out [3.5mm Stereo Mini-jack]
      • 1×RS232 [Phoenix connector]
  • Receiver:
    • Input Port:
      • 1×HDBT Out [RJ45]
    • Output Port:
      • 1×HDMI Type A [19-pin female]
    • Control Ports:
      • 1×IR In [3.5mm Stereo Mini-jack]
      • 1×IR Out [3.5mm Stereo Mini-jack]
      • 1×RS232 [Phoenix connector]
  • HDMI Compliance: HDMI 1.4
  • HDCP Compliance: HDCP 2.2
  • Video Resolutions: Up to 4K@60Hz 4:2:0
  • Operation Temperature: 32 - 104°F / 0 - 40°C
  • Storage temperature: -4 - 140°F / -20 - 60°C
  • ESD Protection - Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge)
  • Relative Humidity: 20 - 90% RH (no condensation)
  • Video Bandwidth: 10.2Gbps
  • Dimensions: 120mm [W] x 74mm [D] x 16mm [H]
  • Weight: 240g
  • Power Supply:
    • Input: AC100~240V 50/60Hz
    • Output: DC12V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 10W (max)
  • Housing: Metal Enclosure
  • Color: Black

Includes:

  • OREI EX-115UHD-K HDMI Extender
  • Universal Power Supply 110/240V
  • Instructions manual

Warranty:

  • 1 year manufacturer's warranty
