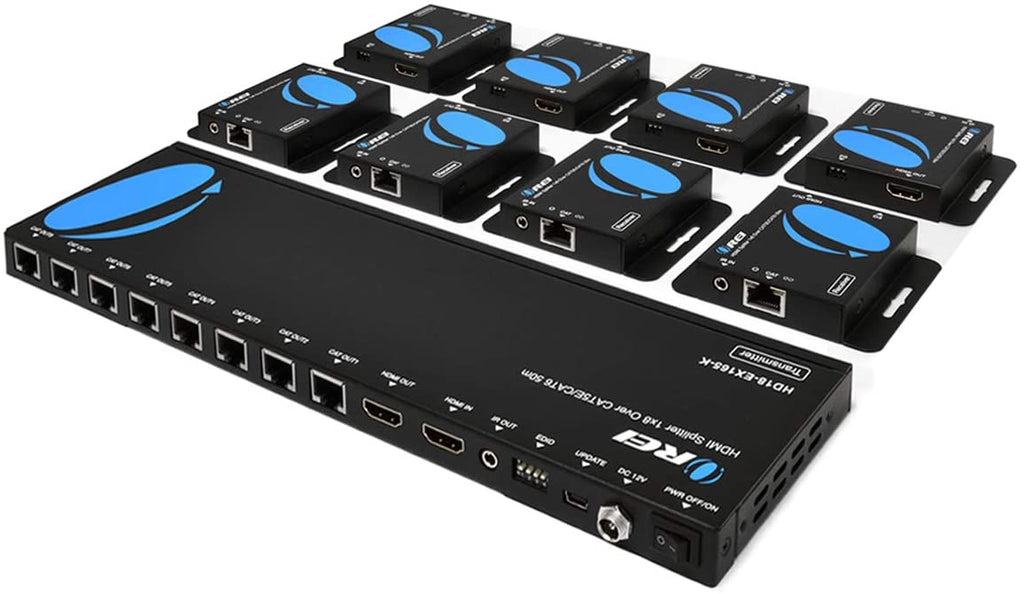

OREI 1x8 HDMI Extender Splitter - 165 Feet
The OREI HD18-EX165-K HDMI extender splitter allows you to transmit HDMI audio/video signals over Cat6/7 cable along with maintaining original audio/video quality to up to 8 displays remotely. It supports up to 1080p resolution and extends the transmission distance up to 165 feet (50 meters).
Durable and easy to set up and operate without any software installations. Ideal for businesses, churches, test bench facilities, data centers and help desks to duplicate HDMI signals at long range.
HDMI Loop-out - Connect HDMI display to the transmitter (sender unit) for an output to local display at the source.
IR control - enables source device to recognize remote commands from remote display side.
Power Over Cable - only use one included power adapter at transmitter (sender) side to power all the receivers
EDID Management - multiple EDID configuration options to select the perfect resolution and audio output settings for your connected displays.
Key Features:
Input/Output Connectors:- HDMI Splitter:
- Input Ports: 1 x HDMI, 1 x Mini USB
- Output Ports: 1 x HDMI, 8 x RJ45, 1 x IR out
- Receiver:
- Input Ports: 1 x RJ45, 1 x IR in
- Output Ports: 1 x HDMI
Video:
- Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0
Audio:
- Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
- LPCM - Yes
Display Resolutions:
- Full HD support: 1080p@60Hz@24 bit/pixels
EDID:
- Supports EDID control via EDID selector
Temperature:
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Protection:
- ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
- Relative Humidity: 20~90% RH (Non-condensing)
- Frequency Bandwidth: 2.97Gbps
Power:
- Power Consumption (Max): 15W
Dimensions & Weight:
- Weight:
- Transmitter: 720g
- Receiver: 8 x 131g
- Dimensions (mm)
- 295(W) X 83 (D) X 17 (H)
- Distribute 1 HDMI source to 8 HDMI displays over cat6 network cable simultaneously
- 1 in 8 out splitter receivers with power over cable feature - no adapter needed to power the receivers
- Cat6 HDMI transmitter is equipped with 8 port Cat6 output
- 1 additional HDMI output to connect local HDMI display or monitor
- EDID management control on transmitter
- IR kit (20~60KHz) to receive the IR remote control commands from the receiver end to transmit back to the transmitter side to control to the HDMI source remotely
- Plug & play setup without any software installation
- Compatible with Cat6/7 ethernet network cables
- Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances transmission
- UTP cable termination follows the standard of IEEE-568B
- Operates for TMDS clock frequencies up to 148.5MHz
- Up to Full HD resolution 1920×1080@60hz, ideal solution for HDMI exhibition, video conference, meeting rooms and bars
- Includes: 1x Sender unit, 8x Receiver unit, Instructions manual, World-wide voltage power adapter & IR-kit. Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty
- This unit requires only one power adapter to work
- OREI HD18-EX165-K Splitter - 1x Sender unit
- 8x Receiver unit
- IR-kit
- World-wide voltage power adapter
- Instructions manua
- 1 year manufacturer's warranty
- Lifetime OREI Tech Support
