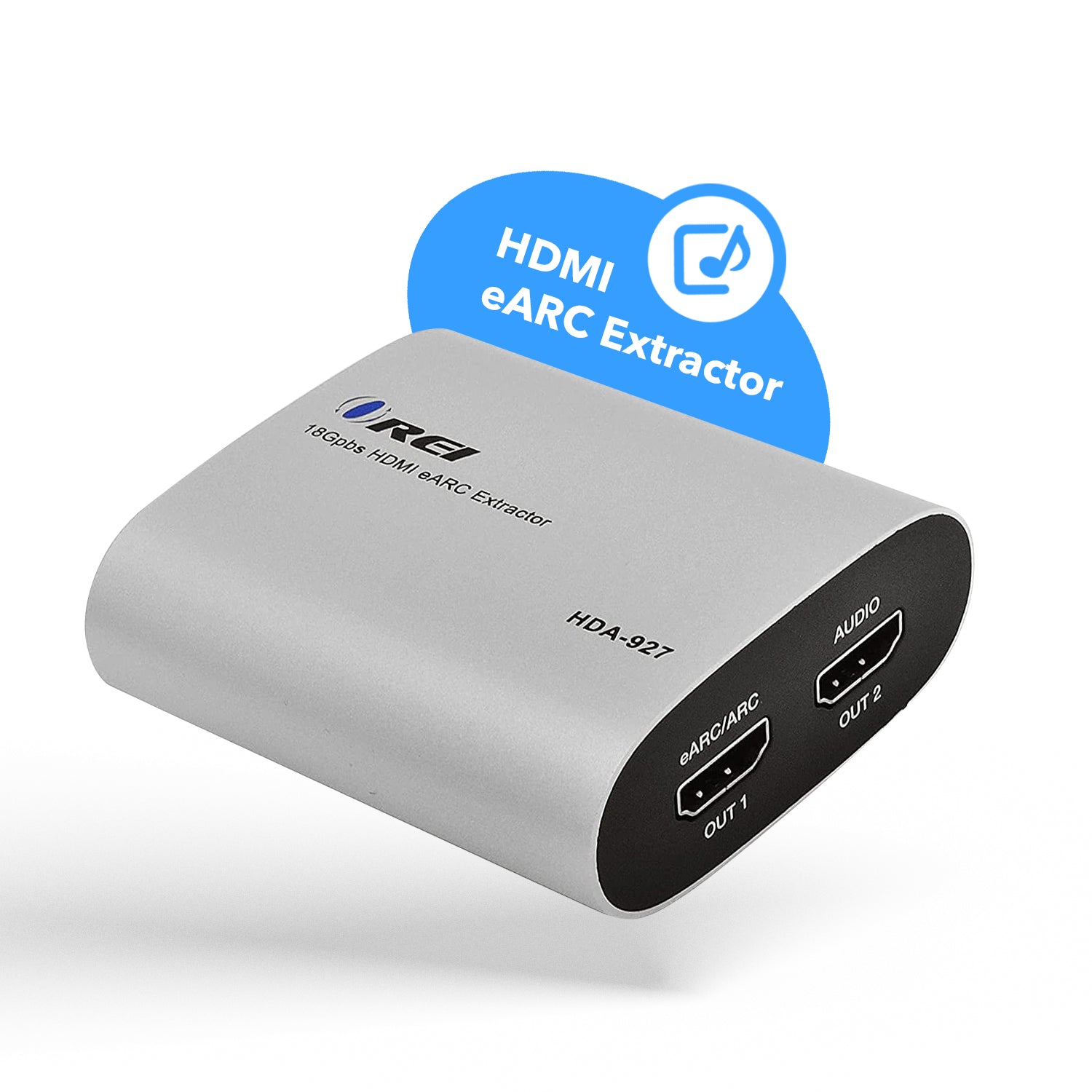

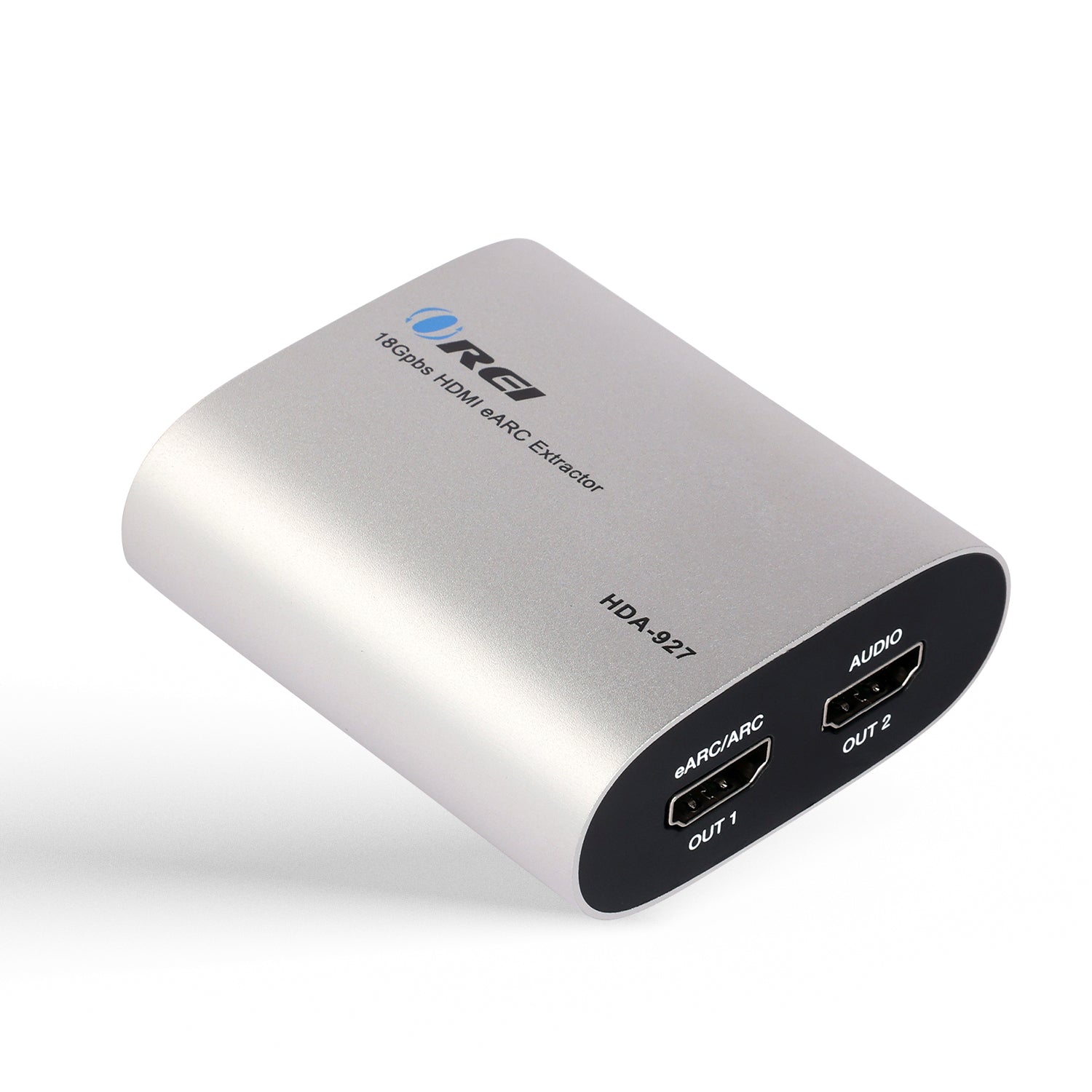

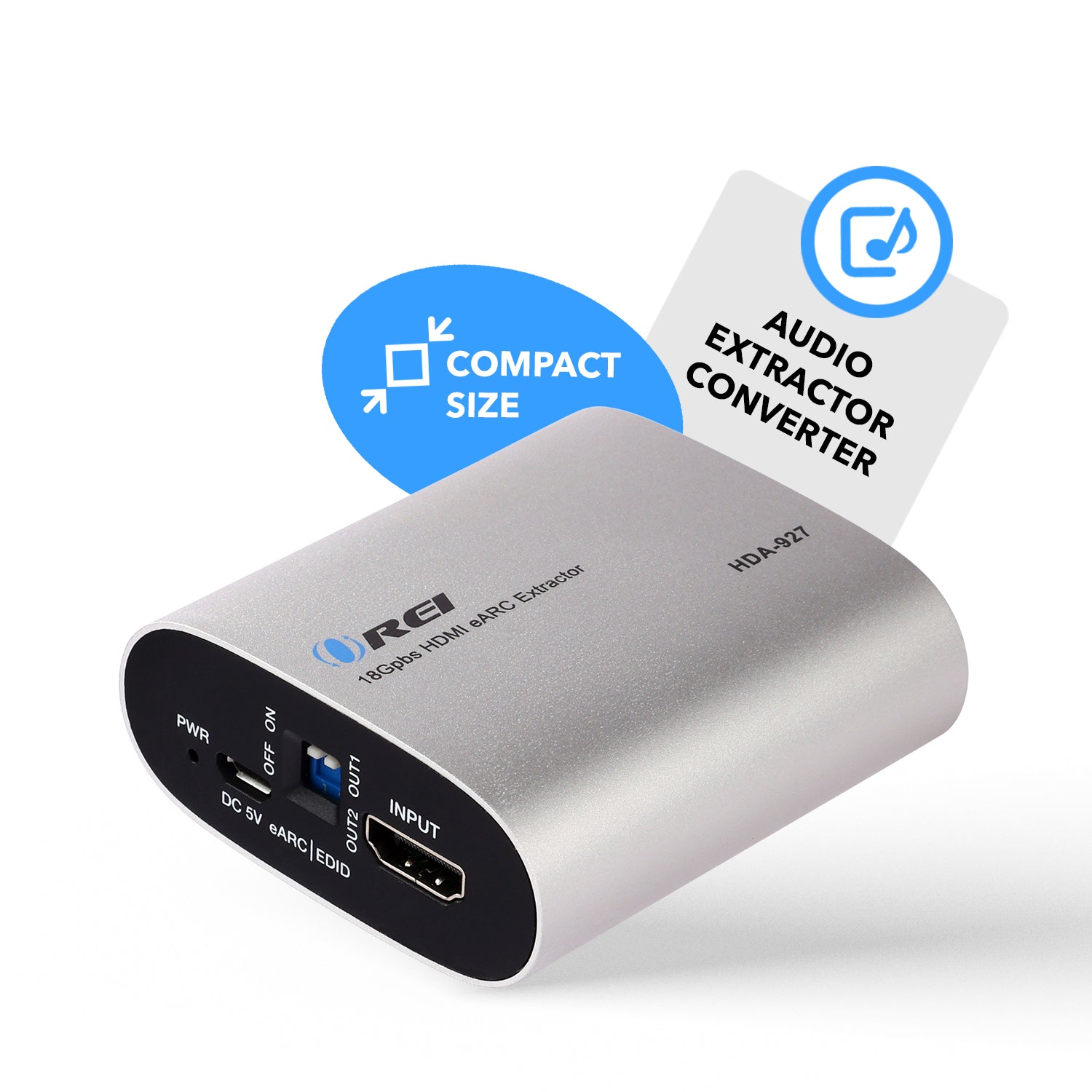

OREI HDA-927: eARC HDMI Audio Extractor Converter
The OREI
HDA-927 audio extractor allows you to extract full HDMI audio from any HDMI source signal and pass through 4K or HDR the video to a compatible display/TV and output HDMI Audio to AV Receiver with HDMI input.
You can also use this to split your audio & video in its full resolution to your display and home theater receiver with HDMI outputs including ARC/eARC support. Designed to meet the latest HDMI 2.0 standards with HDCP 2.3 compliance.
HDA-927 supports video resolutions up to 4K@60Hz YUV 4:4:4 with HDR and CEC bypass.
Key Features:
- Extract Full HDMI audio from any HDMI source signal and pass-through 4K or HDR the video to a compatible display/TV and output HDMI Audio to AV Receiver with HDMI input
- HDMI 2.0 (18Gbps)
- HDCP 2.3 compliant
- Supports resolutions up to 4K@50/60Hz (YUV 4:4:4), HDR
- eARC Mode Support
- Support CEC function and advanced EDID management
- Built-in Equalizer, Retiming and Driver
- Support VESA format up to QSXGA@60Hz

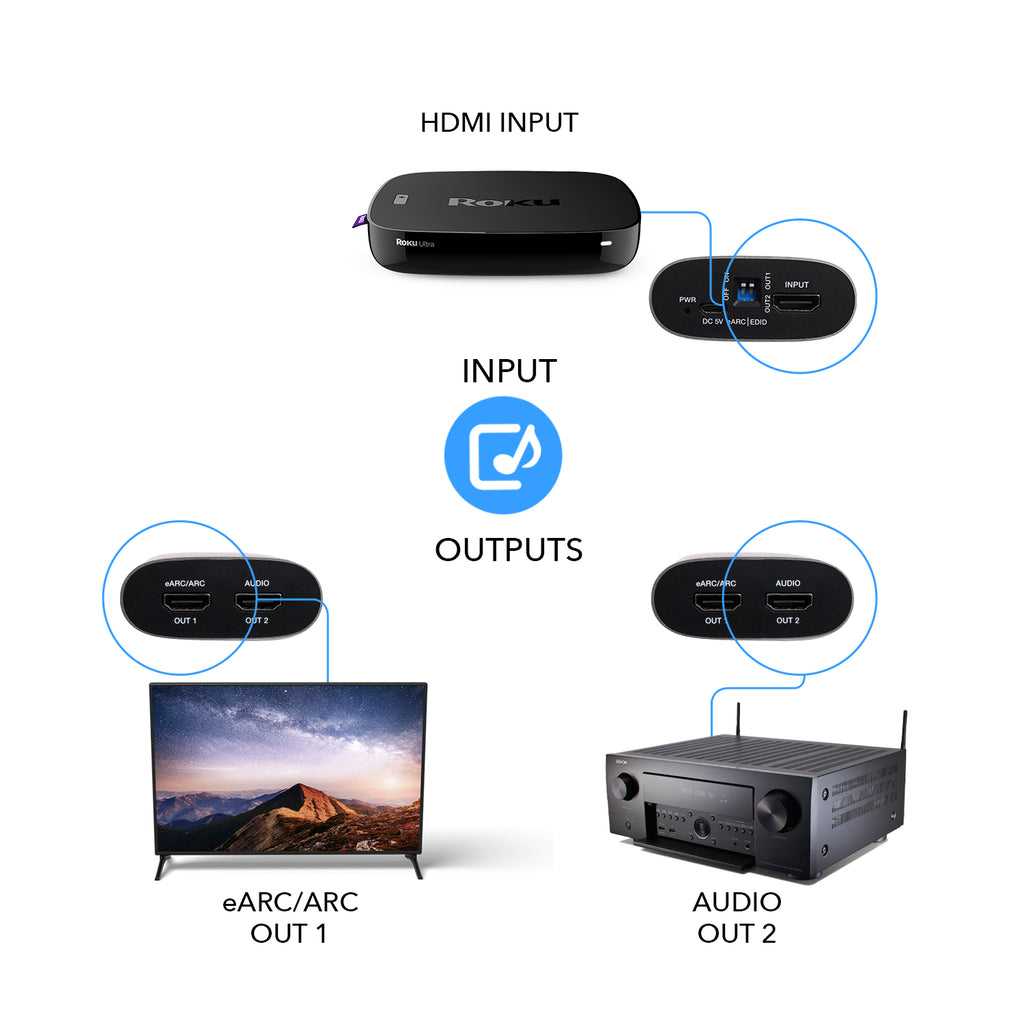

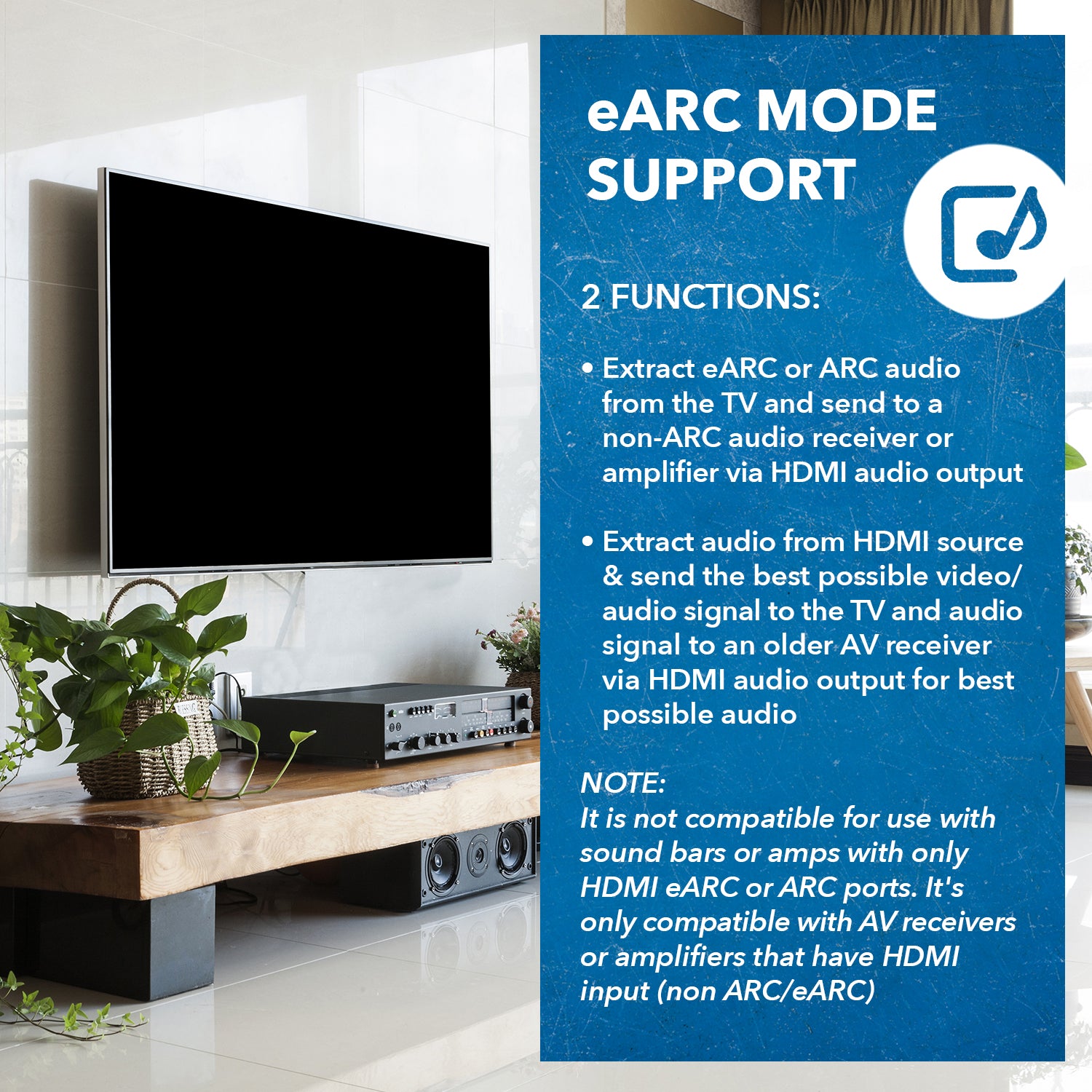

- Extract the audio return from ARC or eARC port on TV/Display and send HDMI audio only to a non-ARC AV Receiver for the full audio experience
- Dedicated HDMI Audio only output to connect to an AV Receiver
- Supports Dolby True HD, Dolby Digital, Dolby Atmos, DTS Digital, DTS HD Master, Dolby/DTS 7.1&5.1CH, PCM7.1&5.1&2.0 stereo audio)
- Simple plug & play setup

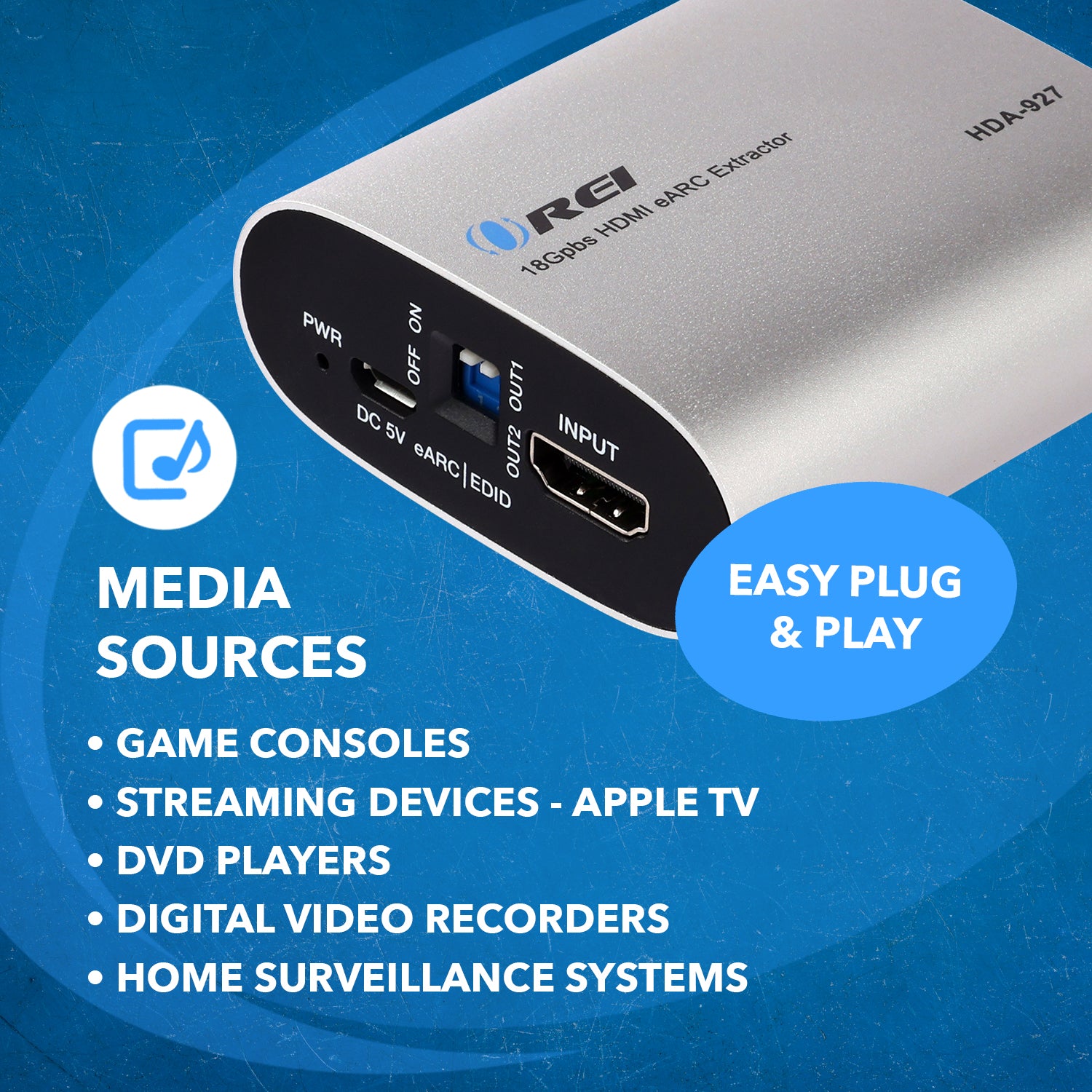

- Input: 1x HDMI Type A [19-pin female]
- Outputs: 2x HDMI Type A [19-pin female]
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.3/1.x
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4Kx2K@60Hz 4:4:4
- Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
- HDMI Audio Formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
- Operation Temperature: 32 - 104°F / 0 - 40°C
- Storage temperature: -4 - 140°F / -20 - 60°C
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
- Relative Humidity: 20~90% RH (non-condensing)
- Dimensions: 65mm[W] x 70mm[D] x 27mm[H]
- Weight: 83g
- Power Supply: USB 5V / 500mA
- Power Consumption(Max): 1.75W
- Housing: Aluminium Enclosure
- Color: Silver
Package content and Warranty:
Includes:
- 1x eARC Audio Extractor box
- 1x USB Cable (USB-A to Micro USB)
- 1x User Manual
Warranty:
- 1-Year manufacturer's warranty
