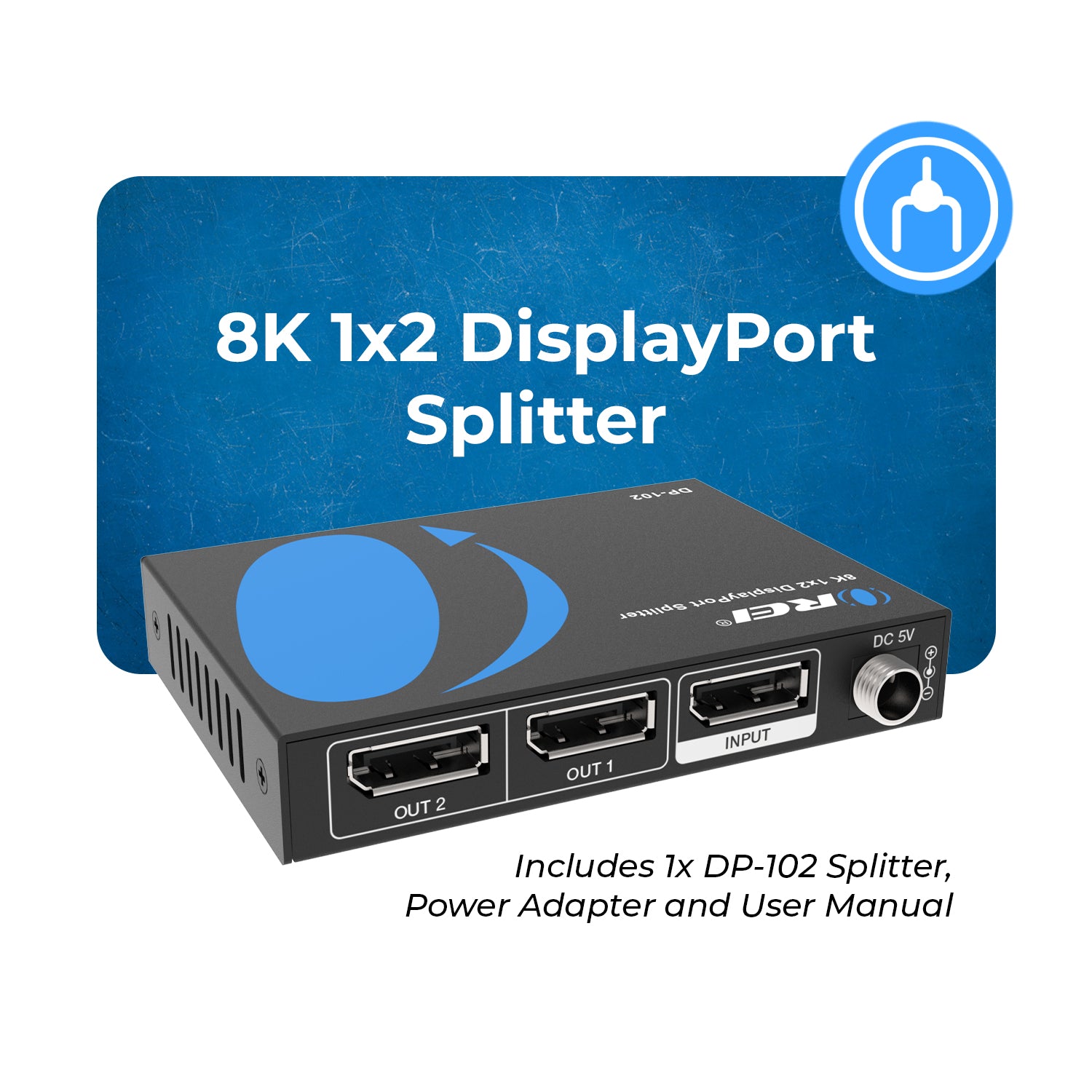

OREI DP-102: 8K 1X2 DISPLAYPORT SPLITTER
DP-102 is a high-performance 1x2 DisplayPort 1.4 Splitter designed to distribute a single DisplayPort source signal to two independent displays simultaneously. With support for advanced display configurations such as mirror, extended desktop, and panoramic video wall modes, this device delivers seamless signal distribution and pristine video performance.
Supporting true video bandwidth up to 32.4Gbps, the splitter is fully compliant with DisplayPort 1.4 and MST 1.2 standards. It handles a wide range of video resolutions including up to 8K@30Hz, dual 4K@60Hz, and up to four 4K@30Hz displays with support for 4K HDR and UHD formats. It is also compatible with DSC, 3D video, and 5.1-channel surround sound audio, making it ideal for professional applications such as digital signage, control rooms, presentations, gaming setups, and multi-monitor workstations.
The DP-102 is designed to work flawlessly with modern GPUs and multi-display technologies, including AMD Eyefinity, NVIDIA Surround, and Intel Collage. With its compact, plug-and-play design, this splitter offers a reliable and flexible solution for high-resolution multi-display environments.
Key Features:
- DisplayPort 1.4 Compliant – Ensures compatibility with the latest high-resolution video and audio standards.

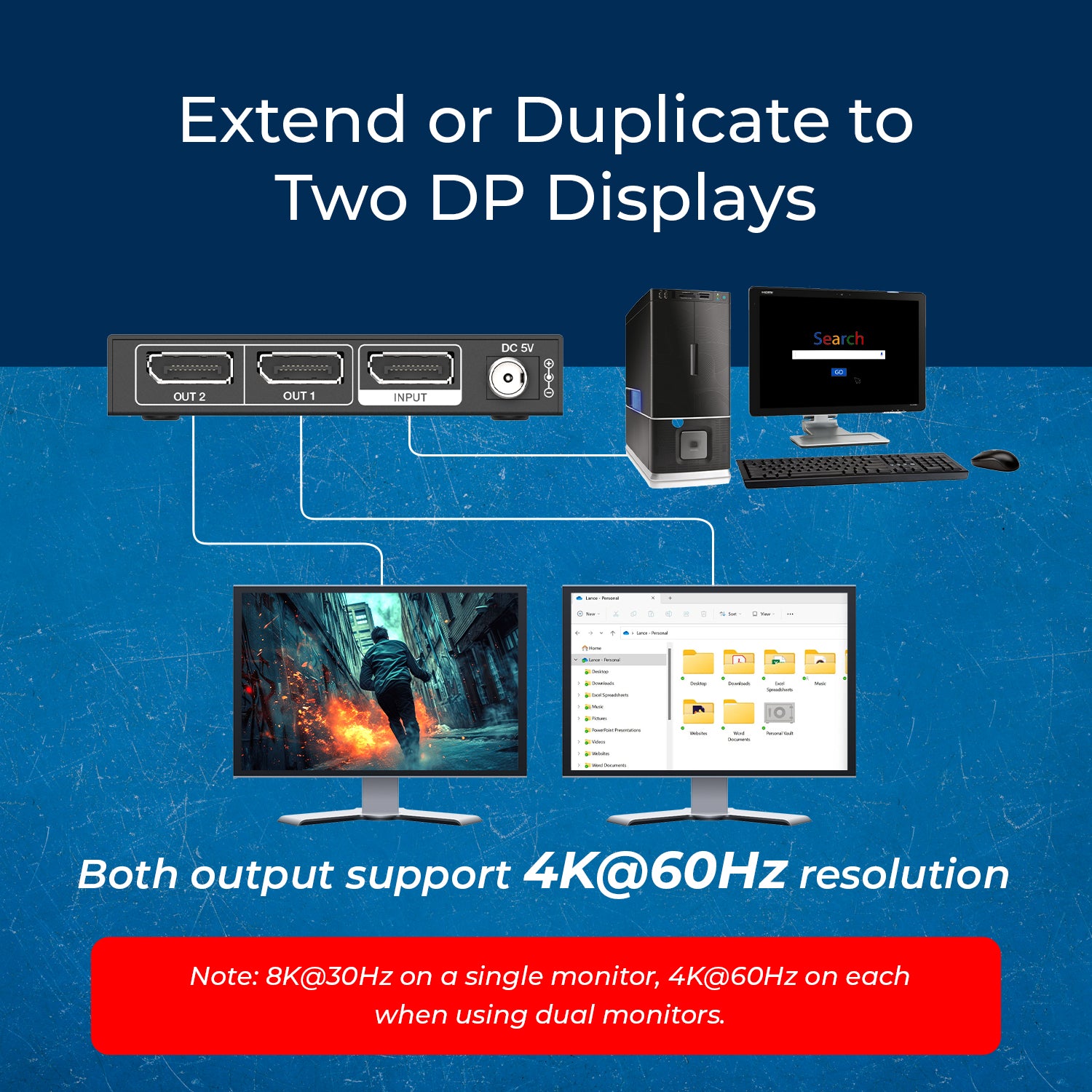

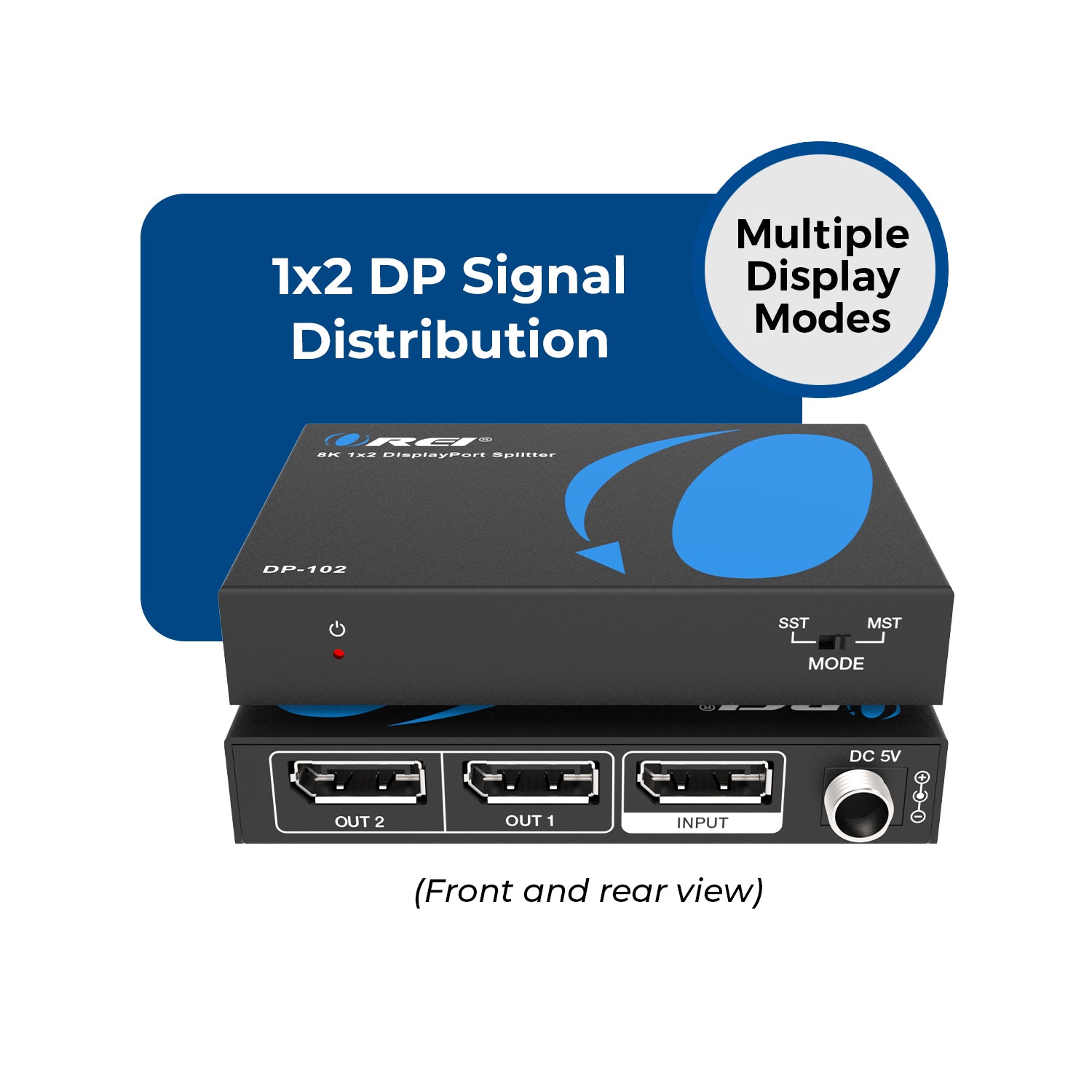

- 1x2 DP Signal Distribution – Duplicates a single Display Port 1.4 source to two DisplayPort monitors.
- Multiple Display Modes – Supports mirror, extended desktop, and panoramic video wall configurations.
- High Bandwidth Support – Offers up to 32.4Gbps video bandwidth, enabling seamless playback and signal integrity.

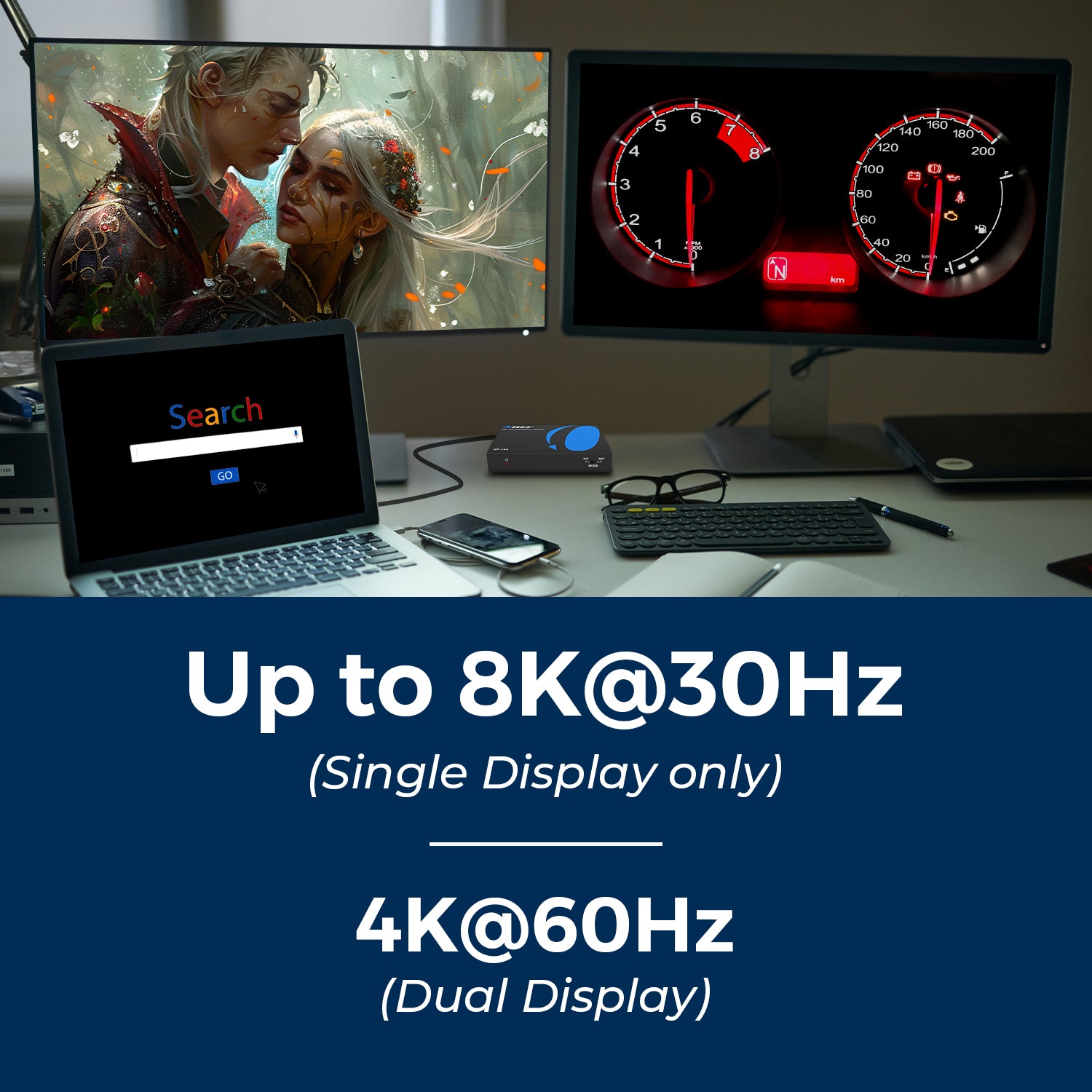

- Advanced Resolution Support – Delivers up to 8K@30Hz, dual 4K@60Hz, and triple/quad 4K@30Hz output options.
- HDR & UHD Ready – Compatible with 4K HDR and ultra-high-definition formats for rich, lifelike visuals.

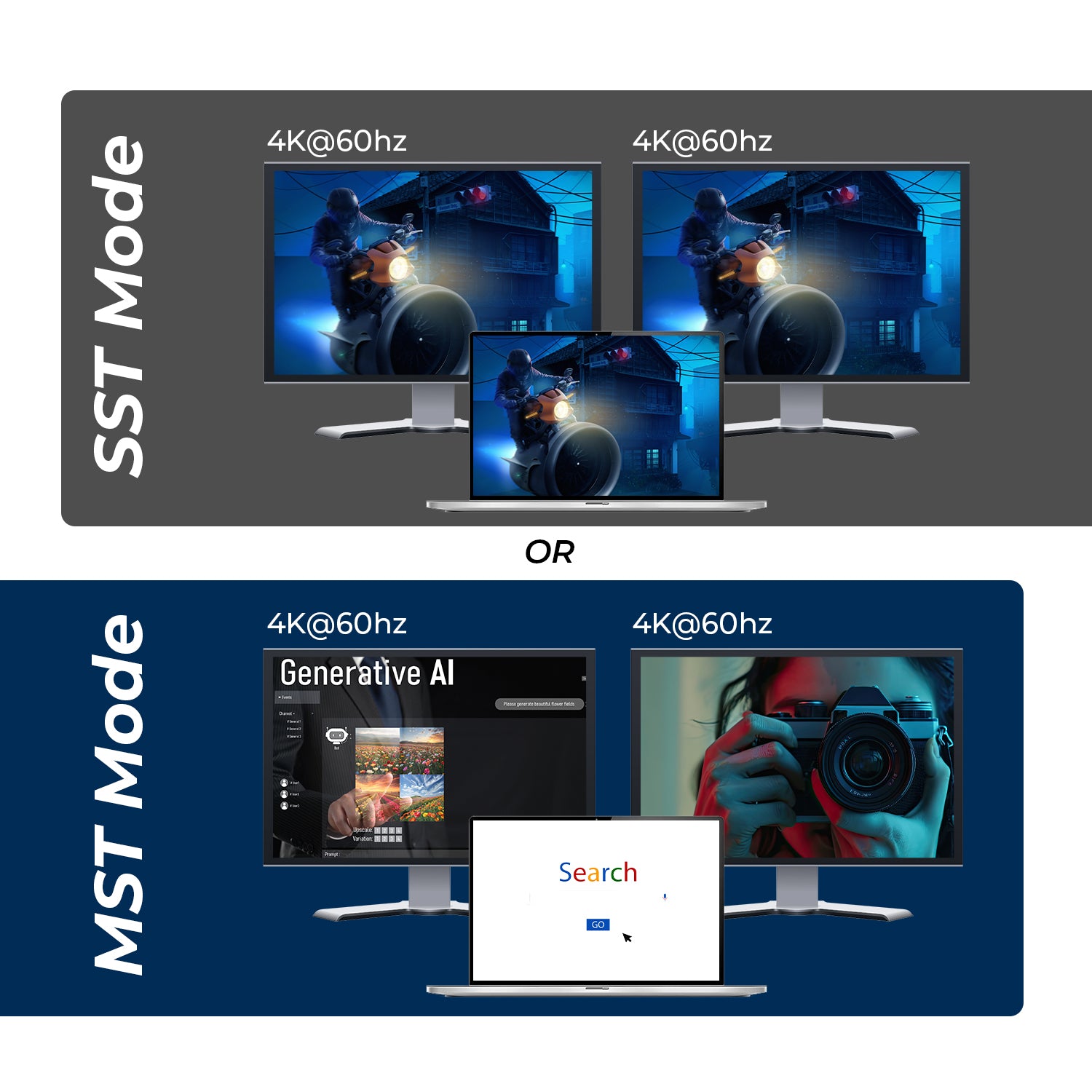

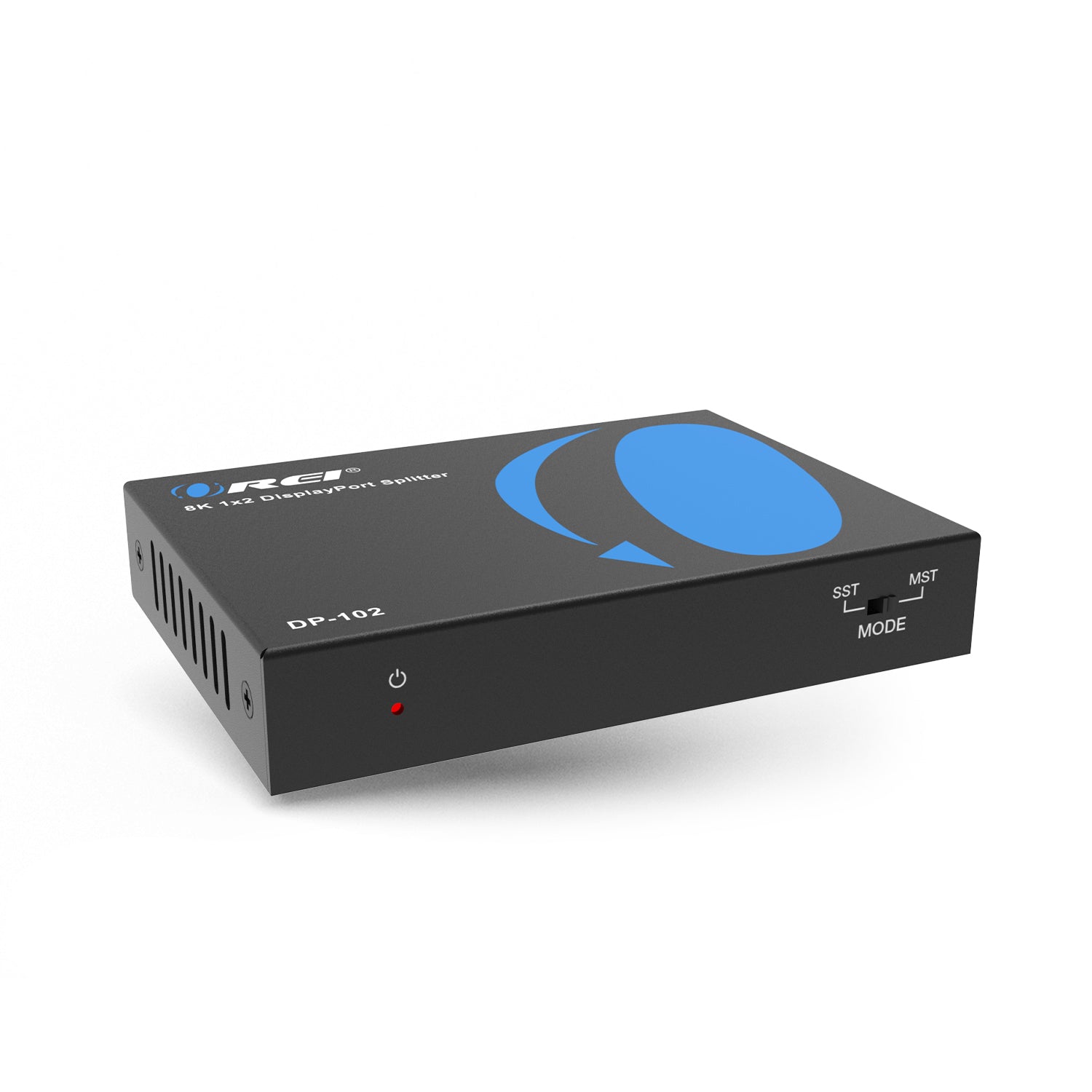

- MST & SST Modes – Supports Multi-Stream Transport (MST) for extended displays and Single-Stream Transport (SST) for mirrored output.
- 3D, DSC & Surround Audio Support – Enables immersive media experiences with 3D video, DSC and 5.1-channel surround sound.
- GPU Compatibility – Works with DP 1.4 graphics cards and multi-display platforms including AMD Eyefinity, NVIDIA Surround, and Intel Collage.
- Compact and Versatile Design – Sleek form factor ideal for workstations, control centers, and immersive gaming environments
- CONNECTIVITY
- INPUT: 1× DP INPUT [Type A, 20-pin female]
- OUTPUT: 2× DP OUT [Type A, 20-pin female]
- SUPPORTED HDMI CABLES
- HDMI 2.1 We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
- VIDEO OUTPUT
- Video Bandwidth: 32.4Gbps
- Video Resolutions: Up to 8K@30Hz, dual 4K@60Hz, triple/quad 4K@30Hz * All available resolutions are shown as follow.
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- AUDIO SUPPORT

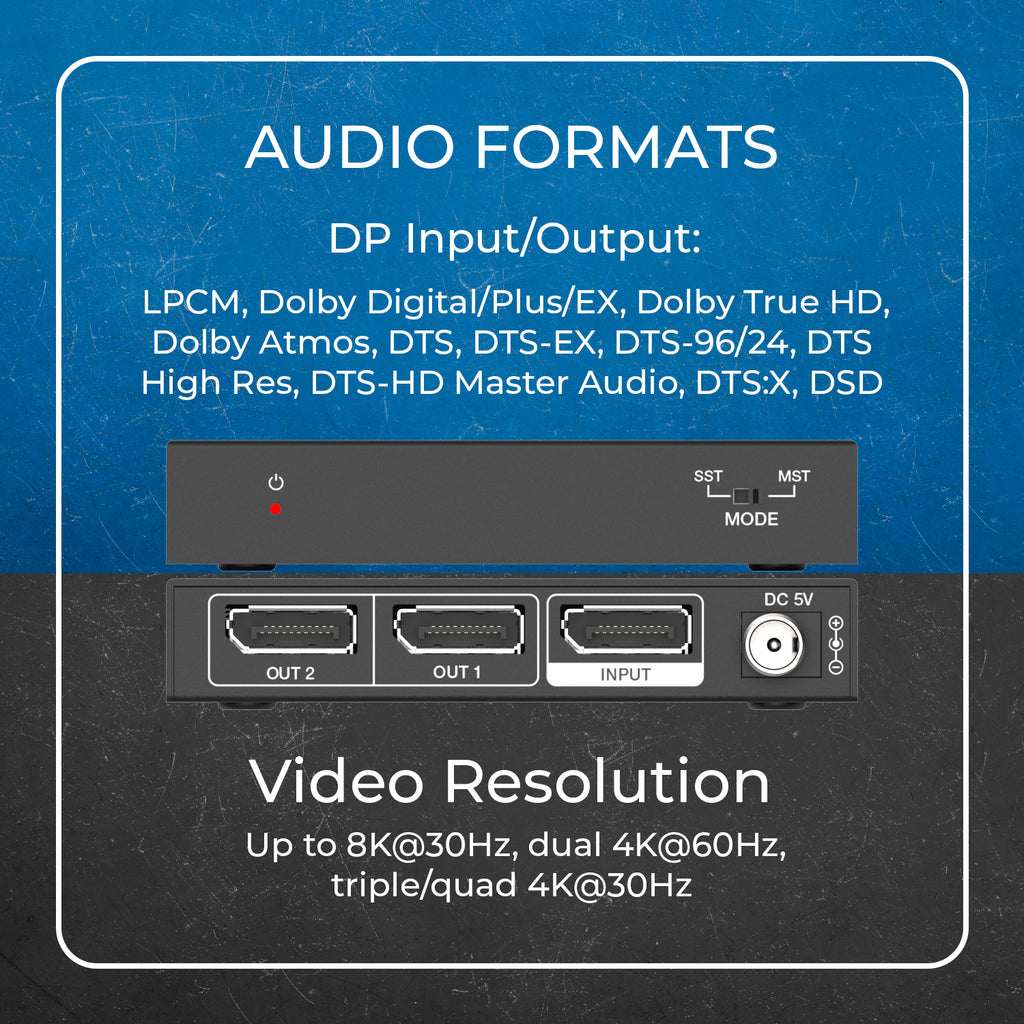

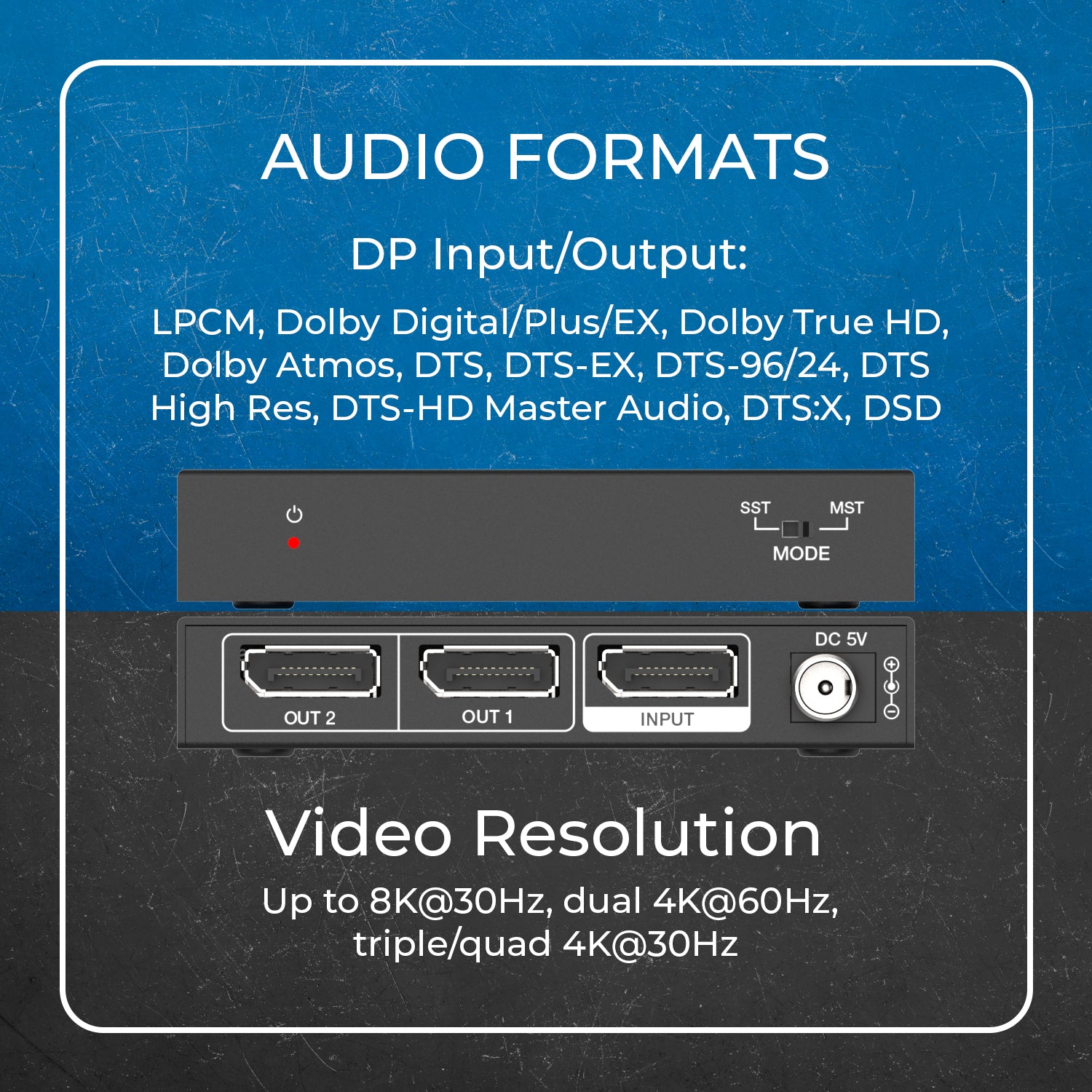

- Audio Formats: DP Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
- COMPLIANCES
- DP Compliance: DP 1.4
- MST Version: MST 1.2
- POWER
- Power Consumption:2.2W (Max)

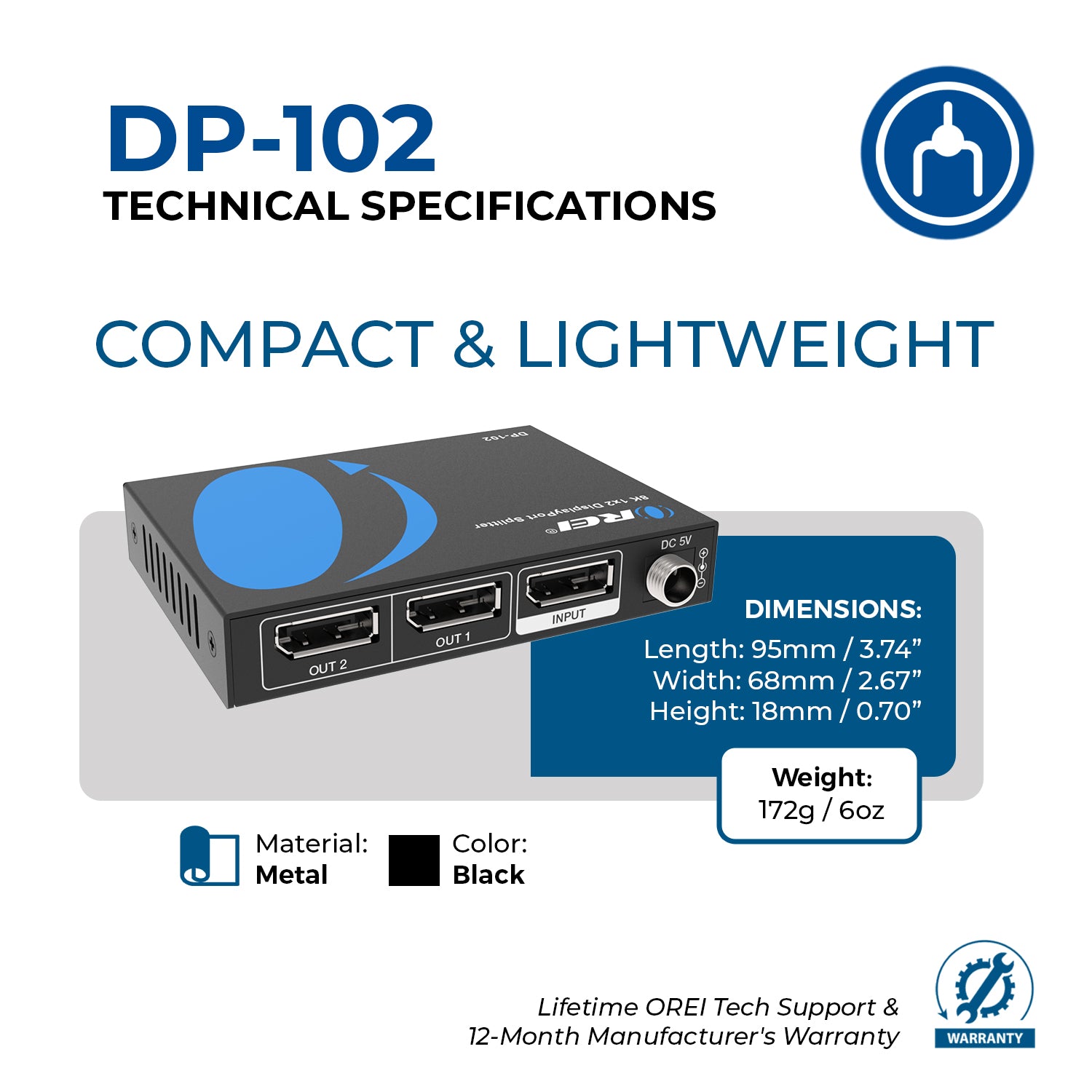

- DIMENSIONS & WEIGHT
- Length: 68mm / 2.68in
- Width: 95mm / 3.74in
- Height: 18mm / 0.71in
- Weight: 172g / 0.38 lb
- PROPERTIES
- Color: Black
- Housing: Metal
Includes:
- 1x DP-102
- 1x 5V/1A Power Supply
- User Manual
- 1-year manufacturer's warranty
