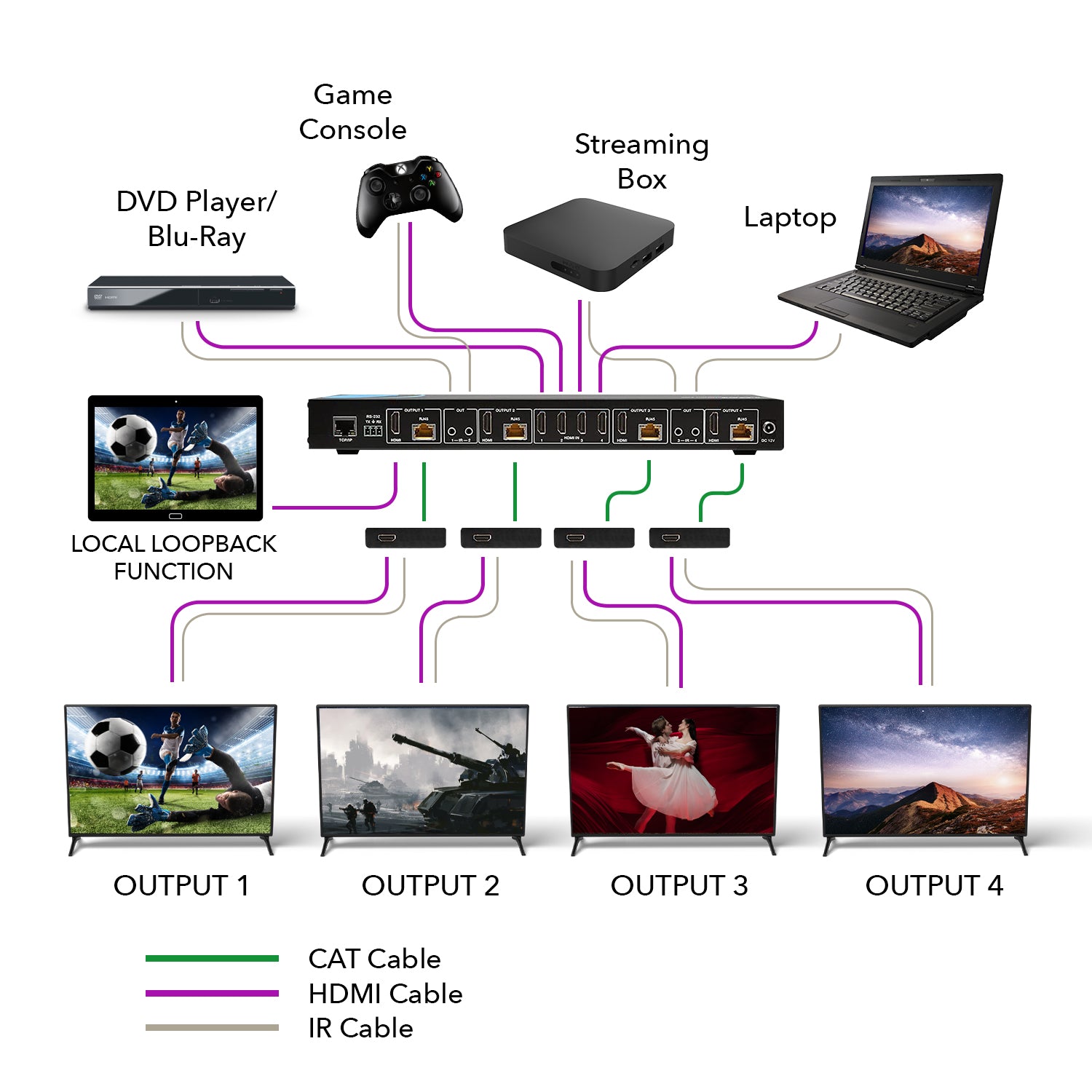

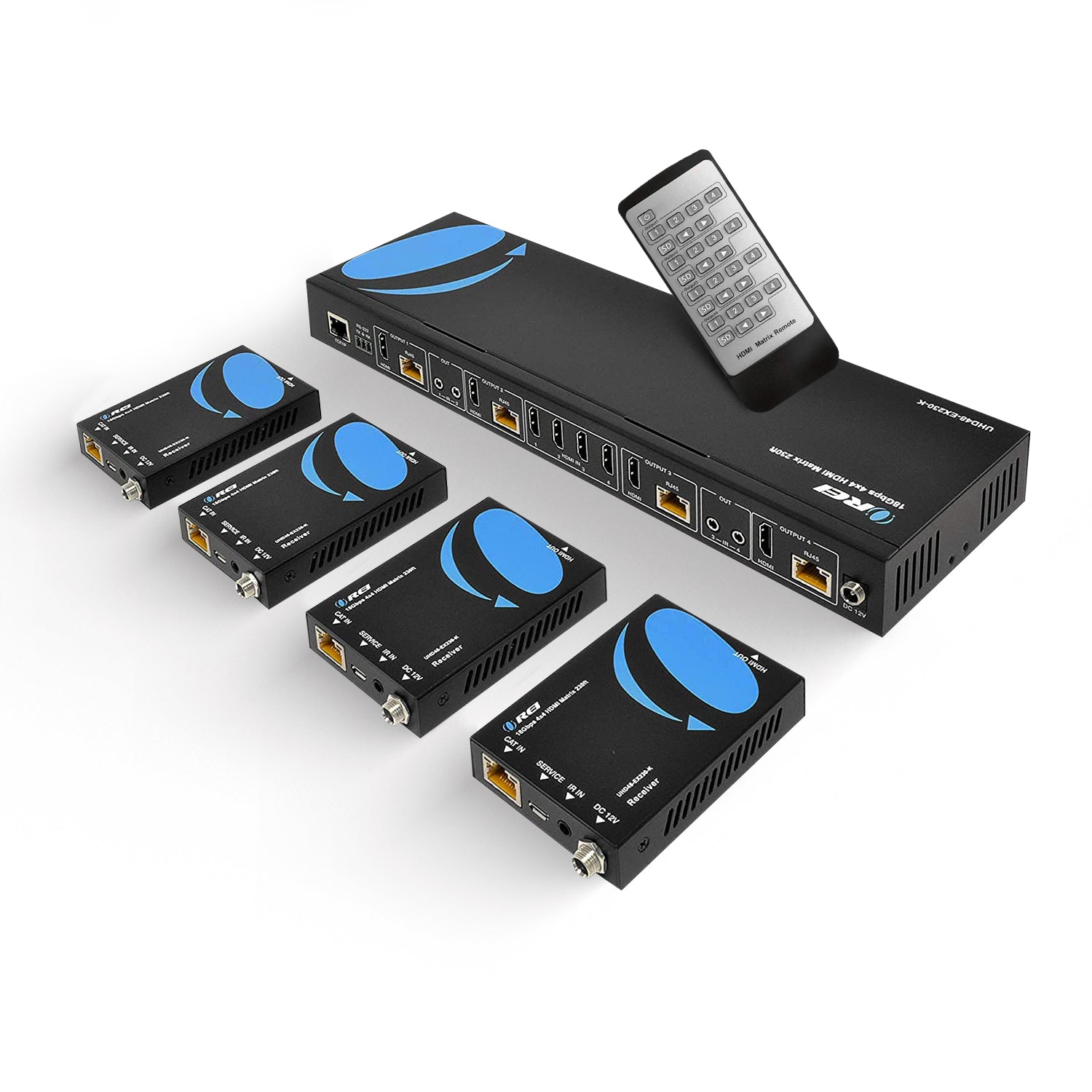

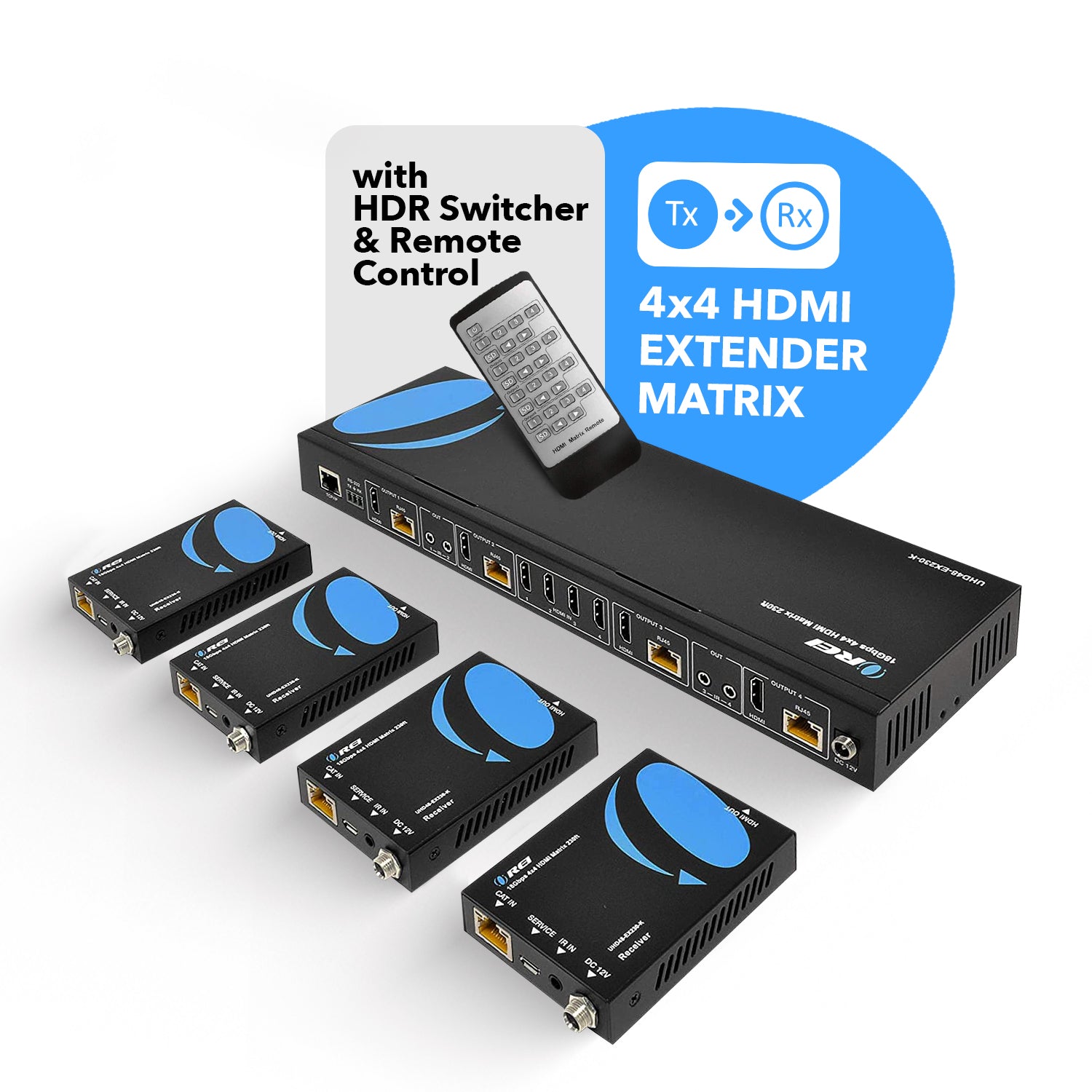

The OREI UHD48-EX230-K 18Gbps 4x4 HDMI Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output that runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

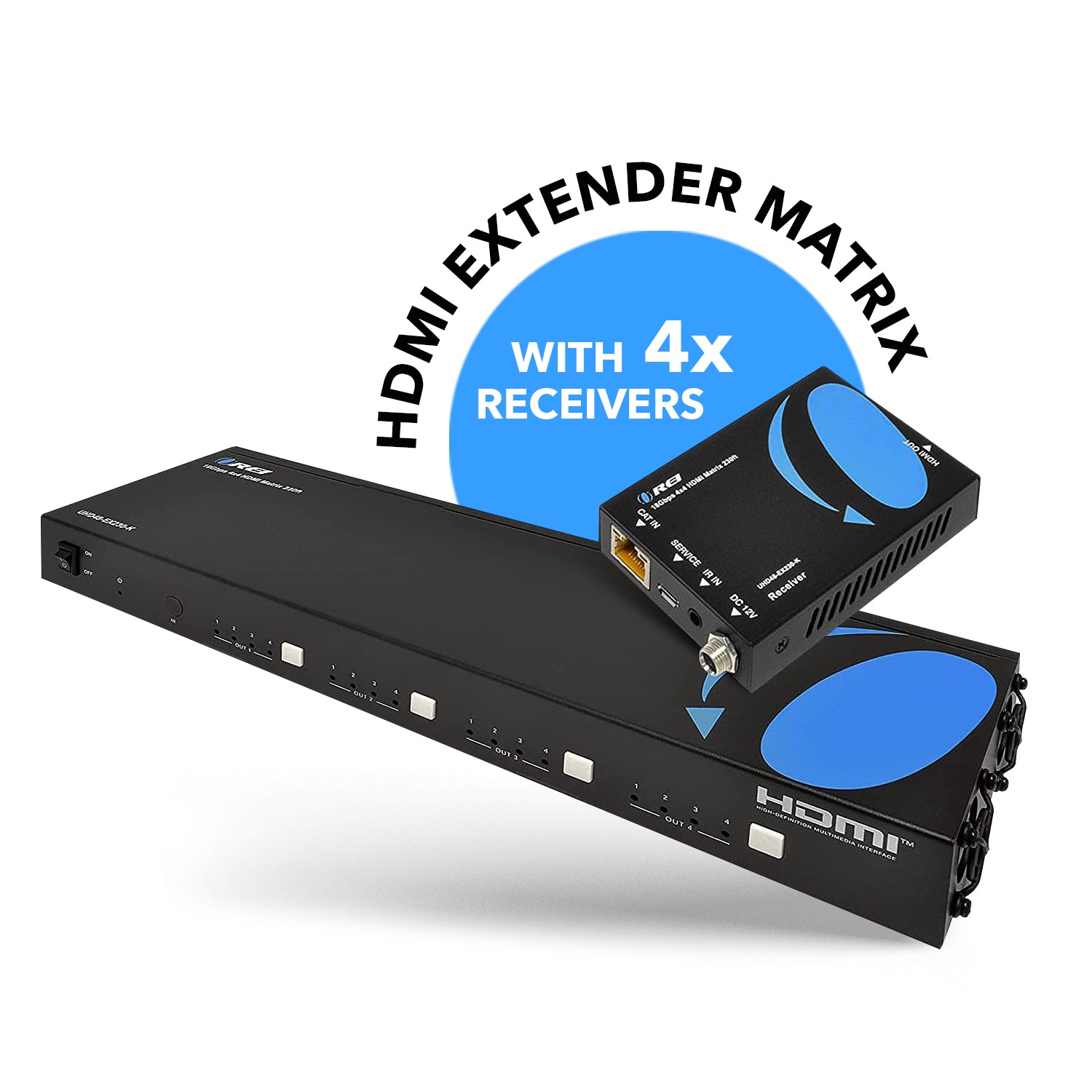

Connect a CAT Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m for multi-room connectivity. Each HDMI output supports 4Kx2K to 1080p downscale independently. The product supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Key Features:
4X (4+4) - 4 Inputs & 4 Outputs Over CAT5e/6/7 LAN Cable up to 230 Feet
Additional 4 Loop Out HDMI Source at Local Location
Perfect Professional Distribution HDMI matrix
Ideal for 4K Blu Ray Players, Game Consoles, Media Players, Satellite Receivers, Computers, Laptops and Other Sources
HDMI 2.0b and HDCP 2.2/1.x compliant
Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
HDMI ports support 18Gbps lossless uncompressed video bandwidth
Support 4K->1080P Down Scaler for each output port
HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS HD Master Audio)
Advanced EDID management and CEC control are supported
12V POC on all CAT ports
Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Compact in size for easy plug & play installation
This unit requires only one power adapter to work

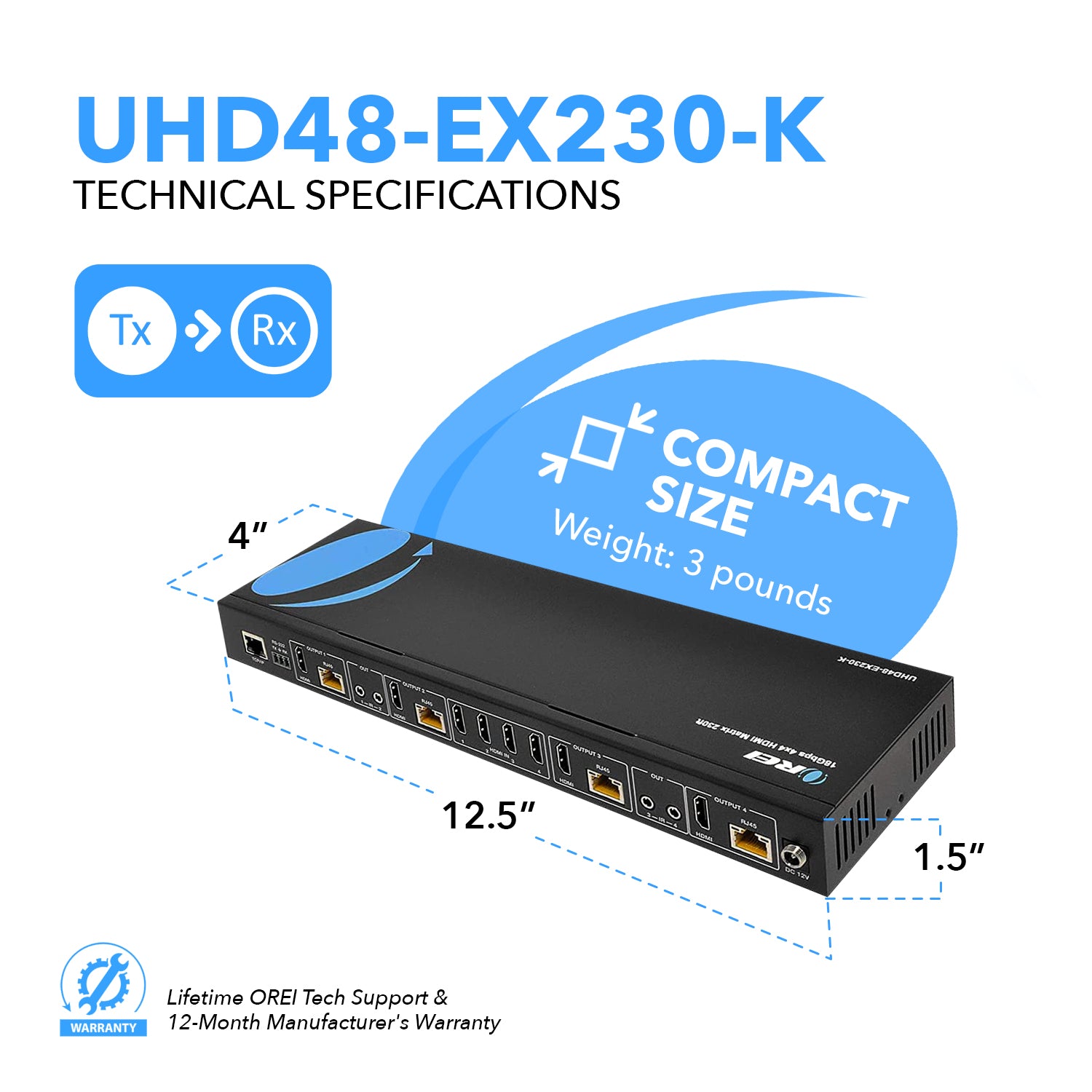

Transmitter:
Input Port:
4x HDMI Type A [19-pin female]
Output Ports:
4× HDMI Type A [19-pin female]
4x CAT port [RJ45]
4x IR OUT [3.5mm Stereo Mini-jack]
Controls:
1x TCP/IP [RJ45]
1x RS-232 [3-pin phoenix connector]
Receivers:
Input Ports:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT port [RJ45]
Output Port:
1x HDMI Type A [19-pin female]
Controls:
1x SERVICE [Micro USB, Update port]
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2/1.x
Video Bandwidth: 18Gbps
Transmission Distance: 230ft / 70m (via a single CAT6 cable)
