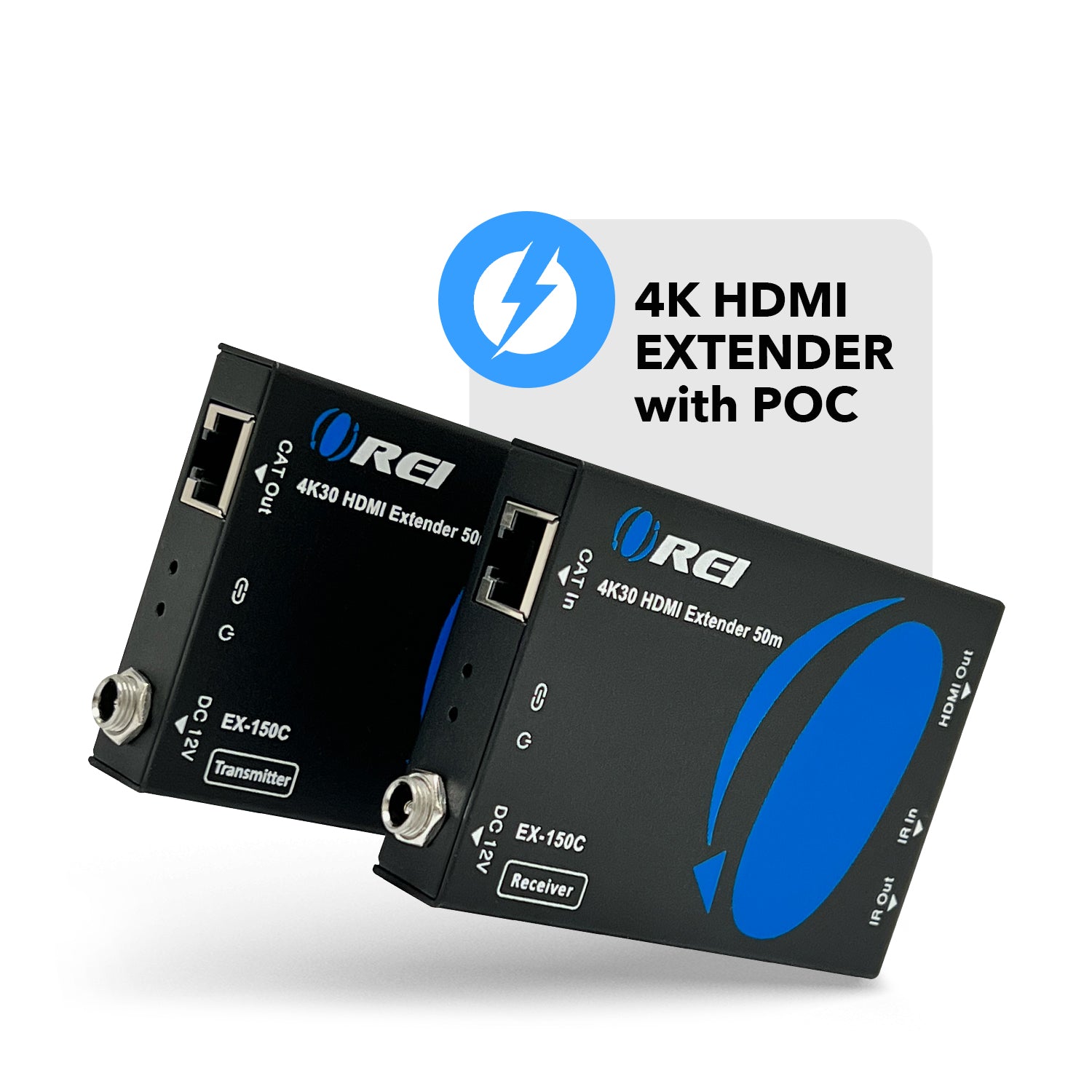

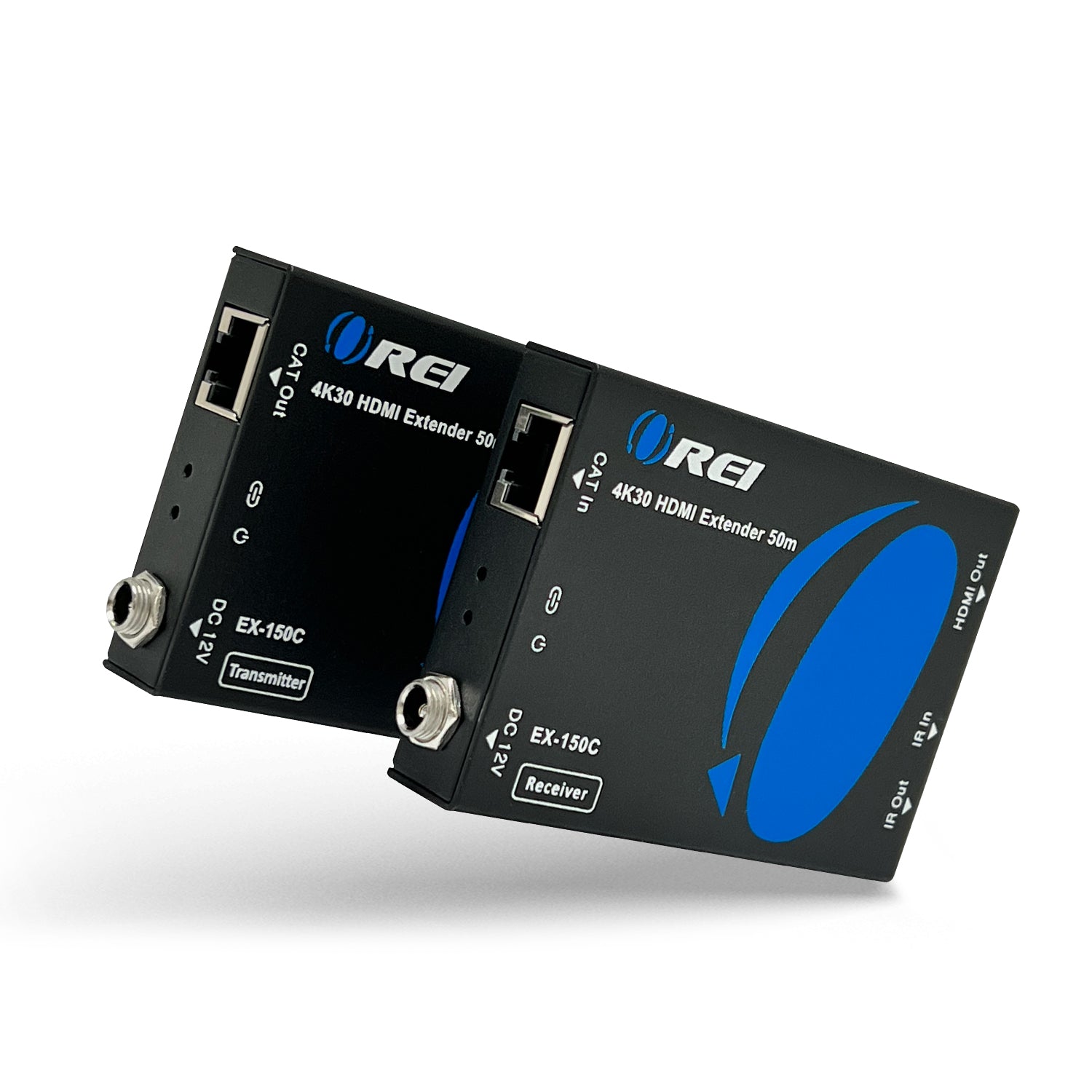

4K HDMI Extender Over CAT6/7 up to 165ft

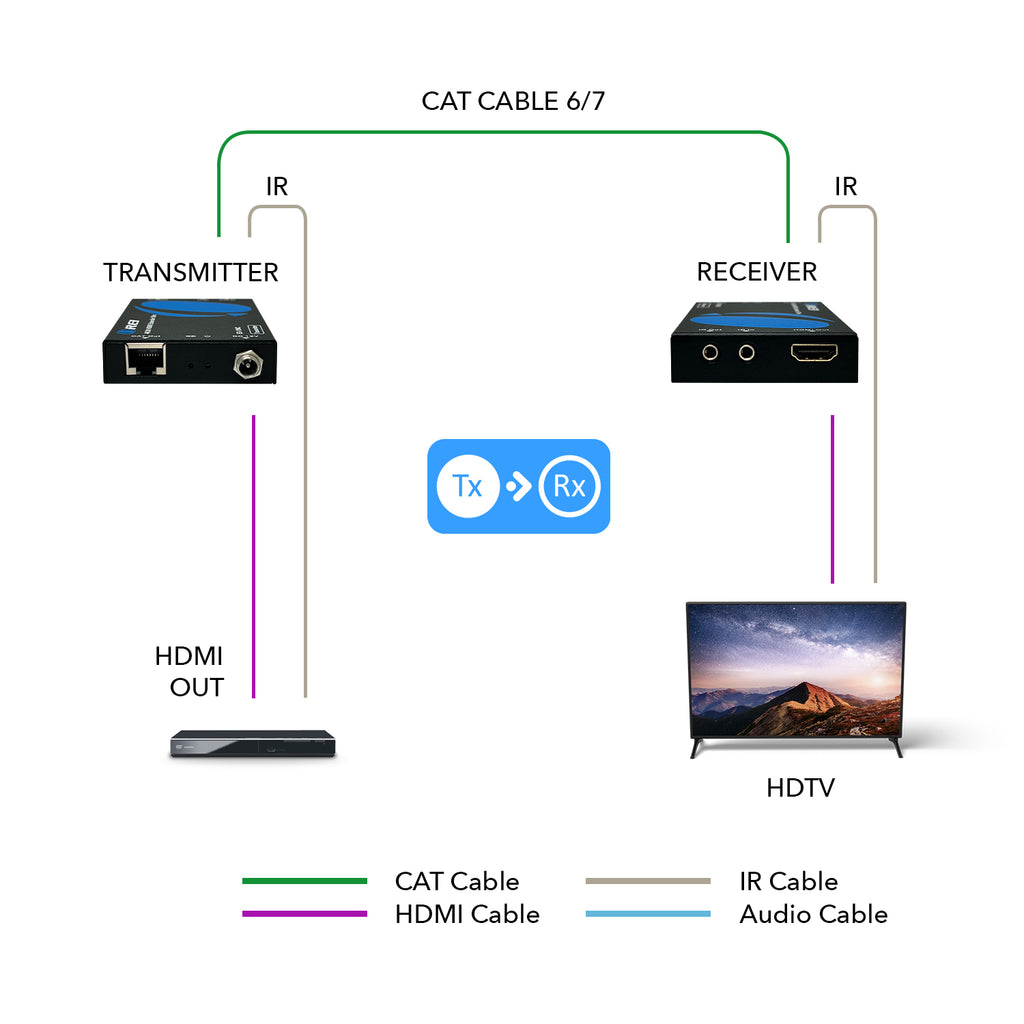

EX-150C is HDMI Extender over single CAT6 with bi-directional IR extends high-definition audio, video and IR up to 164 feet over single CAT6 cable. This HDMI extender supports DTS-HD & Dolby True-HD audio.
EX-150C offers the most convenient solution for HDMI extension over single CAT6 with long distance capability and is the perfect solution for any application. EX-150C has compact design for an easy & flexible installation
Key Features:
- Supports copy EDID from receiver display
- Extends 4K@30Hz up to 165 ft over CAT6 cable
- Extends 1080p@60Hz up to 196 ft over CAT6 cable
- Works with HDMI & HDCP compliant devices
- Supports bi-directional IR
- Supports DTS-HD or Dolby True-HD (Your sound system should have an HDMI input port)
- Supports Power Over Cable function
- Compact design for an easy & flexible installation
- This unit requires only one power adapter to work
- Audio & Video

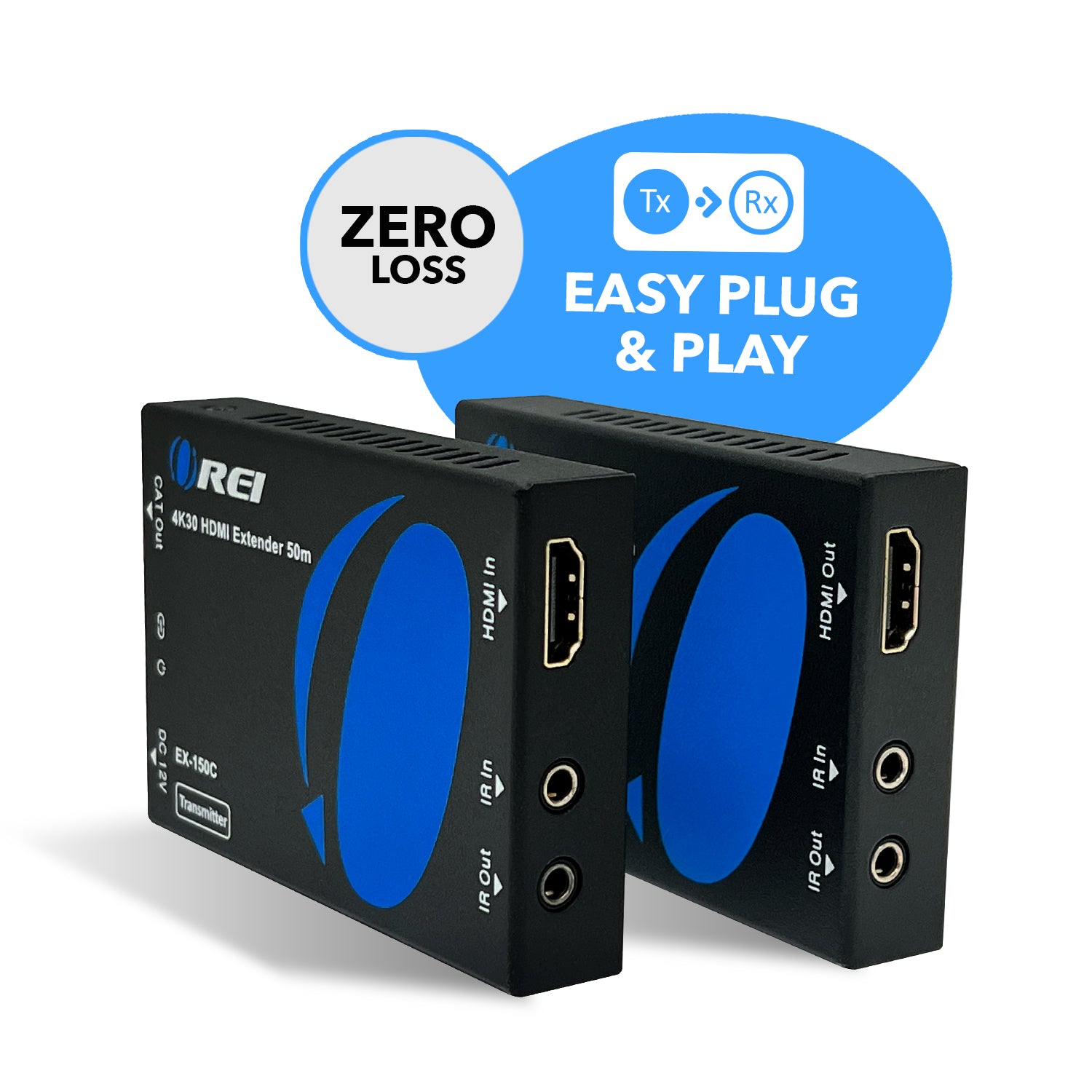

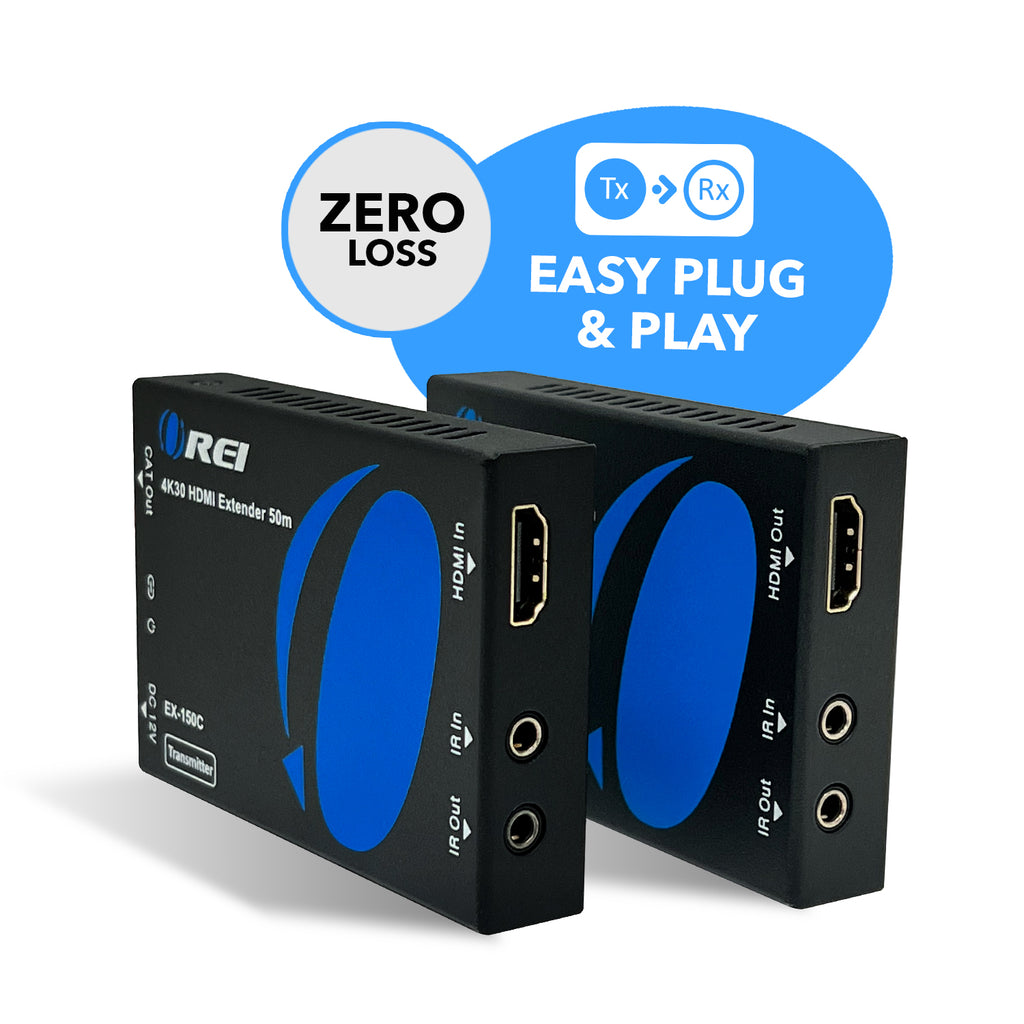

- Transmitter:
- Input Ports:
- 1x HDMI Type A [19-pin female]
- Output Ports:
- 1x RJ45
- 2x 3.5mm mini jack
- Input Ports:
- Receiver:
- Input Ports:
- 1x RJ45
- 2x 3.5mm mini jack
- Output Ports:
- 1x HDMI Type A [19-pin female]
- Input Ports:
- Transmitter:
- Compliances
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 2.2
- Supported CAT Cables
- CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- Extending Distance
- 4K@30Hz: 164 Feet
- 1080p@60Hz: 196 Feet
- Video Output
- Video Bandwidth: 10.2 Gbps
- Video Resolutions: Up to 4K@30Hz
- Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 8-bit
- CEC, eARC, POC/POE, IR, Downscaler, KVM, Over IP, HDBaseT, RS-232 Support
- CEC Function: No
- ARC Function: No
- USB KVM Function: No
- PoC/PoE Function: Yes
- IR Controller: Bi-Directional IR
- Downscaler Function: No
- Over Network/IP Function: No
- HDBaseT Function: No
- RS-232 Function: No
- Audio Output
- HDMI Audio Formats: LPCM 2/5.1/7.1Ch, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Signals
- TMDS Signals: 3.3V
- DDC Signals: 5V

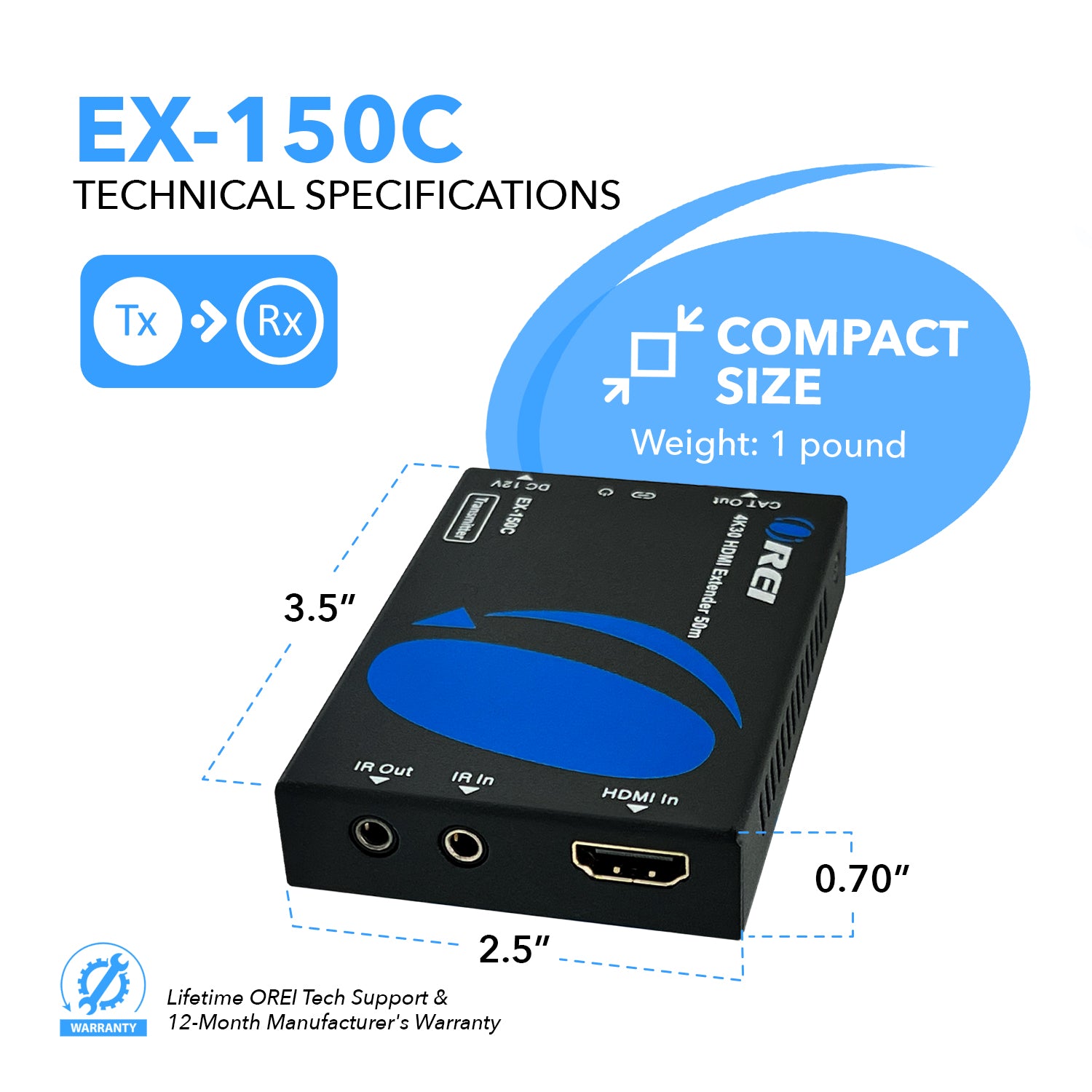

- Dimensions & Weight
- Transmitter:
- Height: 17mm
- Width: 88mm
- Depth: 61mm
- Weight: 144g
- Receiver:
- Height: 17mm
- Width: 88mm
- Depth: 61mm
- Weight: 144g
- Transmitter:
- Protection
- Operating Temperature: -32 - 104°F / 0 - 40°C
- Storage Temperature: 4 - 140°F / -20 - 60°C
- Relative Humidity: 20 - 90% RH (no condensation)
- ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- RJ-45 Connector Type
- WE/SS 8P8C
- Power
- Power Consumption (Max):
- Transmitter: 1W
- Receiver: 1.5W
- Power Supply: DC 12V/1A Adaptor (US/EU standards, CE/FCC/UL certified)
- Power Consumption (Max):
- Physical Properties
- Color: Black
- Housing: Metal
Includes:
- 1x HDMI Transmitter
- 1x HDMI Receiver
- 2x Windband IR TX cable
- 2x Windband IR RX cable
- 1x 12V/1A DC Power Supply Adaptor
- 1x User Manual
Warranty:
- 1 year manufacturer's warranty
Request a Quote
OREI 4K HDMI Extender up to 165 Ft with PoC & Bi-directional IR (EX-150C)
