$199.00

  |

In Stock: Usually Ships in 24 Hours

  • Extends up to 3300feet/1000meters over single-mode fiber cable & 1000 feet/300 meters over multimode fiber cable
  • Transfer bi-directional IR, RS-232
  • Supports smart EDID management
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

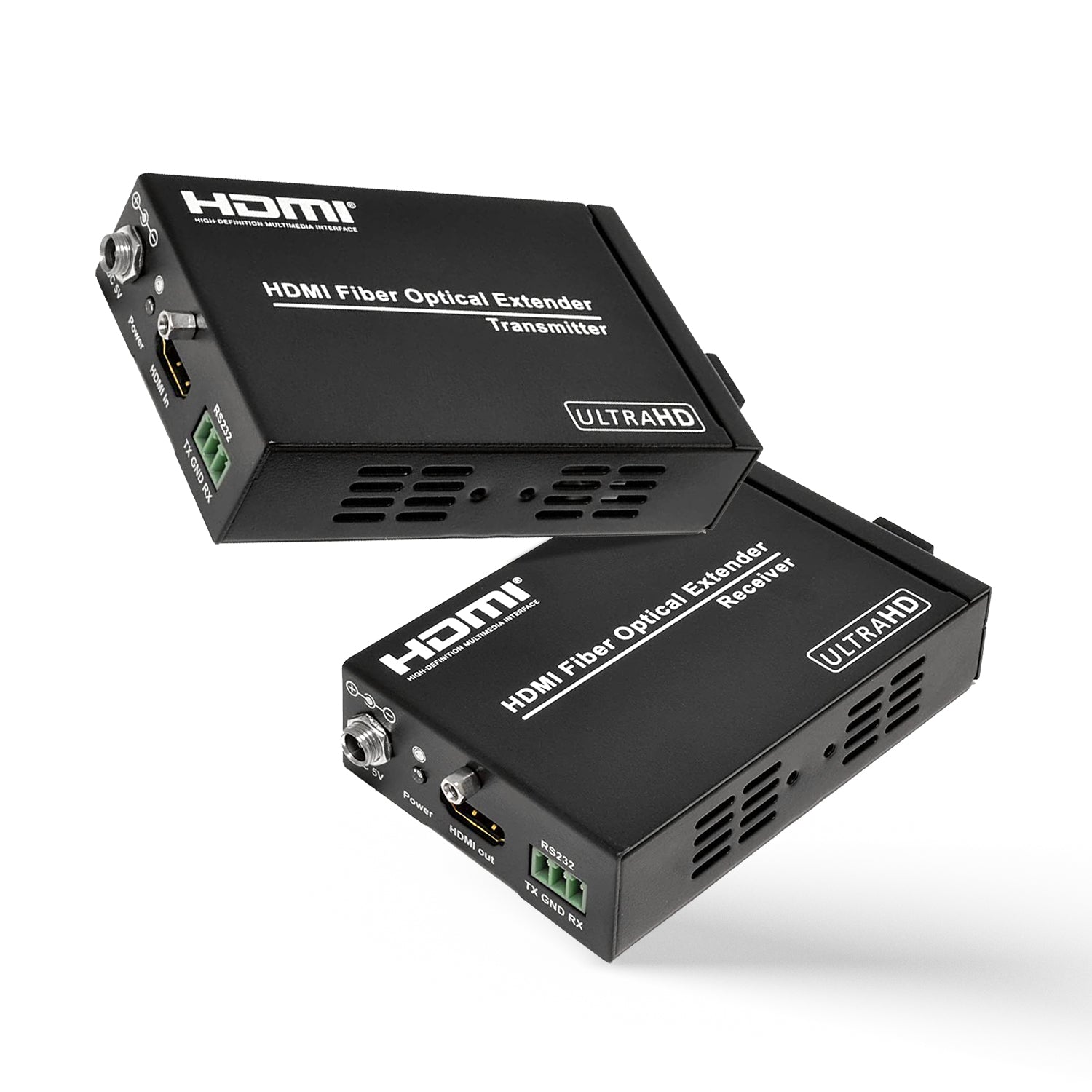

OREI HDS-FO-K - 4K HDMI EXTENDER UP TO 1KM (3300 FEET)

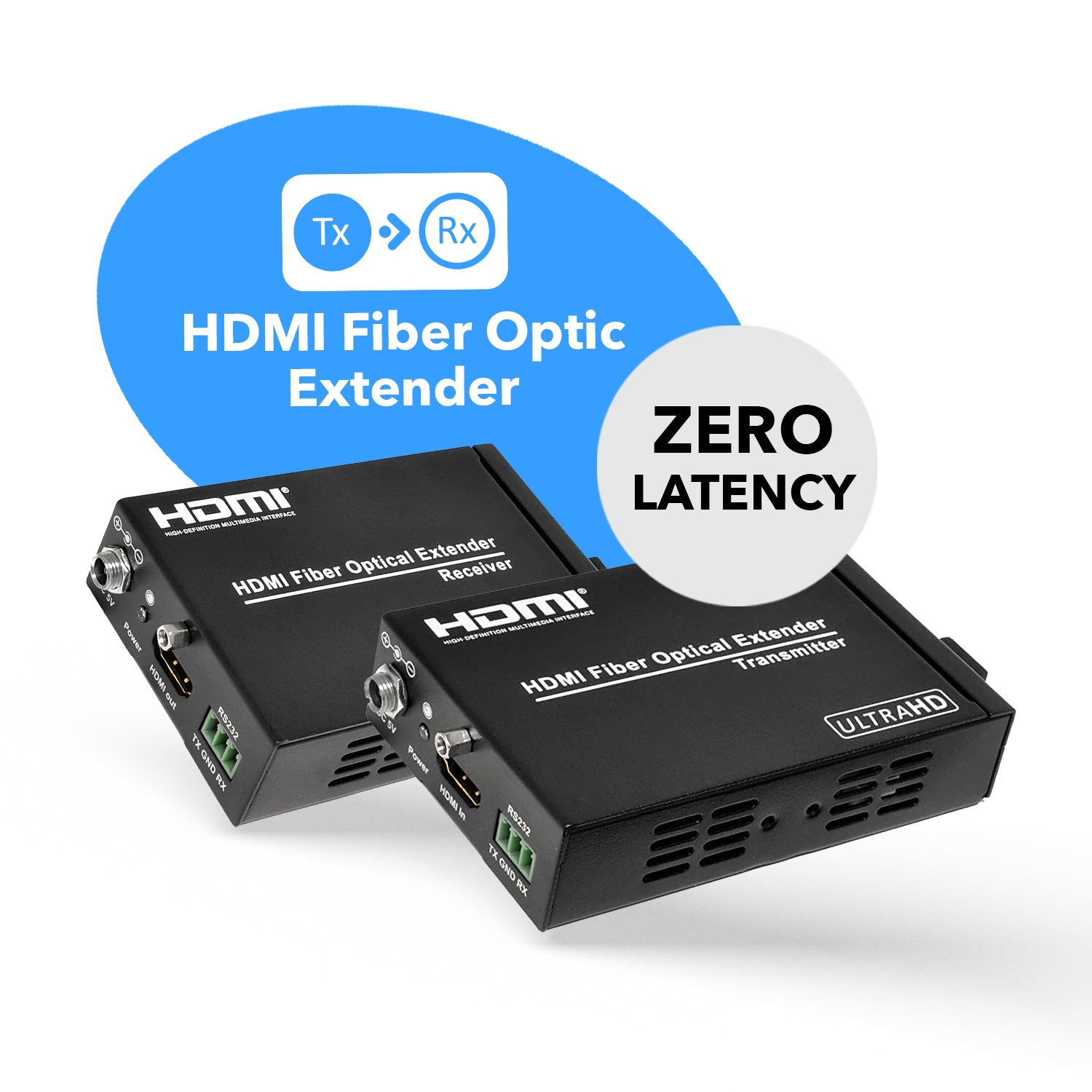

HDS-FO-K is HDMI Fiber Optical Extender which can extend your HDMI signal over 3300feet/1000meters to a compatible display. This product works with any HDMI source and supports resolutions up to 4K Ultra HD. It also transfers Bi-directional Infrared control signal and RS232 control.

The Automatic Virtual EDID feature allows automatic copying of the Extended Display Identification Data (EDID) to the sender unit for continuous availability to the source.

Please note that in order to extract the sound, your sound system should have an HDMI input port.

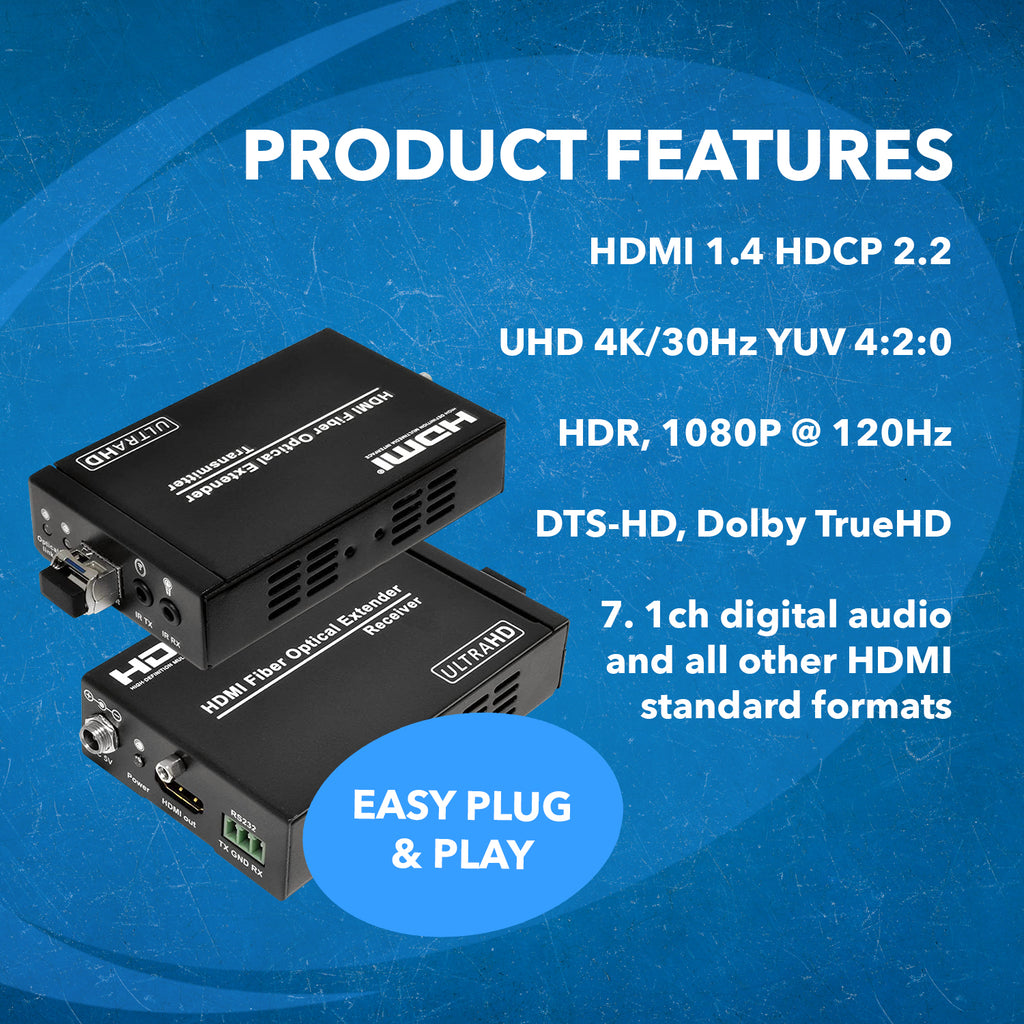

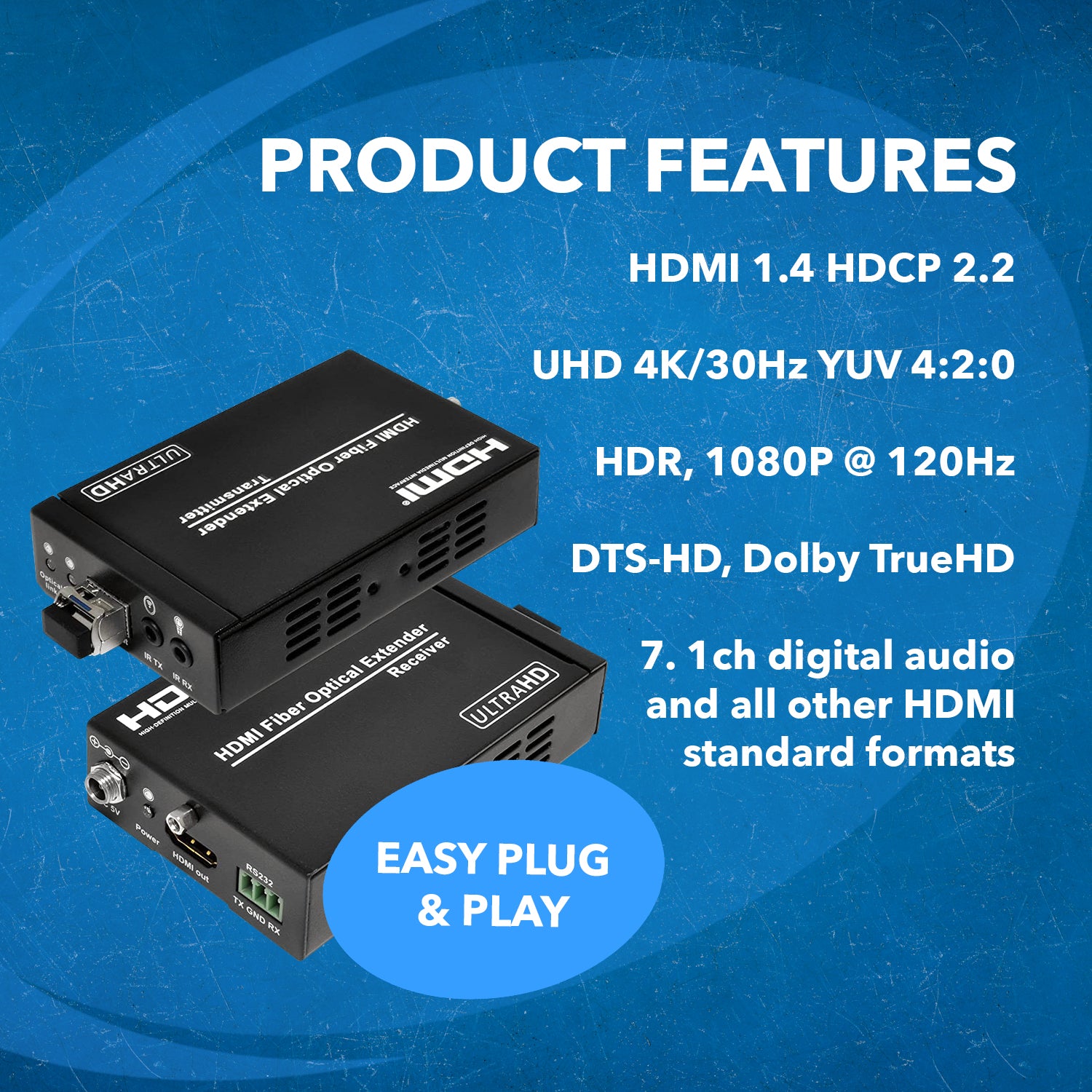

Key Features:
  • Supports HDMI 1.4, HDCP 2.2 and DVI compatible
  • Supports video resolutions up to 4K@60Hz (4:2:0), 4K@30Hz, 1080p@120Hz and 1080p 3D

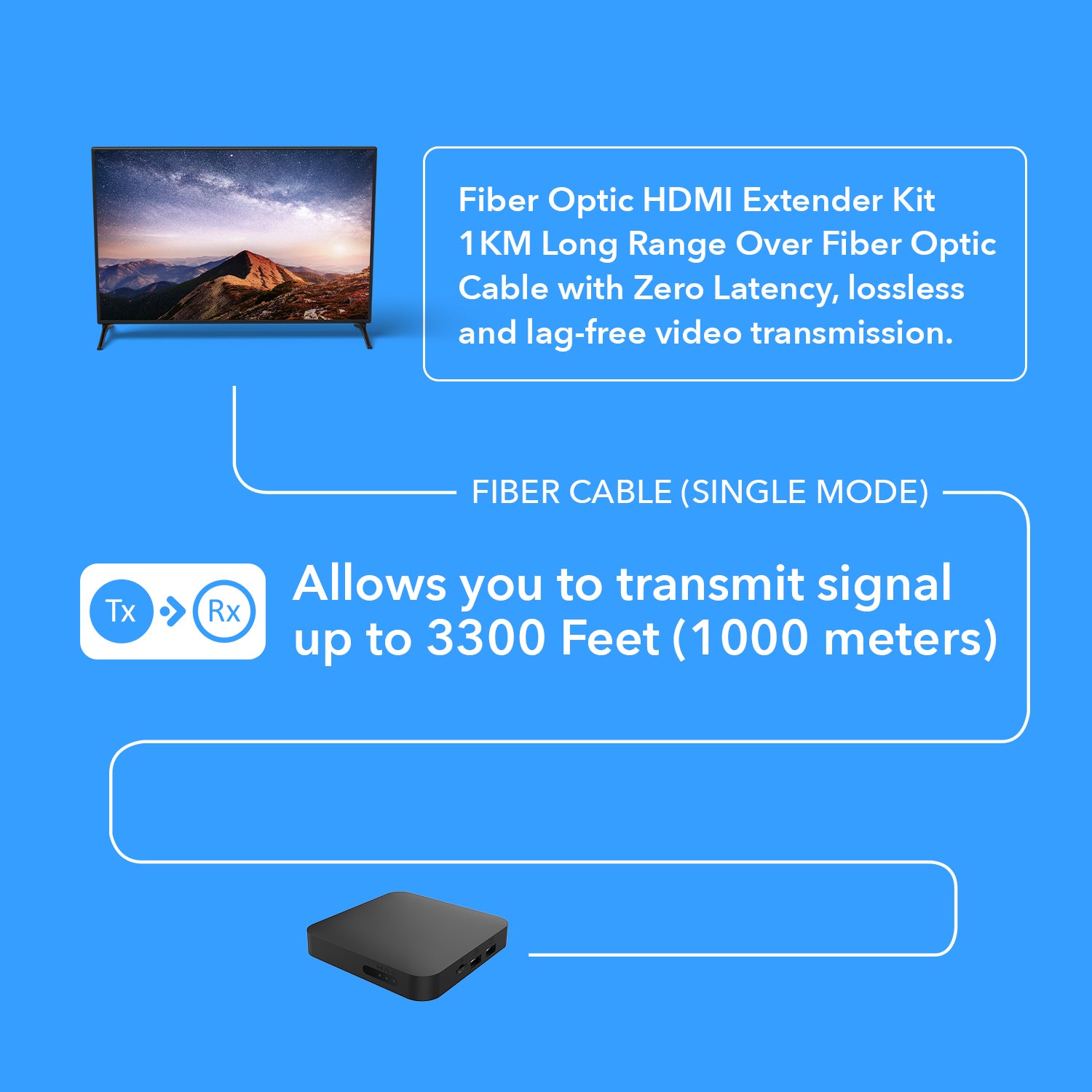

  • Supports long distance transmission up to 3300feet/1000meters over single-mode fiber cable
  • Supports long distance transmission up to 1000 feet/300 meters over multimode fiber cable (50/125µm/OM3)
  • Supports HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby. TrueHD, DTS-HD Master Audio and more
  • Transfer Bidirectional Infrared control signal together with the HDMI signal
  • Transfer Bidirectional RS232 control signal together with the HDMI signal
  • Supports smart EDID management
  • Locking power supplies
  • AUDIO AND VIDEO

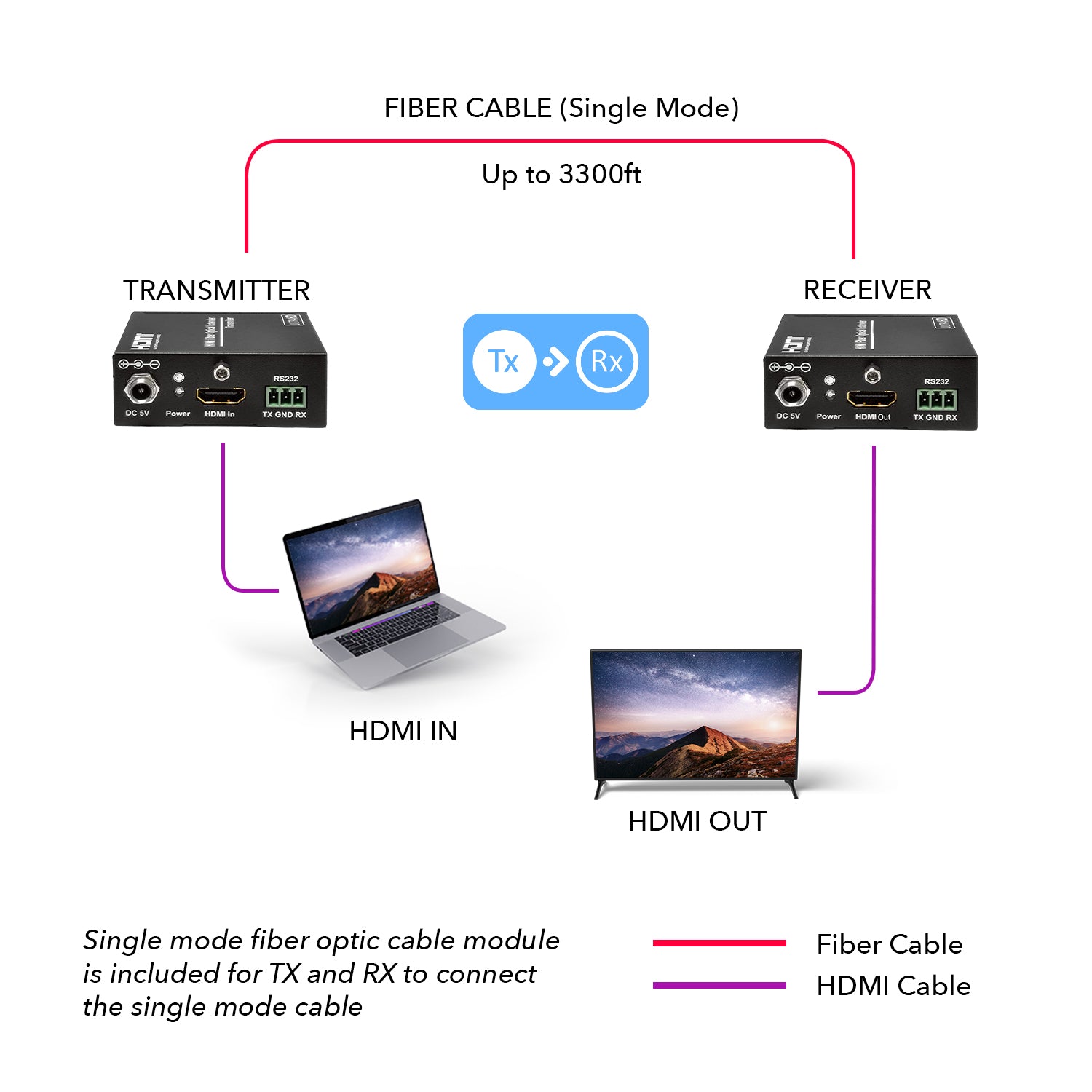

    • Transmitter:
      • INPUT PORTS:
        • 1x HDMI In
        • 1x IR In
        • 1x RS-232
      • OUTPUT PORTS:
        • 1x IR Out
        • 1x Optical
    • Receiver:
      • INPUT PORTS:
        • 1x IR in
        • 1x Optical
      • OUTPUT PORTS:
        • 1x HDMI Out
        • 1x IR Out
        • 1x RS-232
  • COMPLIANCES
    • HDMI Compliance: HDMI 1.4
    • HDCP Compliance: HDCP 2.2
  • EXTENDING DISTANCE
    • Single-Mode Fiber Cable: 3300 Feet
    • Multi-Mode Fiber Cable: 1000 Feet
  • VIDEO OUTPUT
    • Video Bandwidth: 10.2G
    • Video Resolutions: Up to 4K@60Hz (4:2:0)
    • Color Space: RGB/Ycbcr444/Ycbcr422/ycbcr420
    • Color Depth: 8/10/12bit
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: No
    • ARC Function: No
    • USB KVM Function: No
    • PoC/PoE Function: No
    • IR Controller: Bi-Directional IR
    • Downscaler Function: No
    • Over Network/IP Function: No
    • HDBaseT Function: No
    • RS-232 Function: Yes
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM 2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more
  • SIGNALS
    • TMDS Signals: 3.3V
    • DDC Signals: 5V
    • Maximum Pixel Clock: 300Mhz

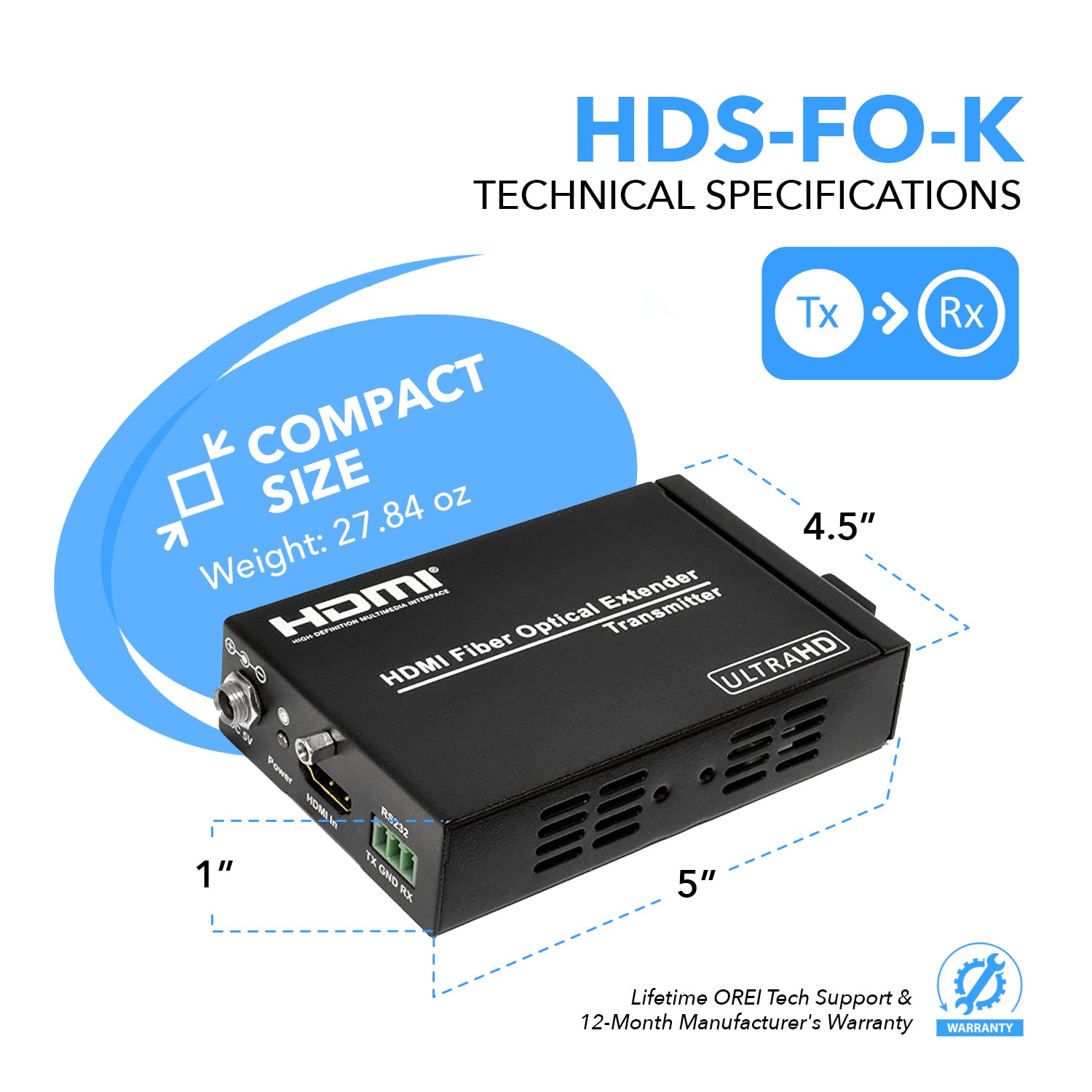

  • DIMENSIONS & WEIGHT
    • Height: 25.6mm
    • Width: 100mm
    • Depth: 65mm
    • Weight:
      • Transmitter: 210g
      • Receiver: 210g
  • PROTECTION
    • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (Non-condensing)
    • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
  • POWER
    • Power Consumption (Max):
      • Transmitter: 2.2W
      • Receiver: 2W
    • Power Supply: DC 5V 1A
  • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Iron

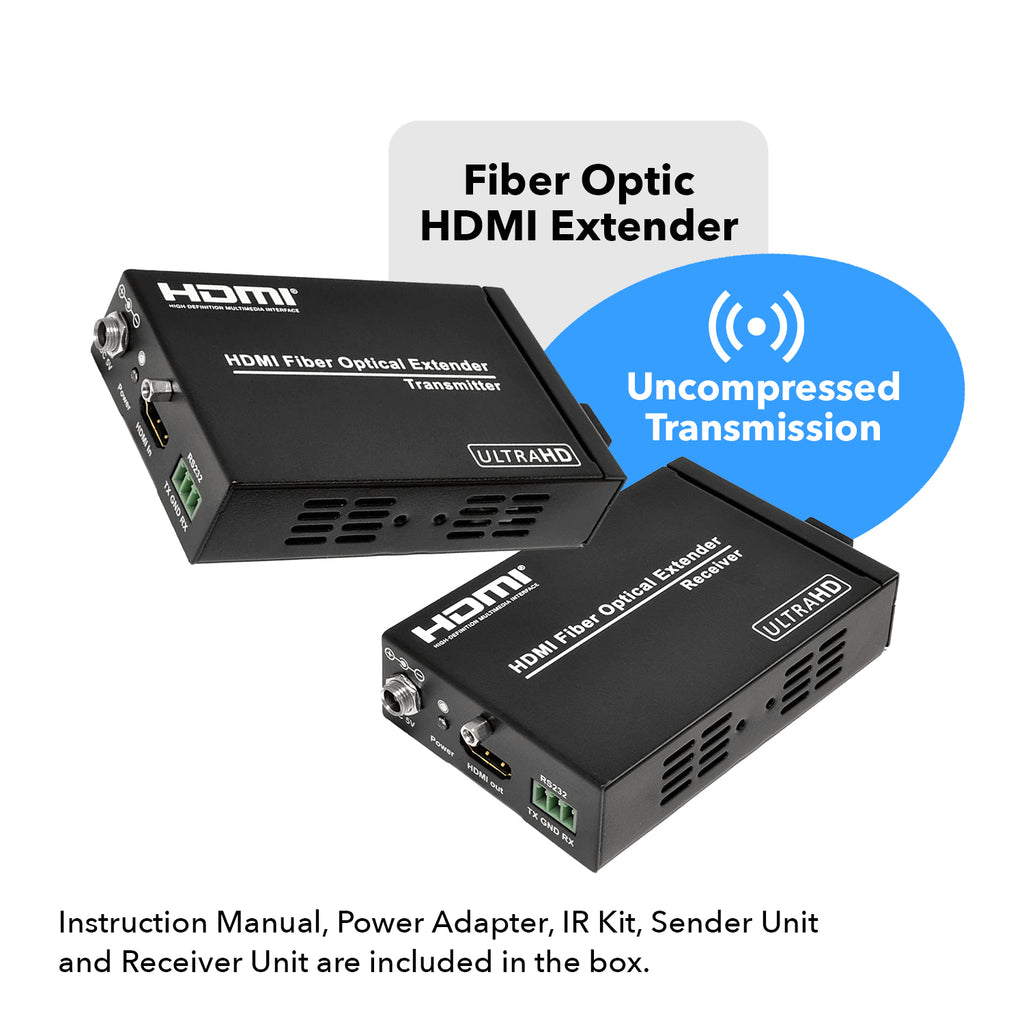

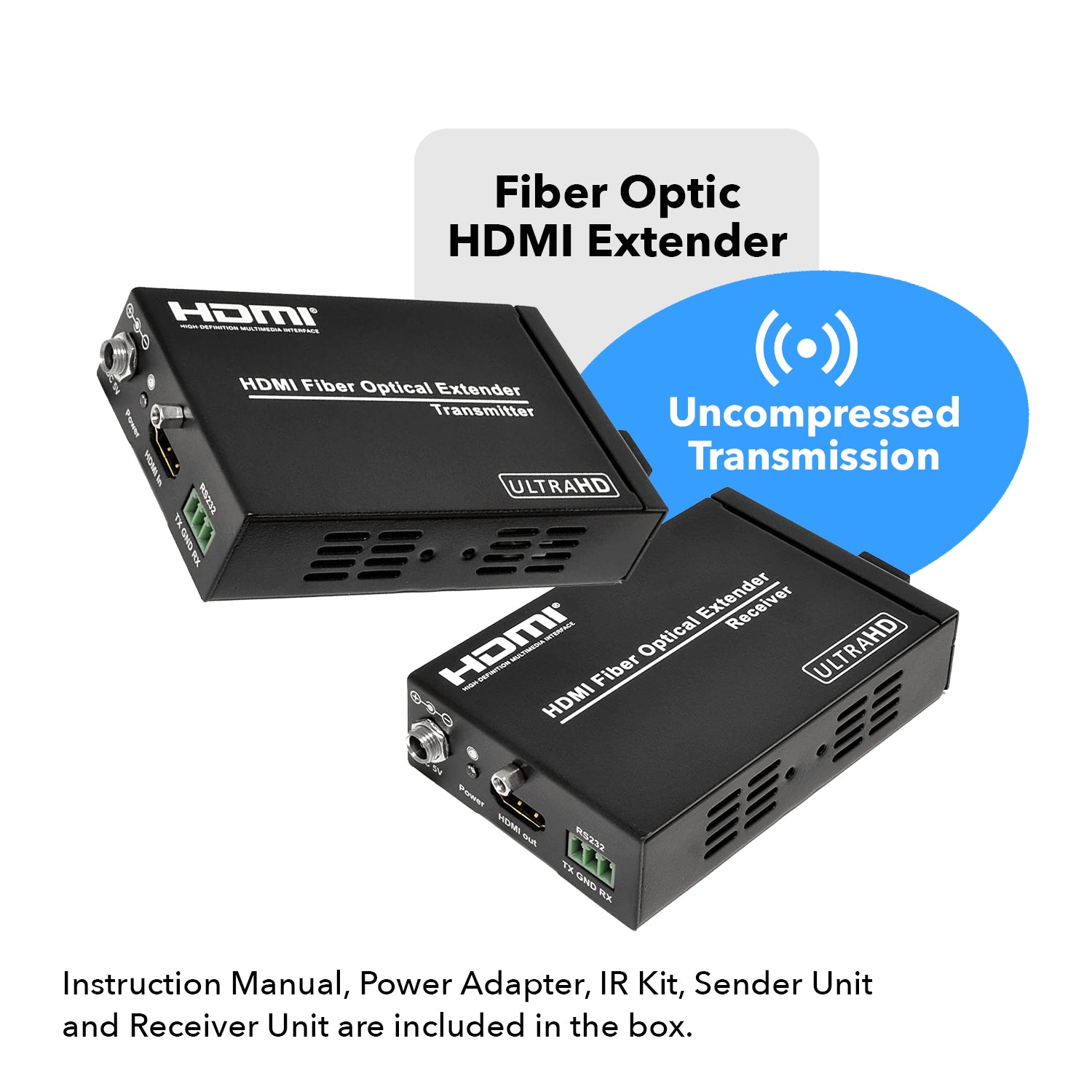

Includes:

  • 1x Fiber Optical Transmitter
  • 1x Fiber Optical Receiver
  • 1x Fiber Module TX
  • 1x Fiber Module RX
  • 2x Wideband IR TX
  • 2x Wideband IR RX
  • 2x 5V/1A DC Power Adapter
  • 2x Phoenix male jack
  • 4x Mounting ears
  • 1x User Manual

Warranty:

  • 1 - Year Manufacturer's Warranty



Request a Quote


OREI 4K HDMI Extender Balun Over Fiber Optics Cable Up To 1Km (3300 Feet), Supports IR, RS-232 (HDS-FO-K)
