OREI 4K@60Hz HDMITM Extender (Loop) - 10km (Fiber-Optic) - UHD-FO10-KVM

PRODUCT CODE:

OREI 4K@60Hz HDMITM Extender (Loop) - 10km (Fiber-Optic) - UHD-FO10-KVM

~~$499.99~~ $199.99

In Stock: Usually Ships in 24 Hours

Extend 4K@60Hz Signals up to 10Km(~33000 ft.)
HDMI 2.0b and HDCP 2.2 compliant
EDID Management

Quantity:

REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

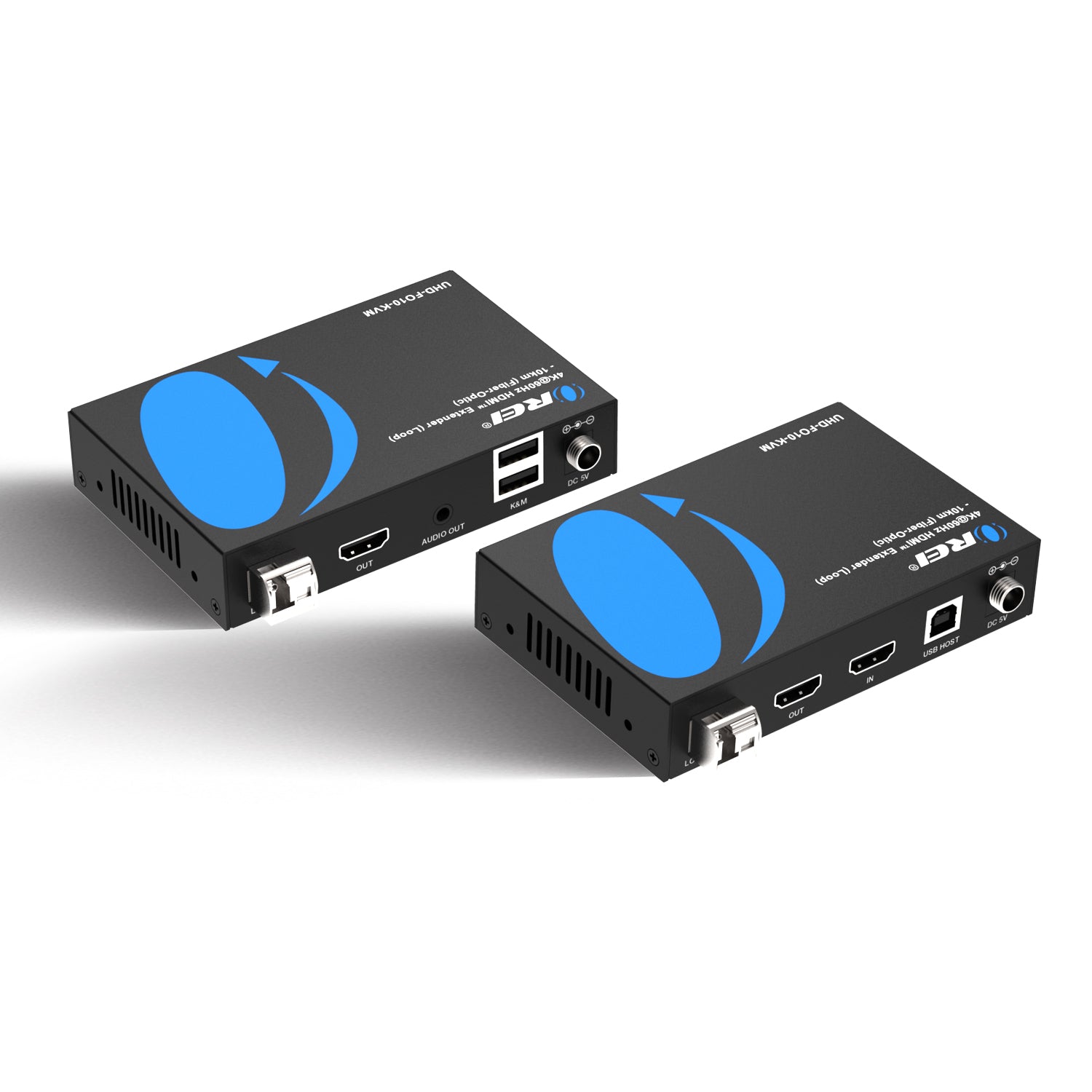

OREI 4K HDMI Extender Balun up to 10 KM

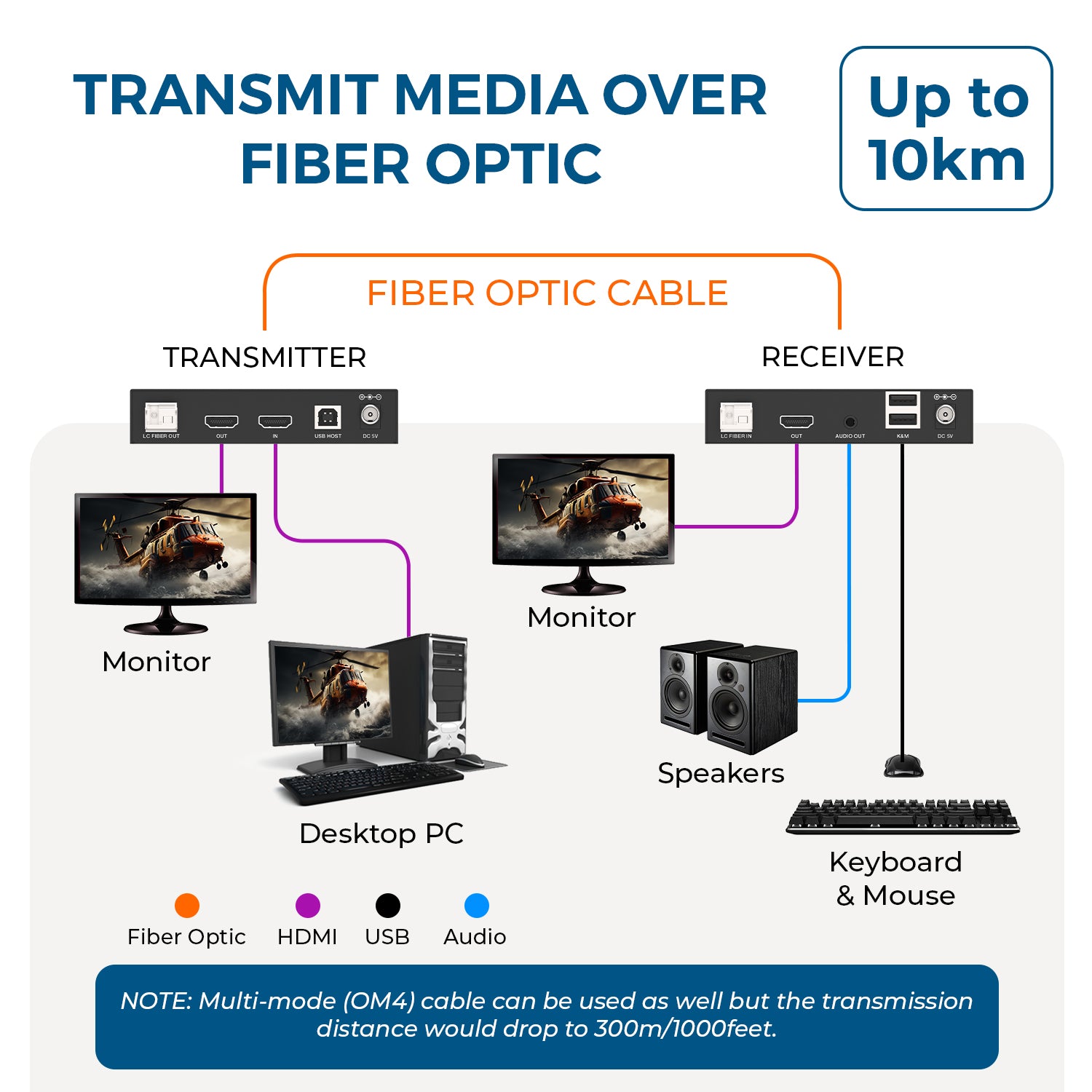

UHD-FO10-KVM is a high-performance signal transmission solution designed for ultra-long-distance AV applications. Utilizing single-mode fiber optic technology, it transmits uncompressed HDMI™ signals up to 10km with exceptional stability and clarity.

Supporting video resolutions up to 4K@60Hz 4:4:4, it delivers vivid, high-definition visuals without signal loss. The extender features loop output on the transmitter side for local monitoring and audio de-embedding on the receiver side for flexible audio system integration. It also supports USB 1.1 keyboard and mouse transmission, enabling convenient device control from the Receiver end.

With its robust, compact design, and automatic EDID management, this
extender offers a reliable, feature-rich solution ideal for commercial installations, control centers, and high-end AV environments.

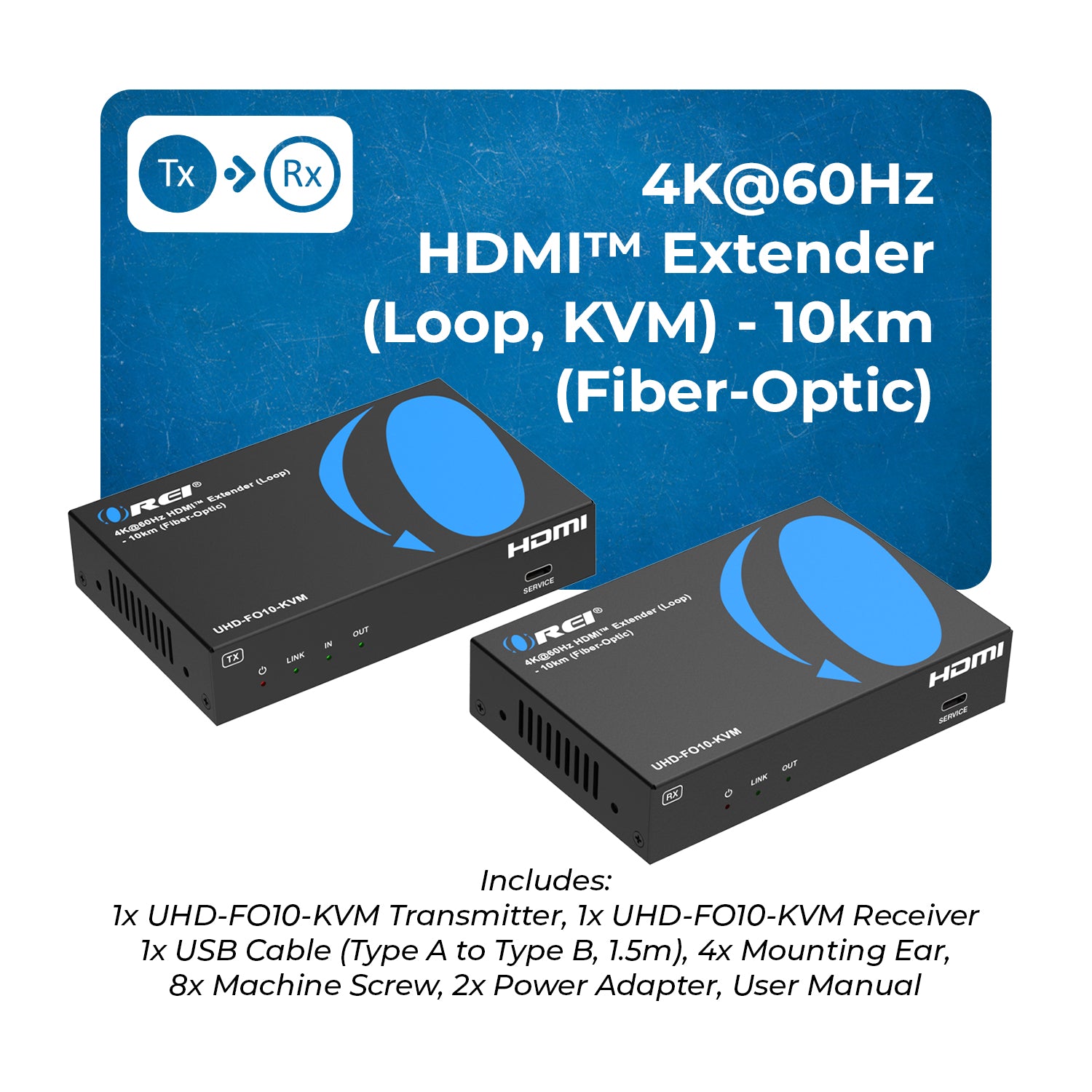

Package Includes UHD-FO10-KVM(Transmitter and Receiver), 1x USB Cable(Type A to Type B, 1.5m), 2x Power Adapter, 4x Mounting Ear, 8x Machine Screw and User Manual.

Key Features:

HDCP 2.2 Compliant – Ensures compatibility with modern content protection standards.
Video Resolutions up to 4K@60Hz 4:4:4 – Delivers uncompressed, ultra-high-definition video with vibrant color depth and clarity.
18Gbps Video Bandwidth – Provides high-speed data transfer for flawless AV signal transmission.

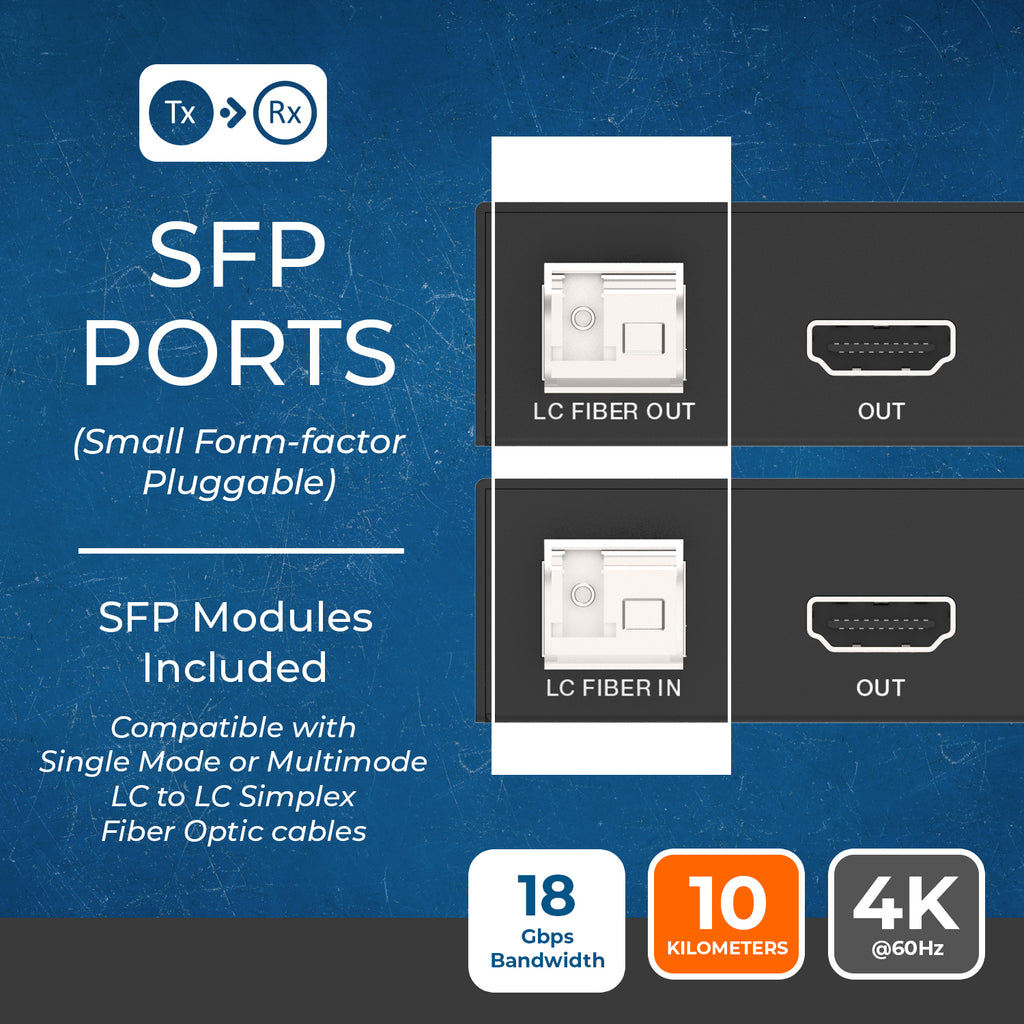

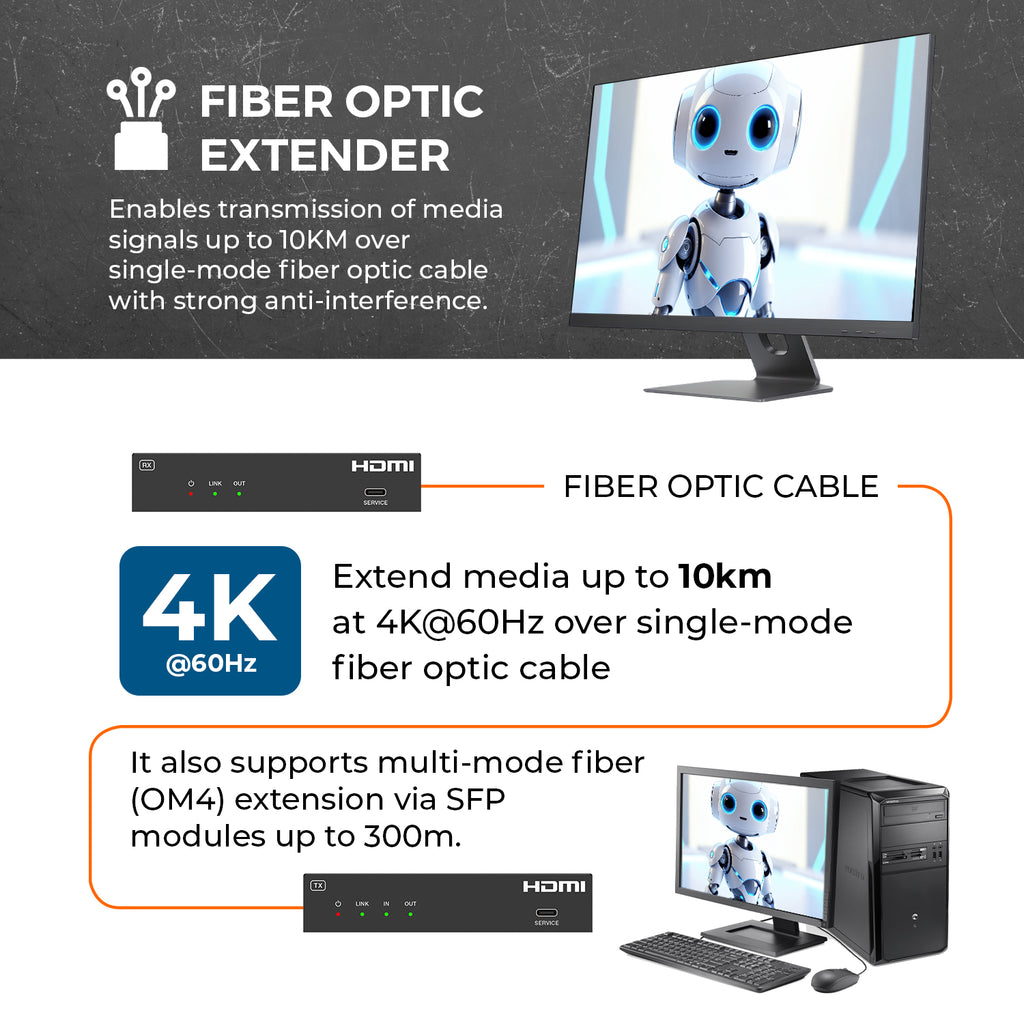

Ultra-Long-Distance Transmission – Extends HDMI™ signals up to 10km over single-mode fiber cable. Multi-mode fiber supported with SFP modules for distances up to 300m (OM4).
3D Video Support – Compatible with 3D content for immersive viewing experience.
HDR10+, Dolby Vision & HLG Pass-through – Maintains compatibility with advanced high dynamic range formats for lifelike visuals.
Wide Audio Support – Supports LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD for high-fidelity sound.
Loop Output on Transmitter – Allows connection of a local display for convenient on-site monitoring.
Audio De-embedding on Receiver – Provides separate audio output for flexible audio system integration.
USB 1.1 Keyboard/Mouse Transmission – Enables remote control of source device such as a Computer from the Receiver side.
Automatic EDID Management – Ensures proper display configuration and stable signal handshakes.
Compact, Lightweight Design – Ideal for discreet mounting and flexible installation in professional AV environments

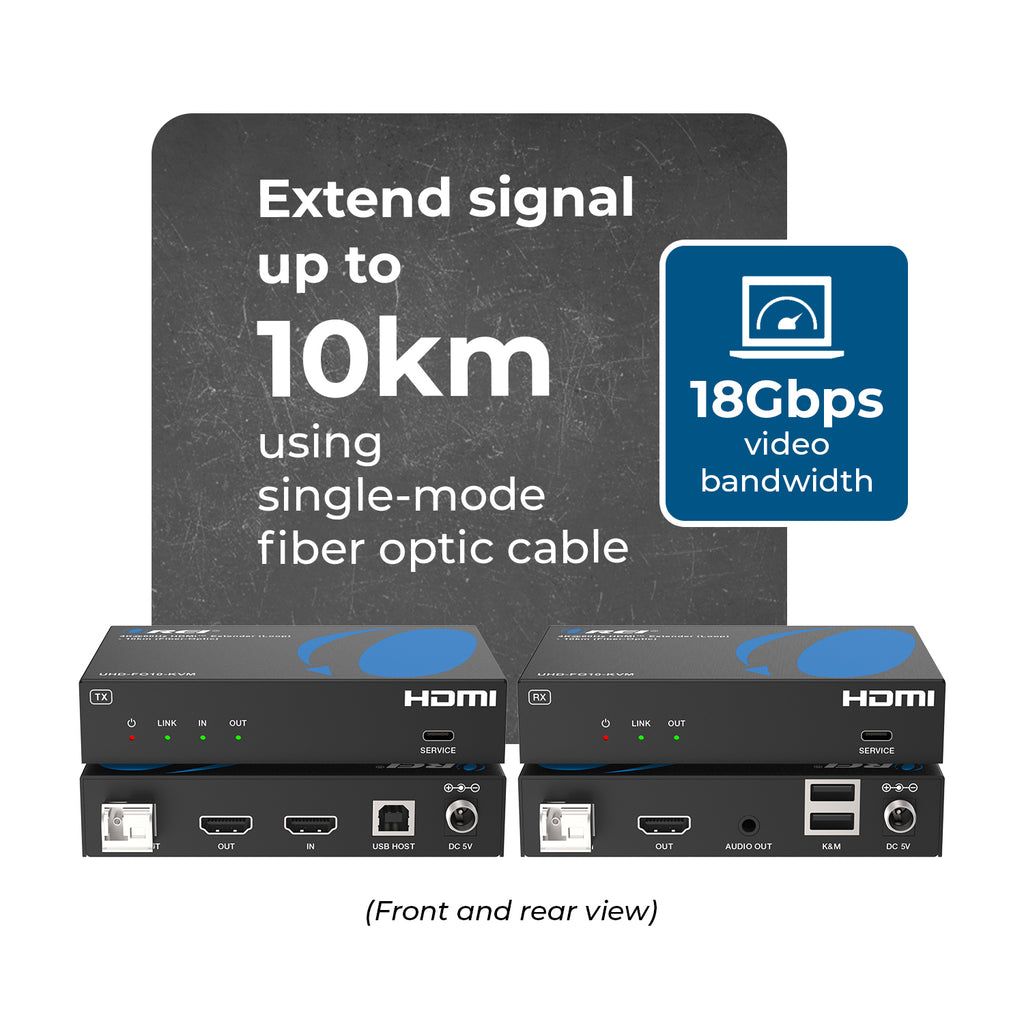

CONNECTIVITY Transmitter: INPUT PORTS: 1× HDMI™ [Type A, 19-pin female]
Transmitter: OUTPUT PORTS: 1× HDMI™ [Type A, 19-pin female]
Transmitter: OUTPUT PORTS:1× LC FIBER OUT [LC female]
Transmitter:CONTROL: 1× USB Host [Type B, female]
Transmitter:CONTROL: 1× SERVICE [USB-C, update port]
Receiver: INPUT PORTS: 1× LC FIBER IN [LC female]
Receiver: OUTPUT PORTS: 1× HDMI™ [Type A, 19-pin female]
Receiver: OUTPUT PORTS: 1× 3.5mm [Stereo audio jack]
Receiver: CONTROL: 1× SERVICE [USB-C, update port]
Receiver: CONTROL: 2× USB Device [Type A, female]
SUPPORTED FIBER OPTIC CABLES
Single Mode Fiber Optic We recommend you use Single Mode Fiber Optic cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz: 33000 Feet
AUDIO AND VIDEO
Video Bandwidth: 18Gbps
Video Resolutions: 480i ~1080p50/60Hz, 2560x1440@24/30/50/60Hz, 4K@24/30Hz, 4K@60Hz
Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth: 8-bit, 10-bit, 12-bit
HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTSEX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
FUNCTIONS
EDID Dial the switch to set EDID
LOOP-OUT/LOCAL PORT
Has loop out port: Yes
Number of Loop out ports: 1
COMPLIANCES
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
POWER Power Consumption (Max): Transmitter: 3.85W (Max.)
Receiver: 3.3W (Max.)
Power Supply: Input: AC 100~240V 50/60Hz
Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
PROTECTION
Operation Temperature: 32~104°F / 0~40°C
Storage temperature: -4~140°F / -20~60°C
Relative Humidity: 20~90% RH (Non-condensing)
ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) RJ-45 CONNECTOR Type WE/SS 8P8C

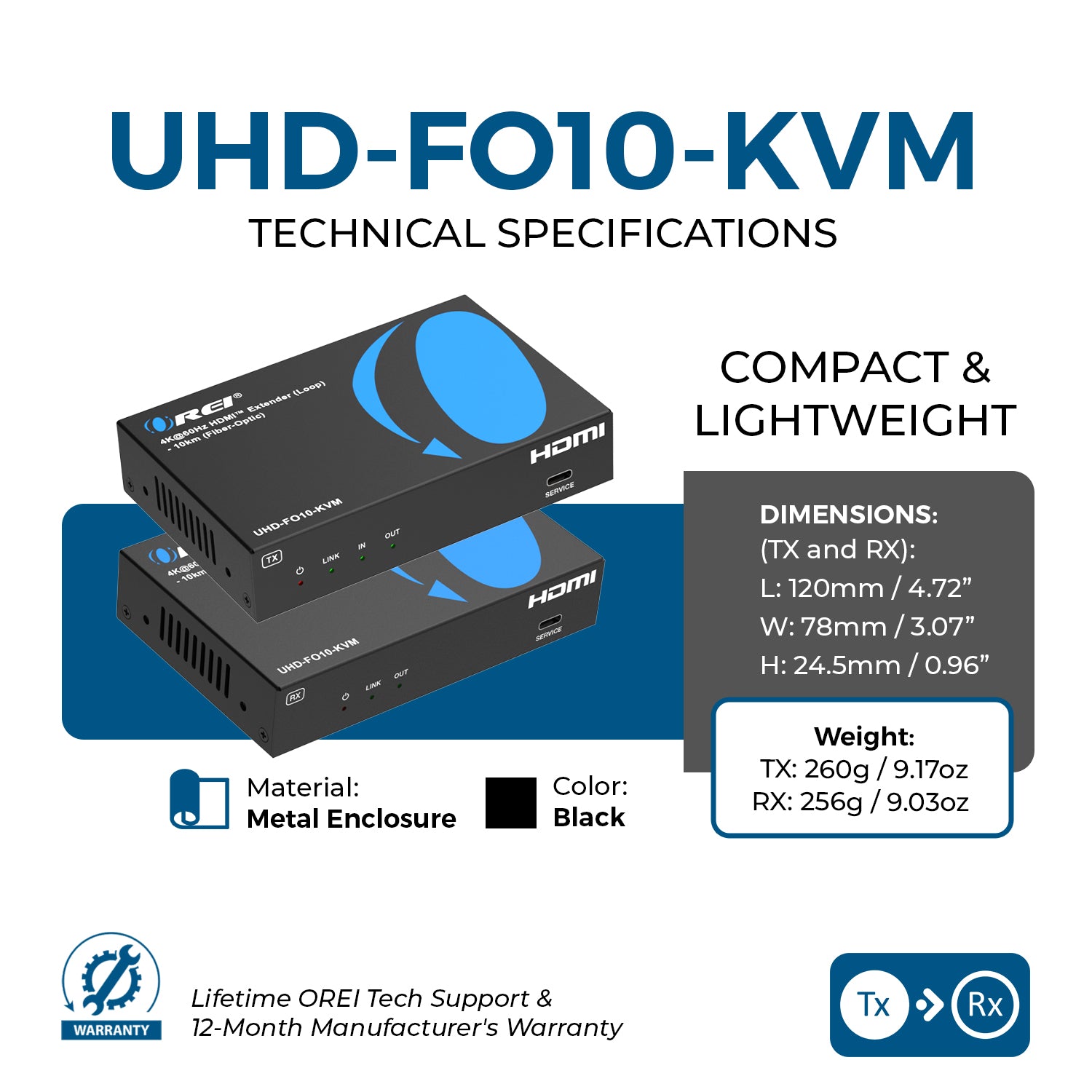

DIMENSIONS & WEIGHT
Transmitter: Height: 24.5mm / 0.96in
Width: 78mm / 3.07in
Depth: 120mm / 4.72in
Weight: 260g / 9.17oz
Receiver: Height: 24.5mm / 0.96in
Width: 78mm / 3.07in
Depth: 120mm / 4.72in
Weight: 256g / 9.03oz
PROPERTIES
Color: Black
Housing: Metal Enclosure
