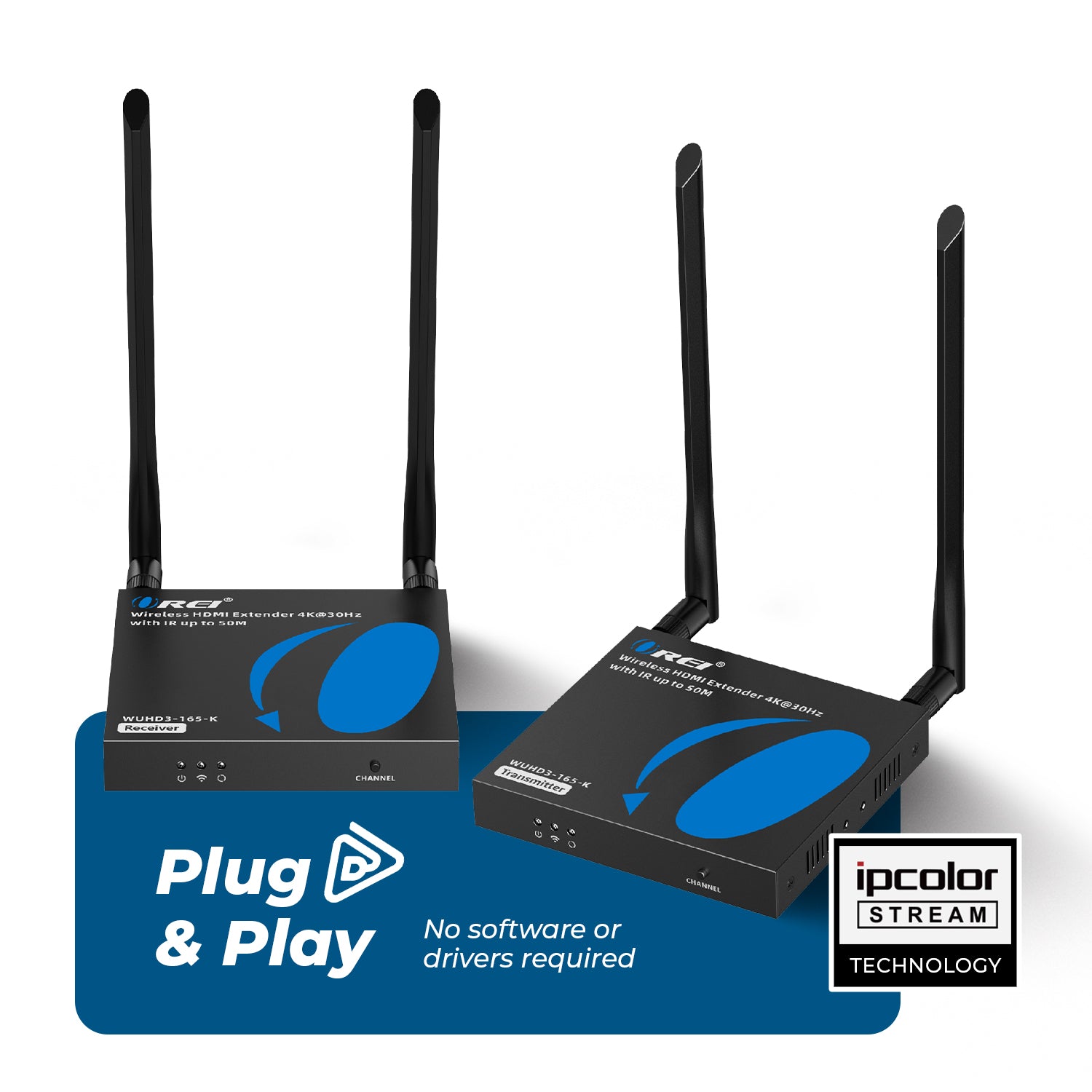

WUHD3-165-K: 4K@30Hz Wireless HDMI Extender up to 165 feet with IR
The WUHD3-165-K is a 4K@30Hz HDMI wireless extender, including a transmitter and a receiver. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports up to 1-to-4 wireless transmission, and the transmission distance of 1-to-1 can reach 50meters, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.
Key Features:
- Adopting ipcolor STREAM technology can realize high definition and
- Low-Latency transmission.
- Support up to 4096x2160@30Hz resolution, backward compatible.
- It supports up to 1-to-4 wireless transmission, and the transmission
- distance up to 50 meters (line of sight, 1-to-1).
- The transmitter supports HDMI loop out.
- In case of multiple sets of products in the same area, support SSID pairing
- and channel switching to avoid interference.
- Support IR passback.
- Support 5G wireless frequency bands, strong anti-interference.
- Support firmware upgrade via Micro USB port.
- Supports stable 24/7 operation.
- CONNECTIVITY
- Transmitter: INPUT: 1 × HDMI [Type A, 19-pin Male]
- 1 x DC 5V [Micro-USB Power Input]
- Receiver: INPUT: Input: 1 x DC 5V [Power Input]
- OUTPUT: 1 × HDMI [Type A, 19-pin Male]
- EXTENDING DISTANCE
- 4K@30HZ: 165 feet
- VIDEO OUTPUT
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 4K@30Hz
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- LOOP-OUT/LOCAL PORT
- Has loop out port: No
- Number of Loop out ports: 0
- AUDIO SUPPORT
- HDMI Audio Formats: PCM
- COMPLIANCES
- HDMI Compliance HDMI 2.0
- HDCP Compliance HDCP 2.2
- POWER
- Power Consumption: Transmitter 4.5W (Max) & Receiver 3.5W (Max)
- Power Supply: Input: AC 100-240V 50/60Hz
- Output: DC 5V/1A
- DIMENSIONS & WEIGHT
- Transmitter: Length: 230mm / 9.06in
- Width: 40.2mm / 1.58in
- Height: 15mm / 0.59in
- Weight: 58g / 2.05oz
- Receiver: Length: 230mm / 9.06in
- Width: 40.2mm / 1.58in
- Height: 15mm / 0.59in
- Weight: 54g / 1.91oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
Includes:
- 1x Transmitter
- 1x Receiver
- 2x Micro USB cable
- User Manual
Warranty:
- 1-Year Manufacturer's Warranty
