$159.00

  |

In Stock: Usually Ships in 24 Hours

  • 4x4 Matrix Switch with Video wall
  • Video resolutions up to 4K@30Hz
  • 180 degree rotation
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

HDS-404VW: 4K@30Hz 4x4 Seamless Matrix with Video Wall



The HDS-404VW HDMI Matrix and video wall processor lets you create stunning video walls with video output resolutions up to 4K@30Hz in Matrix mode and 1080p@60Hz in Video Wall mode. It is HDCP 1.4 compliant, with a 10.2Gbps video bandwidth. It functions as a 4x4 Matrix, supporting 4 inputs and 4 outputs, and as a video wall processor with 9 modes. You can rotate the top two TVs 180 degrees in 2x2 mode via RS-232 commands. Bezel adjustment is available through the remote or RS-232 control. Its compact design and easy installation make it ideal for commercial or personal setups.

Key Features:
  • HDCP 1.4 compliant
  • Video output resolutions up to 4K@30Hz (Matrix) & 1080p@60Hz
  • (Video Wall)
  • 10.2Gbps video bandwidth
  • Supports seamless switching in Matrix mode

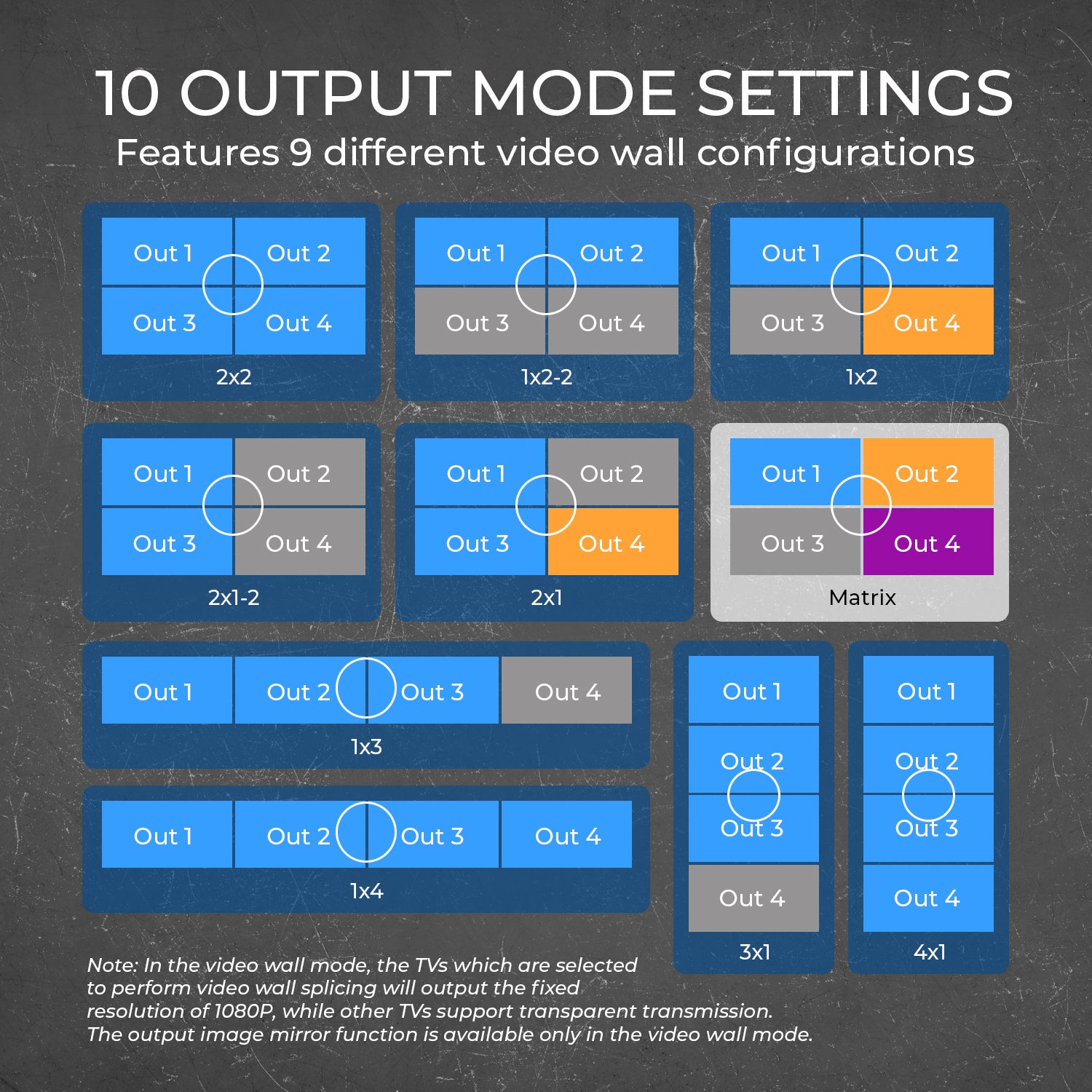

  • Features 9 different video wall configurations
  • 180-degree image rotation and bezel adjustment
  • RS-232 control
  • Compact design and easy installation
  • CONNECTIVITY
  • INPUT: 4 × HDMI [Type A, 19-pin female]
  • OUTPUT: 4 × HDMI [Type A, 19-pin female]
  • CONTROL: 1 x LAN [RJ45, 8-pin, female]
  • 1 × RS-232 [3-pin Phoenix connector]
  • 1 × IR EXT [3.5mm Stereo Mini-jack]
  • SUPPORTED HDMI CABLES
  • HDMI 2.0/ 2.1 We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
  • EXTENDING DISTANCE
  • 4K@30Hz: 30 Feet
  • VIDEO OUTPUT
  • Video Bandwidth: 18 Gbps
  • Video Resolutions: Up to 4K@30Hz
  • ADDITIONAL FEATURES
  • CEC: No
  • ARC: No
  • USB KVM: No
  • PoC/PoE: No
  • IR Control: Yes
  • Downmix: No
  • Downscale: No
  • Over IP: No
  • HDBaseT: No
  • RS-232: Yes
  • LOOP-OUT / LOCAL PORTS
  • Has loop out port: No
  • Number of Loop out ports: 0
  • AUDIO SUPPORT
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio
  • COMPLIANCES
  • HDMI Compliance HDMI 2.0b
  • HDCP Compliance HDCP 2.2
  • POWER
  • Power Consumption: 19.56W (Max)
  • Power Supply: Input: AC 100-240V 50/60Hz
  • Output: DC 12V/2.5A
  • DIMENSIONS & WEIGHT
  • Length: 270mm / 10.63in
  • Width: 166mm / 6.54in
  • Height: 30mm / 1.81in
  • Weight: 1.2kg / 2.64lbs
  • PROPERTIES
  • Color: Black
  • Housing: Metal Enclosure

Includes:

  • 1x HDS-404VW
  • 1x Remote
  • 1x 3pin-3.5mm Phoenix Connector (male)
  • 2x Mounting Ear
  • 4x Machine Screw (KM3*4)
  • 1x Power Adapter
  • User Manual

Warranty:

  • 1-Year Manufacturer's Warranty
