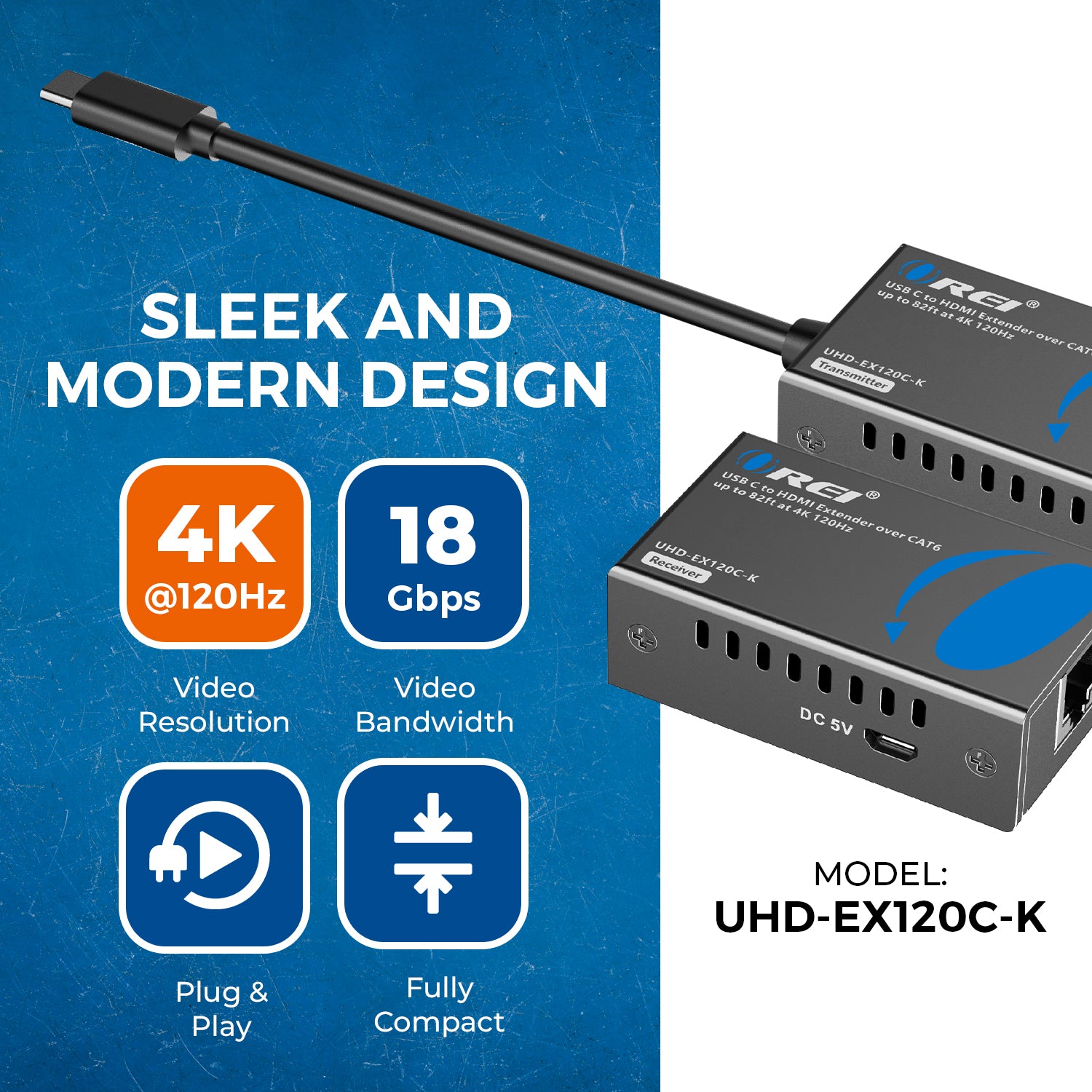

UHD-EX120C-K: 4K@120HZ HDMI EXTENDER OVER CAT6 WITH USB C UPTO 82 FEET
The UHD-EX120C-K is a USB C to HDMI Extender that transmits a media signal from a laptop or PC to an HDMI display over ethernet, reaching distances of up to 196 feet at 4K@60Hz. It is HDMI 2.0 and HDCP 2.2 compliant, with video resolutions up to 4K@120Hz over 82 feet. Features 18Gbps video bandwidth with HDR10 support. Only the Receiver unit requires power. This extender is perfect for professional applications like presentations, digital signage, and more.

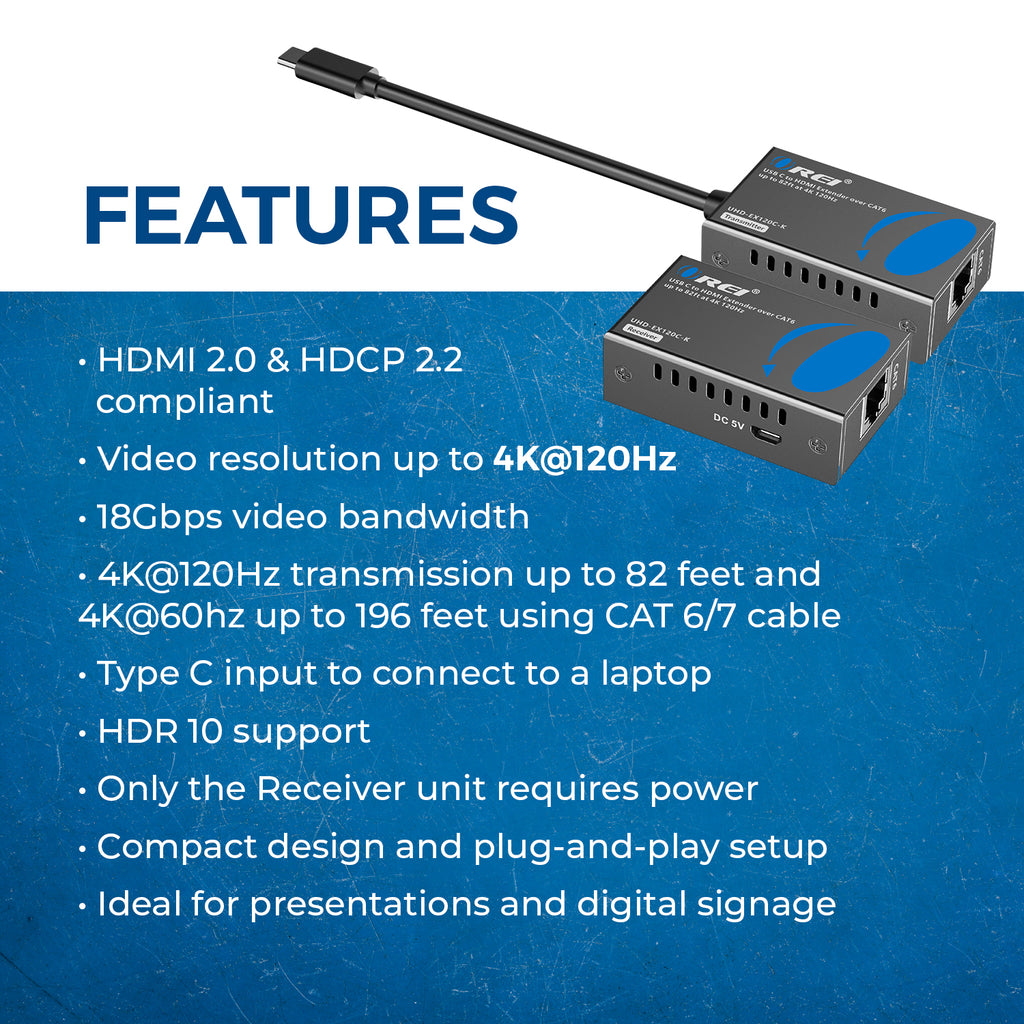

Key Features:
- HDMI 2.0 & HDCP 2.2 compliant
- Video resolution up to 4K@120Hz
- 18Gbps video bandwidth
- 4K@120Hz transmission up to 82 feet and 4K@60hz up to 196 feet using CAT 6/7 cable
- Type C input to connect to a laptop
- HDR 10 support
- Only the Receiver unit requires power
- Compact design and plug-and-play setup
- Ideal for presentations and digital signage
- SUPPORTED CAT CABLES
- CAT5e, CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@120Hz: 82 feet
- 4K@60Hz: 196 feet
- VIDEO OUTPUT
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 4K@120Hz
- LOOP-OUT/LOCAL PORT
- Has loop out port: No
- Number of Loop out ports: 0
- AUDIO SUPPORT
- Audio formats : PCM, DTS, Dolby
- HDR10: Supported
- HDMI 3D: Supported
- COMPLIANCES
- HDMI Compliance HDMI 2.0
- HDCP Compliance HDCP 2.2, HDCP 1.4
- POWER
- Power Consumption: TX ≤ 3W & RX ≤ 3W
- Voltage: TX: Power by the signal source
- Voltage: RX: DC 5V500mA
- DIMENSIONS & WEIGHT
- Transmitter: Length: 71.5mm / 2.81in
- Width: 26mm / 1.02in
- Height: 15mm / 0.59in
- Weight: 85g / 3oz
- Receiver: Length: 67mm / 2.63in
- Width: 40mm / 1.57in
- Height: 23mm / 0.90in
- Weight: 72g / 2.53oz
- PROPERTIES
- Color: Black
- Housing: ABS
- OPERATING ENVIRONMENT
- Working temperature: -20~55℃
- Storage temperature: -30~60℃
- Humidity: 0~90%RH (no condensatio)/td>
- ESD protection: 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
Includes:
- 1x Transmitter
- 1x Receiver
- 1x Micro USB cable
- 1x User manual
Warranty:
- 1 - Year Lifetime Limited Warranty
