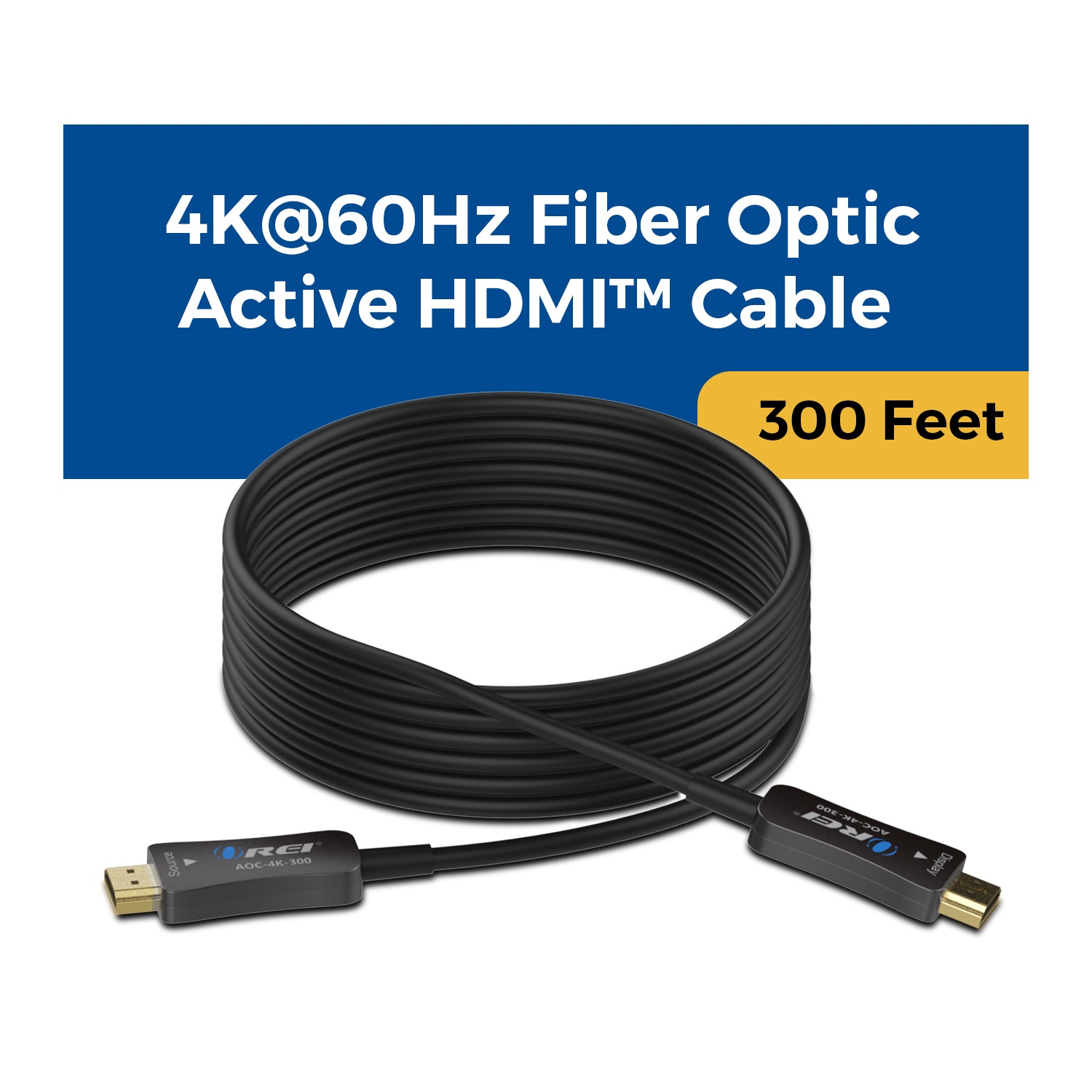

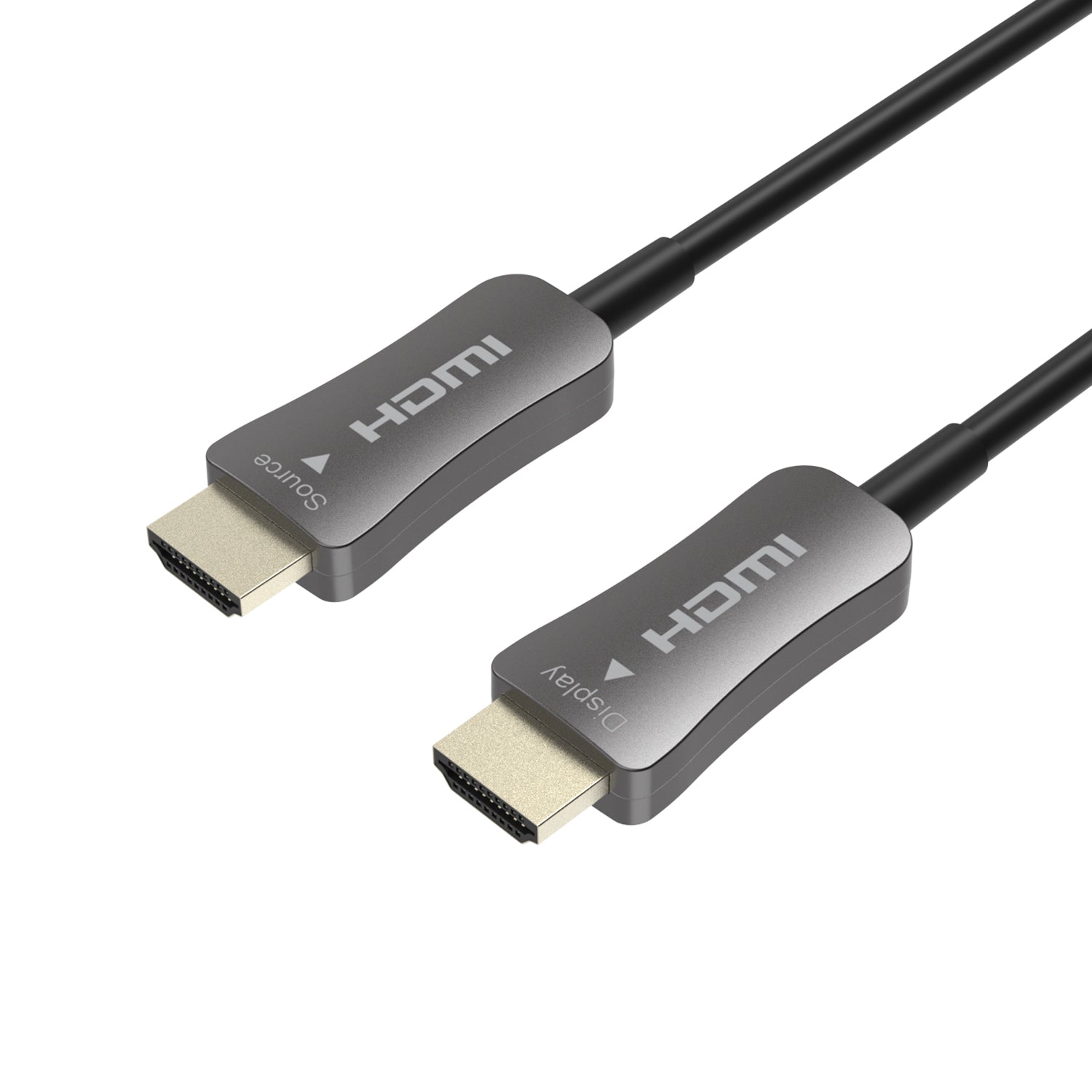

300ft Fiber Optic HDMI – Maximum Reach, Zero Signal Loss

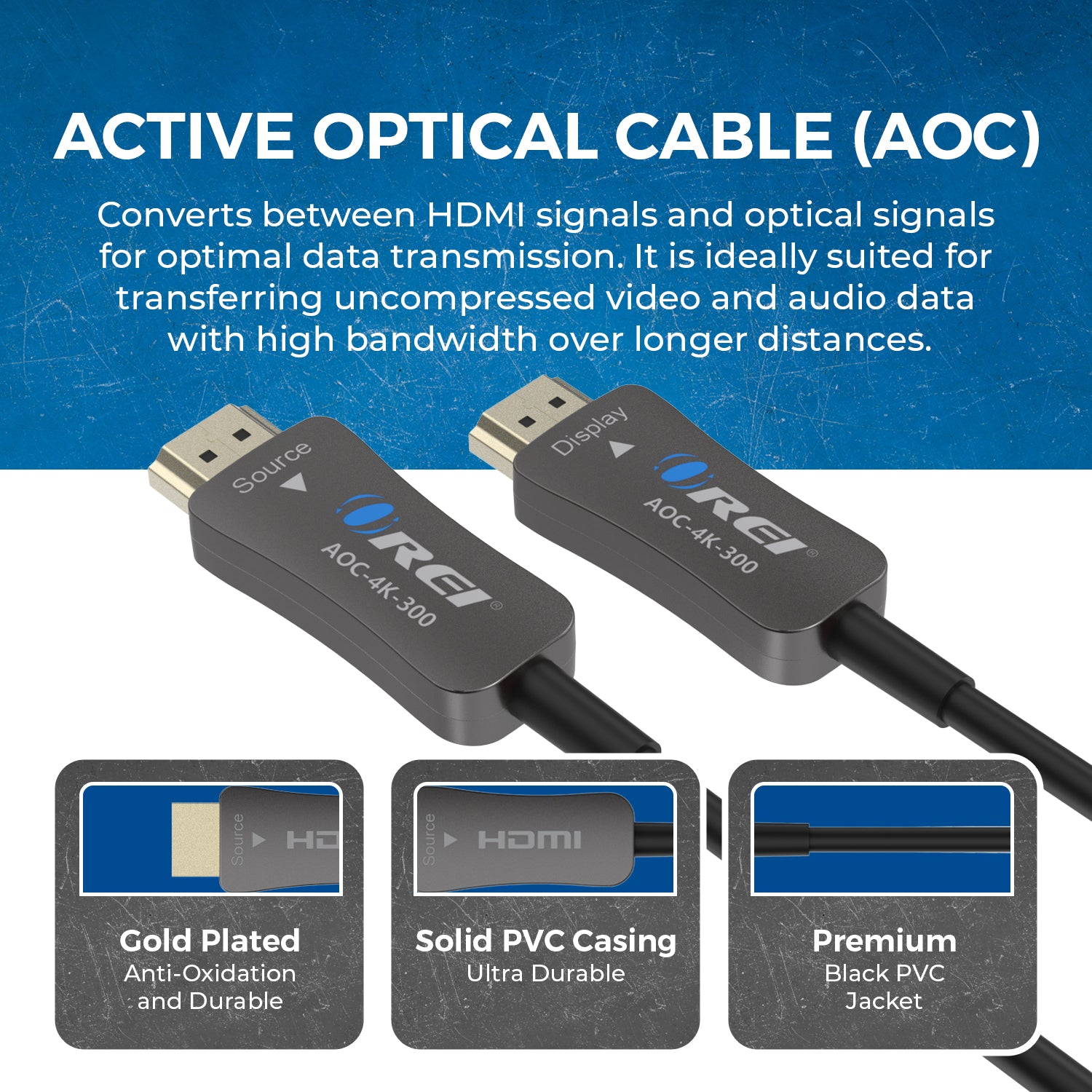

AOC-4K-300 is engineered for long-distance, high-performance AV transmission, converting HDMI signals into optical signals to ensure zero signal loss across extended runs.

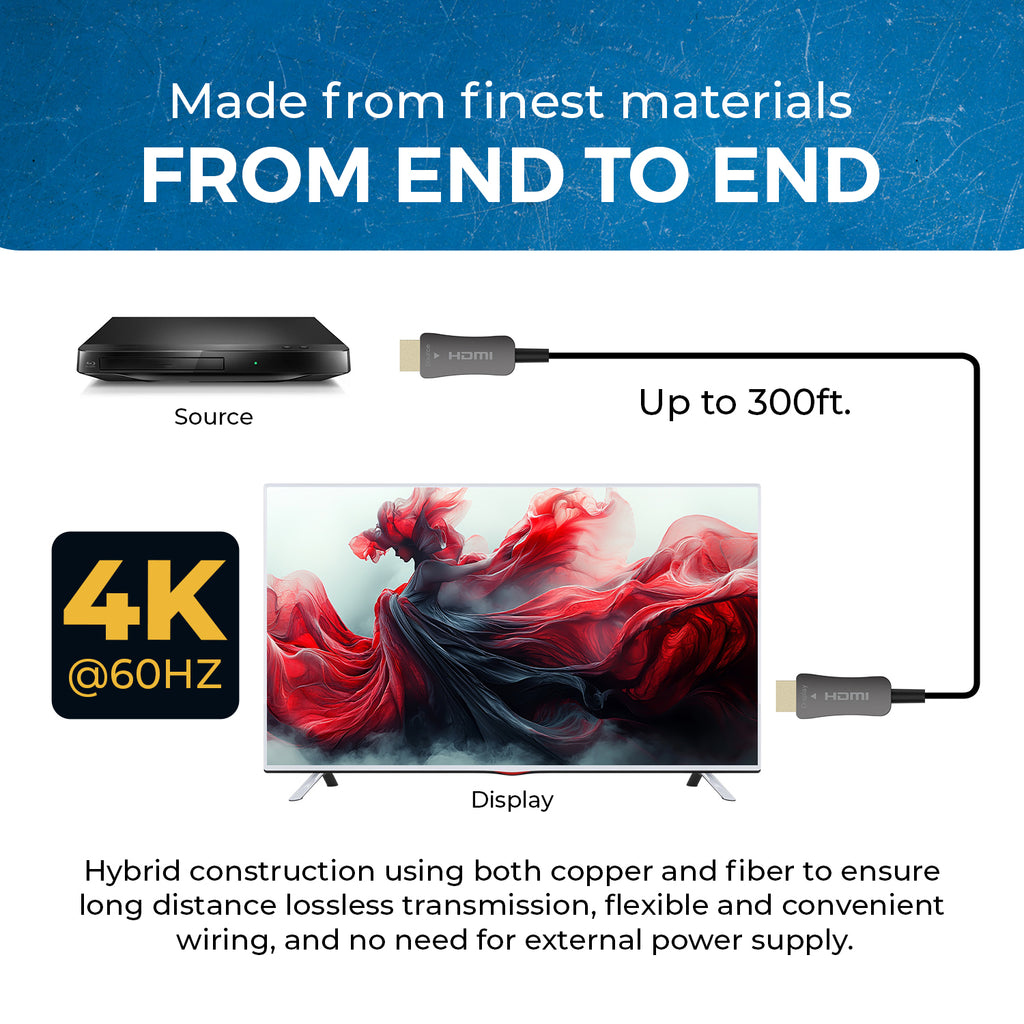

With a hybrid design combining copper and optical fiber, the cable eliminates electromagnetic interference, delivering stable, uncompressed video and audio signals up to 300 feet (~91.5 meters).
Fully compliant with HDMI 2.0b and HDCP 2.2 standards, it supports 4K@60Hz resolution with 18Gbps bandwidth, HDR, and advanced audio formats including Dolby TrueHD and DTS-HD Master Audio.
The cable features gold-plated connectors and a nylon-braided PVC jacket for maximum durability, longevity, and resistance to wear. It also supports ARC, CEC, and EDID pass-through for seamless device communication.
Ideal for home theaters, professional AV installations, and any environment requiring reliable, high-quality signal extension without latency or degradation, this cable is available in various lengths up to 300 feet.
Key Features:
- HDCP 2.2 Compliant – Fully compatible with protected 4K content.
- Supports Resolutions up to 4K@60Hz 4:4:4 – Delivers ultra-high-definition video with vivid color and clarity.
- 18Gbps Uncompressed Bandwidth – Ensures smooth, high-speed transmission with zero compression.
- Long-Distance Transmission – Transmits HDMI audio/video signals up to 100 ft (~30.5 m).
- HDR & 3D Support – Enables compatibility with High Dynamic Range content and 3D formats.
- CEC & ARC Functionality – Supports Audio Return Channel and device control via a single HDMI connection.
- Advanced Audio Format Support – Compatible with LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD, and more.
- High-Resolution Audio – Supports up to 8-channel LPCM audio with 192kHz sampling rate and 24-bit depth.

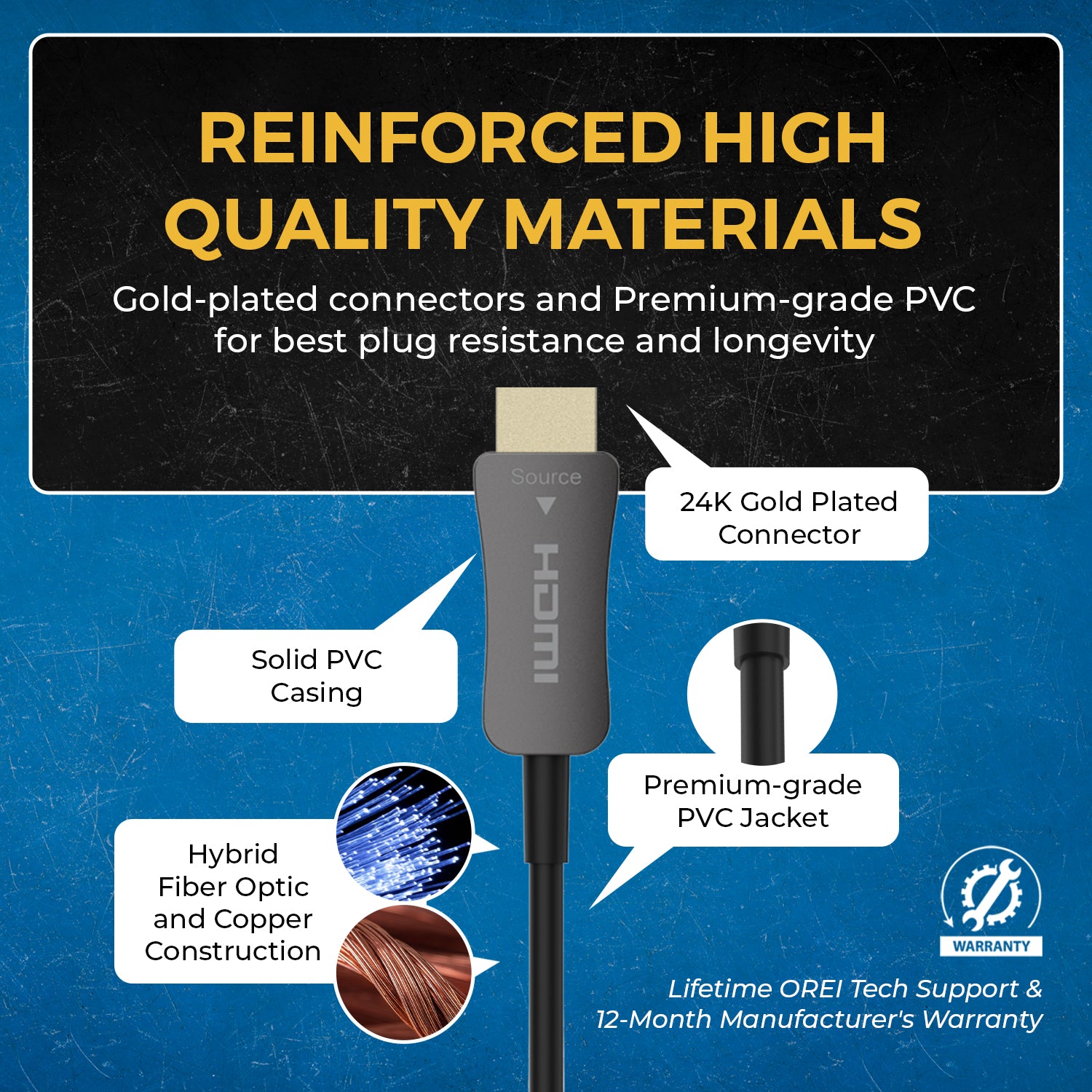

- Durable Construction – Gold-plated connectors and nylon-braided PVC ensure extended plug life and durability.

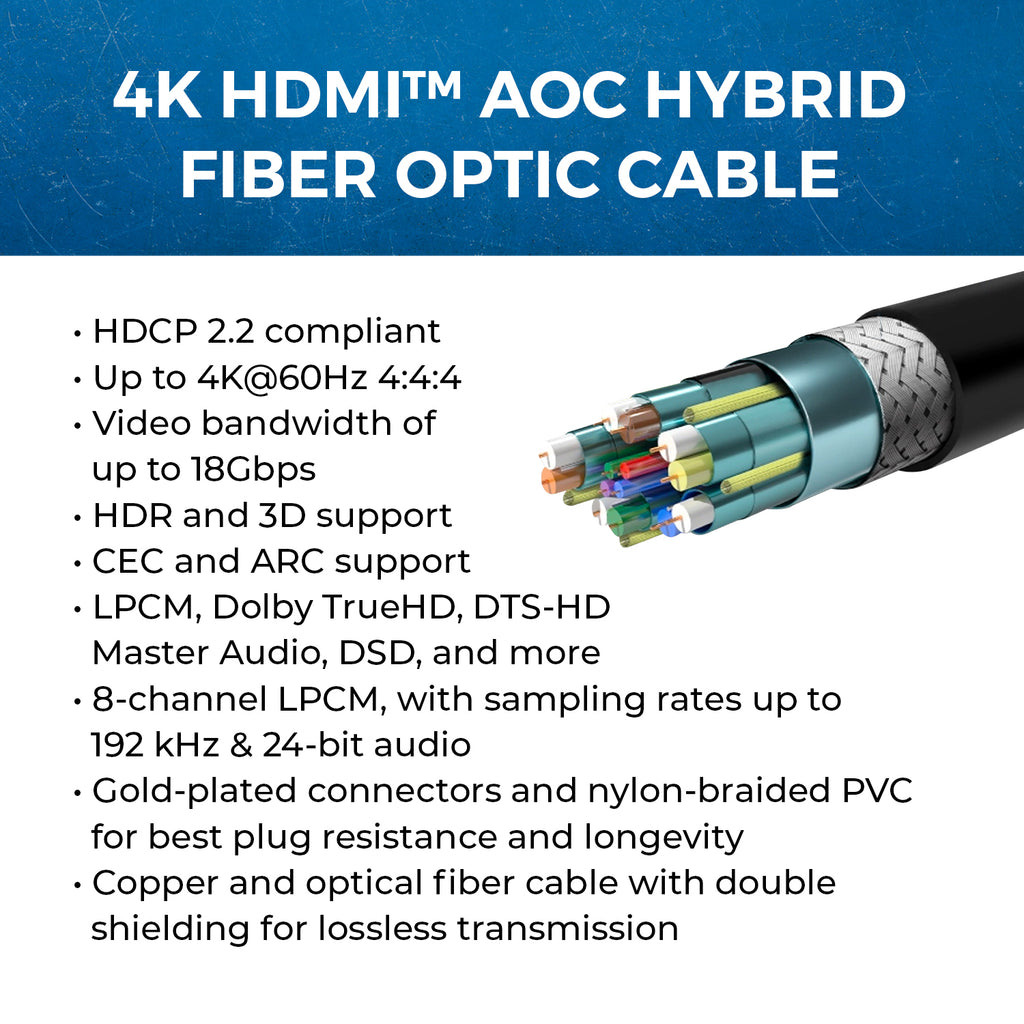

- Hybrid Cable Design – Copper and fiber optic construction with double shielding for stable, interference-free transmission.
- CONNECTIVITY
- Input: 1 × HDMI [Type A, 19-pin male]
- Output: 1 × HDMI [Type A, 19-pin male]
- VIDEO OUTPUT
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 4K@60Hz
- Color Space: YUV 4:4:4
- Color Depth: 8/10/12-bit
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: Yes
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale:No
- Over IP: No
- HDBaseT: No
- RS-232: No
- AUDIO SUPPORT
- Audio Formats: LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD
- Transmission Distance: 100ft / 150ft / 200ft / 250ft / 300ft. Depends on the length of the cable purchased
- COMPLIANCES
- HDMI Compliance HDMI 2.0b
- HDCP Compliance HDCP 2.2/1.4
- POWER
- Power Supply: Non external power required
- PROPERTIES
- Cable Color: Black
- Outer Diameter: 4.8mm
- Conductor: Optical Fiber + Tinned Copper
- Connector Color: Gold-plated
- Jacket: PVC
- Connector Casing: Metal Enclosure
- Chip: Optoelectronic conversion chip
- Applicable Devices: Camera, Computer, DVD Player, TV box, HDTV, Projector, Home Theater, Multimedia, Monitor
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)
Includes:
- AOC-4K-300
- User Manual
- 1-year manufacturer's warranty
