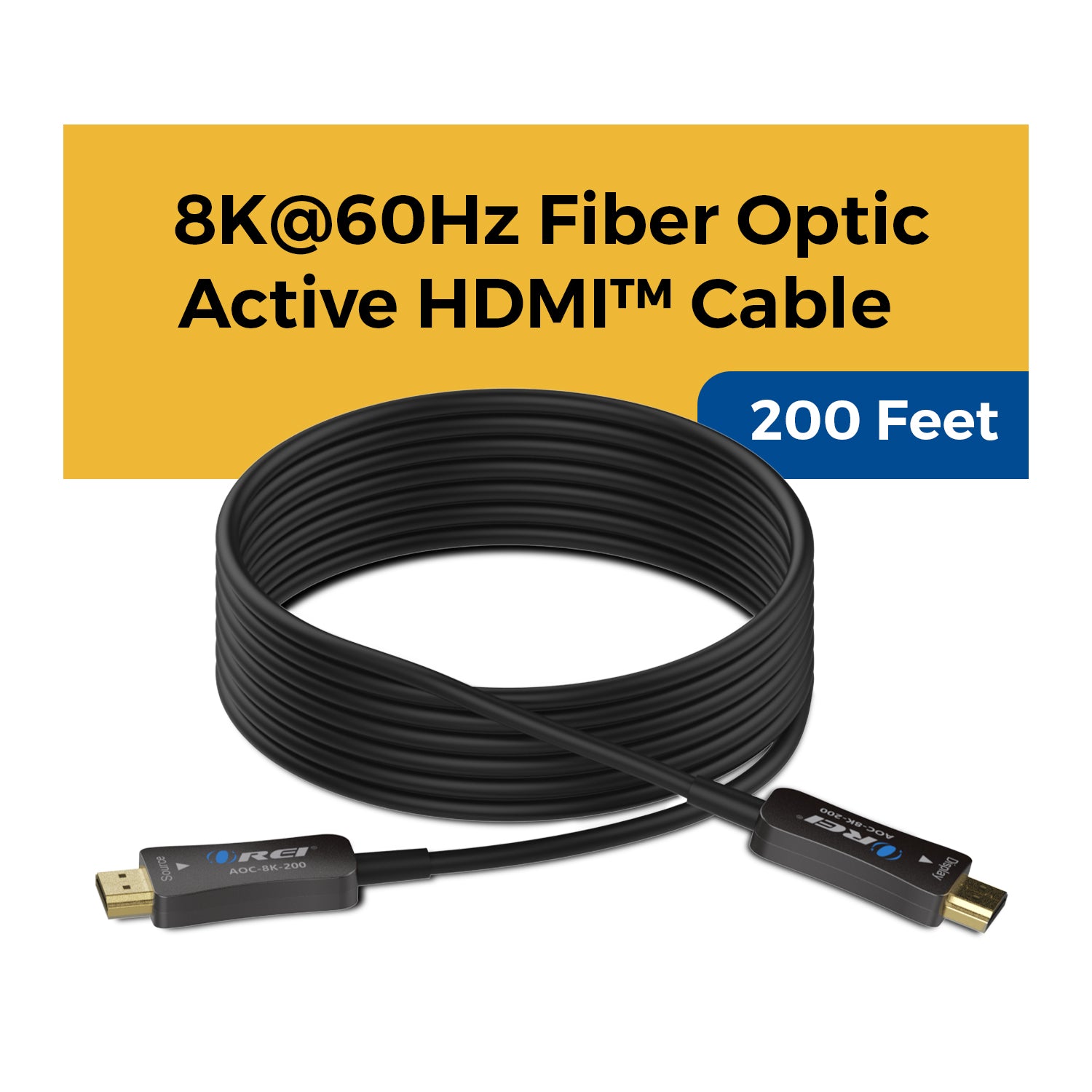

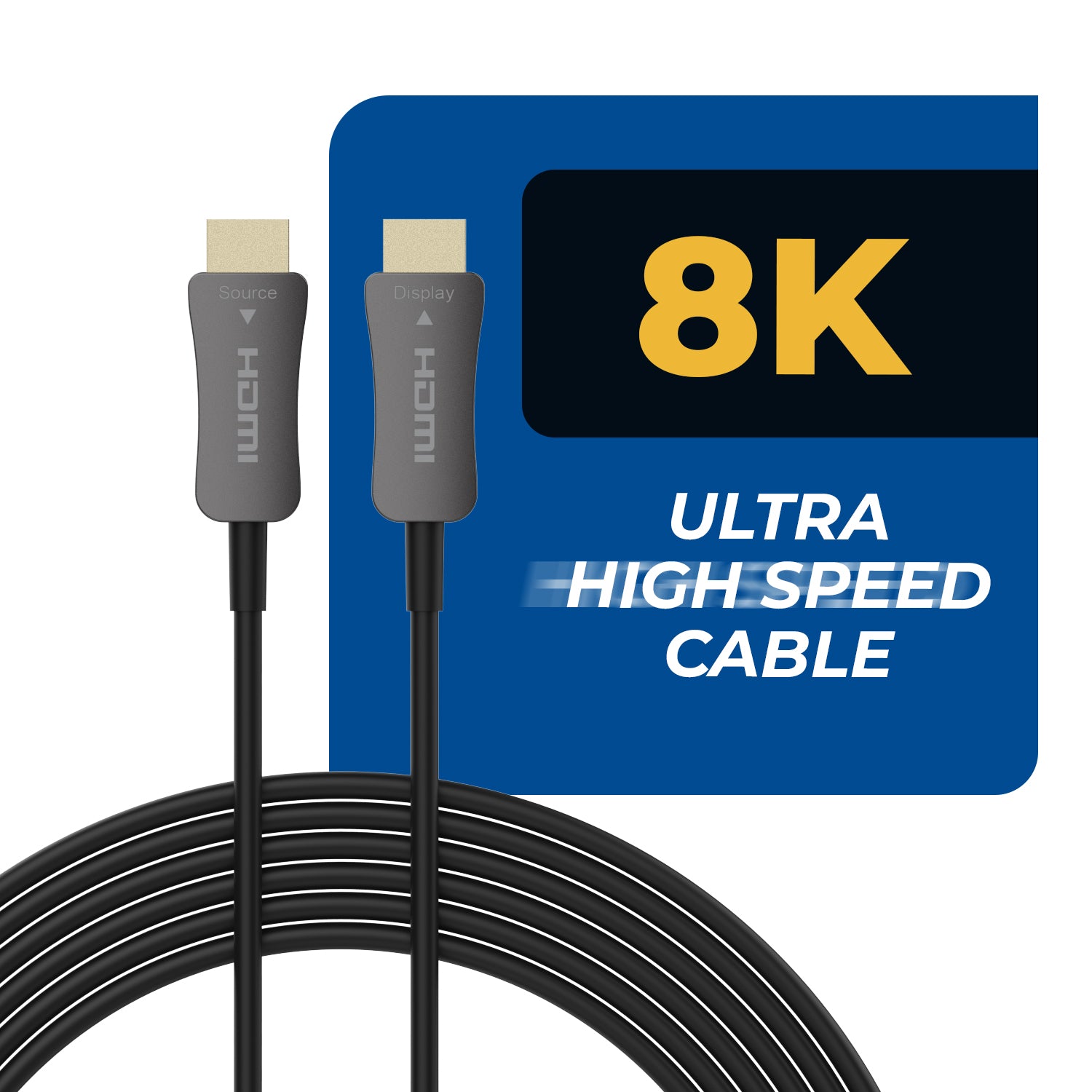

OREI AOC-8K-200 : 200ft HDMI™ AOC HYBRID FIBER OPTIC CABLE UHD 8K60

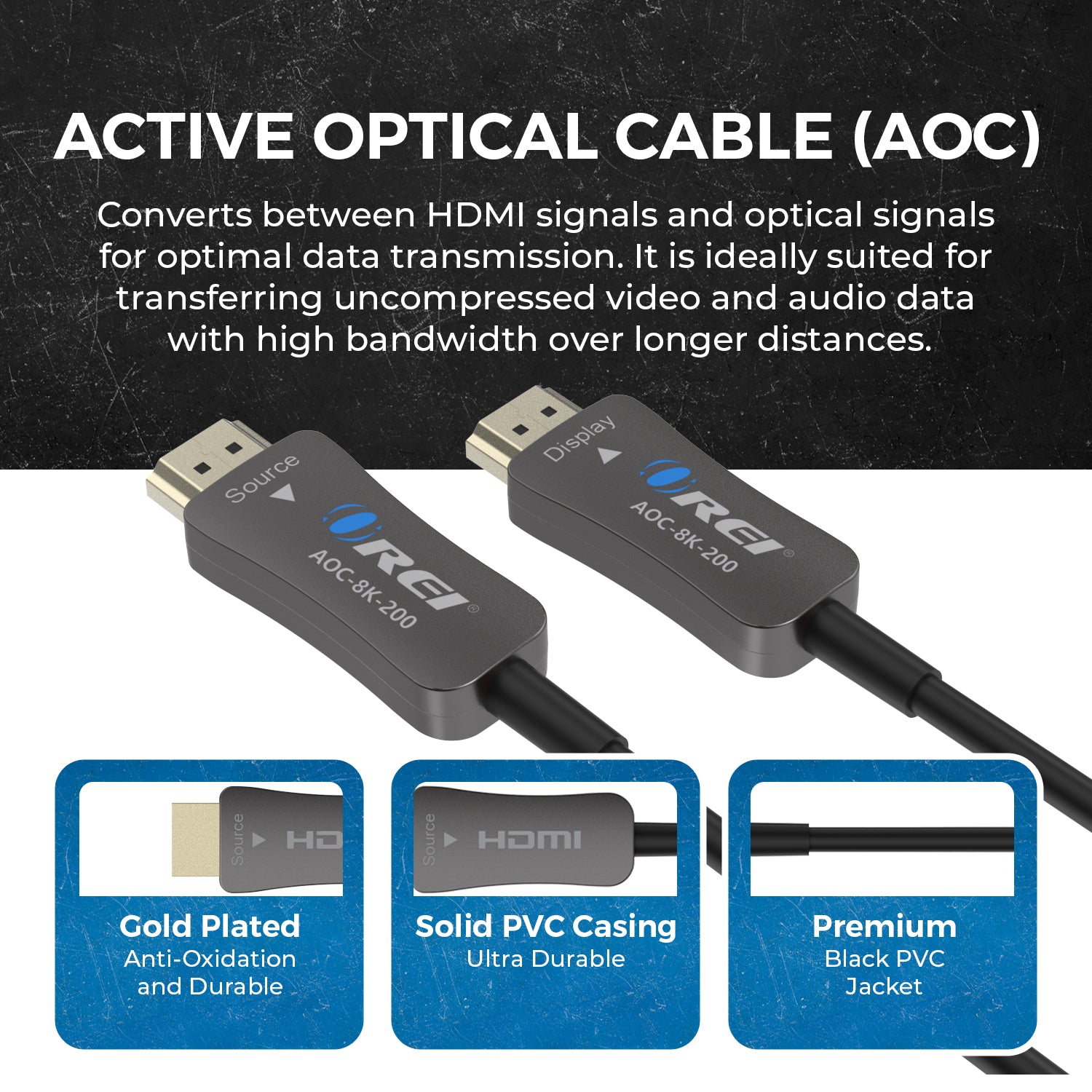

AOC-8K-200 is a high-performance HDMI™ hybrid active optical cable (AOC) designed for ultra-reliable, high-bandwidth AV transmission across extended distances.
This advanced cable converts HDMI signals to optical signals, enabling the seamless transfer of uncompressed video and audio data with bandwidths of up to 48Gbps. Supporting resolutions up to 8K@60Hz 4:4:4 and fully compliant with HDMI 2.1 and HDCP 2.3 standards, it delivers lossless transmission with zero latency or interference.

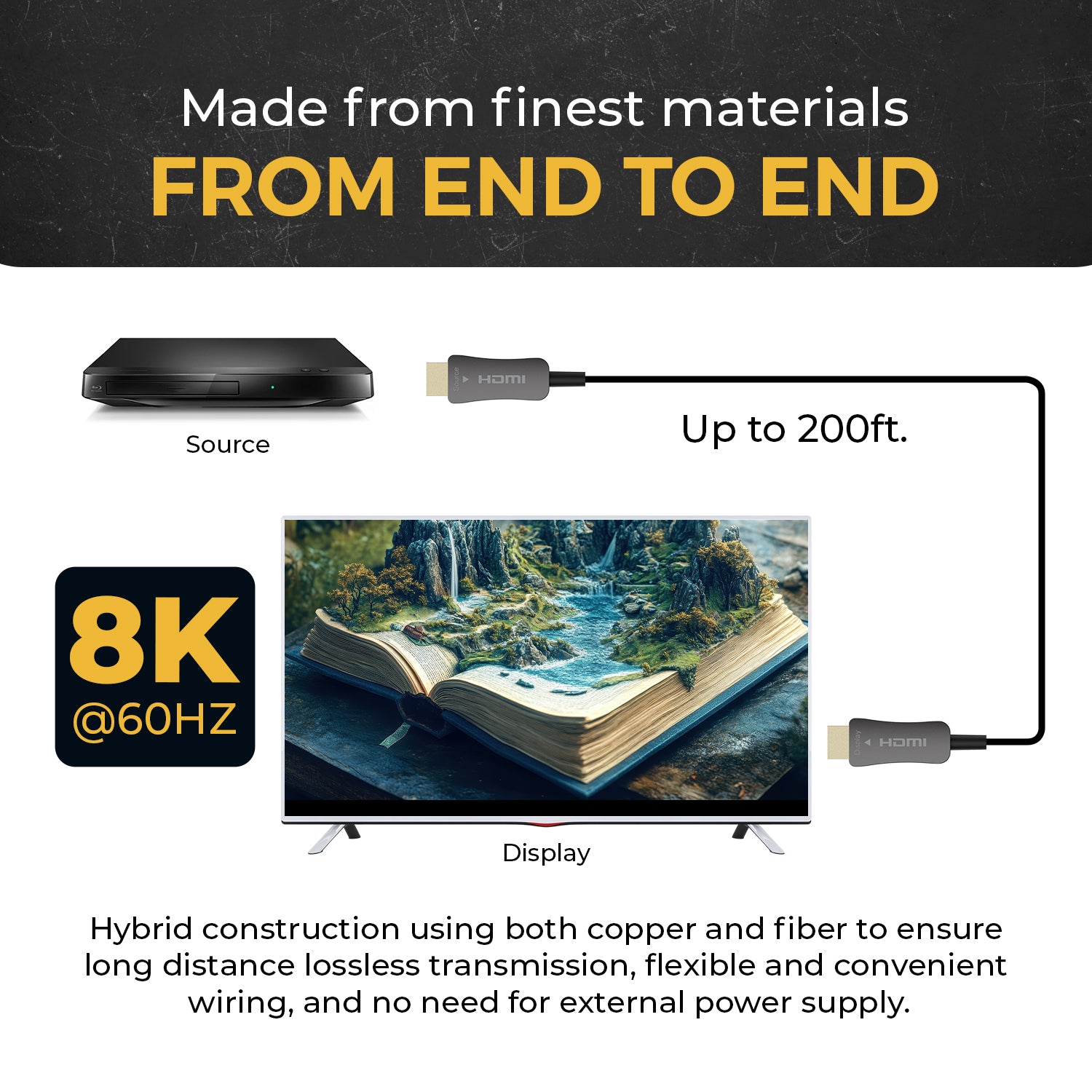

Its hybrid construction—combining copper and fiber optic cable—prevents electromagnetic interference and ensures flexibility, a low bending radius, and a lightweight form factor.
With gold-plated connectors and a nylon-braided PVC jacket for maximum durability, the cable is ideal for home entertainment systems, professional AV setups, conference rooms, and in-wall or in-building installations. Plug-and-play operation means there's no need for software or external power—simply connect and enjoy flawless image and audio quality.
Key Features:
- HDCP 2.3 Compliant – Supports secure playback of protected content.
- 8K Ultra HD Ready – Delivers resolutions up to 8K@60Hz YUV 4:4:4, 8K@30Hz, and 4K@120Hz as specified in HDMI™ 2.1.
- 48Gbps Data Bandwidth – Ensures uncompressed, high-speed transmission over long distances.
- Long-Distance Extension – Transfers audio/video signals up to 100 ft (~30.5 m) without degradation.
- Next-Gen Video Features – Supports VRR (Variable Refresh Rate), ALLM, QMS, QFT, and SBTM.
- High Dynamic Range Support – Pass-through for HDR, HDR10, HDR10+, Dolby Vision, and HLG for vivid contrast and color depth.
- 3D Video Compatible – Supports 3D video formats for immersive visuals.
- Stable Signal Transmission – Integrated photoelectric conversion chip ensures signal reliability and stability.

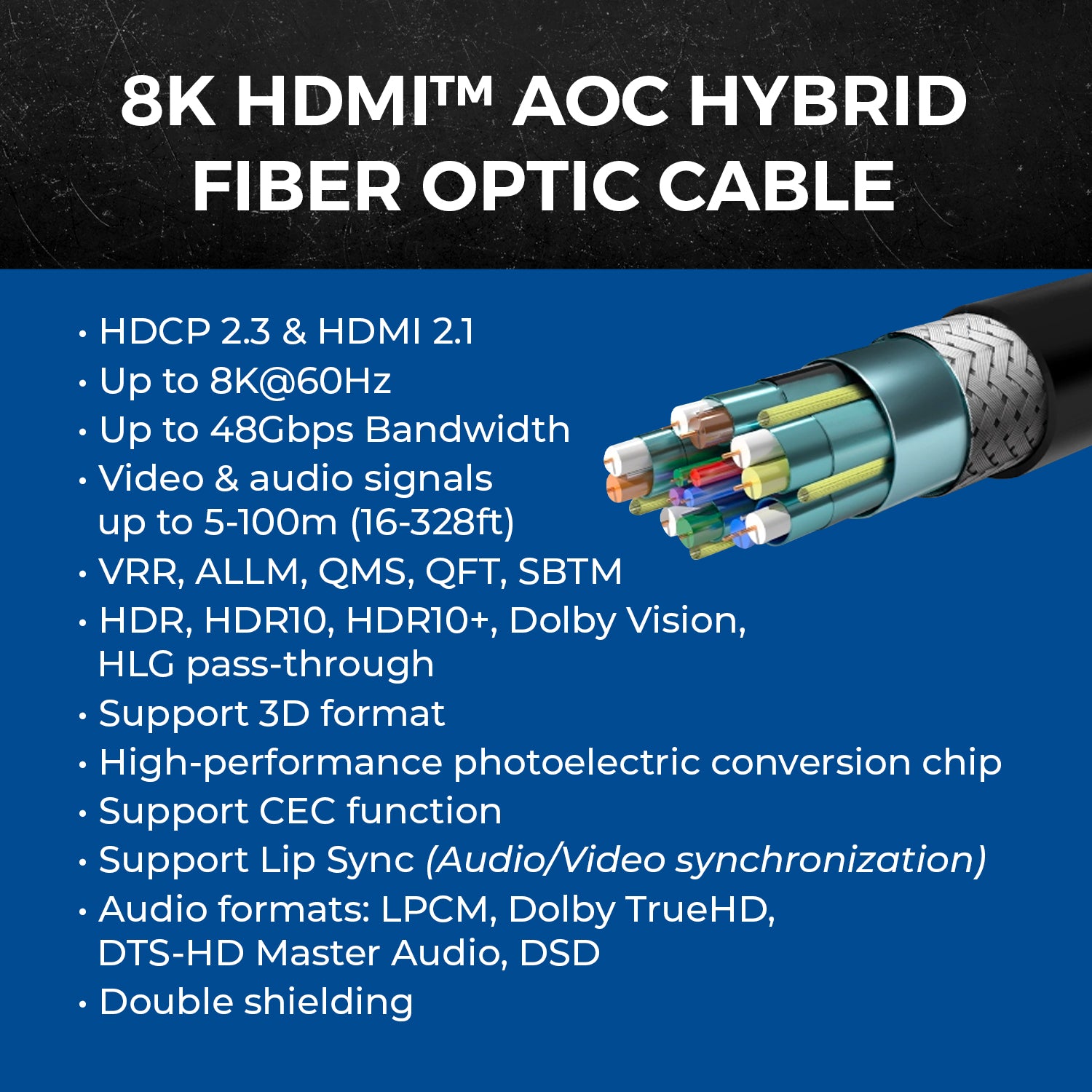

- Hybrid Construction – Copper and fiber optic design enables lossless transmission with flexible, lightweight cabling.

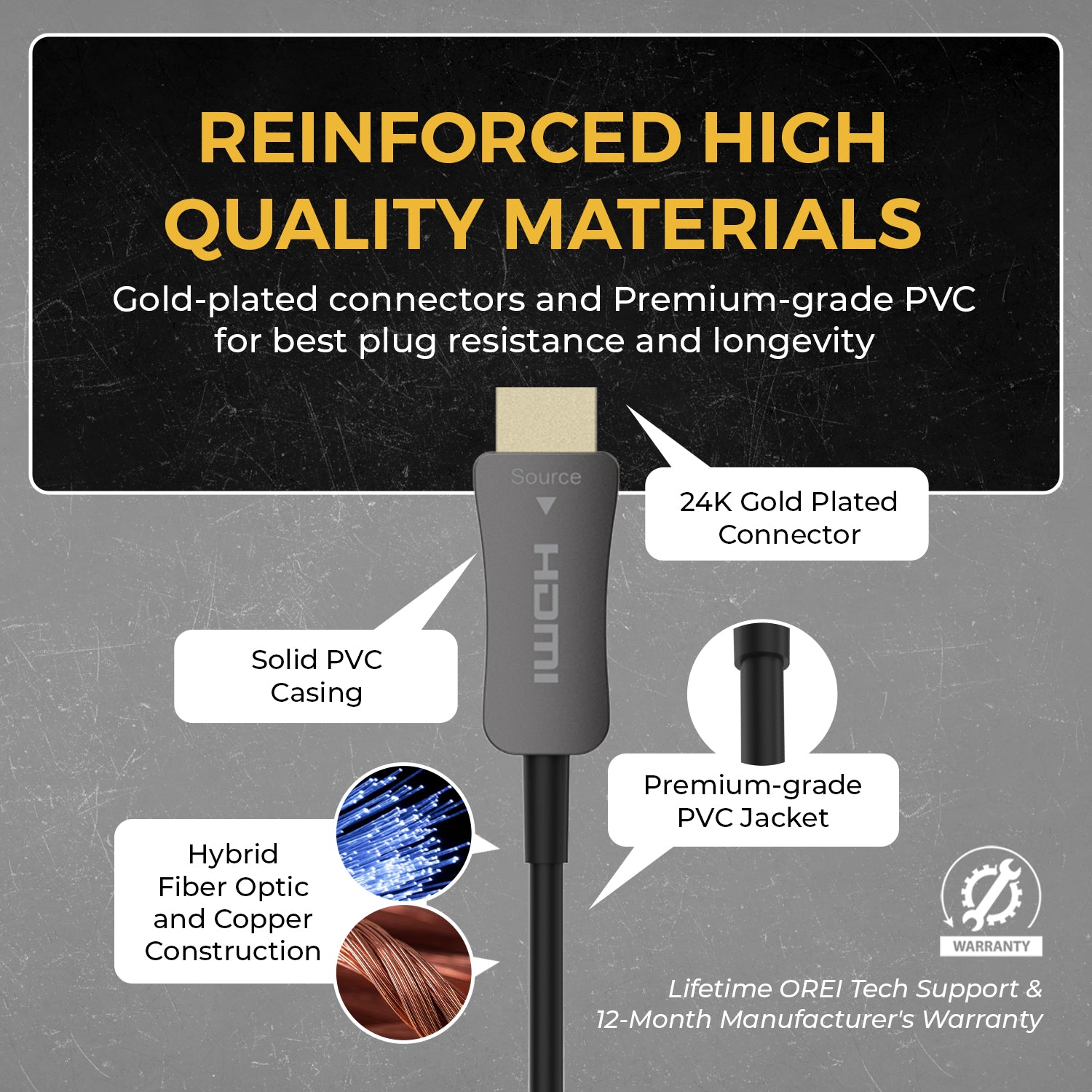

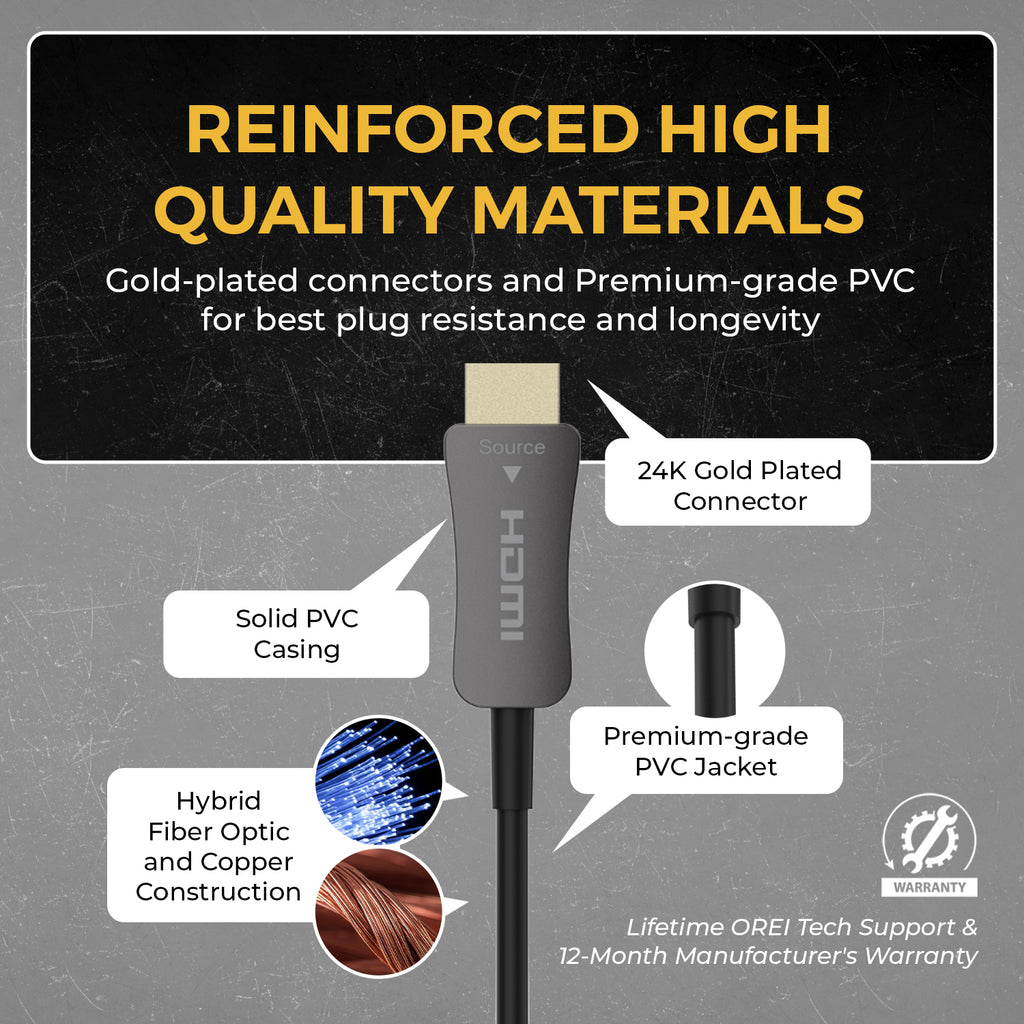

- High-End Build Quality – Gold-plated connectors and nylon-braided PVC offer enhanced plug durability and resistance.
- CEC & Lip Sync Support – Enables synchronized audio/video and remote device control over HDMI.
- Advanced Audio Format Support – Compatible with LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD, and Blu-ray/HD DVD audio.
- 8-Channel LPCM Audio – Supports up to 192kHz sampling rate and 24-bit depth.
- Double Shielded Design – Reduces signal interference and enhances durability.

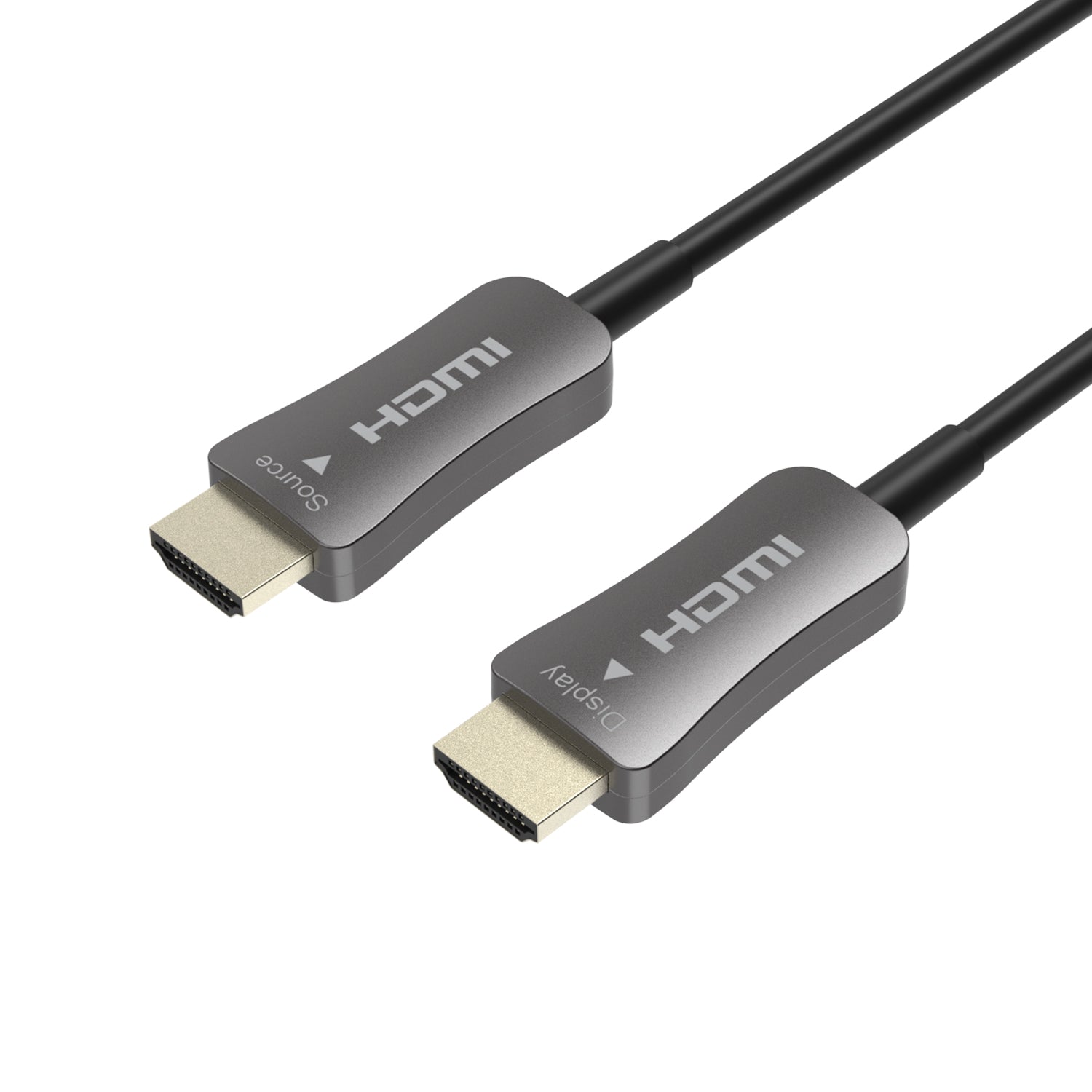

- Directional Connectivity – Clearly labeled source and display connectors for proper signal flow.
- Ultra HD 8K Standard – Supports HDTV resolutions up to 4096x2560 at 60Hz.
- Plug and Play – No drivers or software required for operation.
- CONNECTIVITY
- Input: 1 × Source [HDMI™ Type A, 19-pin female]
- Output: 1 × Display [HDMI™ Type A, 19-pin female]
- VIDEO OUTPUT
- Video Bandwidth: Up to 48Gbps
- Video Resolutions: Up to 8K@60Hz YUV 4:4:4, 8K@30Hz, 4K@120Hz
- Color Space: YUV 4:4:4
- Color Depth: 8/10/12-bit
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- AUDIO SUPPORT
- Audio Formats: LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD
- Transmission Distance: 100ft / 150ft / 200ft / 250ft / 300ft. Depends on the length of the cable purchased
- COMPLIANCES
- HDMI™ Compliance HDMI™ 2.1
- HDCP Compliance HDCP 2.3
- POWER
- Power Supply: Non external power required
- PROPERTIES
- Cable Color: Black
- Outer Diameter: 4.8mm
- Conductor: Optical Fiber + Tinned Copper
- Connector Color: Gold-plated
- Jacket: PVC
- Connector Casing: Metal Enclosure
- Chip: Optoelectronic conversion chip
- Applicable Devices: Camera, Computer, DVD Player, TV box, HDTV, Projector, Home Theater, Multimedia, Monitor
- Storage Humidity: 10% - 90% (relative humidity, non-condensing)
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20% - 80% (relative humidity, non-condensing)
Includes:
- AOC-8K-200
- User Manual
- 1-year manufacturer's warranty
