In Stock Soon: Usually Ships in 3-5 Business Days.

  • 2 HDMI Outputs (1 for Video, 1 for soundbar (having eARC/ARC port)
  • Supports S/PDIF, Stereo 3.5mm audio output
  • Supports CEC function between HDMI Ports

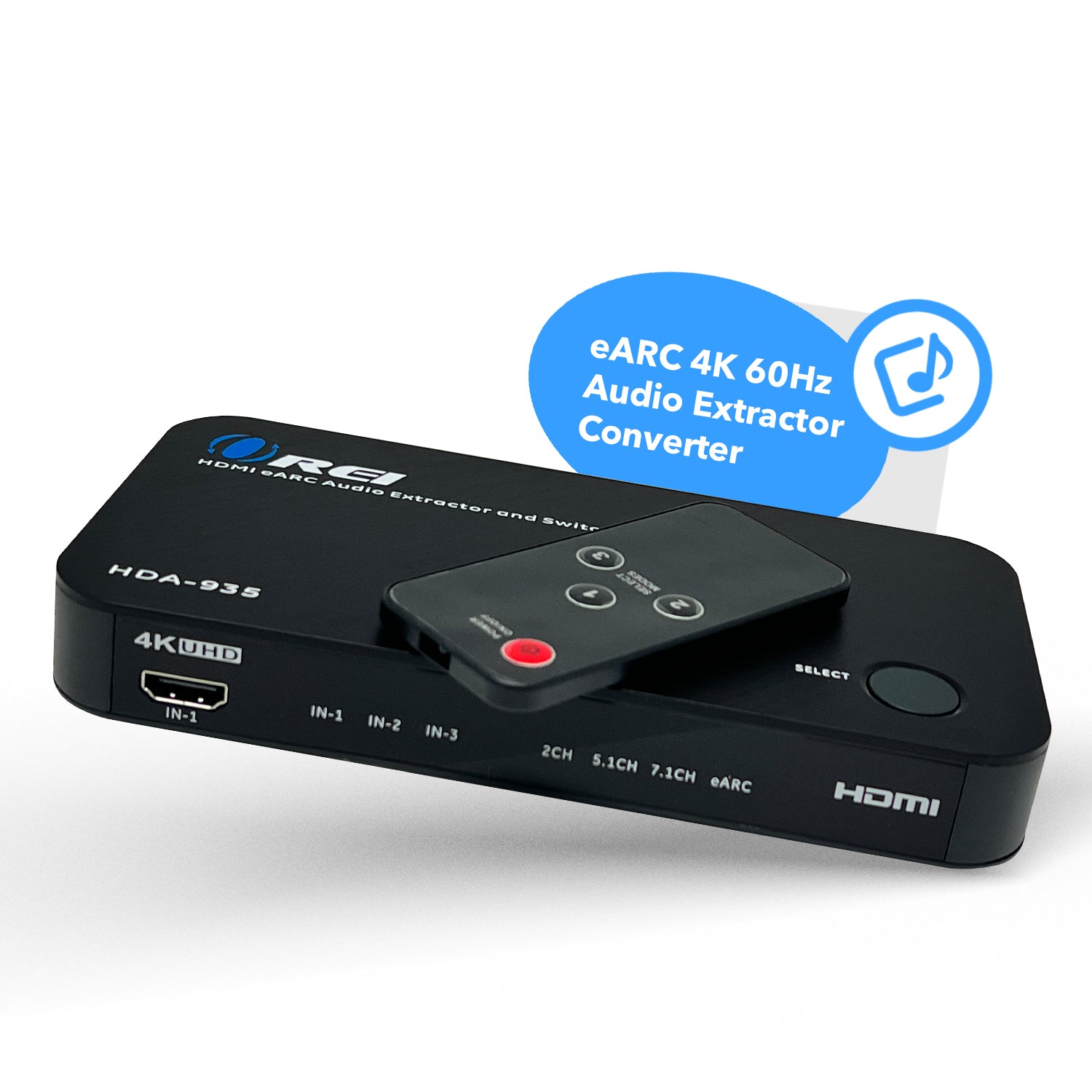

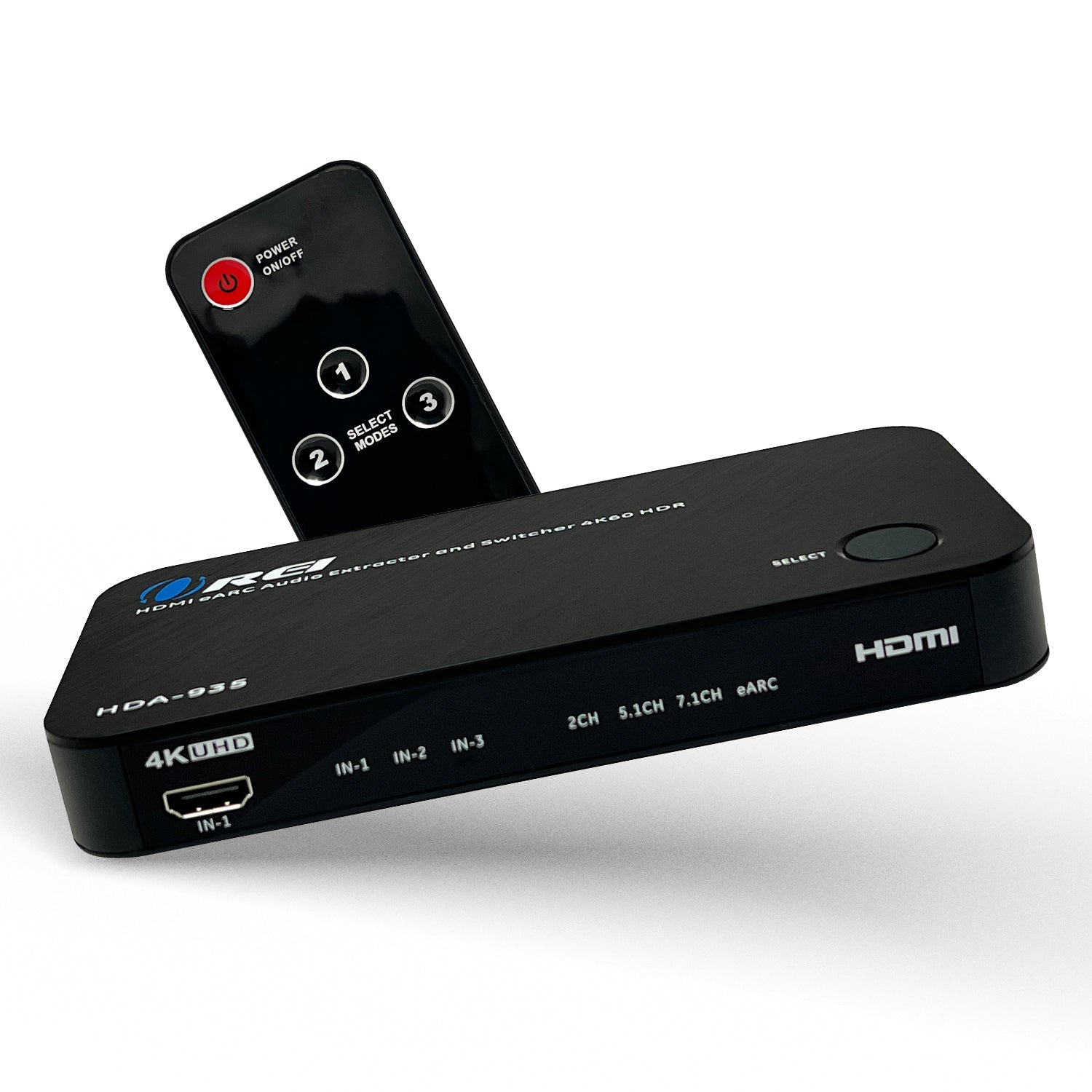

OREI HDA-935: Dual HDMI eARC HDMI Audio Extractor

This audio extractor has two HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

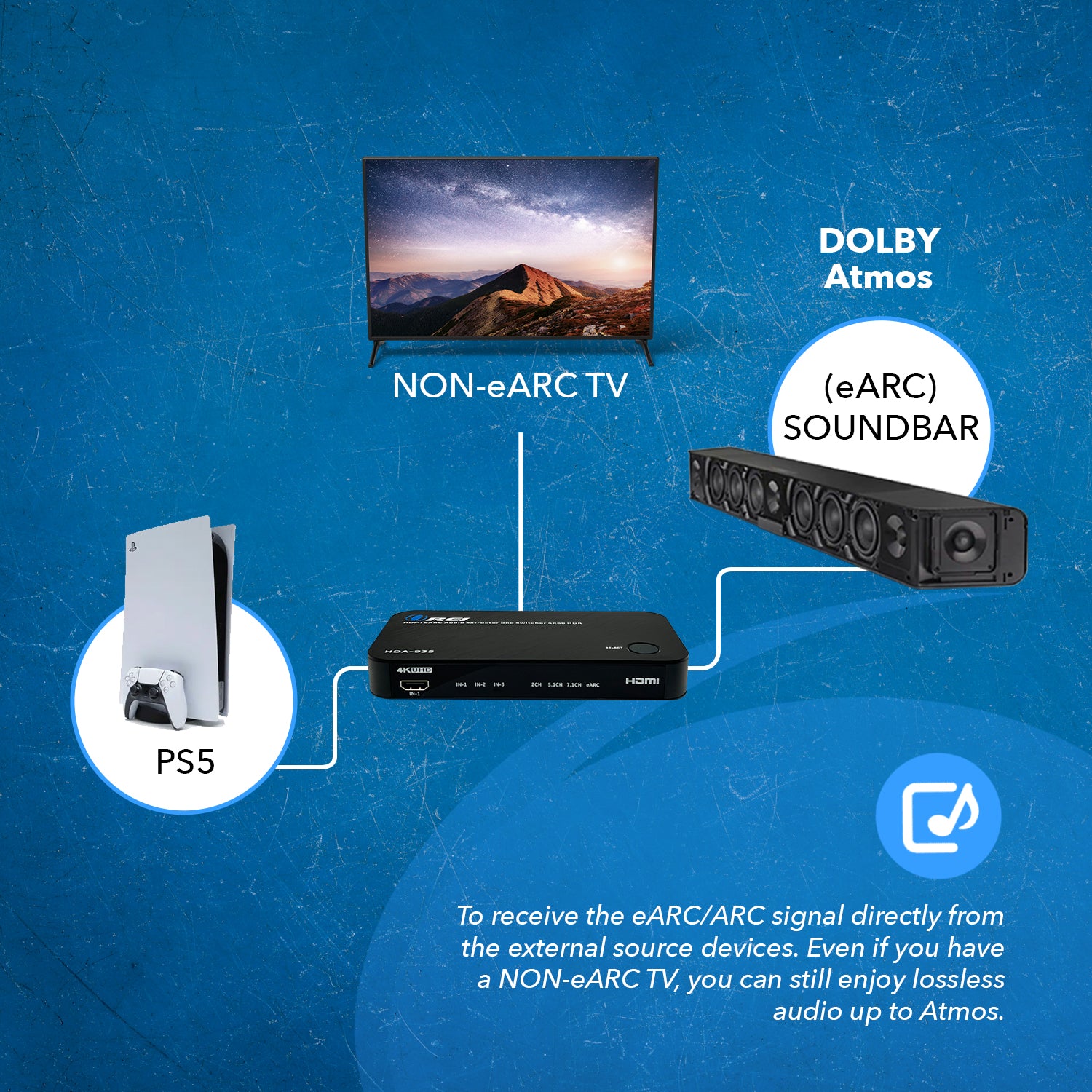

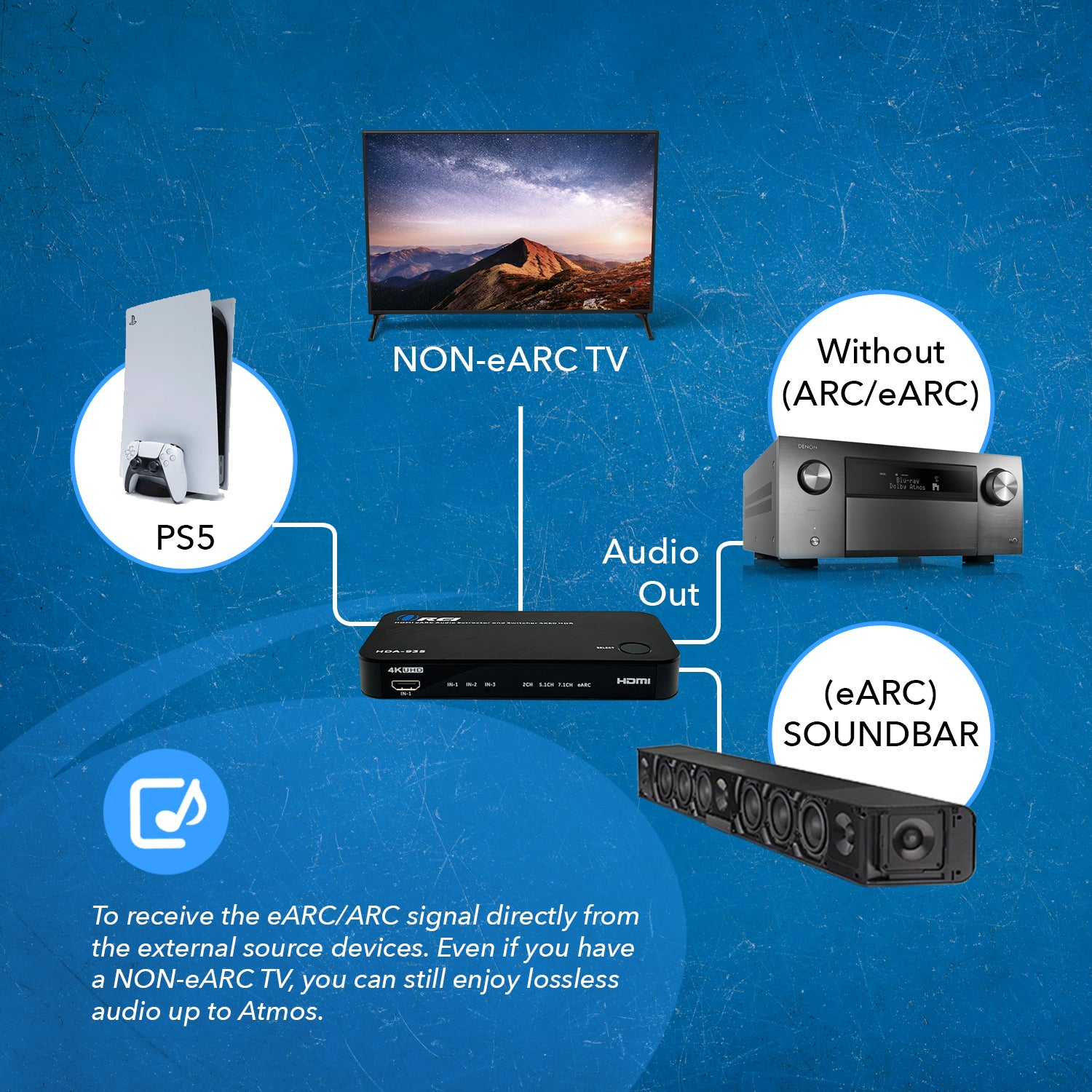

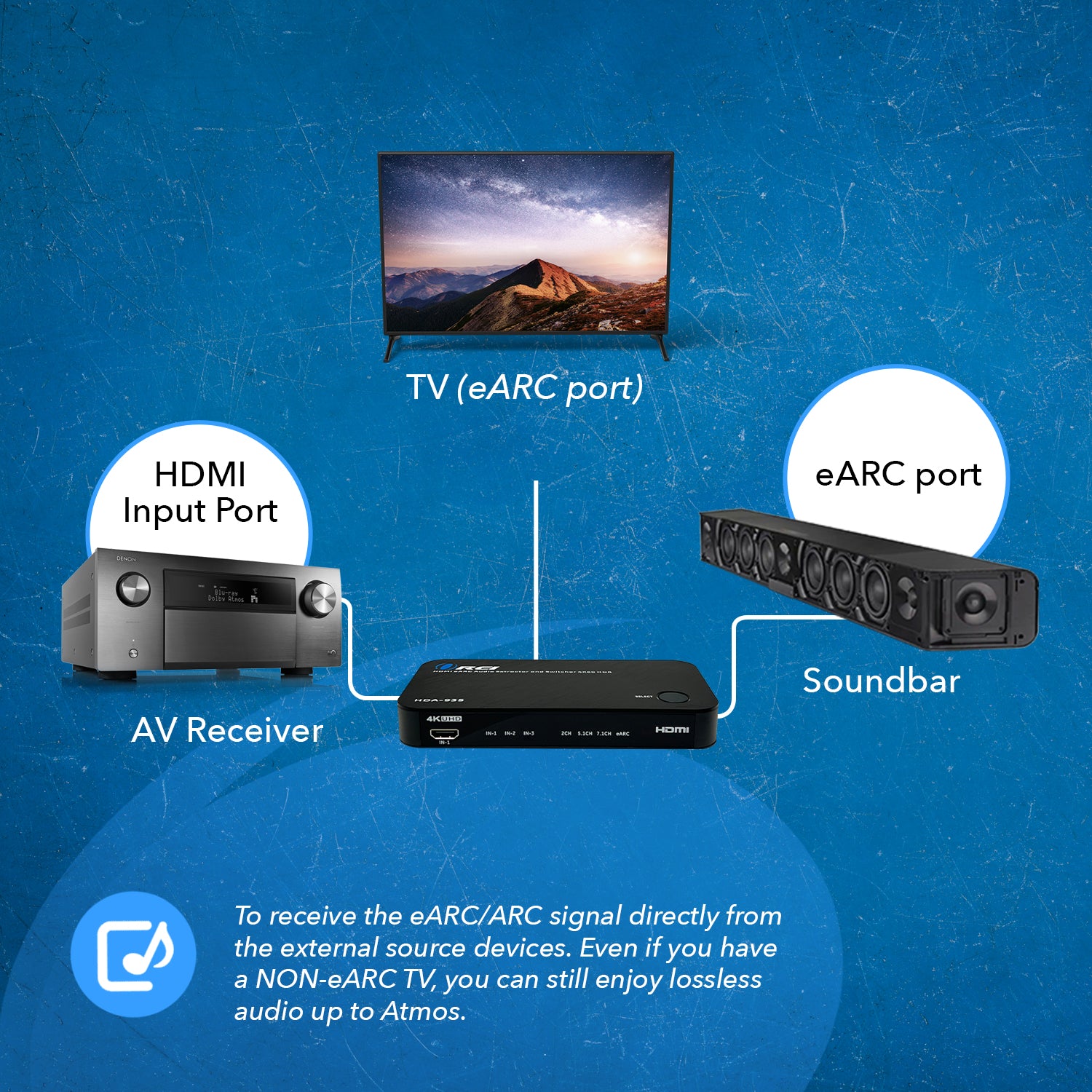

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.

Build-in eARC automatically detect the source of the signal (TV or external signal).

Key Features:
  • Supports Video and audio separation

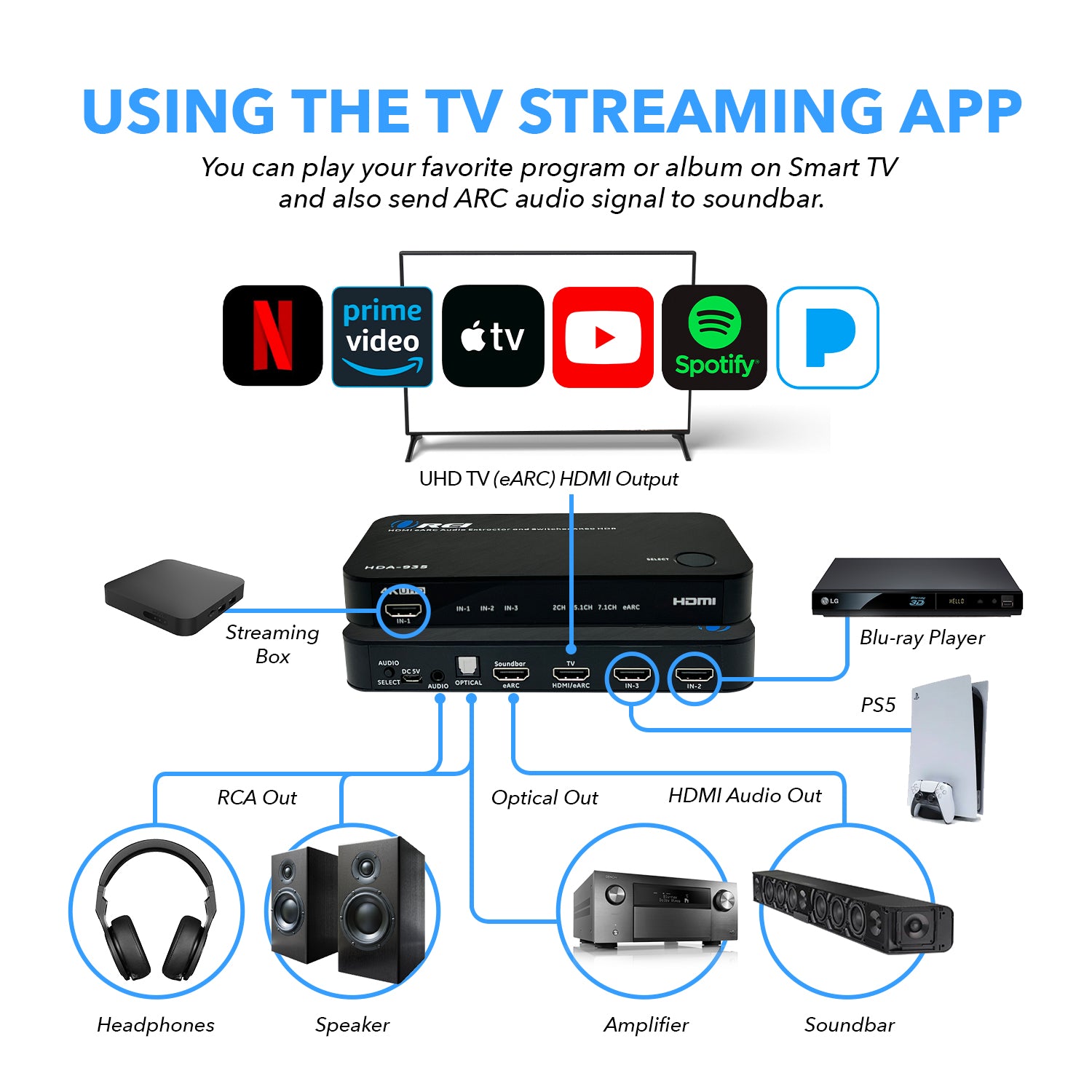

  • Auto eARC Detection when using the TV's app or external devices
  • Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
  • Supports 4K@60 & HDR
  • Compatible with Dolby Atmos (via HDMI)
  • Supports Pixel clock rate up to 600 MHz
  • Supports S/PDIF, Stereo 3.5mm audio output
  • Supports DTS HD, Dolby TrueHD (via HDMI)
  • Supports HDMI 2.0 / 2.1(eARC)
  • HDCP 2.3 compliant
  • Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
  • Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting the device to power ON/OFF)

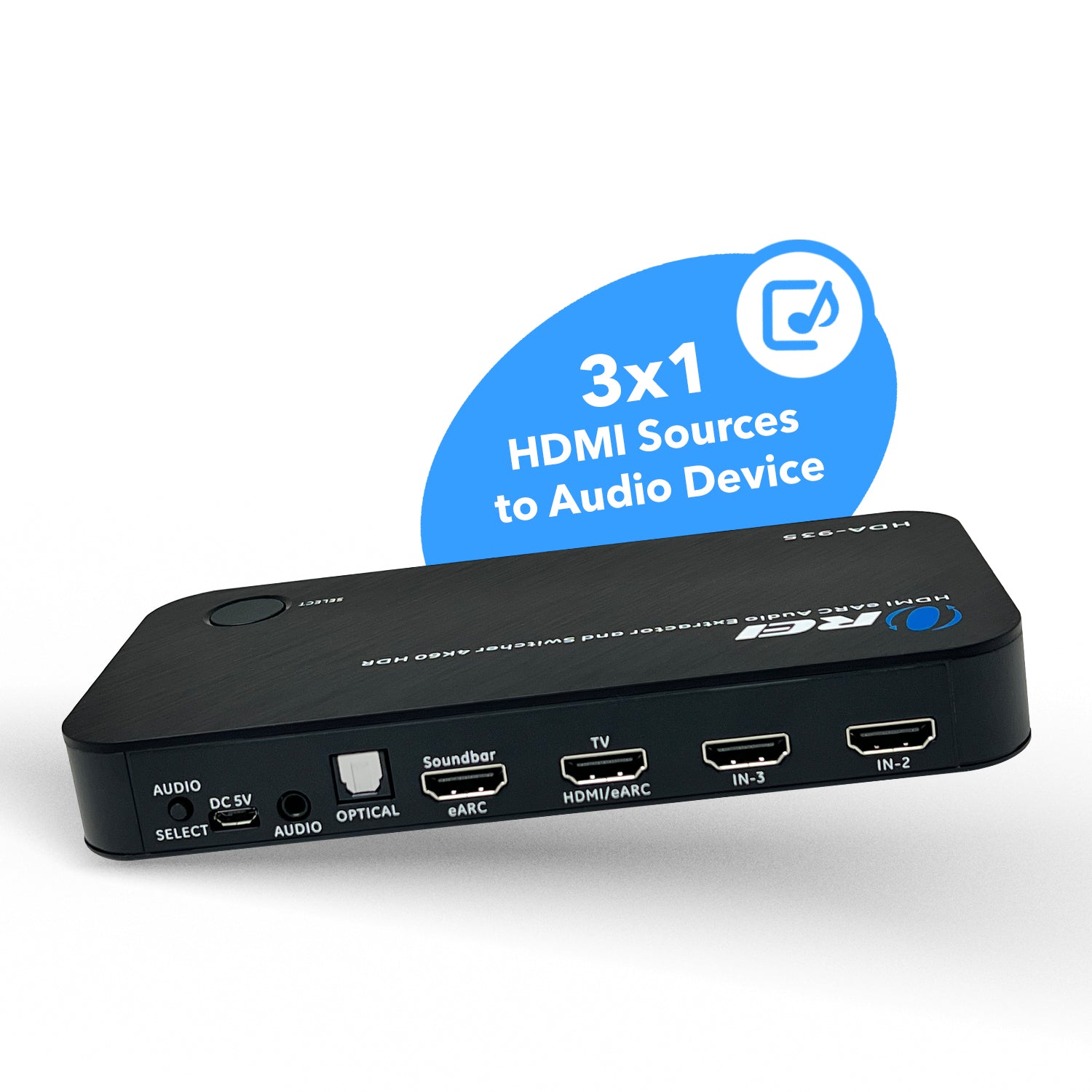

  • Input: 3x HDMI Type A [19-pin female]
  • Outputs: 2x HDMI Type A [19-pin female]
  •               : 1x S/PDIF (Optical)
  •               : 1x 3.5mm audio jack
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4Kx2K@60Hz
  • Color Space: RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0
  • Color Depth: 12-bit
  • CEC: Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF
  • eARC/ARCYes
  • HDMI Audio Formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
  • Operation Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)
  • ESD Protection:Contact discharge 4KV Air discharge 8KV
  • Relative Humidity: 10~90 % RH

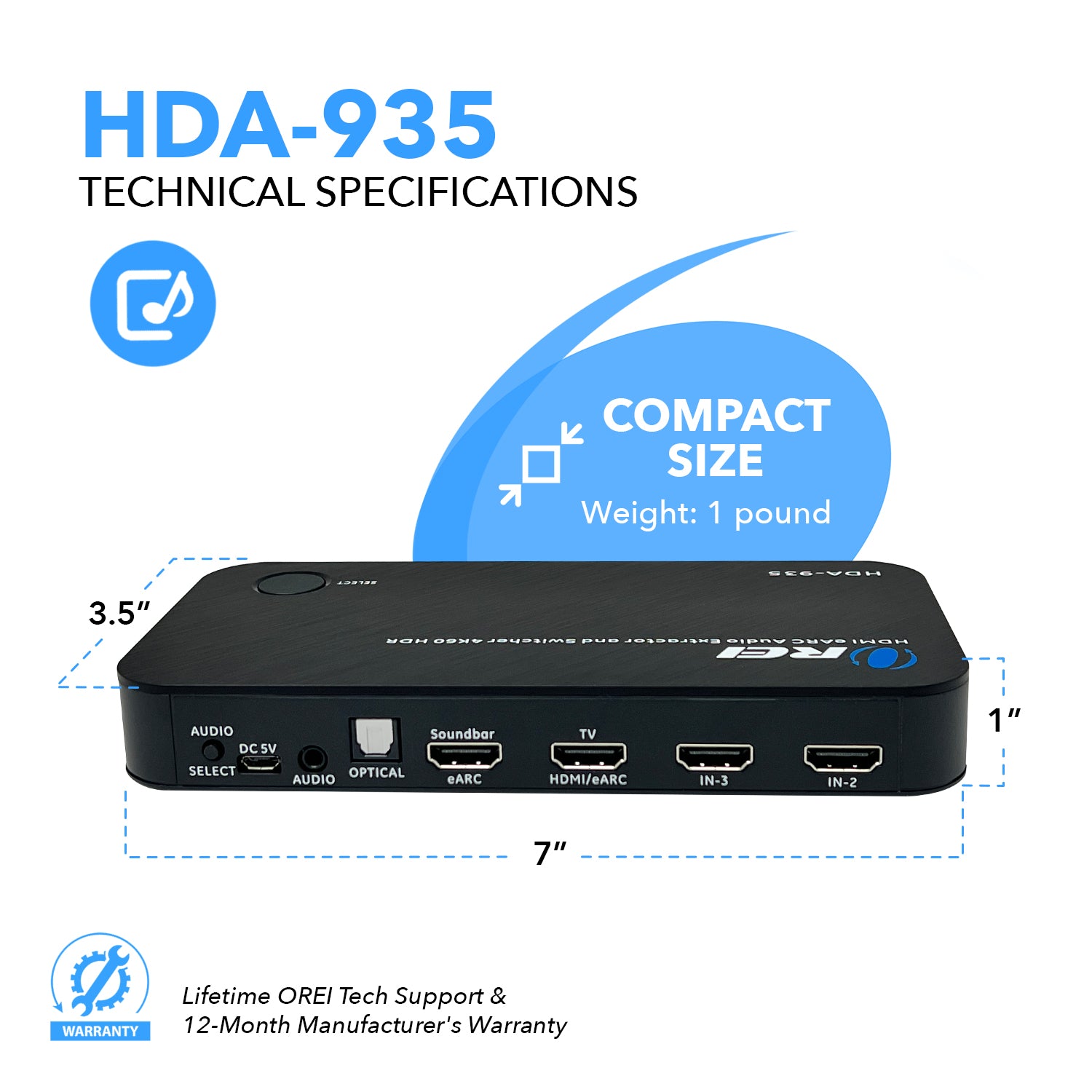

  • Dimensions: 175mm[W] x 86.6mm[D] x 26.3mm[H]
  • Weight: 158g
  • Power Supply: 5V/1A
  • EDID: Build-in eARC automatically detects the source of the signal (TV or external signal), no need to switch on or off
  • Audio Select: Select the audio formats from 2Ch, 5.1Ch, 7.1Ch
  • Power Consumption(Max): 5W(max)
  • Housing: Aluminium Enclosure
  • Color: Black
  • Housing: MABS+ABS

Package content and Warranty:


  • 1x HDMI Audio Extractor
  • 1x DC 5V/1A power adaptor
  • 1x 3.5mm to RL cable
  • 1x User Manual


  • 1-Year manufacturer's warranty

Request a Quote

Dual HDMI EARC Audio Extractor 4K@60Hz With Optical Port & 3.5mm Jack, 18Gbps Bandwidth (HDA-935)
