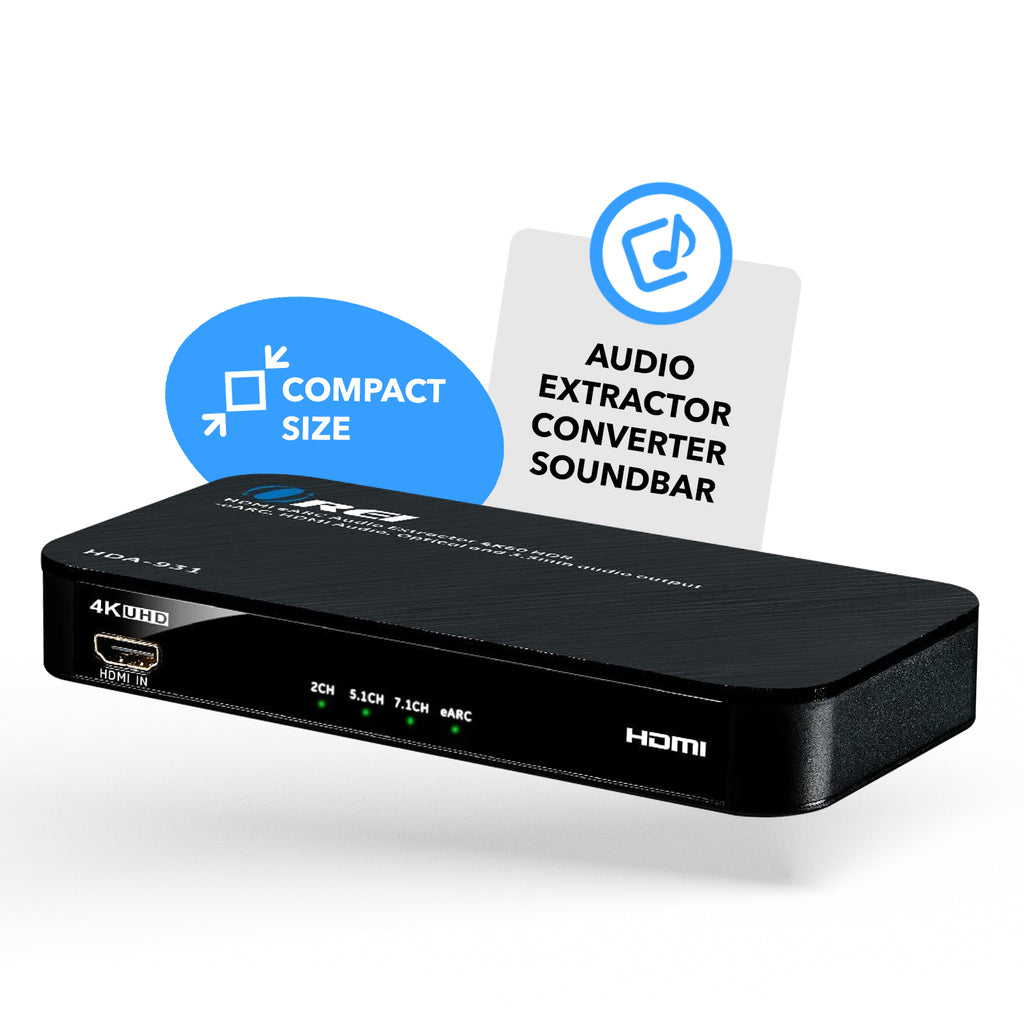

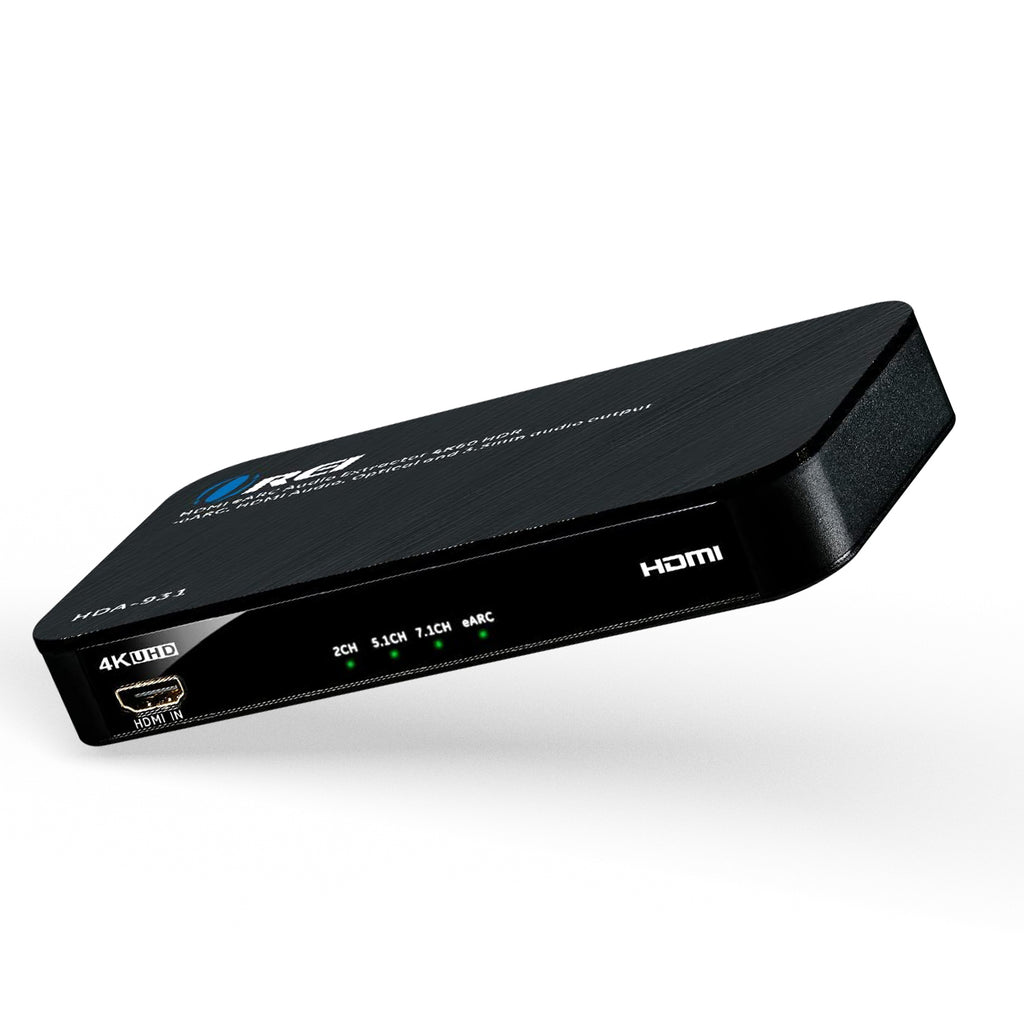

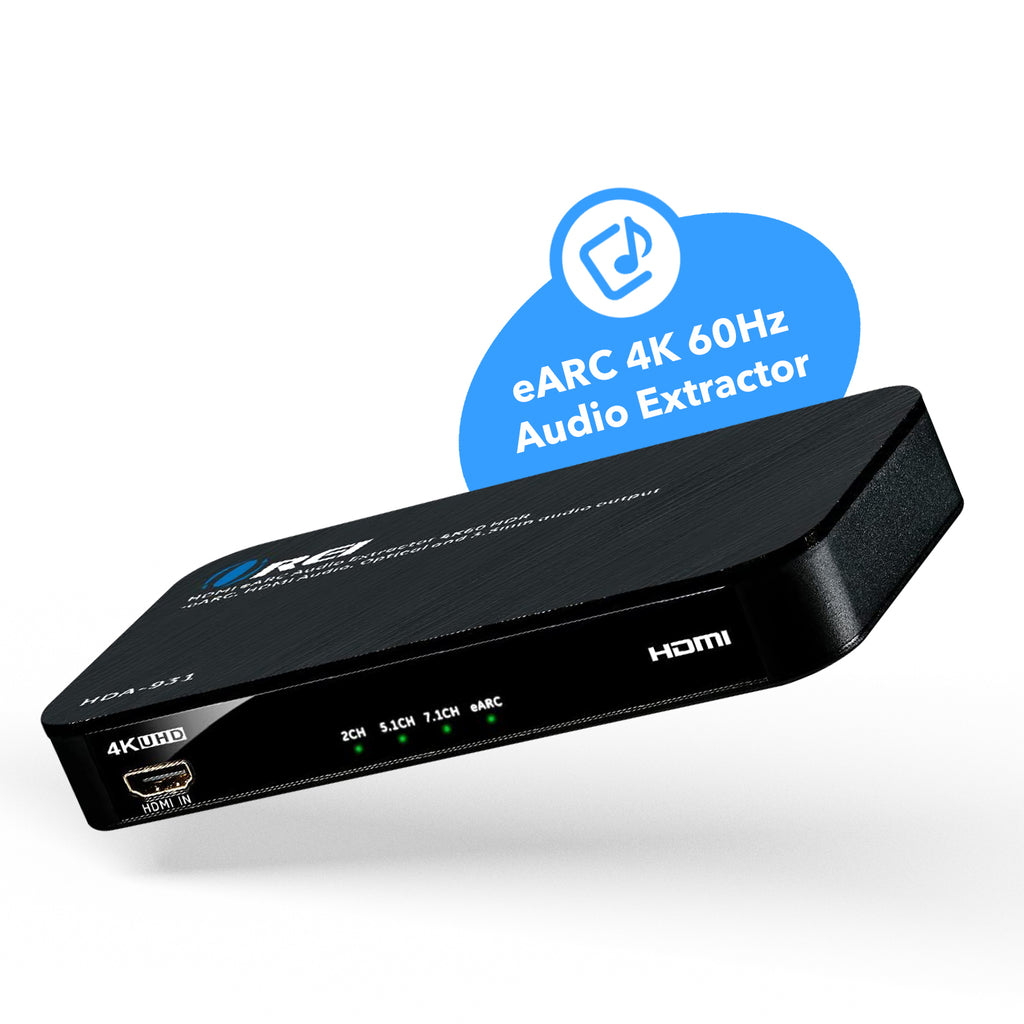

OREI HDA-931: Dual HDMI eARC HDMI Audio Extractor

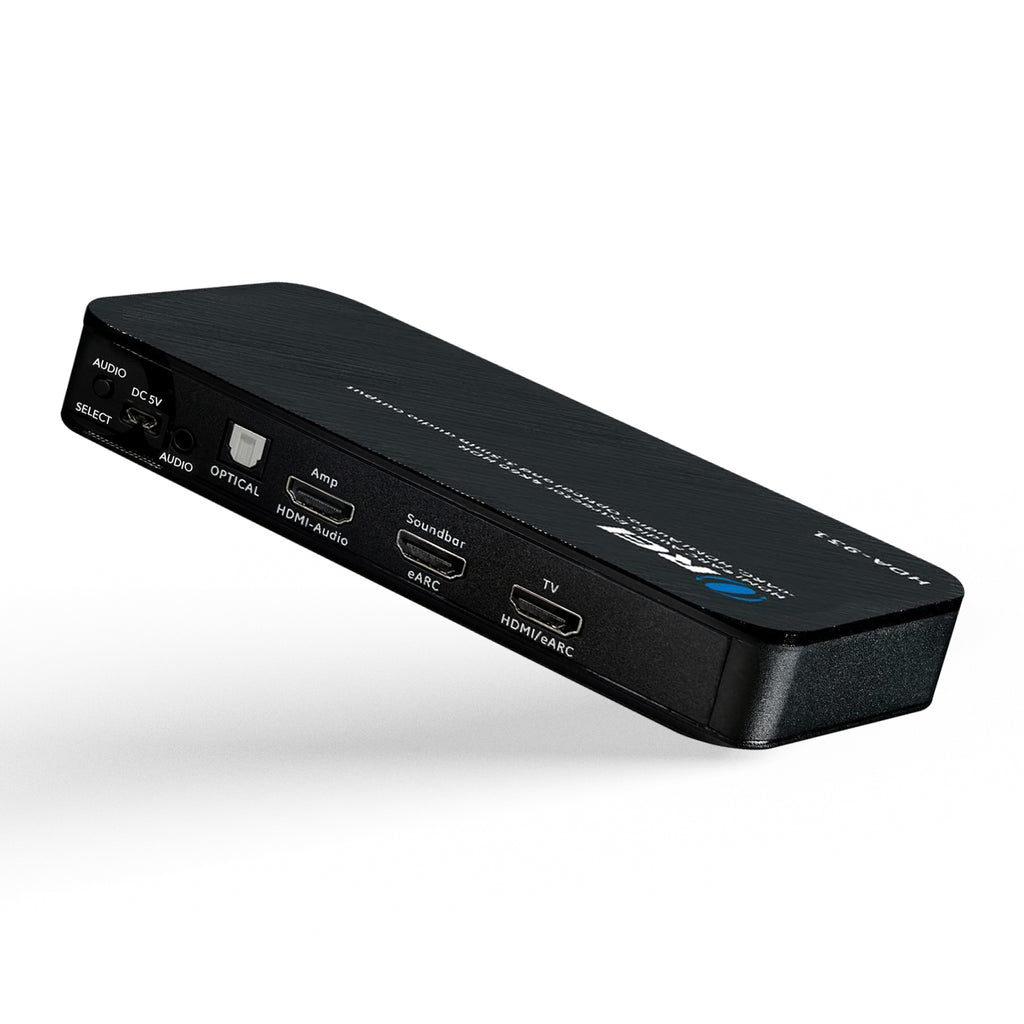

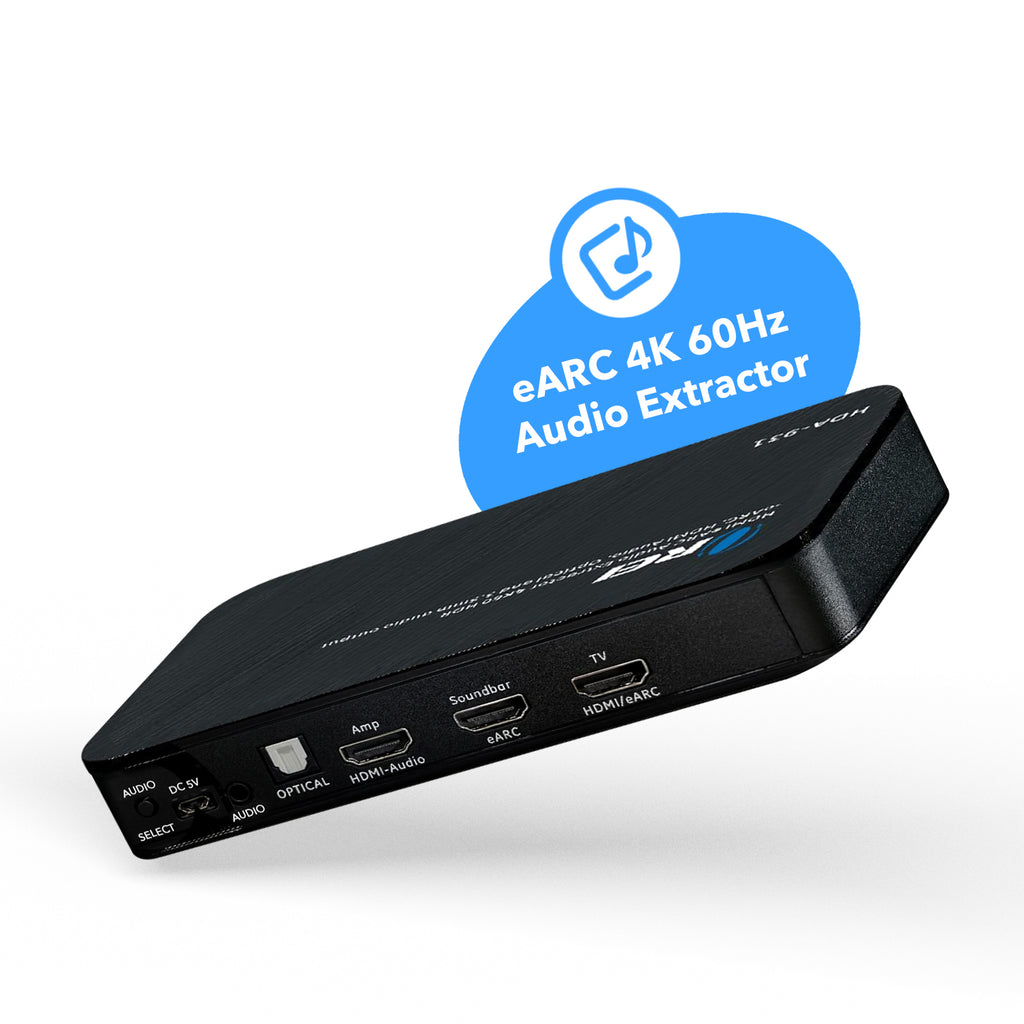

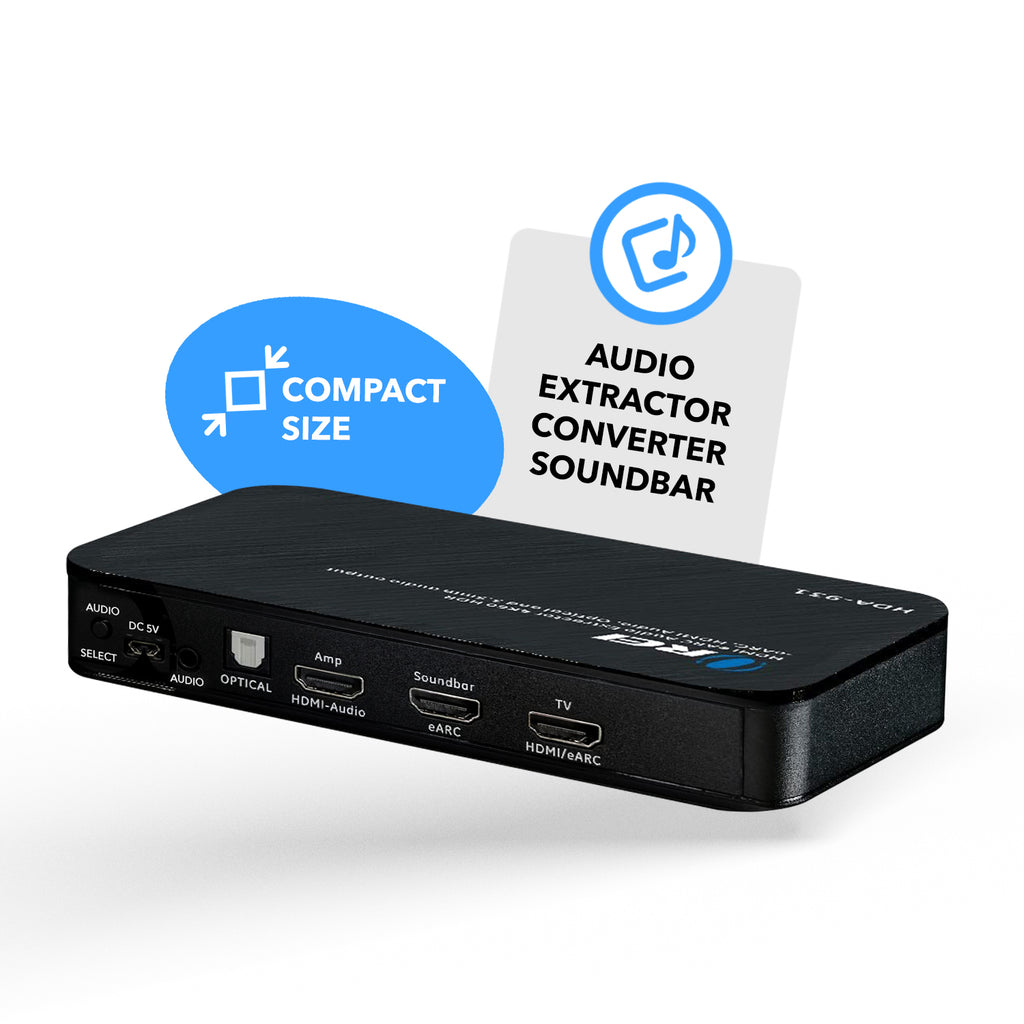

This audio extractor has three HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar, one for Amplifier HDMI audio. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

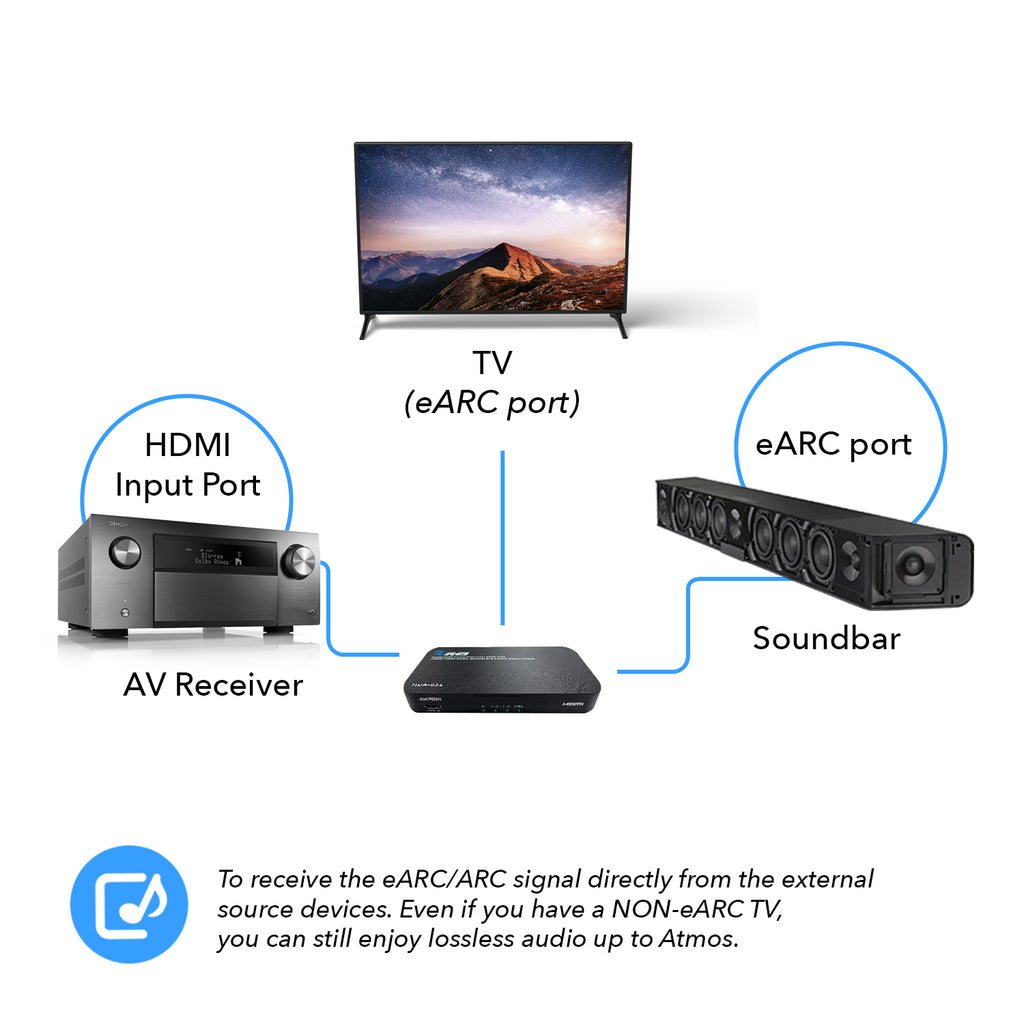

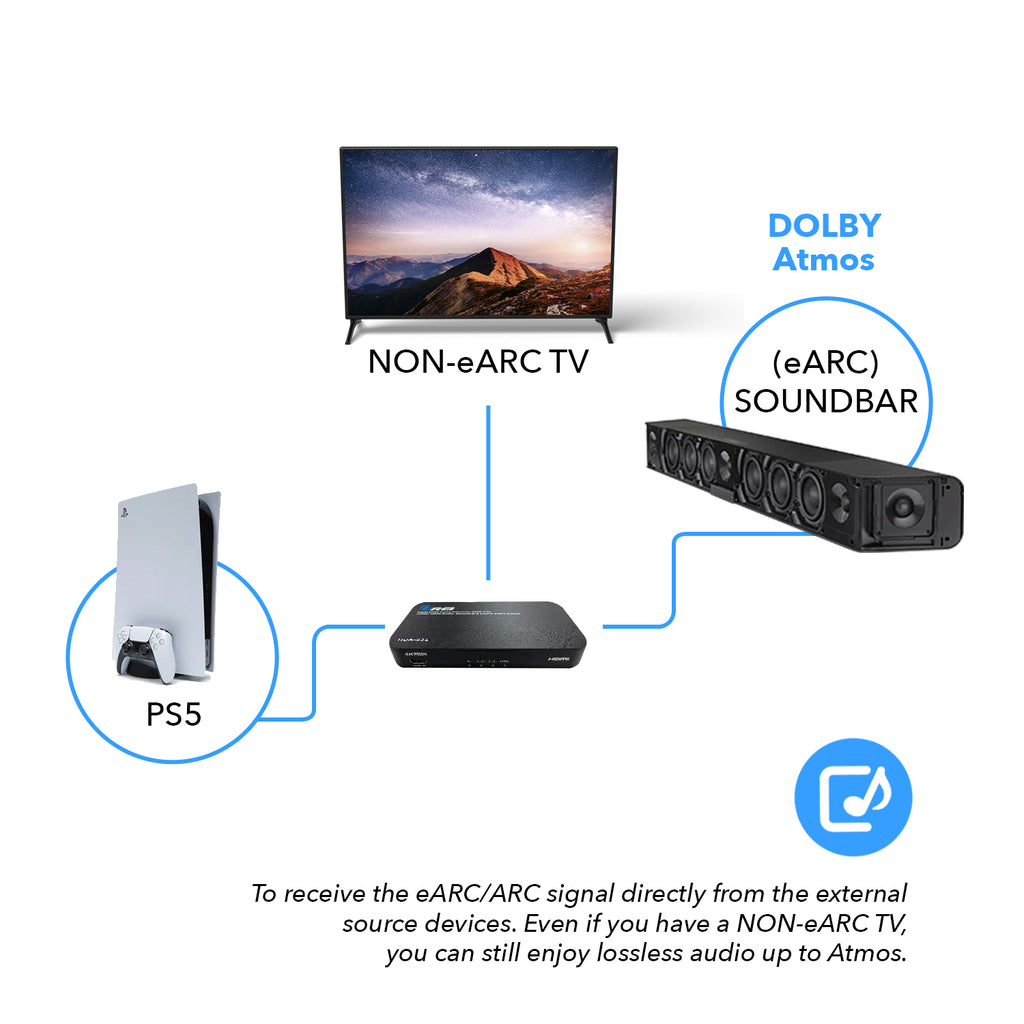

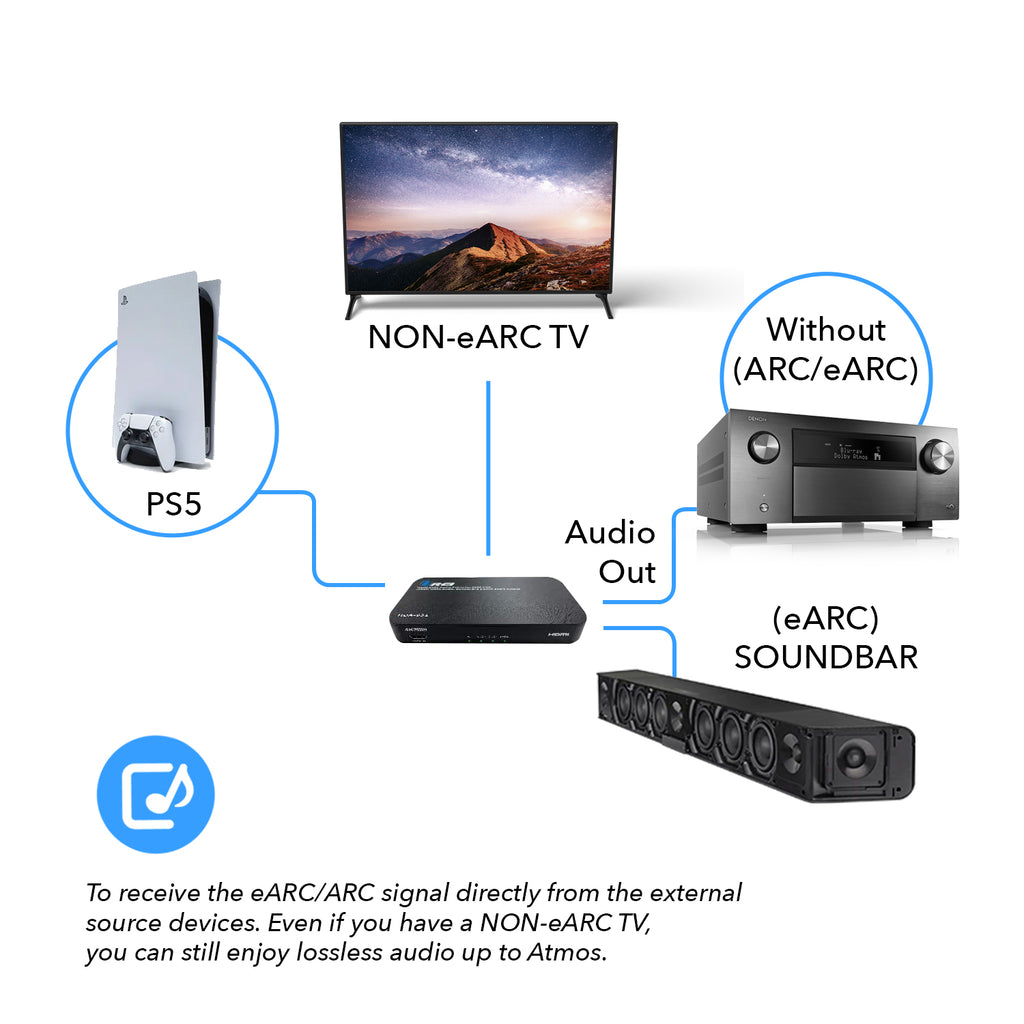

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.
Build-in eARC automatically detect the source of the signal (TV or external signal).
Key Features:
- Supports Video and audio separation

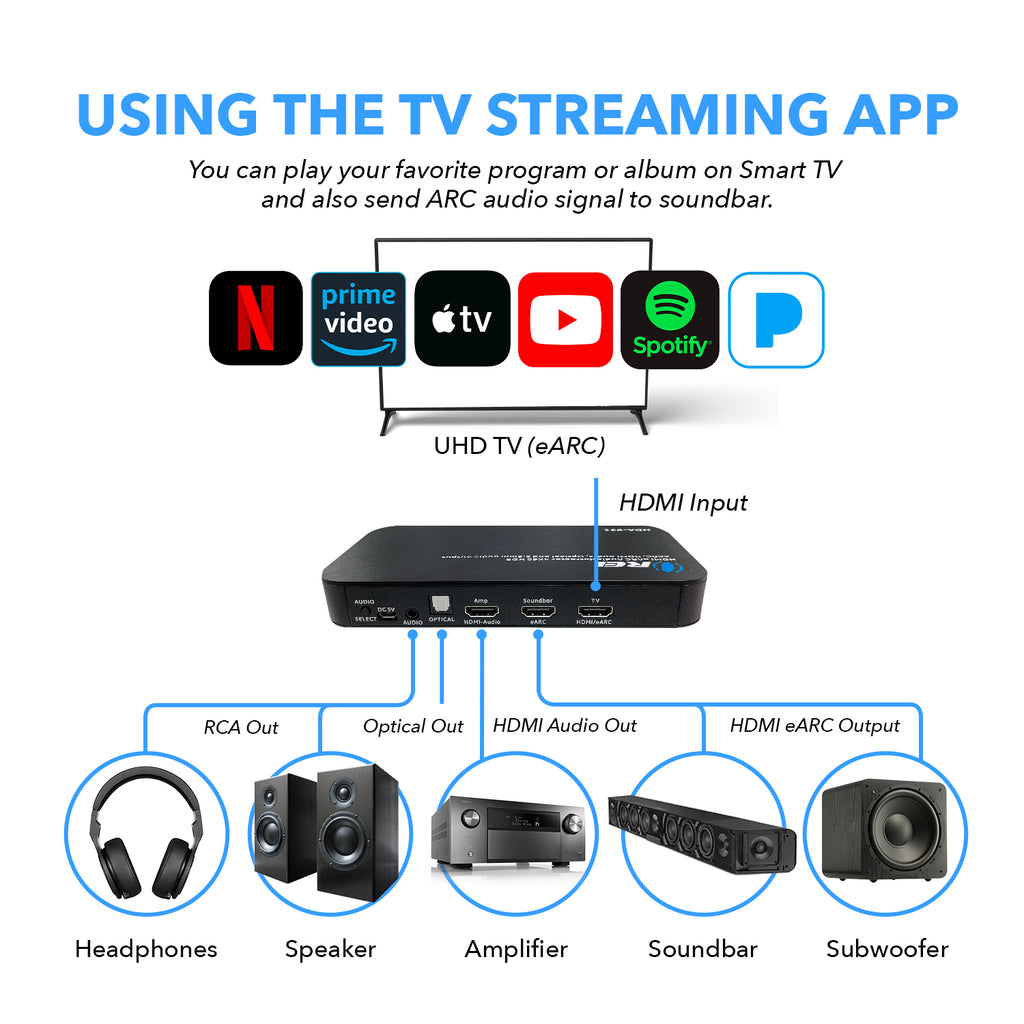

- Auto eARC Detection when using the TV's app or external devices
- Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
- Supports 4K@60 & HDR
- Compatible with Dolby Atmos (via HDMI)
- Supports Pixel clock rate up to 600 MHz
- Supports S/PDIF, Stereo 3.5mm audio output
- Supports DTS HD, Dolby TrueHD (via HDMI)
- Supports HDMI 2.0 / 2.1(eARC)
- HDCP 2.3 compliant
- Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
- Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF)
- AUDIO AND VIDEO
- INPUT PORTS: 1x HDMI Type A [19-pin female]
- OUTPUT PORTS: 3x HDMI Type A [19-pin female]
- 1x S/PDIF (Optical)
- 1x 3.5mm audio jack
- COMPLIANCES
- HDMI Compliance: HDMI 2.1
- HDCP Compliance: HDCP 2.3
- VIDEO OUTPUT
- Video Bandwidth: 18 Gbps
- Video Resolutions: Up to 4k@60Hz
- Color Space: RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0
- Color Depth: 12 bit
- CEC & EARC SUPPORT
- CEC Function: Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF
- eARC/ ARC Function: Yes
- SWITCHES
- EDID : Build-in eARC automatically detects the source of the signal (TV or external signal), no need to switch on or off

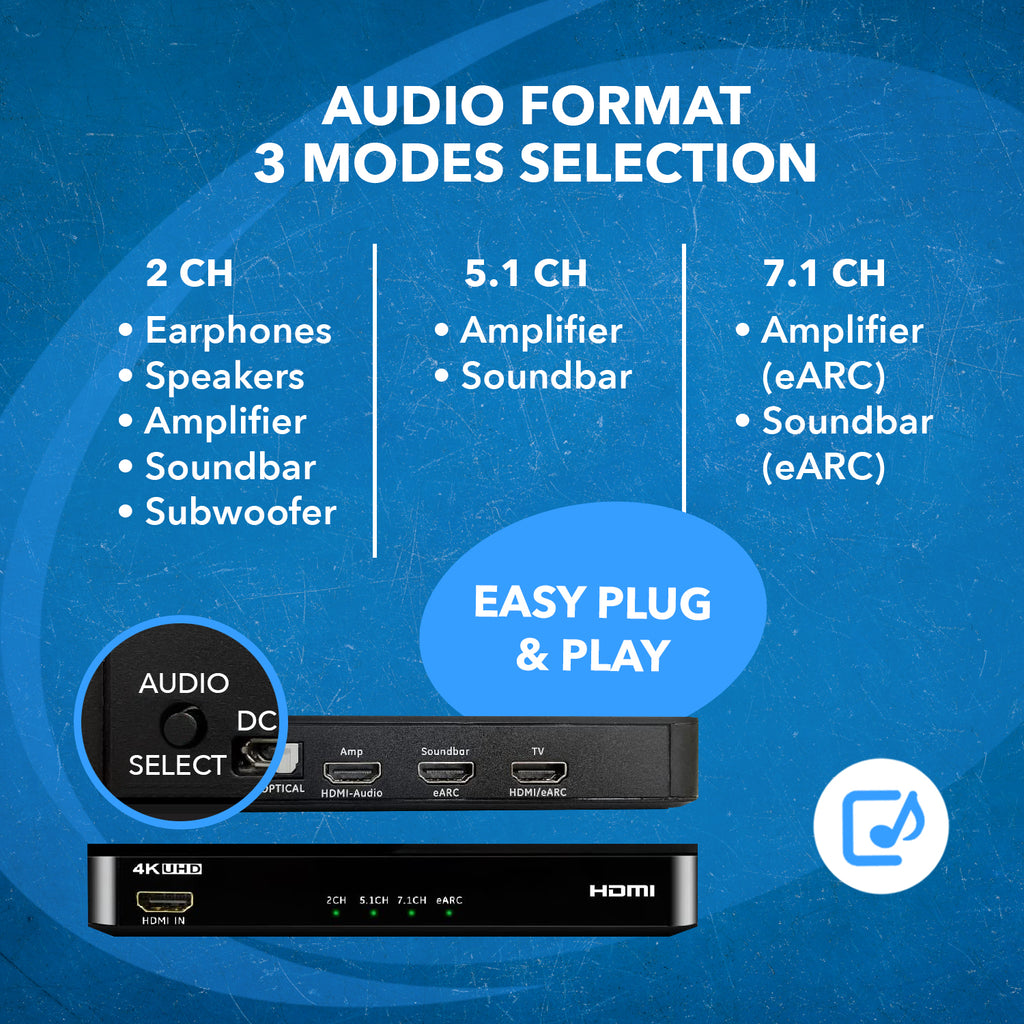

- Audio Select: Select the audio formats from 2Ch, 5.1Ch, 7.1Ch
- AUDIO OUTPUT
- HDMI Audio Formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

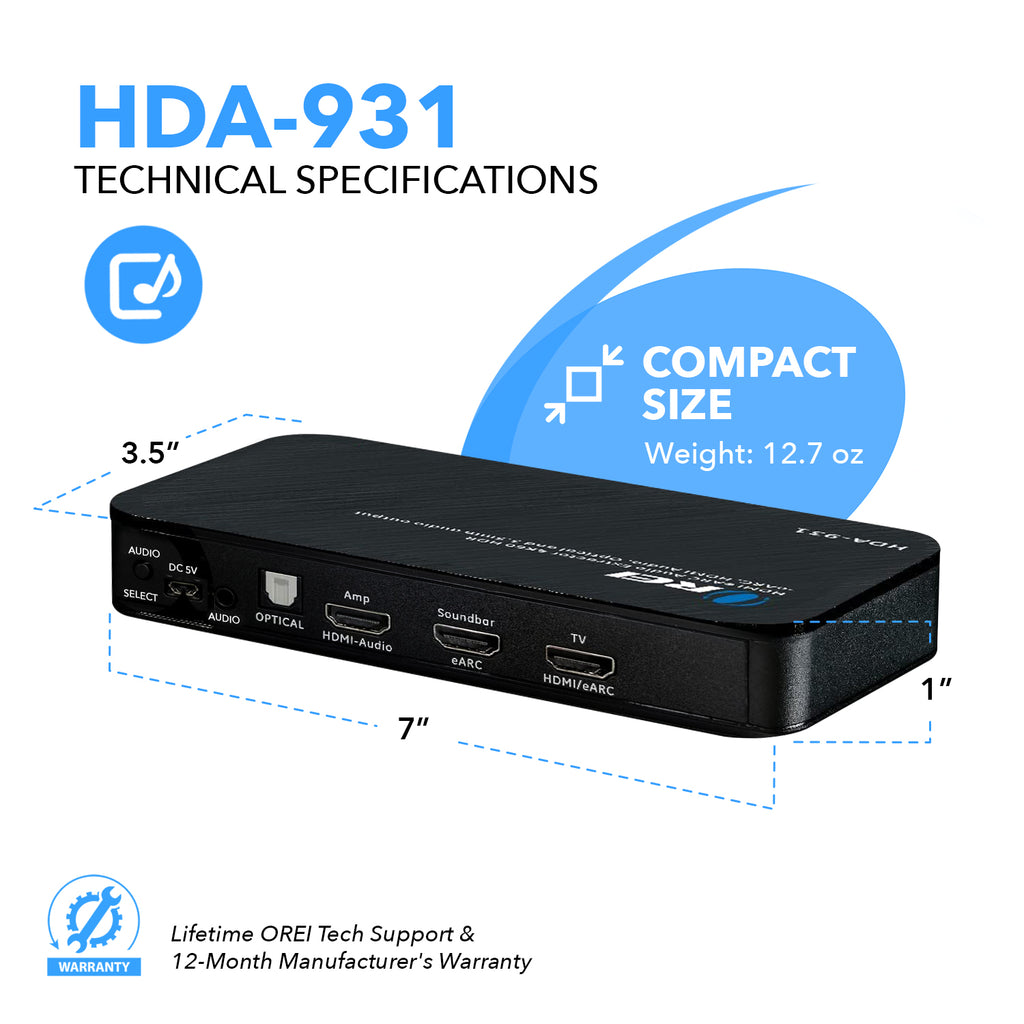

- DIMENSIONS & WEIGHT
- Height:26.3mm
- Width: 175mm
- Depth: 86.6mm
- Weight: 158g
- PROTECTION
- Operation Temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10~90 % RH
- ESD Protection: Contact discharge 4KV Air discharge 8KV
- POWER
- Power Consumption (Max): 5W(max)
- Power Supply:5V/1A
- PHYSICAL PROPERTIES
- Color: Black
- Housing:MABS+ABS
Includes:
- 1x HDMI Audio Extractor
- 1x DC 5V/1A power adaptor
- 1x 3.5mm to RL cable
- 1x User Manual
- 1 year manufacturer's warranty
