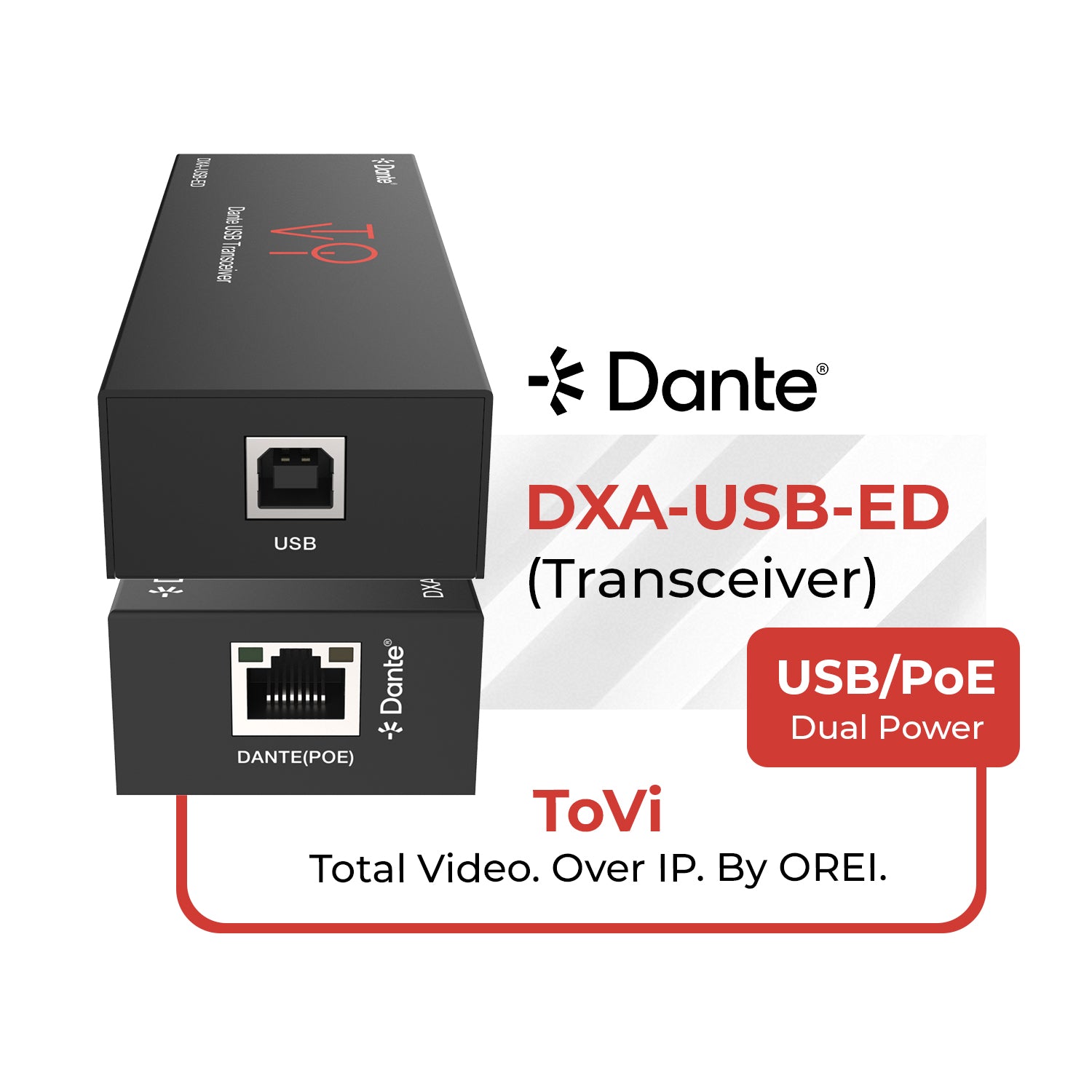

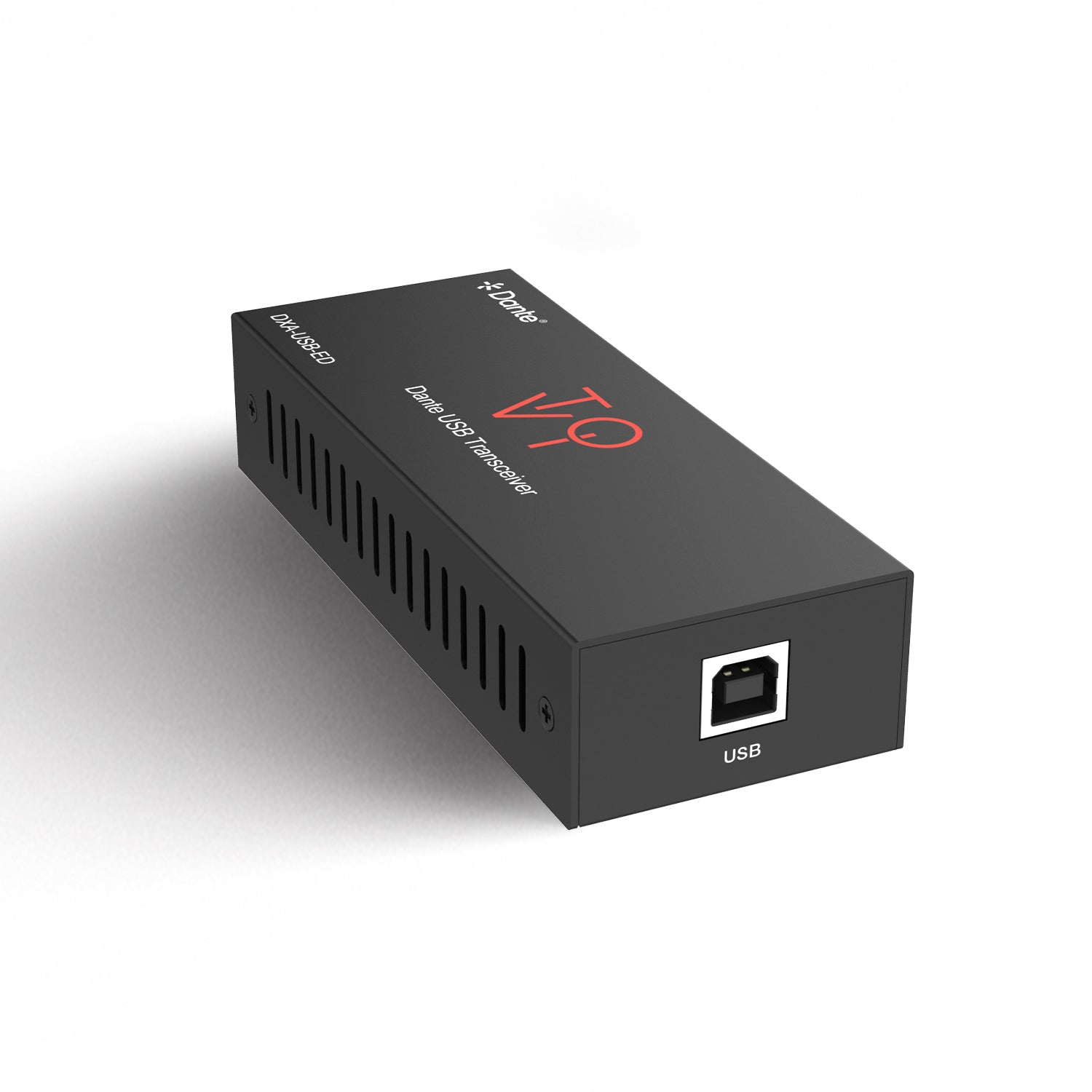

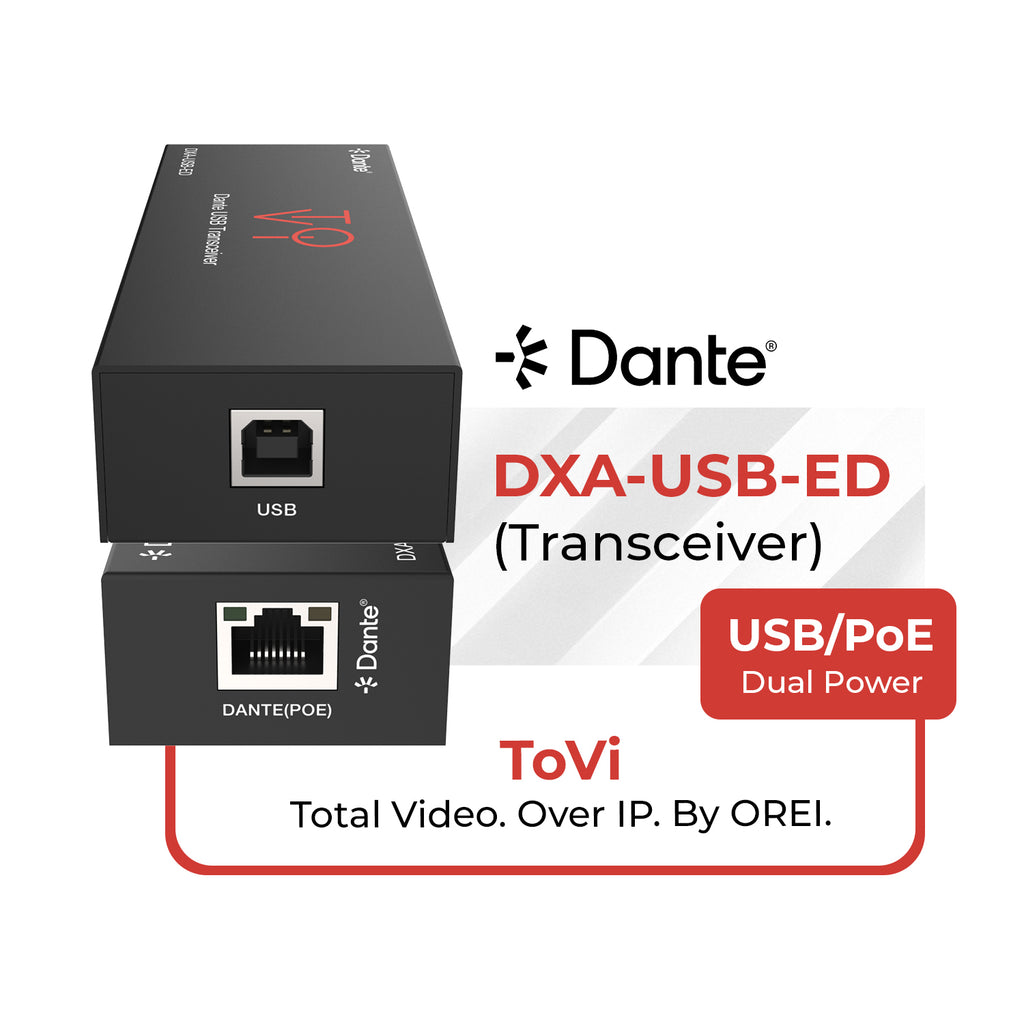

ToVi Dante® USB Transceiver DXA-USB-ED

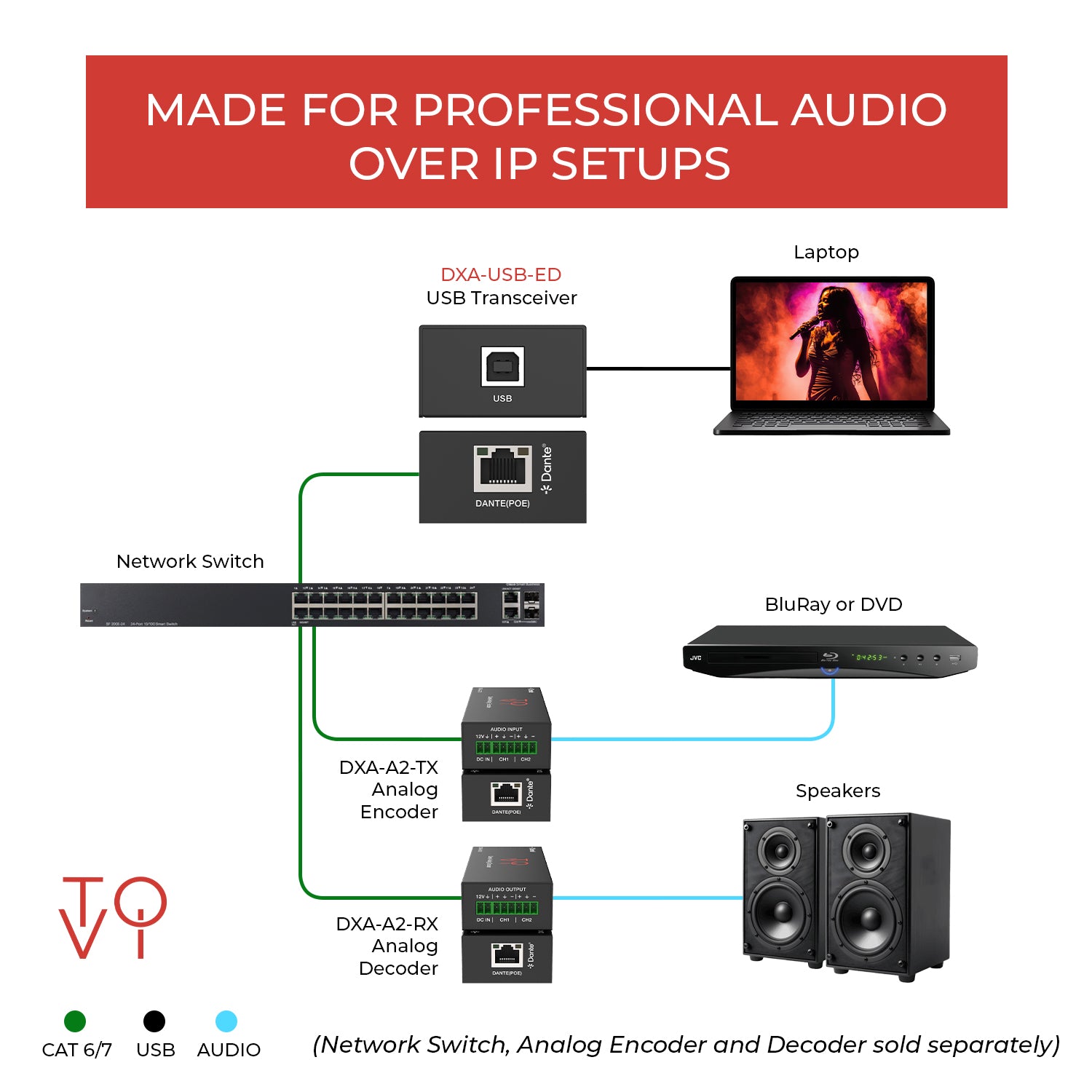

The ToVi DXA-USB-ED is a 2-channel Dante® audio transceiver that bridges USB audio devices with professional Dante® networks. Based on the Dante® Ultimo platform, this compact adapter functions as a high-quality USB sound card, enabling seamless transmission of analog audio over standard IP networks, with full AES67 compatibility. It delivers high-quality audio with 24-bit sampling rate at 44.1 kHz, 48 kHz, and 96 kHz and is compliant with USB Audio Device Class specifications v1.0
The unit can be powered directly from the USB port (5V) or via PoE (IEEE 802.3af Class 0). This plug-and-play device is ideal for various applications including live sound, recording studios, and broadcast environments where reliable network audio conversion is required.
Key Features:
Key Features:
- Dante® USB Audio Interface – Bridges USB audio devices with Dante® networks.
- USB Audio Class Compliant – Compatible with standard USB audio protocols.
- Analog Audio Support – Provides microphone input and speaker output functionality.
- High-Resolution Audio – 44.1kHz, 48kHz, and 96kHz sampling rates at 24-bit depth.
- Dante® Network Audio – AES67-compliant audio over IP transmission.

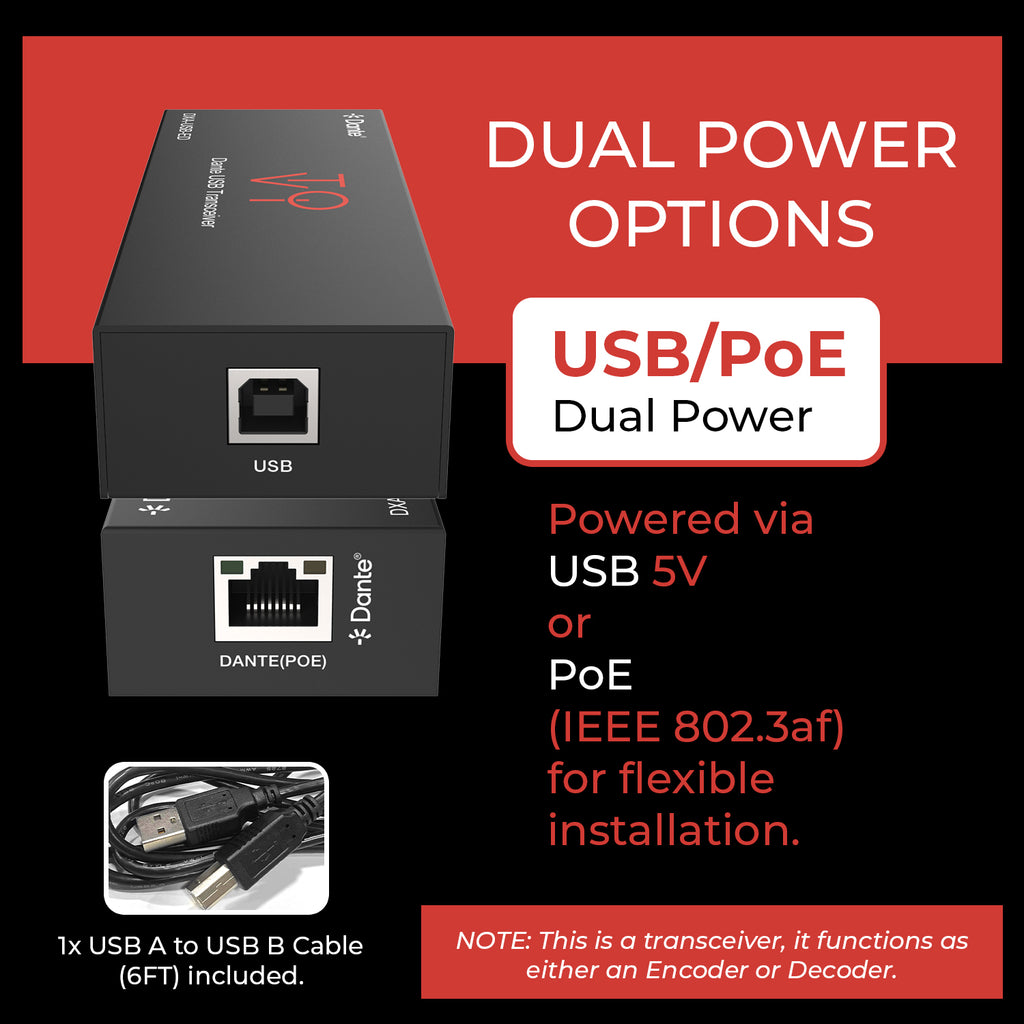

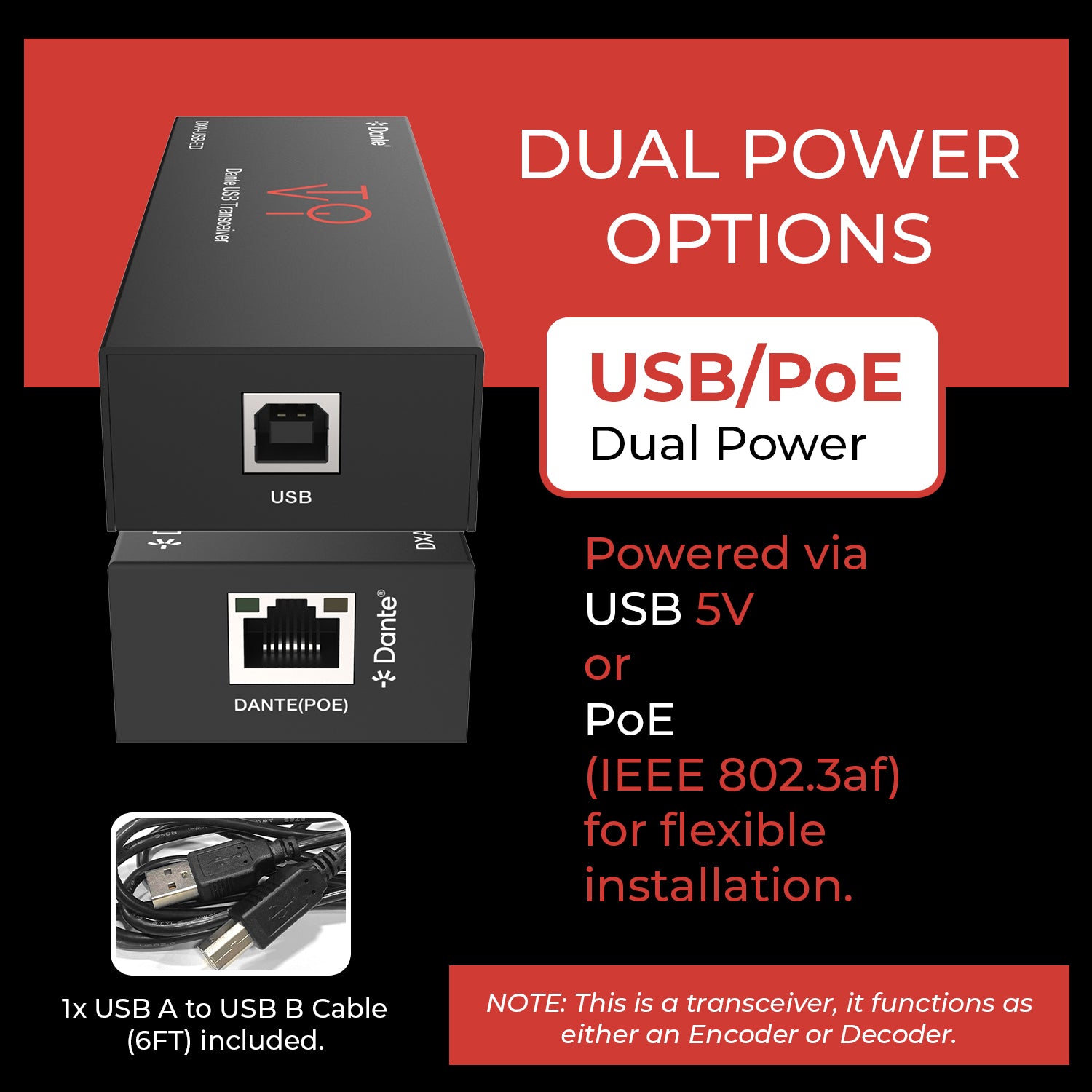

- Dual Power Options– Powered via USB 5V or PoE (IEEE 802.3af) for flexible installation.
- Compact Portable Design – Lightweight construction for mobile applications
- Plug-and-Play Setup – Simple installation without driver requirements.
- CONNECTIVITY
- 1× USB-B
- 1× DANTE [RJ45 connector, PoE]
- VIDEO OUTPUT
- Network Bandwidth: 100Mbps
- Transmission Distance: Up to 328ft / 100m (CAT6/6A)
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- KVM: No
- PoC/PoE: Yes
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: Yes
- HDBaseT: No
- RS-232: No
- POWER
- Power Consumption: 1W (Max)
- Power Supply: USB input: 5V-500MA
- PoE input: IEEE802.3af Class 0

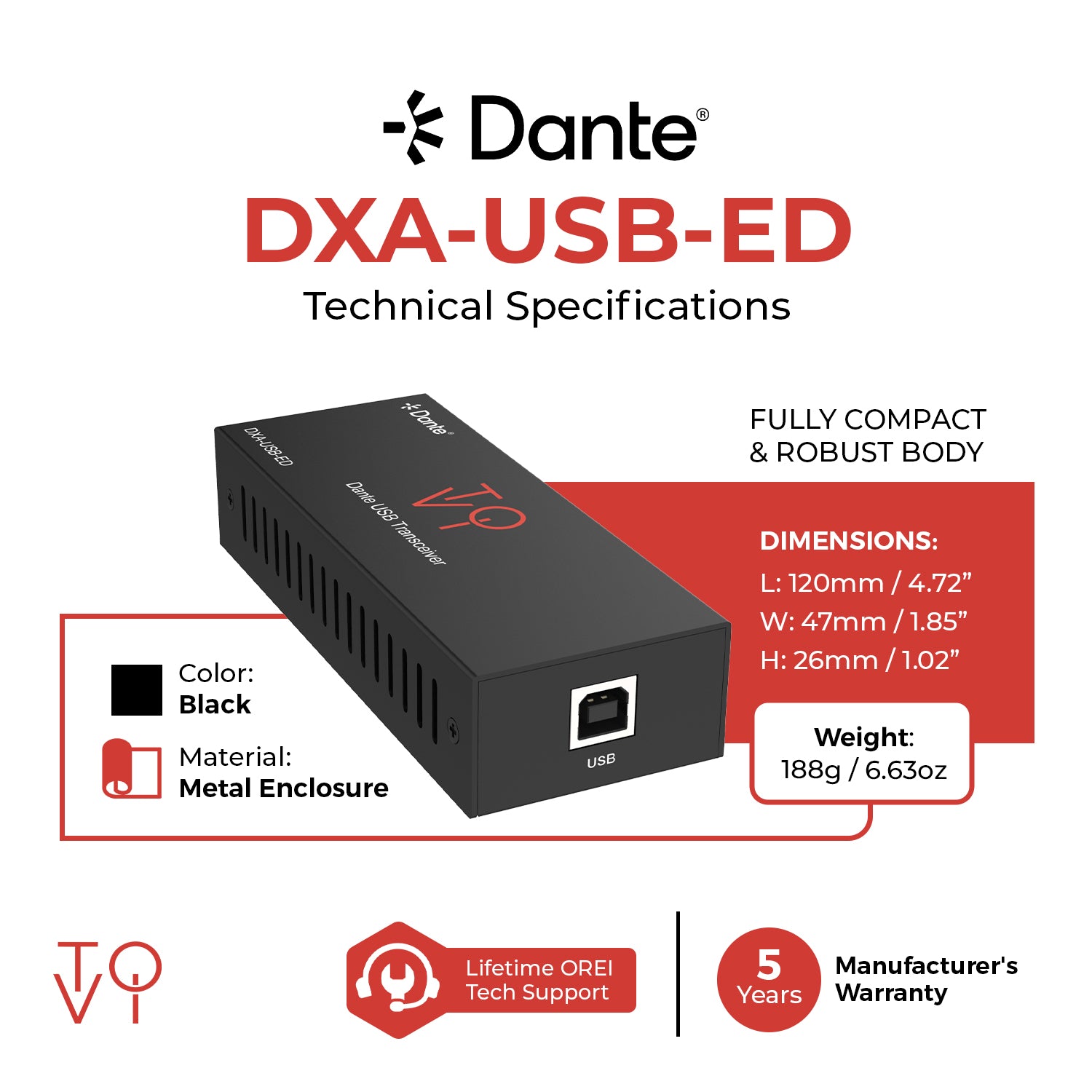

- DIMENSIONS & WEIGHT
- Length: 120mm / 4.72in
- Width: 47mm / 1.85in
- Height: 26mm / 1.02in
- Weight: 188g / 6.63oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 32°F~104°F / 0°C~40°C
- Storage Temperature: -4°F~140°F / -20°C~60°C
- Operating Humidity: 20%~80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)

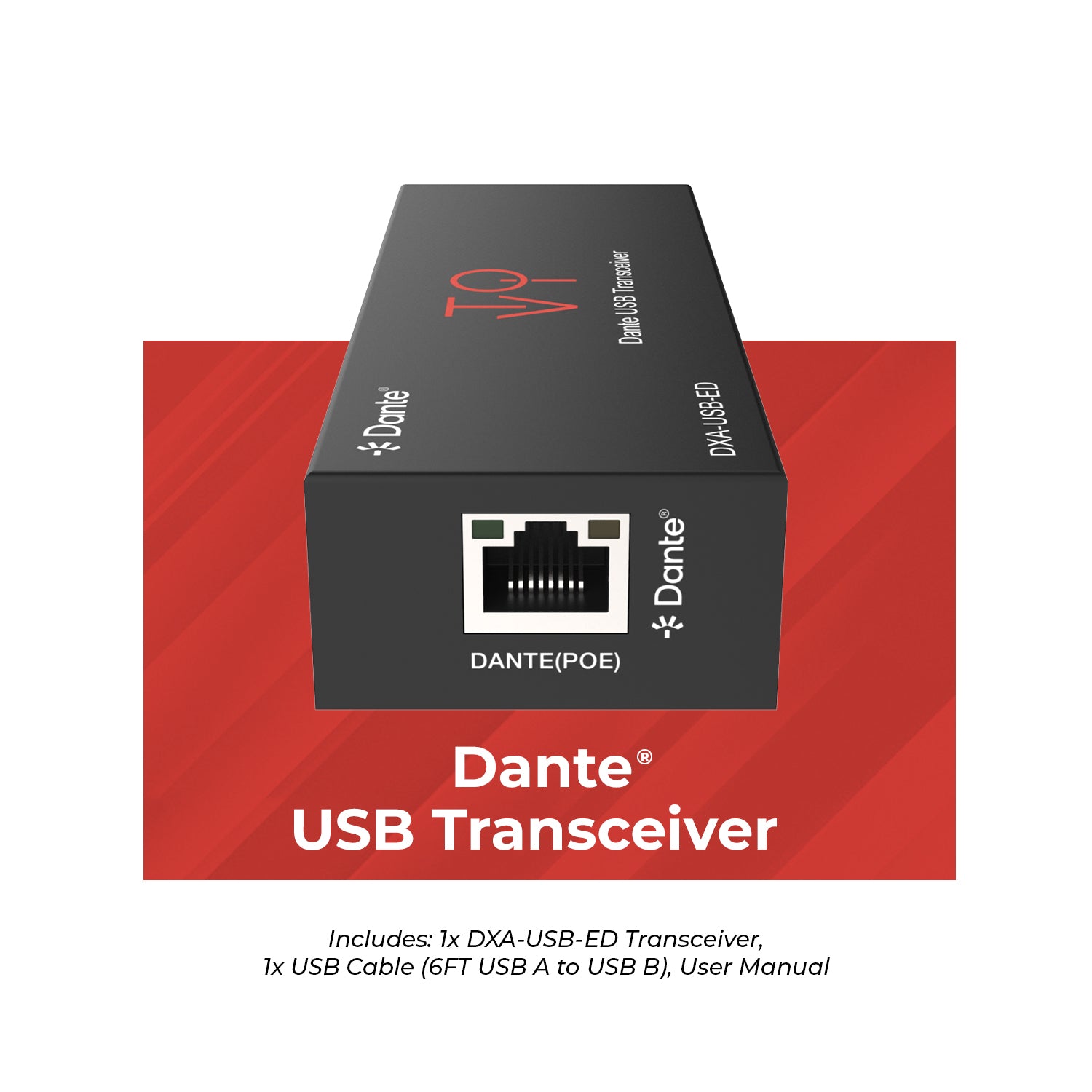

Includes:
- 1x DXA-USB-ED
- 1x USB Cable (6FT USB A to USB B)
- 1x User Manual
WARRANTY:
- 5-Year Manufacturer's Warranty
