BK-927: 8K eARC HDMI Audio Extractor Dolby Atmos

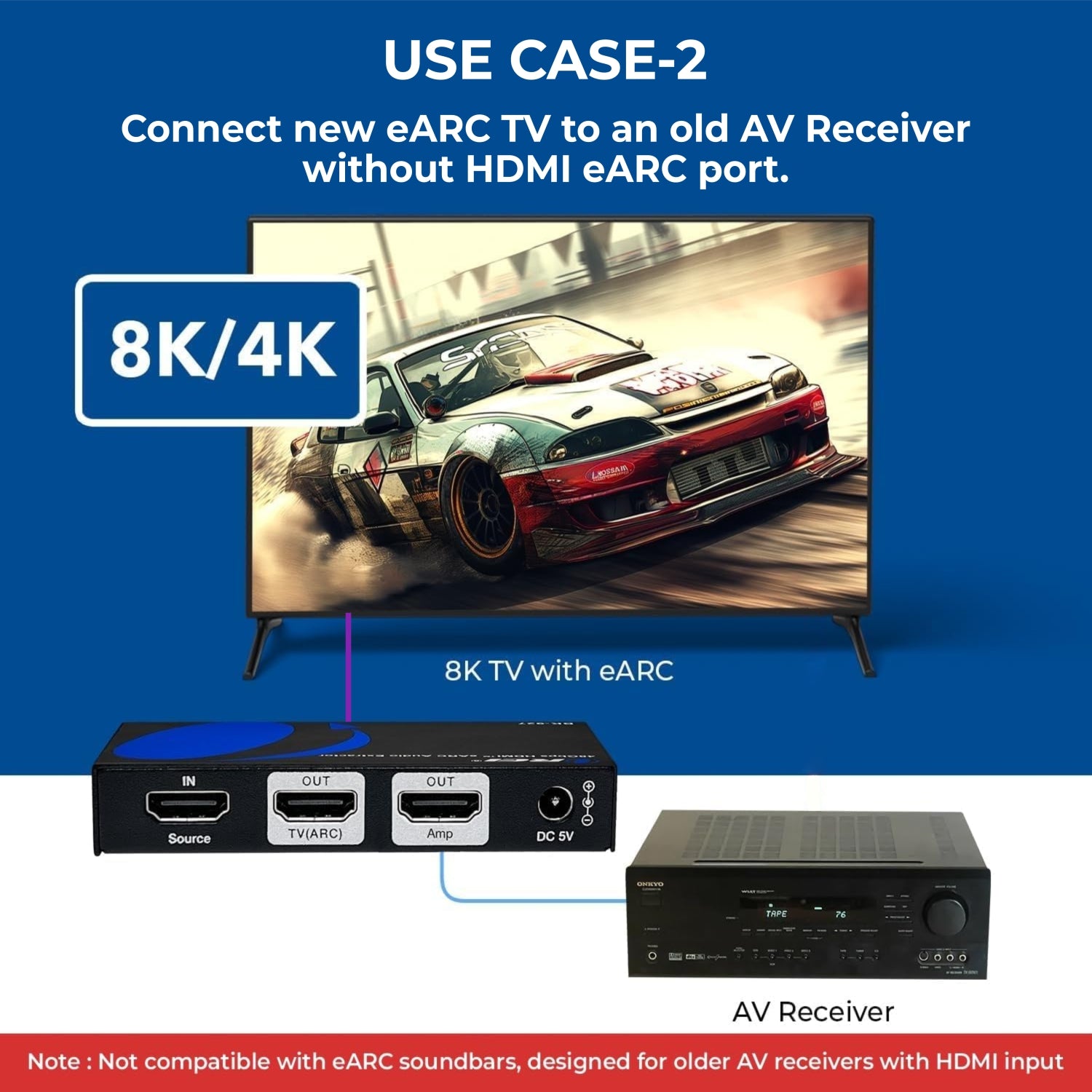

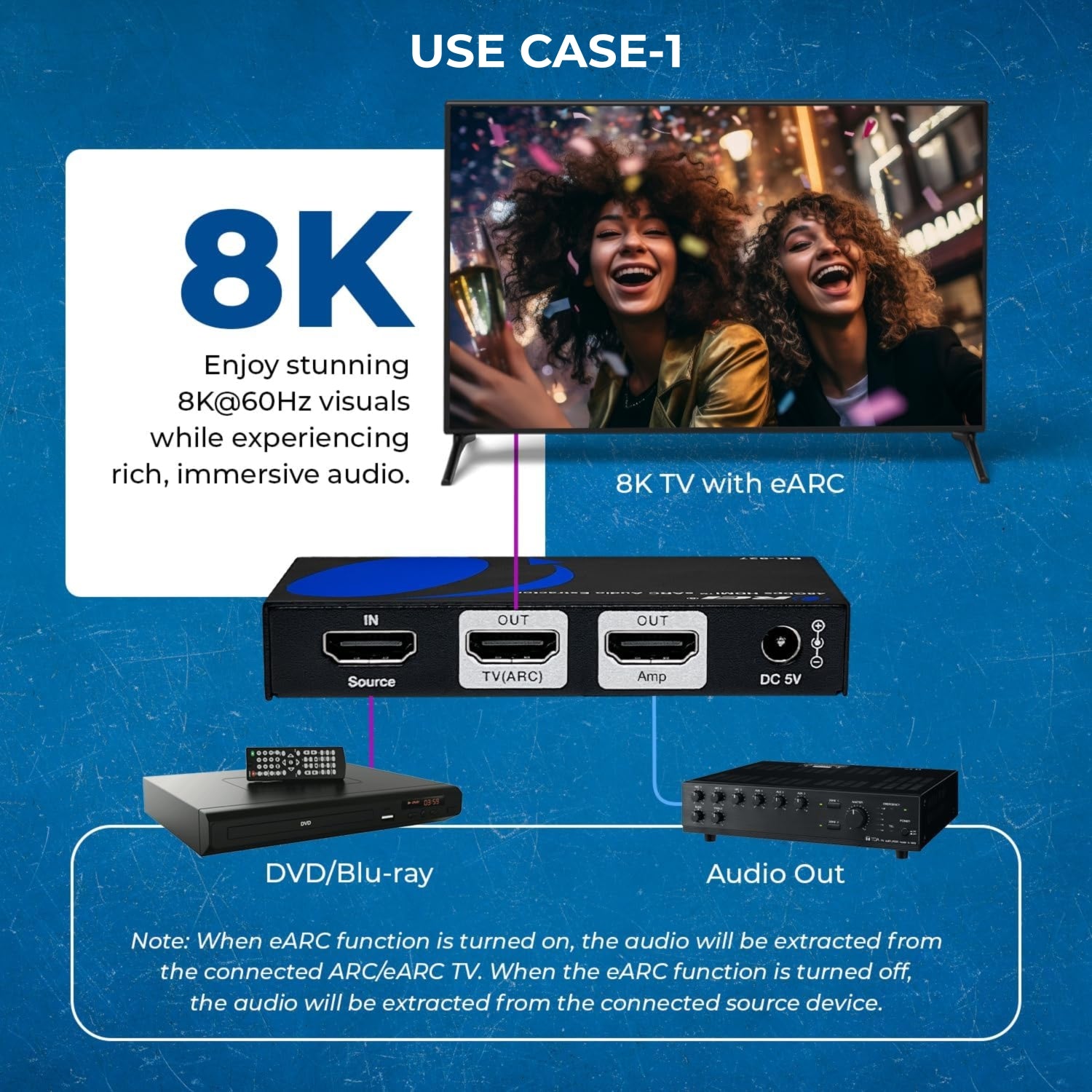

The BK-927 HDMI eARC Audio Extractor seamlessly extracts audio signals from your HDMI source or TV with ARC/eARC and delivers them to your AV receiver via HDMI. Boasting support for 48Gbps video bandwidth, this device complies with both HDMI 2.1 and HDCP 2.3 standards, ensuring compatibility with your latest devices. Enjoy stunning 8K@60Hz visuals while experiencing rich, immersive audio. The BK-927 features EDID management and also supports features such as VRR, ALLM & FVA. This device bridges the gap between modern HDMI technology and your older audio amplifier, offering a simple solution for elevating your audio experience. Plus, it supports CEC control from your TV to both the source and amplifier, streamlining your home theatre setup.
Key Features:
- HDMI 2.1 and HDCP 2.3 compliant
- 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- VRR, ALLM, QMS, QFT, SBTM support
- HDR/10/10+, Dolby Vision, and HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master, DTS:X Audio pass-through from HDMI
- ARC Audio Extraction from an ARC/eARC TV
- Features CEC control
- Advanced EDID management
- Compact design and easy installation
- INPUT: 1 × HDMI [Type A, 19-pin female]
- OUTPUT: 1 × HDMI [Type A, 19-pin female] For eARC TV
- OUTPUT: 1 × HDMI [Type A, 19-pin female] For AV receiver
- CONTROL: 1 × SERVICE [USB Type C, Update port]
- HDMI 2.1 We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
- 8K@60Hz 4:2:0: 6.6 Feet
- 4K@60Hz 4:4:4: 30 Feet
- Video Bandwidth: 48 Gbps FRL & 18 Gbps TMDS
- Video Resolutions: Up to 8K@60Hz 4:2:0
- CEC: Yes
- ARC: Yes
- USB KVM: No
- PoC/PoE: No
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- Has loop out port: No
- Number of Loop out ports: 0
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, SD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- HDMI Compliance HDMI 2.1
- HDCP Compliance HDCP 2.3
- Power Consumption: 3.38W (Max)
- Power Supply: Input: AC 100-240V 50/60Hz
- Power Supply: Output: DC 5V/1A
- Length: 95mm / 3.74in
- Width: 68mm / 2.68in
- Height: 18mm / 0.71in
- Weight: 178g / 6.28oz
- Color: Black
- Housing: Metal Enclosure
Package content and Warranty:
Includes:
-
1x BK-927
-
1x Power Adapter
-
User Manual
Warranty:
- 1-Year manufacturer's warranty
